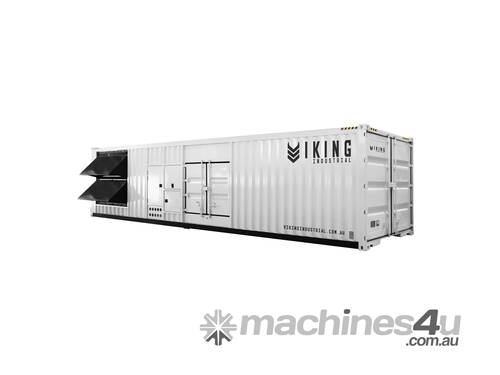

MODEL
T-HAWK2250-C
PRIME RATING
1,800/2,250 kW/kVA
ENGINE
CUMMINS QSK60-G21
FUEL TANK
1,000 L
STANDBY RATING(AMPS)
3,441
STANDBY RATING(kW/kVA)
1,980/2,475
ALTERNATOR
STAMFORD S7L1D-J4
FUEL CONSUMPTION (L/h)
361
TECHNICAL DATA
Specifications
VIKING MODEL: T-HAWK2250-C
VIKING MODEL: CUMMINS QSK60-G21
ALTERNATOR: STAMFORD S7L1D-J4
STANDBY AMPS: 3,441A
STANDBY RATING(AMPS) (KW/KVA): 1,980kW/2,475kVA
PRIME RATING (KW/KVA): 1,800kW/2,250kVA
CONTINUOUS POWER (COP): 1,386kW/1,733kVA
DIMENSIONS AND WEIGHT
LENGTH (MM): 13,106MM
WIDTH (MM): 2,440MM
HEIGHT (MM): 2,896MM
WEIGHT (KG): 23,000KG
FUEL SYSTEM
FUEL TANK CAPACITY: 1,000L
PRIME FUEL CONSUMPTION 100%: 455L/H
PRIME FUEL CONSUMPTION 75%: 361L/H
PRIME FUEL CONSUMPTION 50%: 249L/H
