MODEL
T-HAWK500-C
PRIME RATING
400/500 kW/kVA
ENGINE
CUMMINS KTA19-G3A
FUEL TANK
950 L
STANDBY RATING(AMPS)
765
STANDBY RATING(kW/kVA)
440/550
ALTERNATOR
STAMFORD HCI544C1
FUEL CONSUMPTION (L/h)
73.5
;TECHNICAL DATA
Specifications

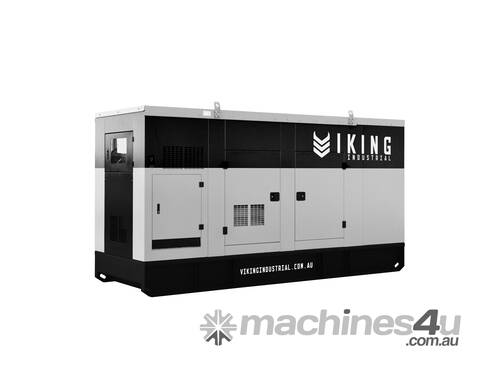

VIKING MODEL: T-HAWK500-C
VIKING MODEL: CUMMINS KTA19-G3A
ALTERNATOR: STAMFORD HCI544C1
STANDBY AMPS: 765A
STANDBY RATING(AMPS) (KW/KVA): 440kW/550kVA
PRIME RATING (KW/KVA): 400kW/500kVA
CONTINUOUS POWER (COP): 308kW/385kVA
DIMENSIONS AND WEIGHT
LENGTH (MM): 4,660MM
WIDTH (MM): 1,600MM
HEIGHT (MM): 2,375MM
WEIGHT (KG): 4,520KG
FUEL SYSTEM
FUEL TANK CAPACITY: 950L
PRIME FUEL CONSUMPTION 100%: 94.2L/H
PRIME FUEL CONSUMPTION 75%: 73.5L/H
PRIME FUEL CONSUMPTION 50%: 51.9L/H
