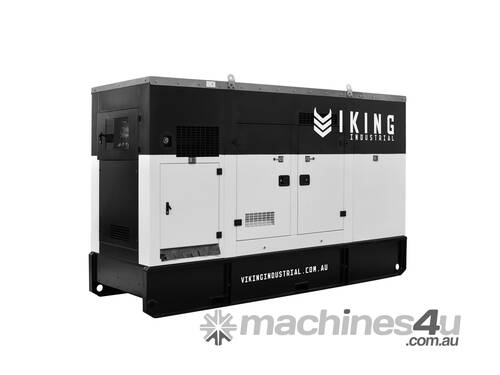

MODEL
T-HAWK630-V
PRIME RATING
500/625 kW/kVA
ENGINE
VOLVO TWD1643GE
FUEL TANK
880 L
STANDBY RATING(AMPS)
956
STANDBY RATING(kW/kVA)
550/688
ALTERNATOR
STAMFORD HCI 544FS1
FUEL CONSUMPTION (L/h)
97.1
TECHNICAL DATA
Specifications
VIKING MODEL: T-HAWK630-V
VIKING MODEL: VOLVO TWD1643GE
ALTERNATOR: STAMFORD HCI 544FS1
STANDBY AMPS: 956A
STANDBY RATING(AMPS) (KW/KVA): 550kW/688kVA
PRIME RATING (KW/KVA): 500kW/625kVA
CONTINUOUS POWER (COP): 385kW/481kVA
DIMENSIONS AND WEIGHT
LENGTH (MM): 4,660MM
WIDTH (MM): 1,654MM
HEIGHT (MM): 2,435MM
WEIGHT (KG): 6,160KG
FUEL SYSTEM
FUEL TANK CAPACITY: 880L
PRIME FUEL CONSUMPTION 100%: 124.4L/H
PRIME FUEL CONSUMPTION 75%: 97.1L/H
PRIME FUEL CONSUMPTION 50%: 68.5L/H
