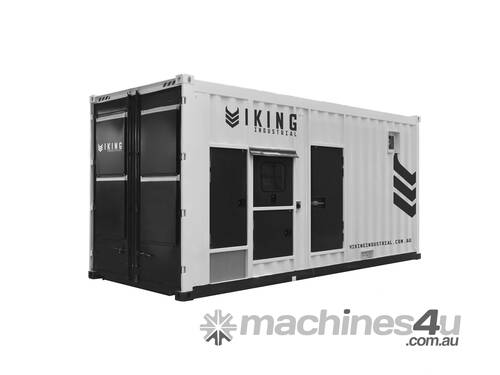

MODEL
T-HAWK910-C
PRIME RATING
728/910 kW/kVA
ENGINE
CUMMINS KTA38-G2A
FUEL TANK
1,000 L
STANDBY RATING(AMPS)
1,392
STANDBY RATING(kW/kVA)
801/1,001
ALTERNATOR
STAMFORD S6L1D-D4
FUEL CONSUMPTION (L/h)
147
TECHNICAL DATA
Specifications
VIKING MODEL: T-HAWK910-C
VIKING MODEL: CUMMINS KTA38-G2A
ALTERNATOR: STAMFORD S6L1D-D4
STANDBY AMPS: 1,392A
STANDBY RATING(AMPS) (KW/KVA): 801kW/1,001kVA
PRIME RATING (KW/KVA): 728kW/910kVA
CONTINUOUS POWER (COP): 561kW/701kVA
DIMENSIONS AND WEIGHT
LENGTH (MM): 6,058MM
WIDTH (MM): 2,440MM
HEIGHT (MM): 2,896MM
WEIGHT (KG): 12,200KG
FUEL SYSTEM
FUEL TANK CAPACITY: 1,000L
PRIME FUEL CONSUMPTION 100%: 191L/H
PRIME FUEL CONSUMPTION 75%: 147L/H
PRIME FUEL CONSUMPTION 50%: 98L/H
