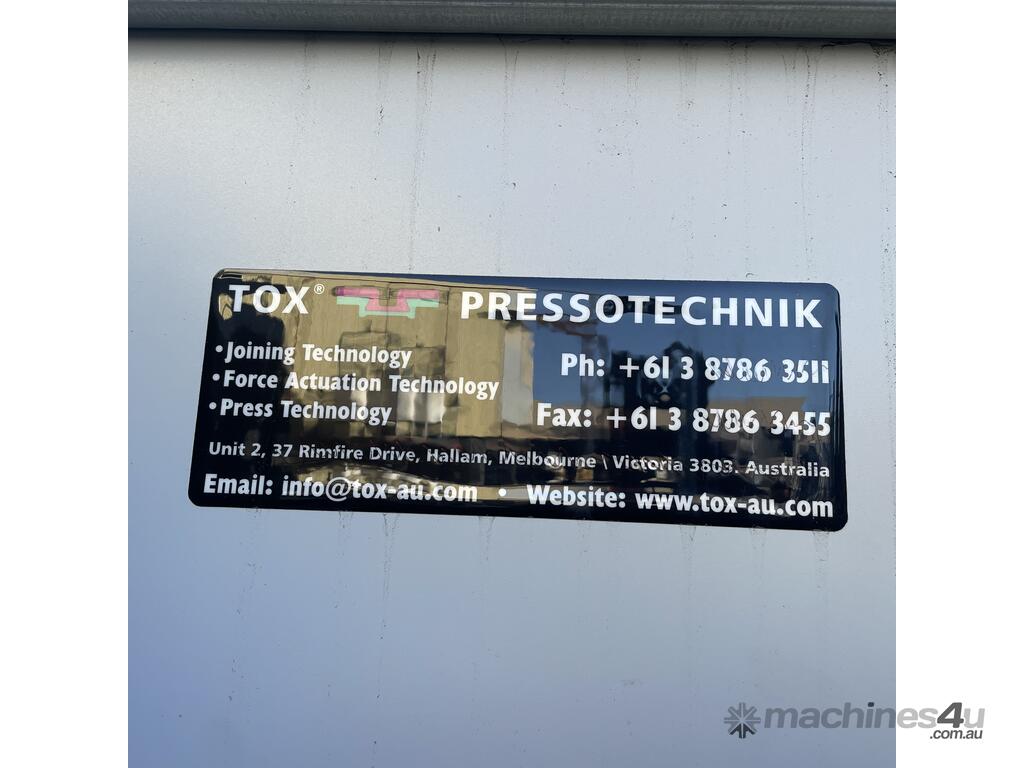

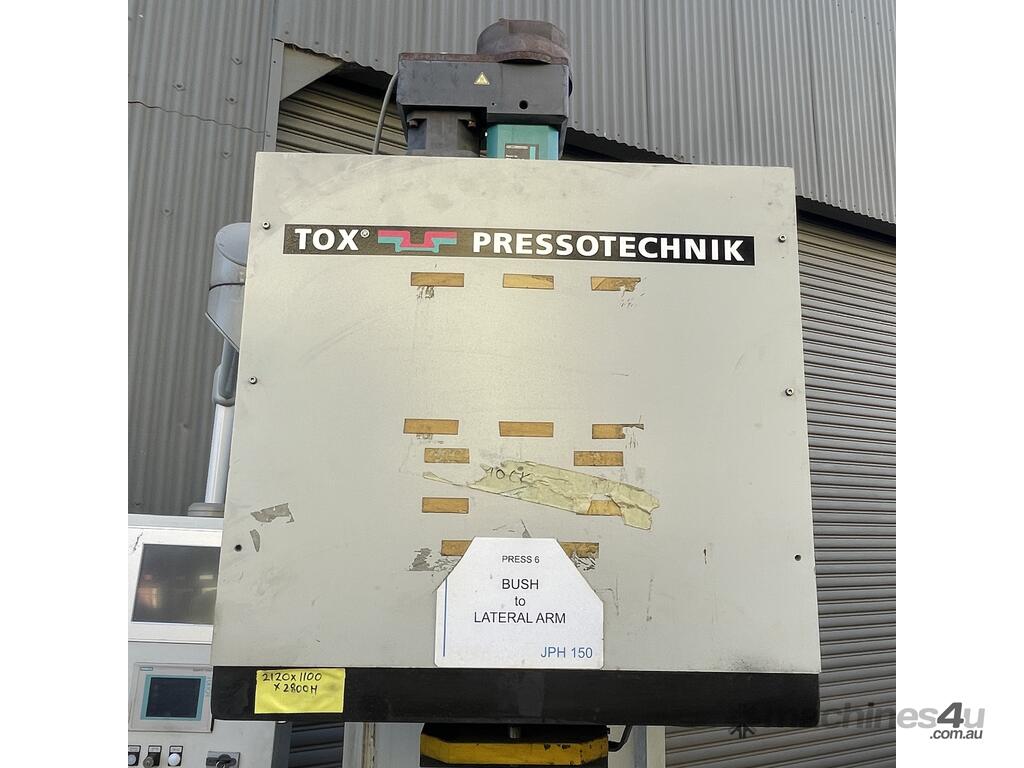

TOX 100kN 10t Pressotechnik Servo Drive Electric Press
These units were originally from ZF Services Australia Pty Ltd who made suspension components for Holden and others.
They are fully electric non hydraulic press, they have the ability to record a force profile for every part assembled with the press for quality assurance and validation of safety critical automotive parts.
The machine frames are very heavily built and would be capable of operating at greater tonnage if fitted with hydraulics.

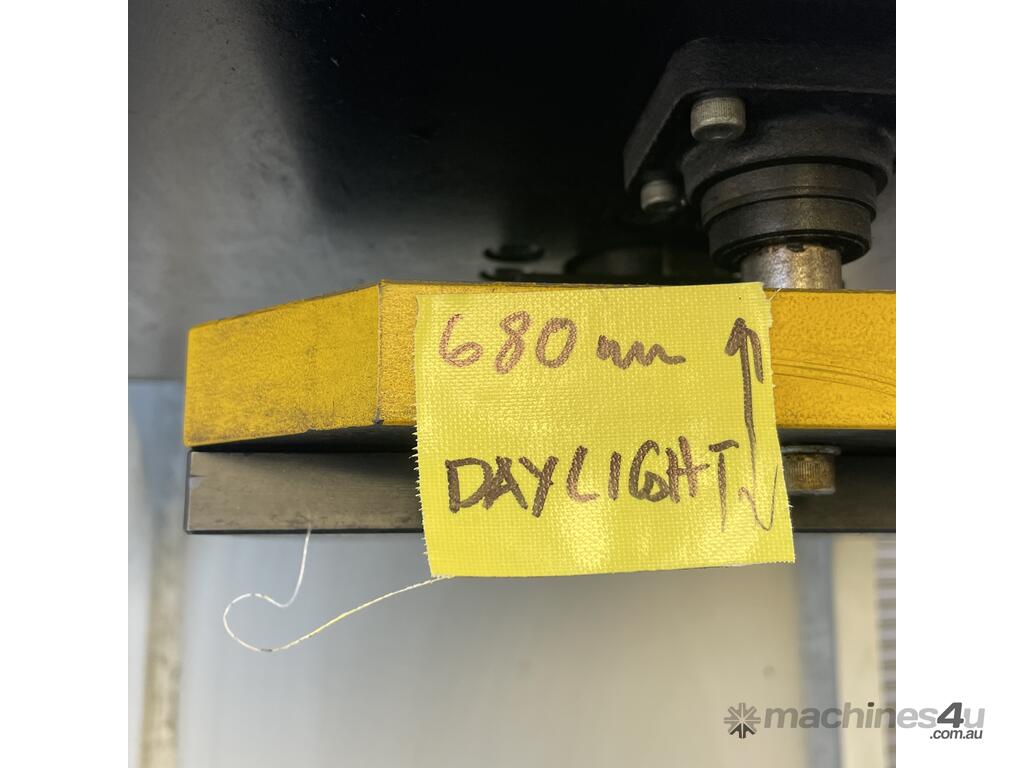

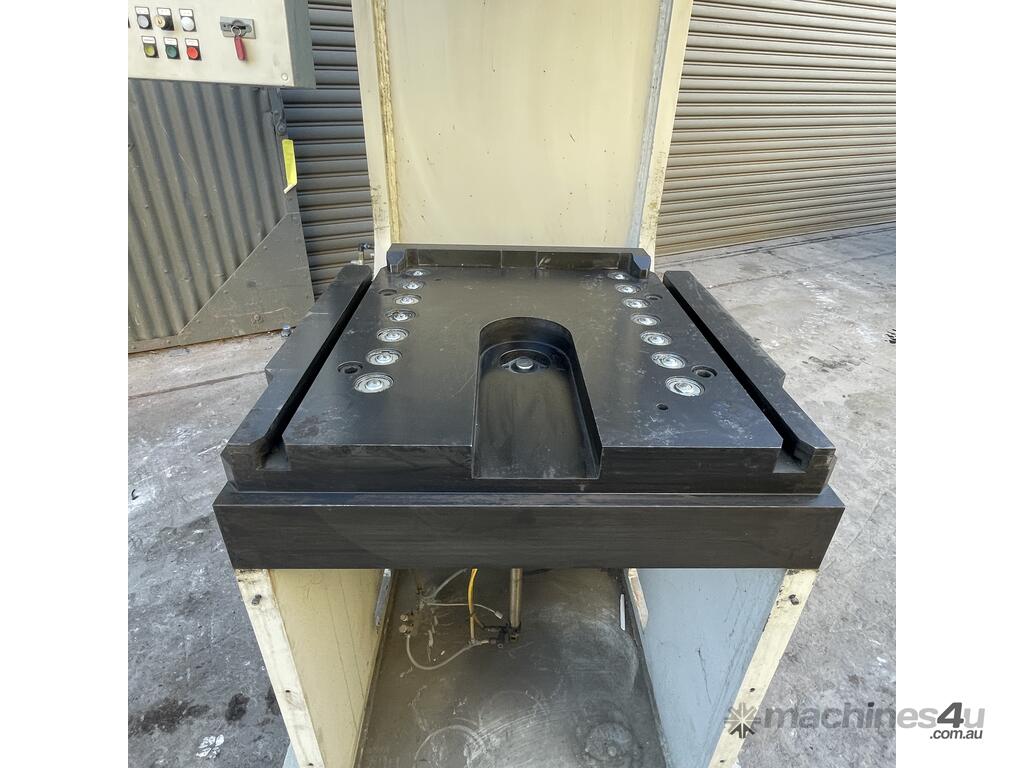

680MM Daylight

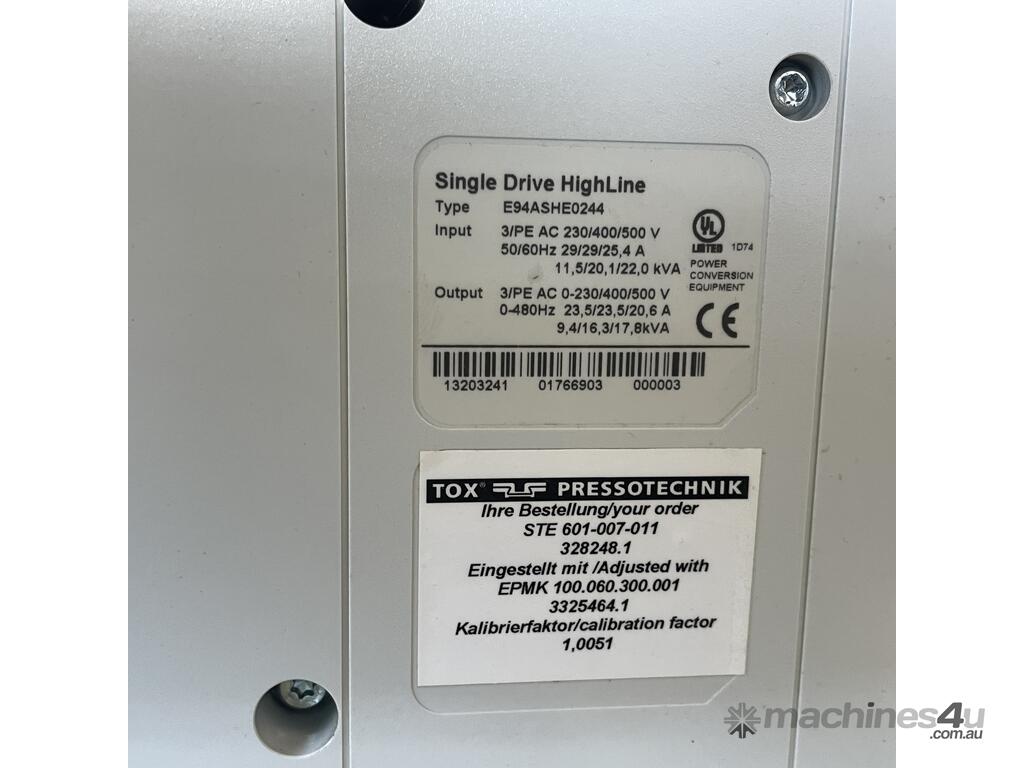

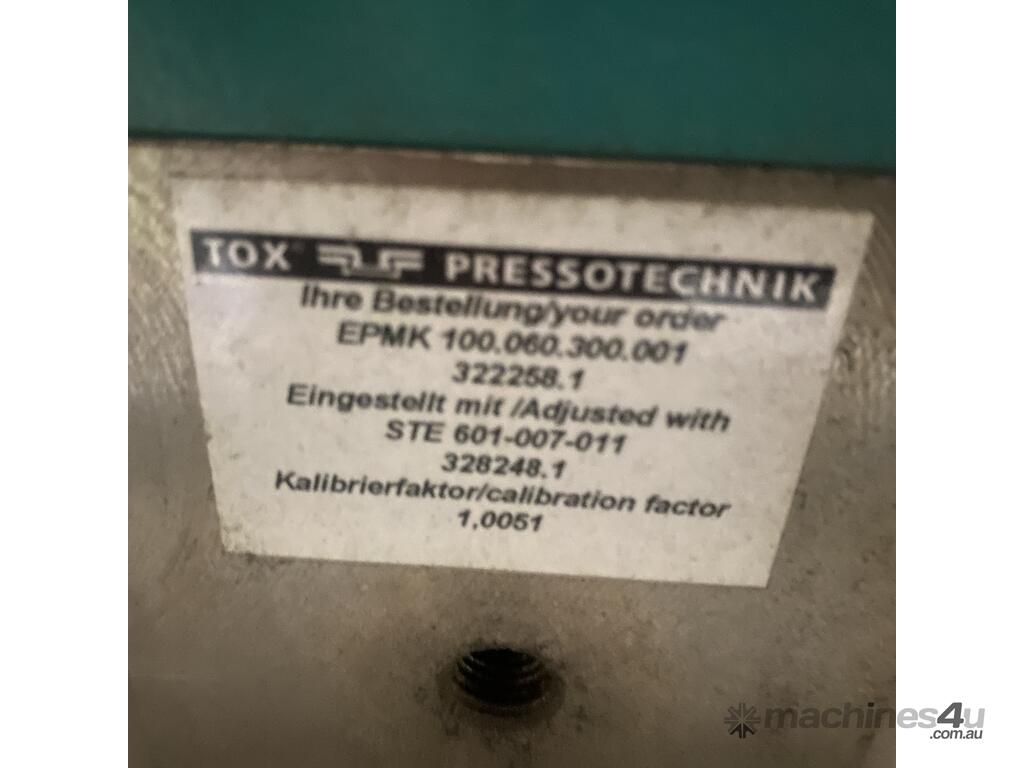

EPMK 100.060.300.001

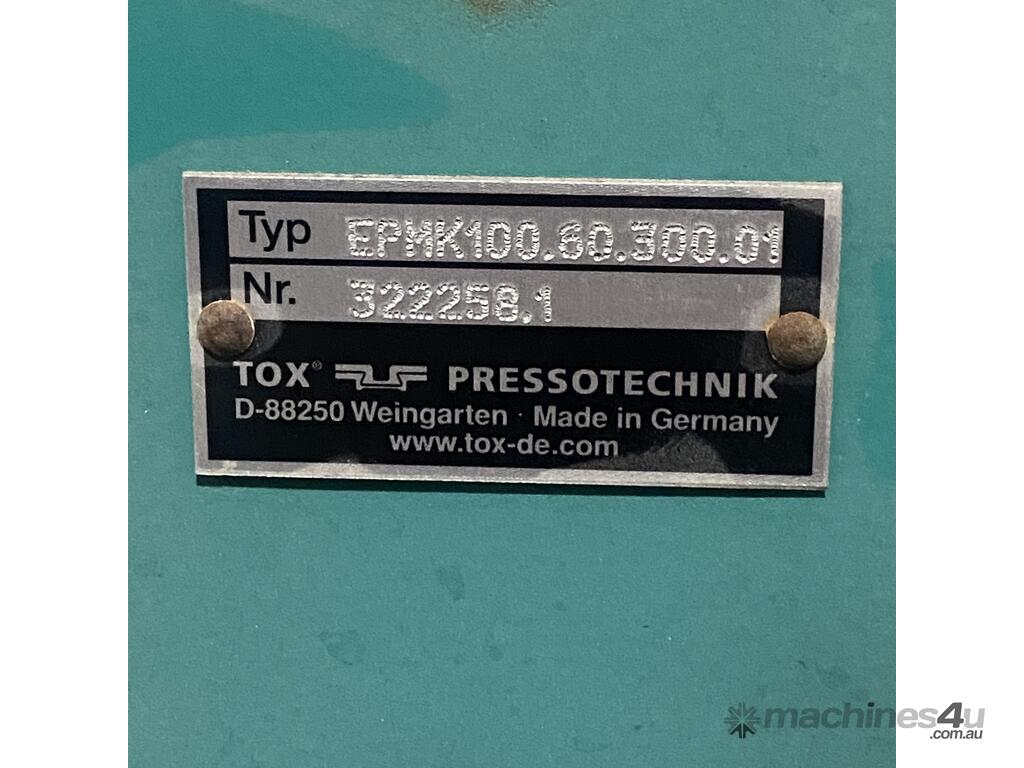

EPMK 100.80.300.01

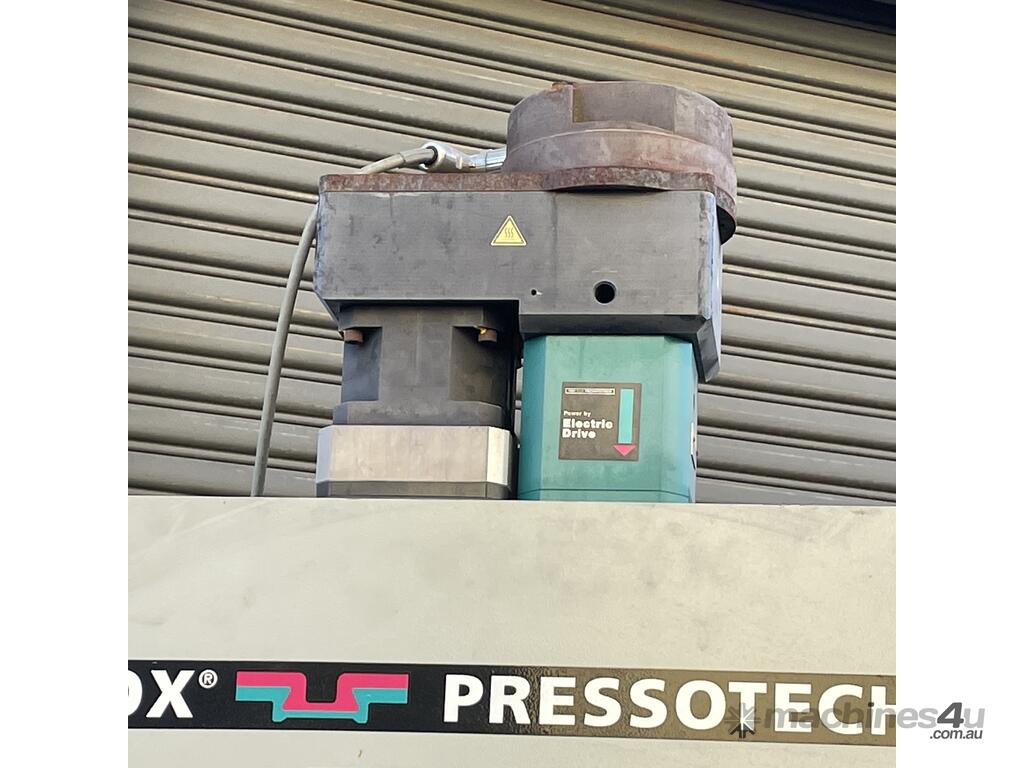

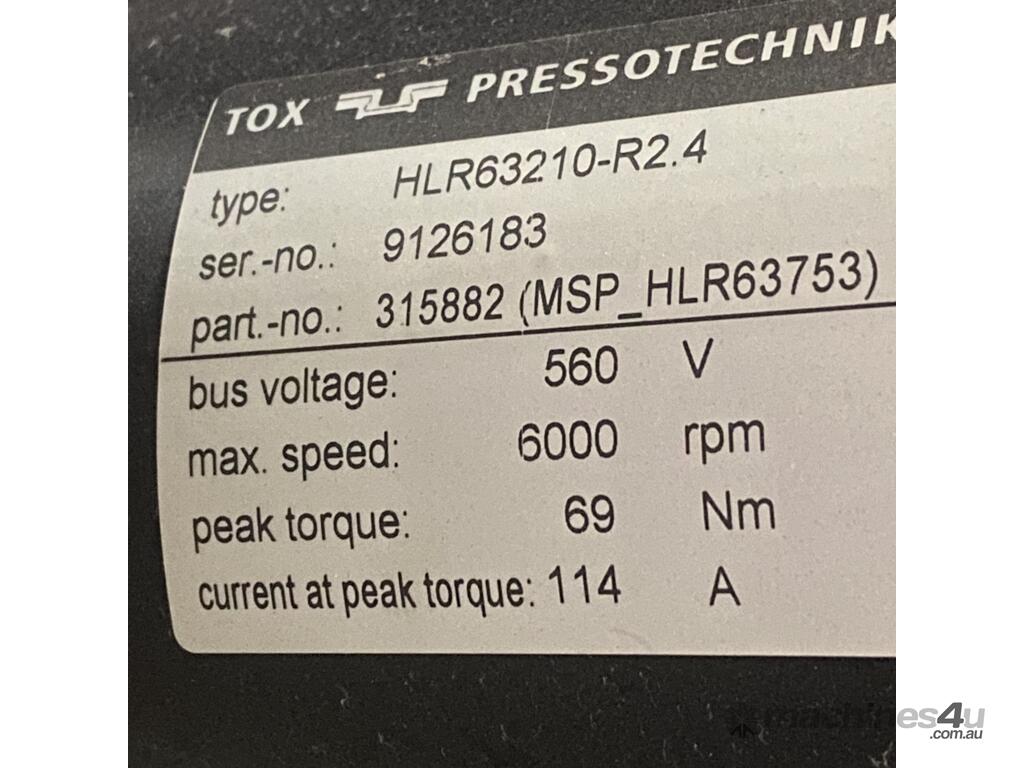

TOX Servo Motor:
HLR63210-r2.4
315882 (MSP_HLR63753)
6000 rpm

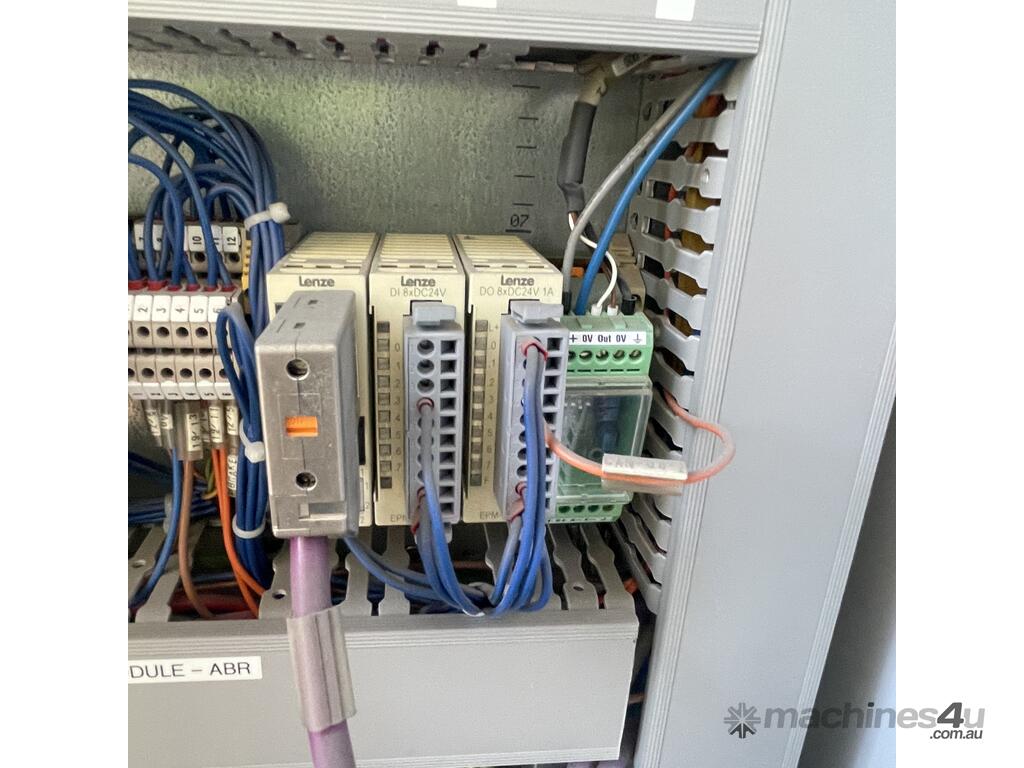

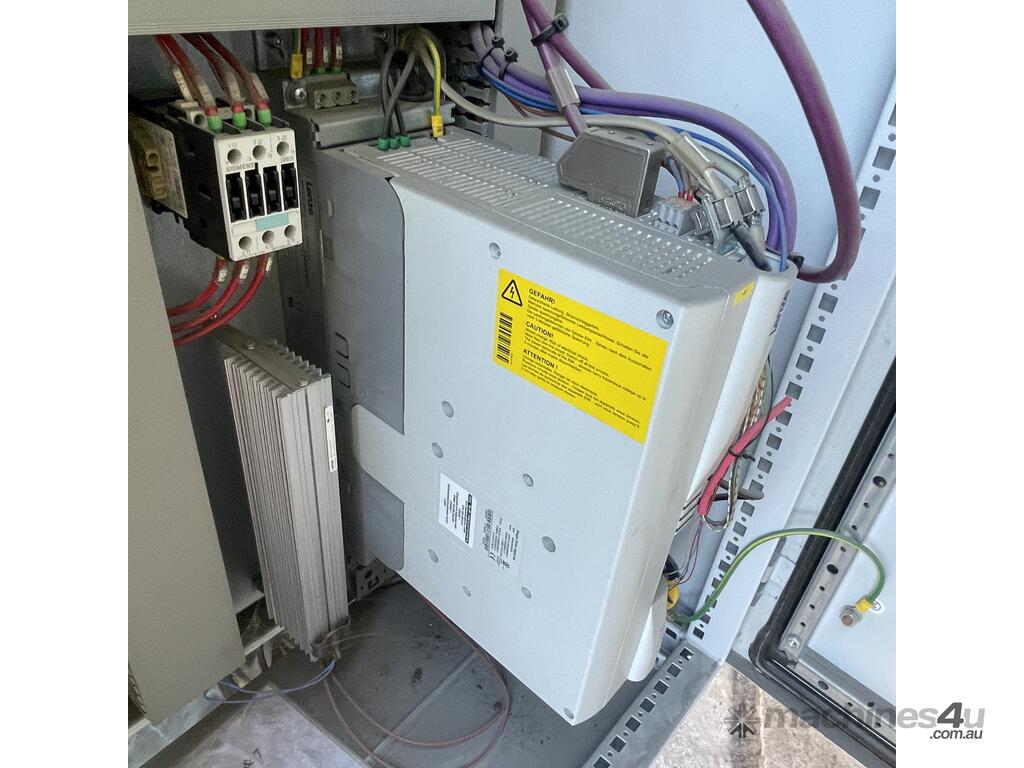

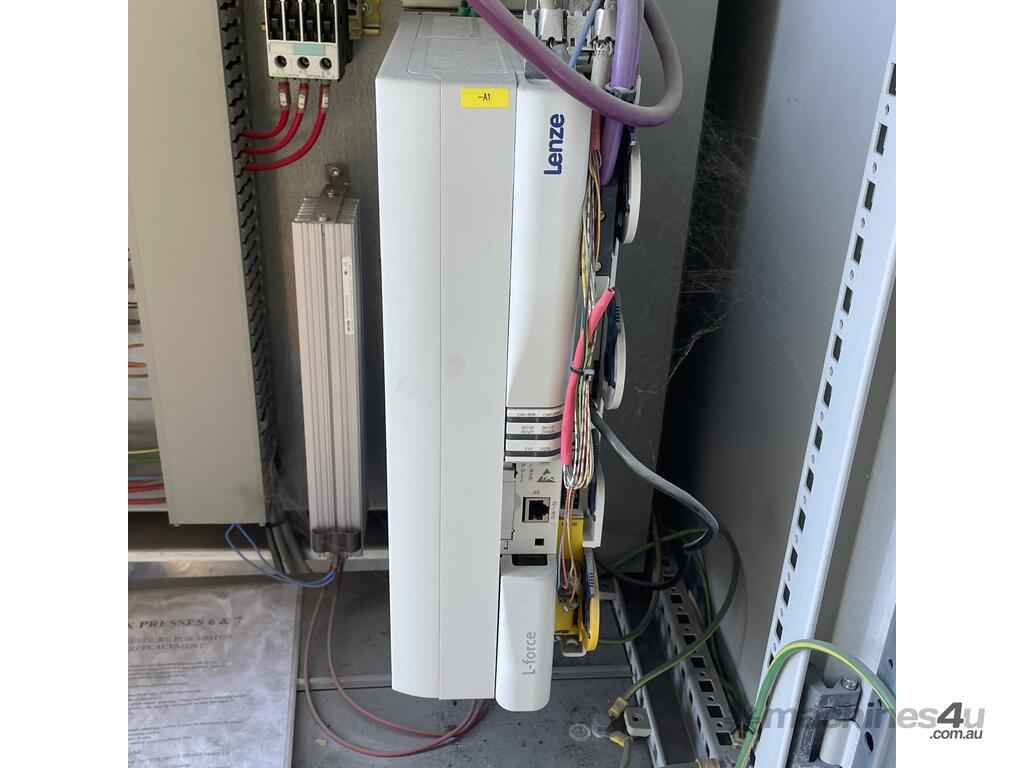

Lenze io DI 8xDC24V
DO 8xDC24V 1a

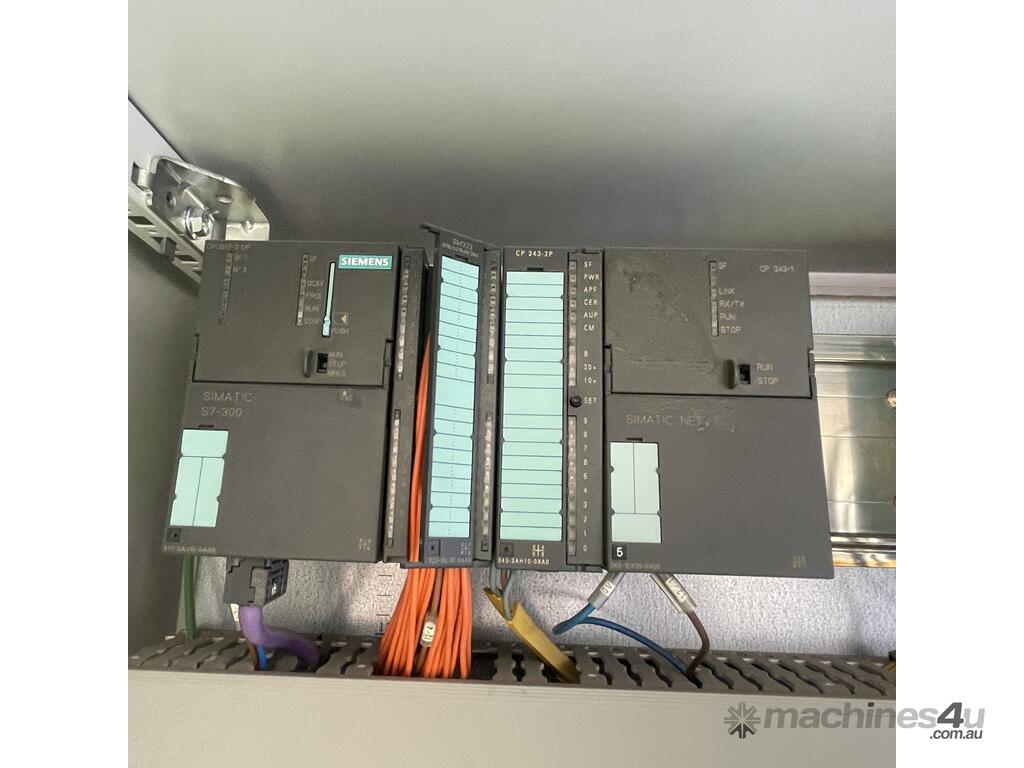

Siemens SIMATIC S7-300
CP 343-2P 343-2AH10-0XA0

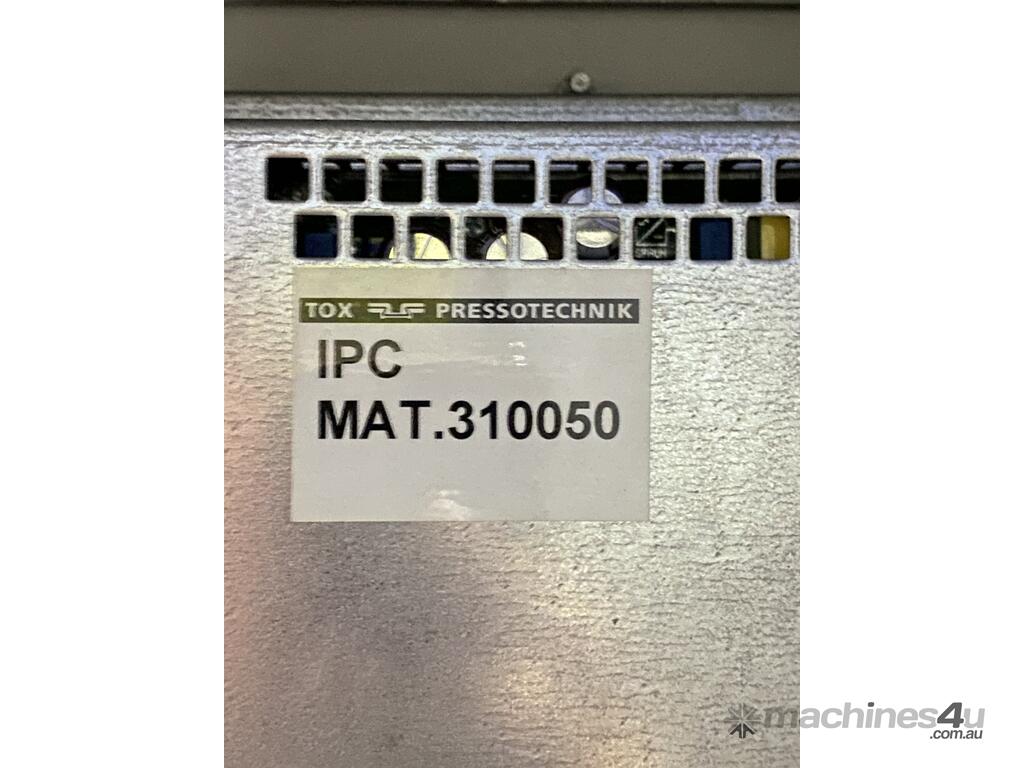

ipc mat.310050
FOCUS-T 6363064

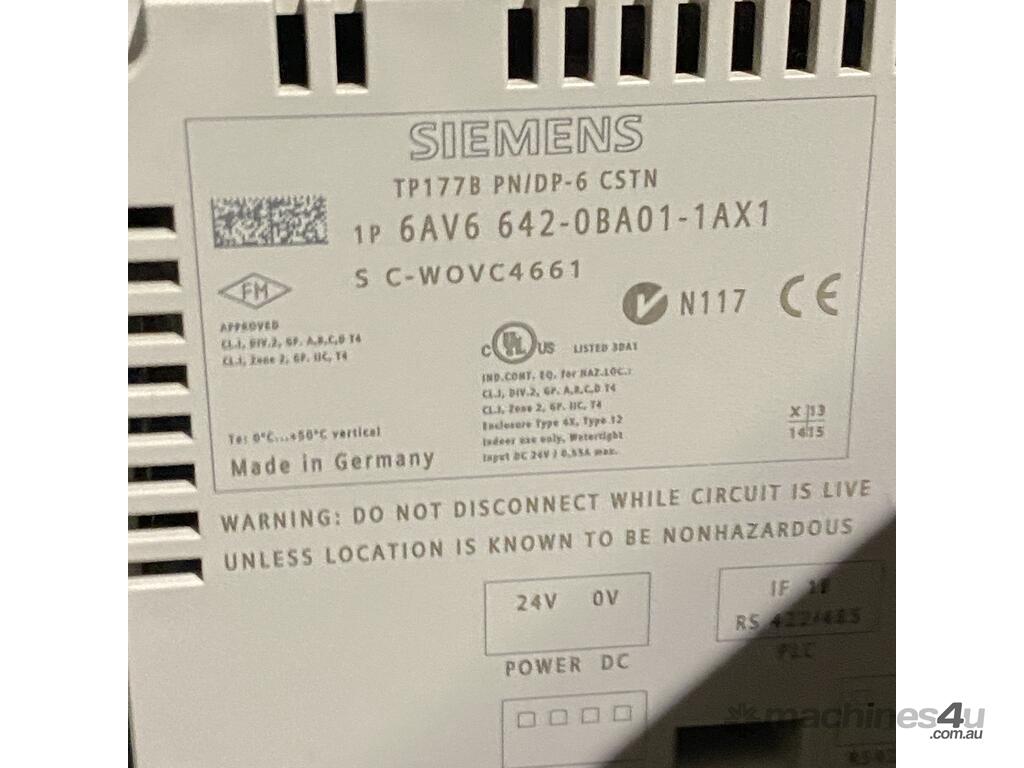

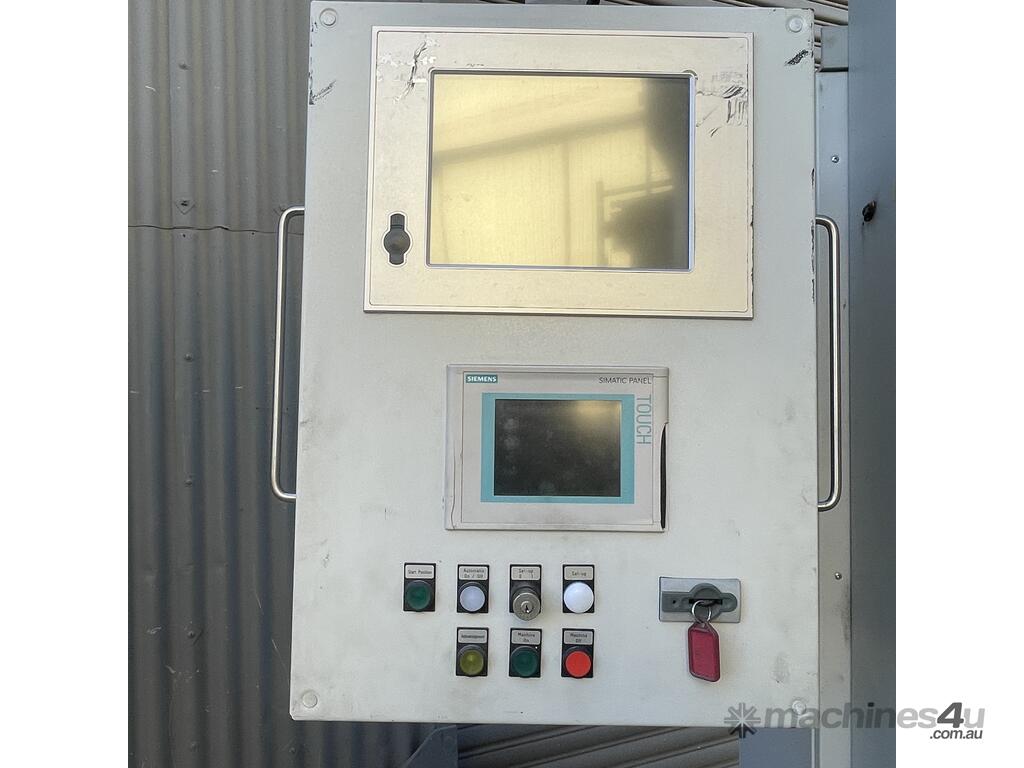

Siemens HMI 6AV6642-0BA01-1AX1 Touch Panel 6AVBA01-1AX1

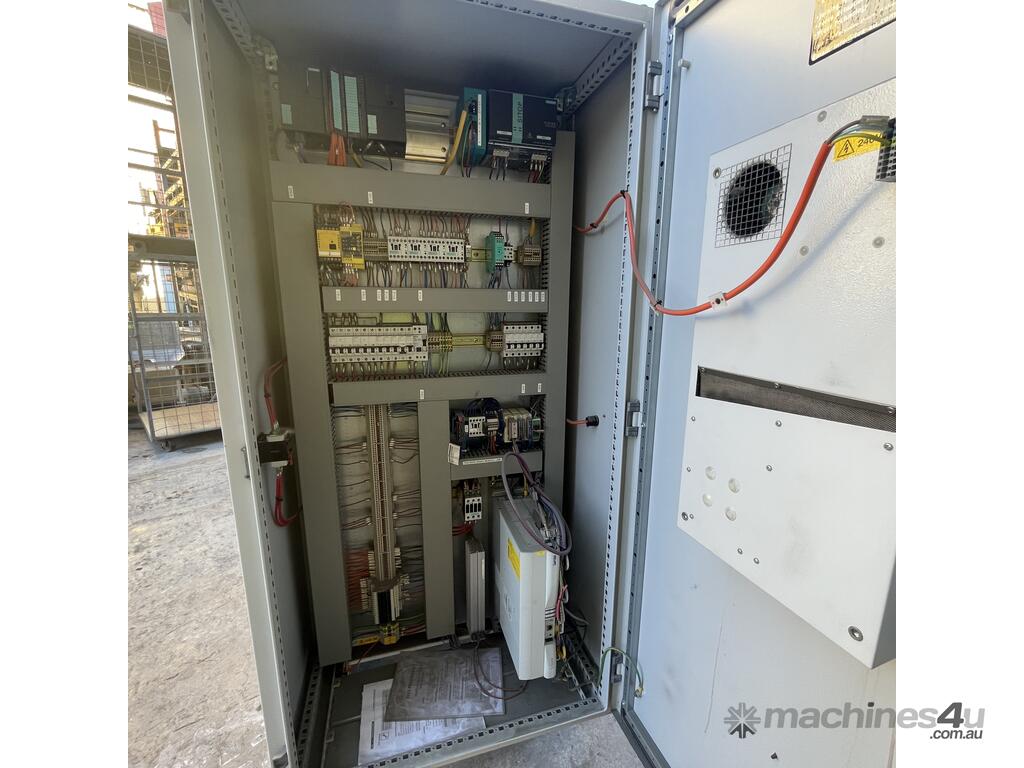

RITTAL SK3302100 TOP_THERM PLUS COOLER

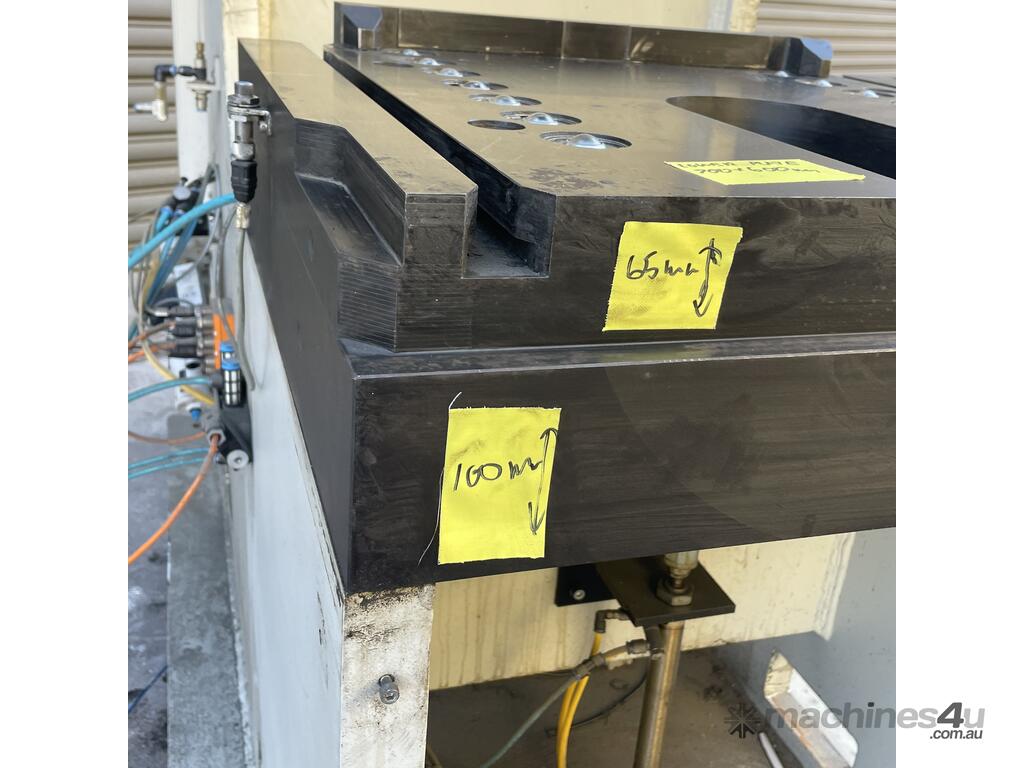

Heavy duty steel construction
2120 X 1100 X 2800mm
kg
We have loading facilities available, and we can also assist you with making freight arrangements if required.
Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
