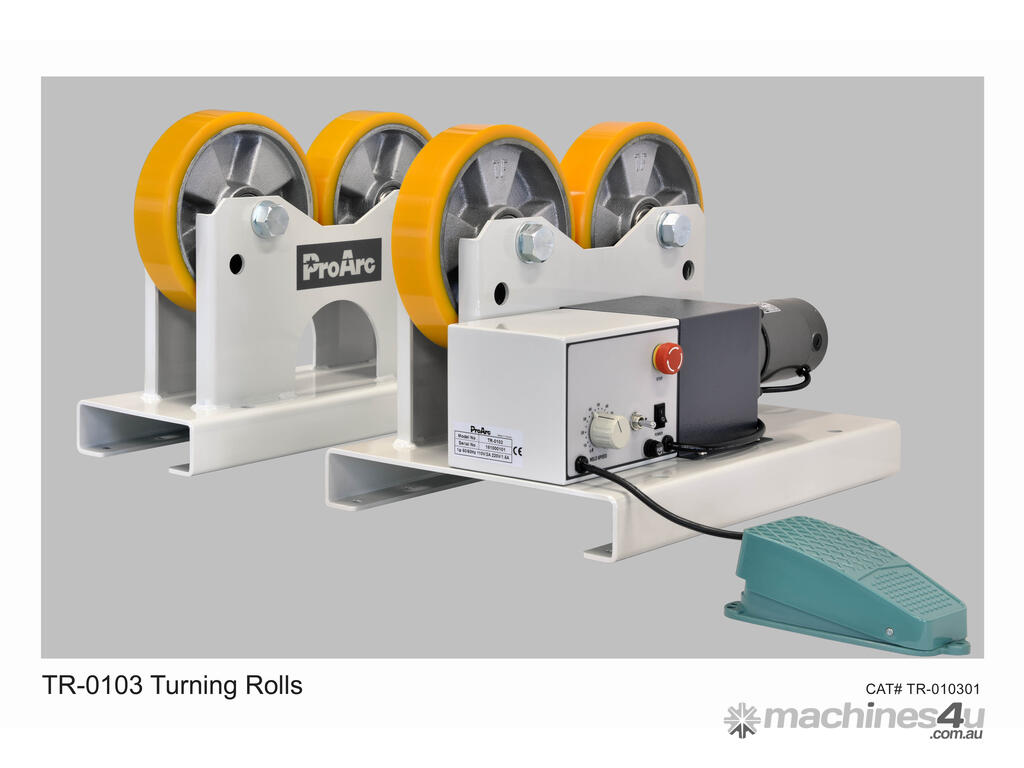

TR0-103 Turning Rolls 1 Ton

New Proarc Positioners & Rotators :
The turning rollers can be applied on round shaped work pieces, such as tanks, drums, pressure and cylindrical vessels and pipe to do the sequential circumferential rotation.

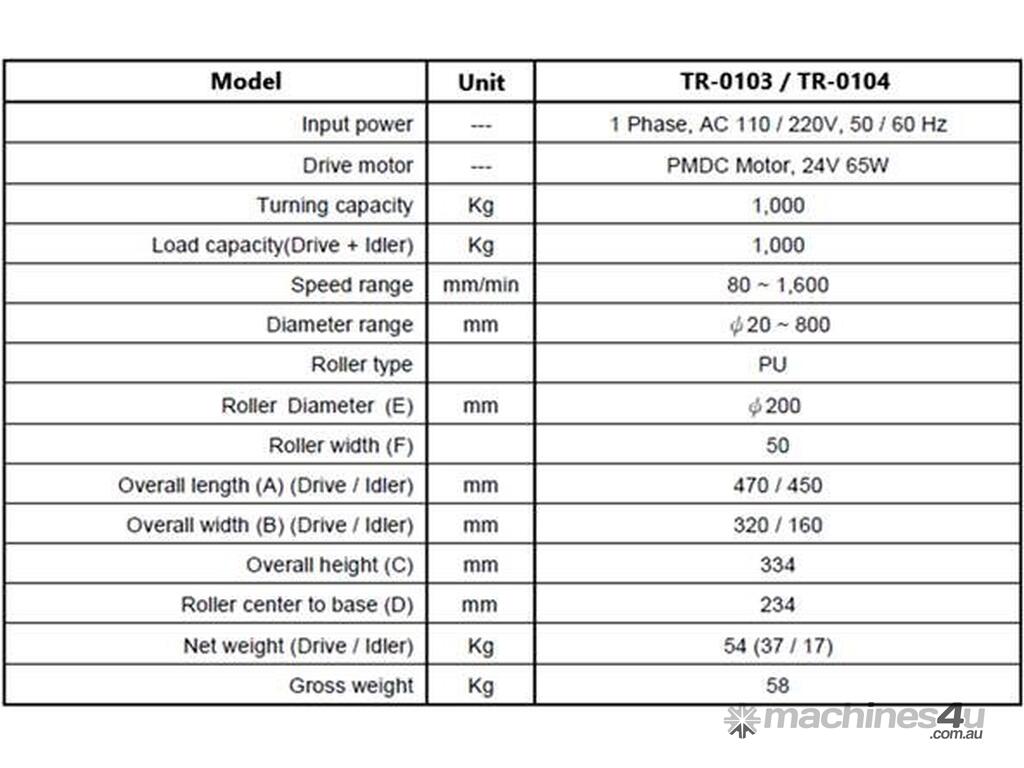

Power Input: 1Phase 220V 50/60Hz
Turning Capacity: 1,000kg
Speed Range: 80-1600mm/min
Diameter Range 20mm-800mm

Features:

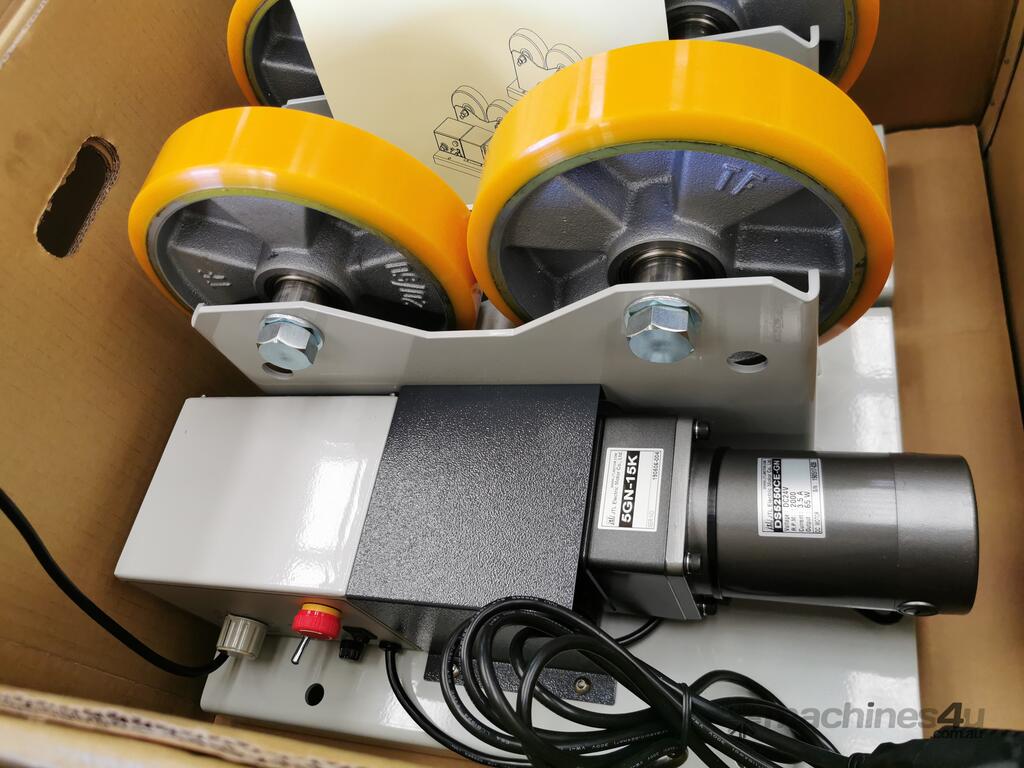

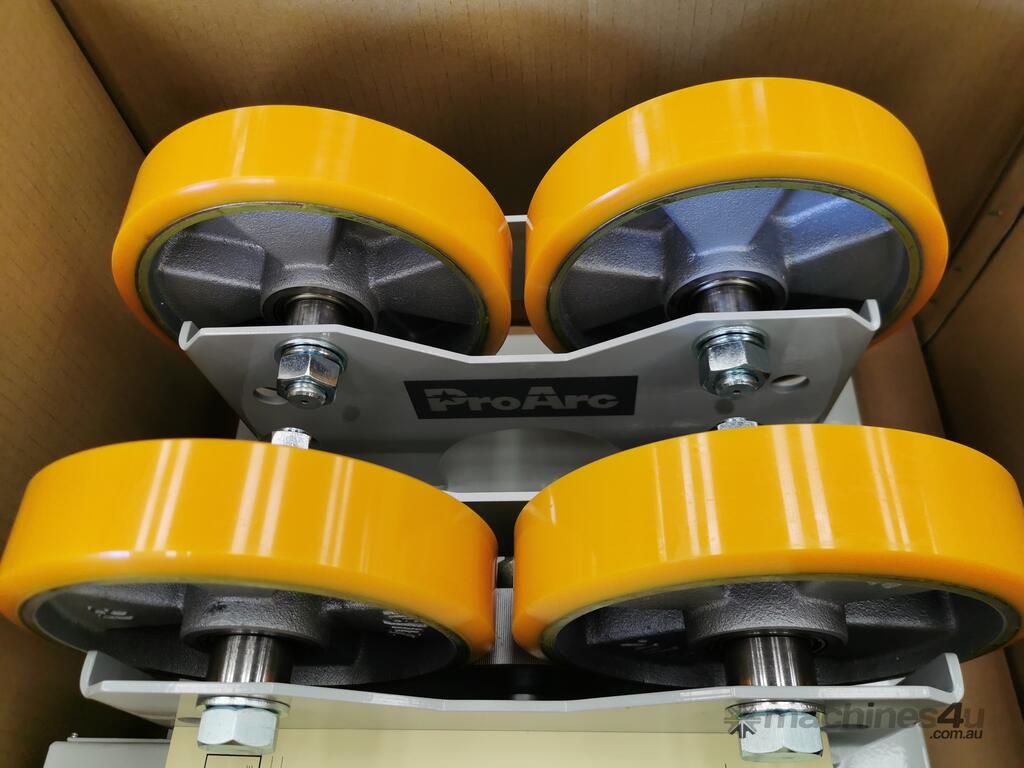

Metallic rollers are bounded with polyurethane.
Quick, accurate roll centering adjustment.
PWM controls with resistance dynamic braking on the rotation drives.
High frequency protected.
Fast/Slow footswitch and Digital Control Box - optional.
Integrated with D.I.Y system and will help you in producing high quality circumference welds

We have the largest stock of rotators in Australia ranging from 1000kg to 500ton.
