TRACPOWER - Hydralada 540h MAXI for Mango Orchards

Special edition with on-board wash system
Includes two 200-litre solution tanks and pump that delivers mango wash through spray nozzles mounted at the top of the picking bag. This flows constantly over the mangos as they pass through the picking bag, washing the sap from the skin and eliminating any blemish occurring on the fruit.

5.40m
Lift height to platform floor
Drive Train and Wheels
1.5? drive axles
Hydrabrake system
26 x 12.00 x 12 drive tyres
185 x 14 rear castor wheel
Six stud heavy duty wheel equipment

400l
Two on-board 200L solution tanks
Construction
Heavy duty chassis and boom section
On-board solution tanks
Externally mounted muffler

175kg
Platform rated capacity
Controls
Three pedal foot controls
Hand operated accelerator
Smooth hydraulic valve
Dual station with base controls for emergency situations

Customise your 540h MAXI for Mango Orchards
Tandem Four Wheel Drive
Increase overall stability and improve traction on rough, uneven and sloping terrain. With four powerful high torque hydraulic motors, the driving wheels are mounted on an oscillating beam, which also acts like suspension for a smoother ride.

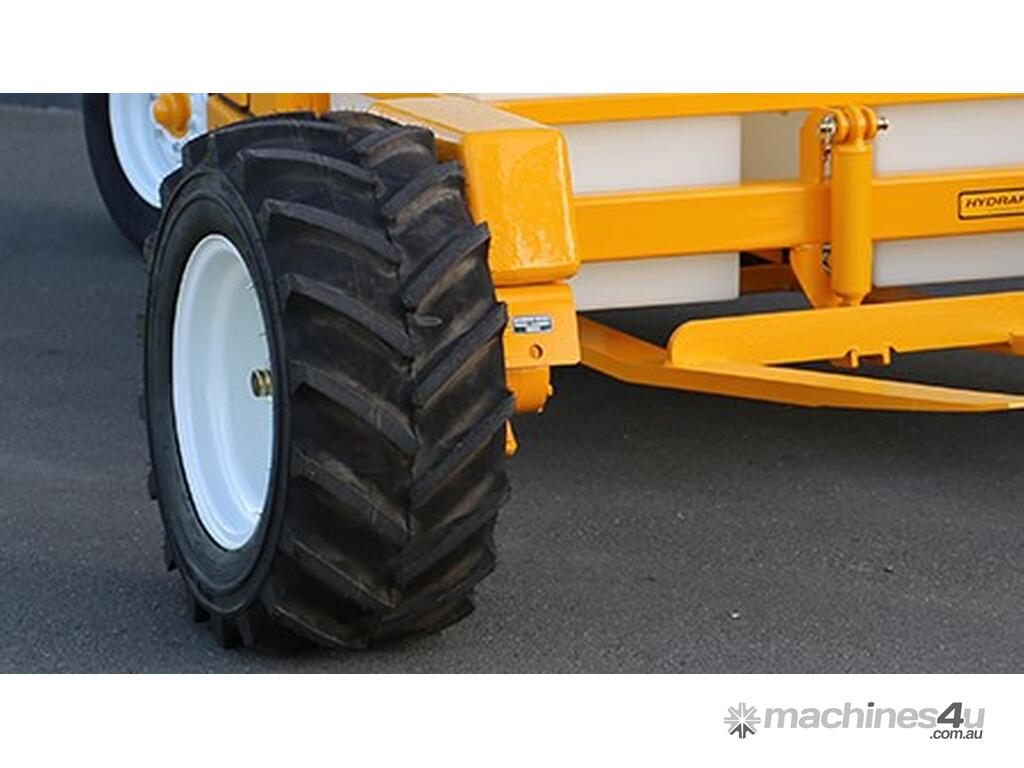

Larger Drive Wheel Equipment
Larger 29 x 12.50 x 15 heavy duty drive wheels improve the machine’s drive performance on uneven terrain. Also adds more ballast with larger water filled tyres.

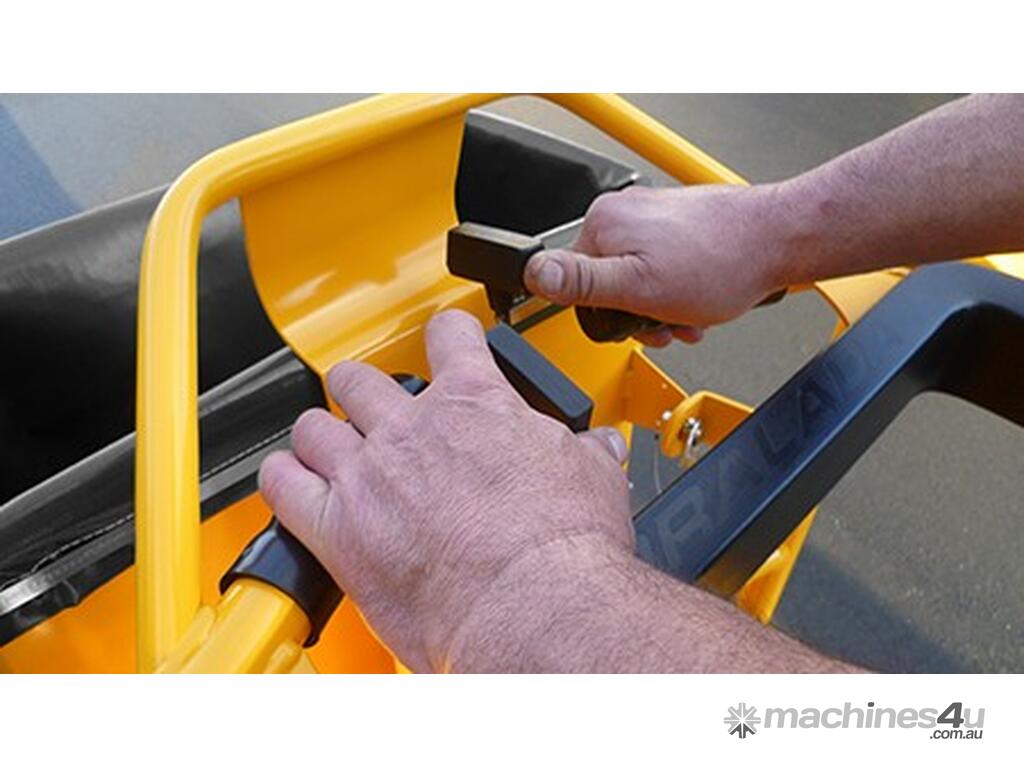

Hand Control
Sometimes hand controls are preferred to the standard three pedals. We use a simple Tiller Lever system located in the operator’s platform. Two handle bars and two tiller levers (one for each drive wheel) makes this very safe and smooth to operate.

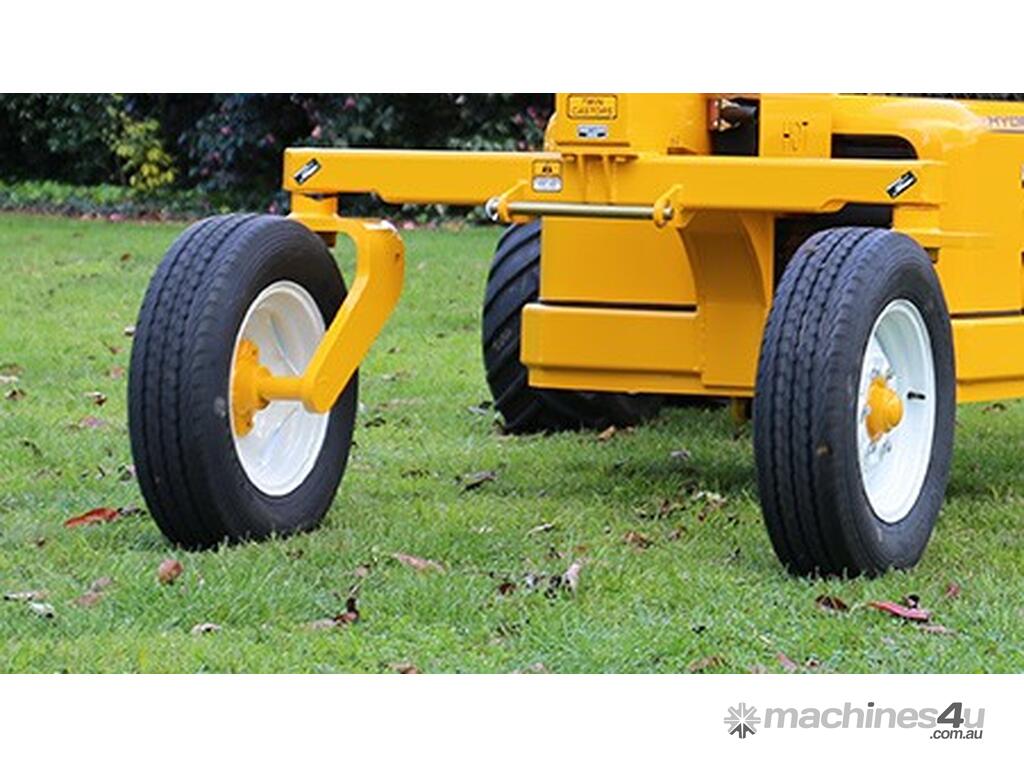

Twin Castor Rear Axle
More stability than the standard single castor rear wheel, the Twin castor option is often included with Tandem four wheel drive making for a truly versatile machine for working sloping property.

Hydraulic Slew Platform
This allows the operator to slew the platform 45 degrees left or right of centre without moving the chassis of the machine on the ground. A lever is located in the front of the platform which activates a hydraulic ram. This significantly increases the working envelope.

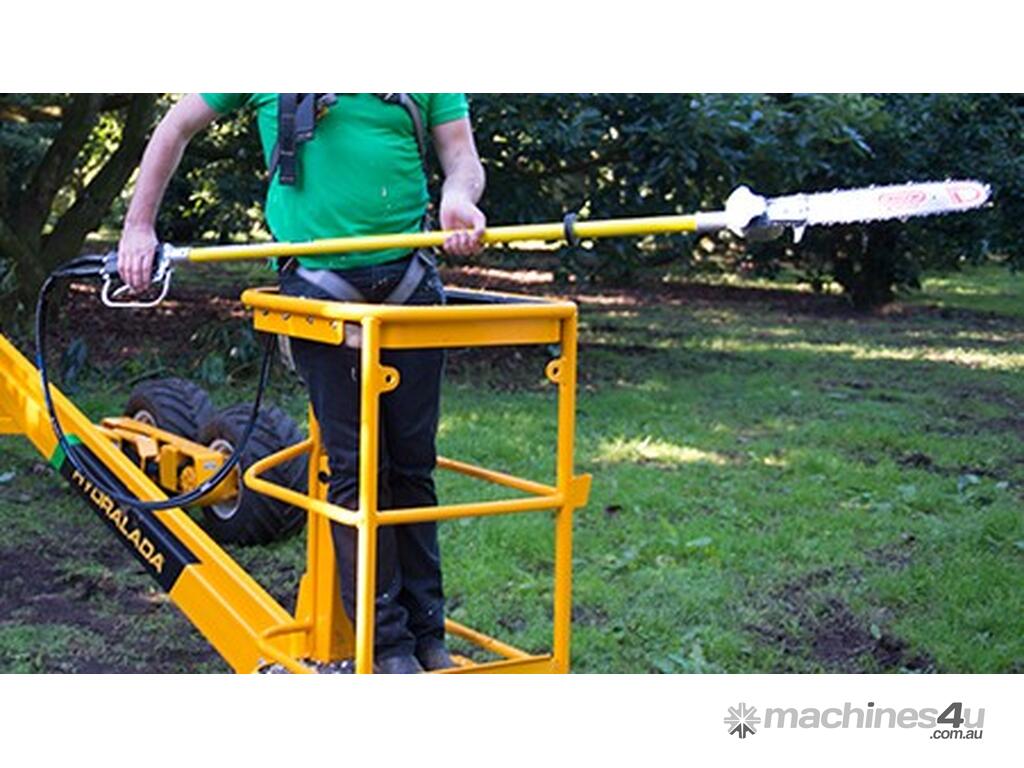

Hydraulic Chainsaw
Definitely the safest and most efficient way of chainsawing from an elevated work platform. Quiet trigger start/stop, no dangerous pull starting, no refuelling, lightweight and powerful. Available in either pistol grip or pole configuration.
