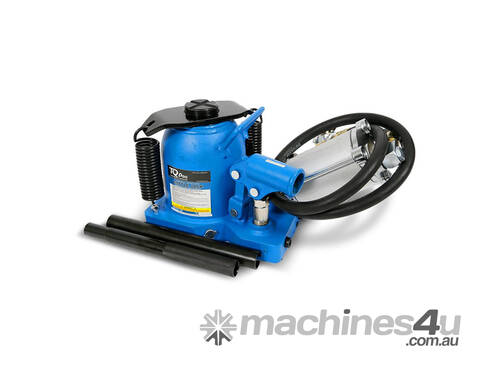

This TQ Pro "Latest Applied Technologies" 20,000kg Air/Hydraulic Bottle Jack is constructed of superior grade steel and built to premium standards for quality and durability. The superior-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load. A built-in bypass device protects the hydraulic system from over-pumping damage. The sturdy and stable design features a welded base and cylinder to assure strength and eliminate leaks.
Thick Base Design
The thick base design is to provide the firmest footprint reducing flex. This substantially increases the life of the hydraulic ram under the toughest lifting and lowering circumstances.
Welded Reservoir
A welded reservoir instead of the screw base results in a substantial increase in durability. With the completely sealed hydraulic system, wear and tear and internal contamination is dramatically reduced.
Using CNC technology, the frame is constructed using superior-grade steel and built to premium TQ Pro standards for professional quality and durability
Premium quality large diameter hydraulic steel cylinder with precision tolerances
Piston-ram is treated and polished to minimise wear and extend service life
High capability premium quality seal system efficiently protects internal hydraulics keeping it free from contaminants
Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting premium finish
Paint is oil, grease and dirt-resistant for easy cleanup
Specifications
Safe Working Capacity: 20,000kg
Maximum Height: 324mm
Minimum Height: 178mm
Hydraulic Lift: 85mm
Adjustable Height: 61mm
Operating Air Pressure: 110-125psi
Air Inlet Fitting: 1/4""
Base Dimensions: 000 x 000mm
Carton: 380 x 195 x 200mm
Nett Weight: 16kg
Gross Weight: 17kg
