TRADEQUIP Bottle Jacks

NEVER get beneath a vehicle that is only supported by a jack.

ALWAYS use Jack Support Stands

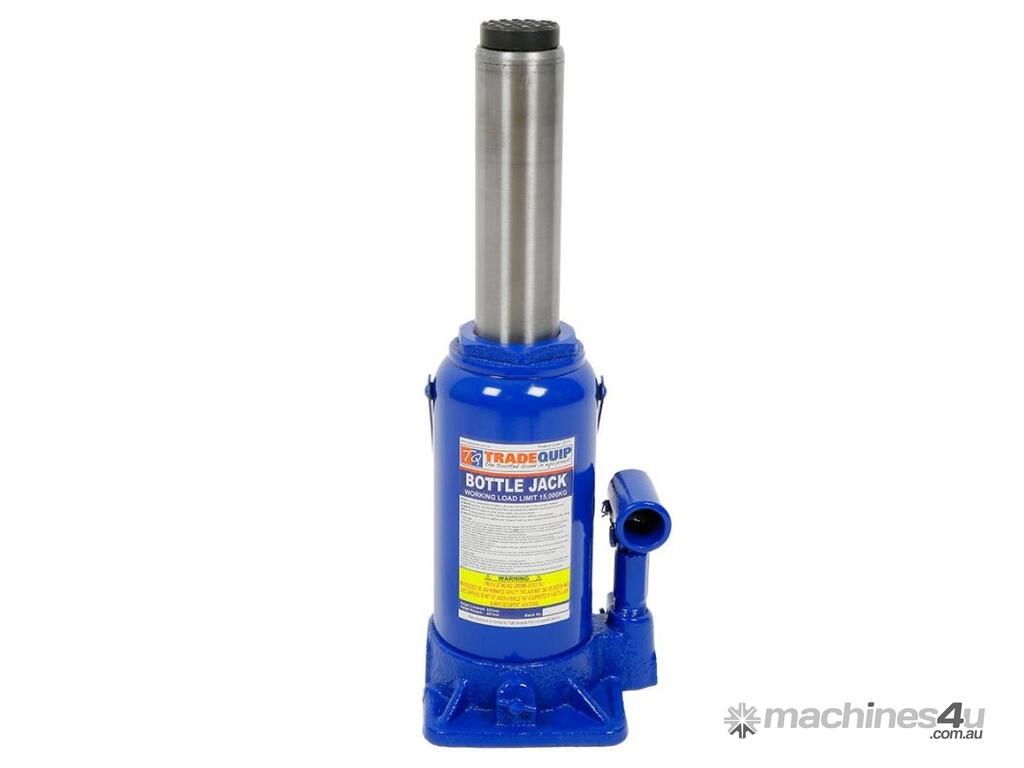

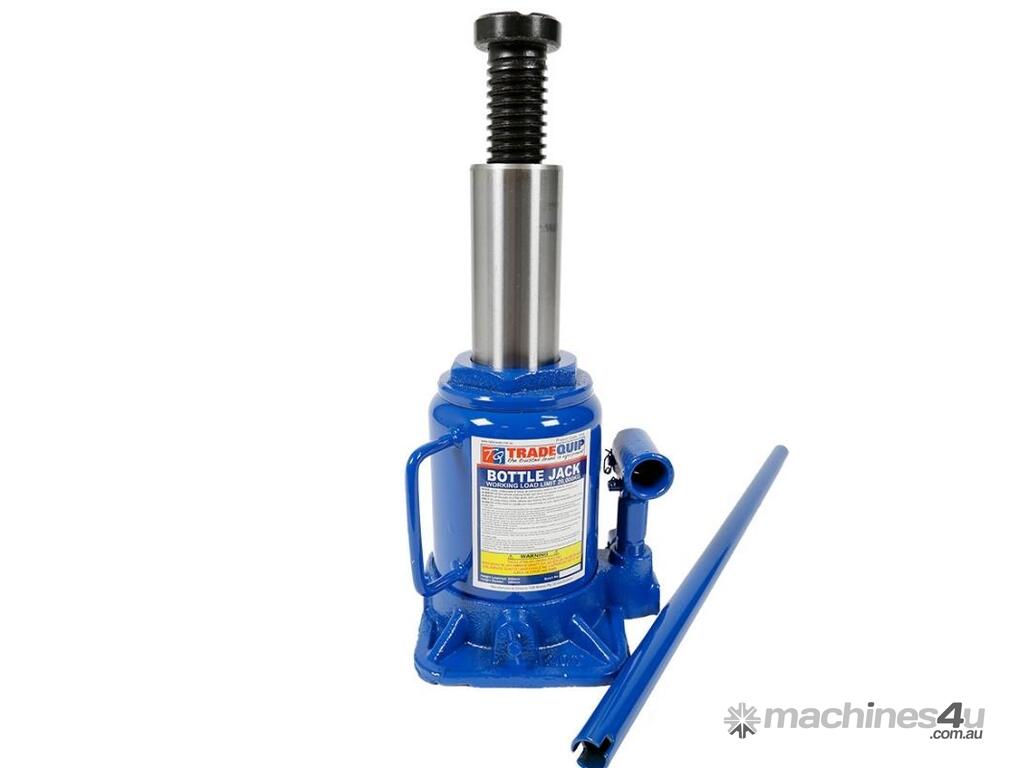

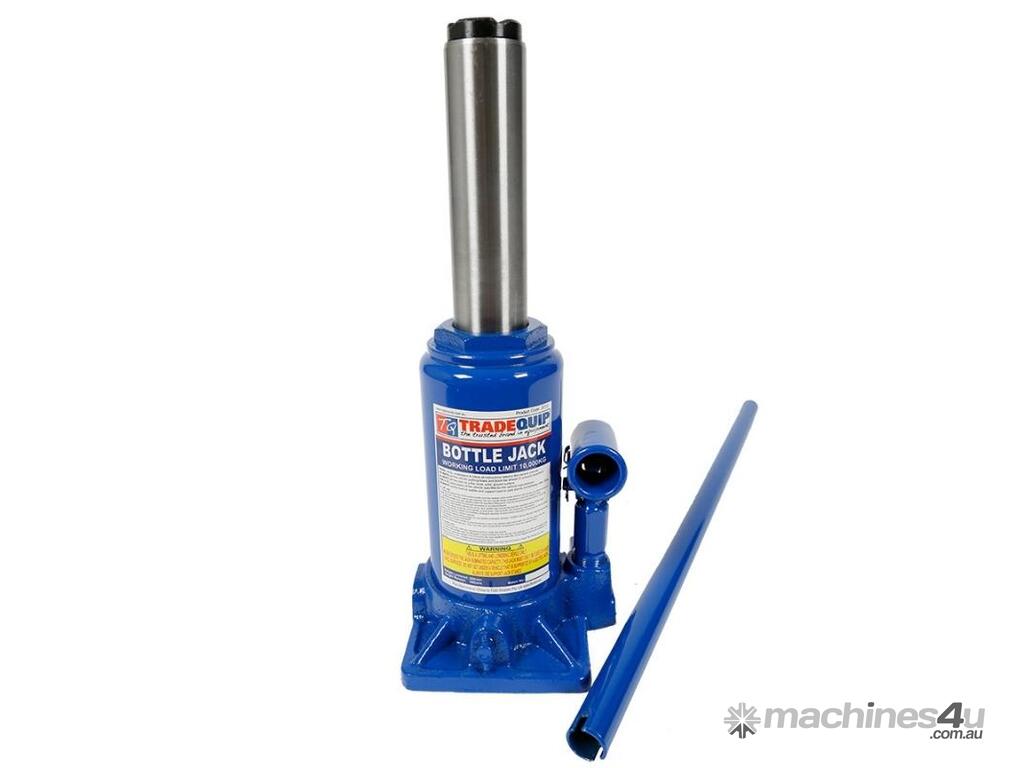

This powerful, heavy-duty TradeQuip Hydraulic Bottle Jack with high quality glide-action pressure pump is designed for hard-hitting commercial use, making large loads easy to lift. The lightweight jack is ideal for lifting farm vehicles, heavy-duty machinery, industrial construction equipment and more. High quality, fitted with unique overload protection system and large stable base. Supplied with two-piece handle.

Machined and polished cylinders with die-cut threads provide non-abrasive leak-free, durable performance
Fabricated from hard-cast steel with heat-treated critical stress areas
Unique cross-type forged release valve assures positive load control
Overload protection
Hydraulic system is protected from internal damage by a by-pass mechanism
Meets ASNZS2693:1993 safety standards


Specifications
2012 - 10T
Capacity: 10,000kg
Hydraulic Lift: 125mm
Adjustable Height: 70mm
Minimum Height: 205mm
Maximum Height: 400mm
Base Area: 124 x 124mm

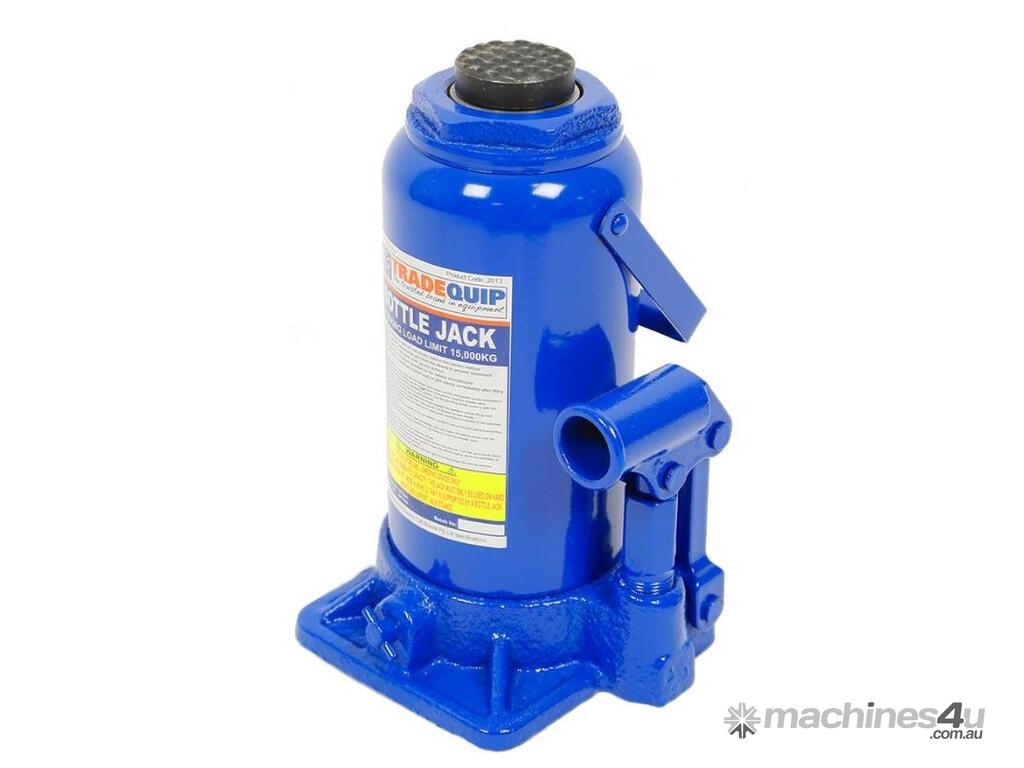

2013 - 15T
Capacity: 15,000kg
Hydraulic Lift: 125mm
Adjustable Height: 70mm
Minimum Height: 227mm
Maximum Height: 447mm
Base Area: 148 x 136mm

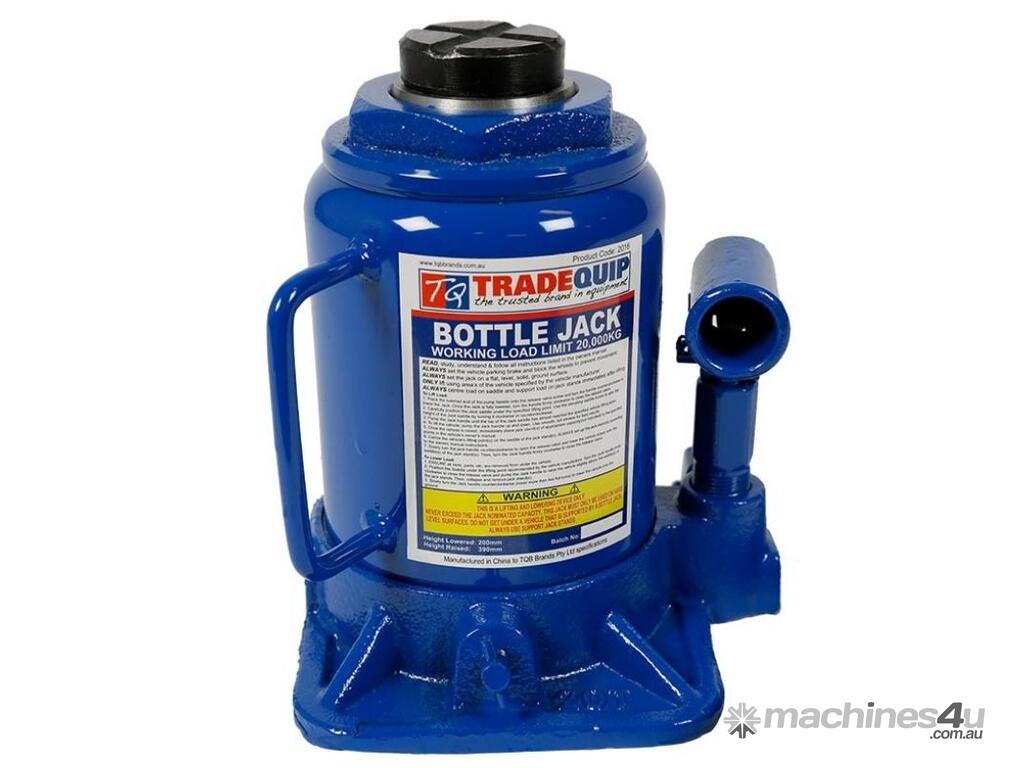

2014 - 20T
Capacity: 20,000kg
Hydraulic Lift: 145mm
Adjustable Height: 60mm
Minimum Height: 245mm
Maximum Height: 450mm
Base Area: 167 x 156mm

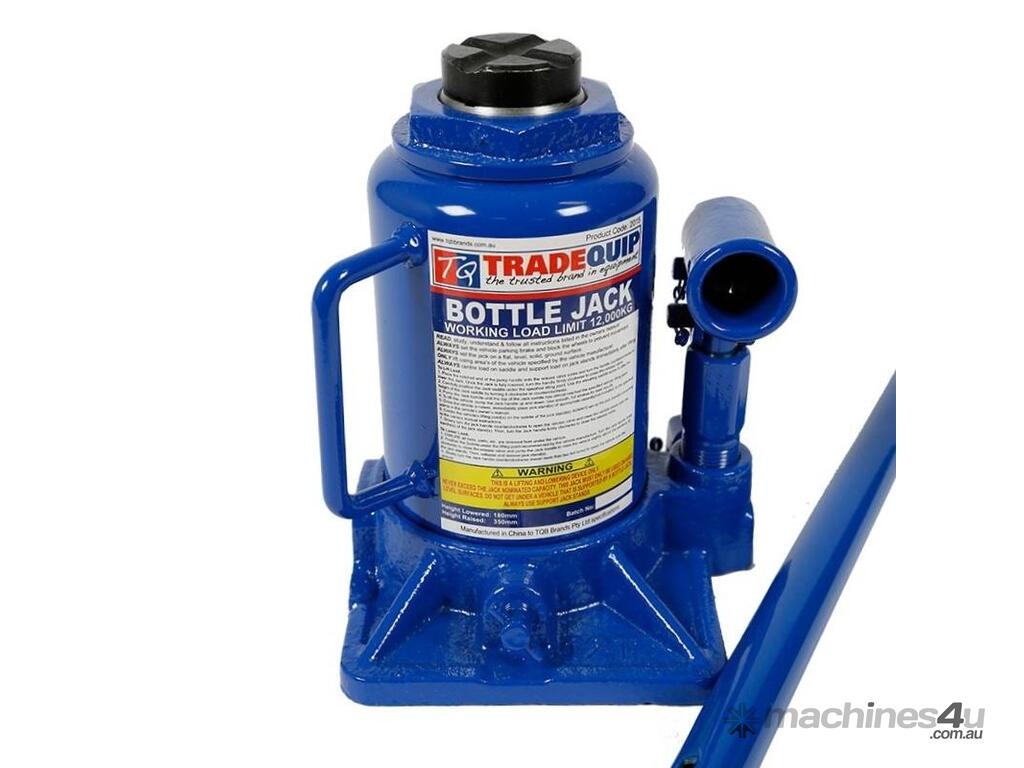

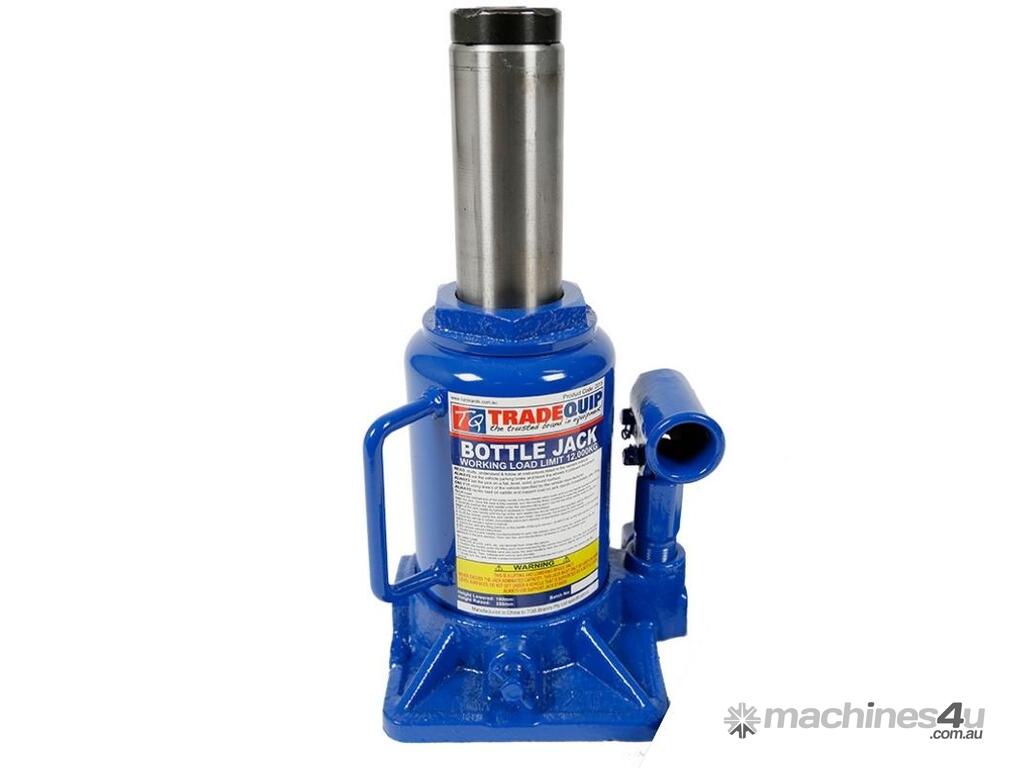

2015 - 12T Squat
Capacity: 12,000kg
Hydraulic Lift: 100mm
Adjustable Height: 70mm
Minimum Height: 180mm
Maximum Height: 350mm
Base Area: 157 x 134mm

2016 - 20T Squat
Safe Working Load Limit: 20,000kg
Working Height: 200-390mm
Hydraulic Lift: 115mm
Adjustable Height: 75mm
Base Area: 167 x 156mm
