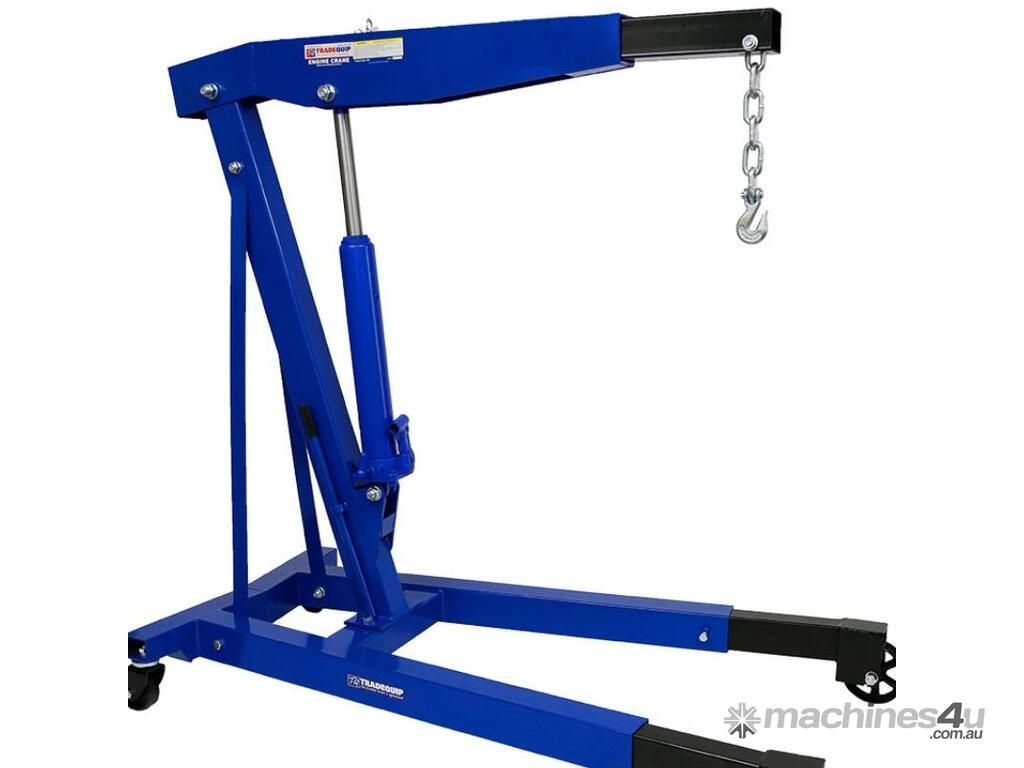

TRADEQUIP Engine Crane 3T Rated

This heavy duty TradeQuip "Made for the Trade" engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 3,000kg. Very simple to use manual hydraulic operation.

The jib extends to the desired lifting capacity of 1000kg, 2000kg or 3000kg secured by a single locking pin. Mounted on heavy duty castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2500mm so any large engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

Intended Use
For regular professional use, to raise and/or lower diesel engines and transmissions during service or repair work.

Industrial grade engine crane

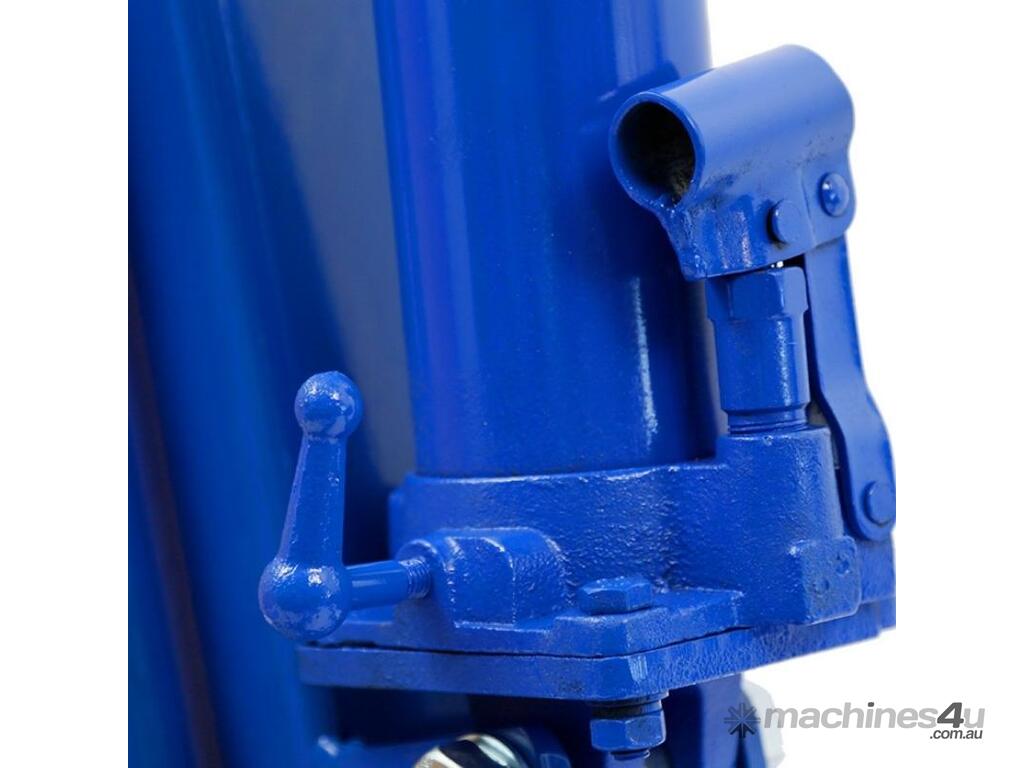

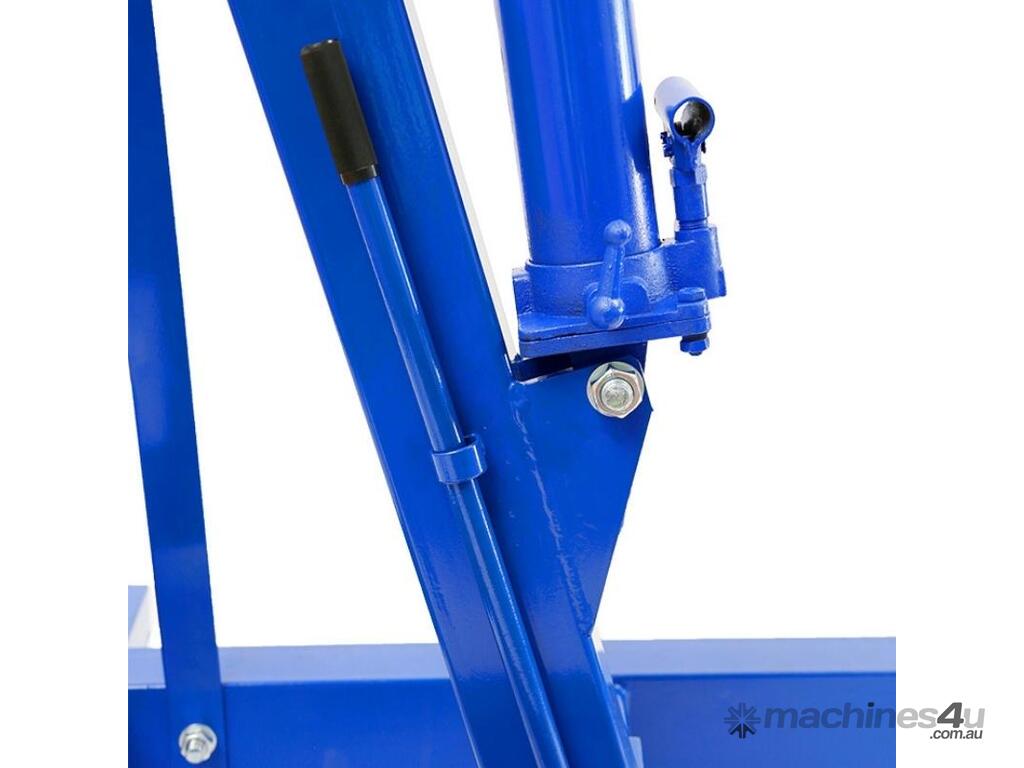

Heavy duty hydraulic pump
Adjustable boom in four positions for lifting
Robust steel fabricated legs with structural supports
Large castor wheels for easy mobility

Safe Working Capacity: 3,000kg
Folded Height: 1625mm
Maximum Lifting Height 3000kg: 2200mm
Maximum Lifting Height 1000kg: 2500mm
Jib Length Fully Retracted 3000kg: 1370mm
Jib Length Fully Extended 1000kg: 1980mm
Overall Length Fully Extended: 2385mm
Overall Length Fully Retracted: 1470mm
Overall Width Fully Extended: 875mm
Overall Width Fully Retracted: 785mm
Leg Height 195mm
