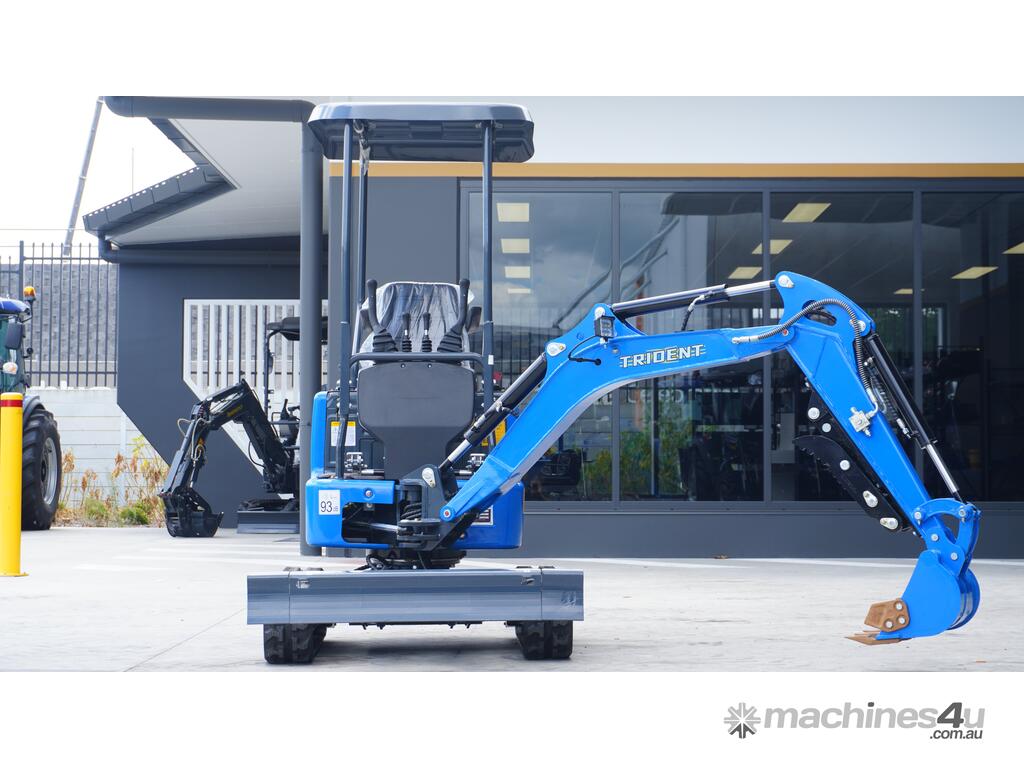

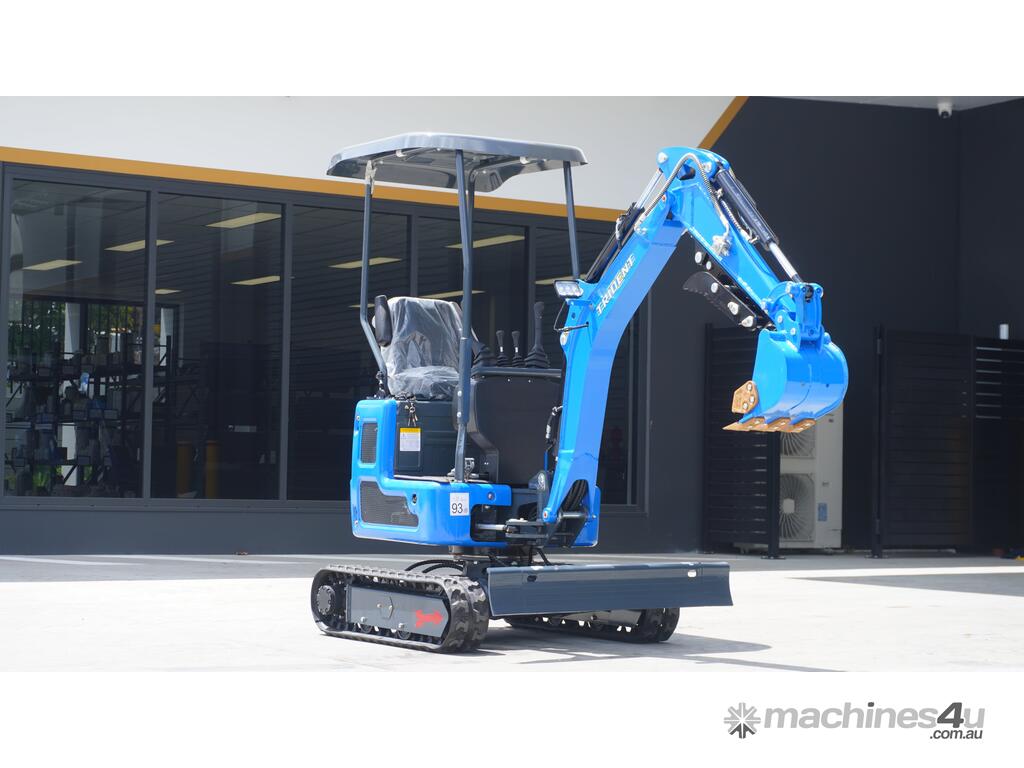

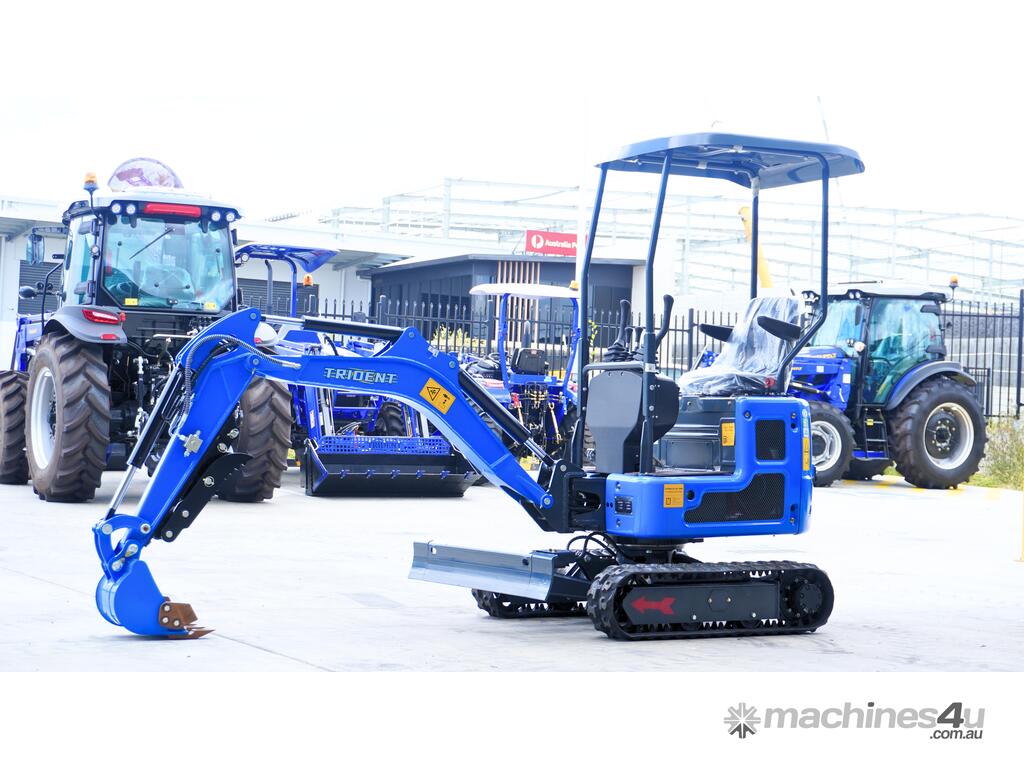

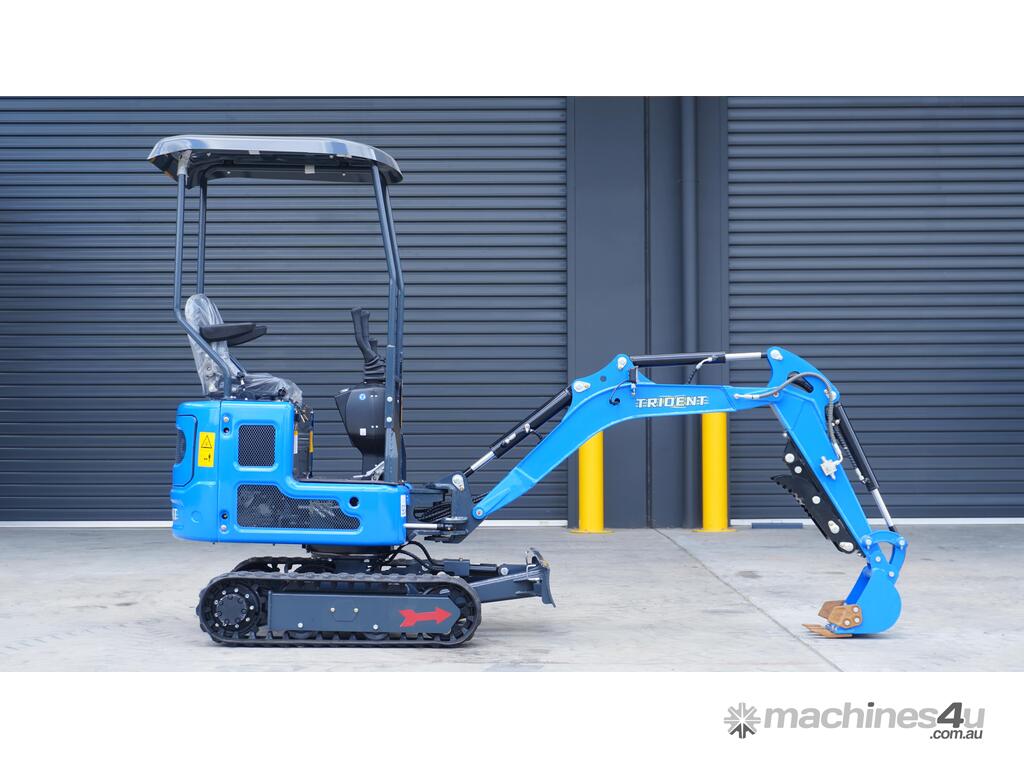

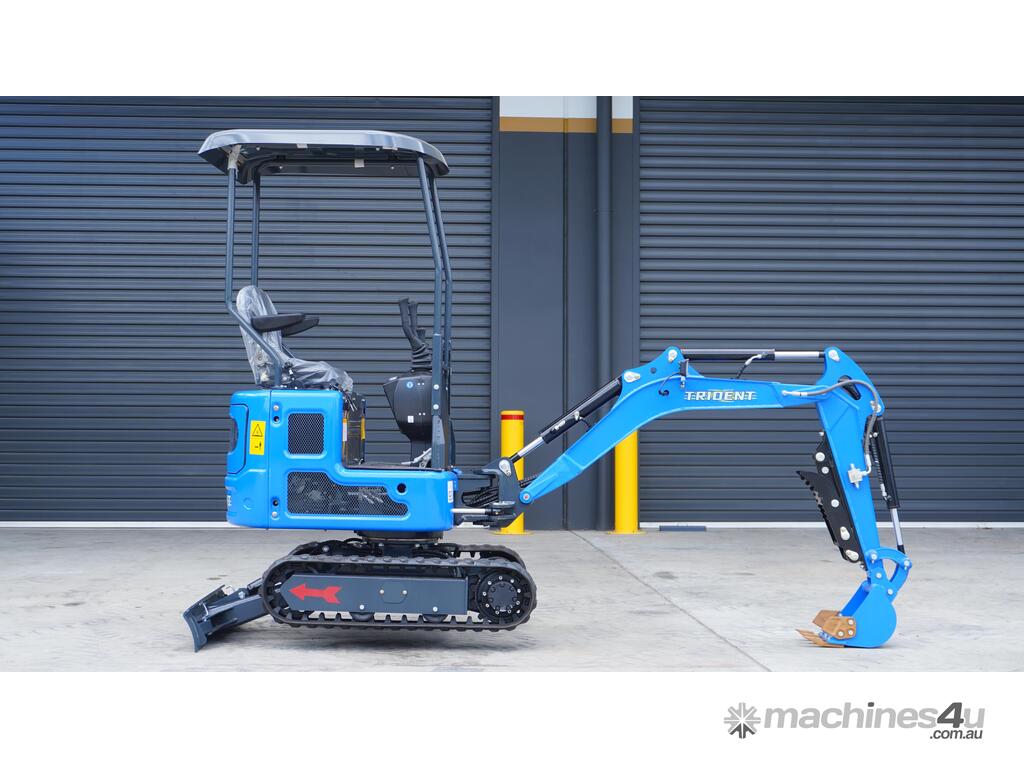

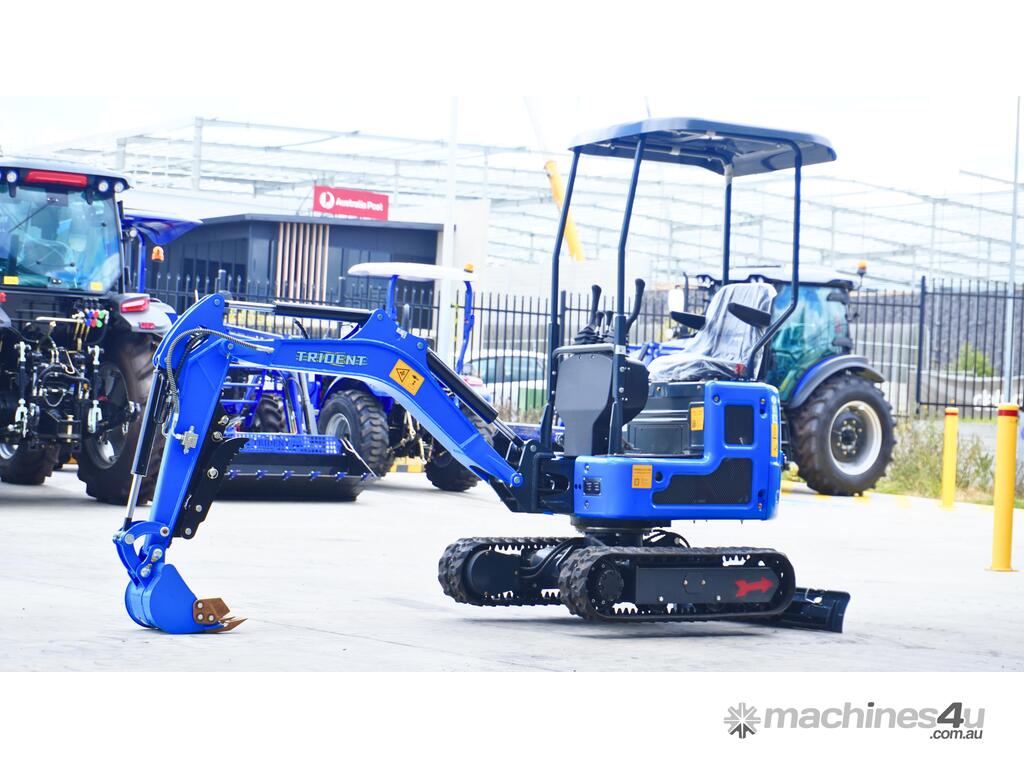

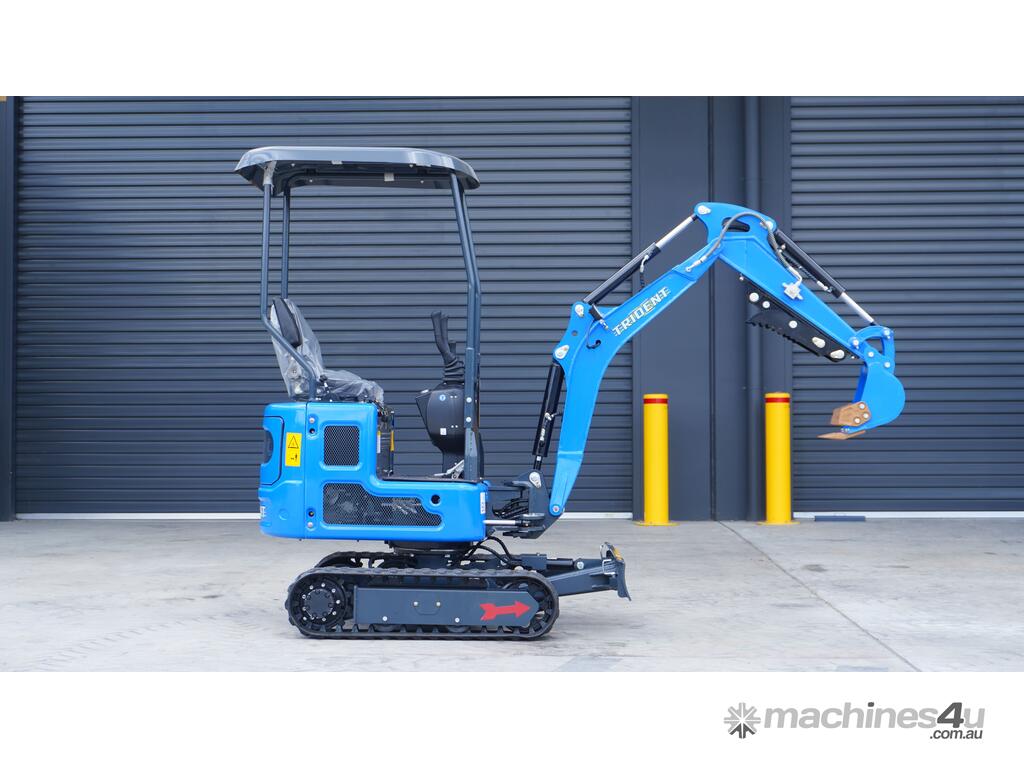

The TRIDENT 1.2T Excavator features multiple attachments, expandable track, swing boom, quick hitch, extra-length dozer blade, 12 HP diesel engine, and multiple hydraulic outputs, ensuring versatile and efficient operation.
Combo deal includes:

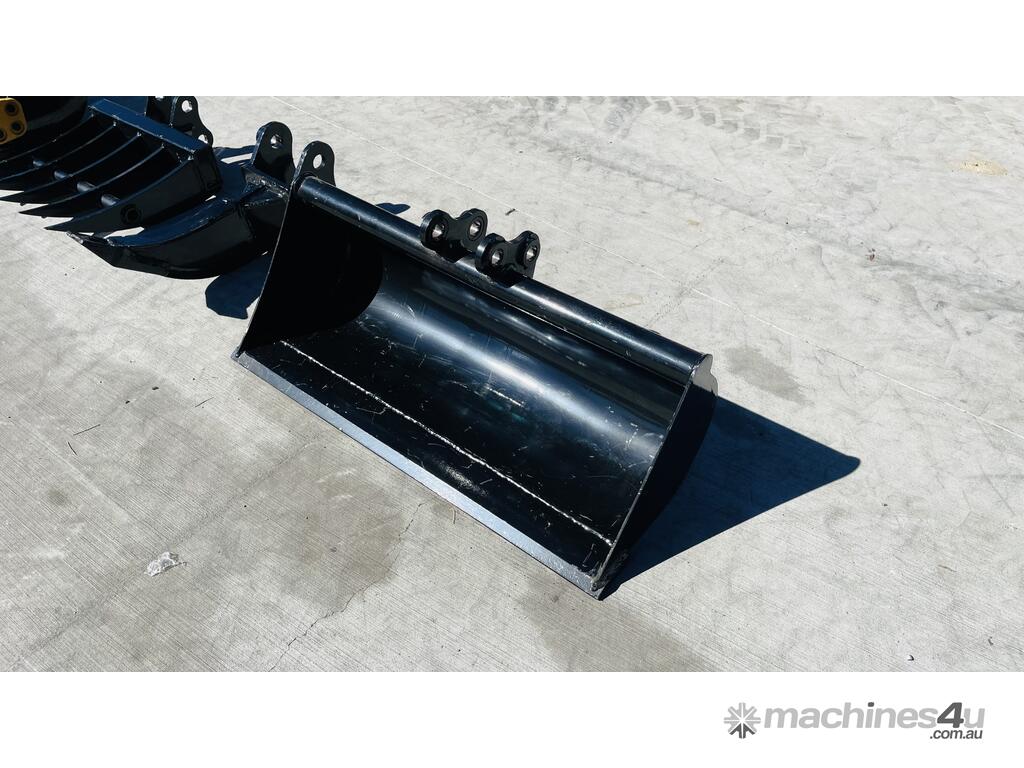

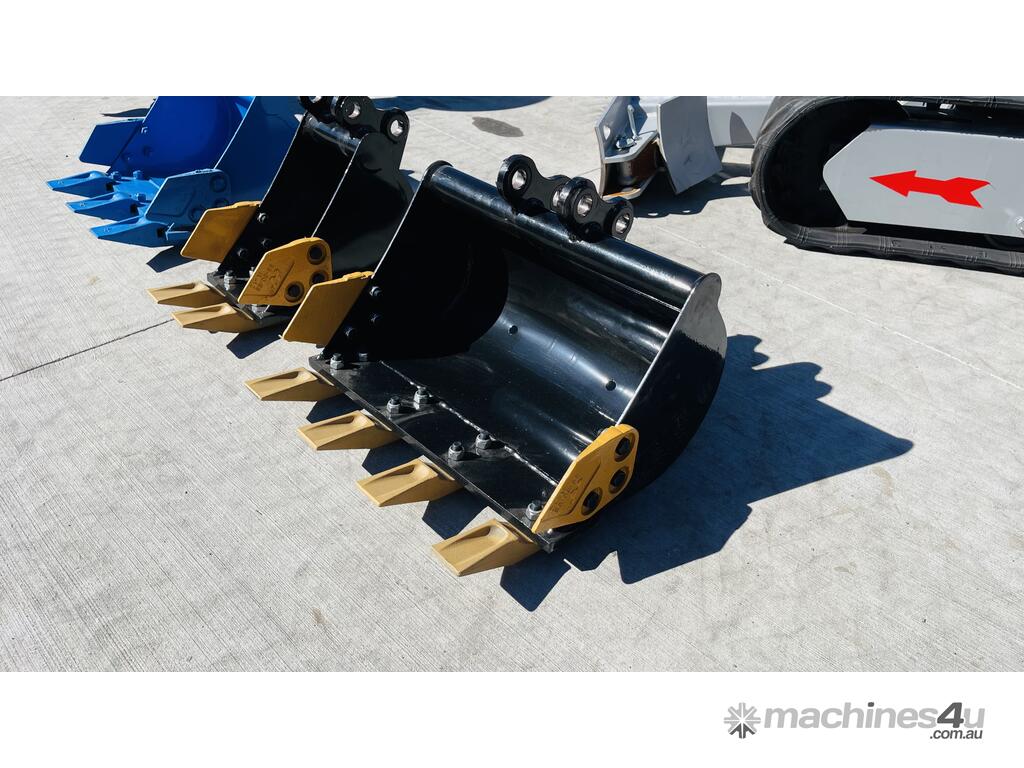

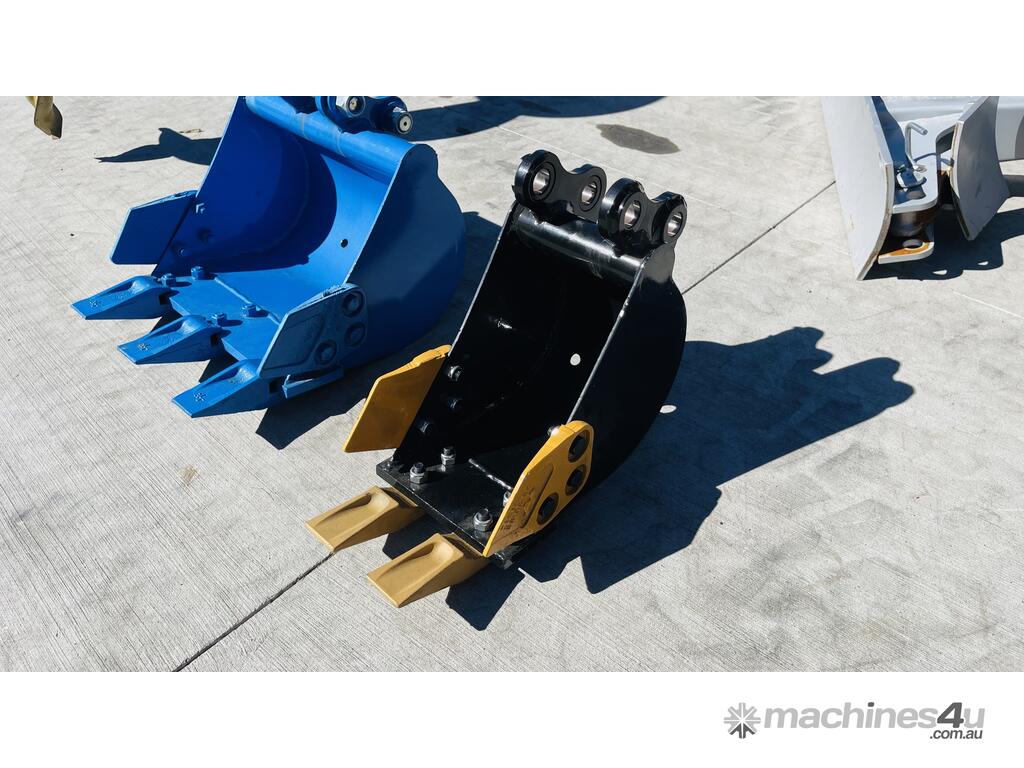

• 400mm & 500mm bucket
• 200mm trench bucket
• 800mm mud bucket

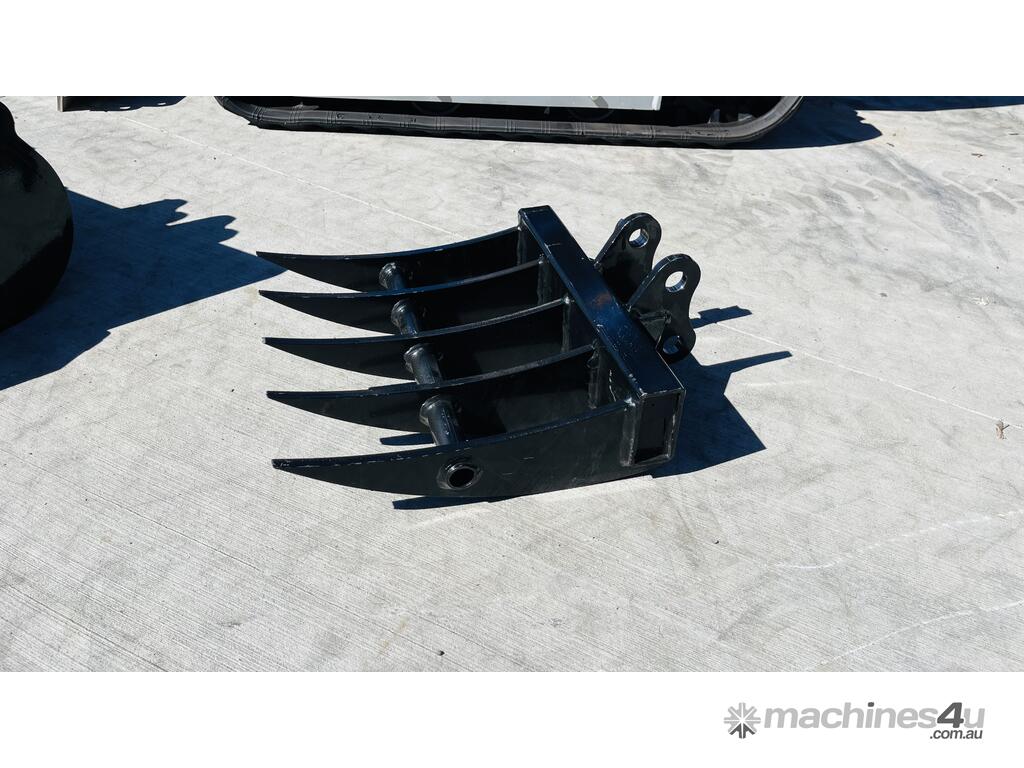

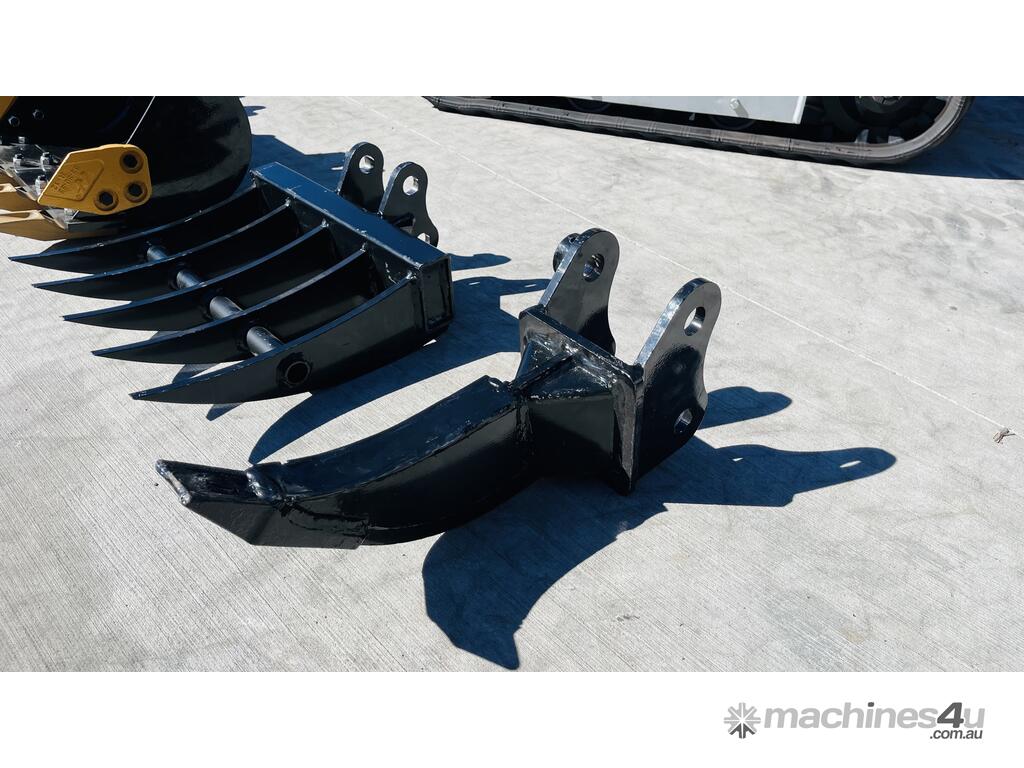

• 50mm ripper & rake
• Post hole digger with 200mm auger
• Stick Rake
• Quick hitch

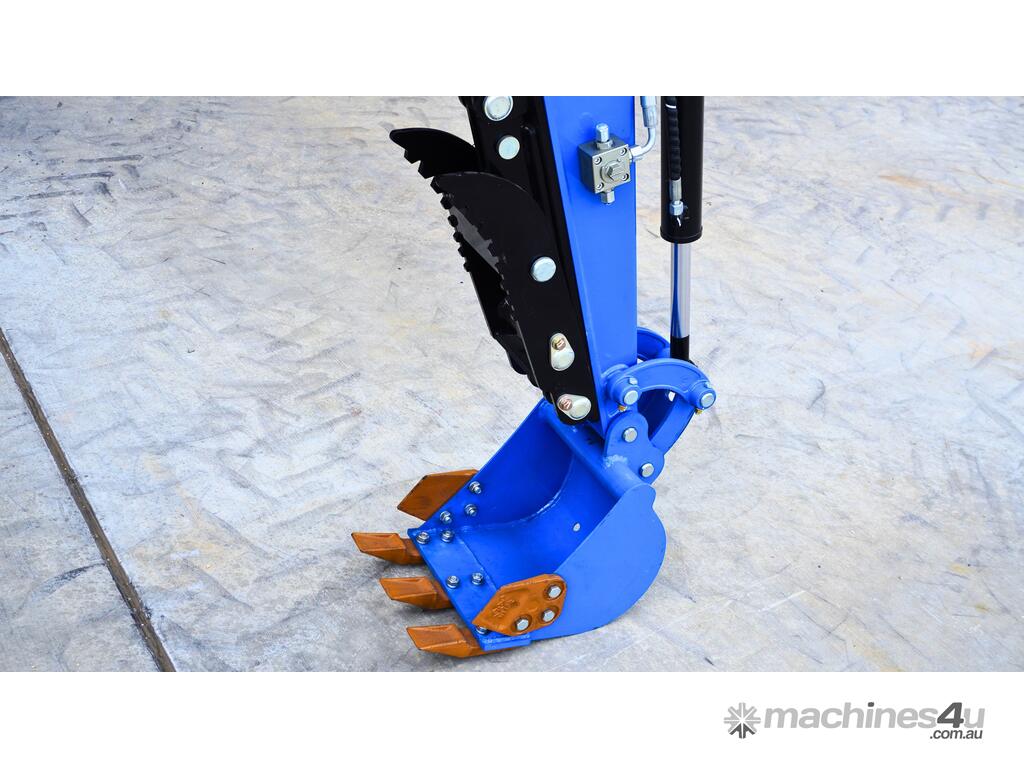

• Hydraulic thumb grab
Add-On Option:
• Rock breaker, for $2,100 inc. GST.
Key features:

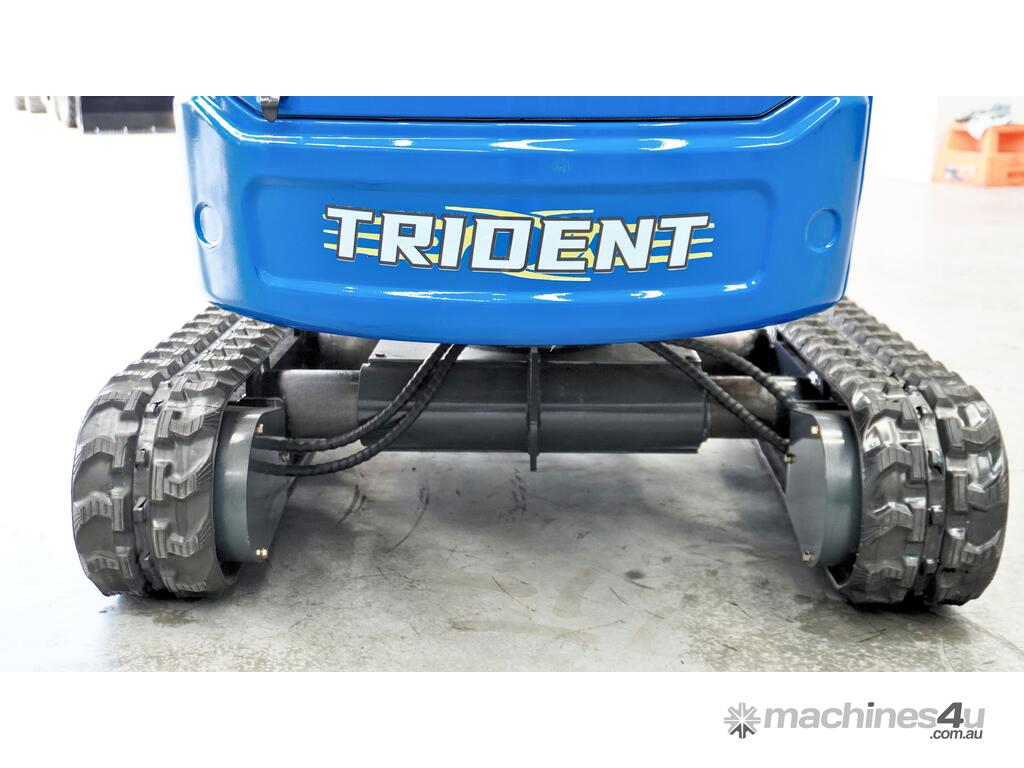

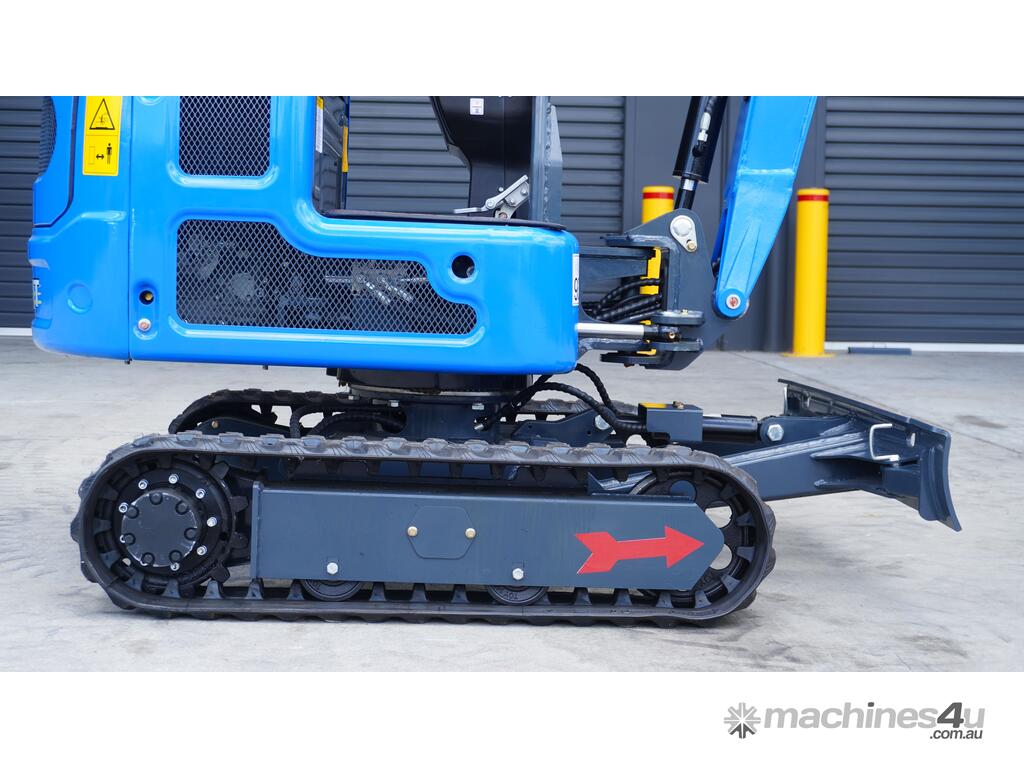

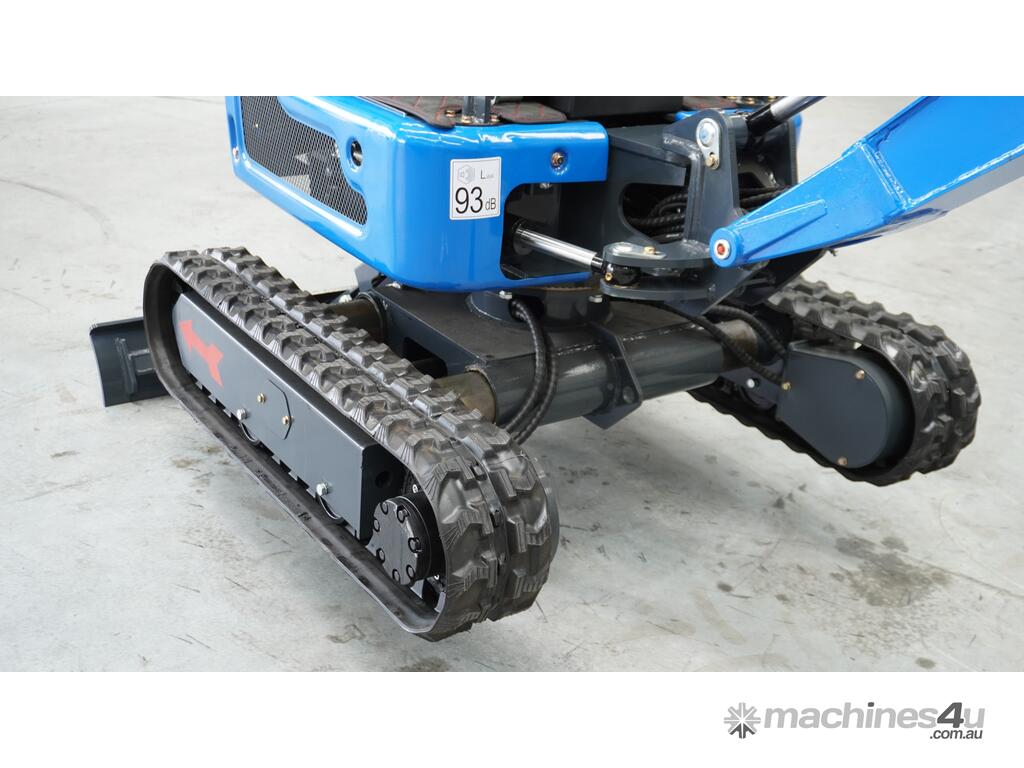

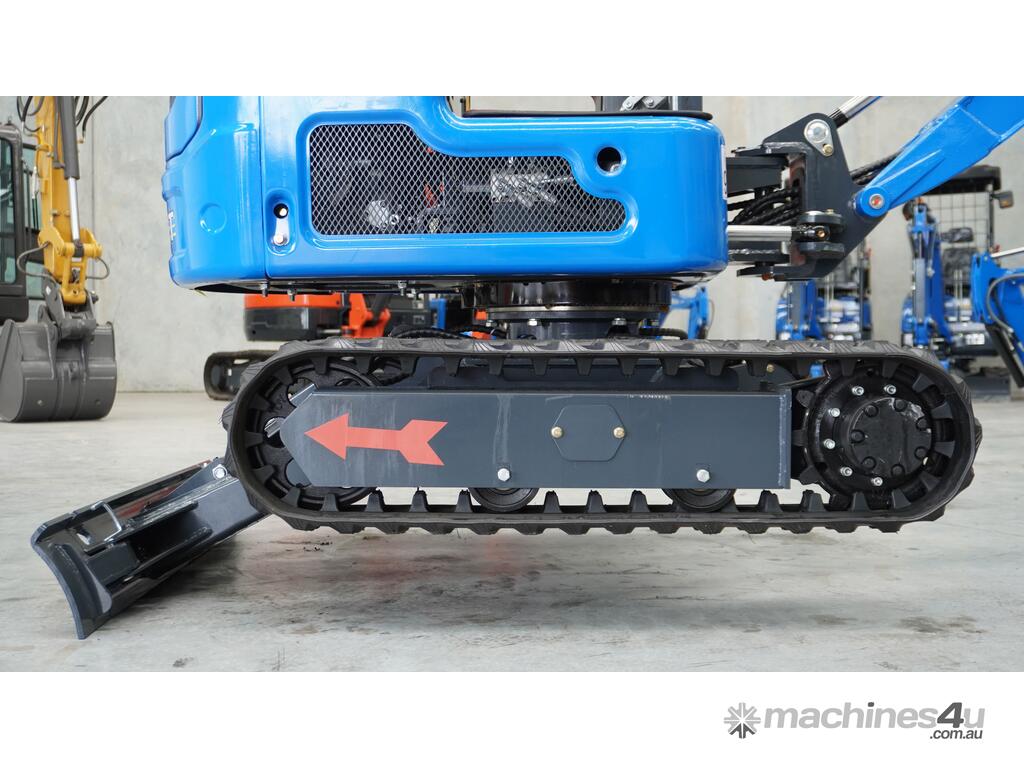

Expandable track

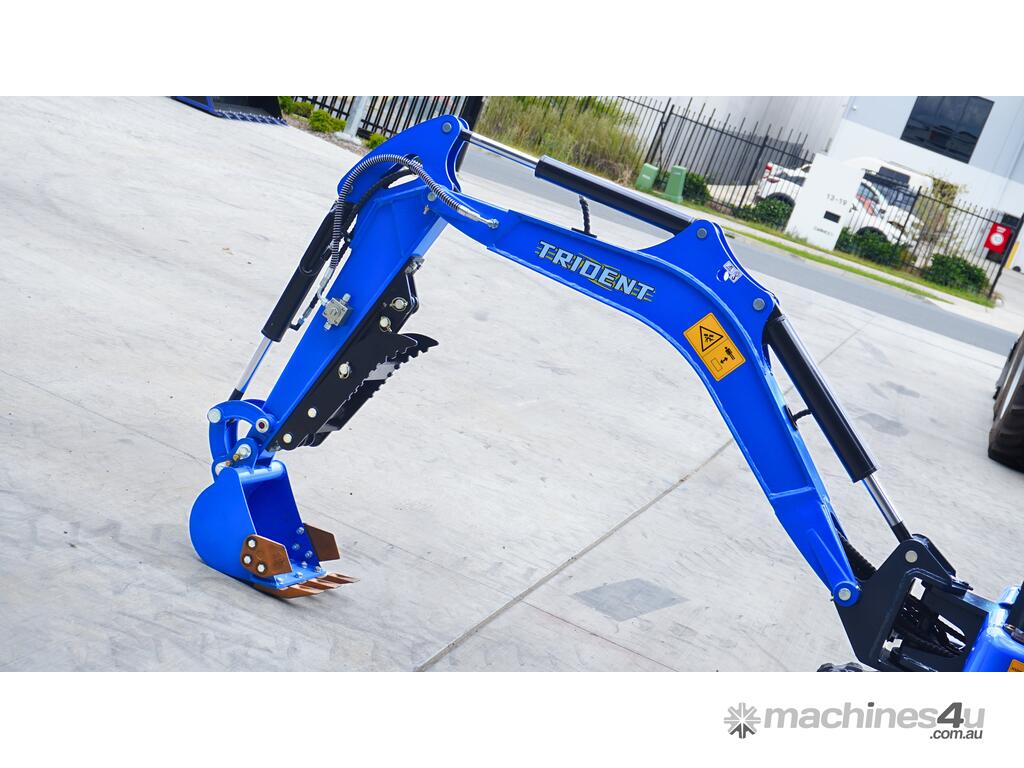

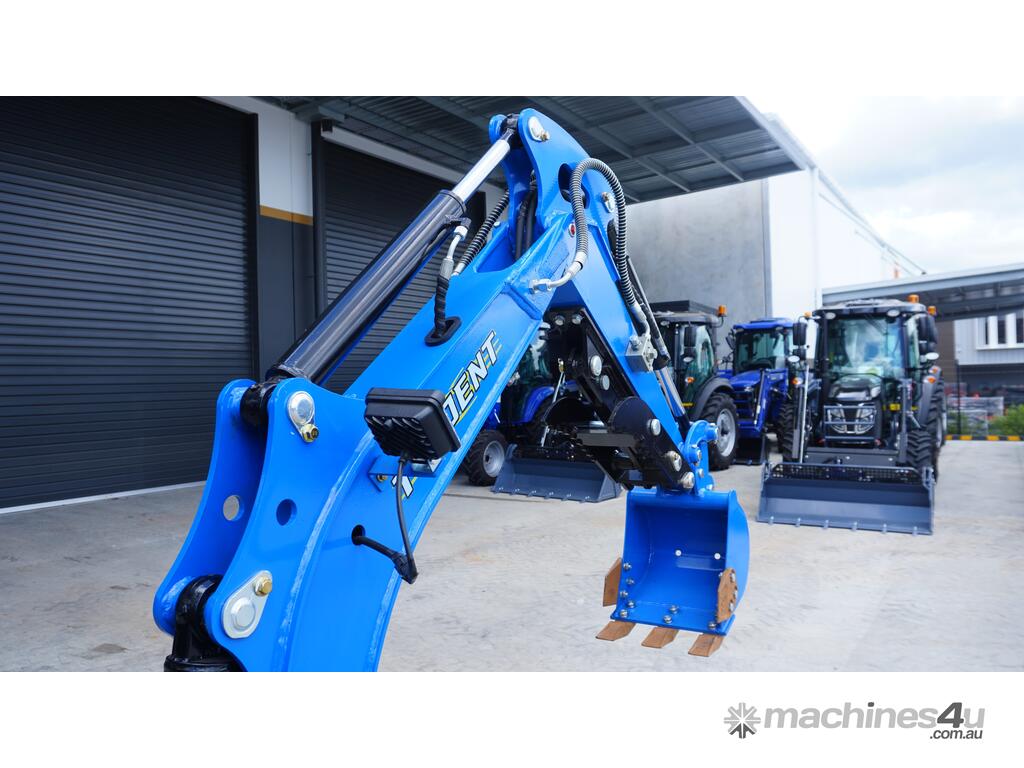

Swing boom
Hydraulic outputs for multiple attachments
Quick hitch
Hydraulic outputs

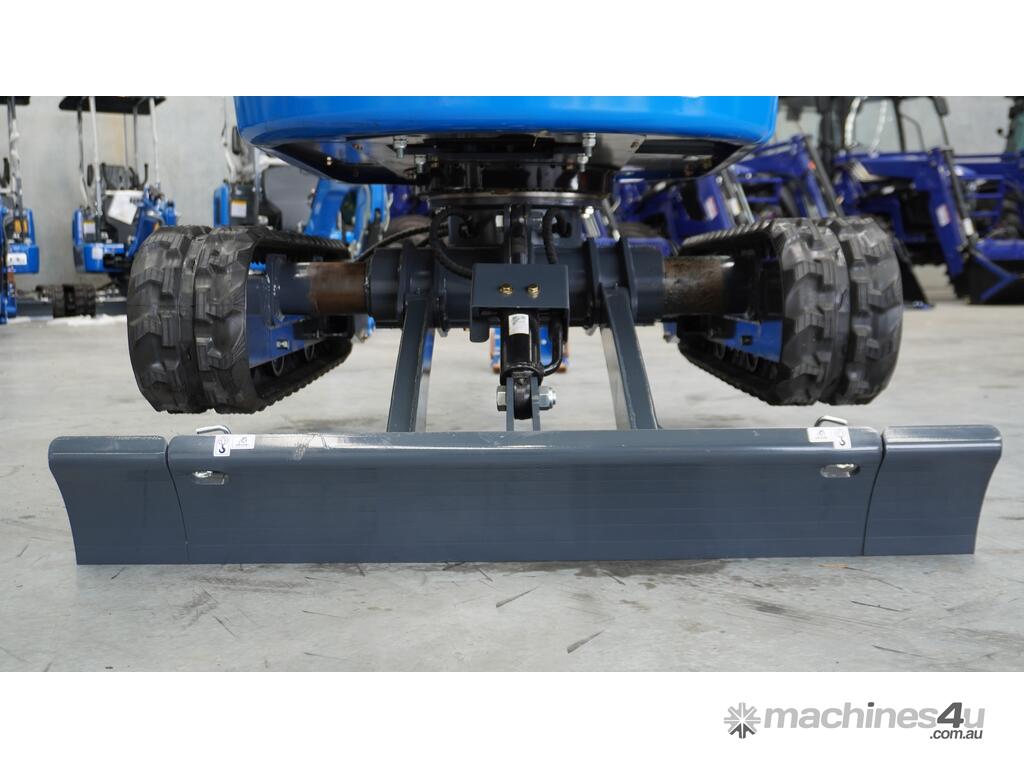

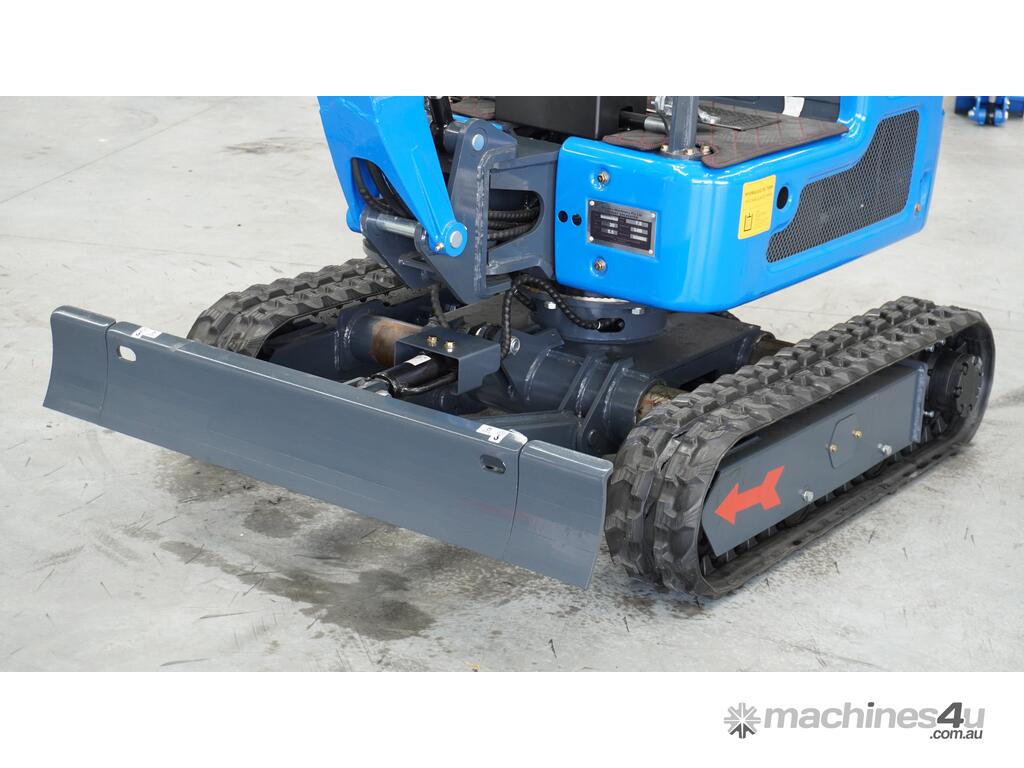

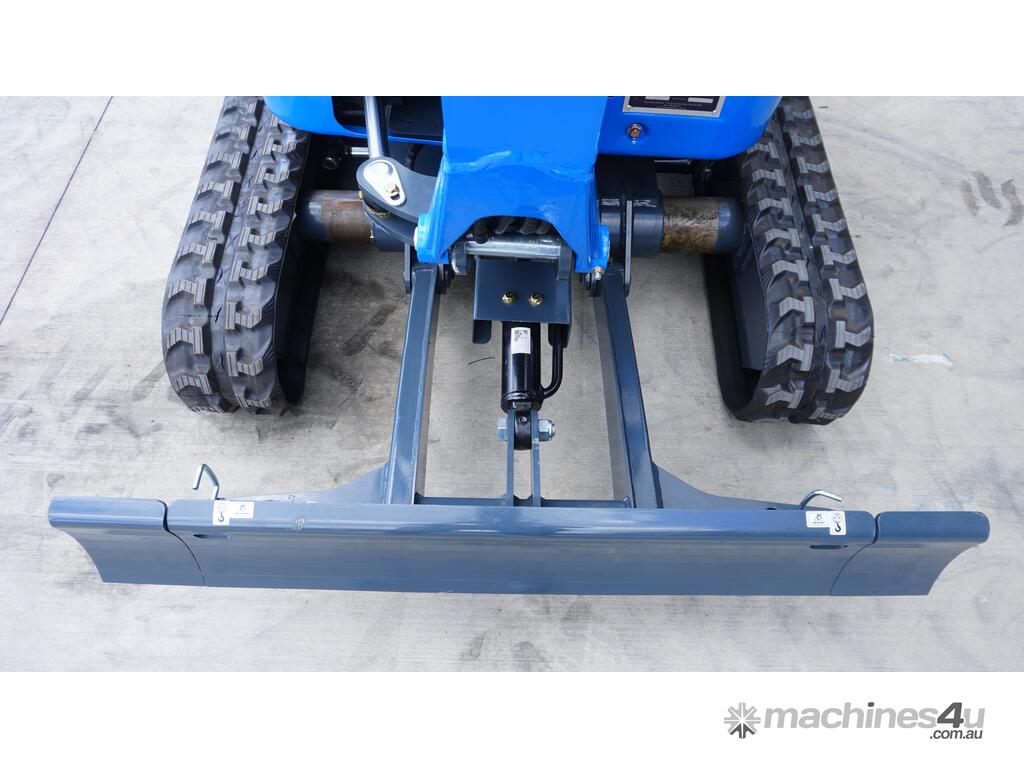

Dozer blade (extra length)
Mechanical fuel pump (No engine ECU)
3 years parts warranty

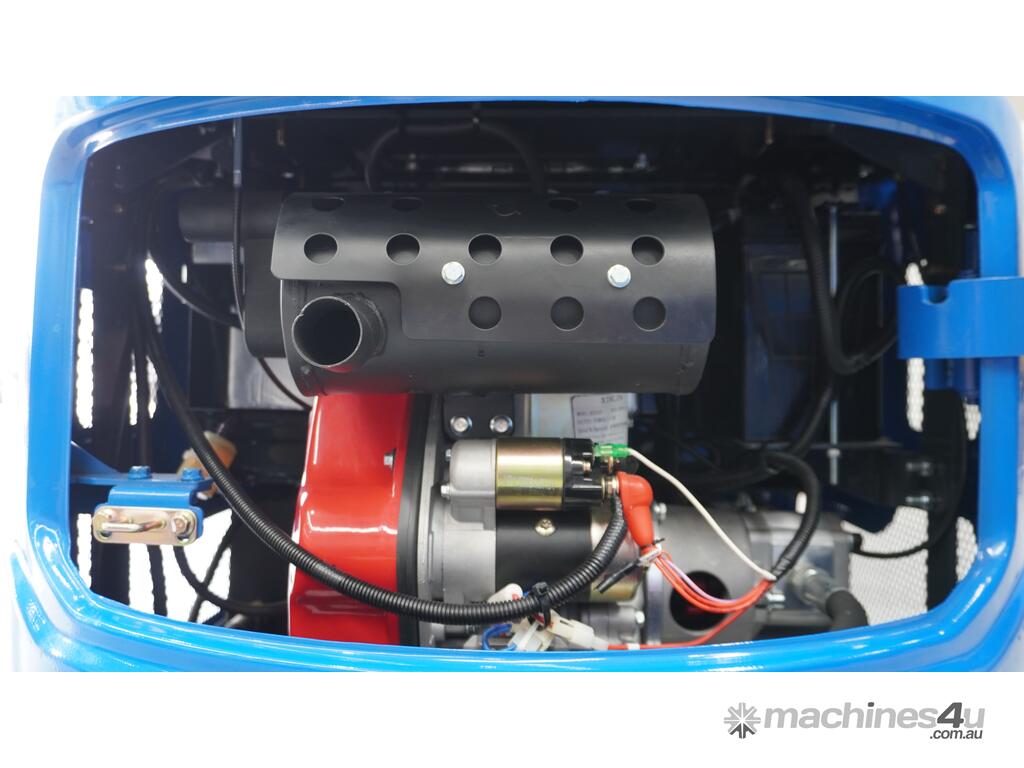

Engine/Hydraulic:
Engine model: 192F
Rate power: 12HP/8.2 kw/3,600 rpm
Displacement: 0.499 L
Flow rate: 21.6 L/min
Max. torque: 23.8 N.m

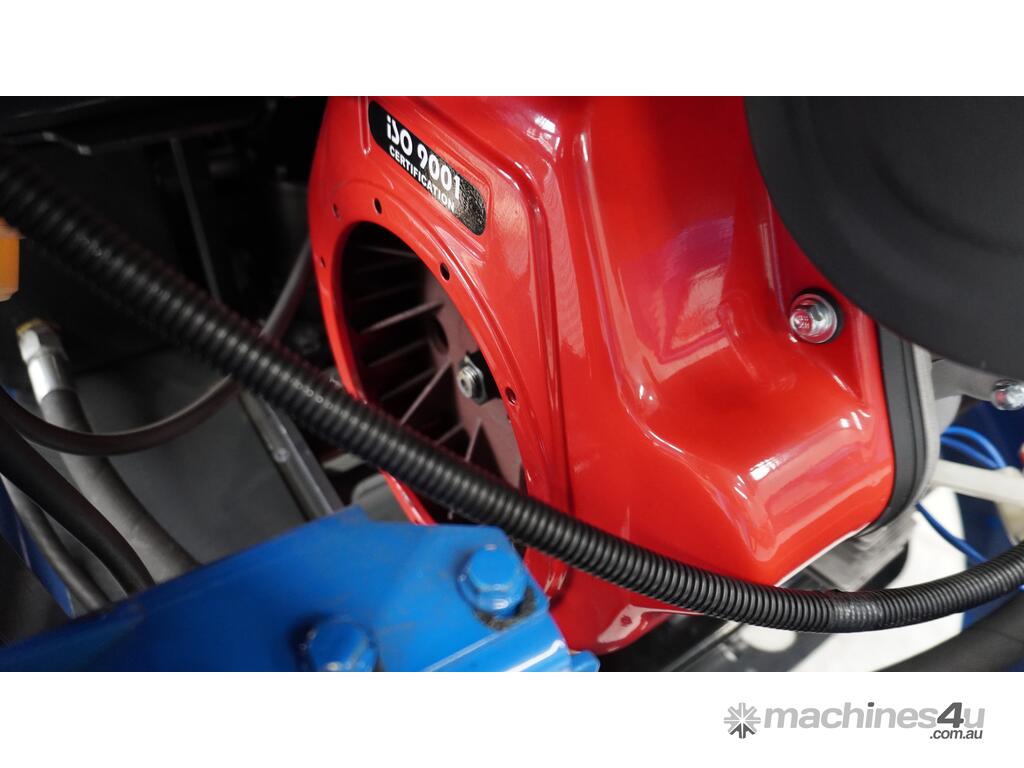

1 cylinder air cooled diesel engine
Operating Parameters:
Operating pressure: 18MPa
Vehicle working weight: 1,200kg
Travel speed: 1.84 km/h
Gradeability: 30%
Swing speed: 7 rpm
Ground specific pressure: 23.43kPa
Bucket maximum digging force: 800 kg
Maximum digging force of stick: 600 kg
Minimum swing radius: 1,535mm
Maximum digging radius: 2,781mm
Maximum digging depth: 1,625mm
Maximum digging height: 2,407mm
Maximum unloading height: 1,758mm
Dimensions:
Wheelbase: 1,100mm
Total length of track: 1,260mm
Boom length: 1,471mm
Stick length: 961mm
Track width: 180mm
Track height: 290mm
Chassis width: 800/932 mm
Counterweight ground clearance: 425mm
Platform ground clearance: 376mm
Platform back turning radius: 480mm
