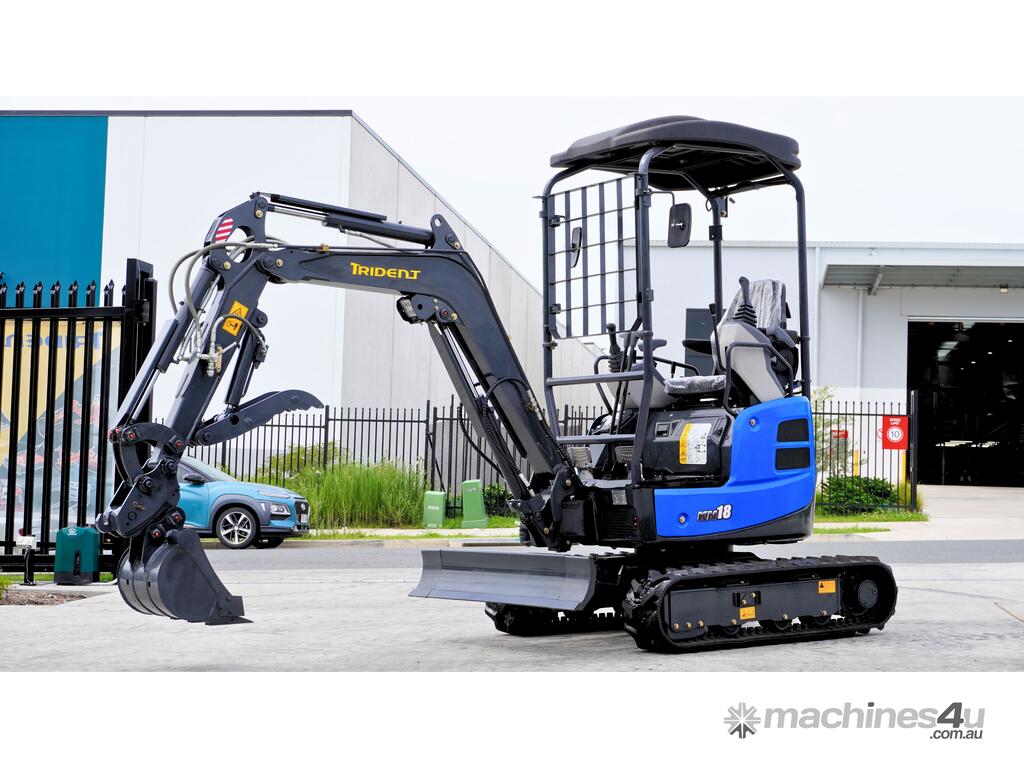

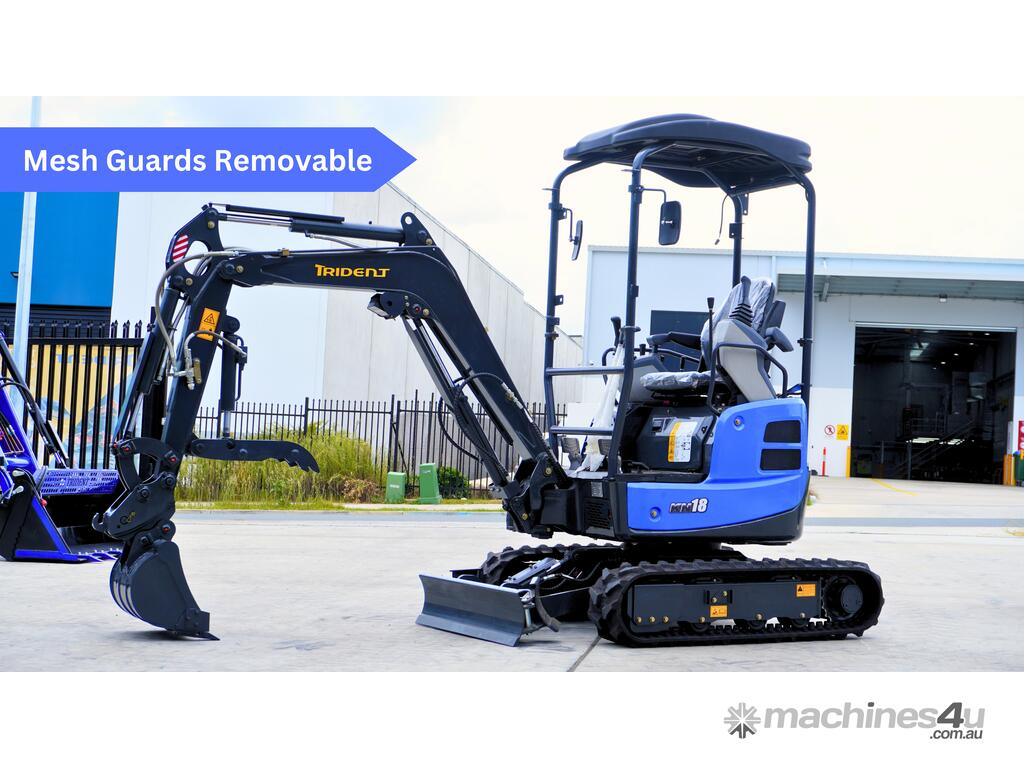

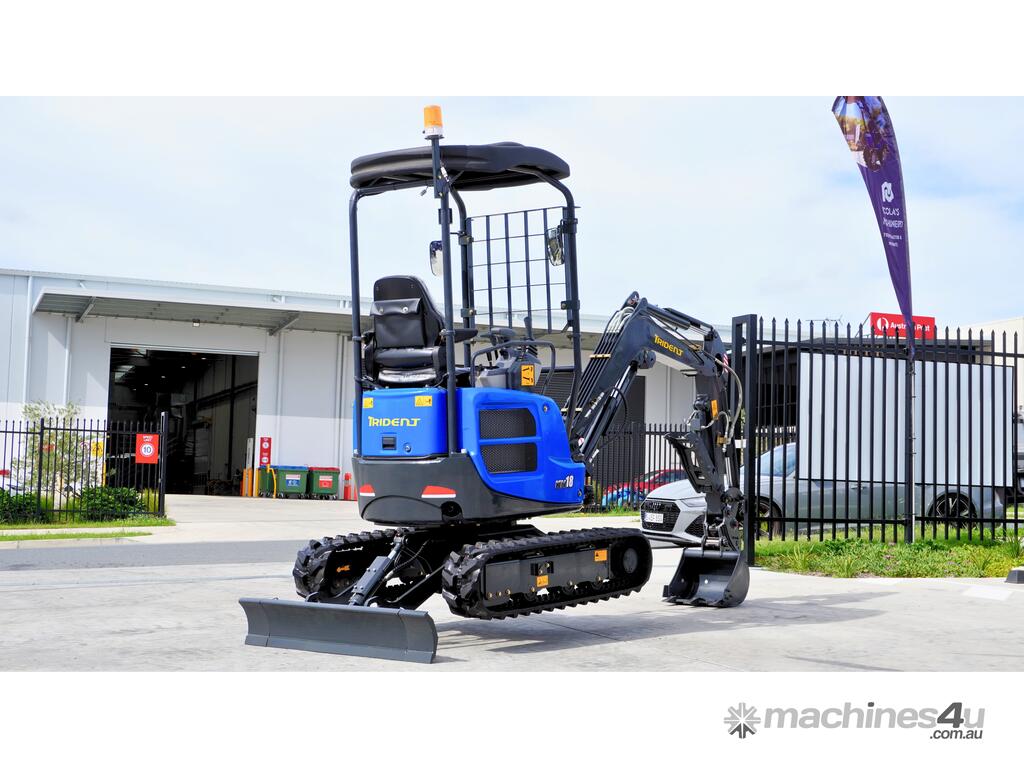

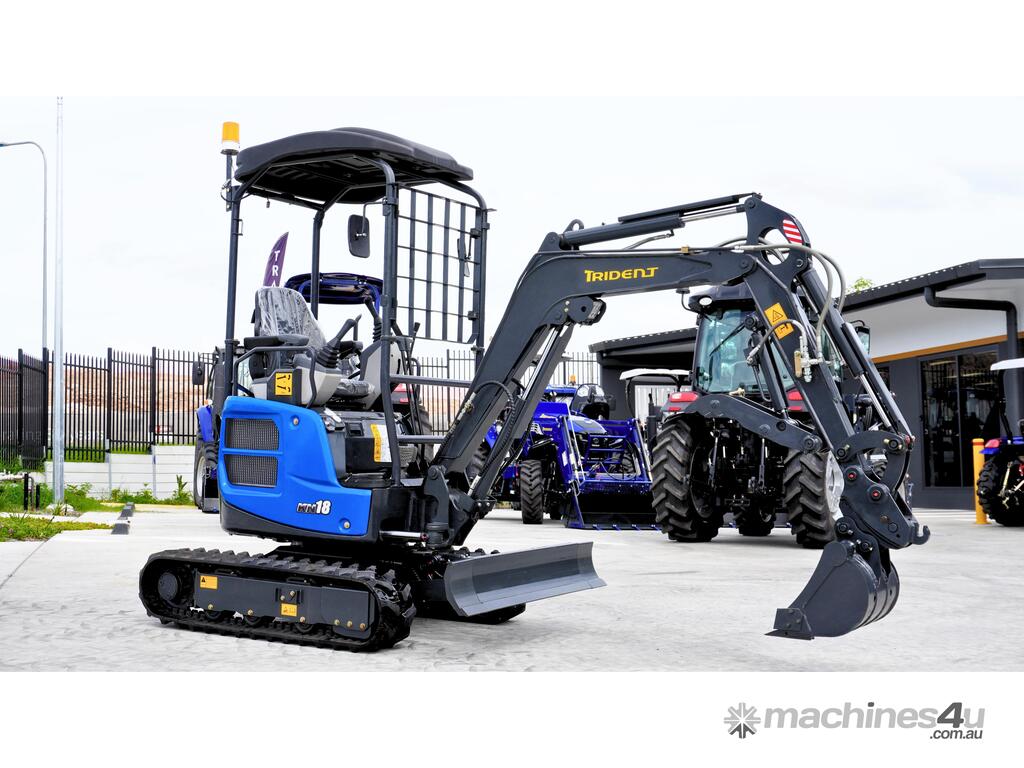

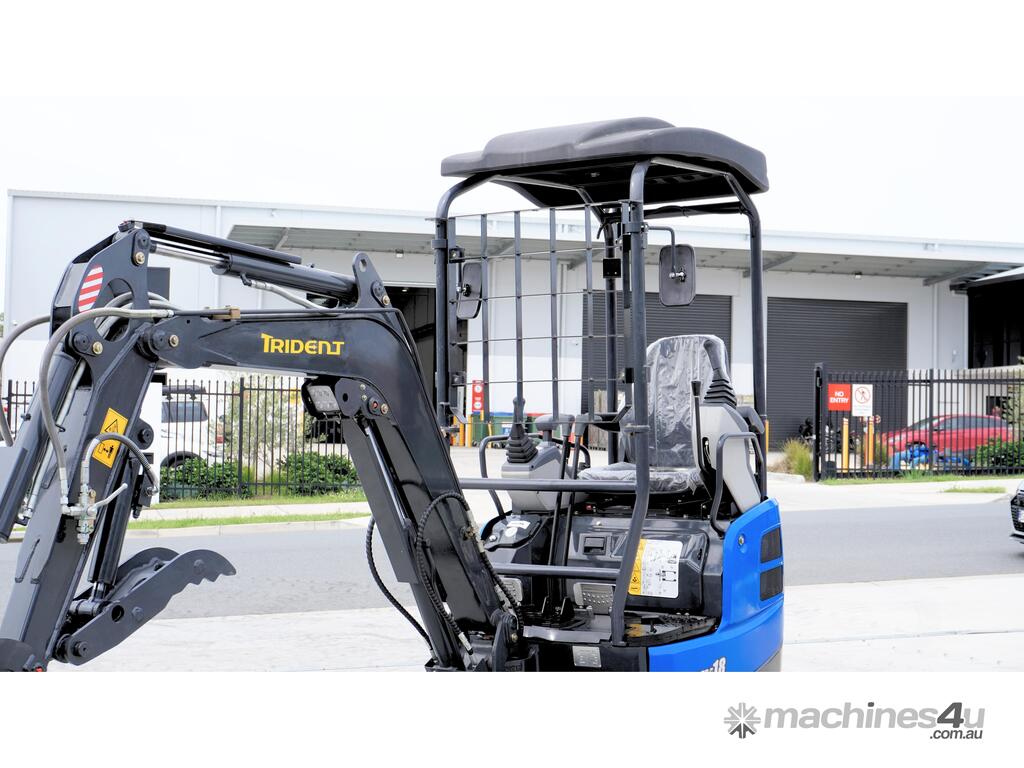

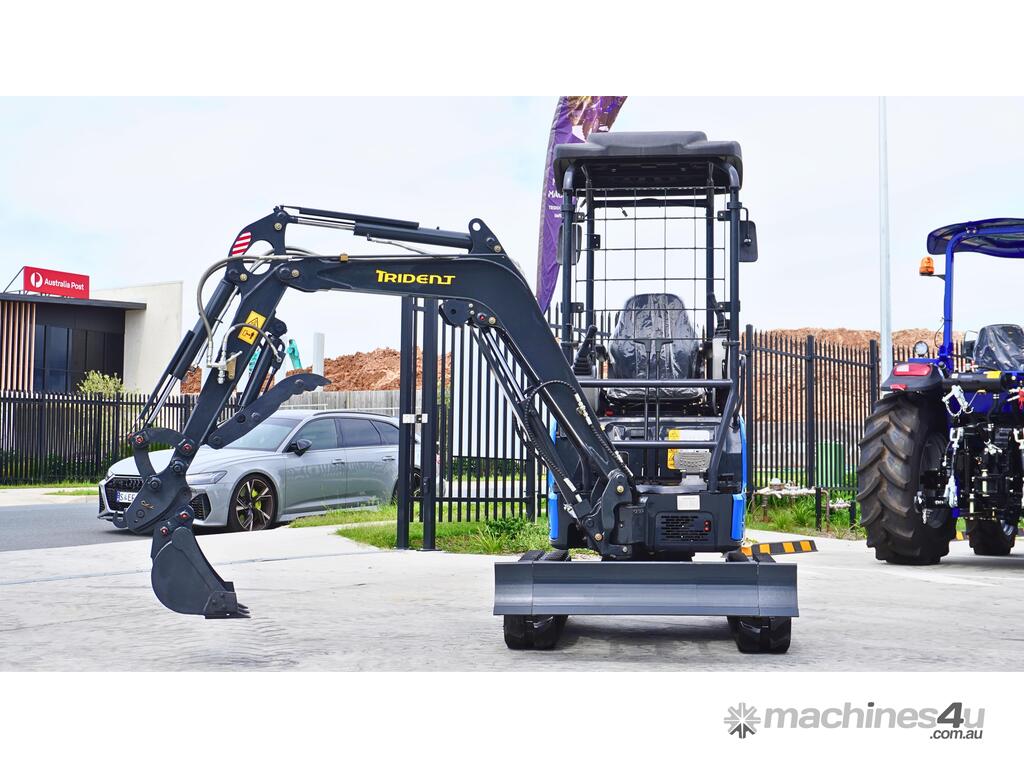

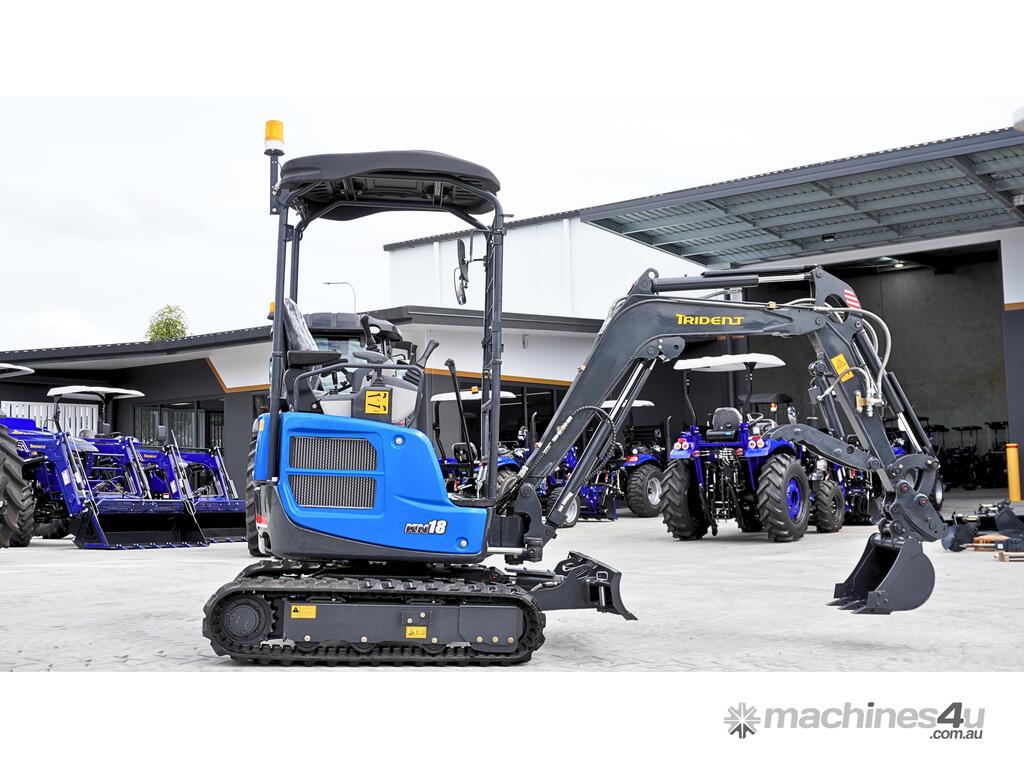

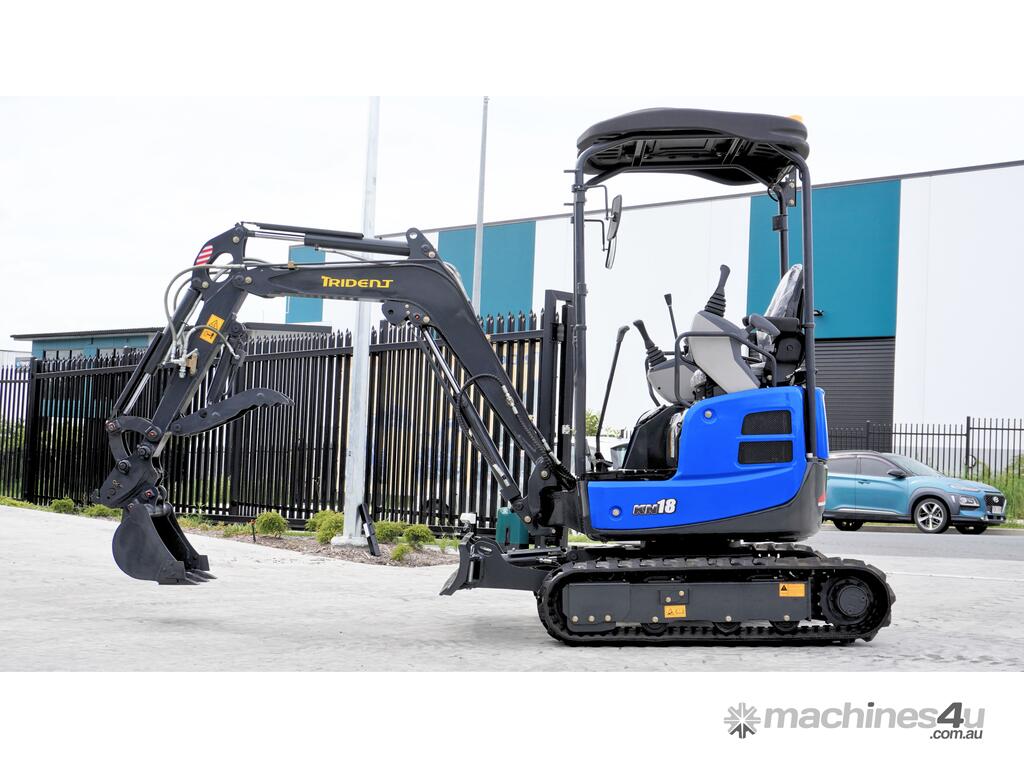

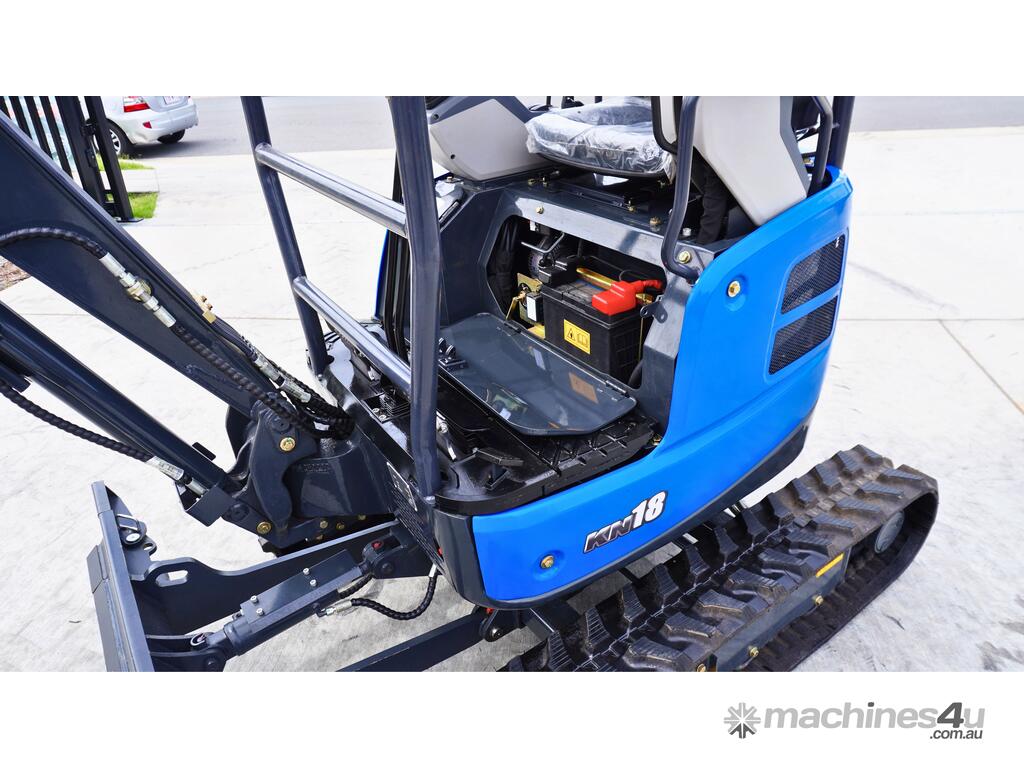

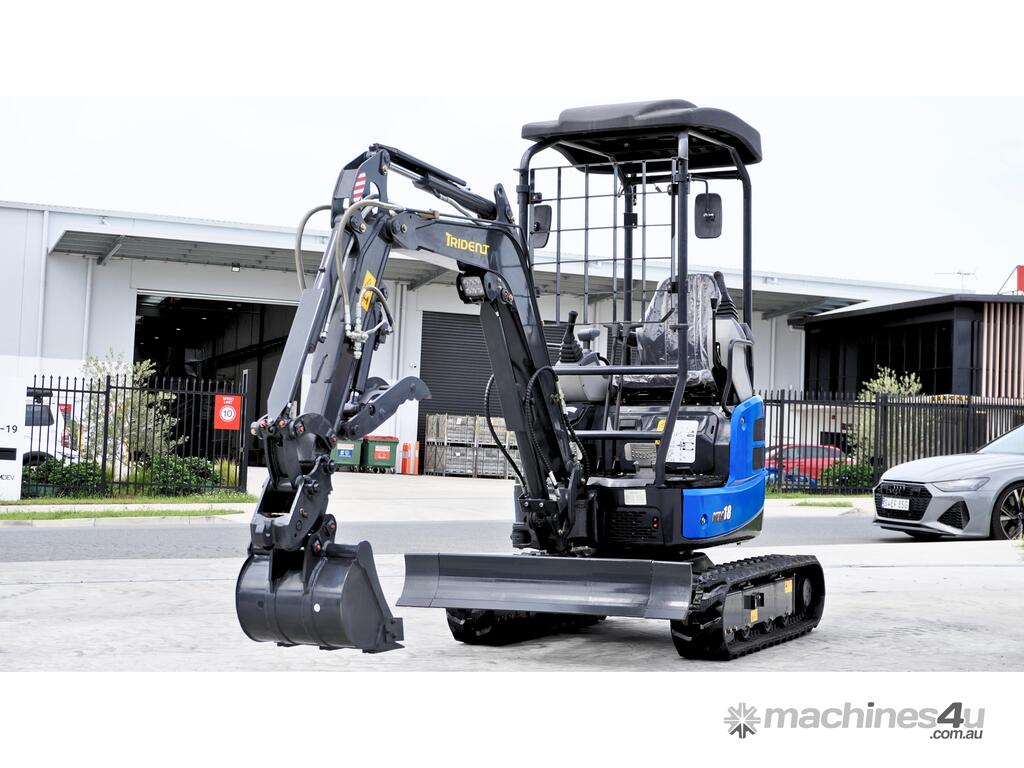

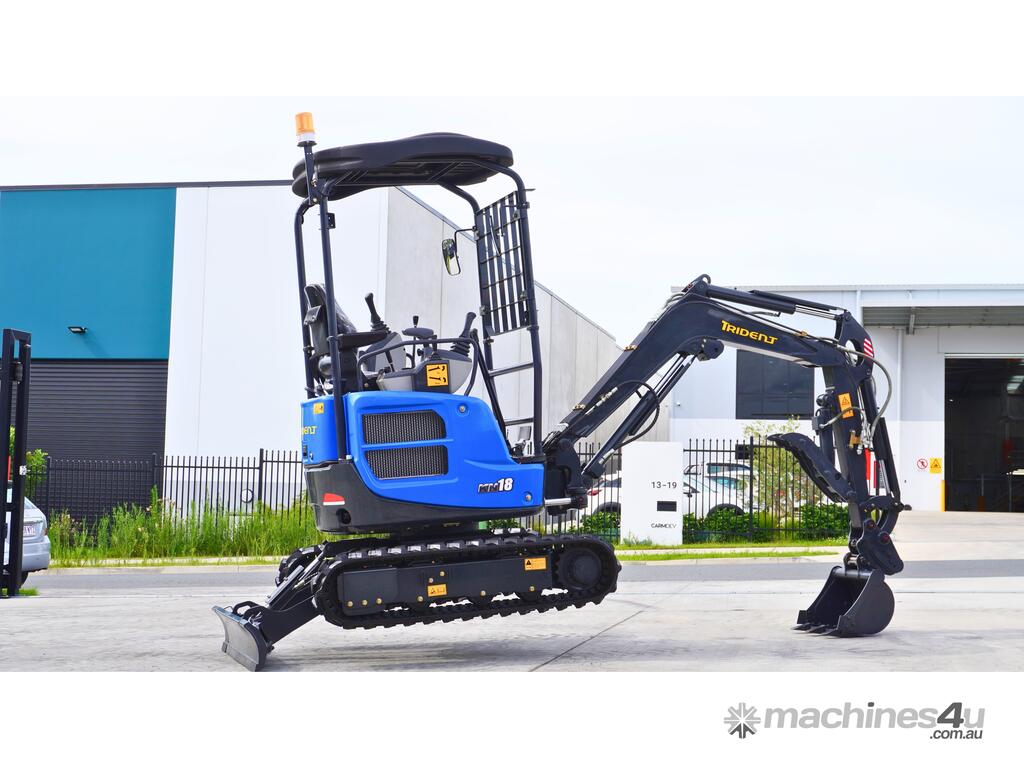

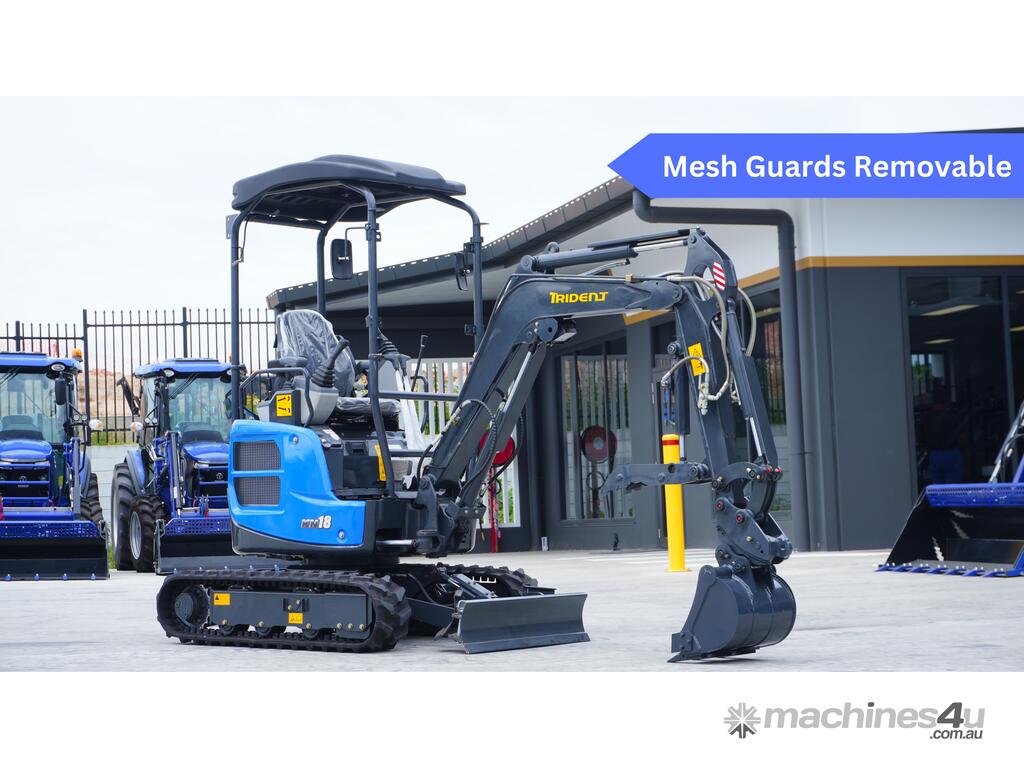

The Trident 1.8T Excavator combines compact design with reliable performance for versatile applications. Featuring zero swing, pilot controls, expandable tracks, and a swing boom, it ensures agility on any job site. Powered by a Yanmar 3TNV70 engine, it delivers efficient operation without an ECU. Supplied with multiple attachments, including a hydraulic thumb grab and rock breaker, it’s ready for a variety of tasks.

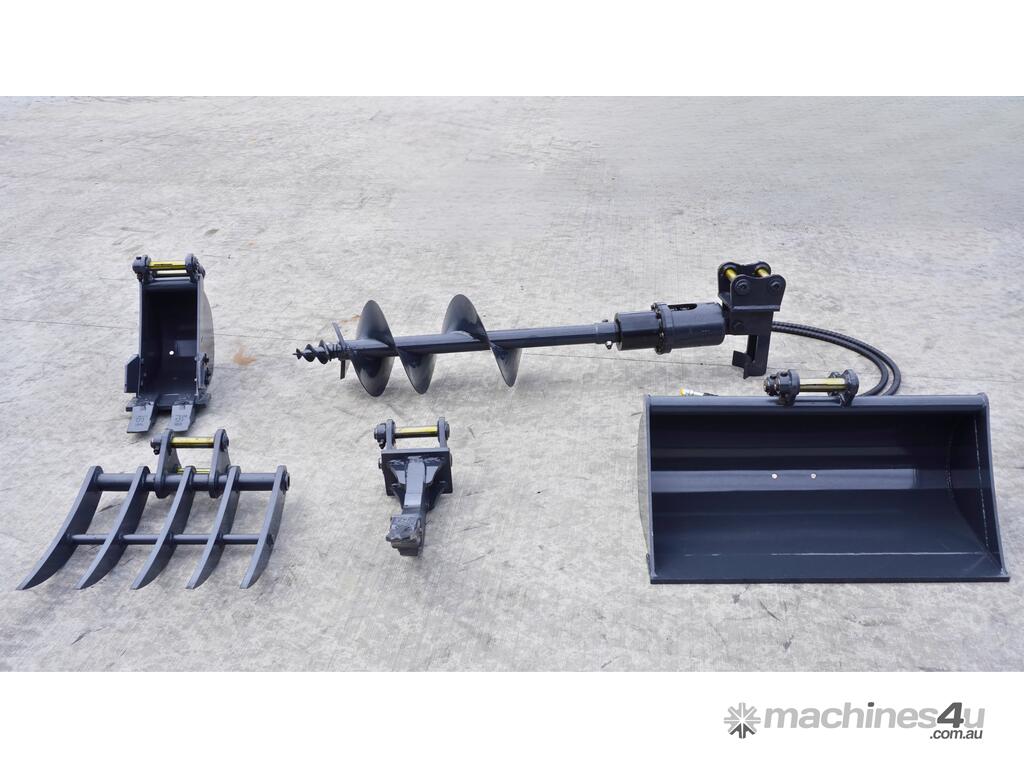

Combo deal includes:
• 450mm bucket

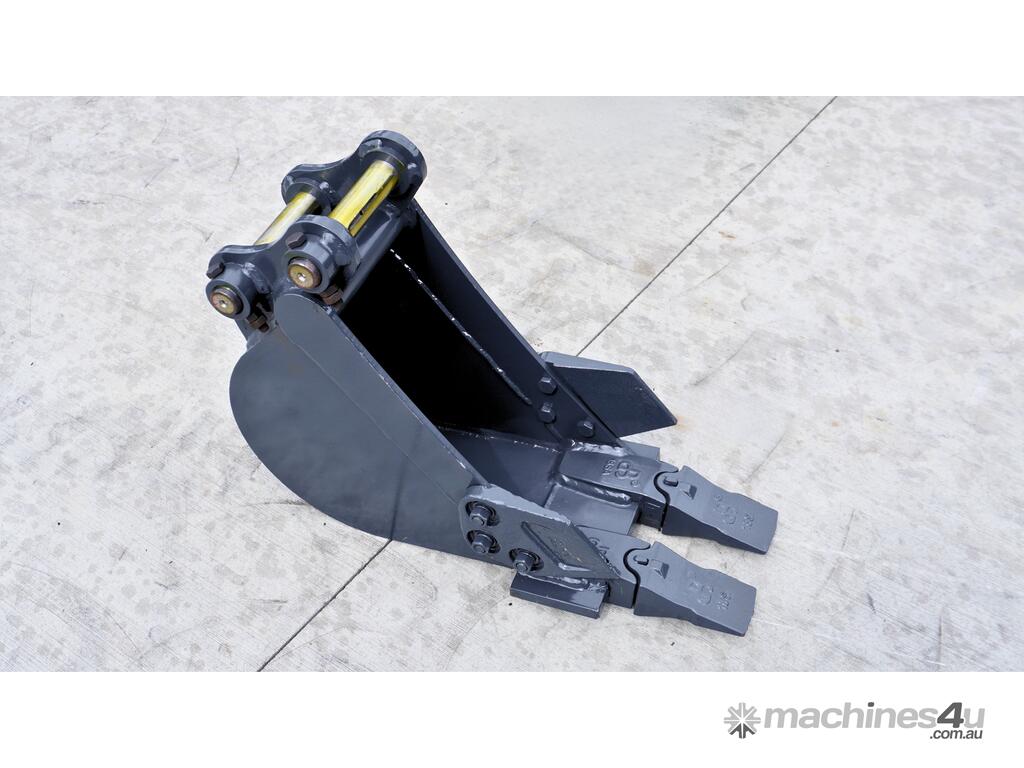

• 200mm trench bucket

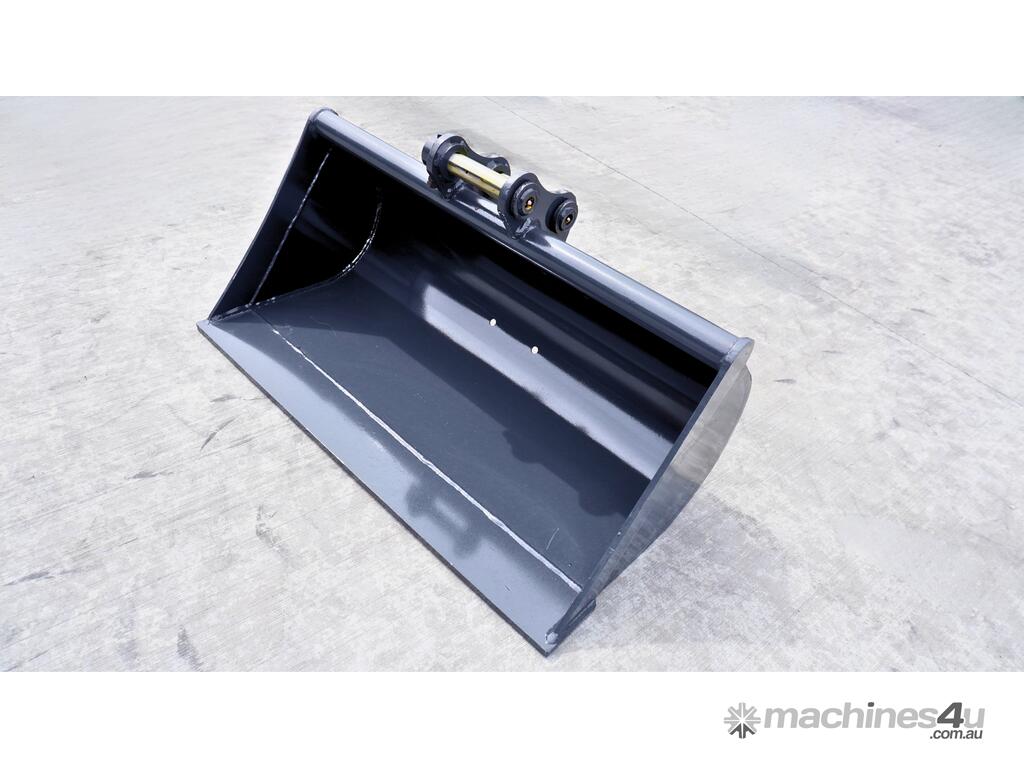

• 800mm mud bucket

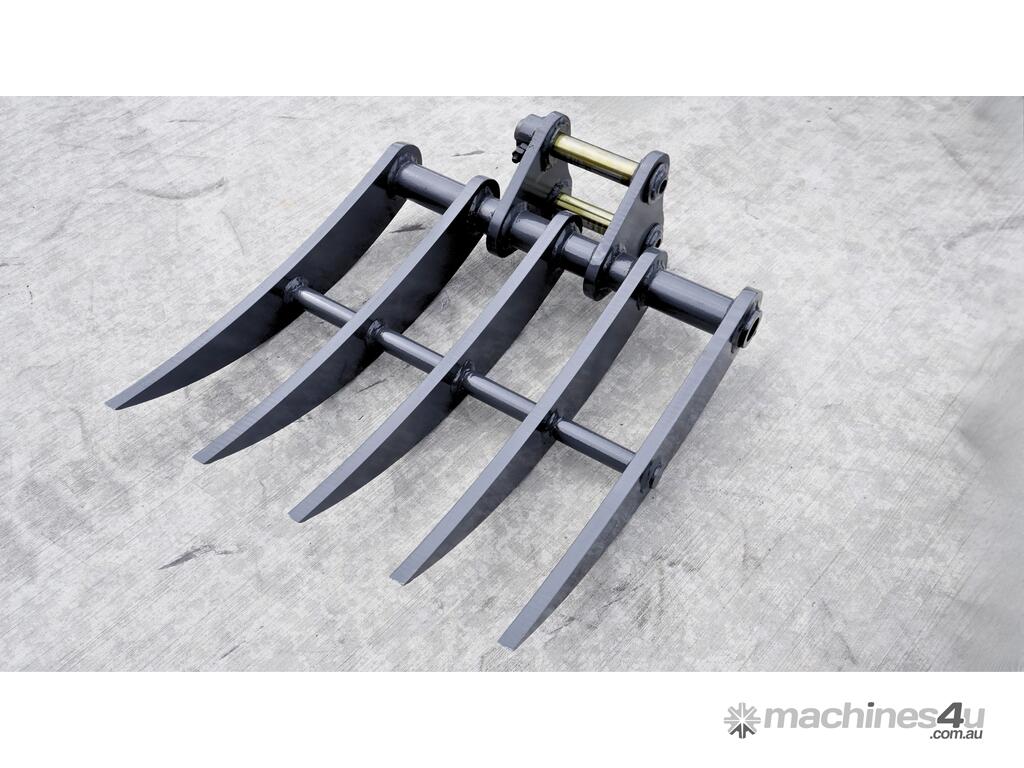

• 500mm stick rake

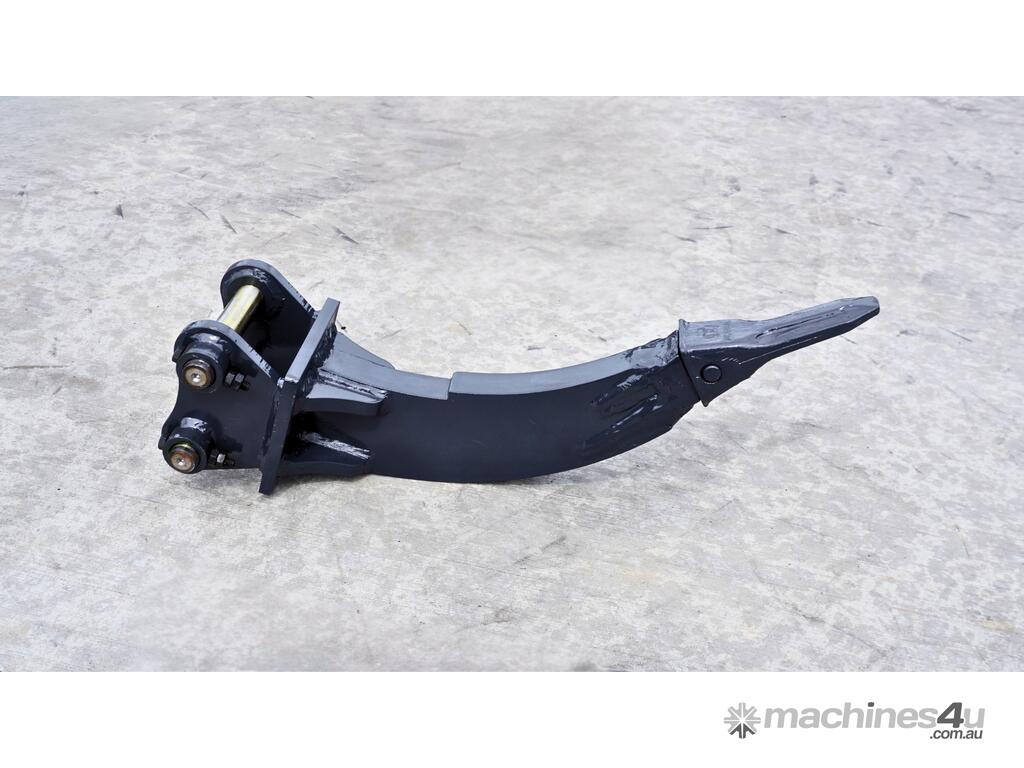

• 50mm ripper

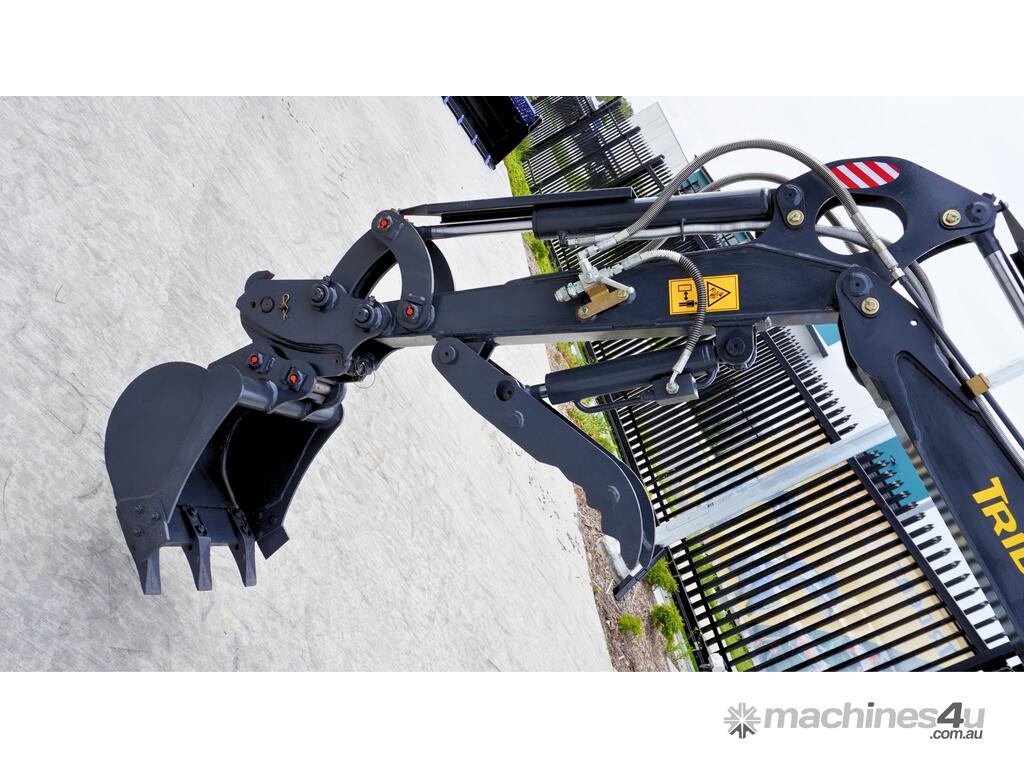

• Quick hitch

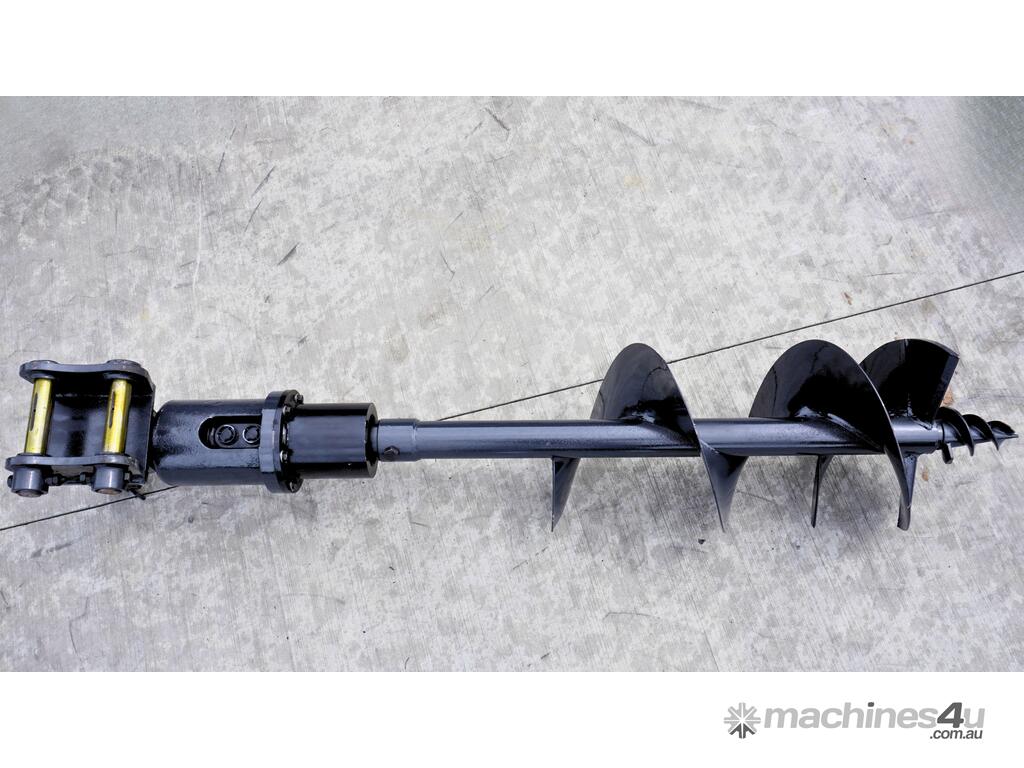

• Post hole digger with 300mm auger

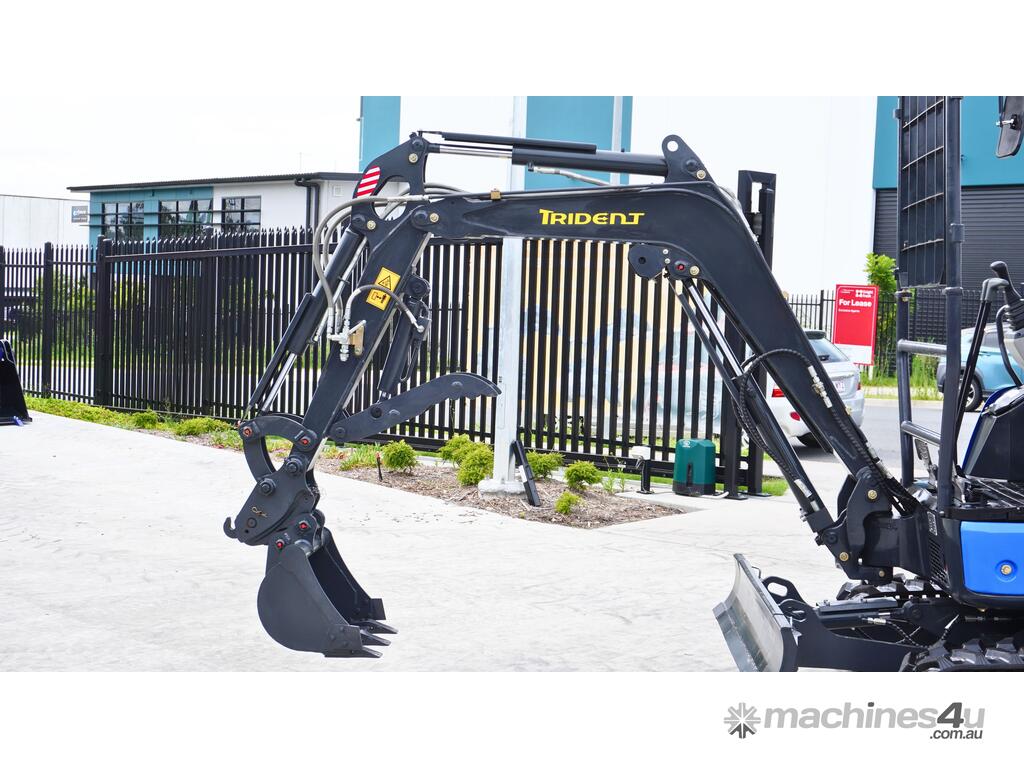

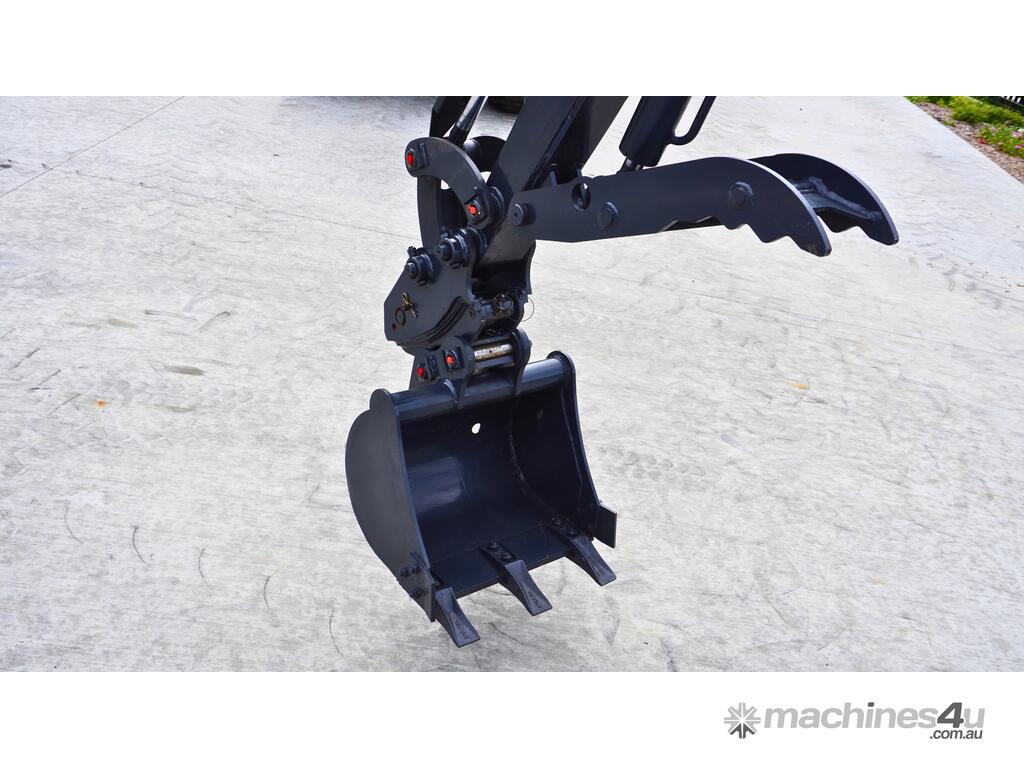

• Hydraulic thumb grab

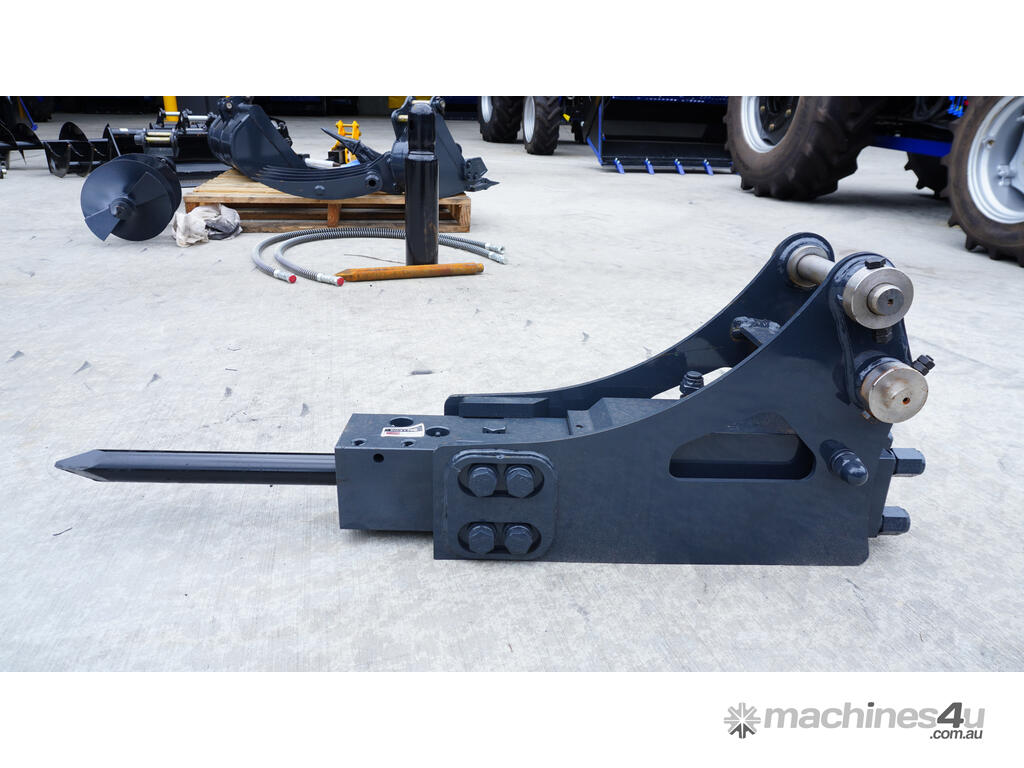

• Hydraulic rock breaker
Key Features:
Zero swing

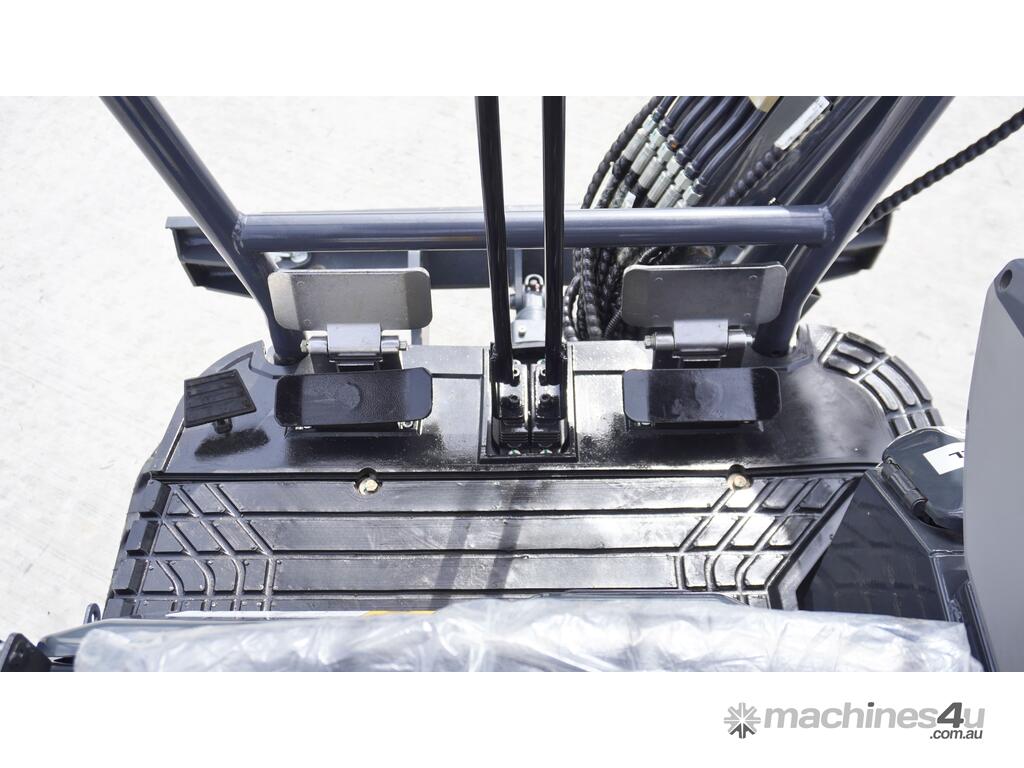

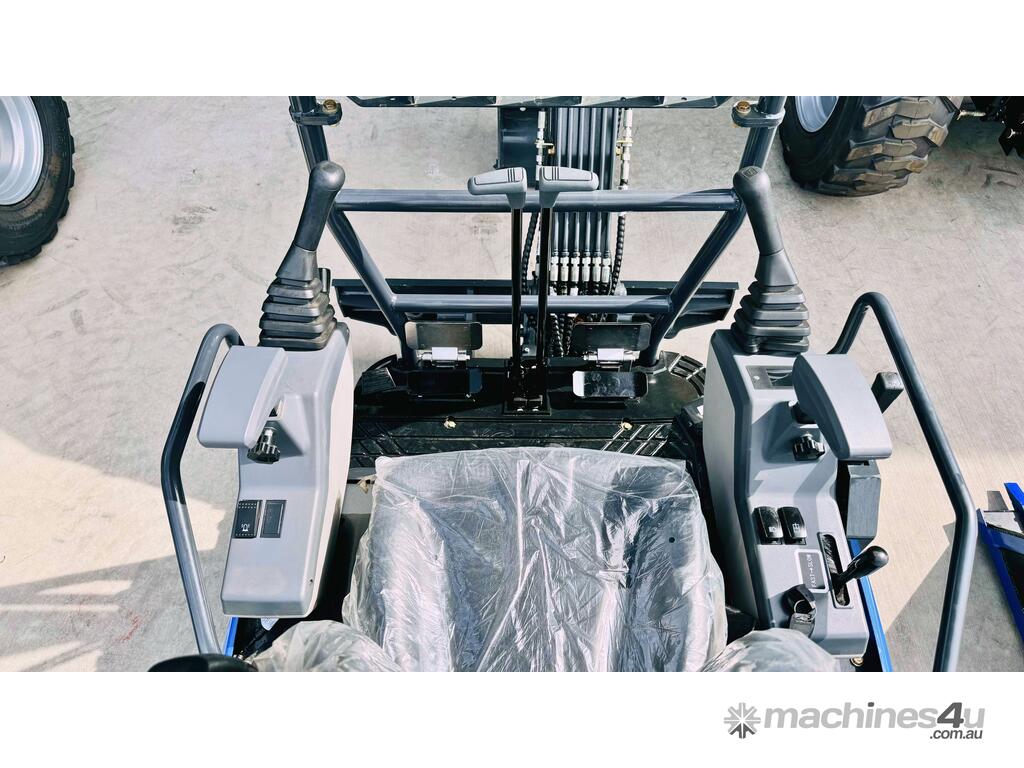

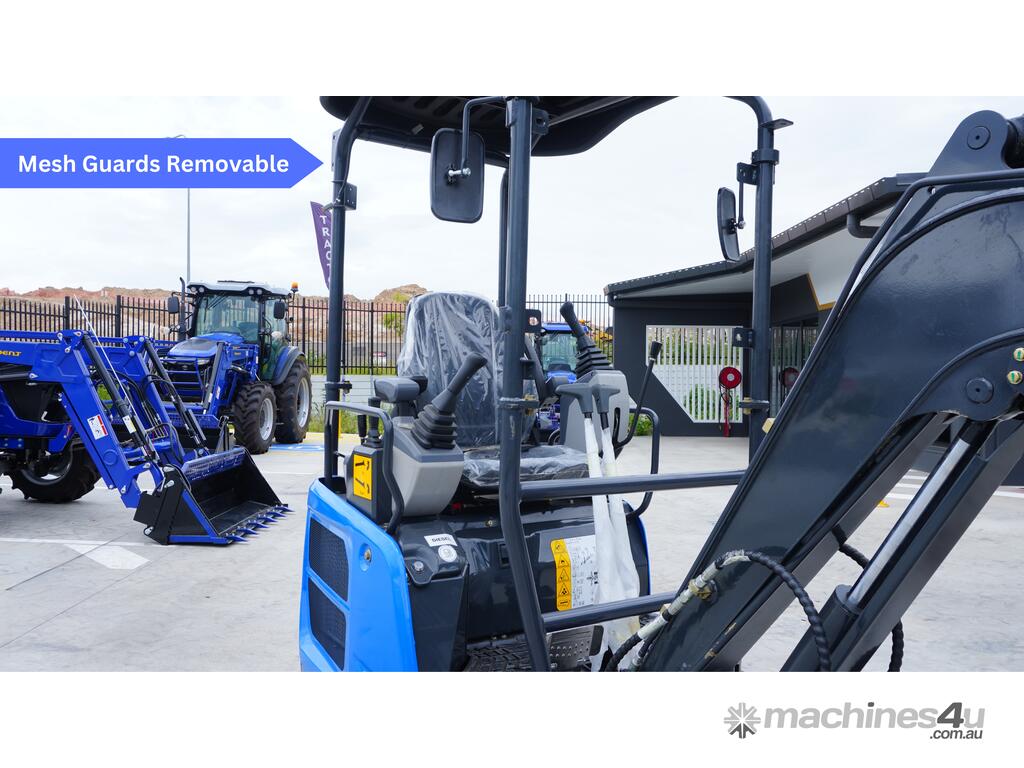

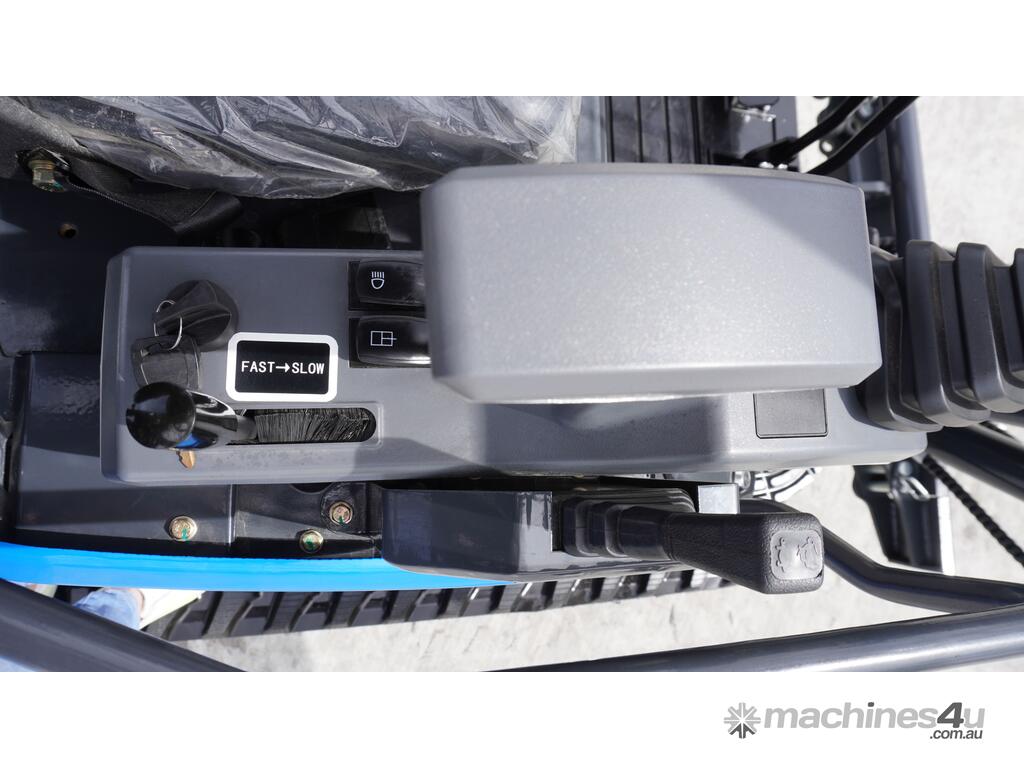

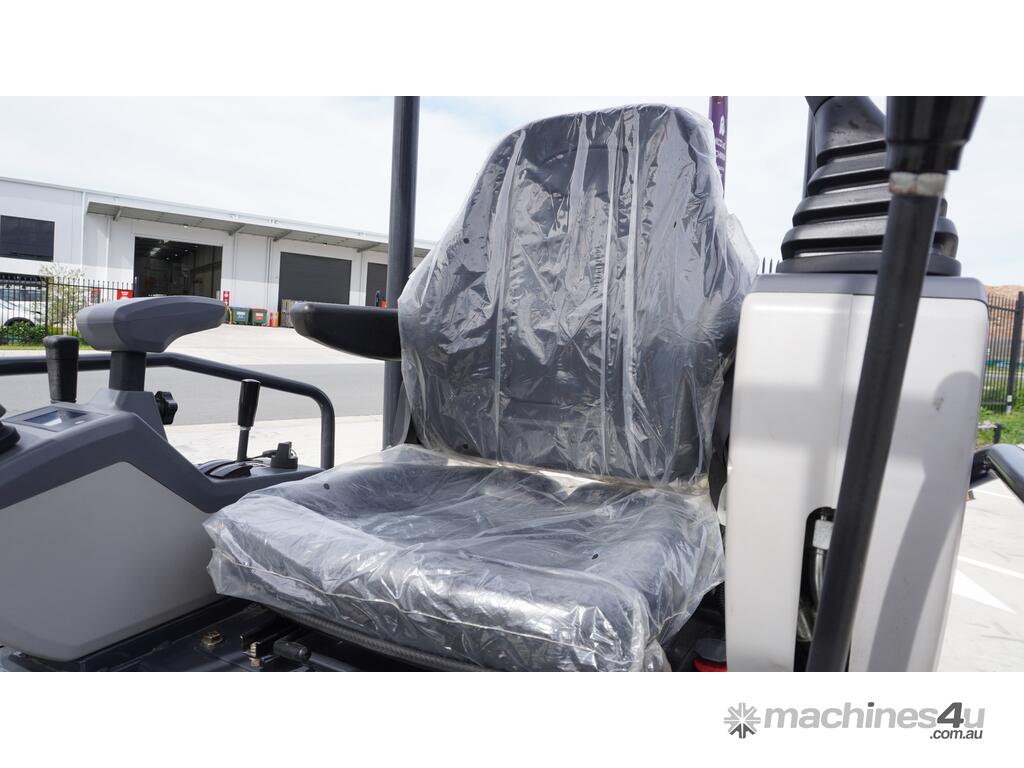

Pilot controls

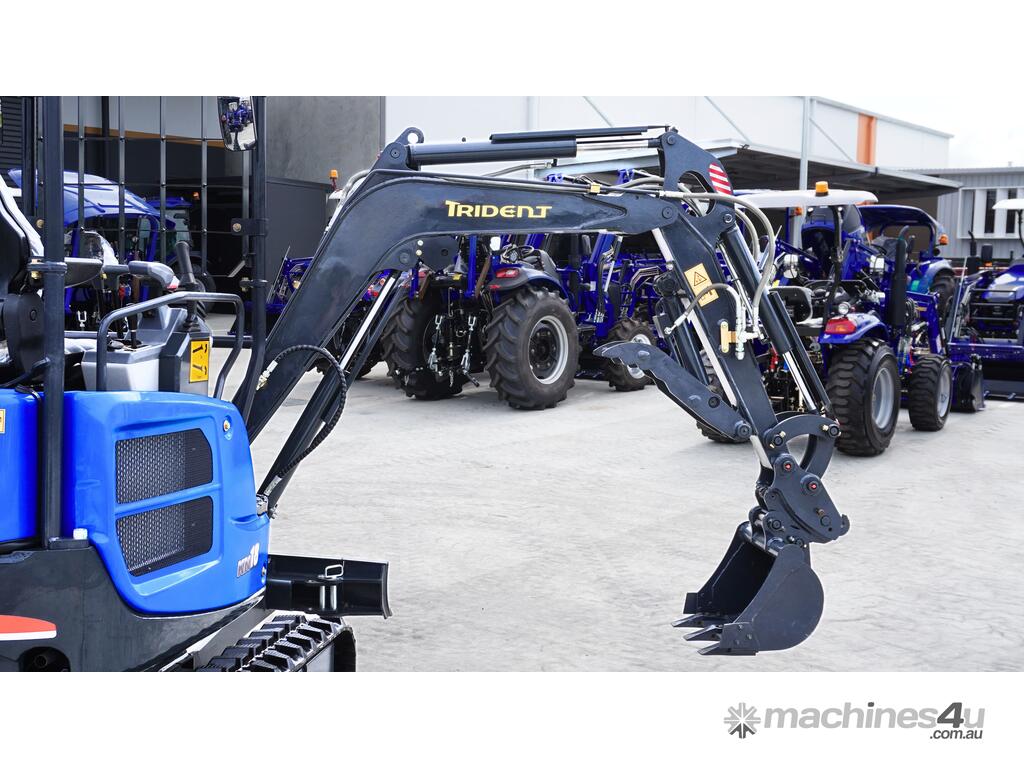

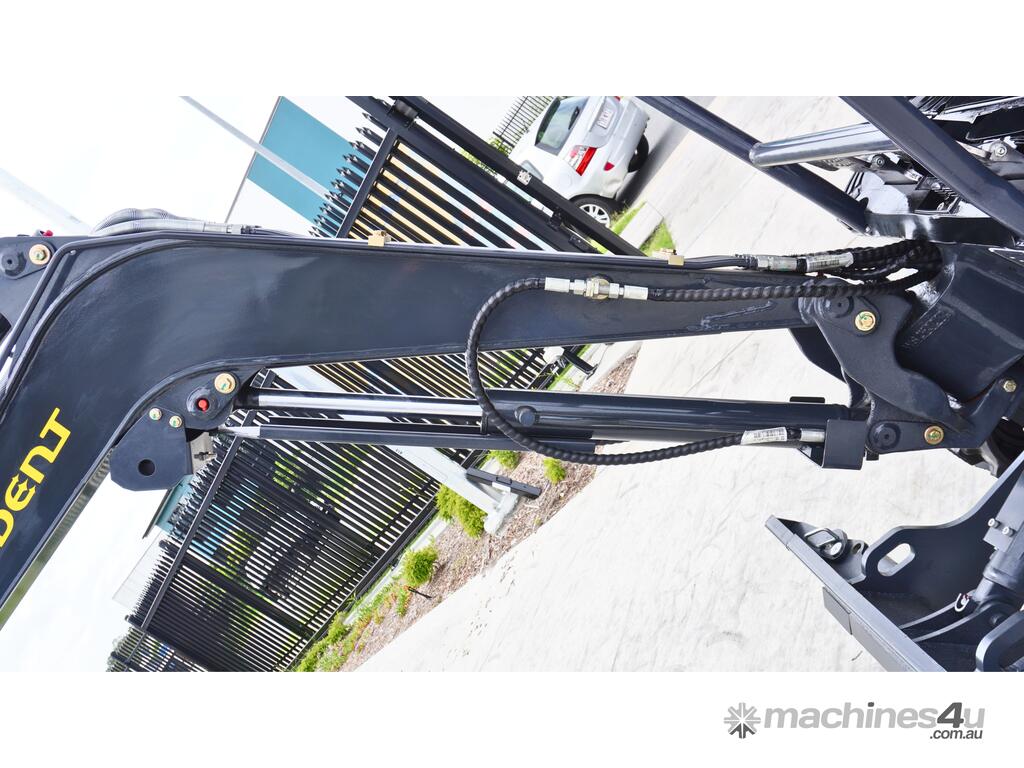

Swing boom

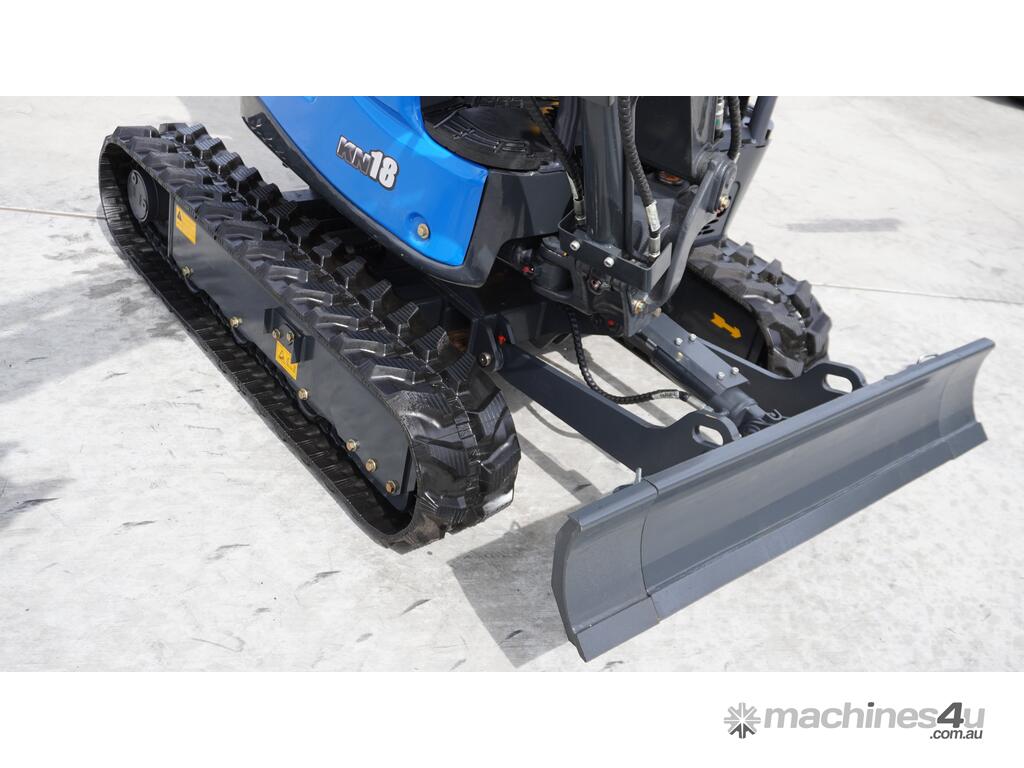

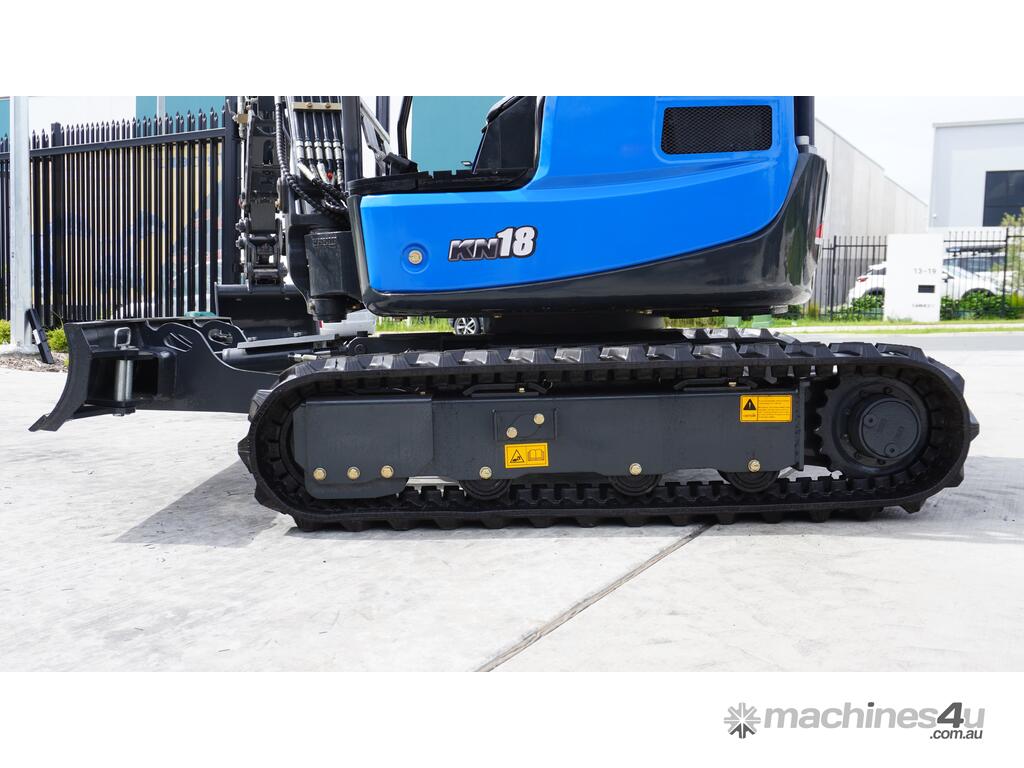

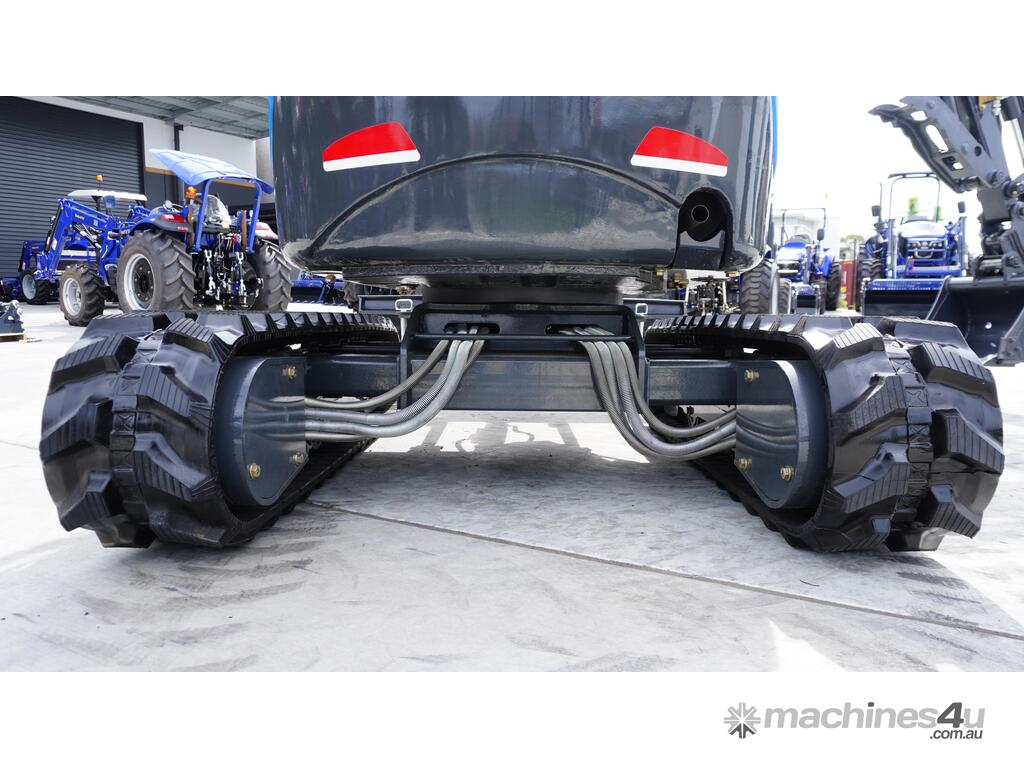

Expandable track

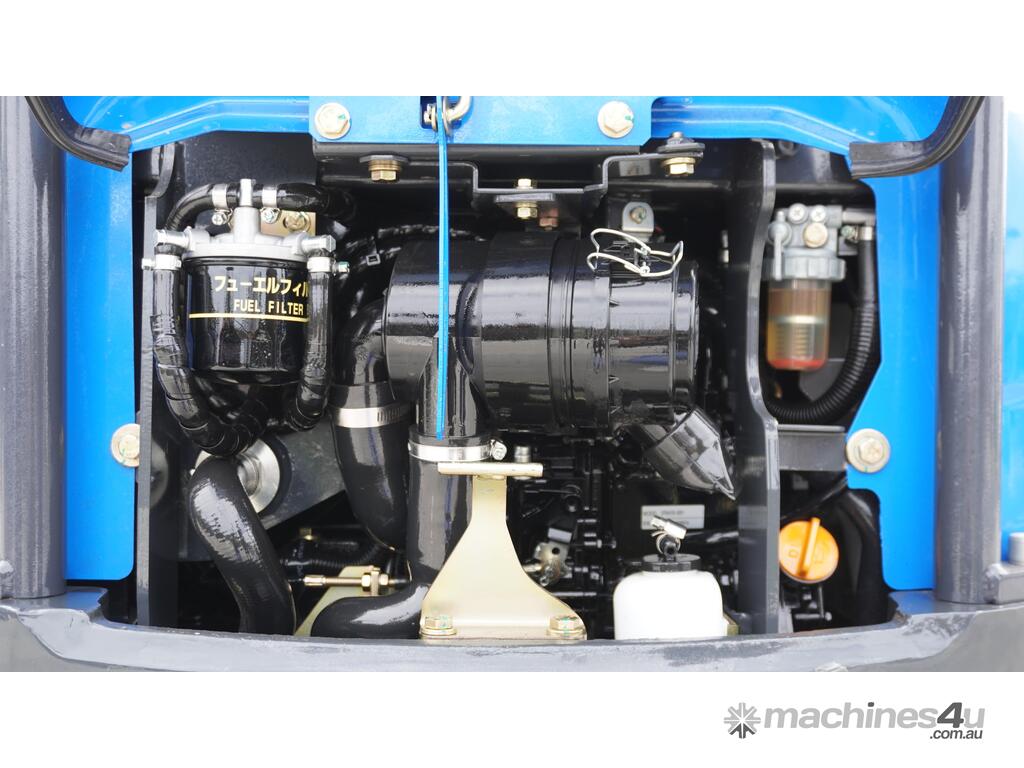

3-cylinder water cooled Yanmar 3TNV70 diesel engine
Hydraulic outputs for multiple attachments
Mechanical fuel pump (No engine ECU)
Engine & Hydraulic:
Engine model: Yanmar 3TNV70
Engine type: direct injection
Number of cylinders: 3
Displacement: 0.898L
Engine power: 15.5kw / 20HP / 3600 rpm
Engine max speed: 3,600 rpm
Flow rate: 64.4L/min
Fuel tank capacity: 20L
Fuel type: Diesel
Cooling type: Water cooled
Cooling system: 5L
Operating Parameters:
Operating weight: 1,900kg
Travel speed: high 4.3 km/h, low 2.2 km/h
Swing speed: 9.5 rpm
Min. turning radius: 1,440mm
Max. dumping height: 2,480mm
Max. digging depth: 2,270mm
Max. vertical digging depth: 1,910mm
Max. digging distance: 3,910mm

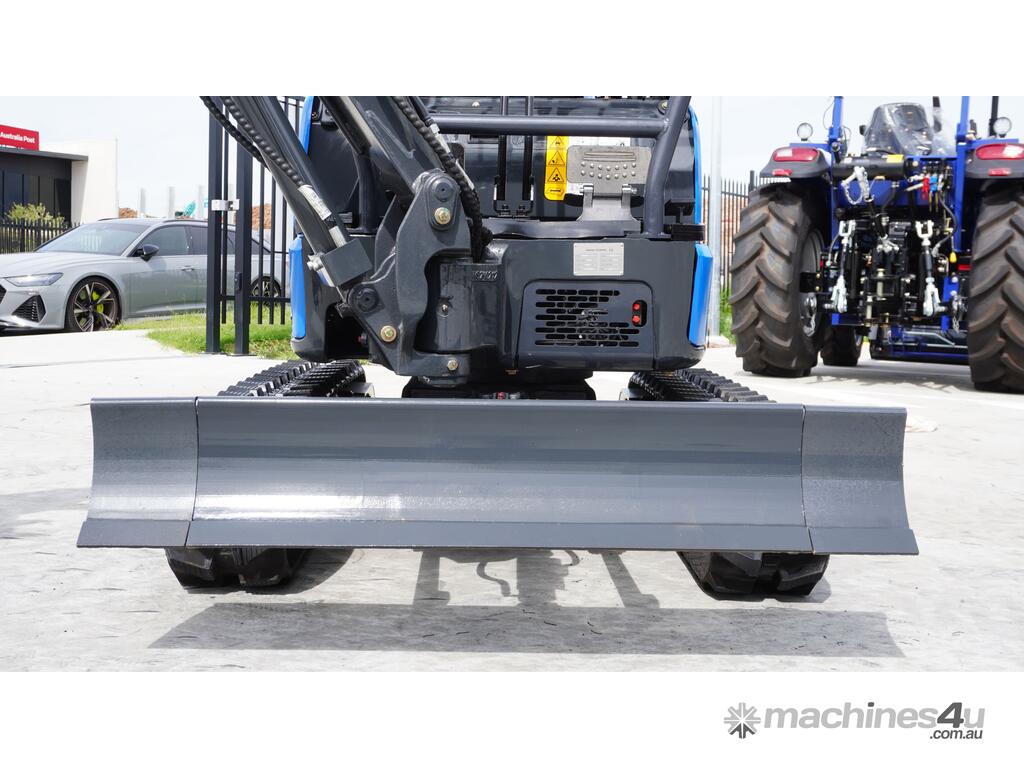

Max. bulldozer lifting height: 280mm
Max. bulldozer cutting depth: 190mm
Dimensions:
Gross weight: 1,900kg
Overall length: 3,575mm
Overall height (with canopy): 2,370mm (excluding the beacon light)
Overall width: 900mm - 1,300mm (adjustable)
Counterweight ground clearance: 460mm
Tail swing radius: 650mm
Track length: 1,593mm
Rotary platform width: 990mm
Total length with dozer: 1,850mm
Track height: 360mm
