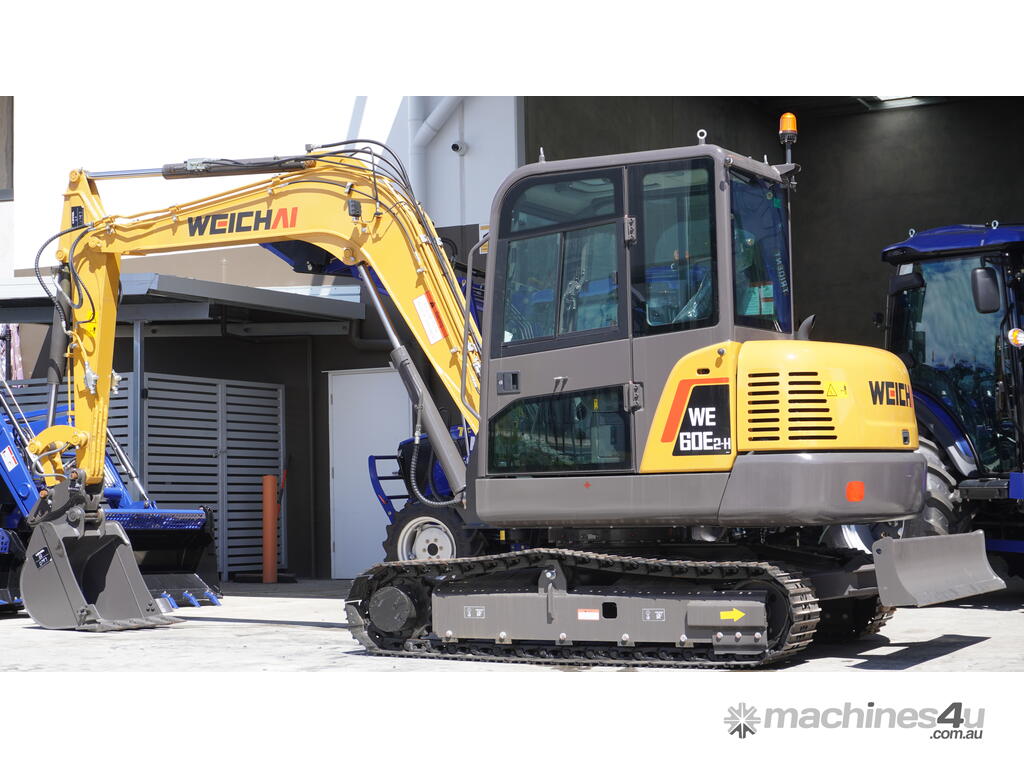

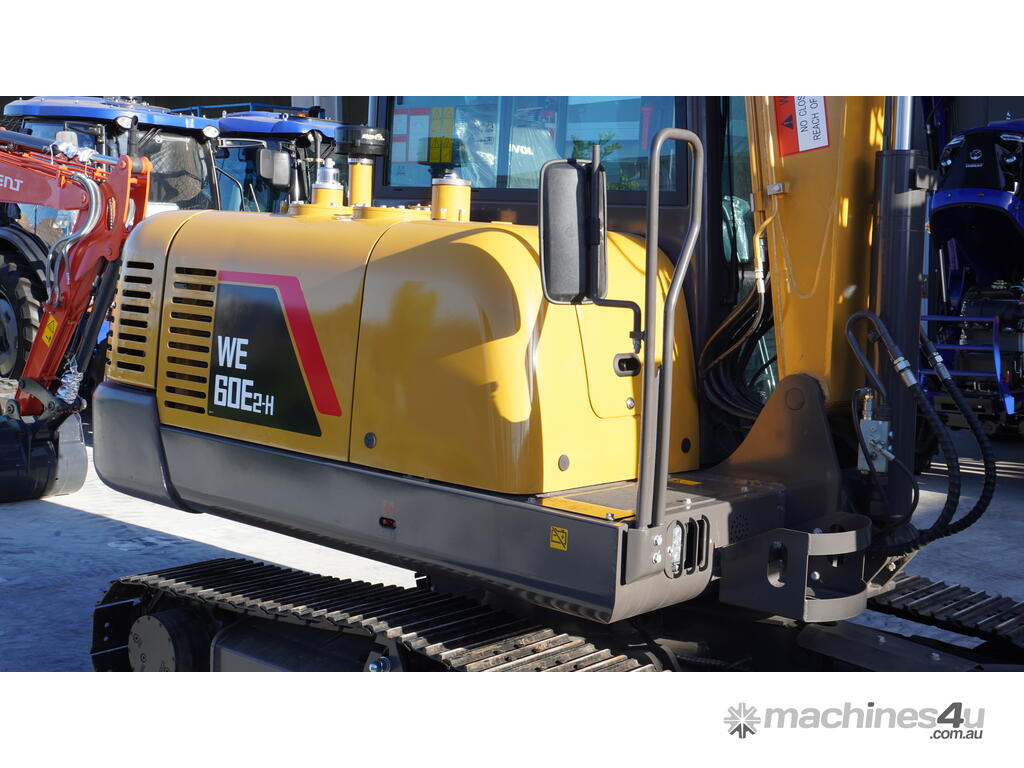

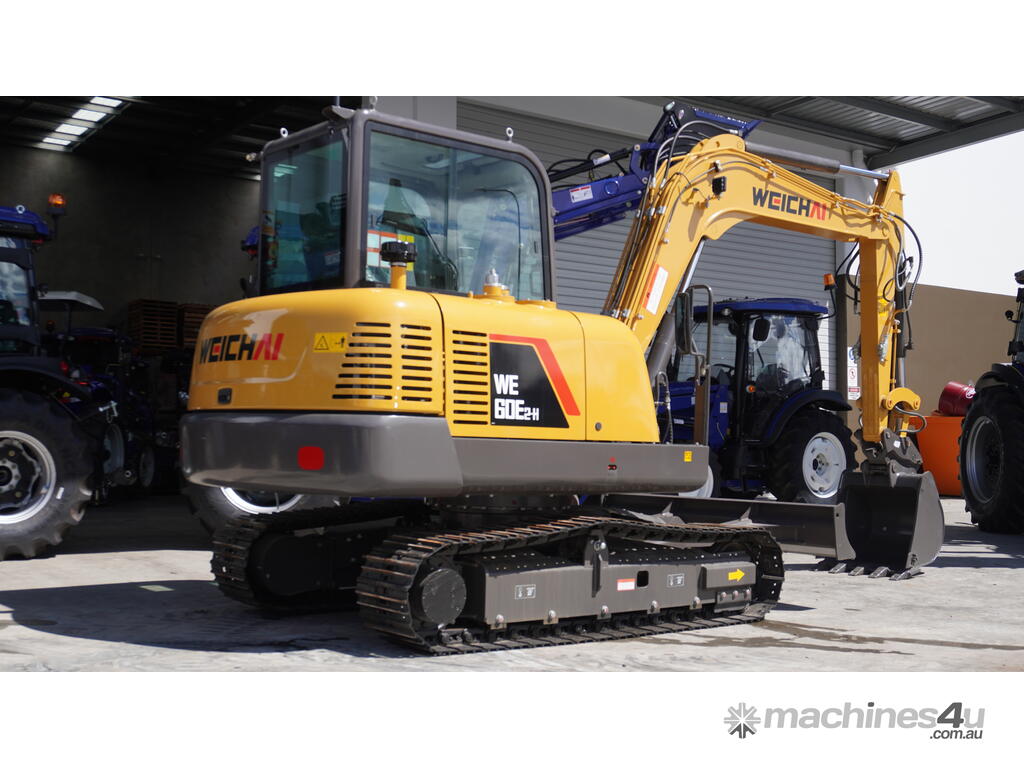

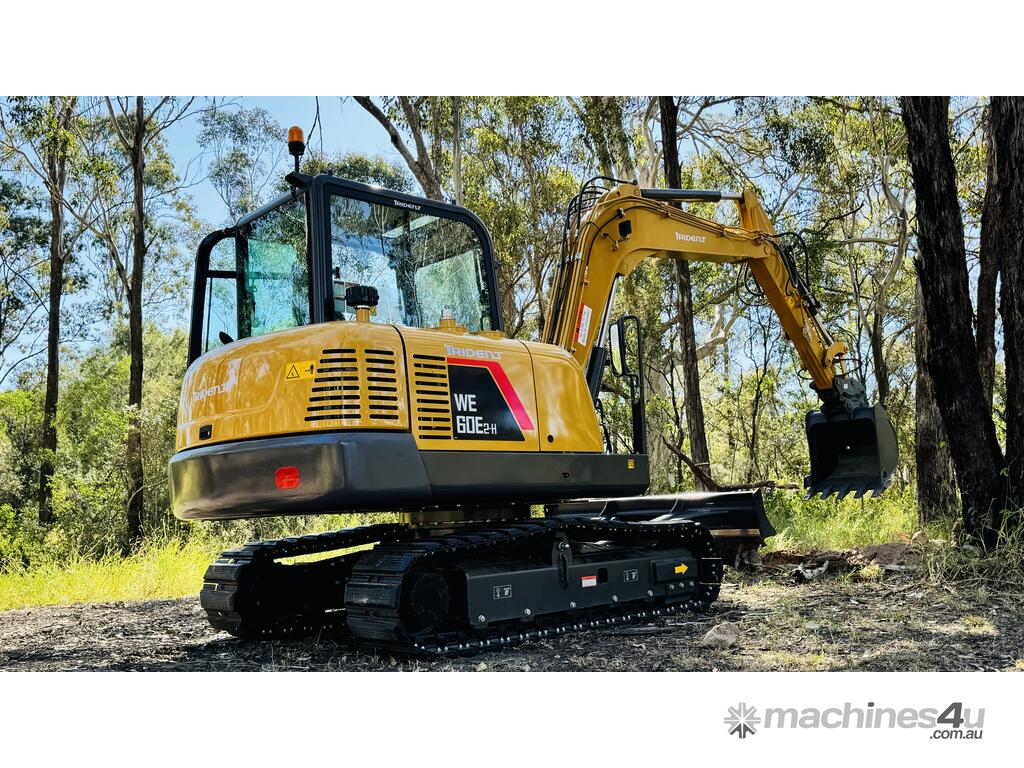

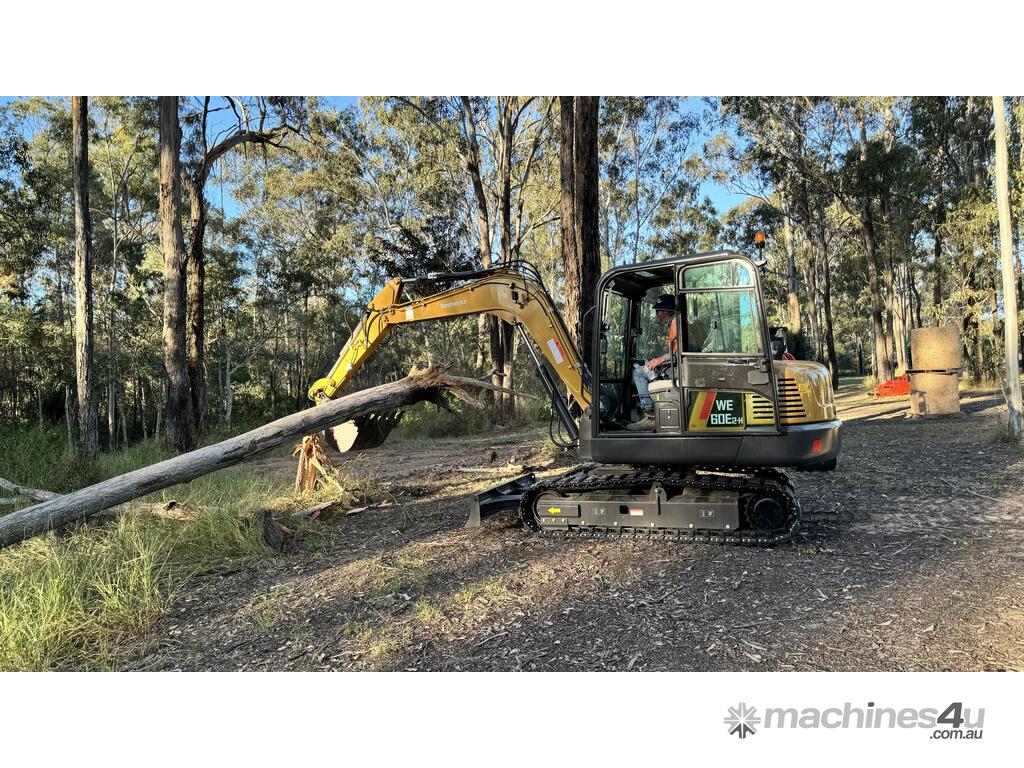

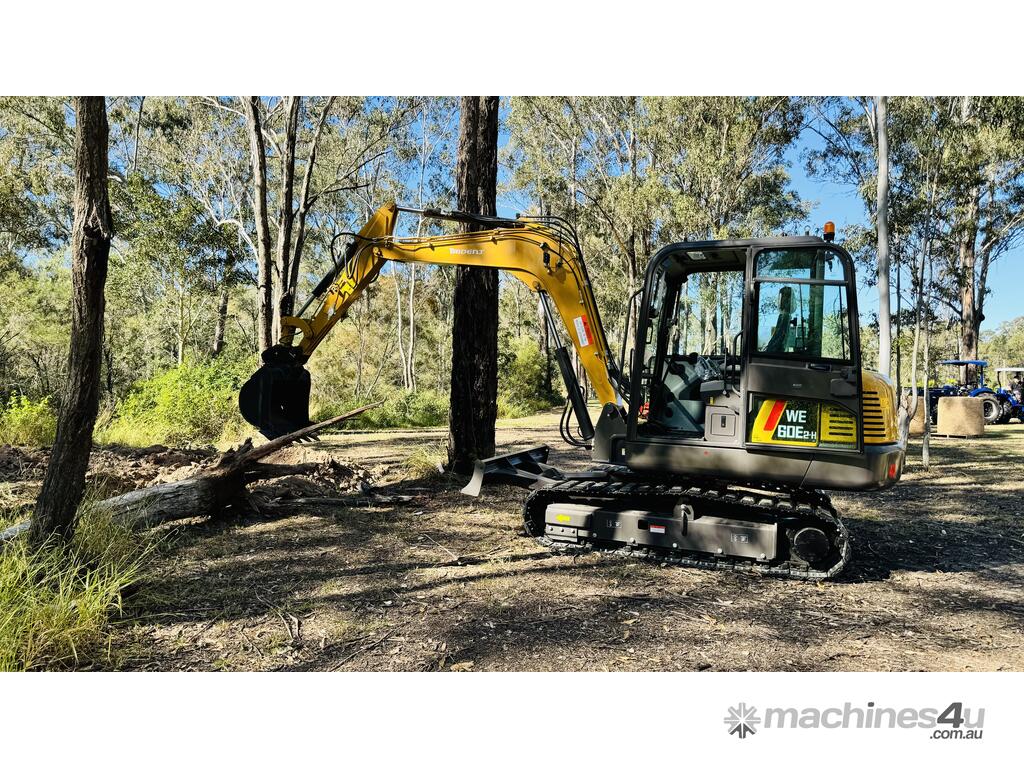

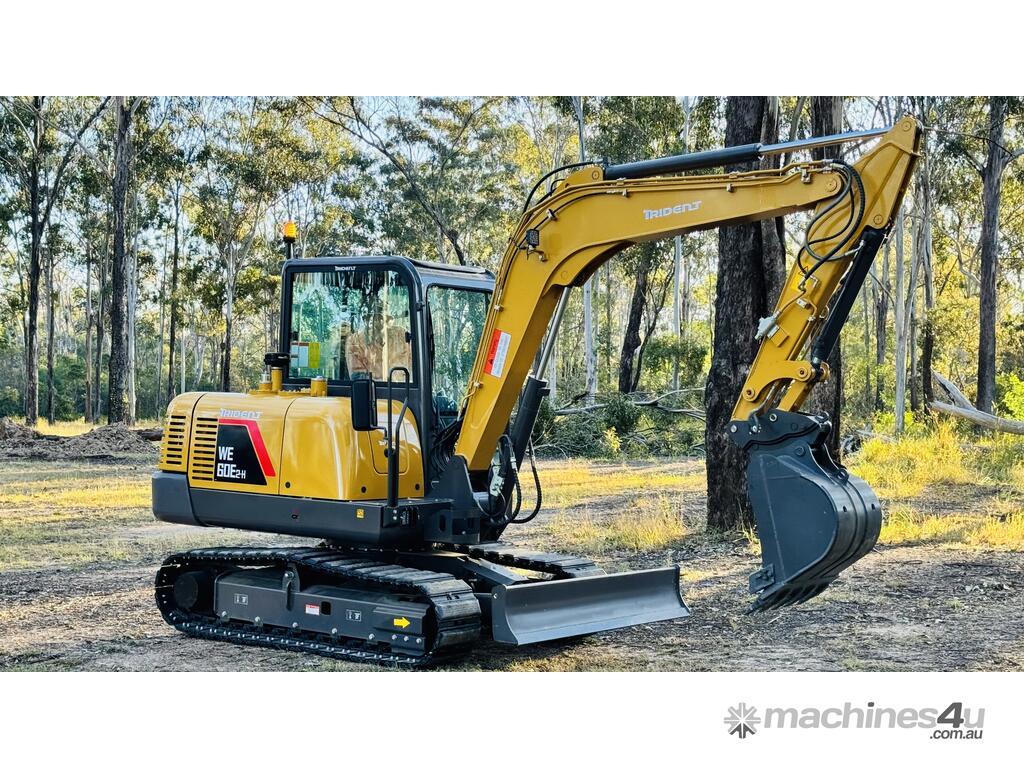

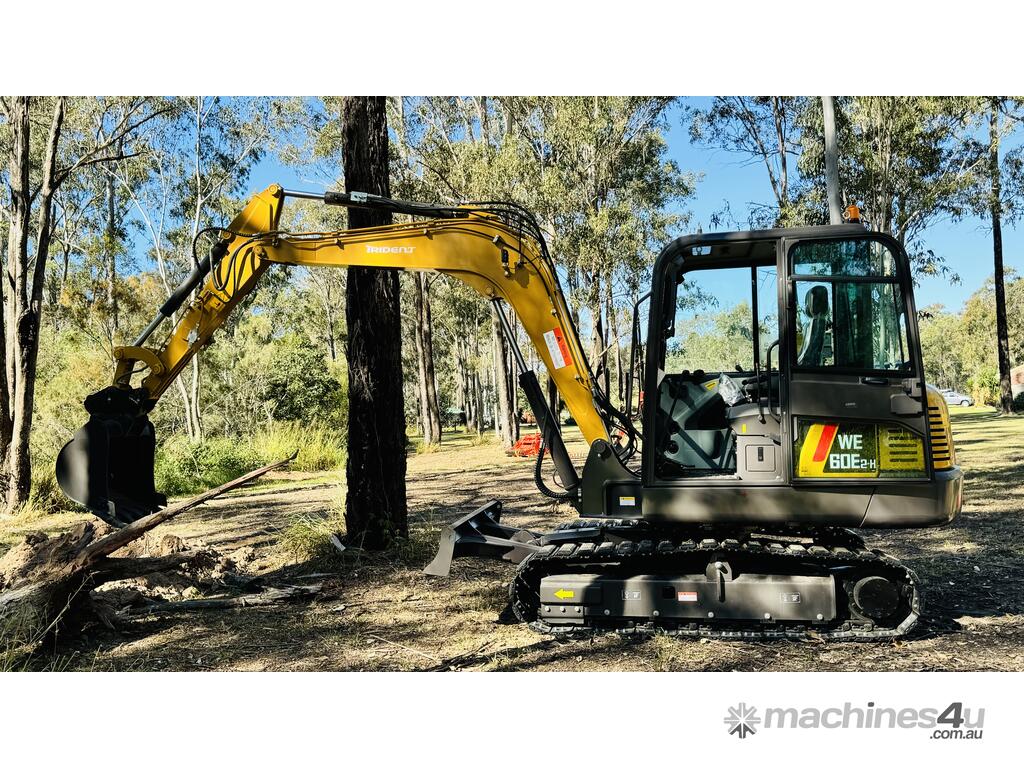

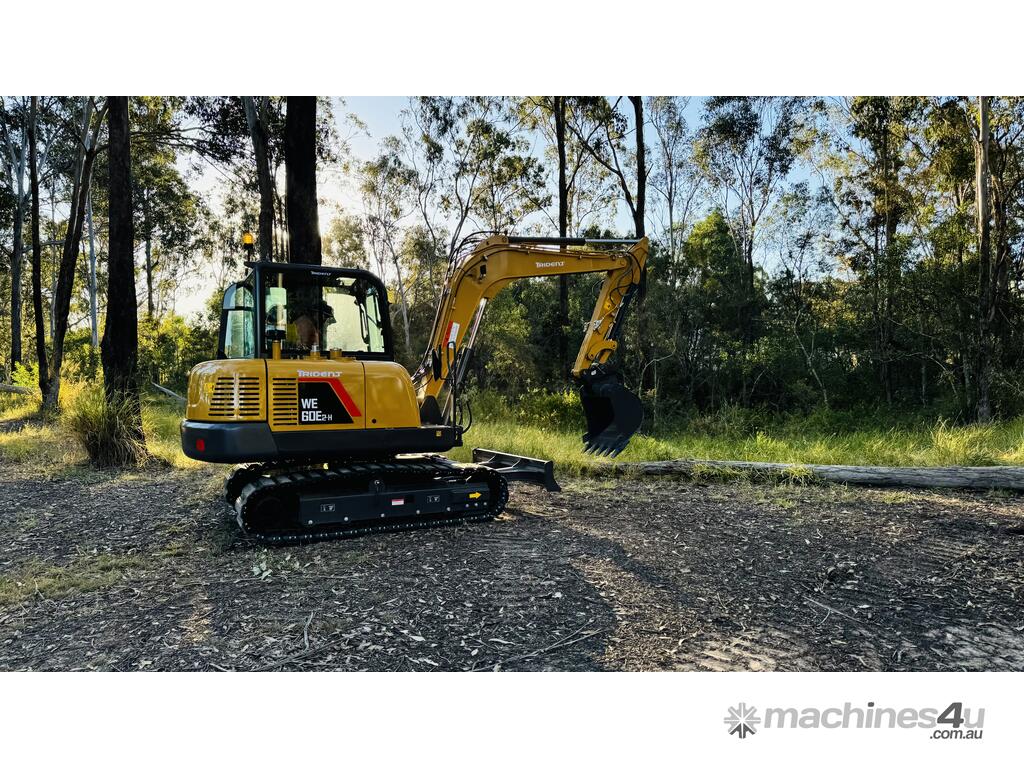

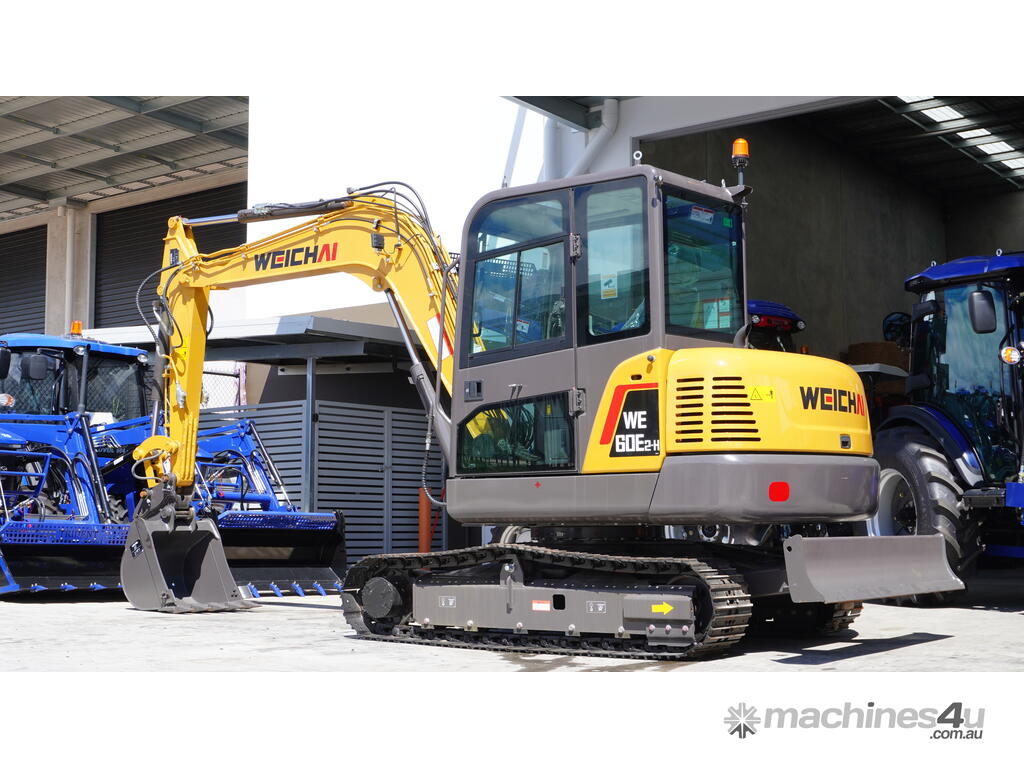

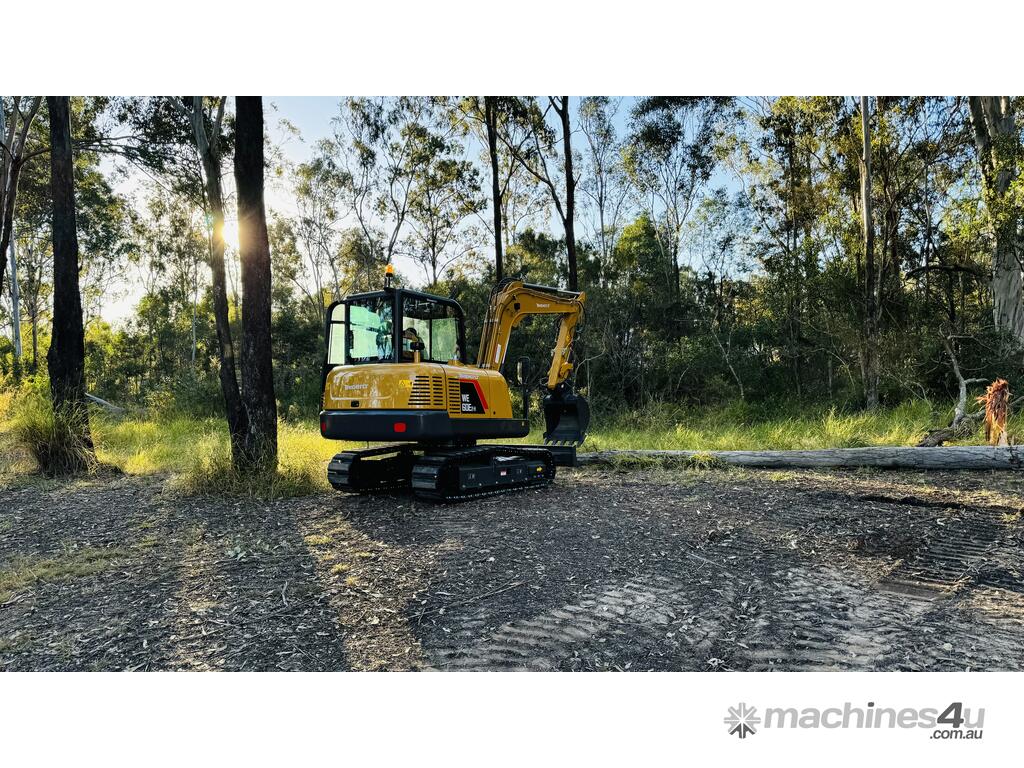

trident 6T steel tracked excavator with hydraulic quick hitch
Key features:

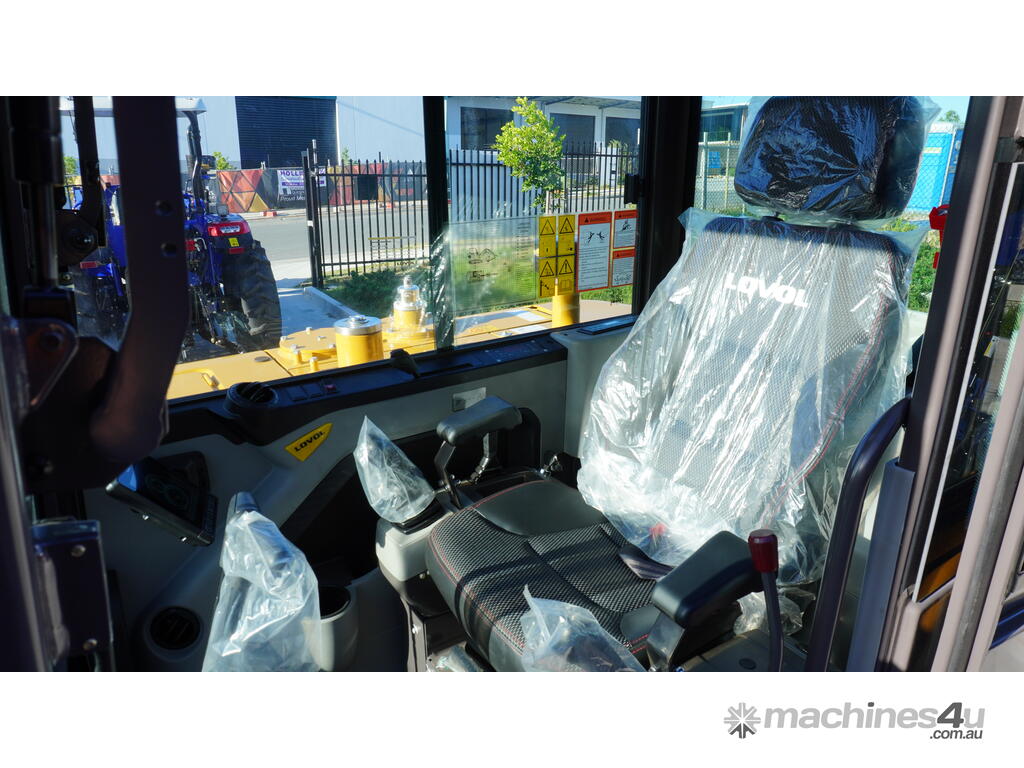

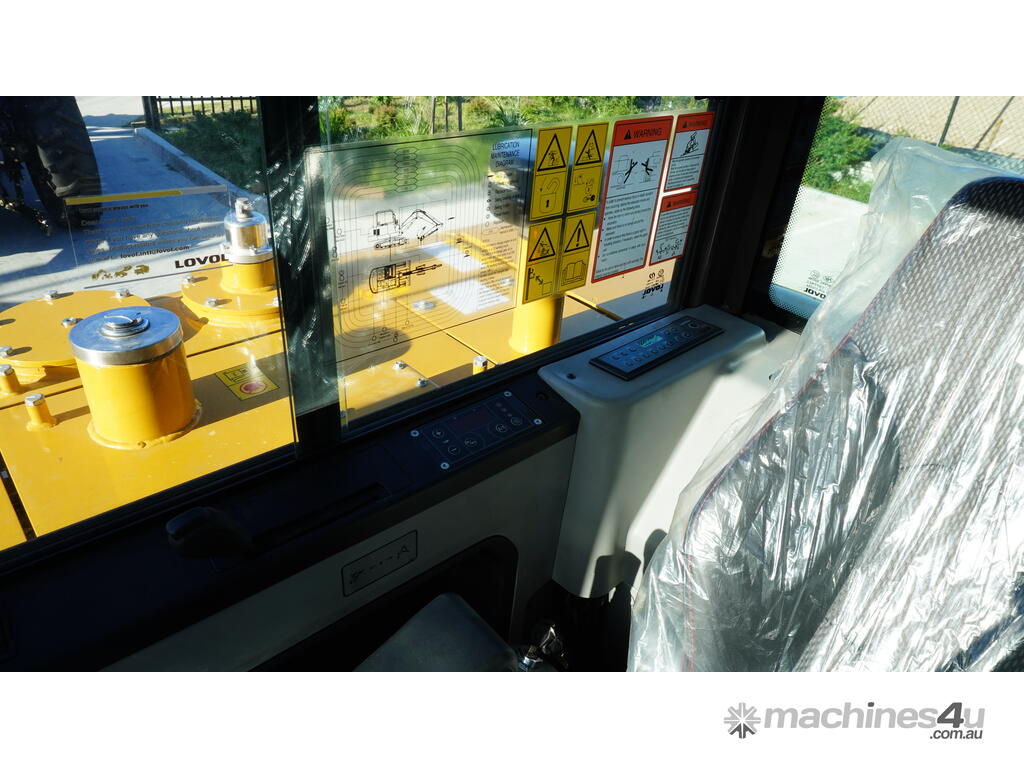

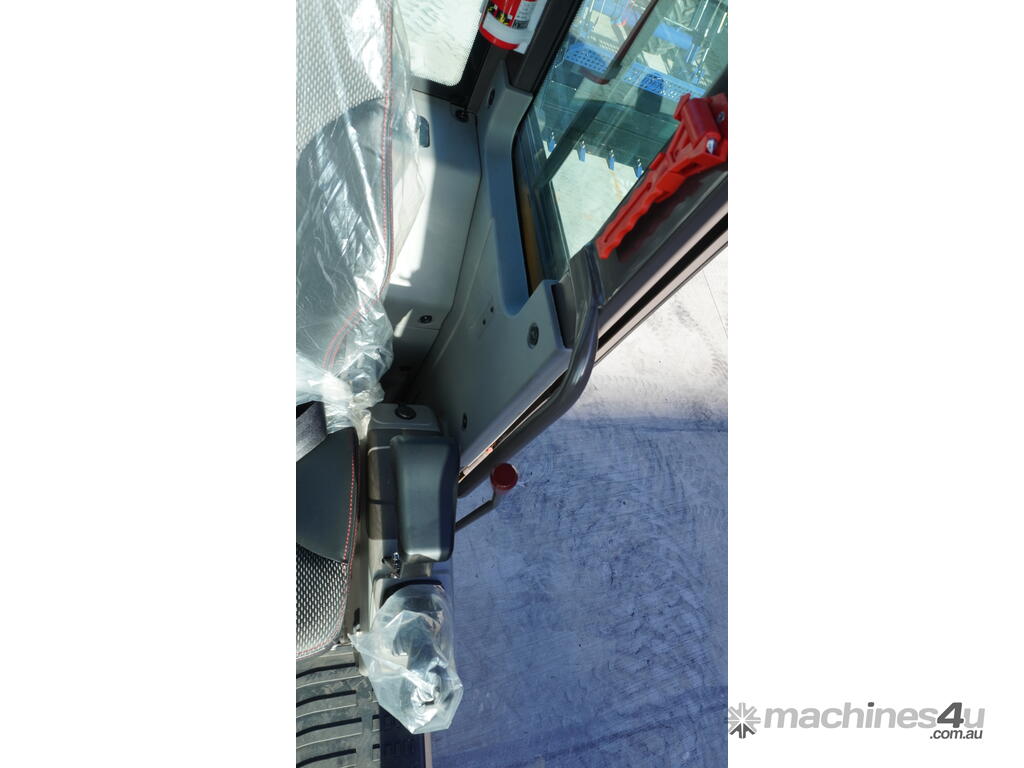

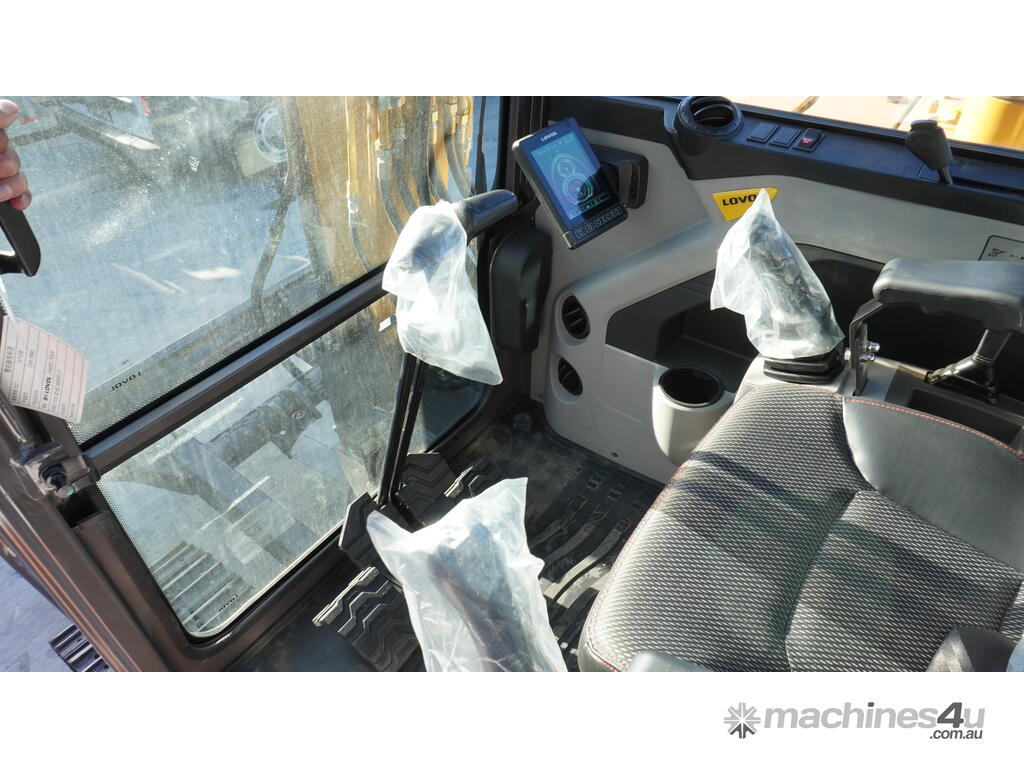

A/C cabin

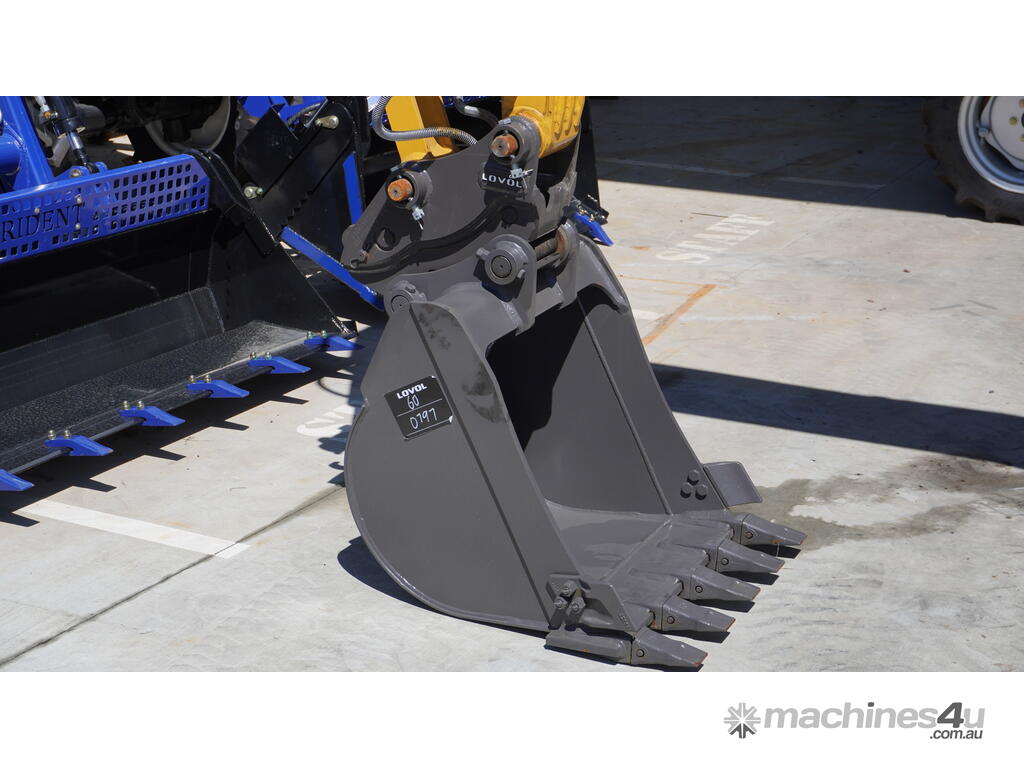

hydraulic quick hitch
Heavy duty chassis with steel track (rubber pads available)
High flow rate 159L/M

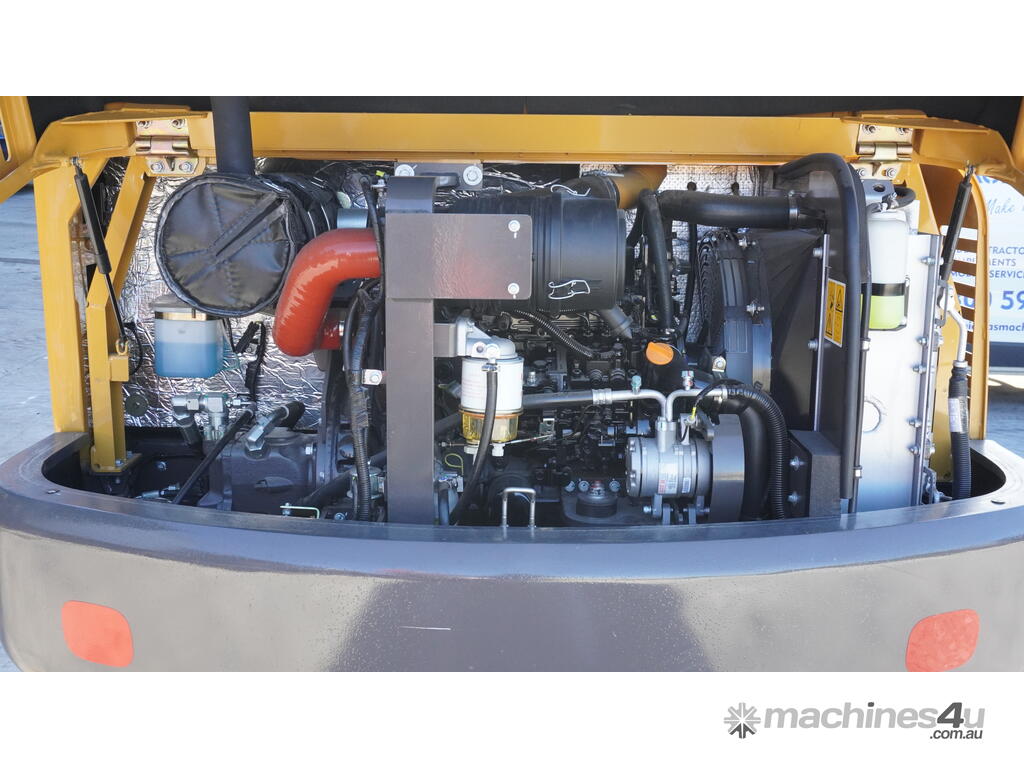

Yanmar direct injection engine, no computer, easy to service

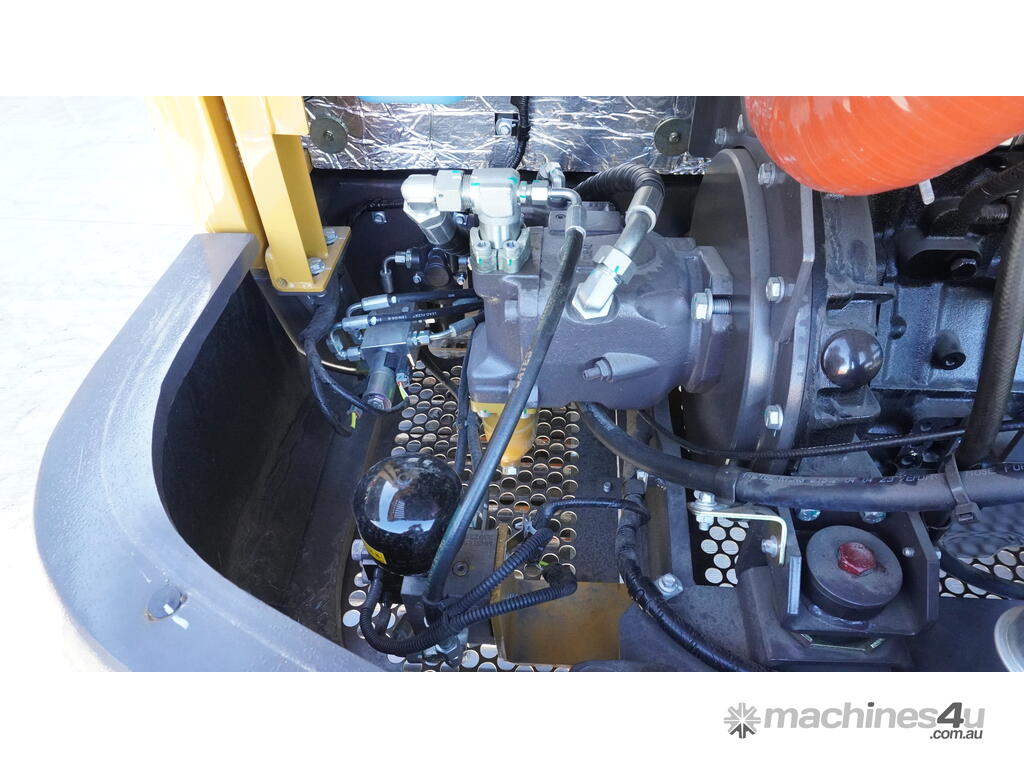

High quality hydraulic pump

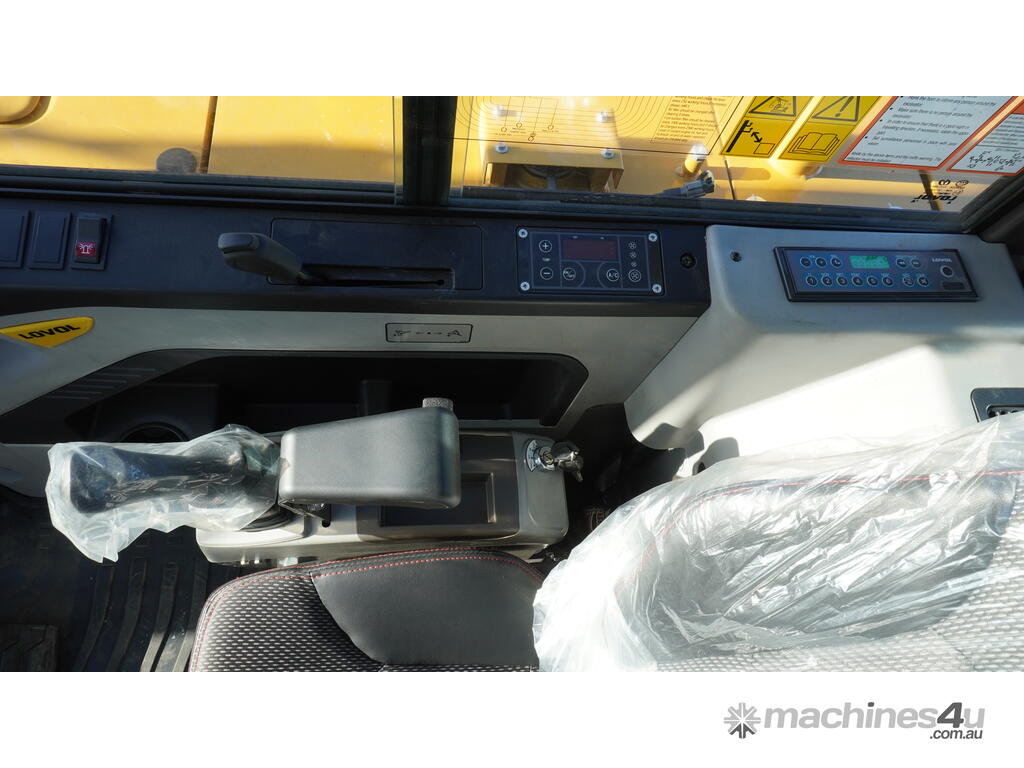

Pilot controls

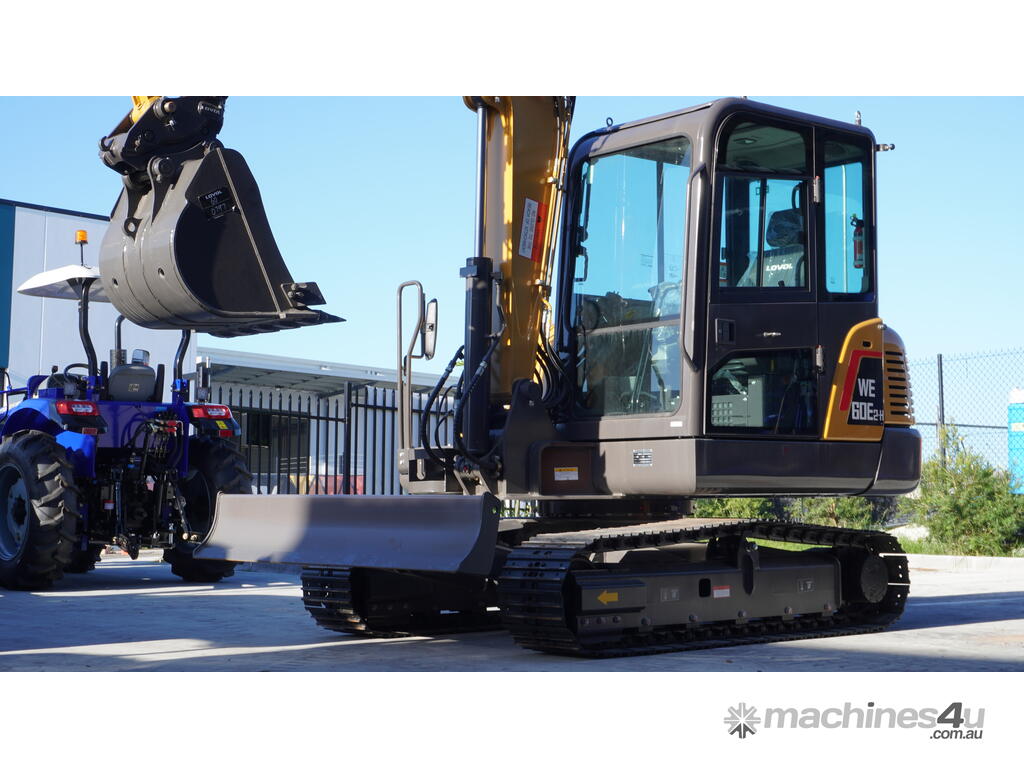

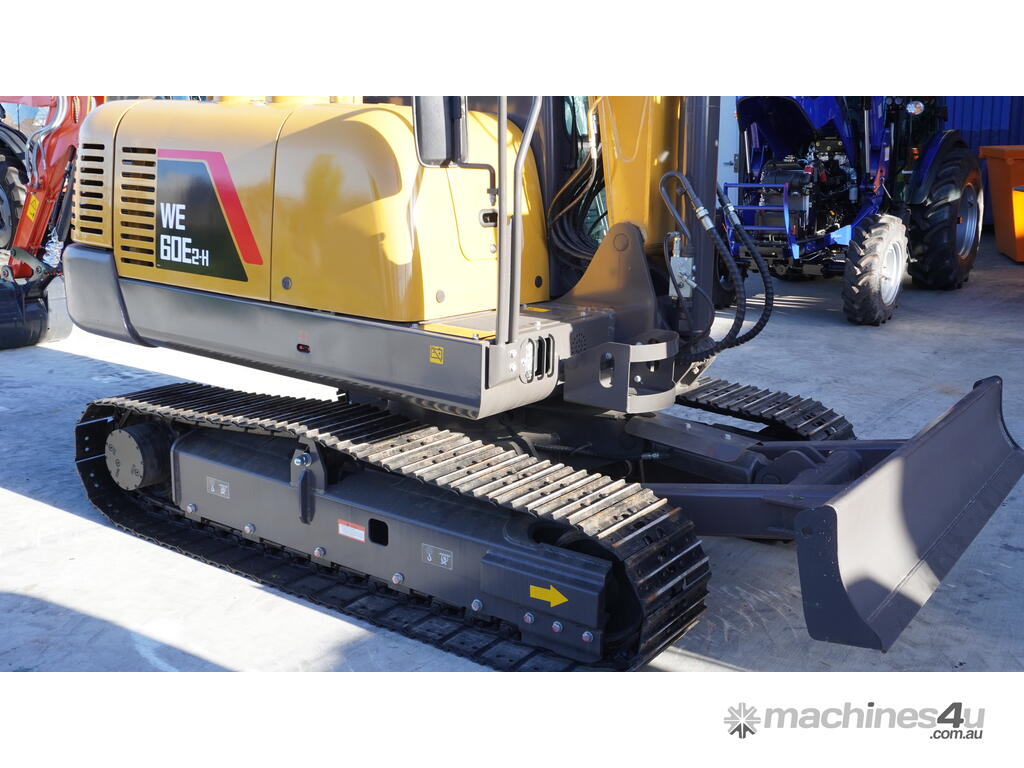

Dozer blades

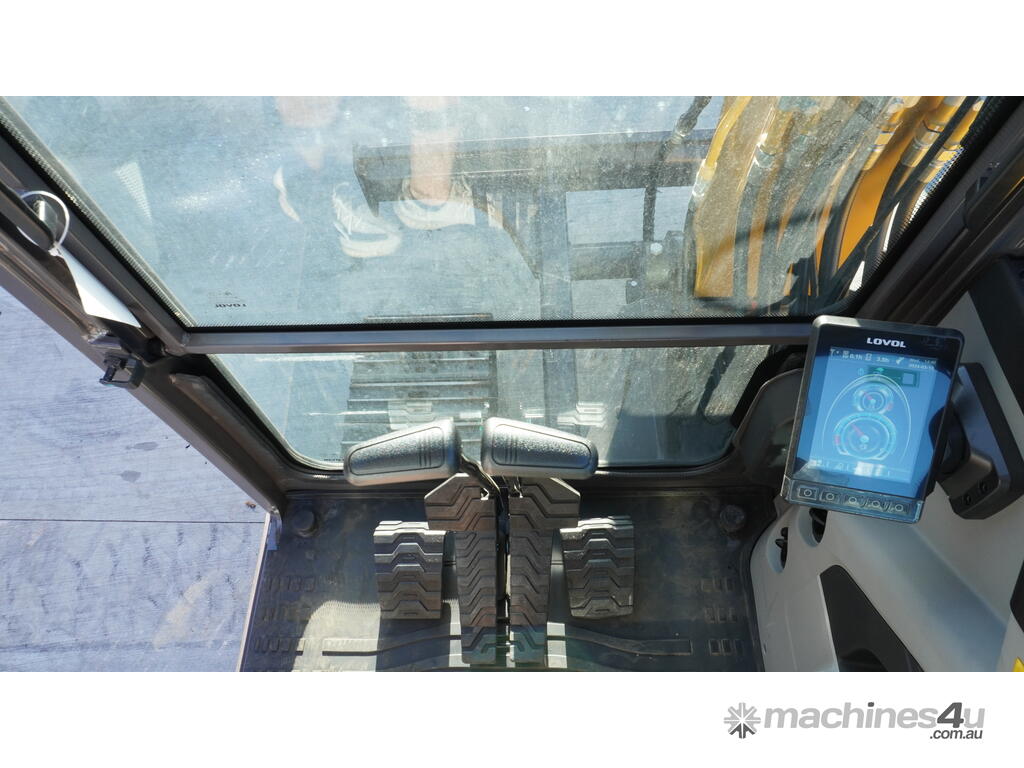

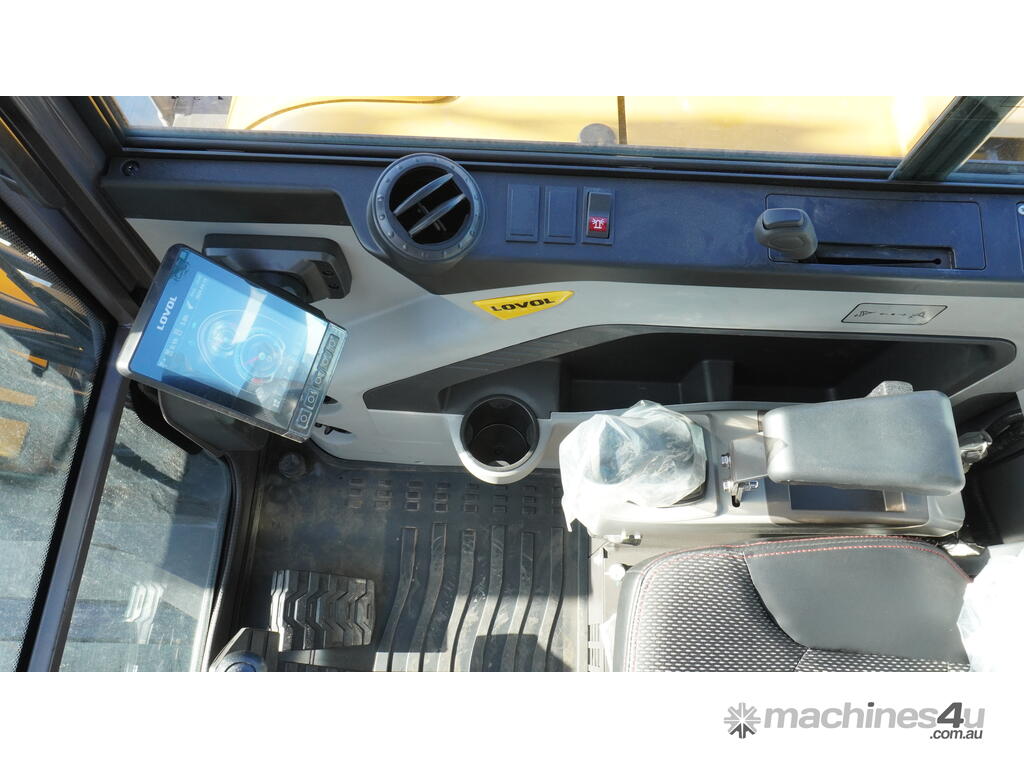

Touch screen control panel
Hydraulic outputs for multiple attachments
Engine/Hydraulic:

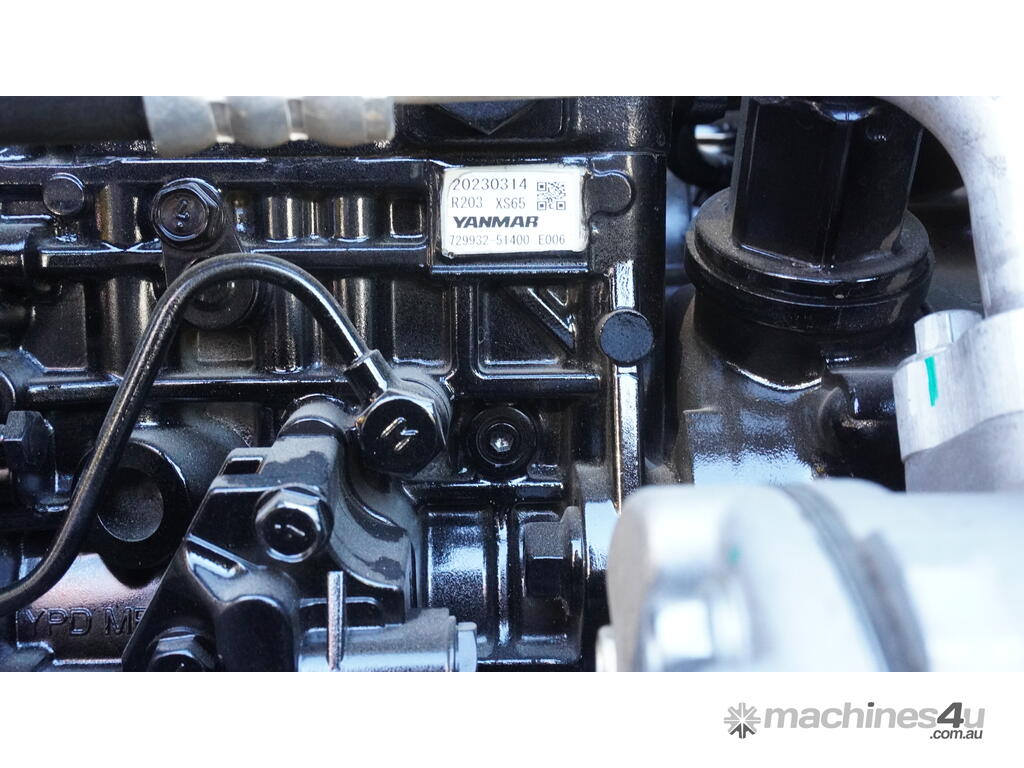

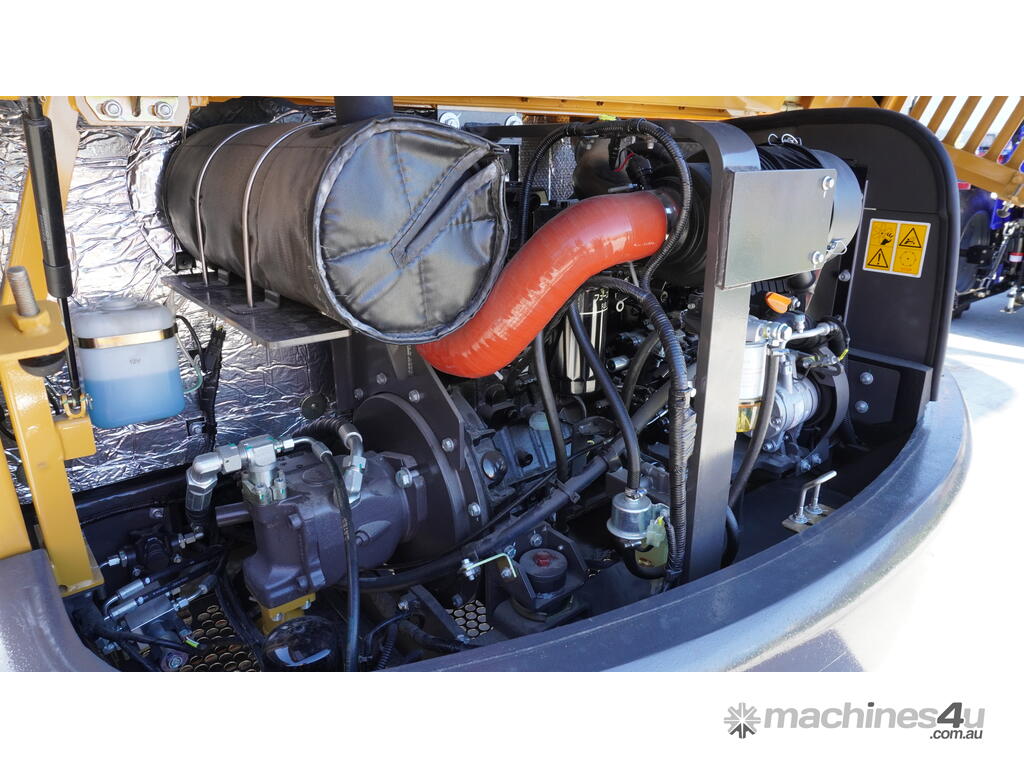

Engine model YANMAR 4TNV94L
Rate power 36.2kW/2100rpm
Displacement 3.054L
Maximum Torque/Speed 198Nm/1400rpm
4 cylinder
Flow rate 159L/min
Main Safety Valve Pressure 24.5MPa
Fuel Tank 120L
Hydraulic Tank 90L
Engine Oil 5.5-10.5L
Operating Parameters
Vehicle working weight 5800kg
Travel speed 2.4-4.2km/h
Gradeability 35%
Swing speed 11rpm
Ground Pressure 32.33kPa
Bucket digging force 50kN
Arm digging force 31kN
Maximum traction force 49.4kN
Maximum digging radius 6065mm
Maximum digging depth 3660mm
Maximum vertical digging depth 2655mm
Maximum digging height 5405mm
Maximum dumping height 3770mm
Maximum Lifting height of dozer blade 400mm
Maximum Digging depth of dozer blade 560mm
Excavator Dimensions

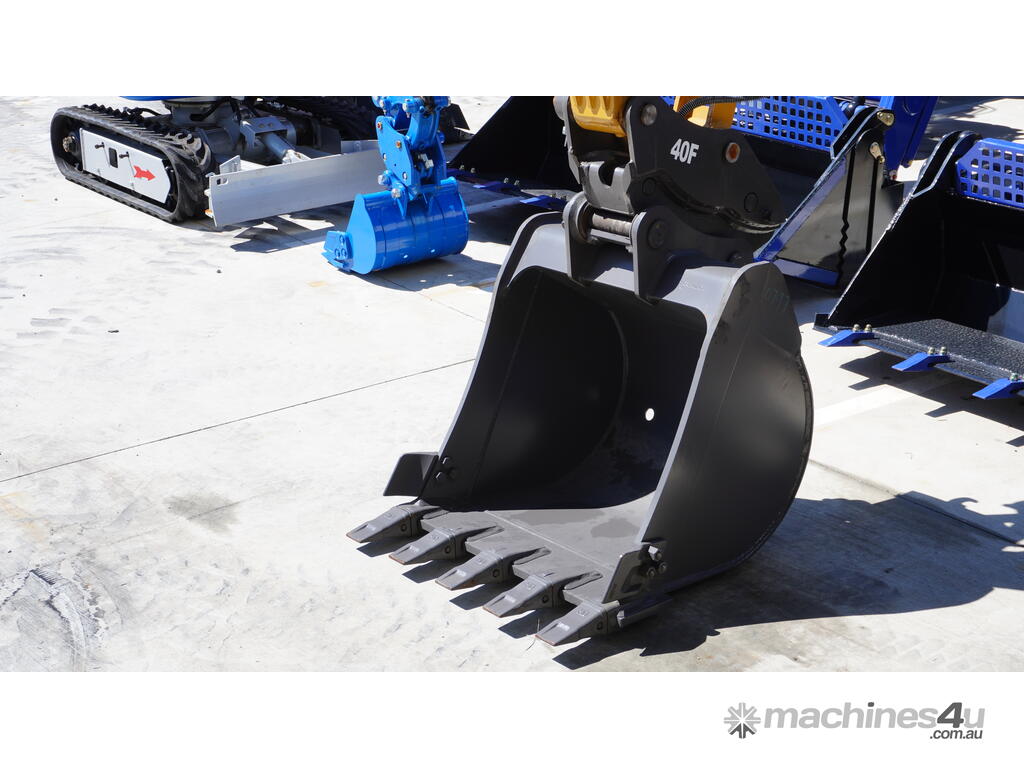

Bucket capacity 0.23m3
Shipping length 6090mm
Shipping ground length 3760mm
Boom height 2300mm
Shipping width 1950mm
Cab height 2660mm
Ground clearance of counter weight 700mm
Minimum ground clearance 330mm
Tail turning radius 1700mm
Wheel tread 2010mm

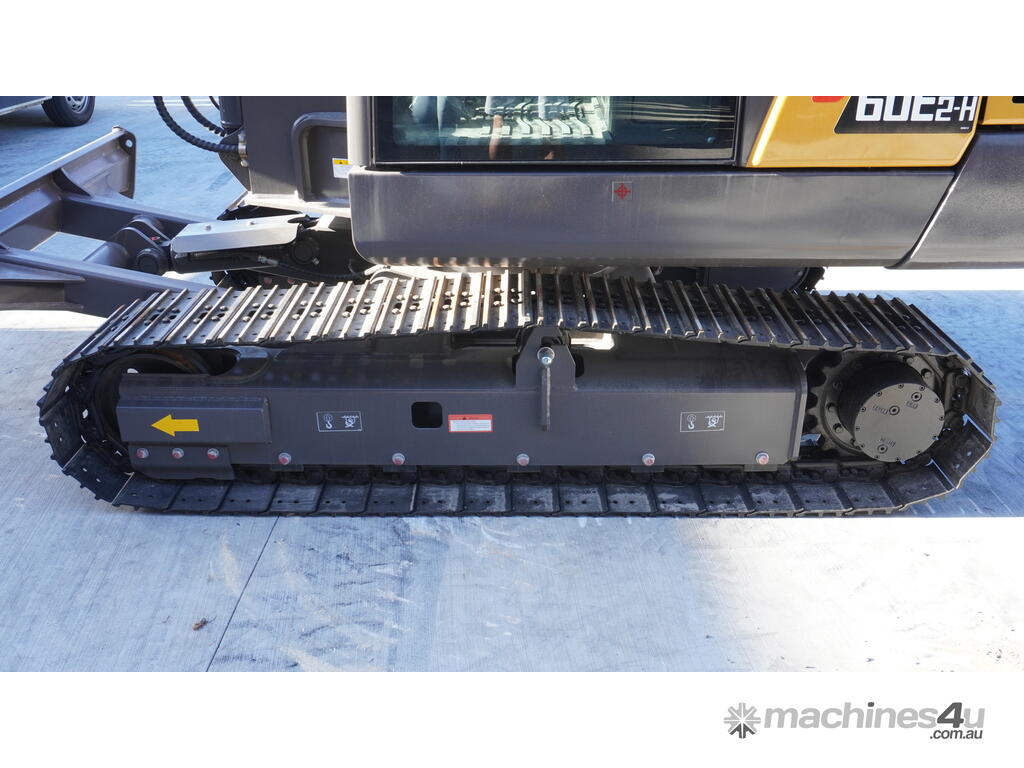

Track length 2550mm
Track gauge 1480mm
Track shoe width 400mm
Hood height 1635mm
Rotary platform width 1830mm
Boom length 3100mm
Arm length 1500mm
Track section number ?each side?40
Track roller number 5
Dozer blade height 360mm
Choose Nicola's Machinery for reliable tractors that fit your needs. With the versatile Trident series or premium LOVOL tractors, backed by fast delivery and top performance, we ensure customer satisfaction. Contact us today!
