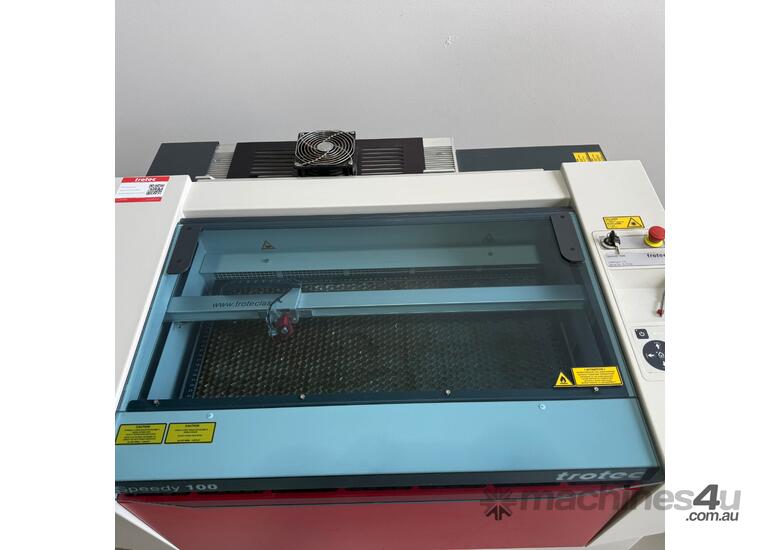

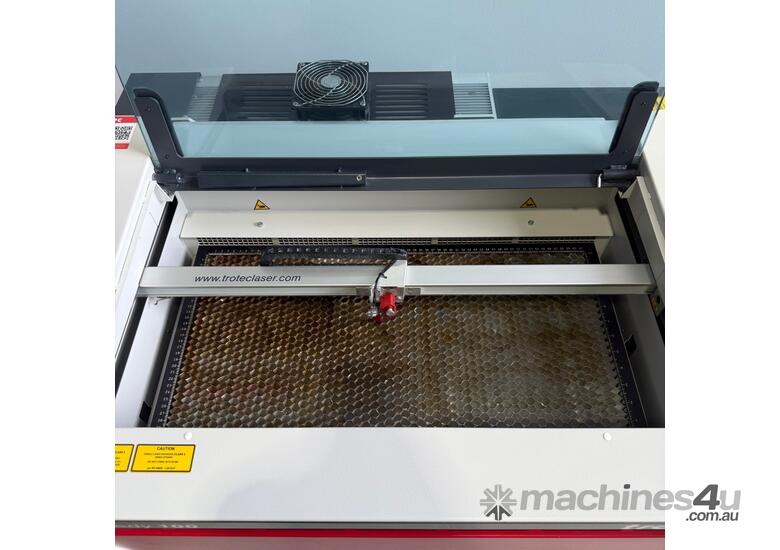

Used trotec Engraving & Marking for sale - TROTEC Speedy 100

Speedy 100 used fro 1.5 years purchased 2 years ago.

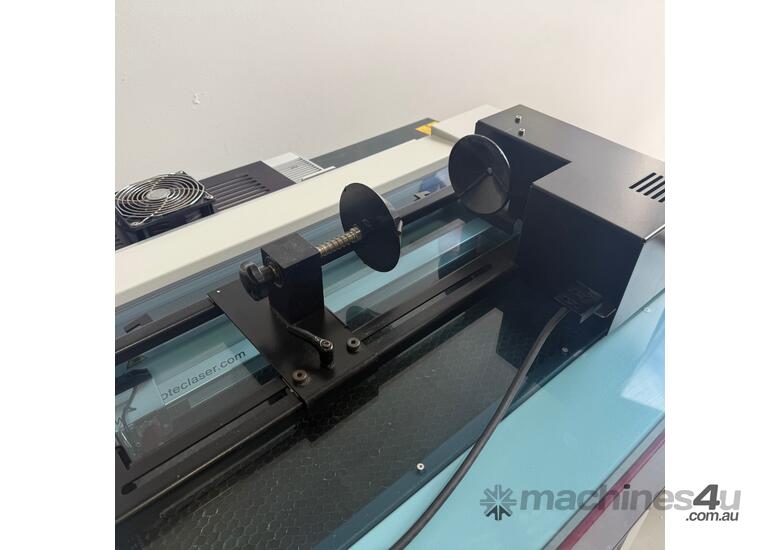

Includes a rotary valued at $3000
Selling due to upgrading

394 hrs

Mechanics

Working area 610 x 305 mm (24 x 12 inch )
Max. height of work piece
170 mm (6.7 inch) with 1.5 inch lens
157 mm (6.2 inch) with 2.0 inch lens
144 mm (5.7 inch) with 2.5 inch lens
Working table Ferromagnetic table, honeycomb cutting tabletop
Max. processing speed 2.8 m/s (110 ips)
Acceleration 40 m/s² (1575 ips²)
Motors Brushless DC servo motors
Encoder Incremental measuring system
Optical elements Telescope, lens and mirrors
Lens 1.5 inch, 2.0 inch, 2.5 inch
Accuracy +/- 0.015 mm (0.0006 inch), over the whole working area
Addressable accuracy 5 µm (0.0002 inch)
Accuracy to size of parts According to material and process
Maximum material load 10 kg (22 lbs), load over the whole working area
Interface USB
Features standard

Lens 2.0 inch
InPack TechnologyTM Protects working head and all moving parts from dust
Exhaust For entire working area
Software JobControl® Expert
Operating console Keypad, safety-switch, system turnkey; PC and Monitor not included
Laser Pointer 655 nm,
