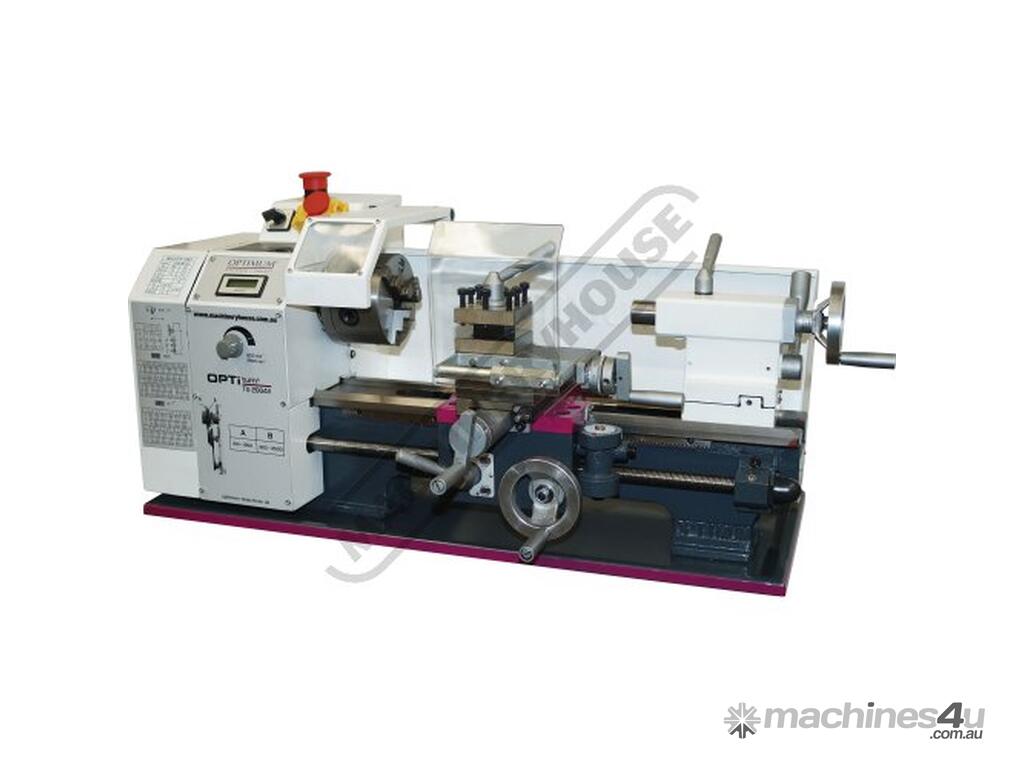

TU-2004V Opti-Turn Bench Lathe Ø200 x 300mm Turning Capacity - Ø21mm Spindle Bore Electronic Variabl

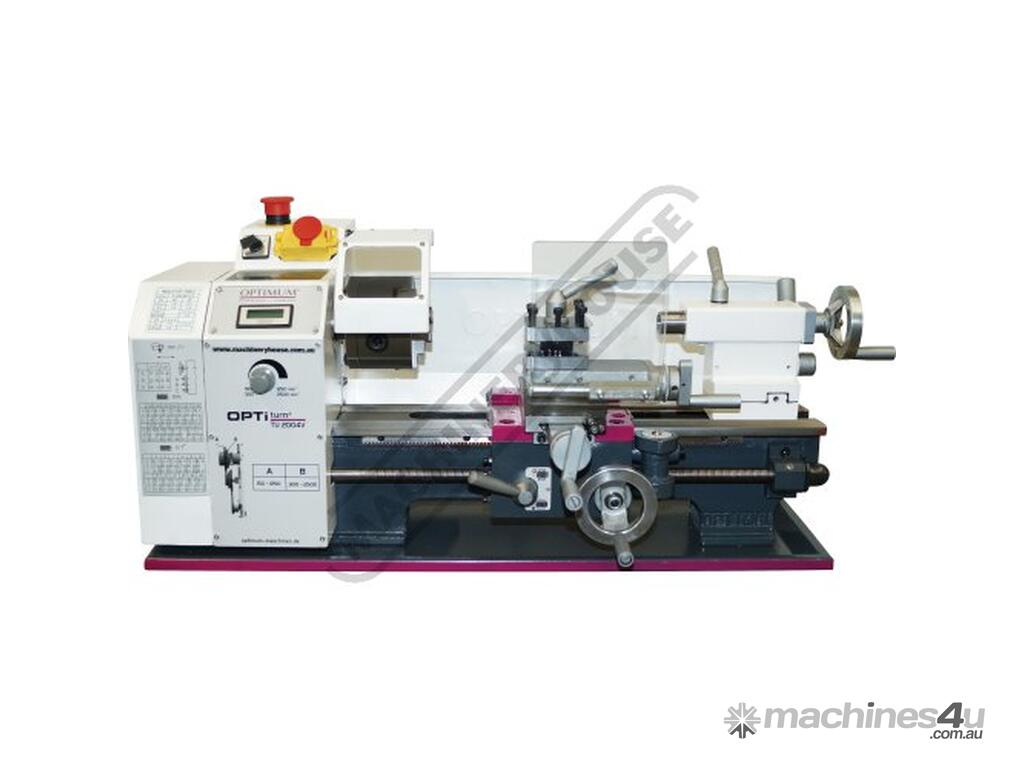

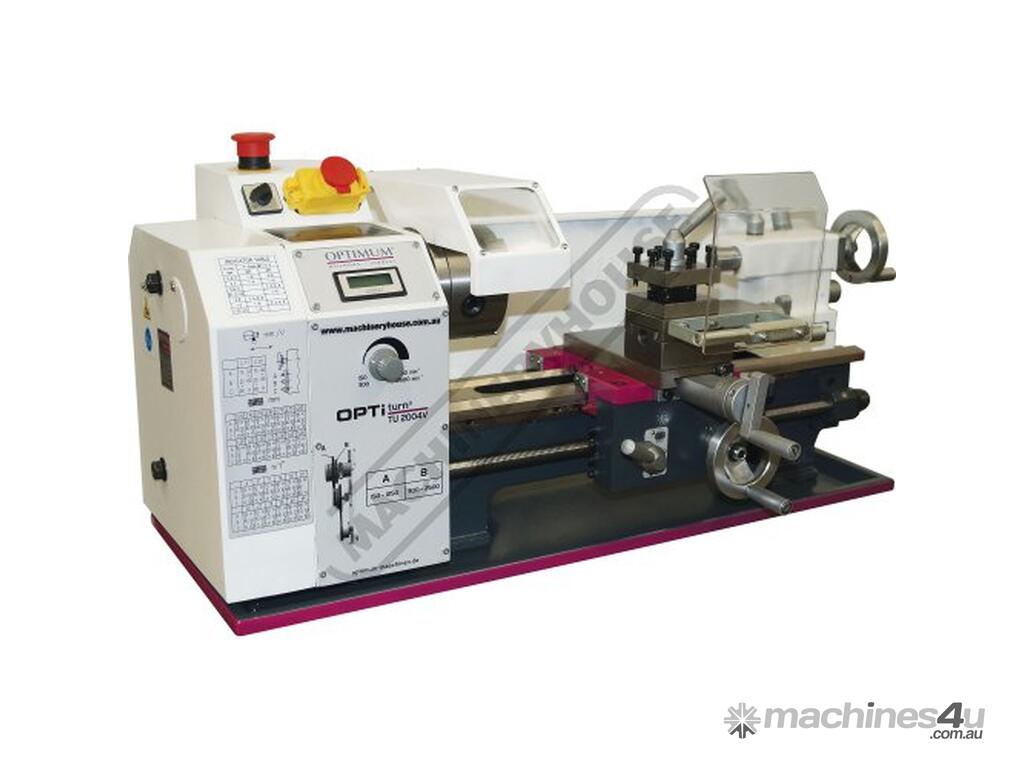

OPTIMUM TU-2004V Opti-Turn Bench Lathe Ø200 x 300mm Turning Capacity - Ø21mm Spindle Bore Electronic Variable Speeds 150 ~ 2500rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L687

Ideal for the model maker machining miniature parts
Small in size but packed full of features, this miniature lathe could provide the perfect introduction to those wanting to start metal turning for the first time.

The machine is small enough to fit into the corner of the workshop and with a weight of 75kg the bed is constructed form cast iron for true rigidity. This model turning capacities is 200mm diameter and 300mm between centres and with a 21mm spindle bore its surprisingly large for a machine of this overall size.

Features such as the electric variable speed control, manual or powered leadscrew feed, metric & imperial thread cutting and an extensive range of accessories. The lathe comes supplied with 100mm diameter three jaw self-centring chuck, tailstock centre and service tools.

Features:

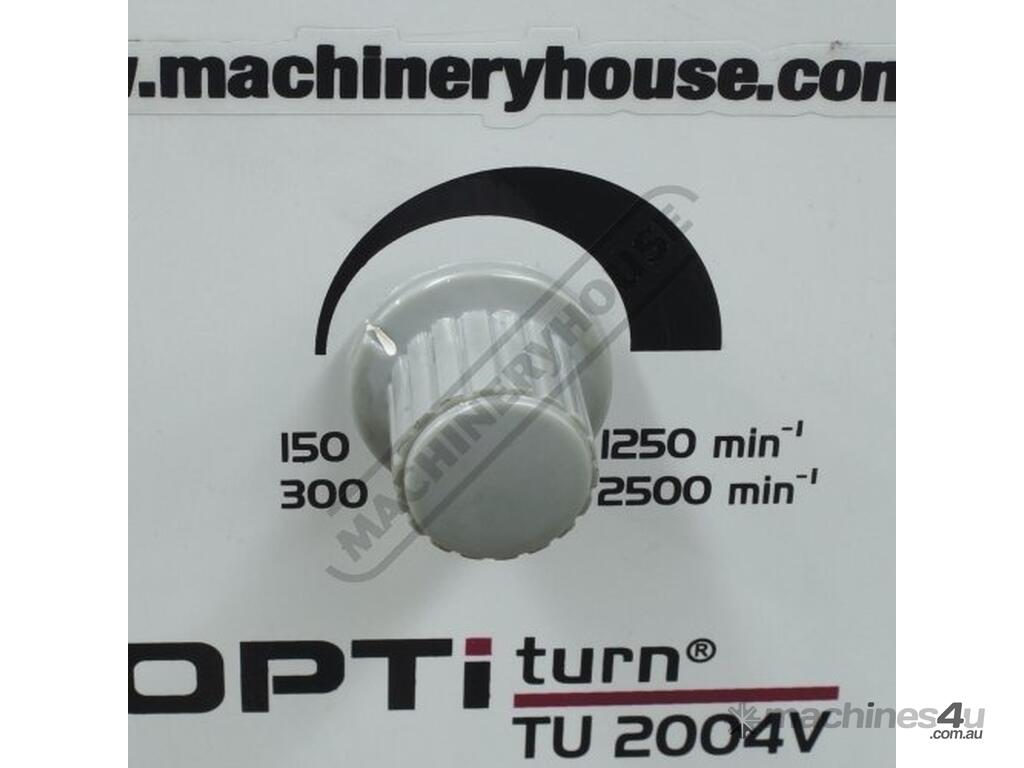

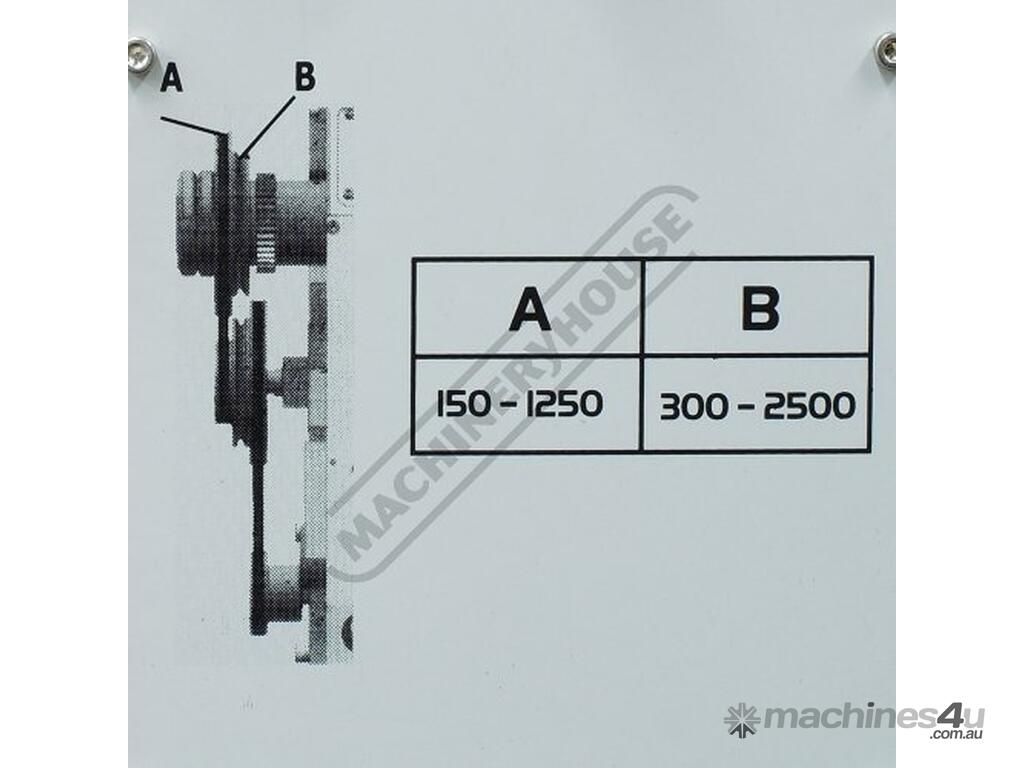

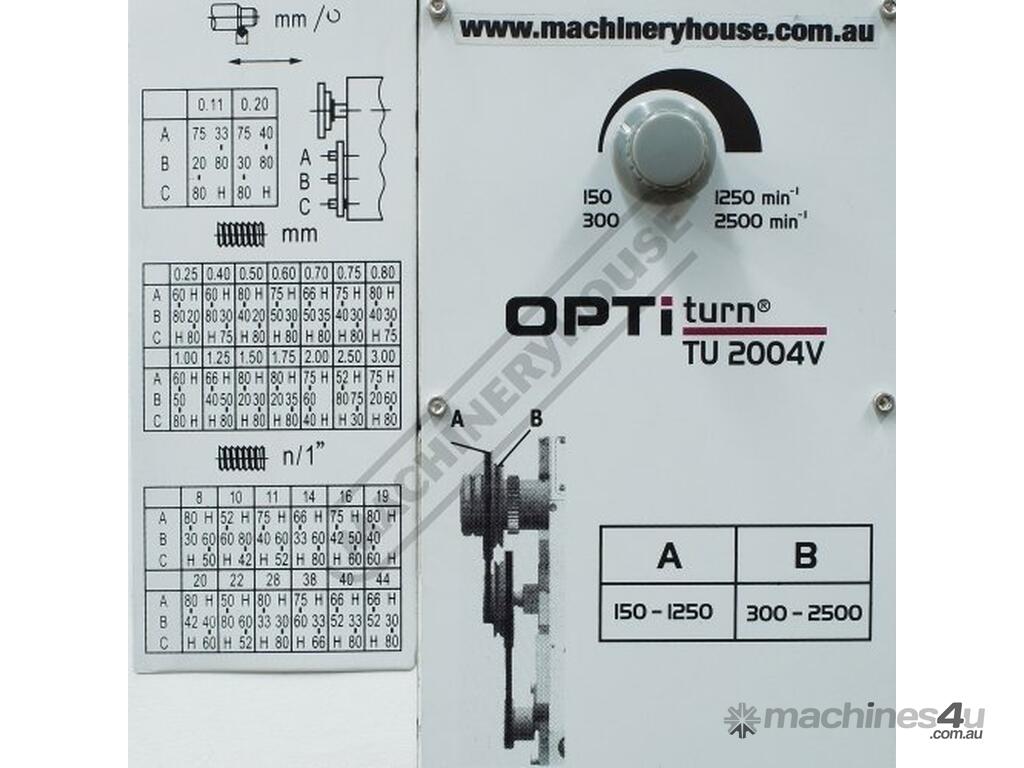

Electronic infinitely variable speed 150-2500rpm

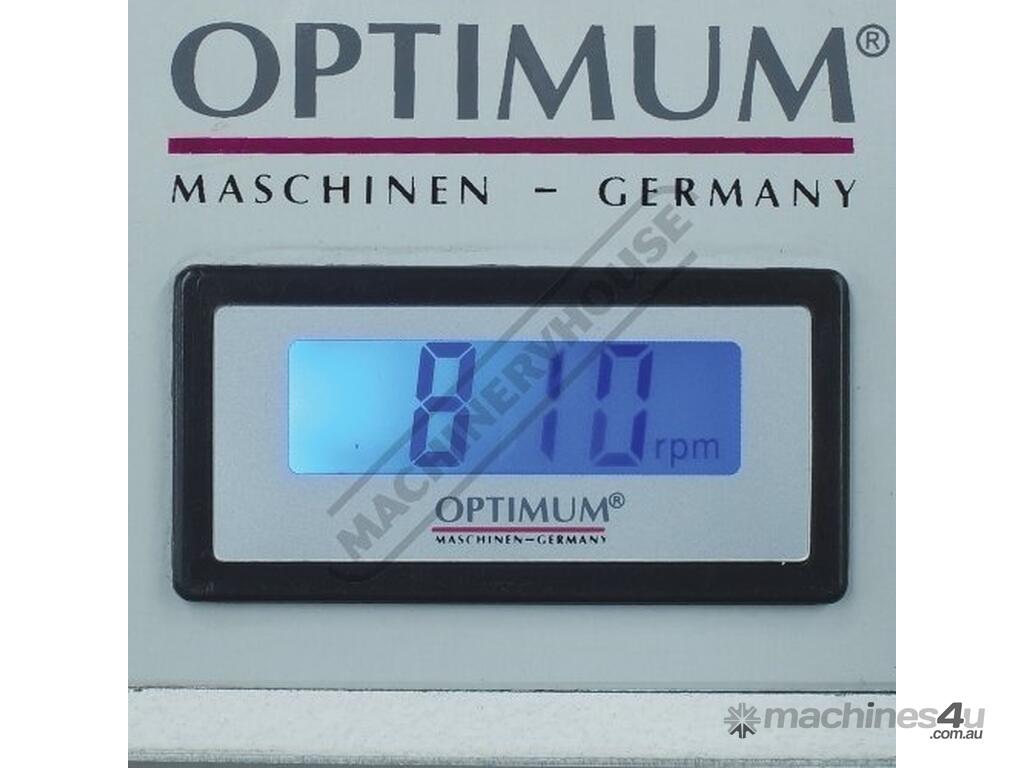

Easy to read digital readout speed display
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm

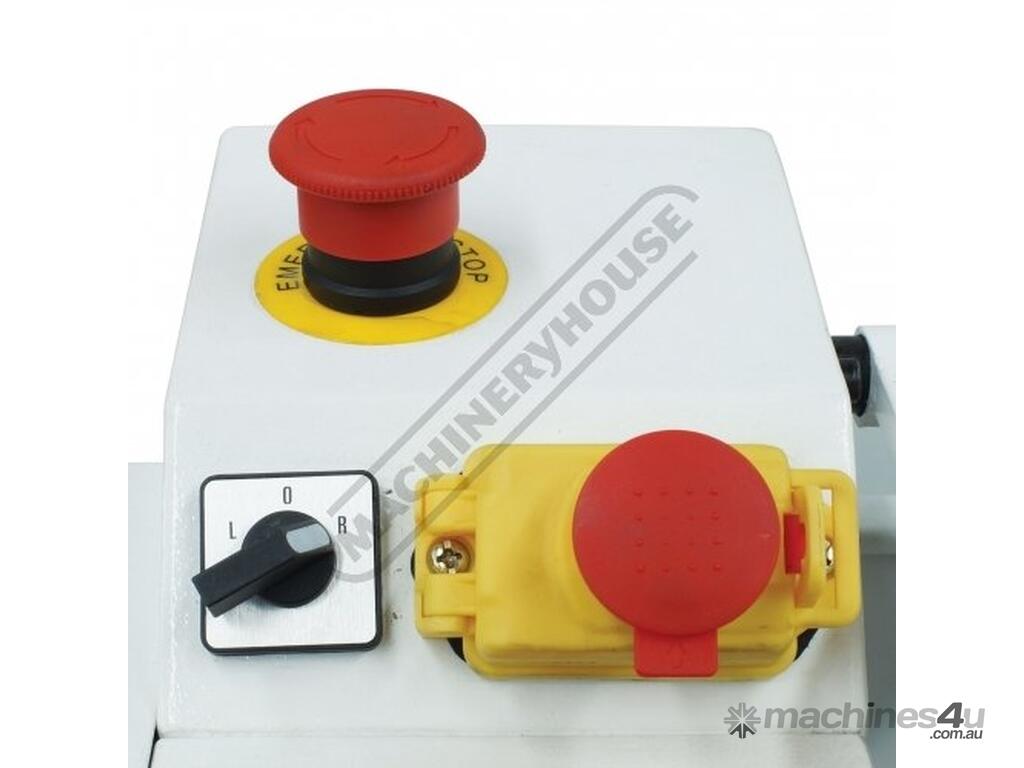

Forward & reverse spindle direction switch
Automatic longitudinal feed

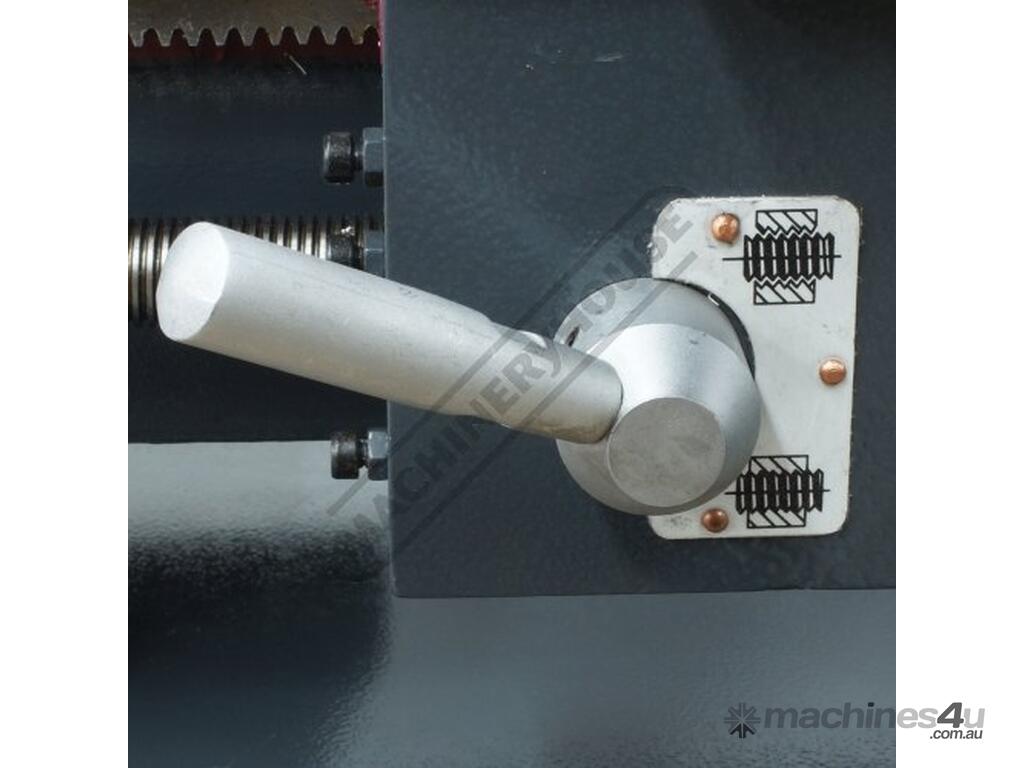

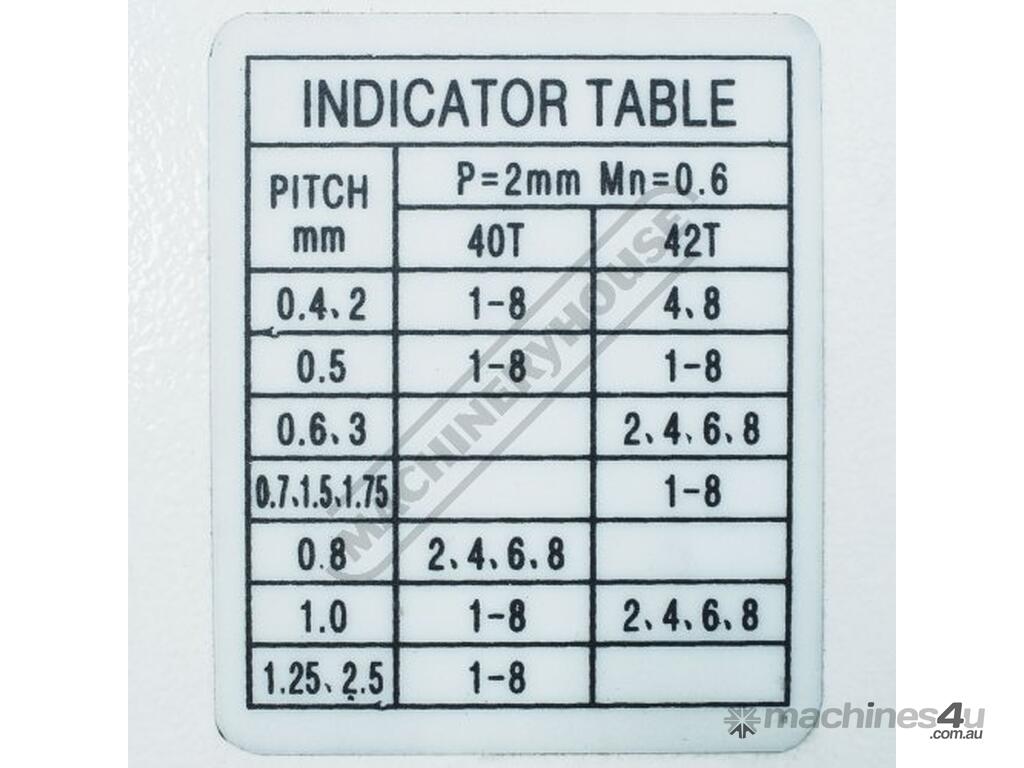

Metric & Imperial thread cutting
Cross slide & bed length are designed to fit Optimum DRO scales

Includes:

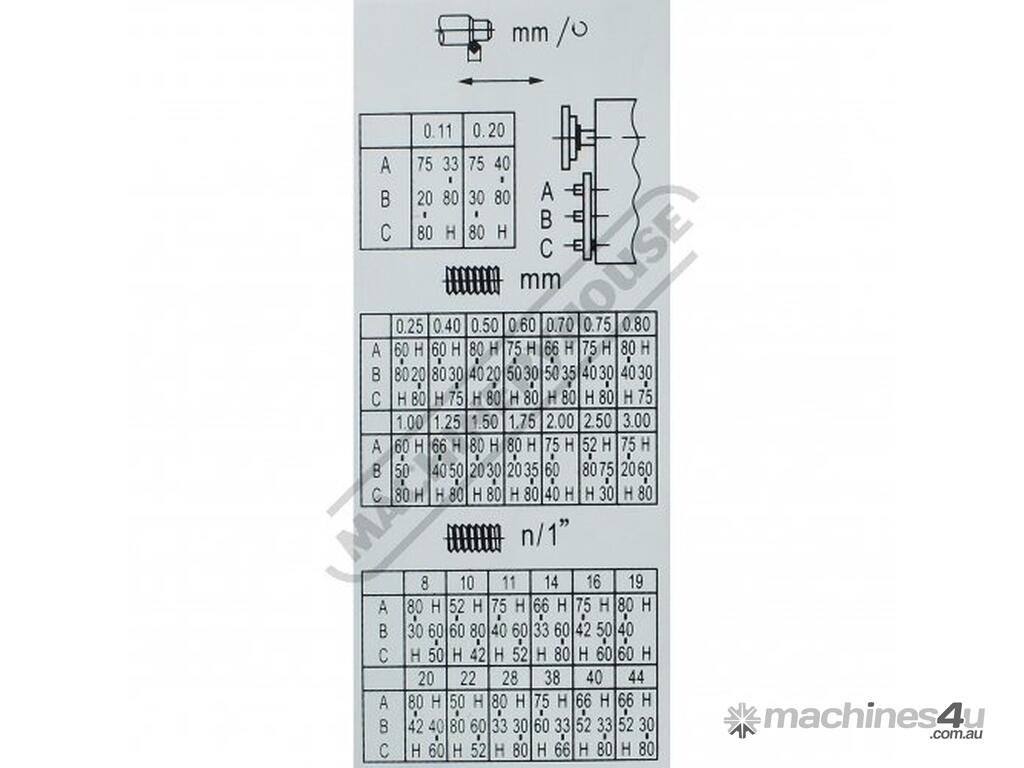

- Change gears for metric & imperial thread cutting

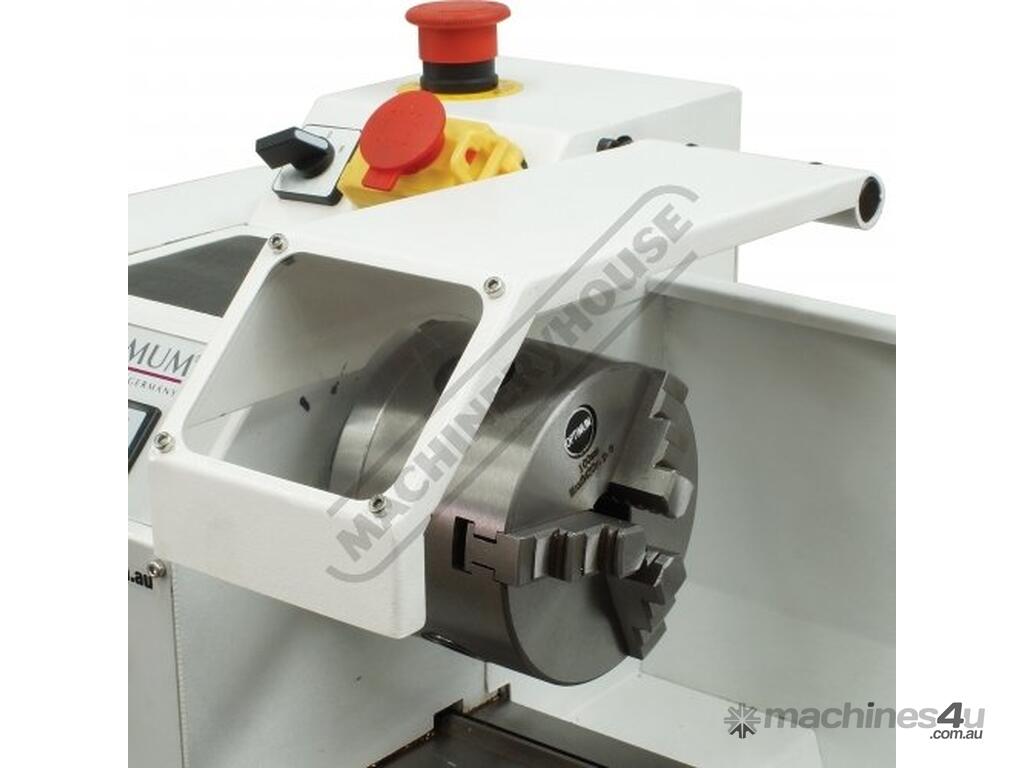

- Chuck guard

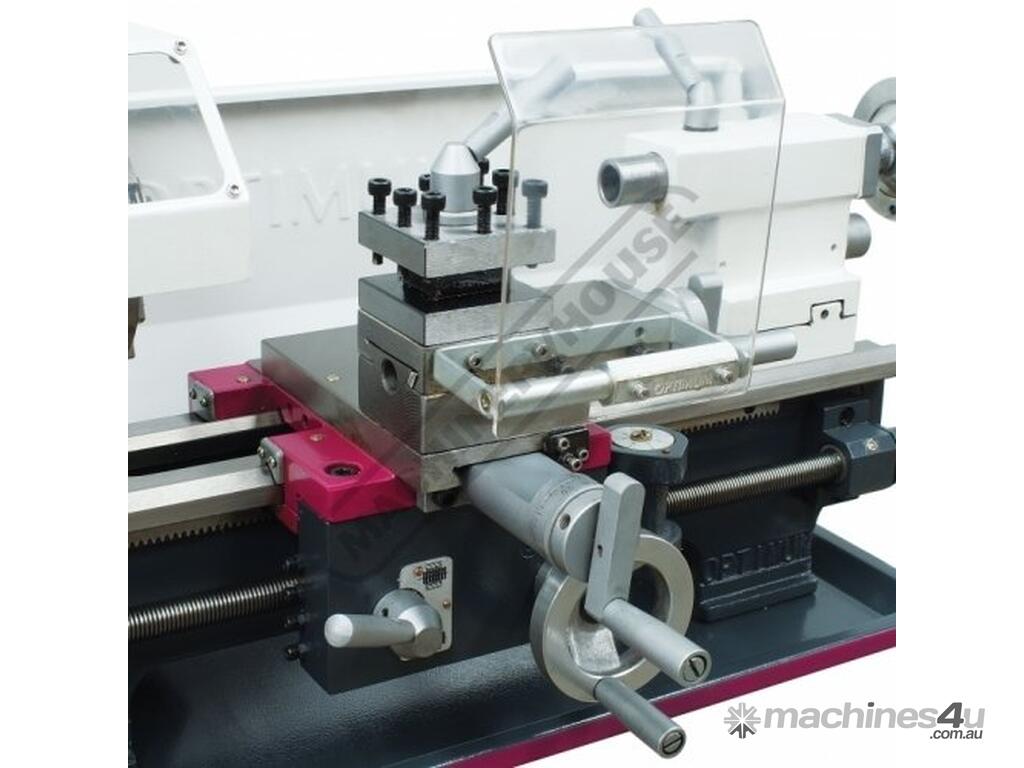

- Toolpost guard
- Dead Centre
- 3-jaw chuck with reversible jaws
- Swarf tray
- Rear splash guard



Specifications:
ORDER CODE: L687
MODEL: TU-2004V
Swing Over Bed (mm): 200
Distance Between Centres (mm): 300
Spindle Bore (mm): 21
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 140
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 10
Centre Height (mm): 100
Spindle Nose Size or Type: Fixed
Bed Width (mm): 100
Headstock Spindle Taper (MT): 3
Tailstock Taper (MT): 2
Cross Slide Travel (mm): 75
Compound Slide Travel (mm): 55
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): ~
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.1 - 0.2
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 14 (0.25 - 3)
Imperial Thread Steps & TPI (No. / TPI): 12 (8 - 44")
3 Jaw Chuck Diameter (mm): 100
4 Jaw Chuck Diameter (mm): Optional
Spindle Steps / Speeds (No. / rpm): Variable (150 - 2500)
Motor Power (kW / hp): 0.60 / 0.8
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 75
