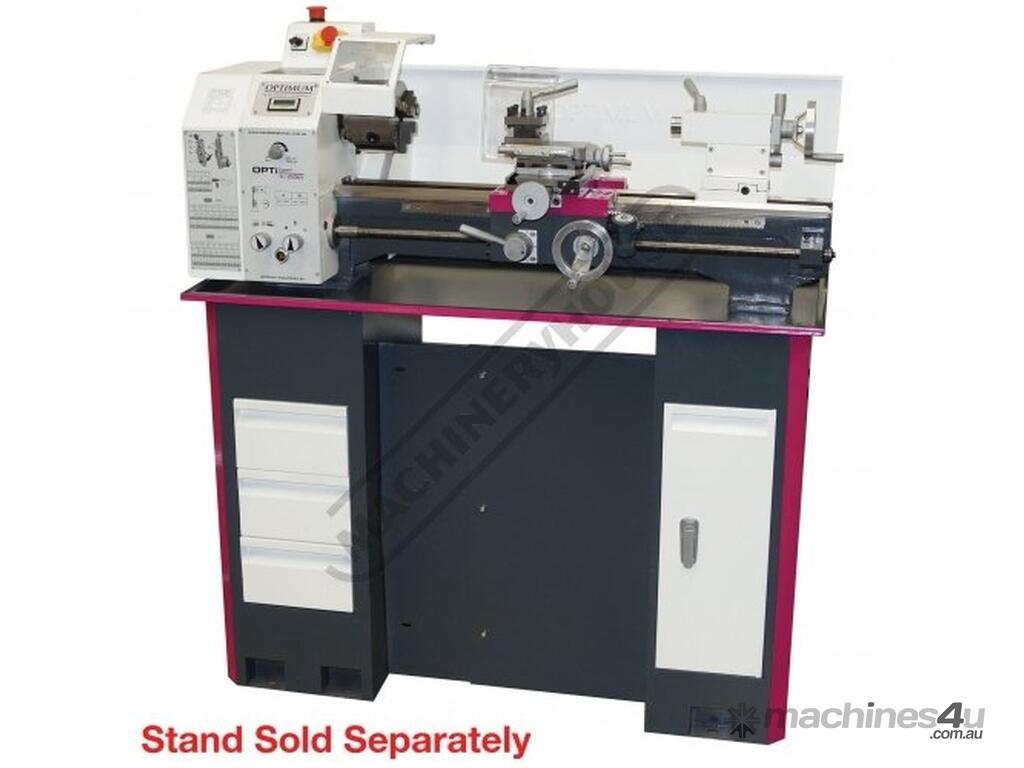

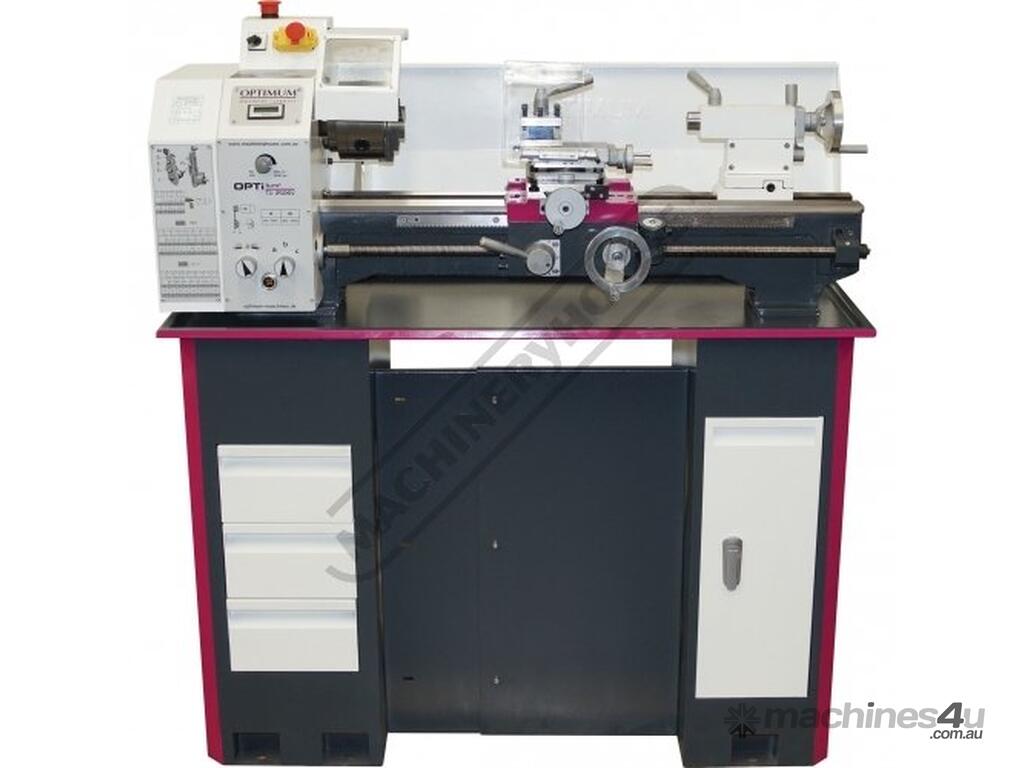

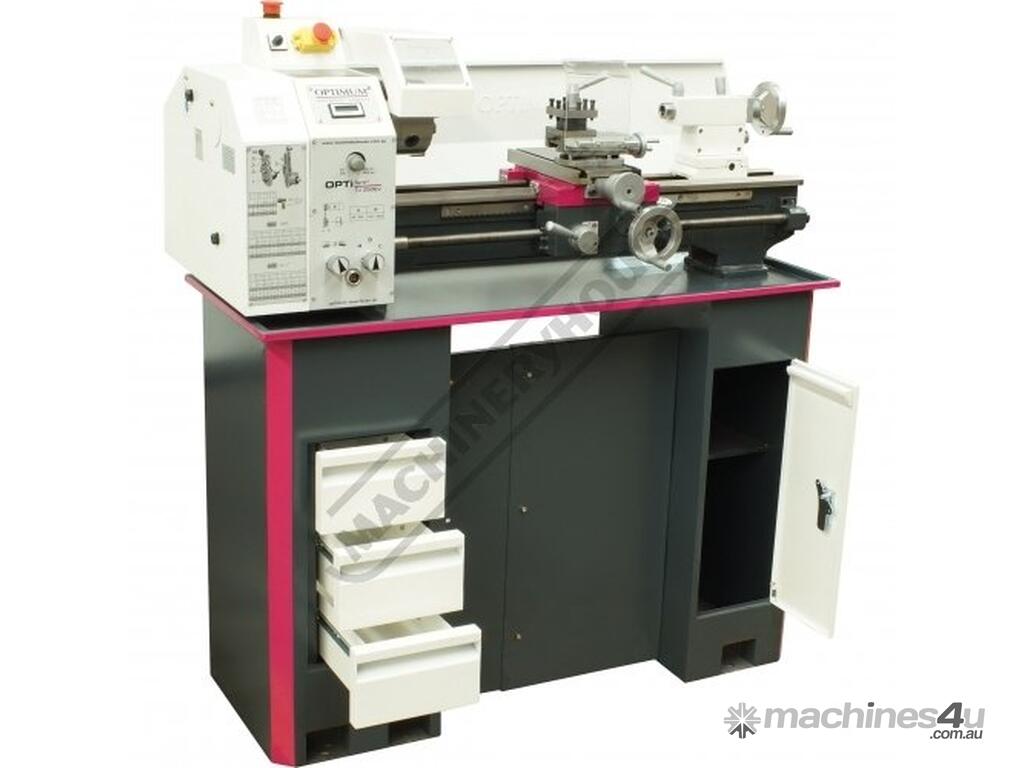

TU-2506V Opti-Turn Bench Lathe Ø250 x 550mm Turning Capacity - Ø26mm Spindle Bore Electronic Variabl

OPTIMUM TU-2506V Opti-Turn Bench Lathe Ø250 x 550mm Turning Capacity - Ø26mm Spindle Bore Electronic Variable Speeds 150 ~ 2500rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L689

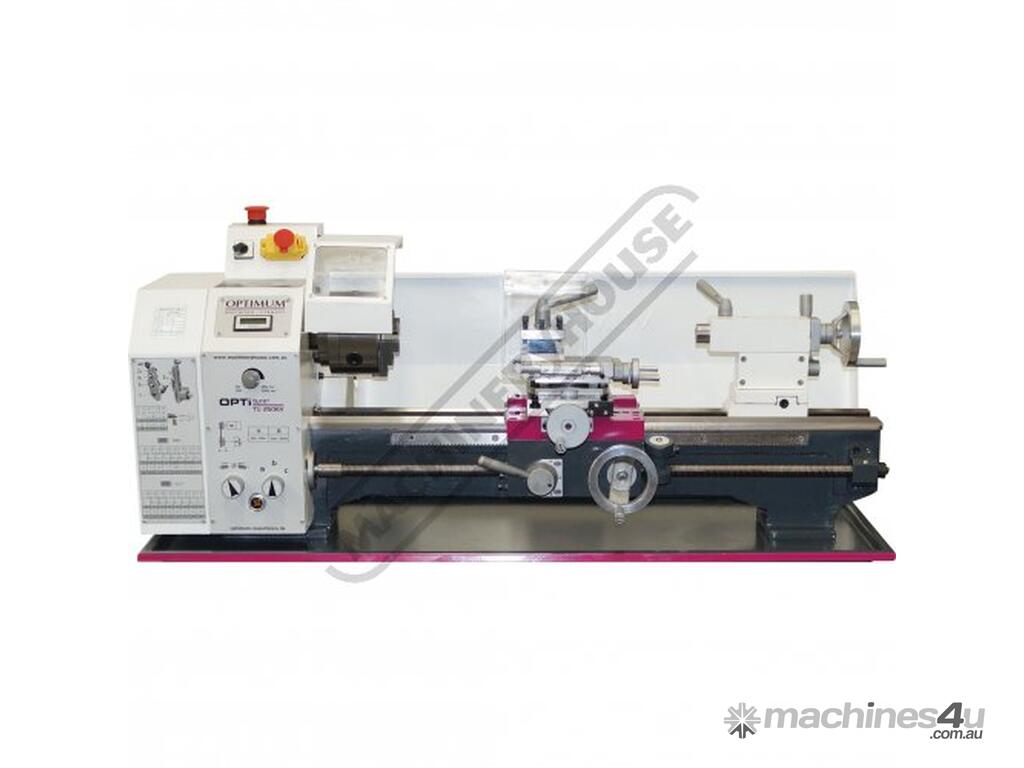

This compact lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid induction hardened cast iron bed with ground slideways gives a high level of precision turning. The lathe capacity is 550mm between the centres and 250mm swing over the bed. This model has a 1200W DC high power motor providing smooth running. A standard feature is the full electronic speed control dial with digital read-out display for the spindle speed.

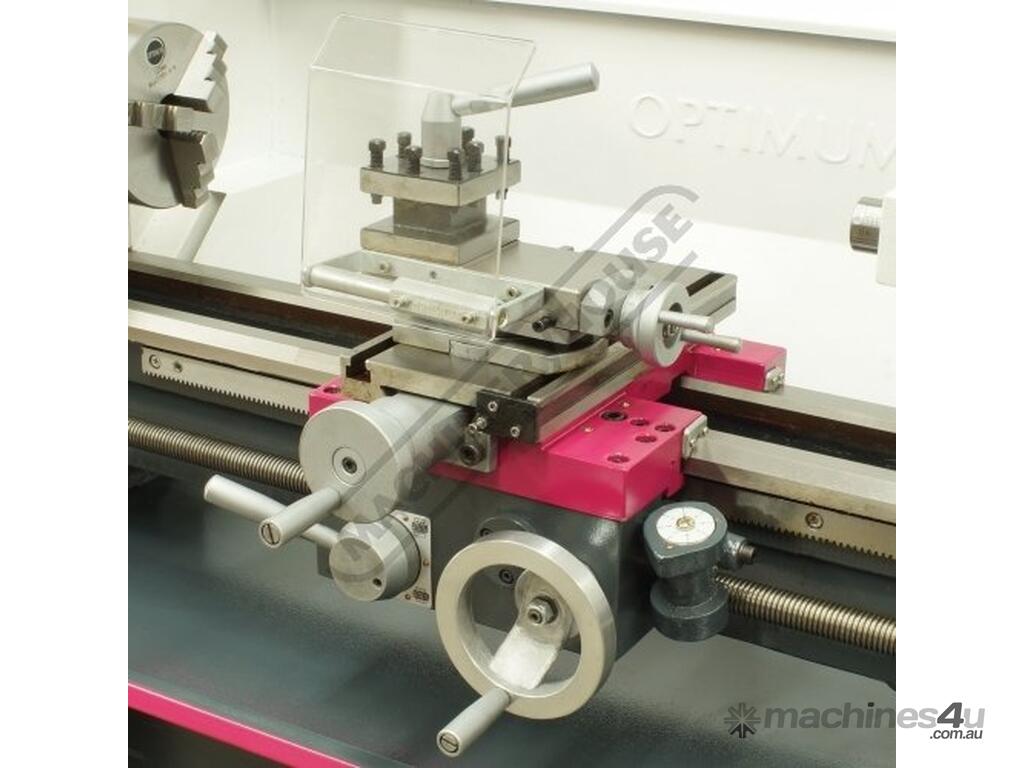

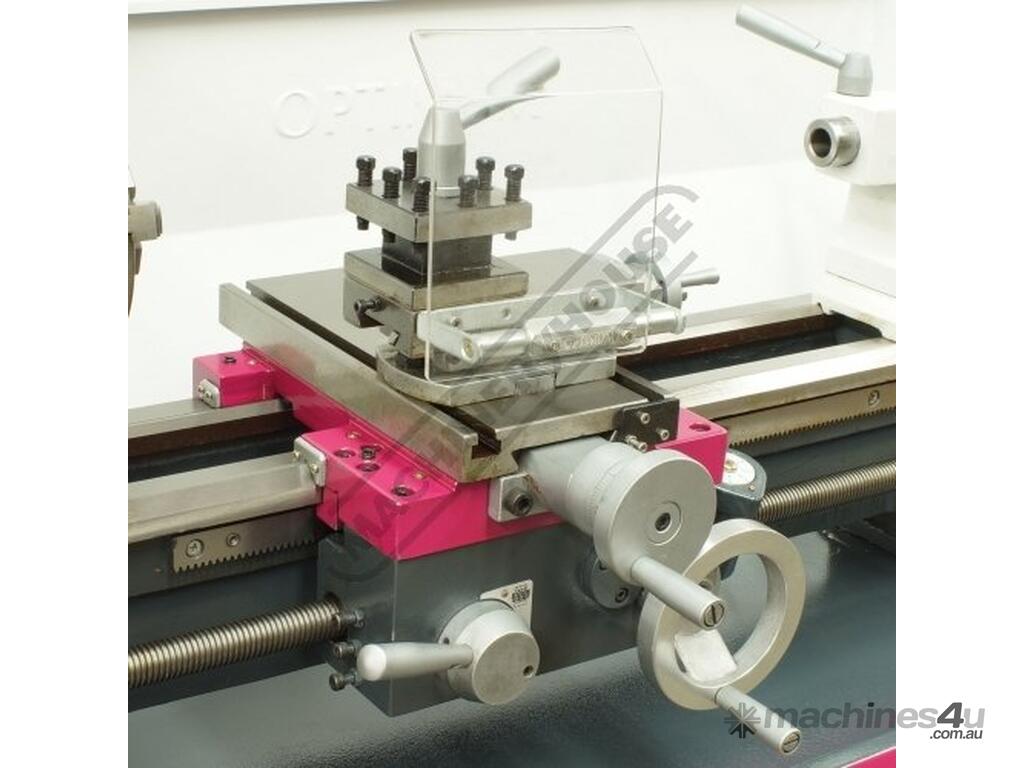

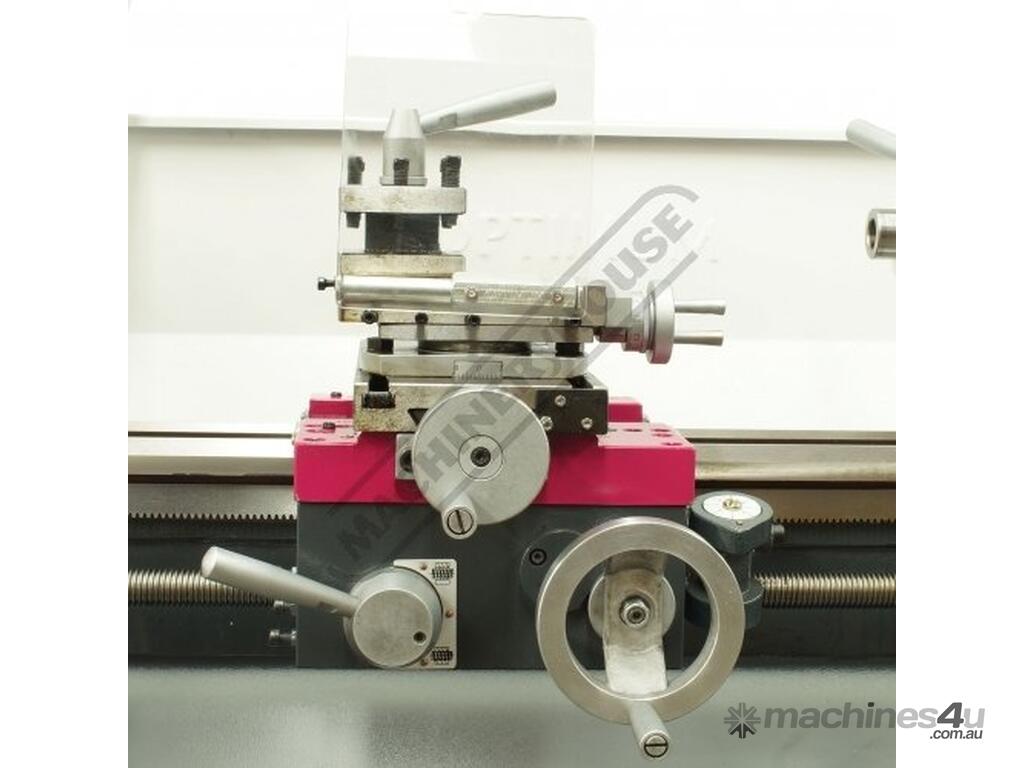

Other very useful features included are longitudinal power feed, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-4mm. Also included are a 4-way indexing tool post with 10mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 125mm 3-jaw chuck with reverse jaws is also supplied, the headstock spindle being through bored to 26mm diameter. There are many additional options available including a milling head (BF-16AV) or (BF-20AV) to turn this machine into a very capable all round machining centre.

Features:

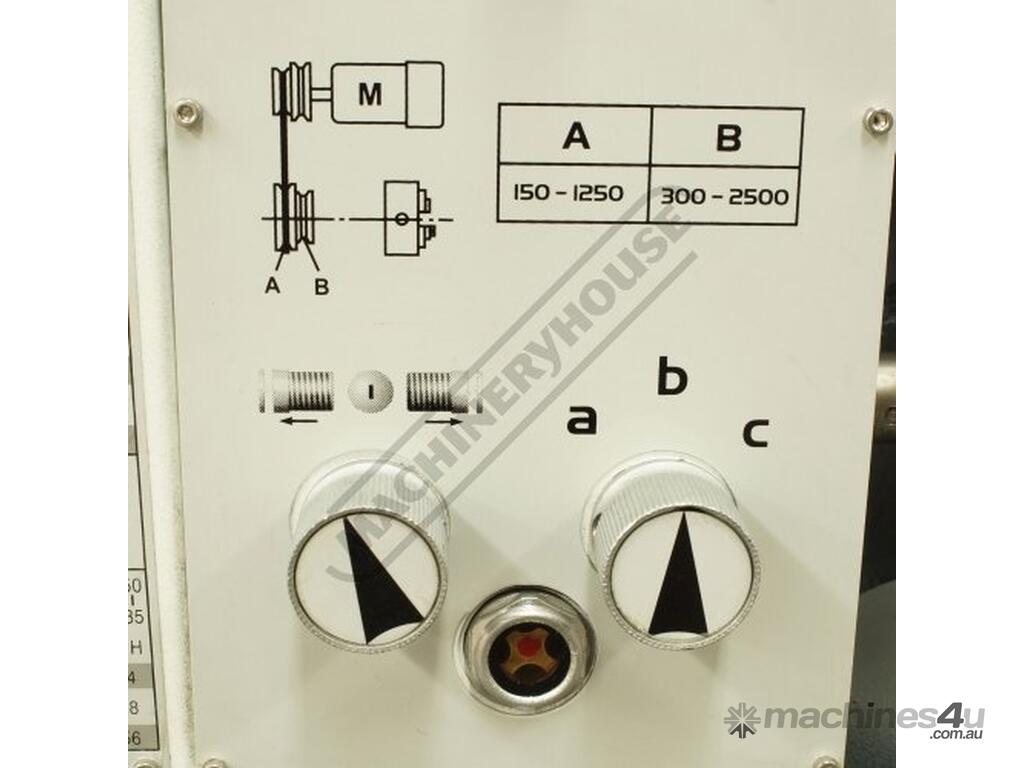

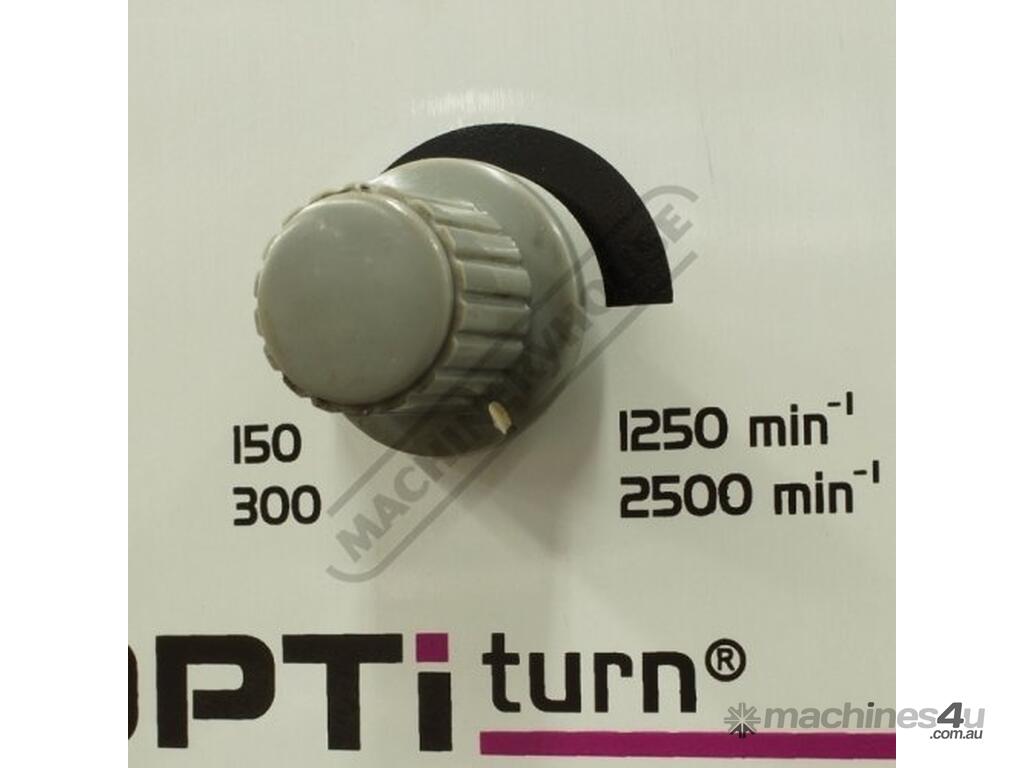

Electronic infinitely variable speed 150-2500rpm

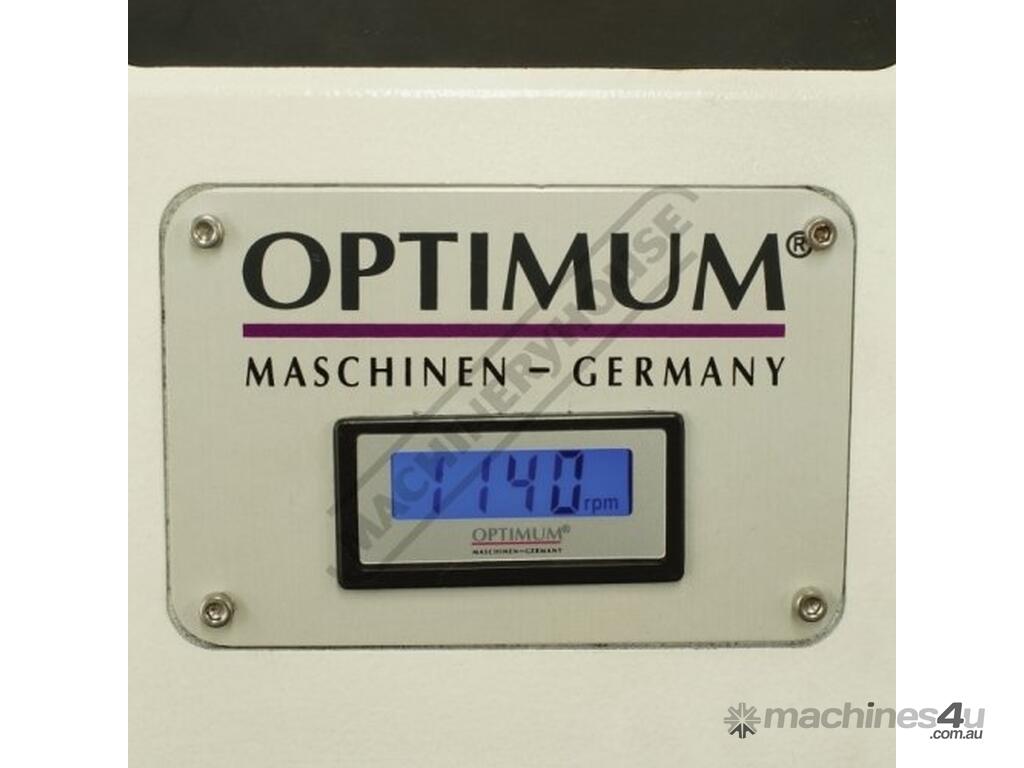

Easy to read digital readout speed display
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm

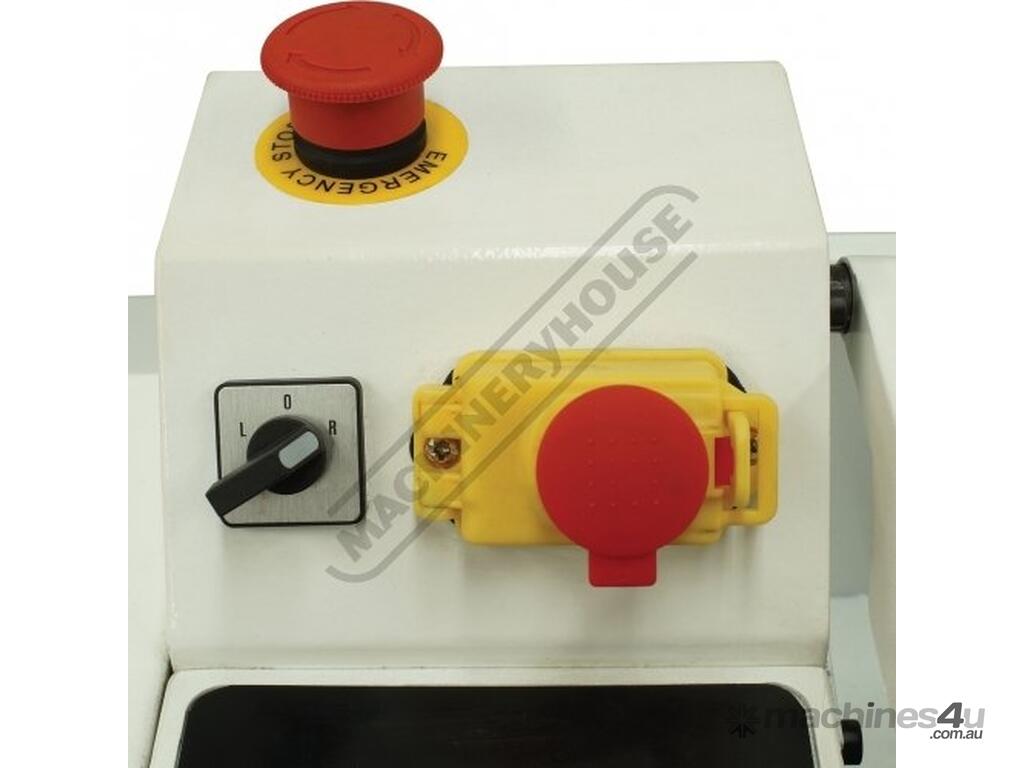

Forward & reverse spindle direction switch
Automatic longitudinal feed
Metric & Imperial thread cutting

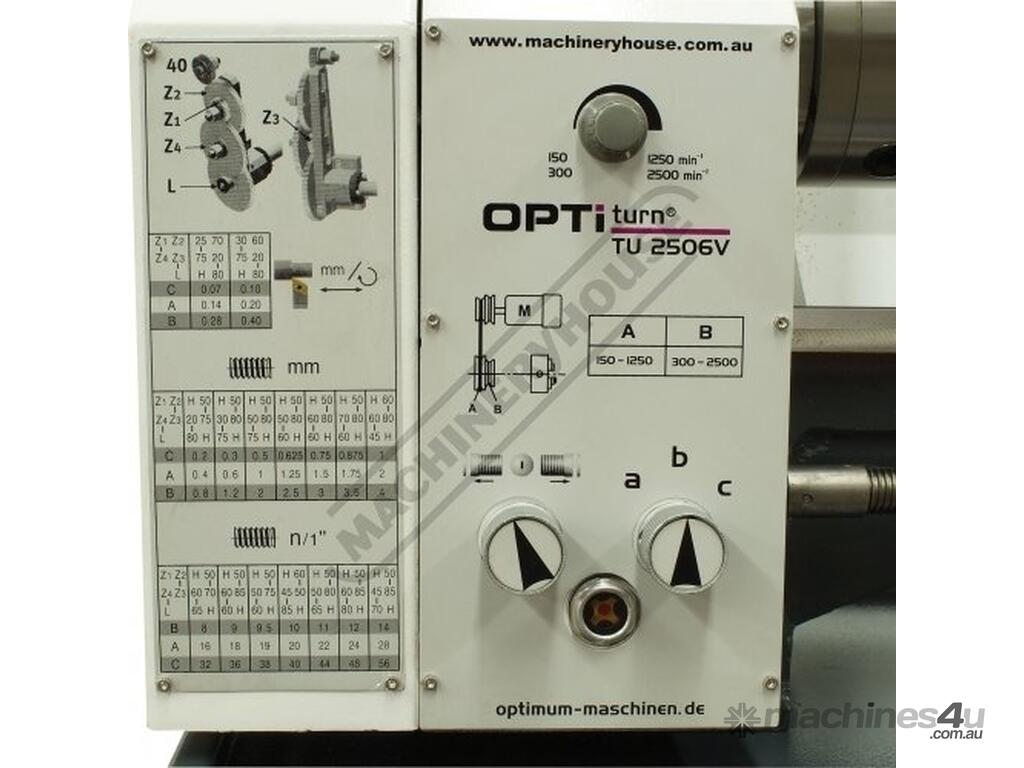

Enclosed feed and threading gearbox
Cross slide & bed length are designed to fit Optimum DRO scales

Includes:
- Change gears for metric & Imperial thread cutting

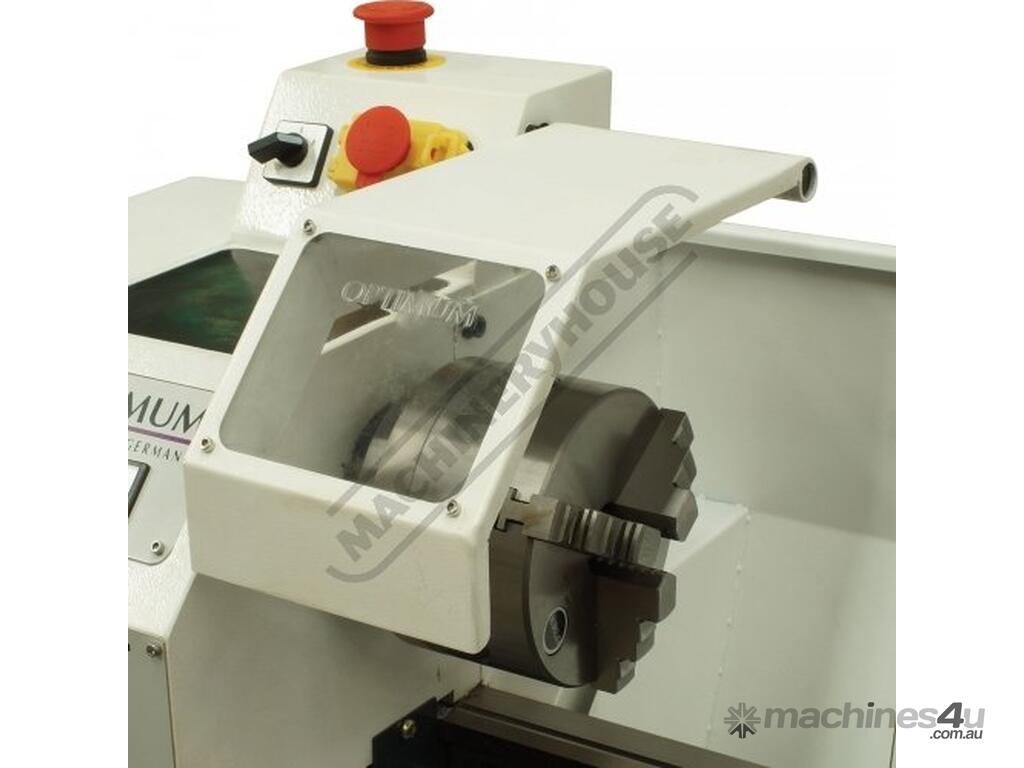

- Chuck guard

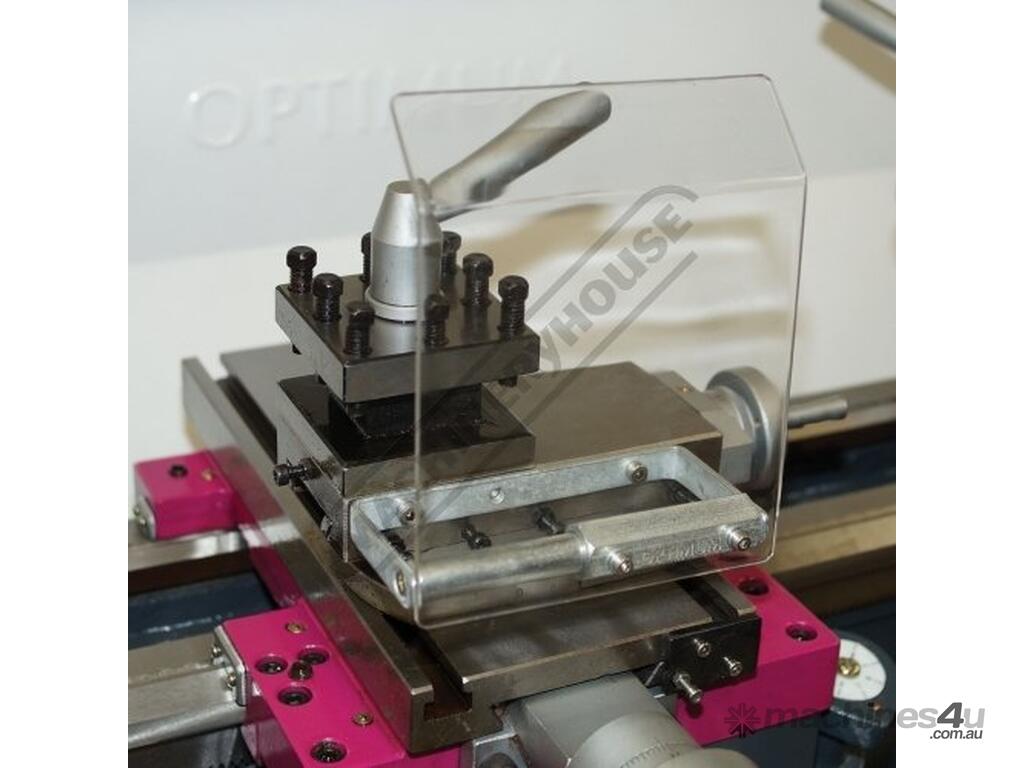

- Toolpost guard
- Dead Centre

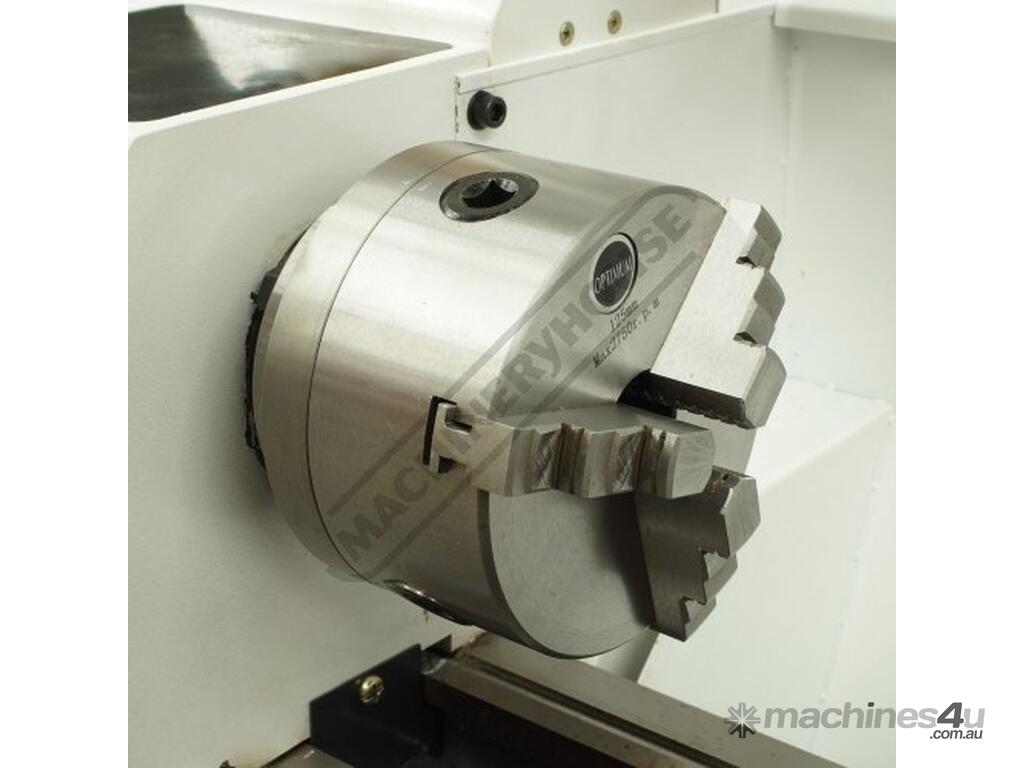

- 3-jaw chuck with reversible jaws
- Swarf tray
- Rear splash guard



Specifications:
ORDER CODE: L689
MODEL: TU-2506V
Swing Over Bed (mm): 250
Distance Between Centres (mm): 550
Spindle Bore (mm): 26
Swing In Gap (mm): ~
Swing Over Cross-slide (mm): 150
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Leadscrew Covers Fitted: ~
Taper Turning Attachment: ~
Coolant System: ~
Tool Height To Suit (mm): 10
Centre Height (mm): 125
Spindle Nose Size or Type: Fixed
Bed Width (mm): 135
Headstock Spindle Taper (MT): 4
Tailstock Taper (MT): 2
Cross Slide Travel (mm): 110
Compound Slide Travel (mm): 70
Leadscrew Type: Metric
Metric Cross Feed (X-Axis) (mm/rev): ~
Imperial Cross Feed (X-Axis) (inch/rev): ~
Metric Longitudinal Feed (Z-Axis) (mm/rev): 0.07 - 0.4
Imperial Longitudinal Feed (Z-Axis) (inch/rev): ~
Metric Thread Steps & Pitch (No. / mm): 21 (0.2 - 4)
Imperial Thread Steps & TPI (No. / TPI): 21 (8 - 56")
3 Jaw Chuck Diameter (mm): 125
4 Jaw Chuck Diameter (mm): Optional
Spindle Steps / Speeds (No. / rpm): Variable (150 - 2500)
Motor Power (kW / hp): 1.2 / 1.6
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 156
