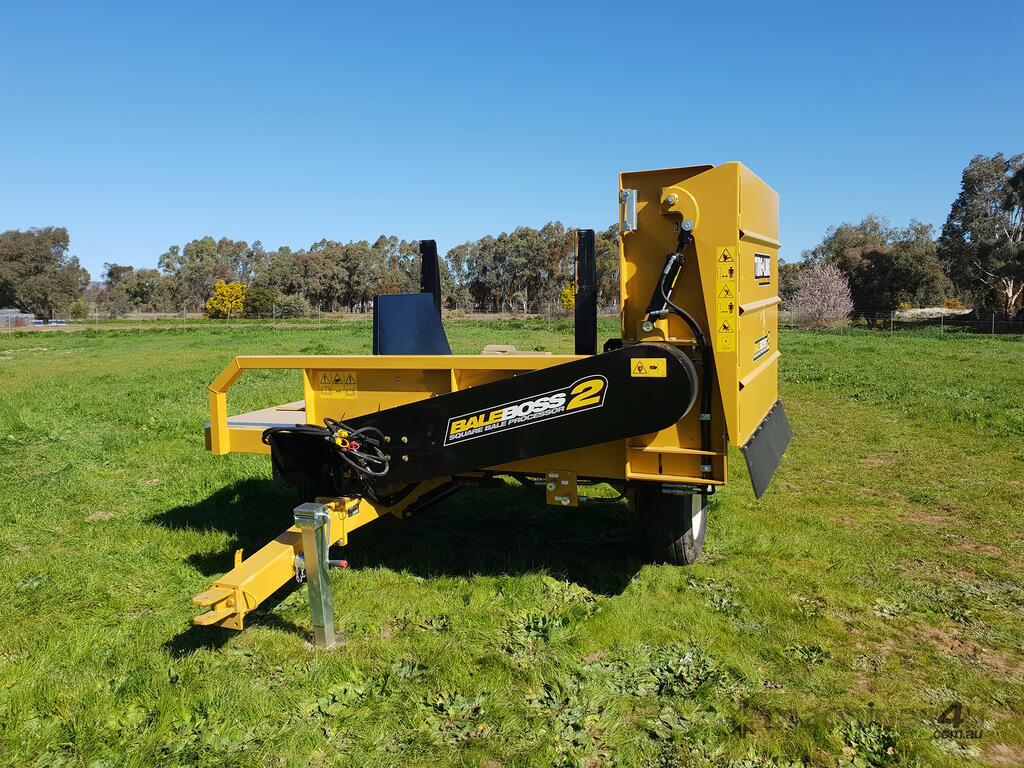

TUBELINE BOSS 2 HEAVY DUTY SQUARE BALE PROCESSOR

LIVESTOCK FEEDING OR ORCHARD MULCHING: PROVEN IN BOTH!

The Bale BOSS 2 is the perfect tool for all of your large square bale processing needs. From bedding to feeding, the Boss 2 can manage it all.

The BOSS 2 is fully adjustable to fit 3x3, 3x4 and 4x4 square bales, up to 9 long monsters. The adjustable distribution chute allows the same machine to bed livestock with bales of straw, then feed into bunkers or windrows with only a quick adjustment. The adjustments dont stop there. The BOSS 2 can also be equipped with optional cutting knives that help to further chop up bedding material for a finer and more consistent spread.

The hydraulic feed is also adjustable, allowing you to control the flow and speed of feeding. The flail roller is PTO-driven and adaptable to either 540 or 1000 RPM, while the upper paddle roller is hydraulically controlled and also fully adjustable. The hydraulic self-loading forks allow you to load one bale and have another standing by ready to go.

The Bale BOSS 2 can be customized with an optional narrow wheel track making it ideal for spreading straw over delicate berry fields. This option also includes suitcase weights to balance the unit.

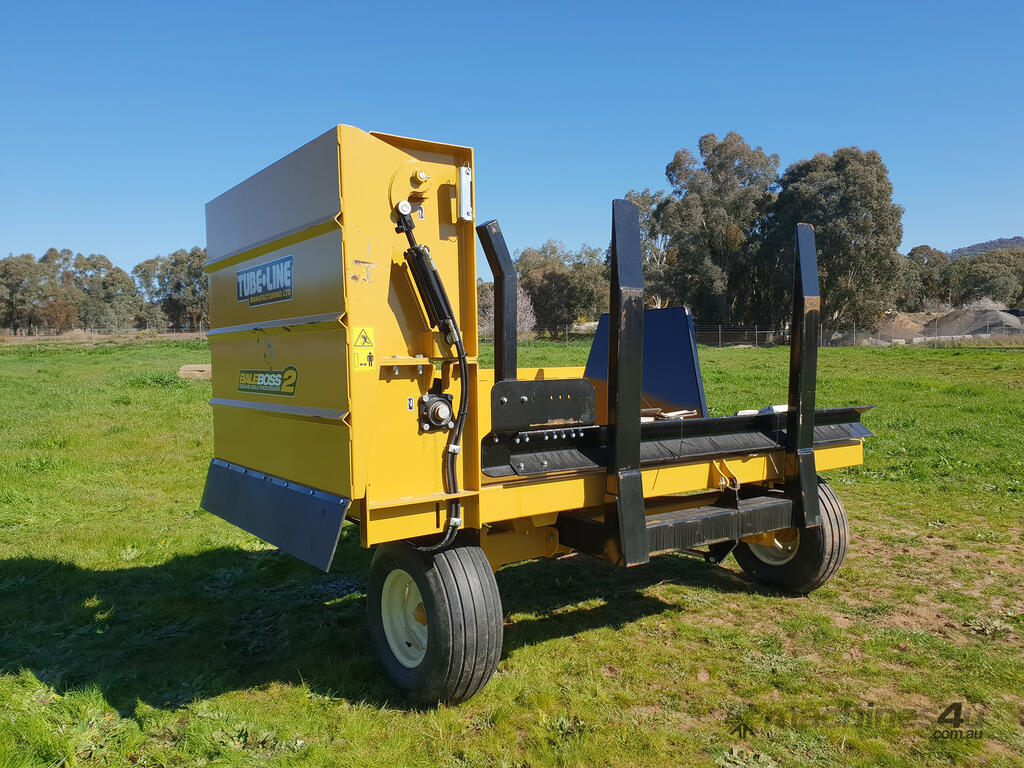

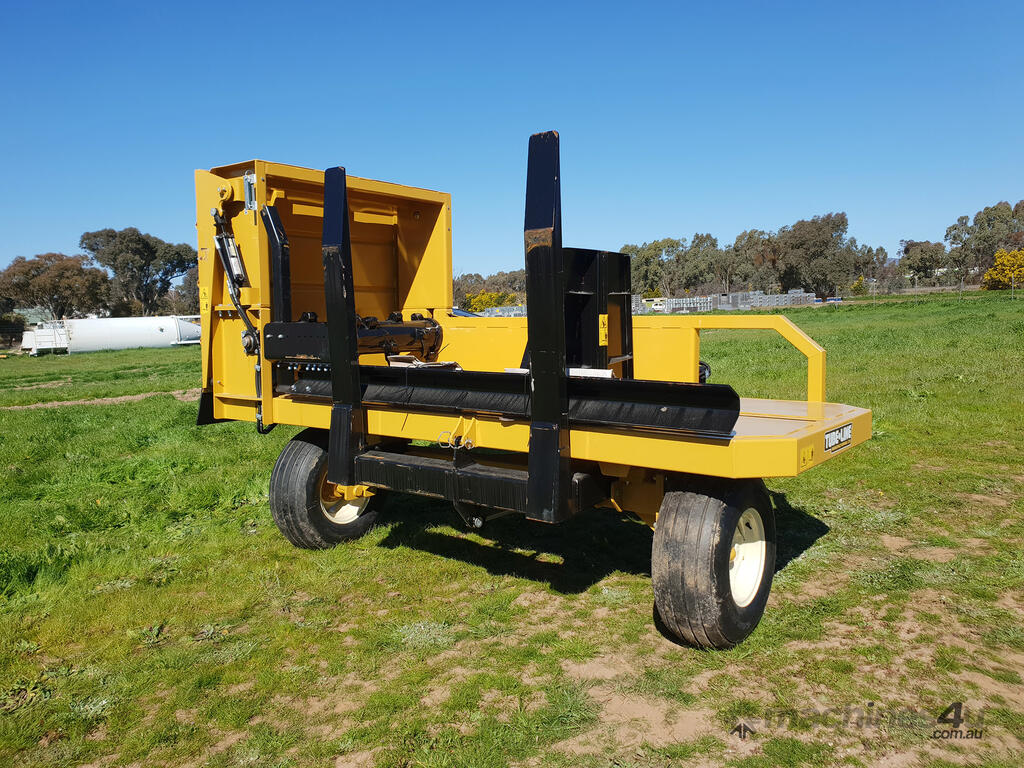

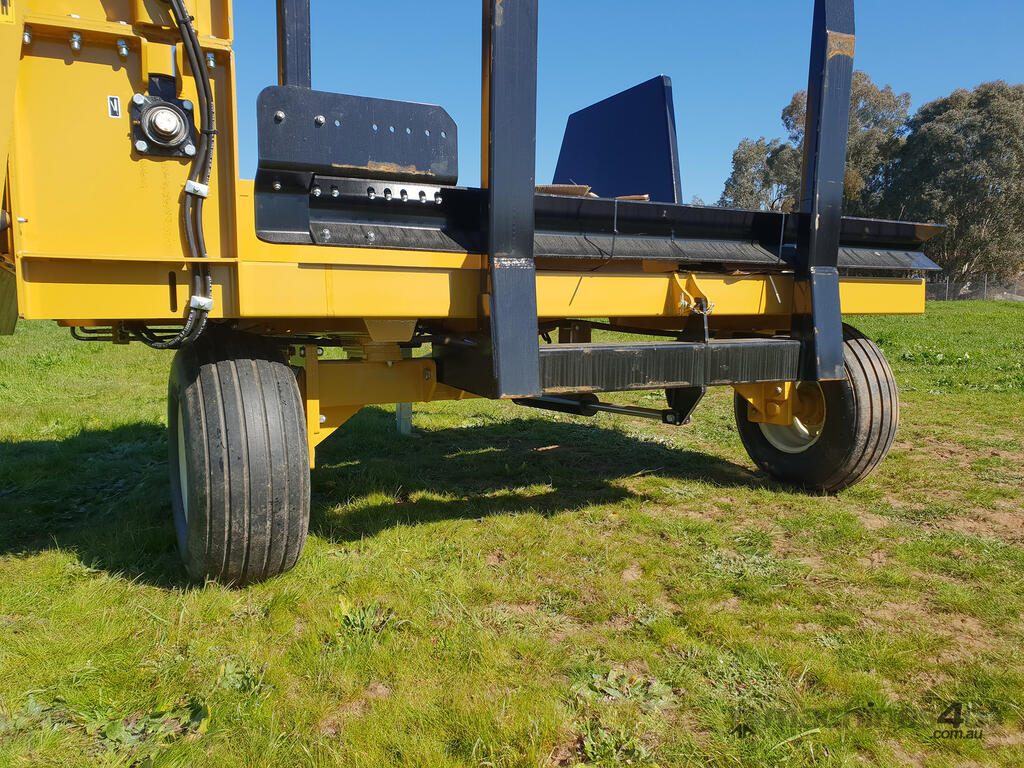

SELF LOADING
The self loading design allows you to carry two bales. One on the table and one on the forks.

ADJUSTABLE HYDRAULICS
All hydraulics are adjustable so you can find the perfect feed rate for your material.

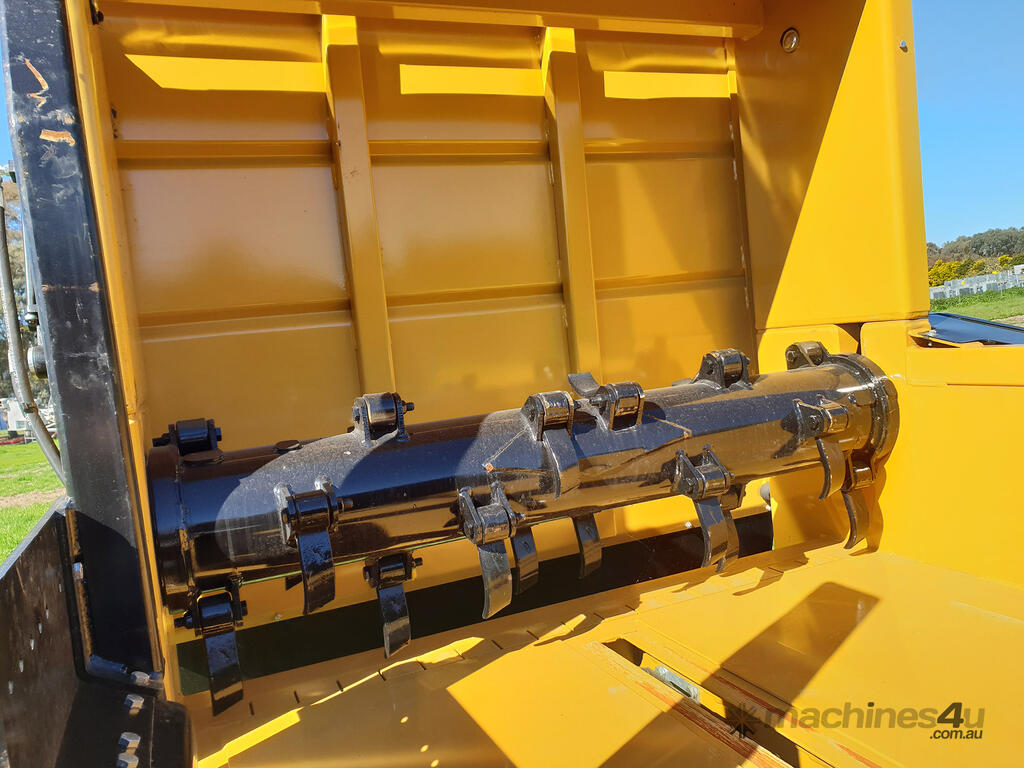

FLAIL ROTATOR
Belt driven from the tractors PTO, the flail rotor easily chops through a variety of bales.

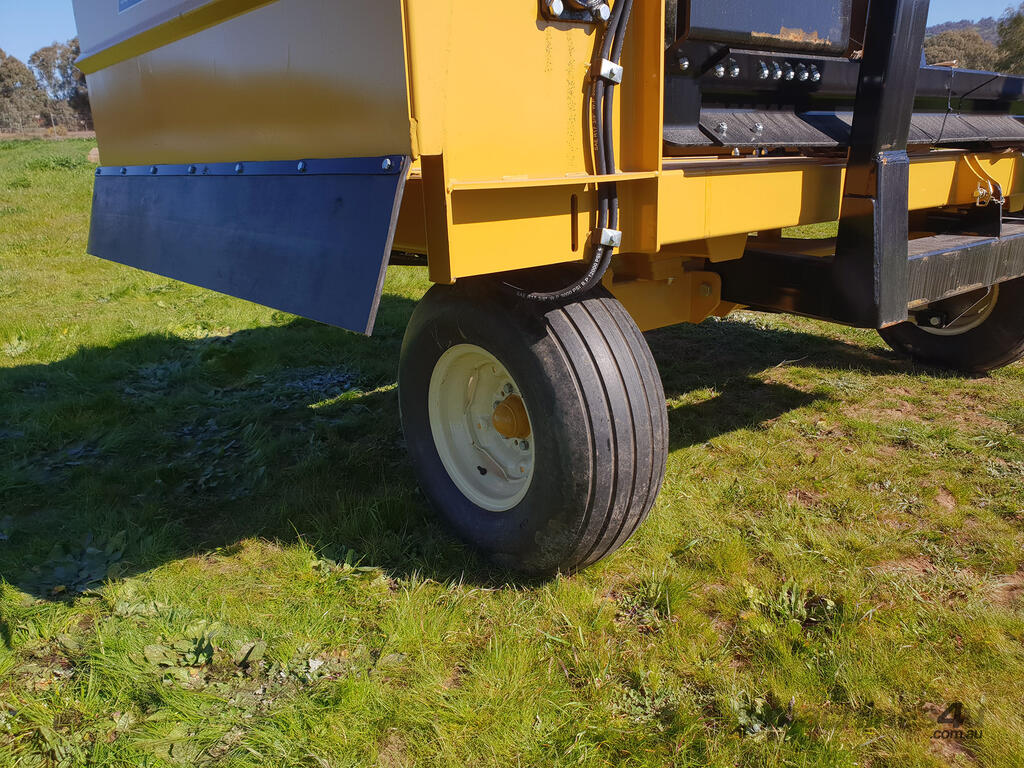

TRACTOR LUG TYRES (OPTIONAL)
Optional for both the BOSS 2 and BOSS 2 HD, are the 29/12.5 x 15 tractor lug tires. Factory upgrade.

TRAVEL LOCK
The Travel Lock securely holds the tines in the up position for safe road travel and storage.

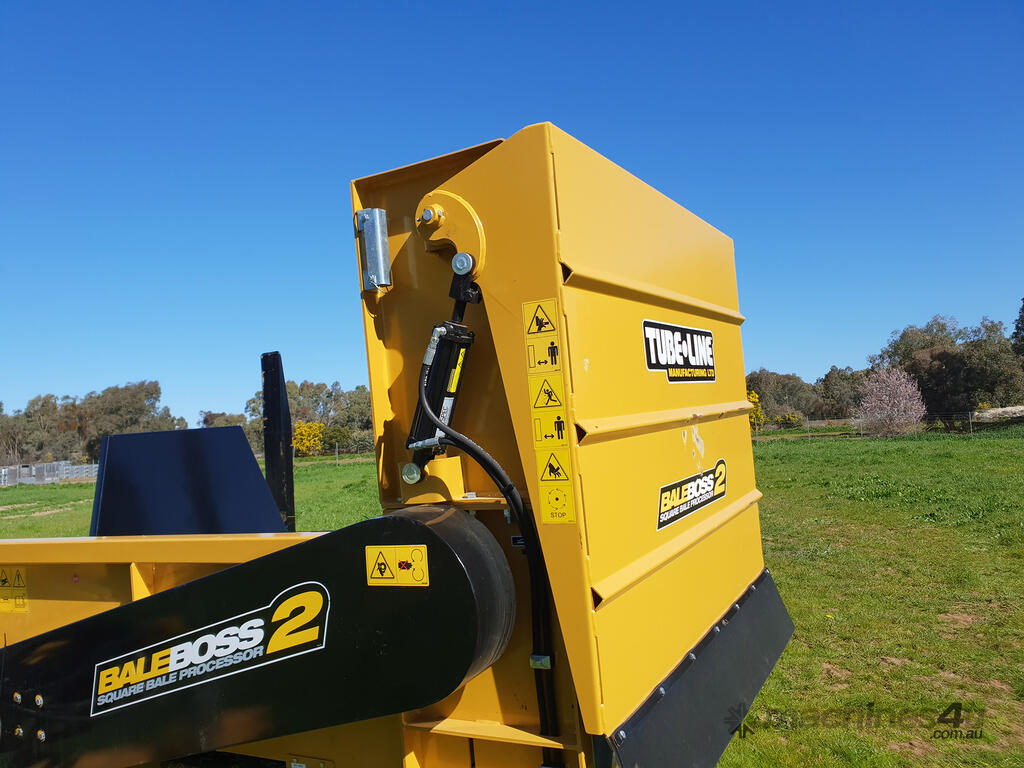

DISTRIBUTION CHUTE
The adjustable distribution chute allows you to windrow or spread the material to the desired consistency.

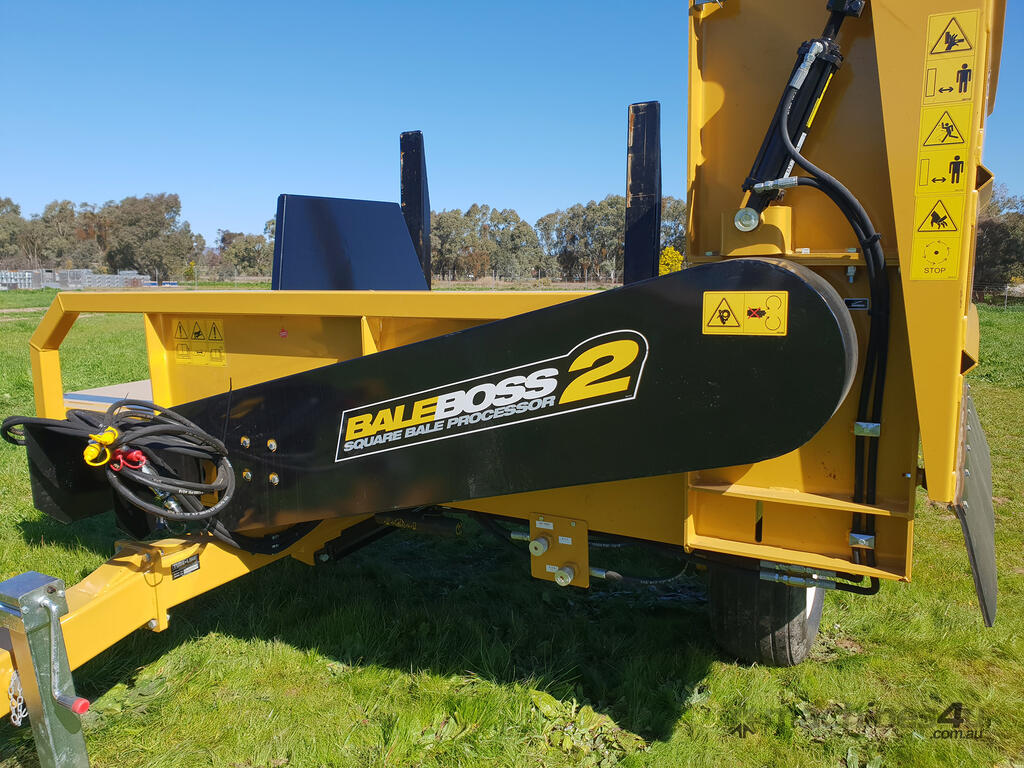

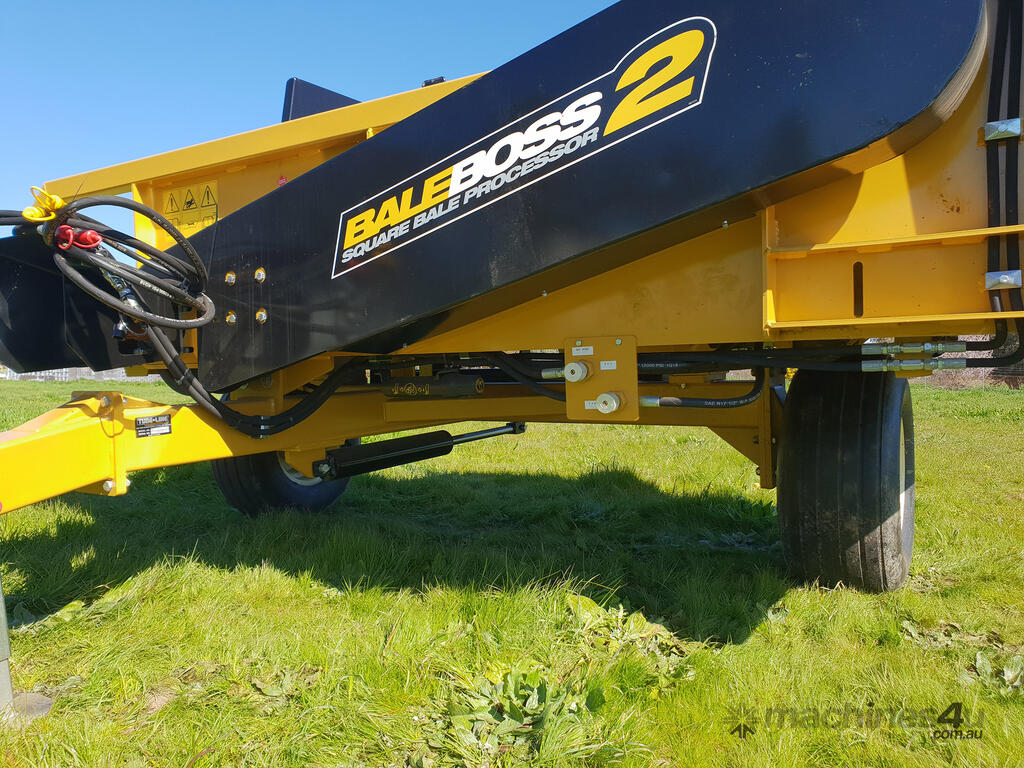

BELT DRIVE WITH TENSIONER
The adjustable belt tensioner allows simple worry free servicing of the main drive.

ADJUSTABLE CUTTING KNIVES
Adjustable cutting knives help to further chop up bedding material for a finer and more consistent spread.

Specifications - Bale Boss 2 HD
HP Required: 120-250HP
Tyre: 12.5L x 15
Weight: 2336kg
Width: 2,032mm
Height: 2,439mm
Length: 3,556mm
PTO: 540 or 1000RPM
Bale Capacity: 2
Bale Sizes: Squares Up To 9'
Number Of Flails: 39
Top Paddle Roller: No

Machine/Equipment base price only, additional price for optional extras.
