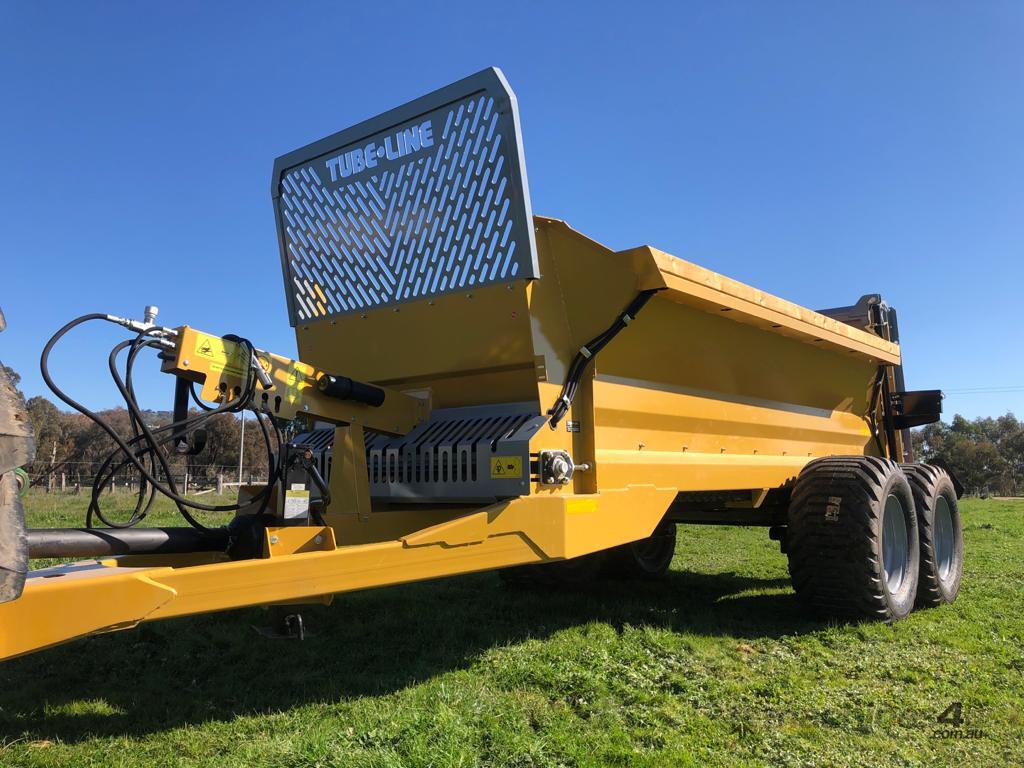

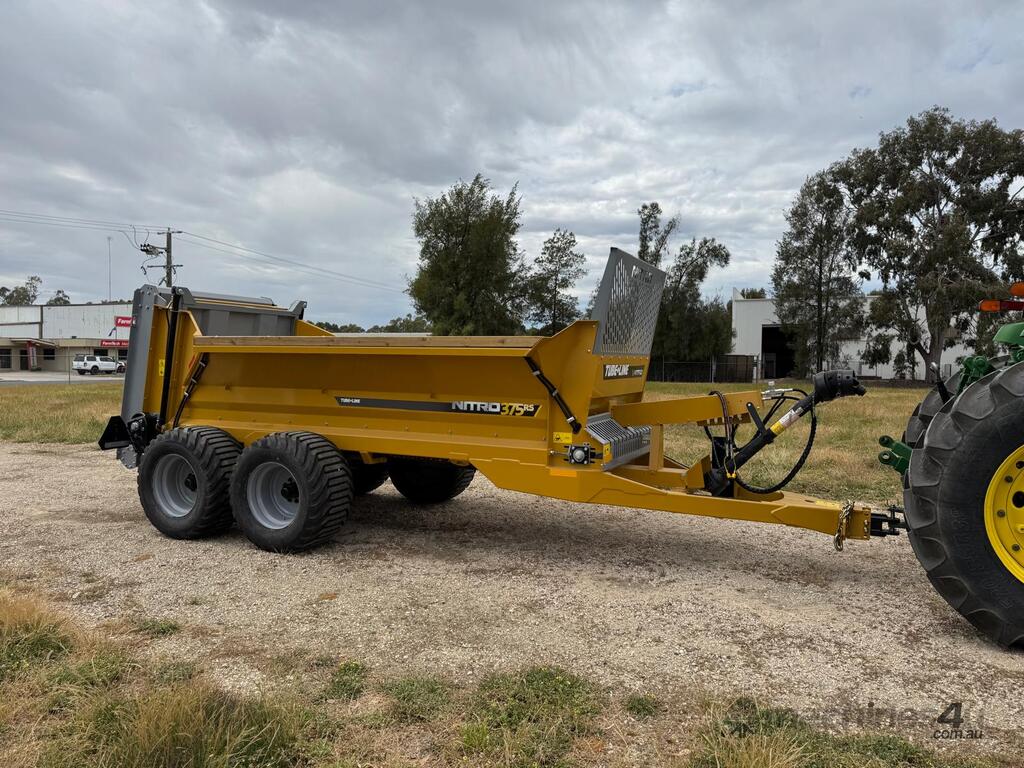

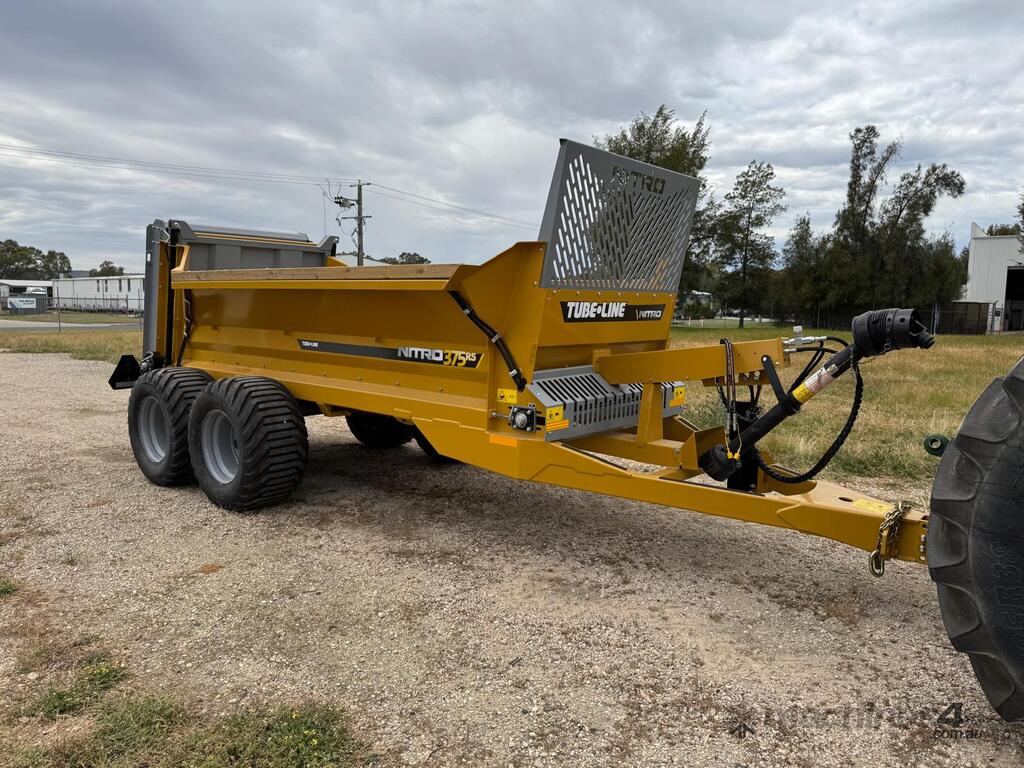

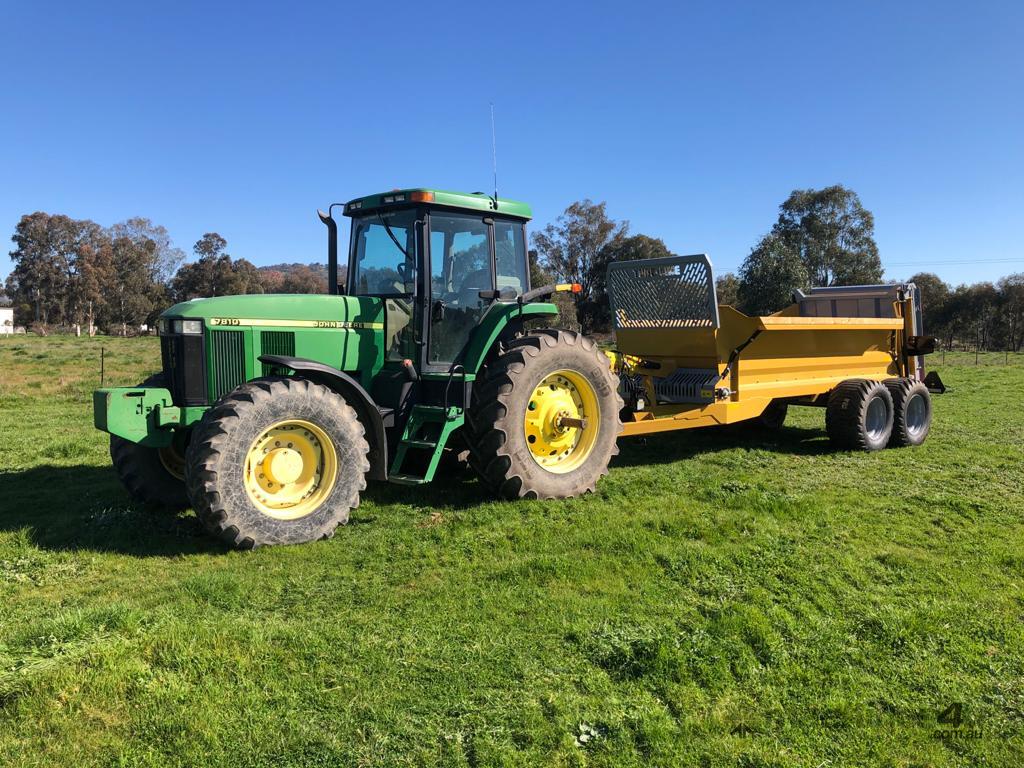

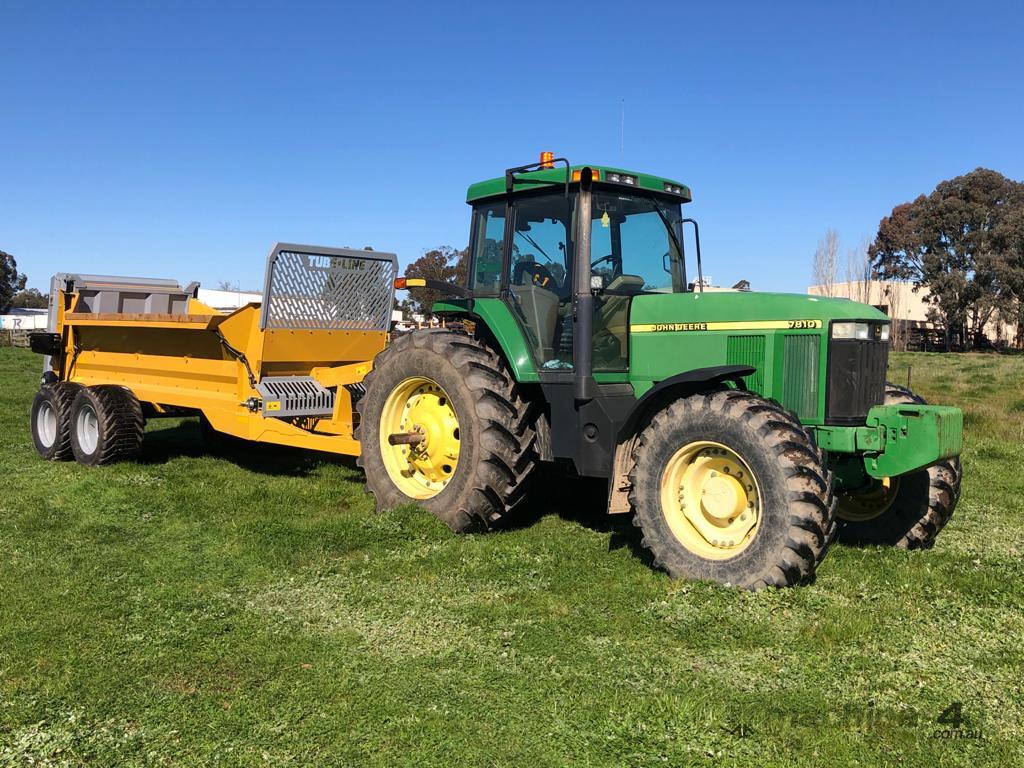

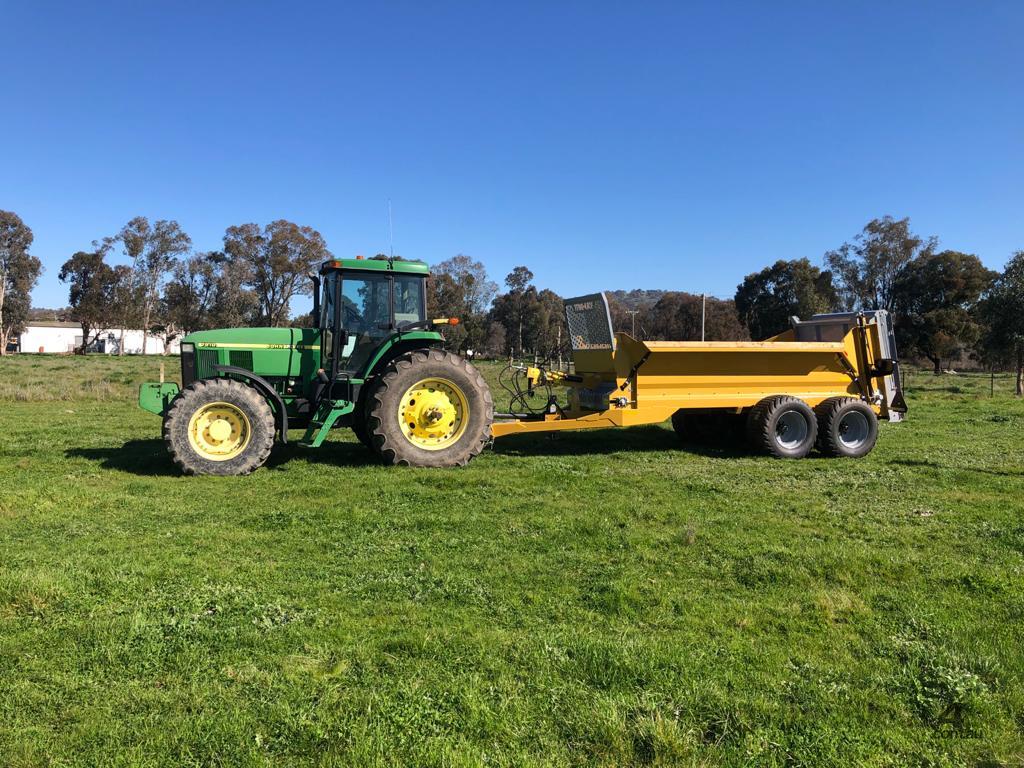

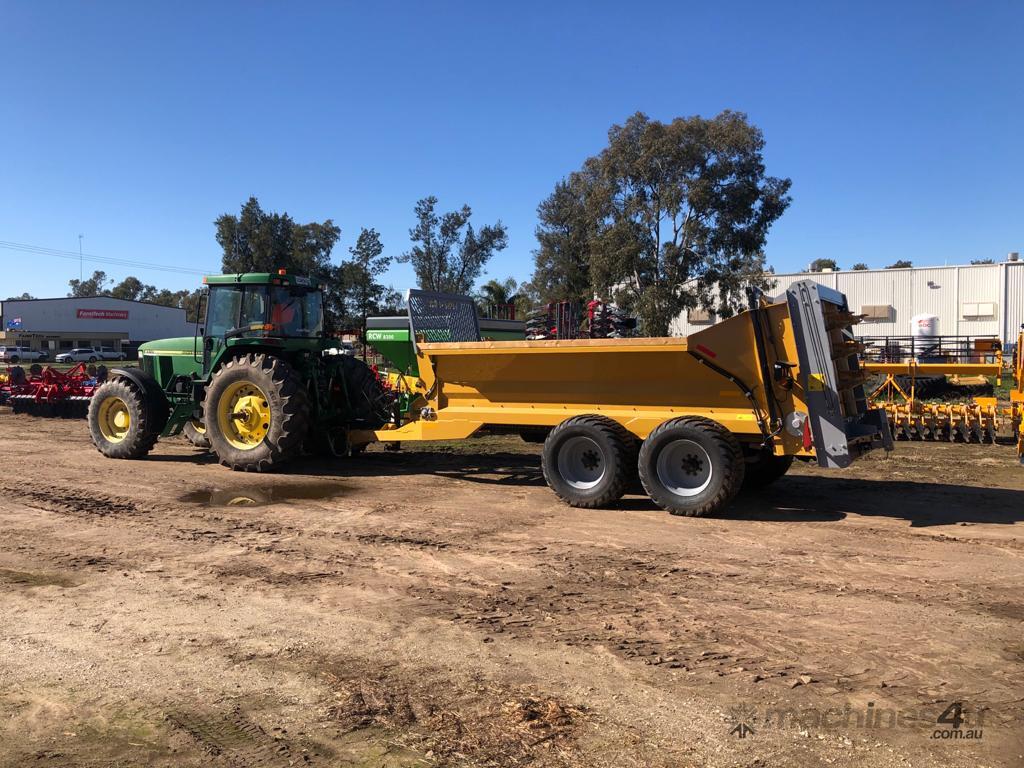

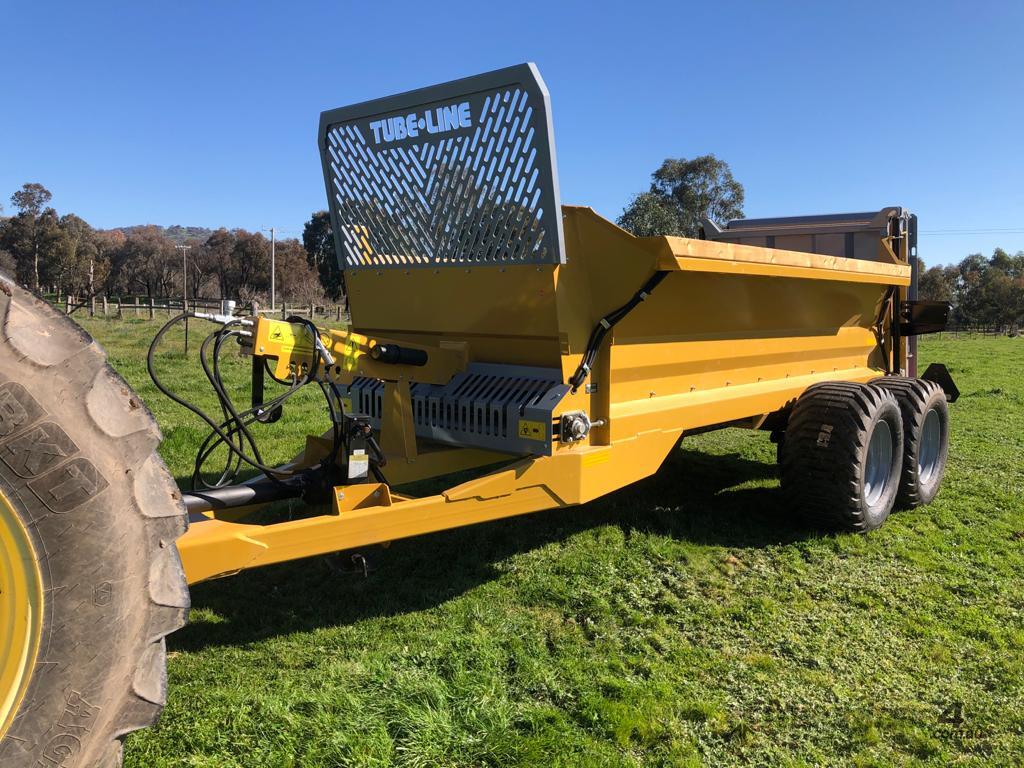

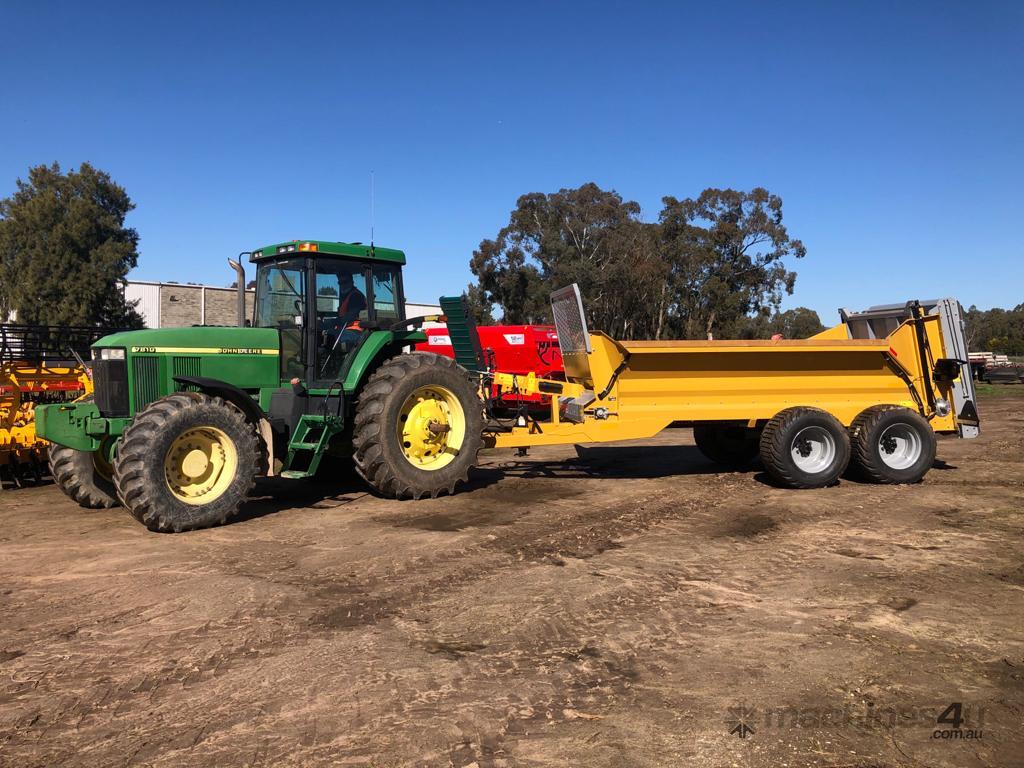

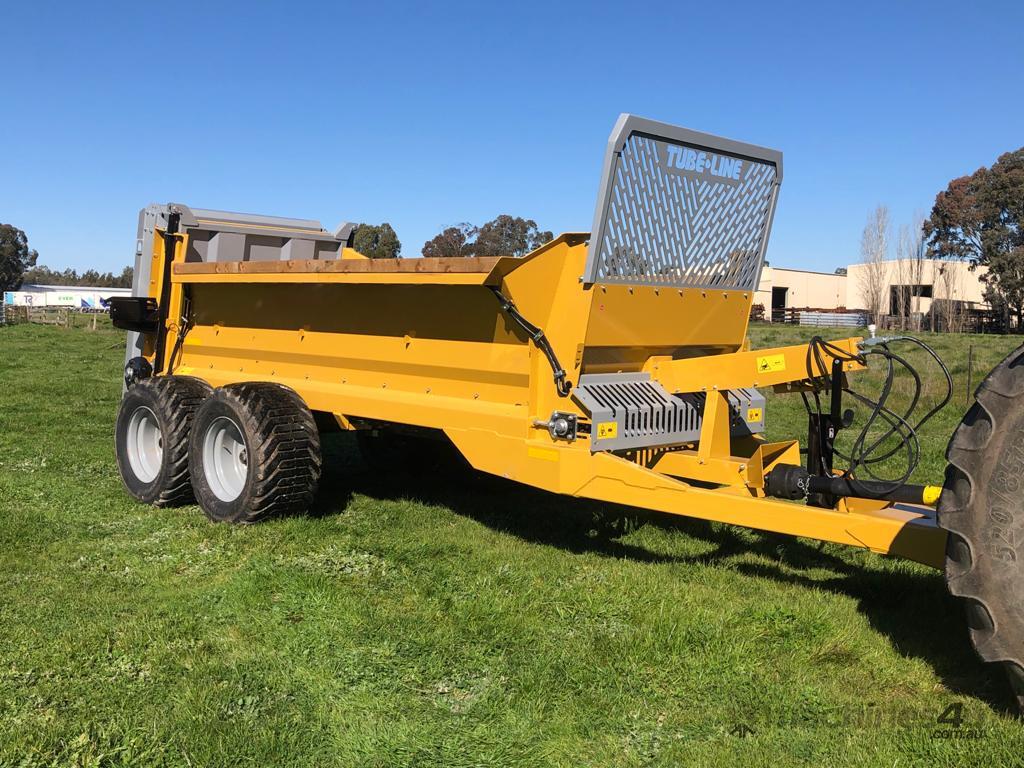

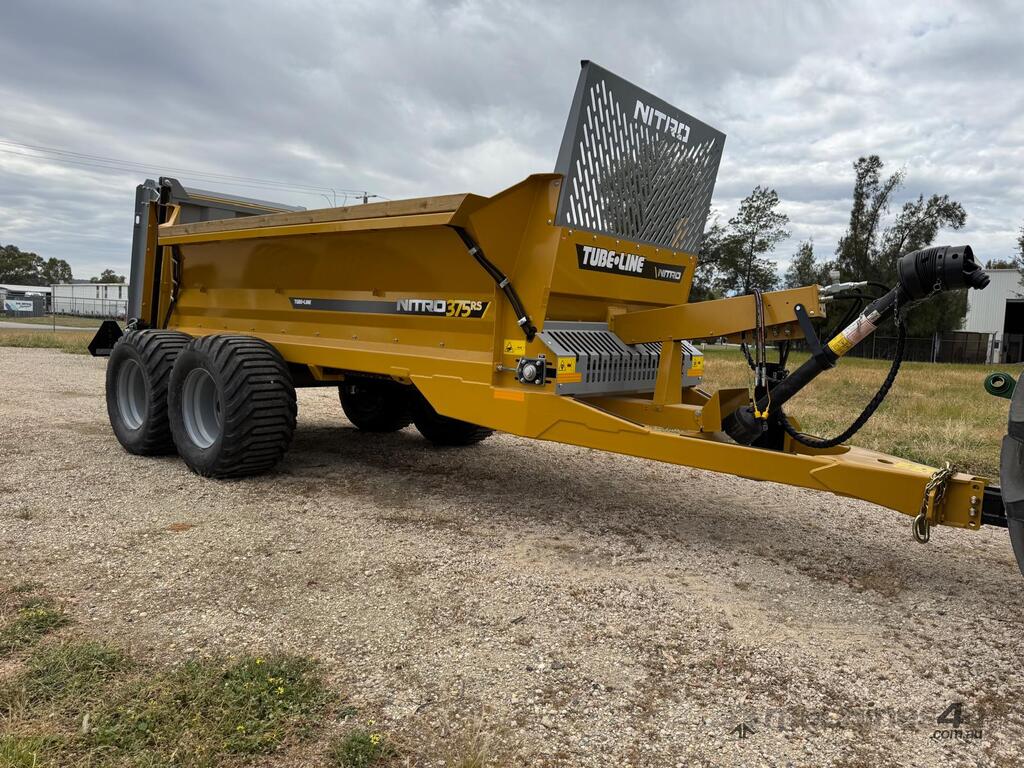

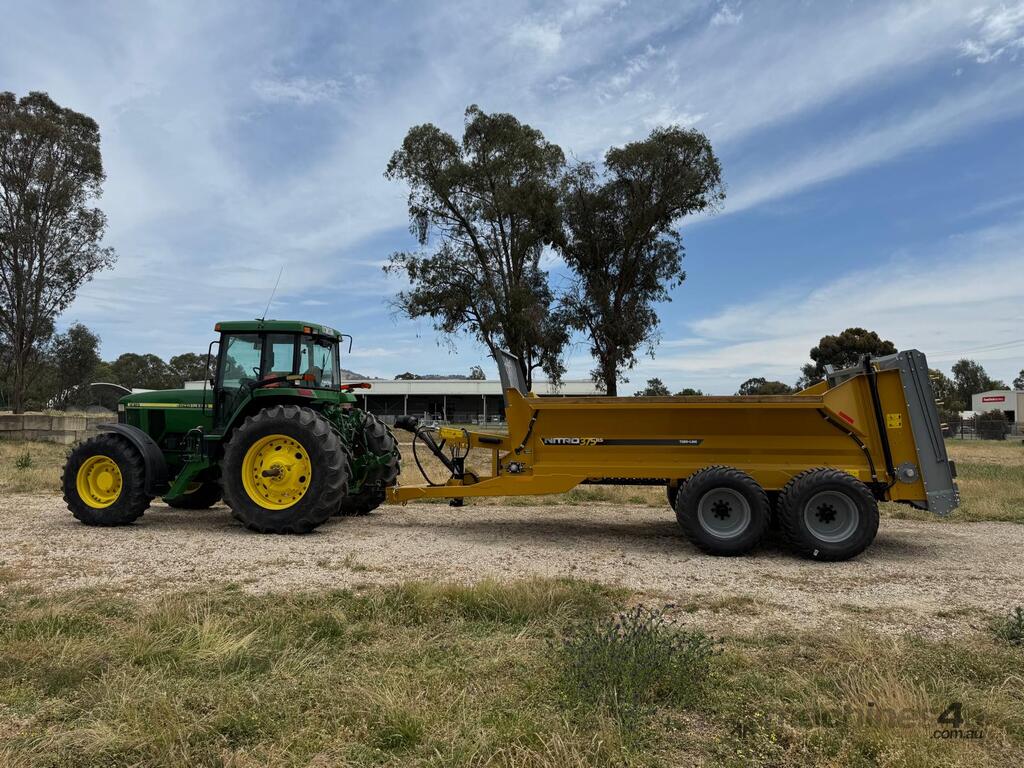

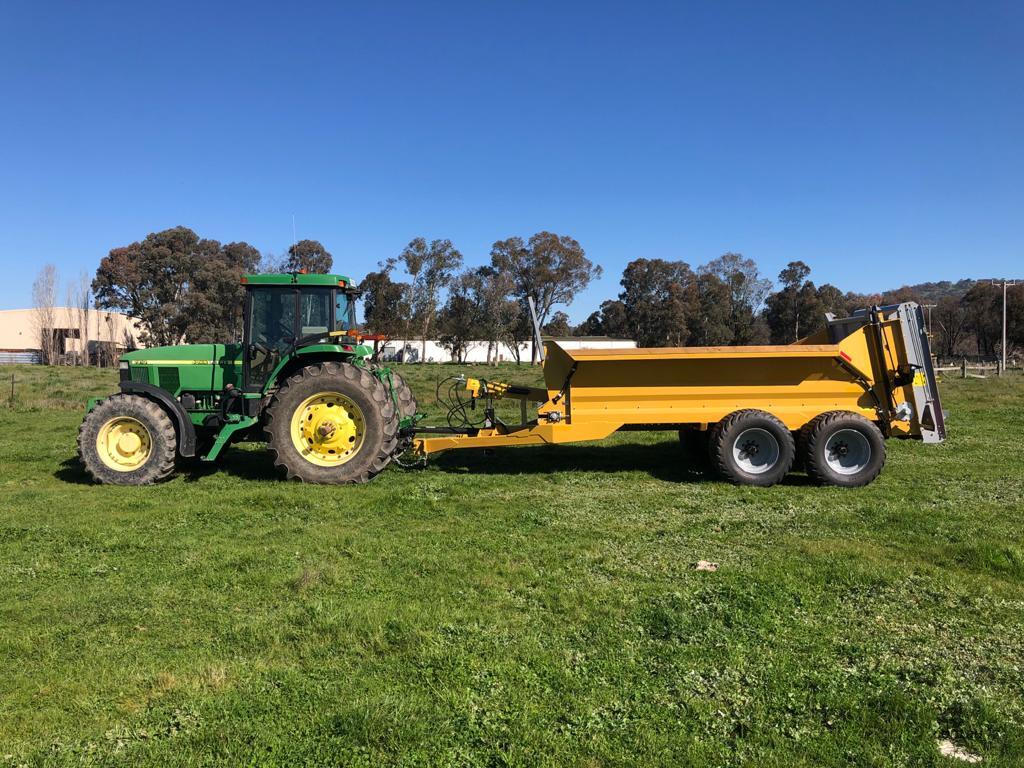

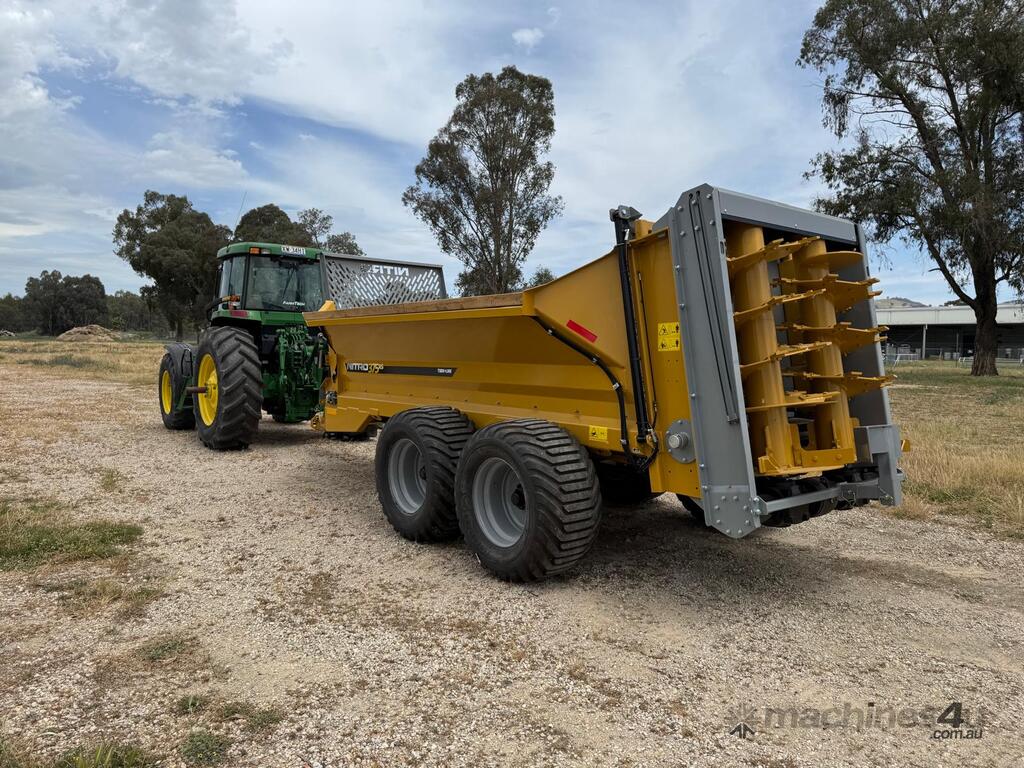

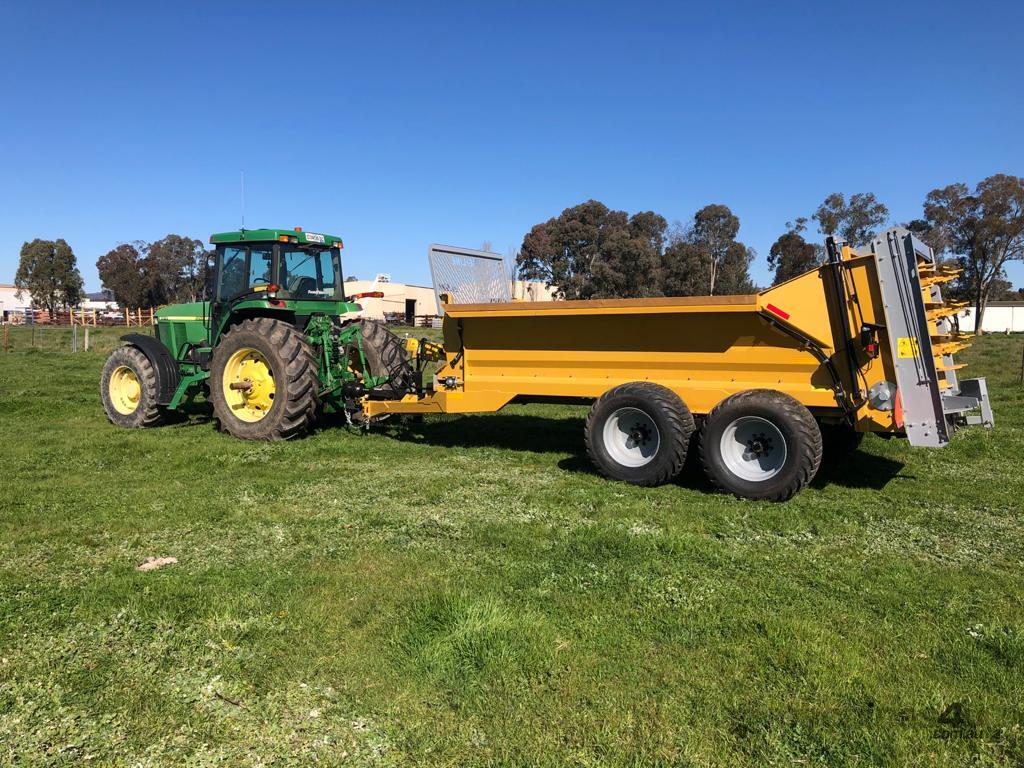

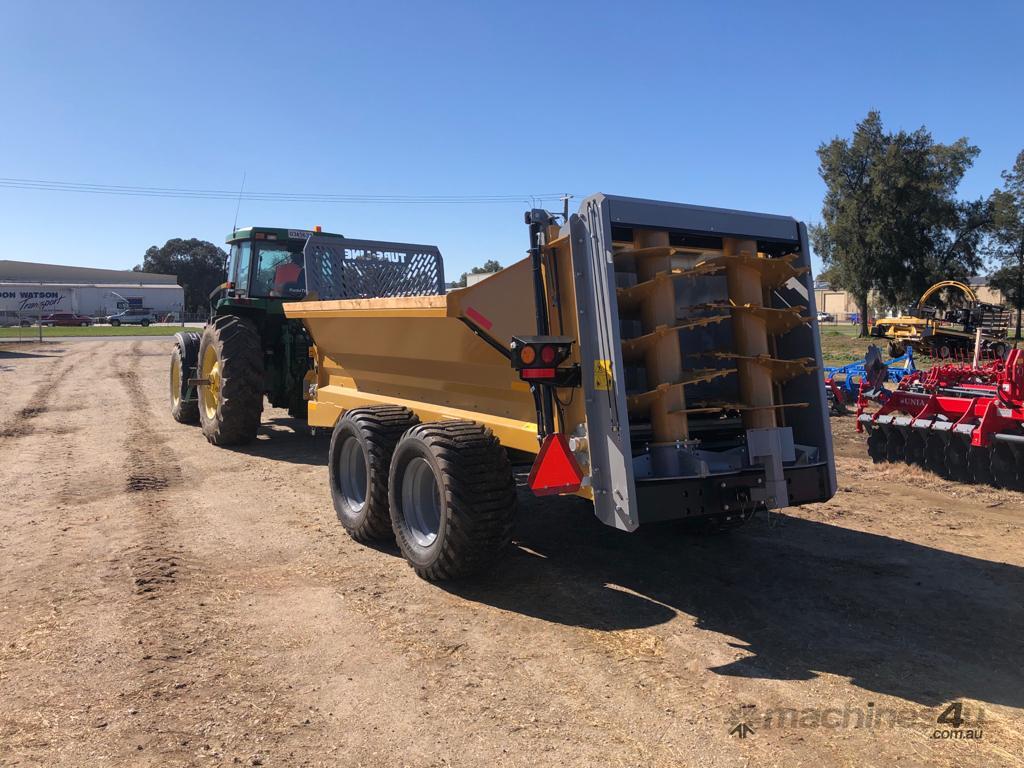

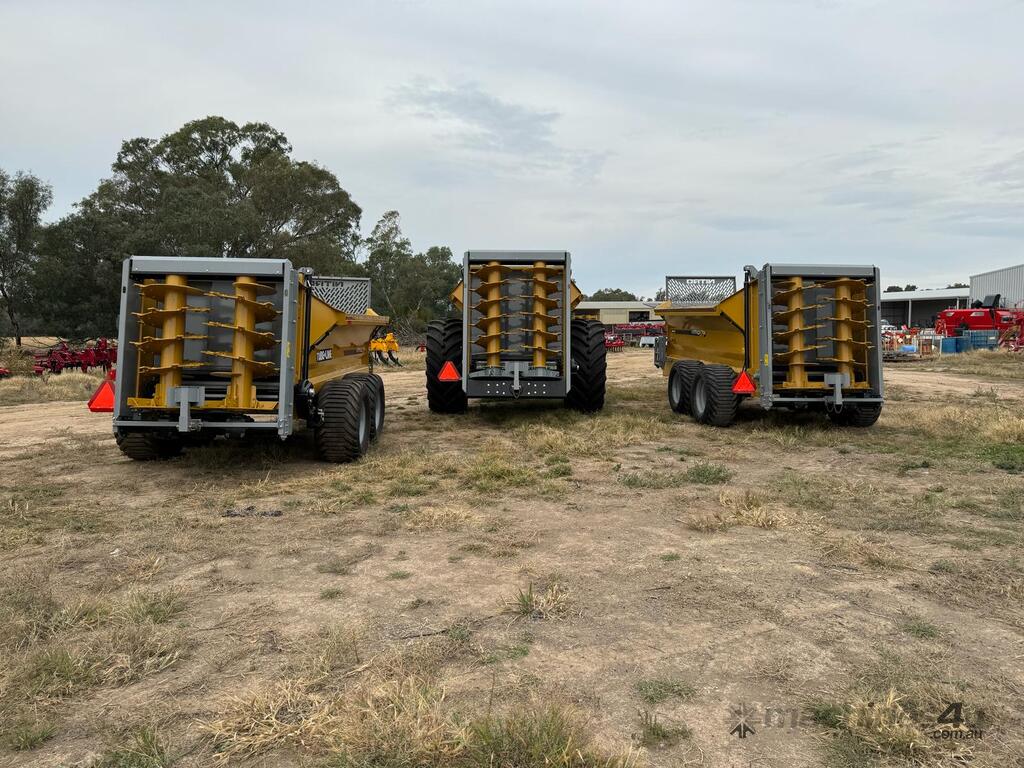

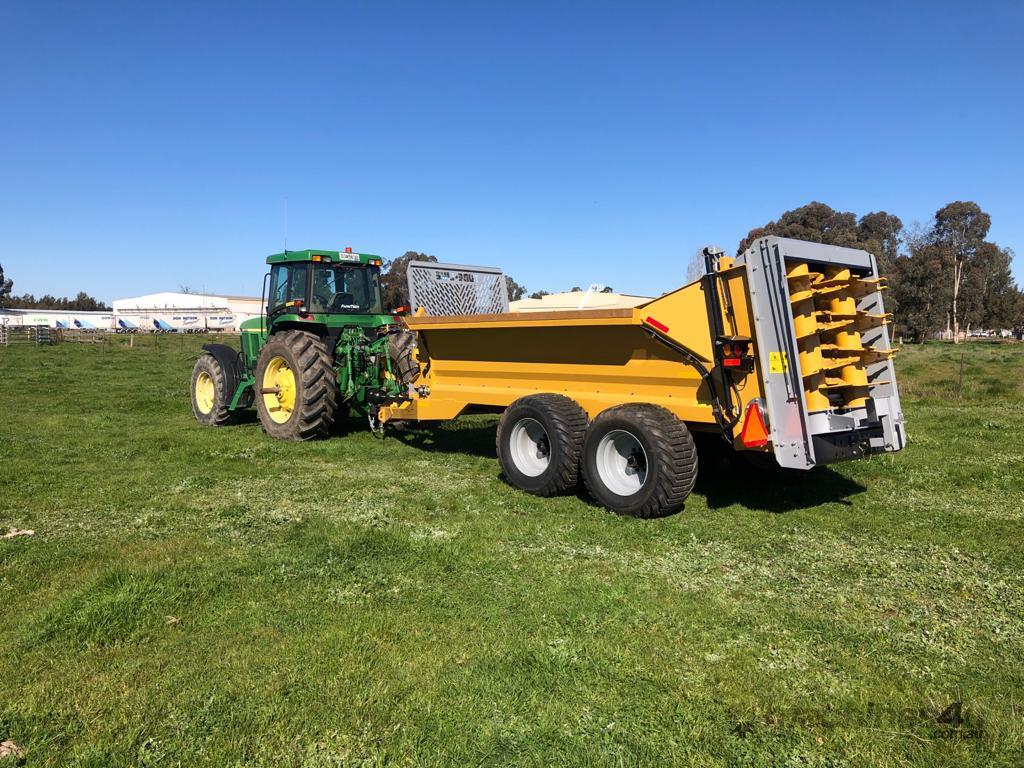

TUBELINE NITRO 375RS MANURE SPREADER (13 TONNE)

Responding to market demand the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.

Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.

CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.

Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.

Other Standard Features

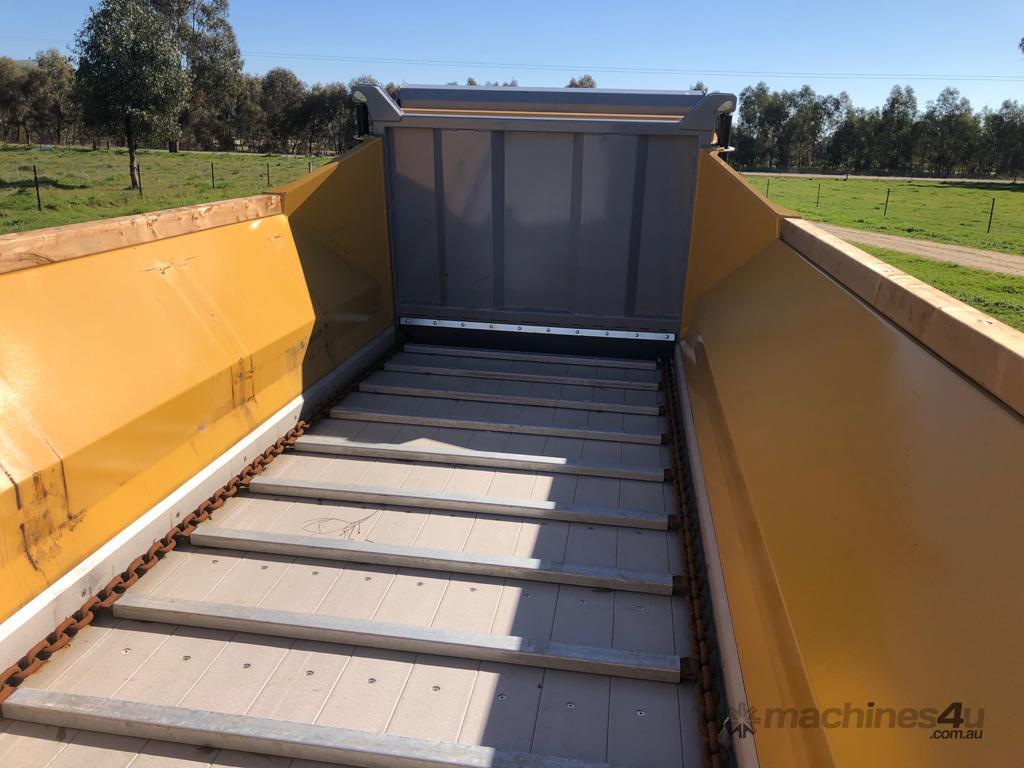

* Hydraulic-Driven Apron Chain
* Standard Rubber Seal Kit (Endgate & Front Panel)
* Apron Chain
* Galvanized Slats

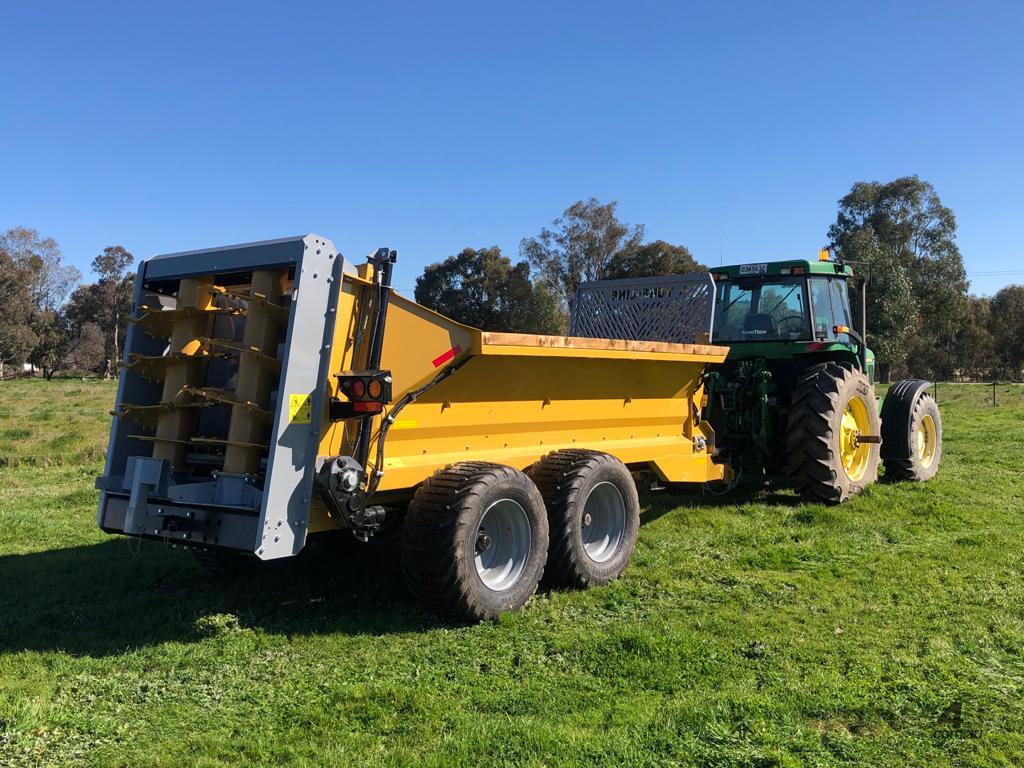

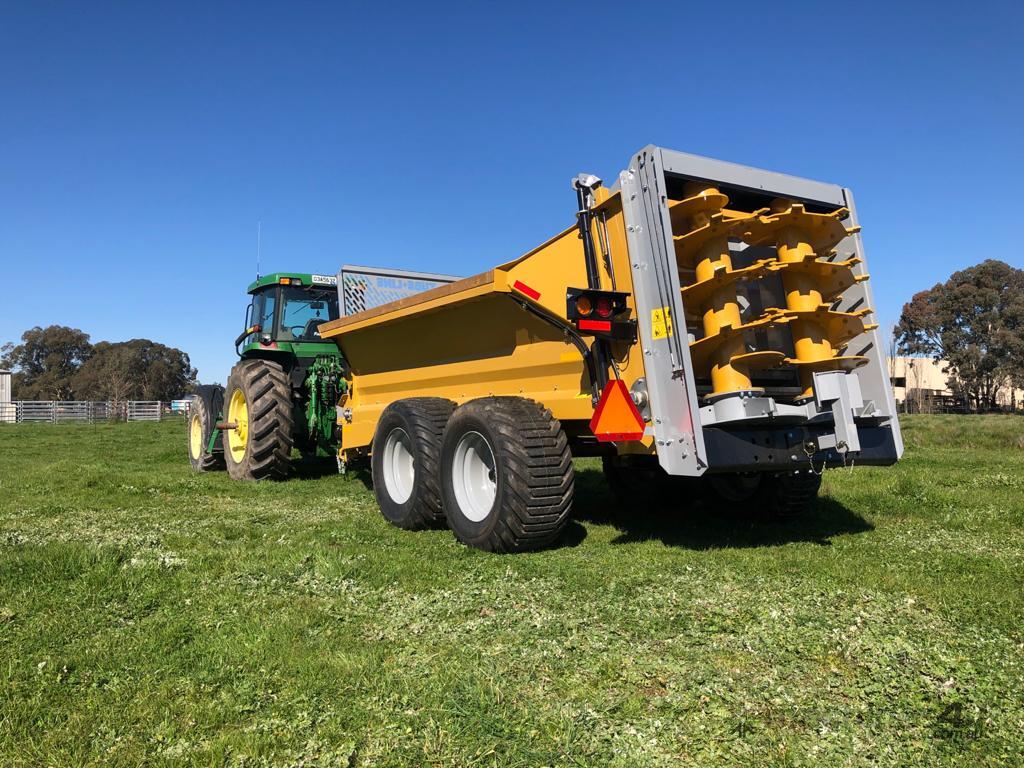

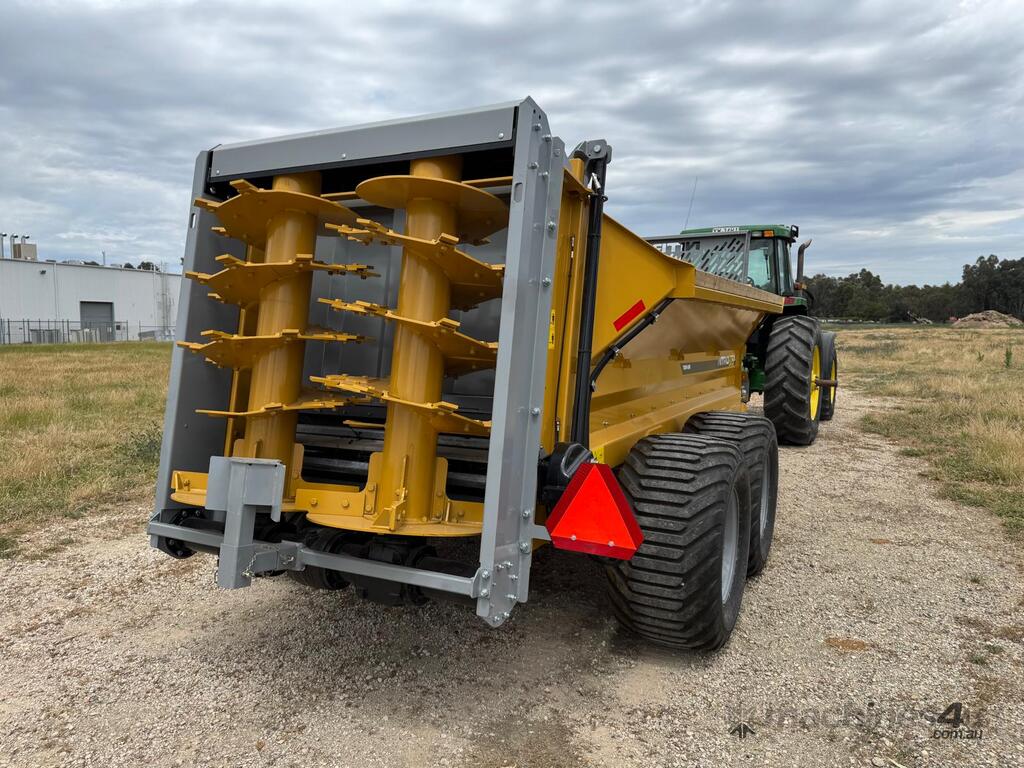

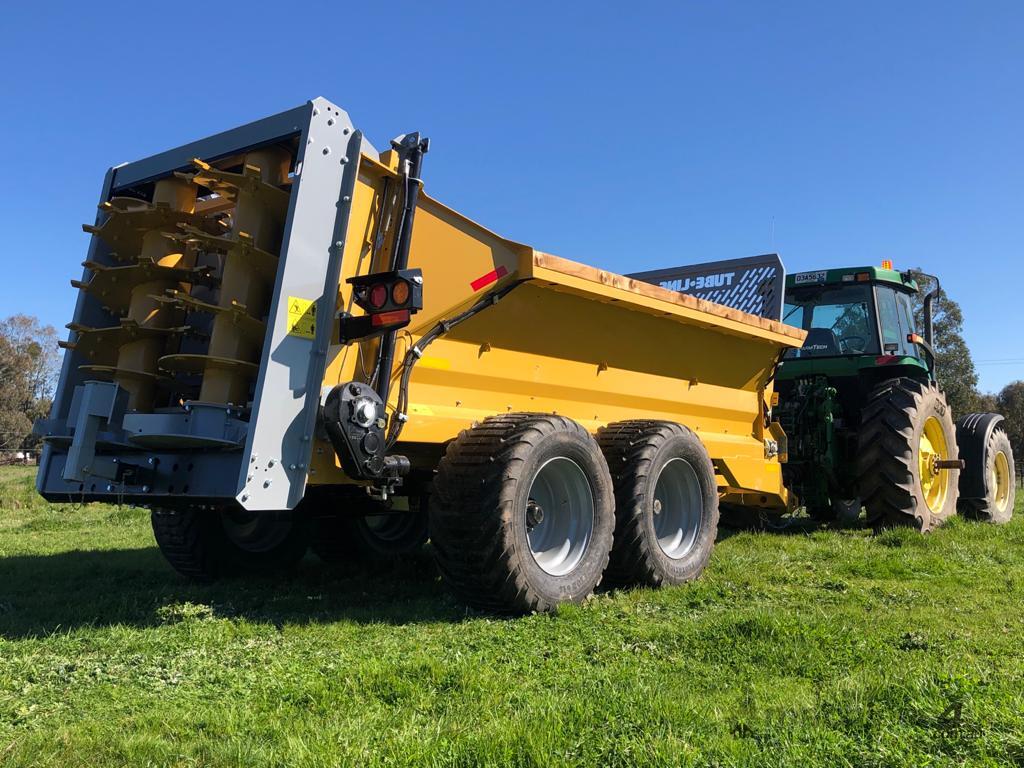

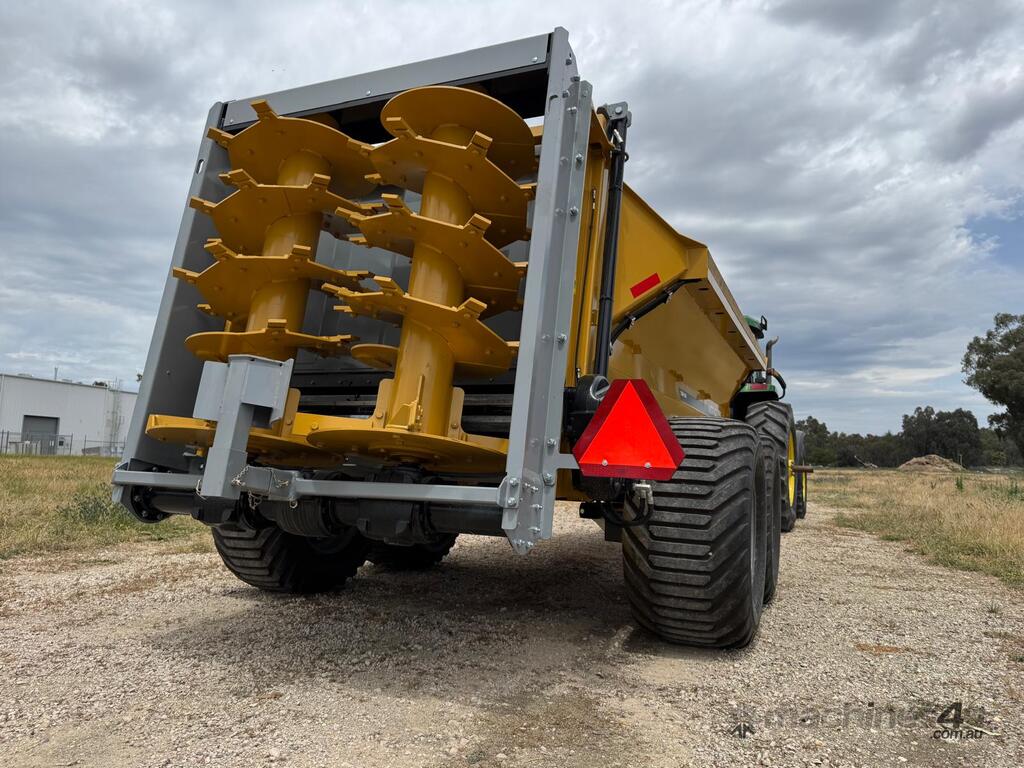

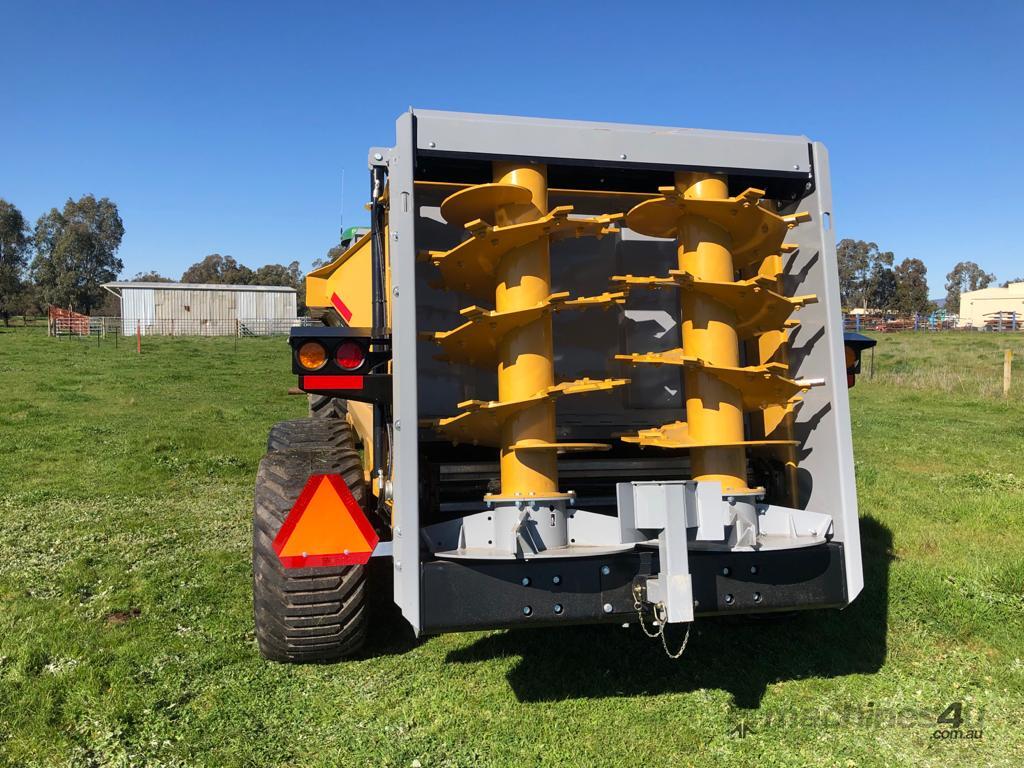

* Quick Drop Beaters
* Replaceable Reversible Knives
* Robust and Dynamically Balanced
* Beater Wedge
* Driveline Protection
* Industrial Jack
* CV Shaft
* High Load Bearings

Optional Extras

Paddle Kit: The optional bolt-on paddle kit cups material to provide better throw.

LED Lights: LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.

Optional Colours: In addition to the standard yellow, the Nitro lineup is available in red, green, blue, and orange.

Enhanced Rubber Seal Kit: The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi-solid materials.

Oscillating Ball Hitch: Optional on all models is the oscillating ball hitch available in various pin sizes.

Brakes: When equipped with a brake system, all Nitro spreaders come with two calipers per side for a total of four. Hydraulically operated, these calipers provide the necessary clamping force to keep even our monstrous Nitro 950 in line. A single axle is shown. Braking configurations may vary with the model. Check model specifications for brake availability.

Gate Indicator: With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.

Digi-Star® Scale System: The optional Digi-Star® 5pt 60,000 lb. differential weigh beam system is available on all Nitro models. Four of the load cells are located under the box and the fifth cell is placed on the hitch. Accounting for environmental protection, the Digi-Star® scale system lets you know how many tons you've hauled and spread on your fields, perfect for both farmers and custom operators.

Specifications - Nitro 375 RS
Capacities determined by ASAE Std S324.2
Carrying Capacity: 13 Tonne
Heaped: 12.5 m3
Struck Level: 7.5 m3
Inside Dimensions (LxWxH): 4.44 x 1.58 x 0.87 m (Inside width between flare 2.6m)
Overall Length: 9.0 m
Overall Outside Width (Tandem Axle): 2.92 m
Loading Height (Tandem Axle): 1.9 m
Wheel Hub Capacity (Tandem Axle): 5.4 tonnes (8 Bolt) x4
Tandem Tire Sizes: 550/45-22.5 Flotation Tyres
Beater Diameter: 863 mm / 34"
Beater Speed: 420 RPM
PTO Speed: 1000 RPM
Apron Chain Link Dia: 15.85 mm / 5/8"
Shipping Weight: 4.14 Tonne
Required Tractor PTO HP: 90+
Brakes Available: Factory Installed

Machine/Equipment base price only, additional price for optional extras.
