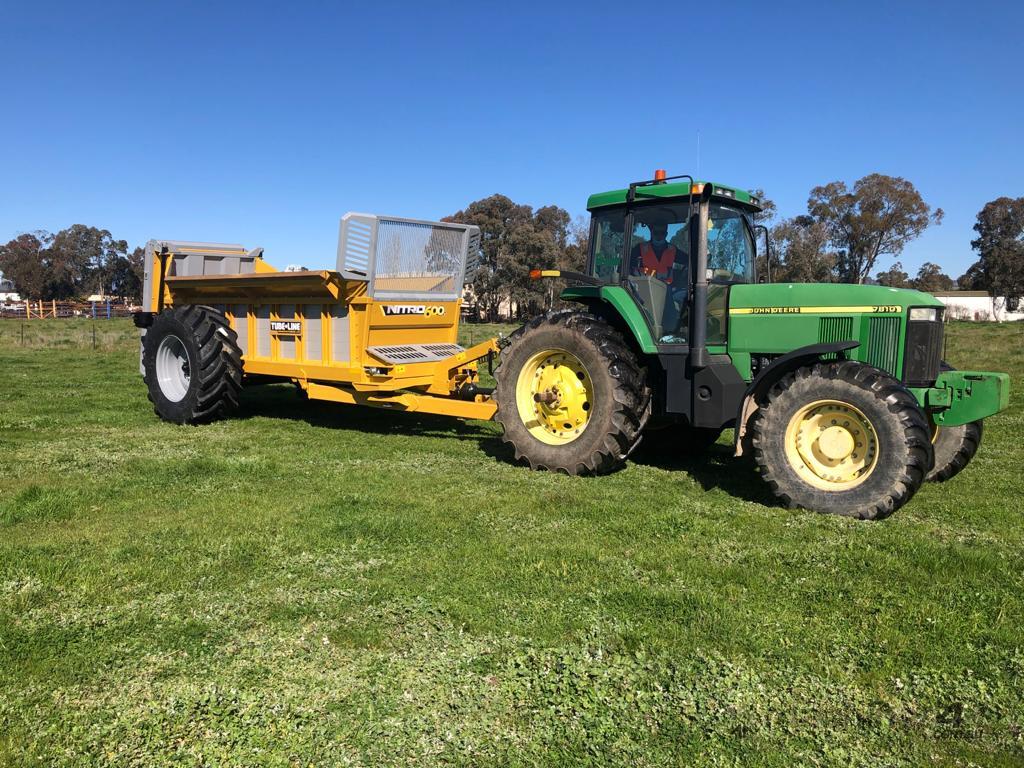

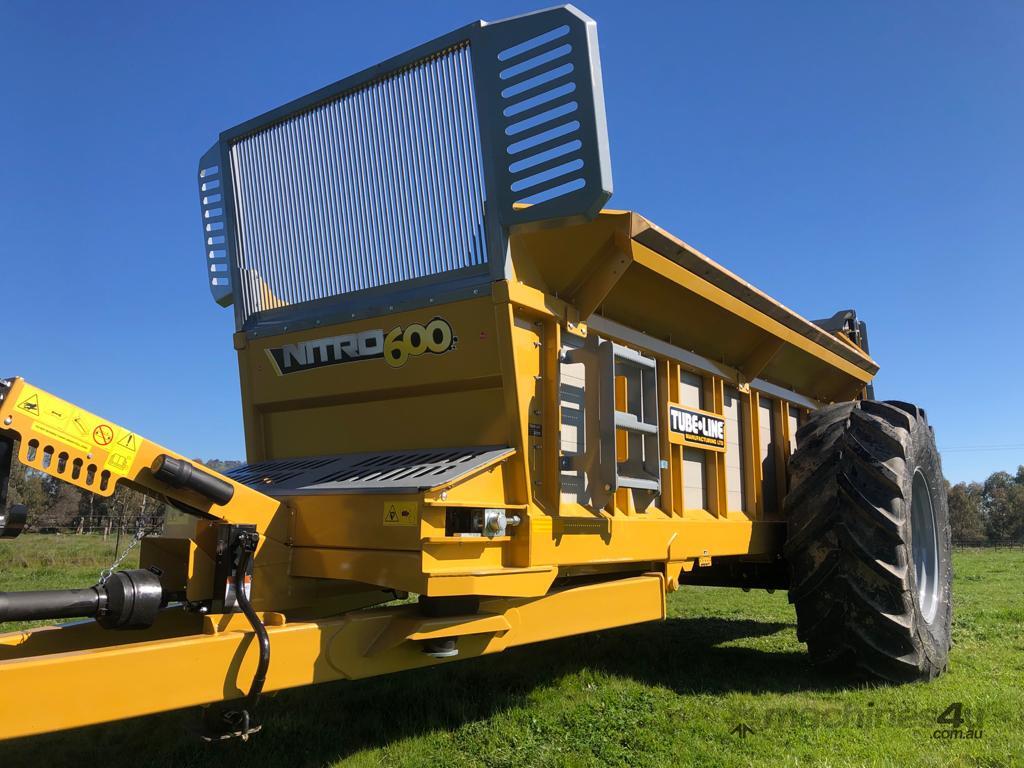

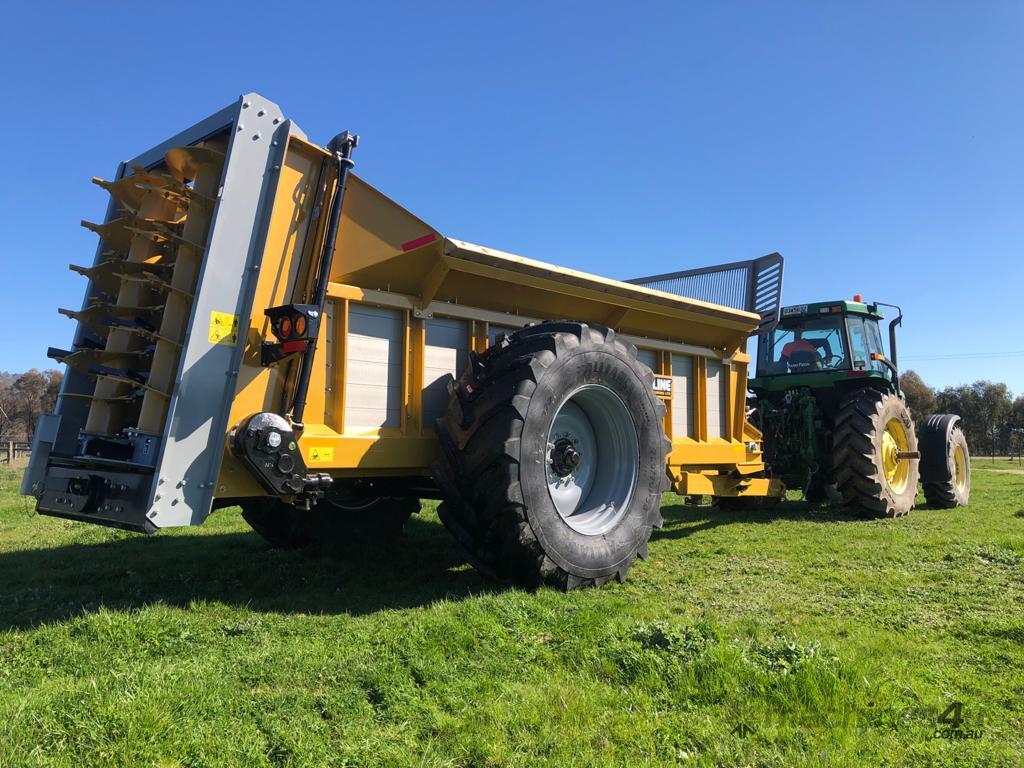

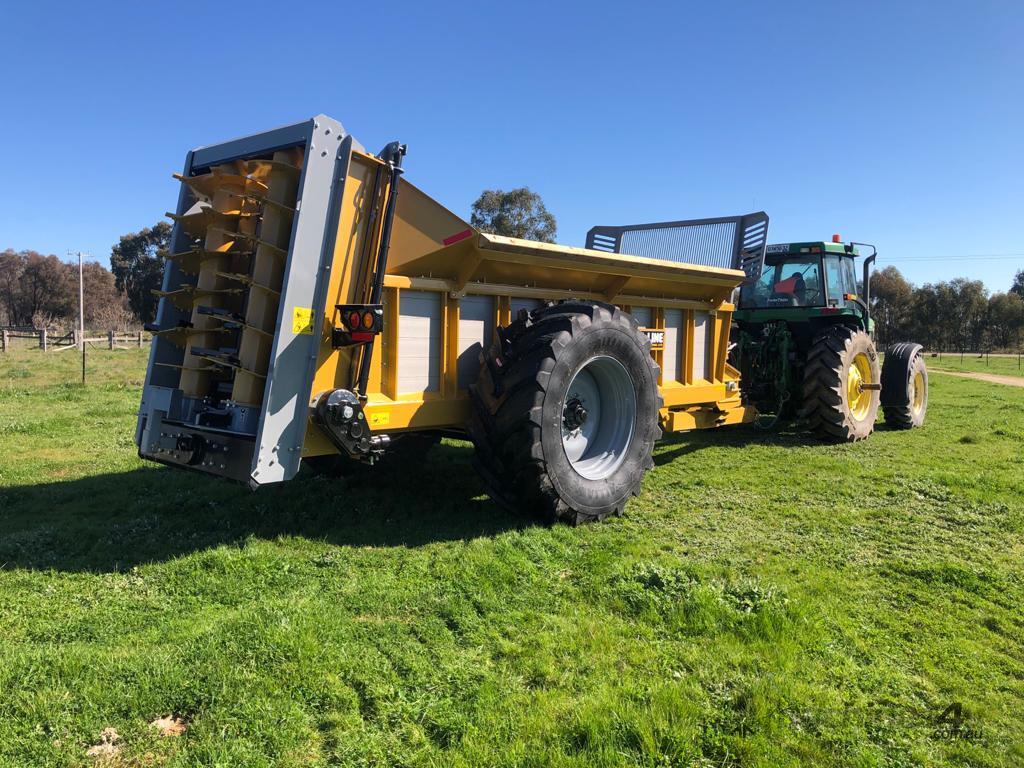

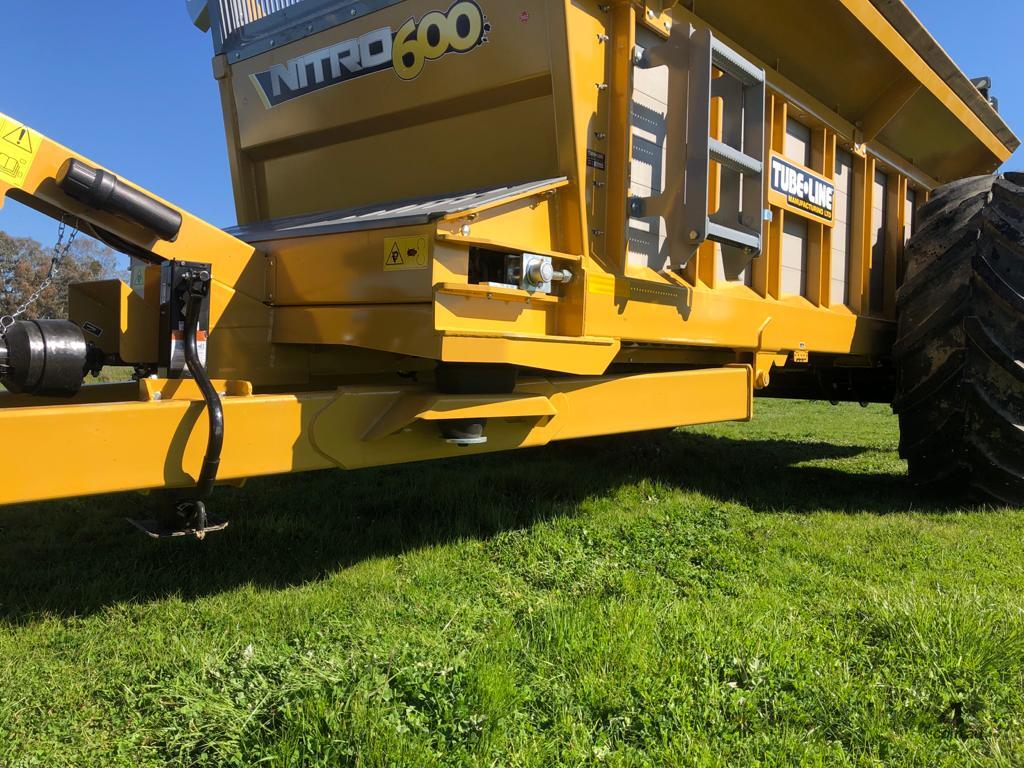

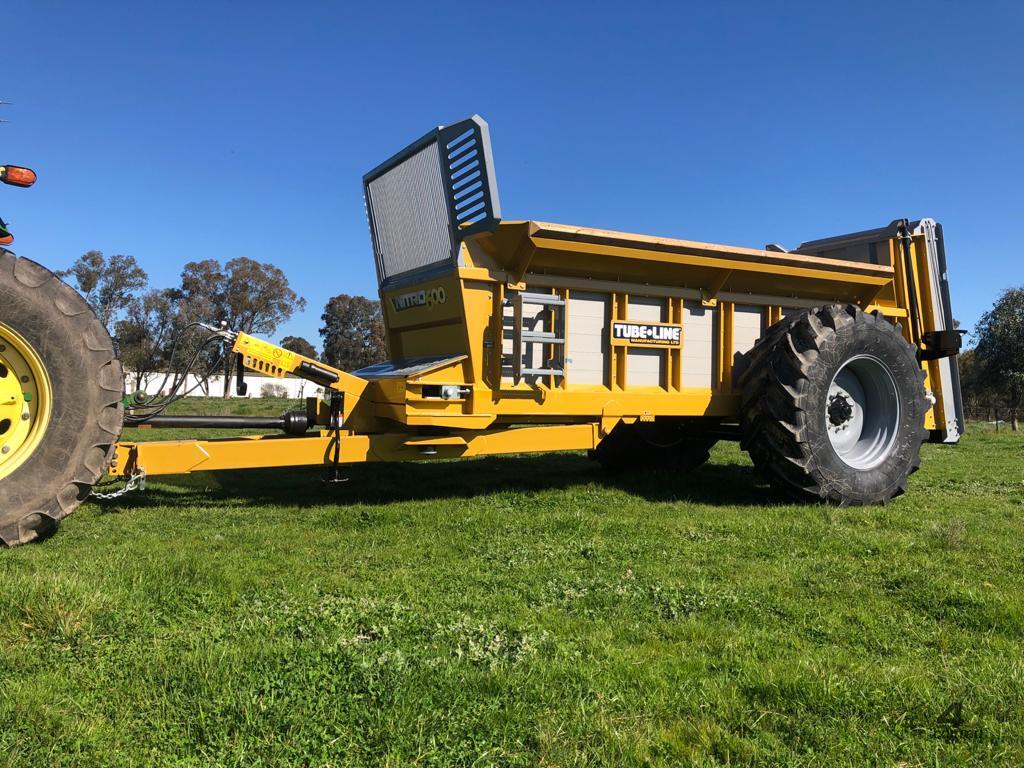

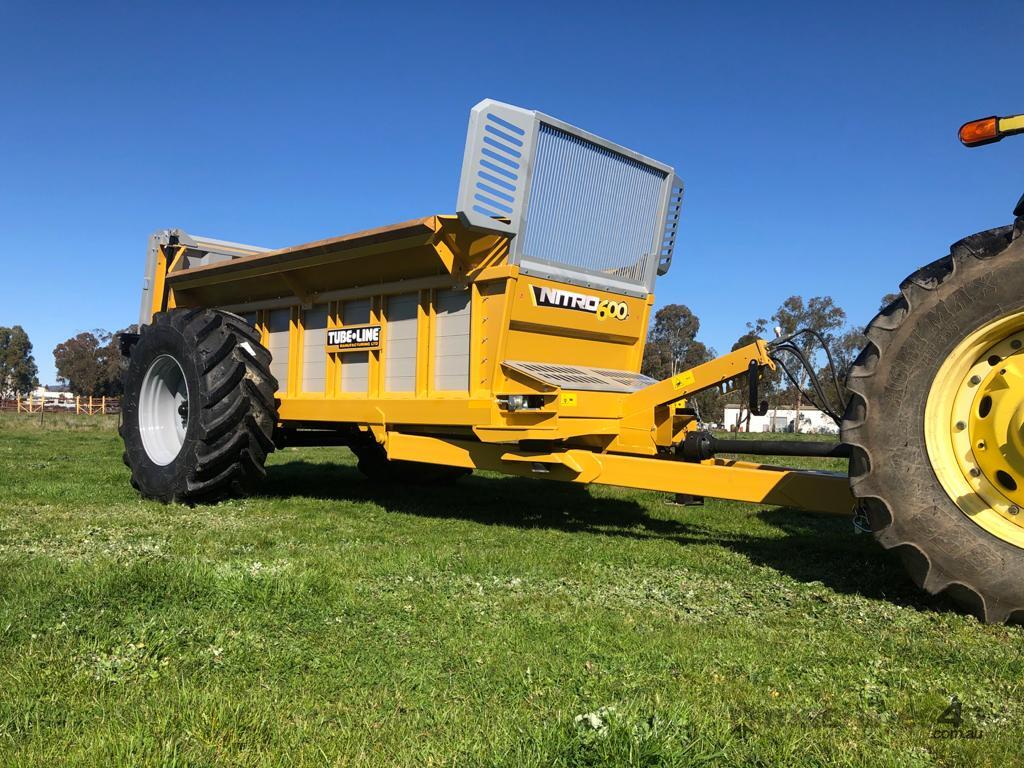

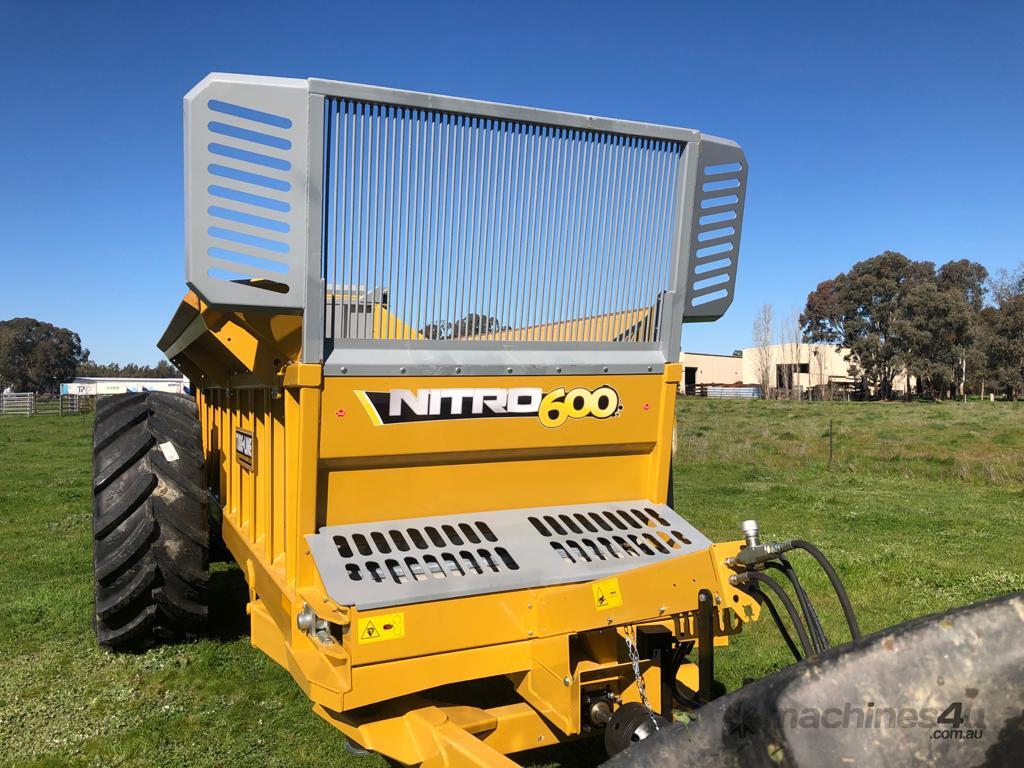

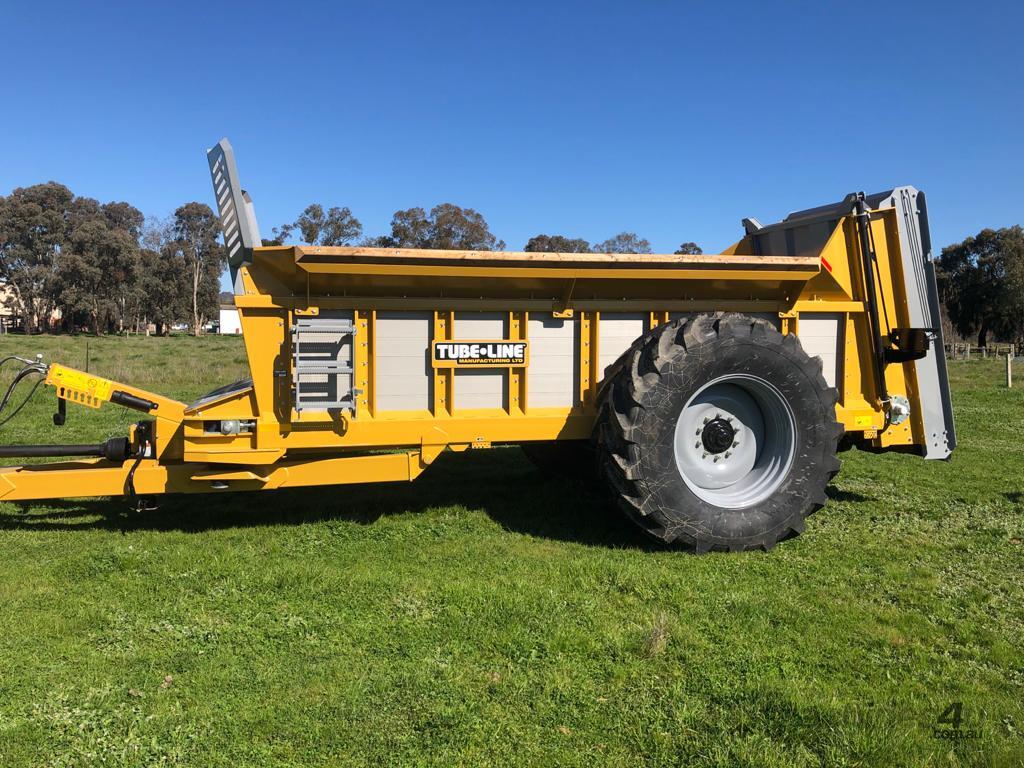

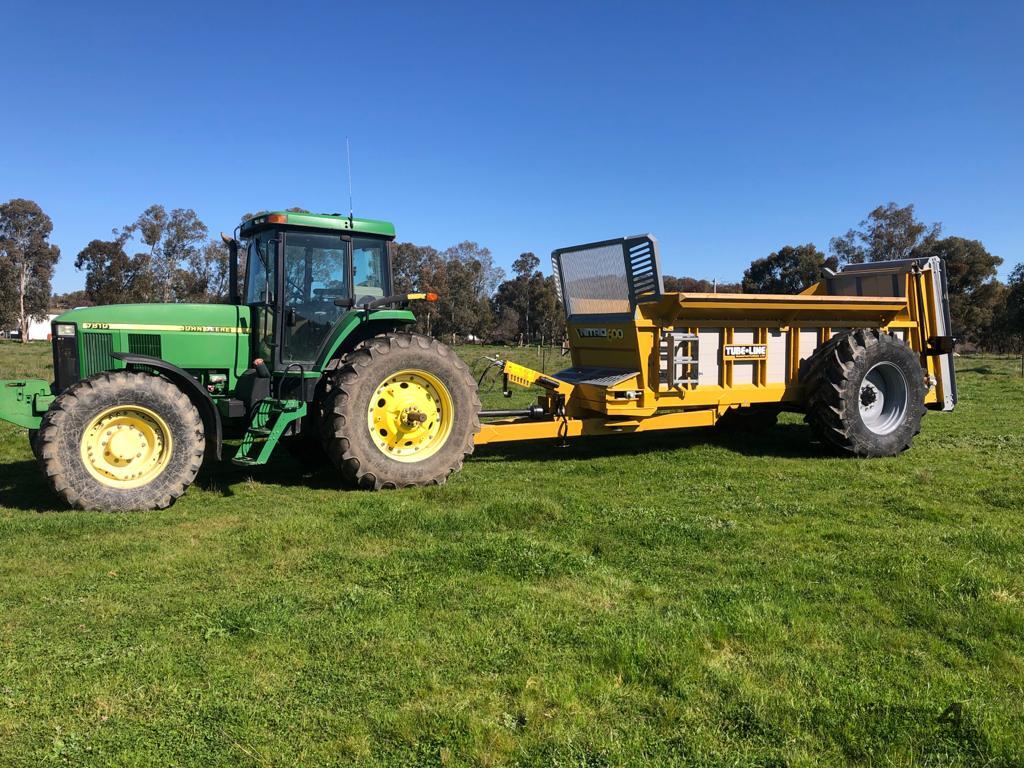

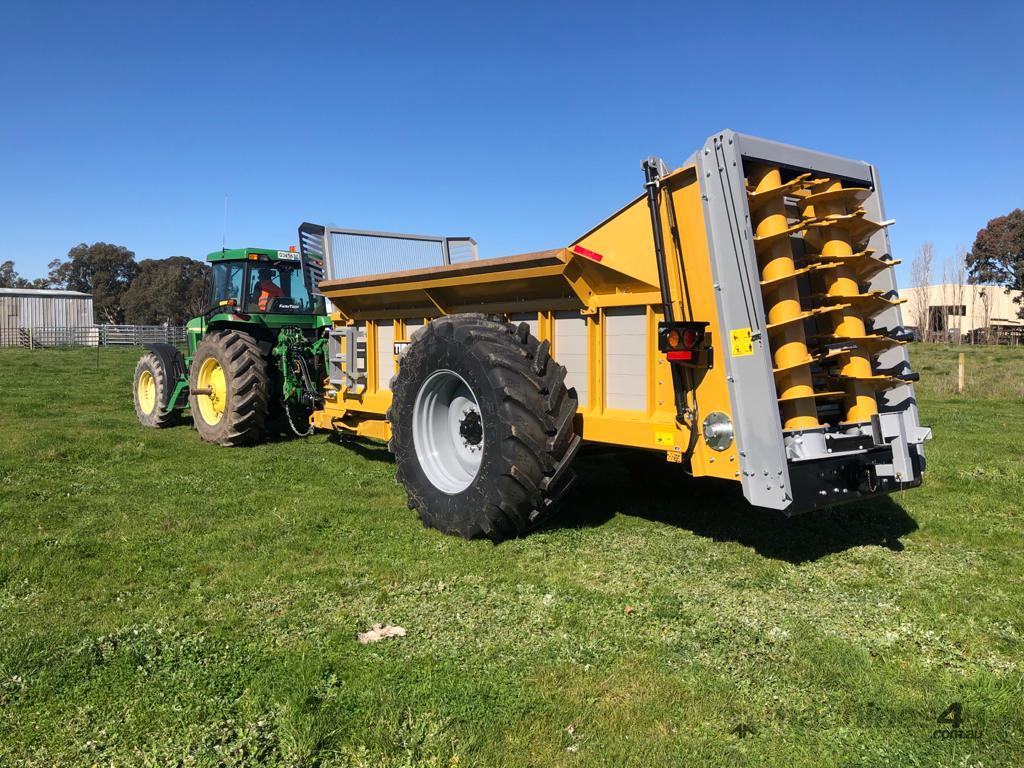

TUBELINE NITRO 600 MANURE SPREADER (17 TONNE)

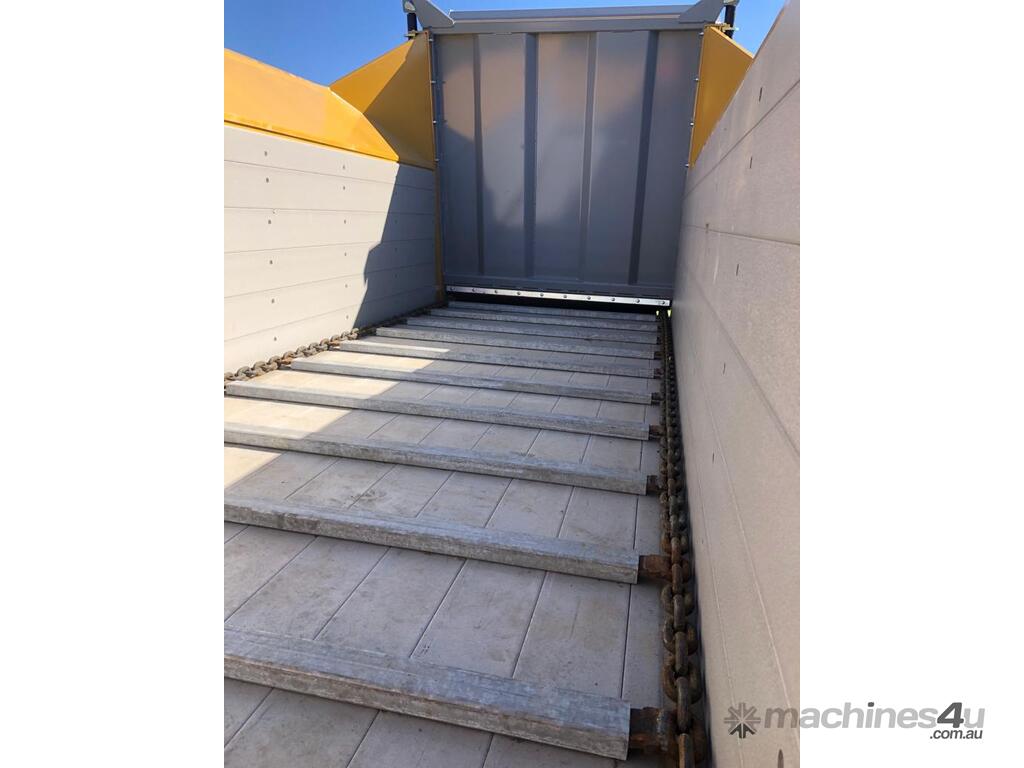

The NITRO spreader from Tubeline originally started with the 450, 600, and 750 models followed by the 950 model shortly after the initial product launch. Developed with features to ensure commercial readiness these spreaders offer slip slide poly board floors and walls, a guillotine endgate, reversible apron chain, and quick drop beaters. Engineered for commercial use, our commercial line are all scale ready. The guillotine endgate can be held in any position controlling how much material is able to be moved to the beaters by the variable speed apron chain. This method of delivery provides consistent metering whether working with pen pack or semi-solids.

Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.

CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.

Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.

Other Standard Features
* Hydraulic-Driven Apron Chain
* Standard Rubber Seal Kit (Endgate & Front Panel)
* Apron Chain
* Galvanized Slats

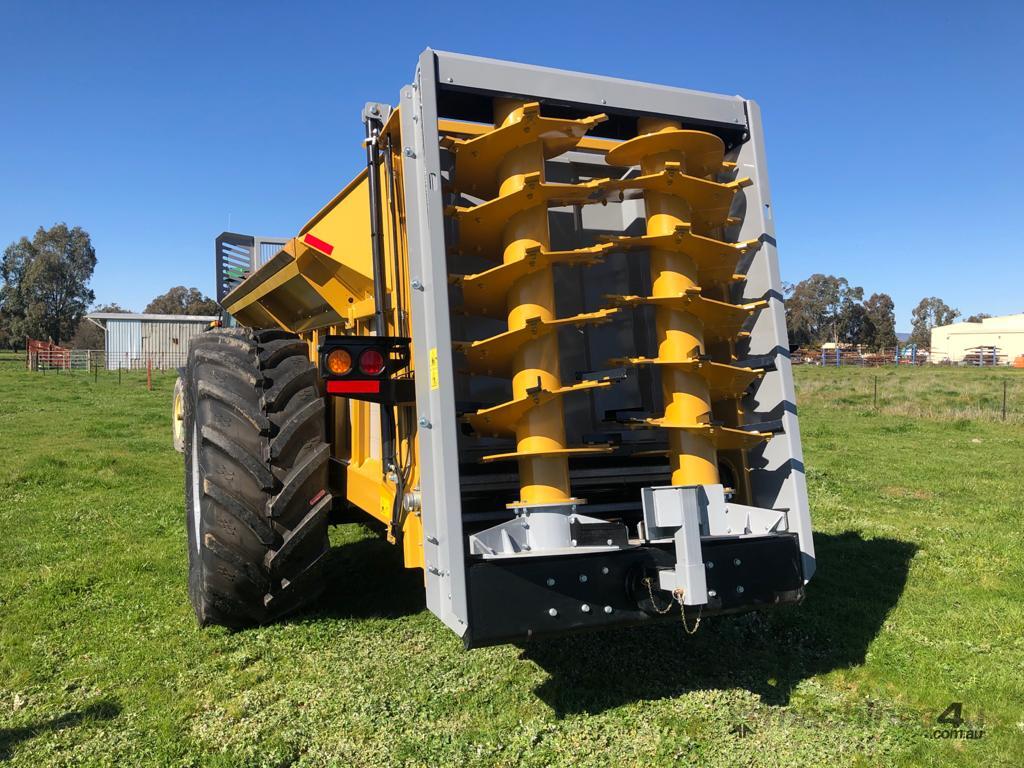

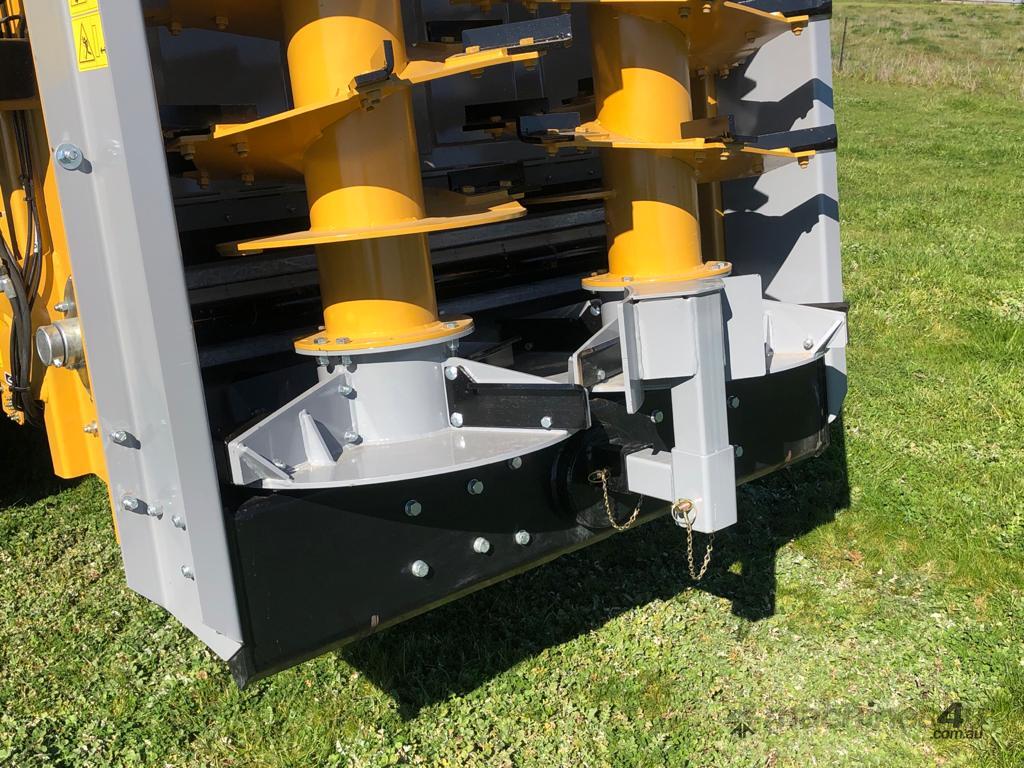

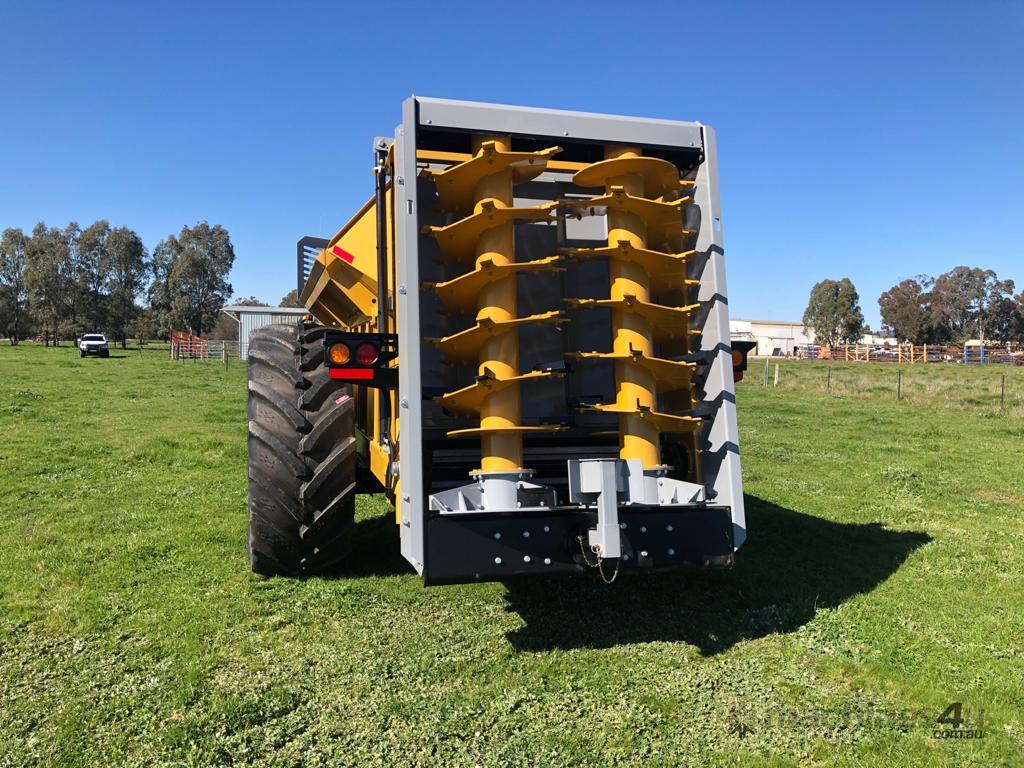

* Quick Drop Beaters
* Replaceable Reversible Knives
* Robust and Dynamically Balanced
* Beater Wedge
* Driveline Protection

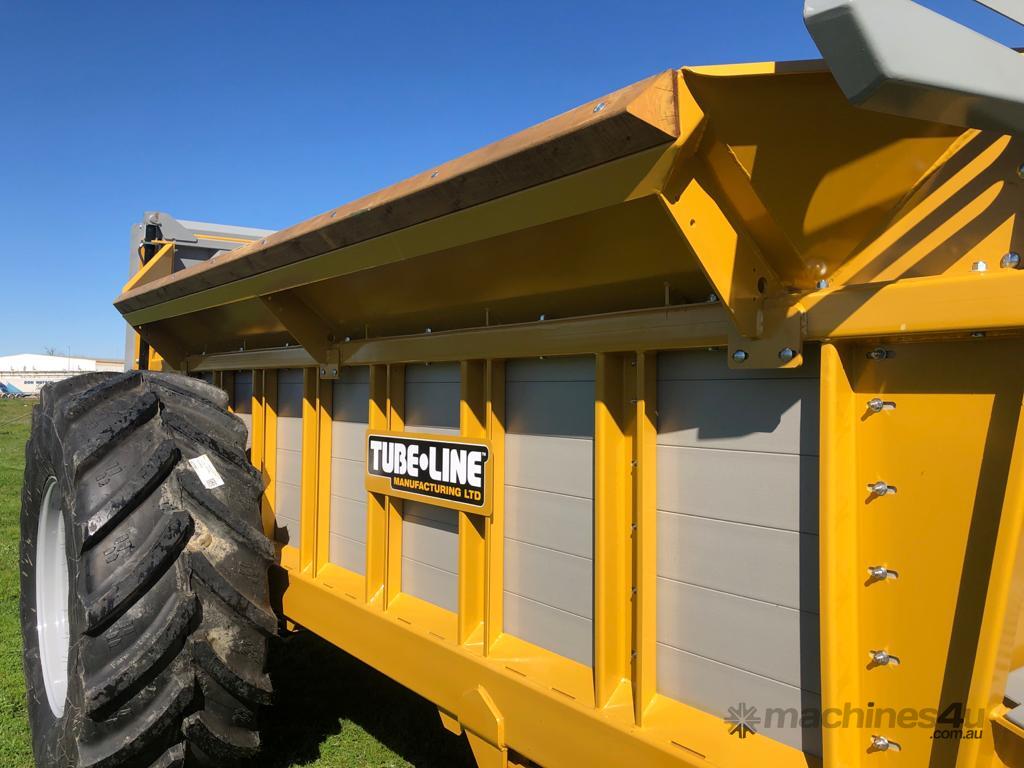

* Slip Slide Poly Boards
* Industrial Jack
* Central Grease Banks
* CV Shaft
* High Load Bearings

Optional Extras

Paddle Kit: The optional bolt on paddle kit cups material to provide better throw.

Spinner Deck: For better management and spreading performance of poultry litter, Nitro spreaders can be equipped with an optional spinner deck. The interchangeable quick-drop beater system allows operators to conveniently switch between the vertical or spinner deck beater assemblies offering flexibility to both producers and custom operators.

LED Lights: LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.

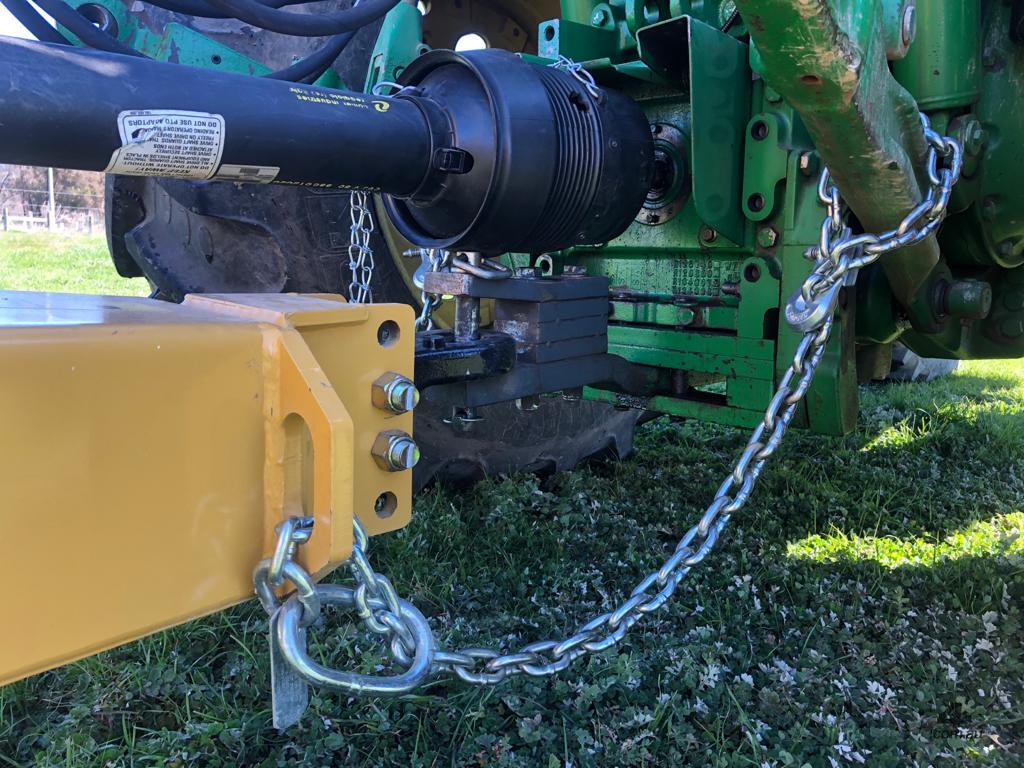

Rubber Tongue: The rubber cushion suspension tongue provides operator comfort and reduces mechanical stress and fatigue of both the spreader and the tractor.

Optional Colours: In addition to the standard yellow, the Nitro lineup is available in red, green, blue and orange.

Enhanced Rubber Seal Kit: The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi solid materials.

Oscillating Ball Hitch: Optional on all models is the oscillating ball hitch available in various pin sizes.

Brakes: When equipped with a brake system, all Nitro spreaders come with two calipers per side for a total of four. Hydraulically operated, these calipers provide the necessary clamping force to keep even our monstrous Nitro 950 in line. Single axle shown. Braking configurations may vary with model. Check model specifications for brake availability.

Digi-Star® Scale System
The optional Digi-Star® 5pt 60,000 lb. differential weigh beam system is available on all Nitro models. Four of the load cells are located under the box and the fifth cell is placed on the hitch. Accounting for environmental protection, the Digi-Star® scale system lets you know how many tons you've hauled and spread on your fields, perfect for both farmers and custom operators.

Silage Extensions
Select NitroRS and Nitro models can easily double as a silage hauler, with the addition of optional height-extenders. Silage extensions are not recommended for manure.

Gate Indicator
With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.

Specifications - Nitro 600
Capacities determined by ASAE Std S324.2
Carrying Capacity: 17 Tonne
Heaped: 18 m3
Struck Level: 11.5 m3
Inside Dimensions (LxWxH): 5.76 x 1.57 x 1.27 m (Inside width between flare 2.6m)
Overall Length: 9.0 m
Overall Outside Width (Single/Tandem Axle): 3.32 m
Loading Height (Single Axle): 2.28 m
Wheel Hub Capacity (Single Axle): 9 tonne (10 Bolt) x2
Single Tire Sizes: 710/70-38
Beater Diameter: 863 mm / 34"
Beater Speed: 420 RPM
PTO Speed: 1000 RPM
Apron Chain Link Dia: 15.85 mm / 5/8"
Shipping Weight: 6.3 Tonne
Required Tractor PTO HP: 150+
Brakes Available: Yes

Machine/Equipment base price only, additional price for optional extras.
