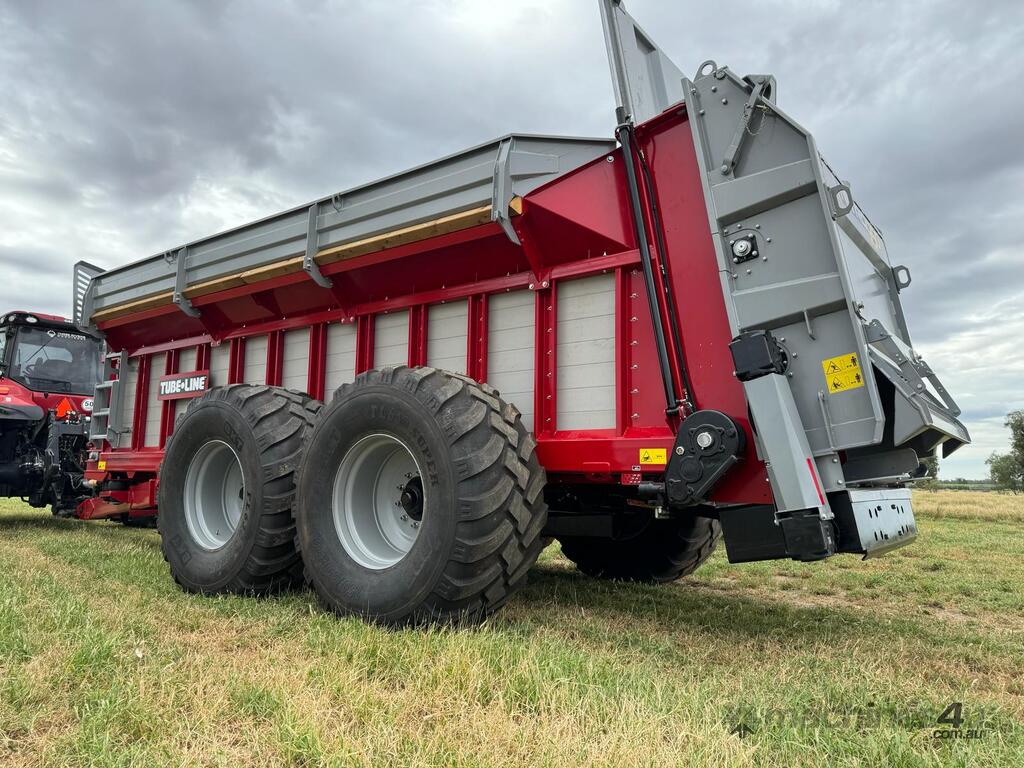

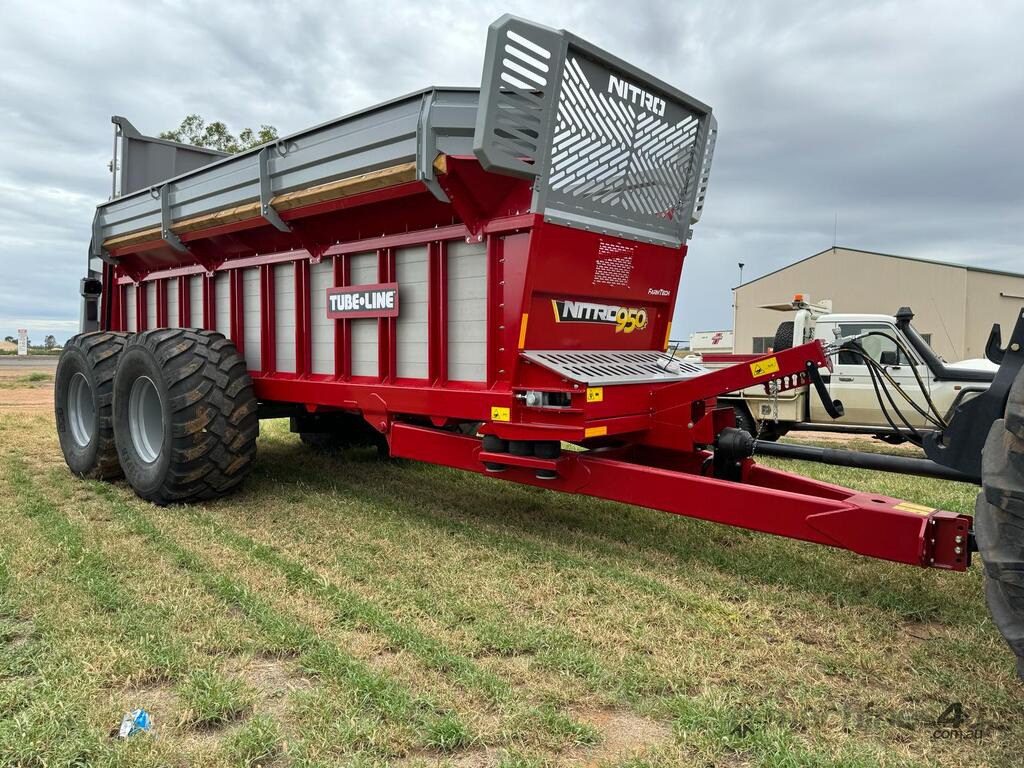

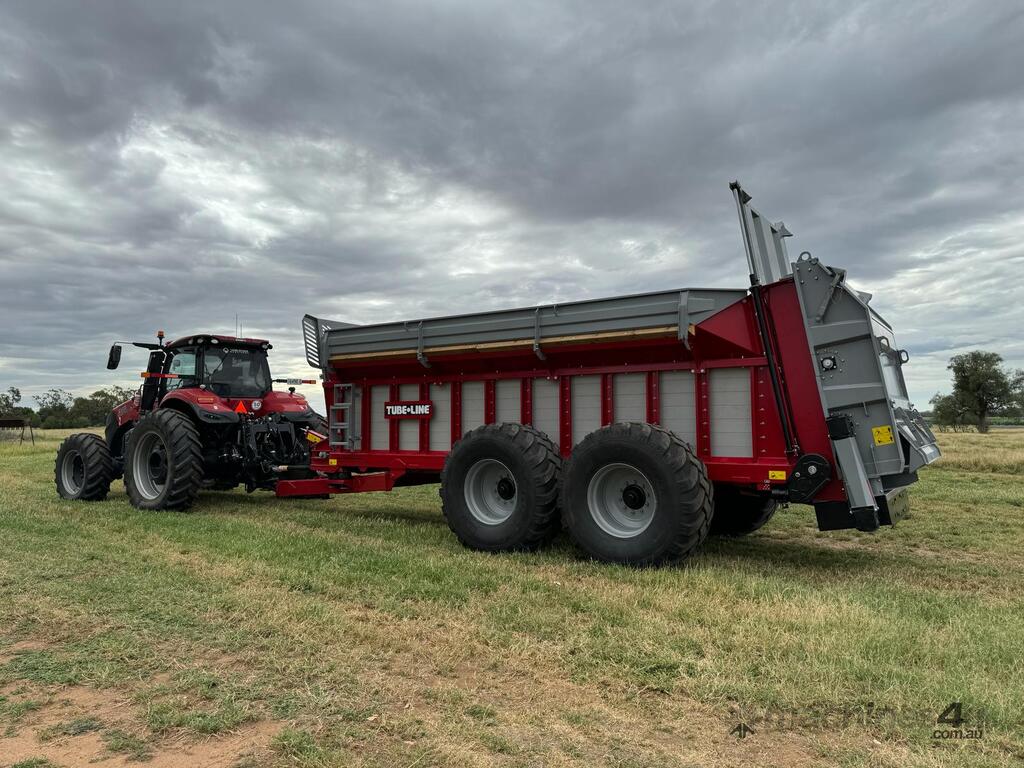

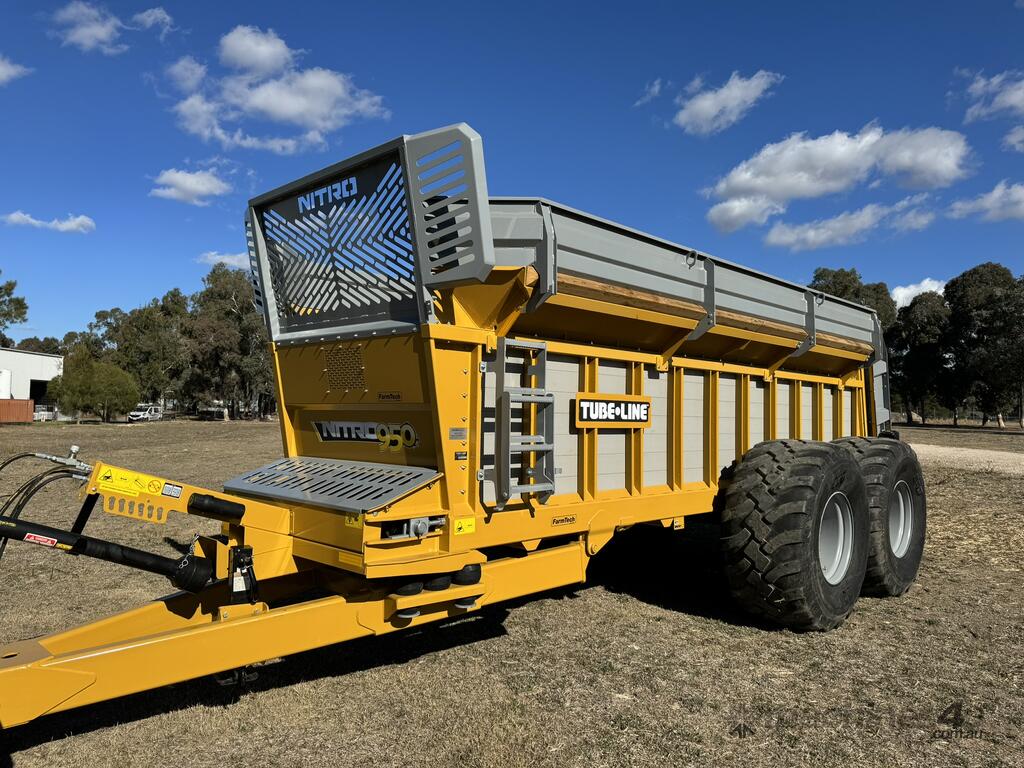

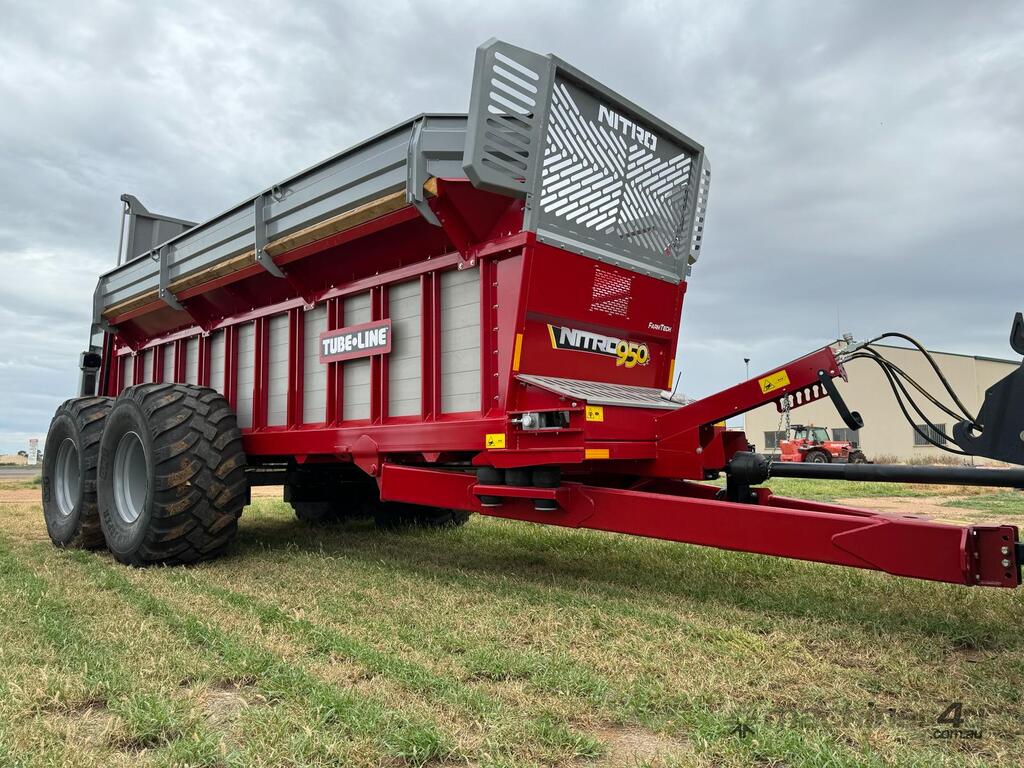

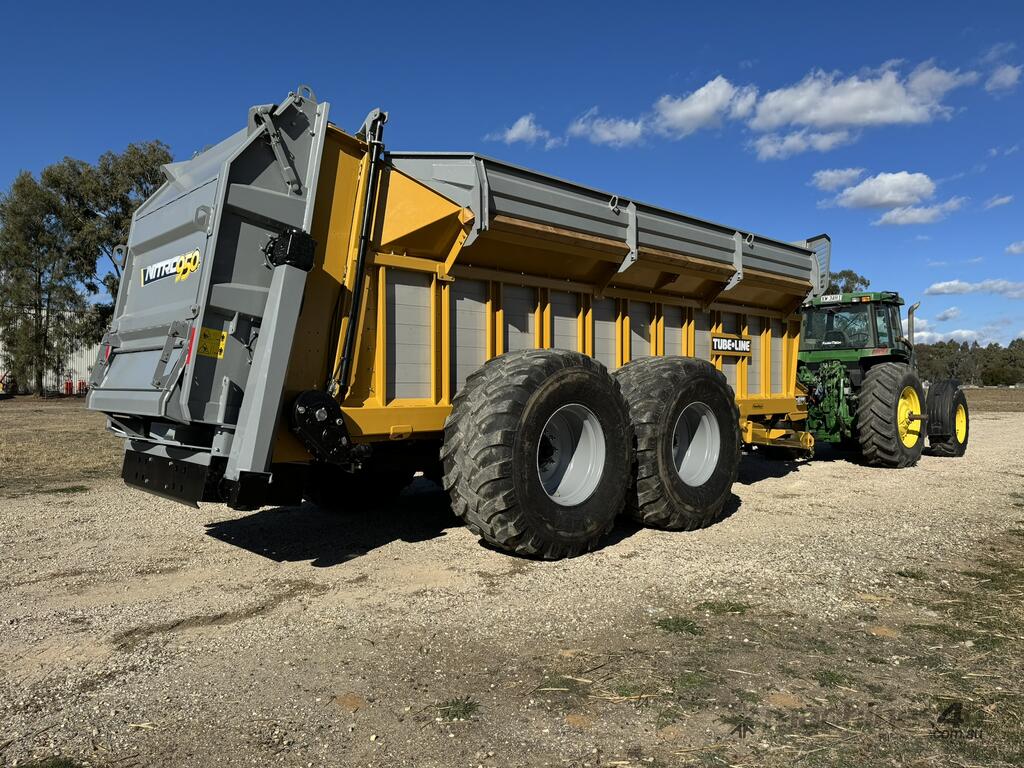

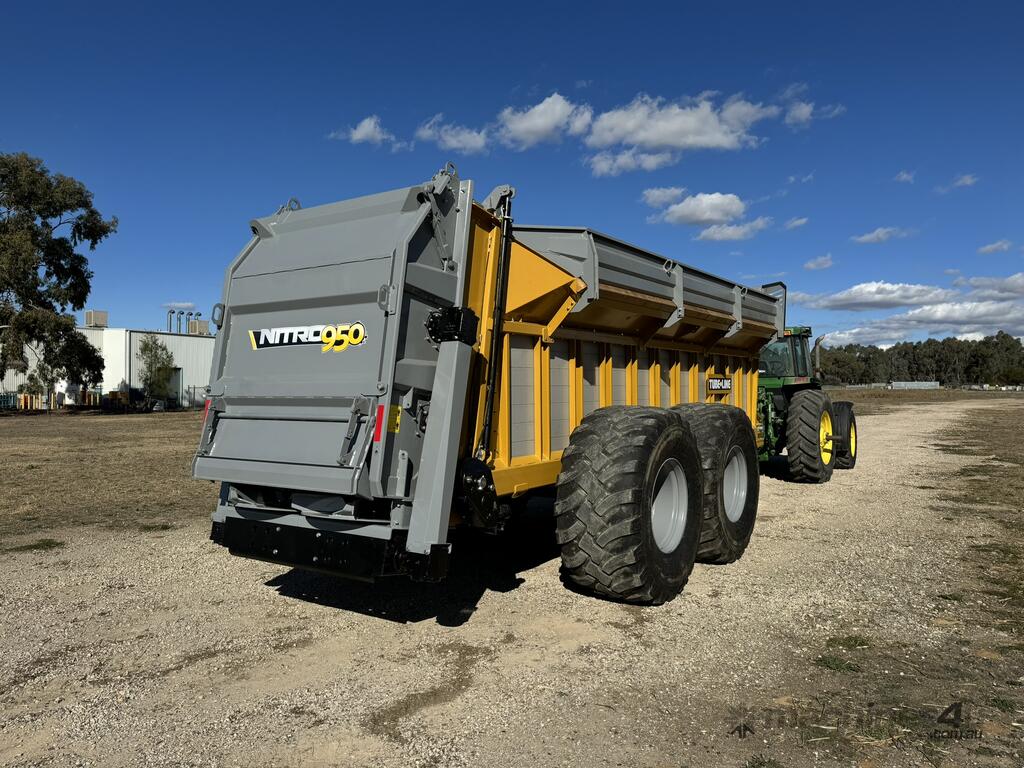

TUBELINE NITRO 950 MANURE SPREADER (25 TONNE)

The NITRO spreader from Tubeline originally started with the 450, 600, and 750 models followed by the 950 model shortly after the initial product launch. Developed with features to ensure commercial readiness these spreaders offer slip slide poly board floors and walls, a guillotine endgate, reversible apron chain, and quick drop beaters. Engineered for commercial use, our commercial line are all scale ready. The guillotine endgate can be held in any position controlling how much material is able to be moved to the beaters by the variable speed apron chain. This method of delivery provides consistent metering whether working with pen pack or semi-solids.

Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply.

CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.

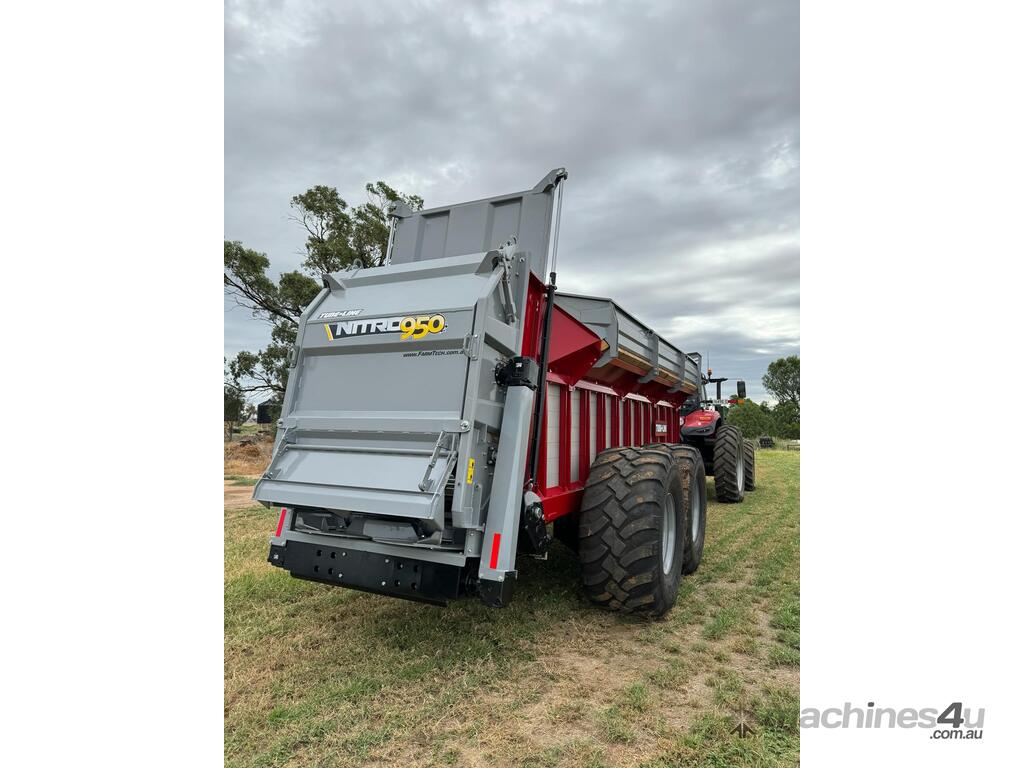

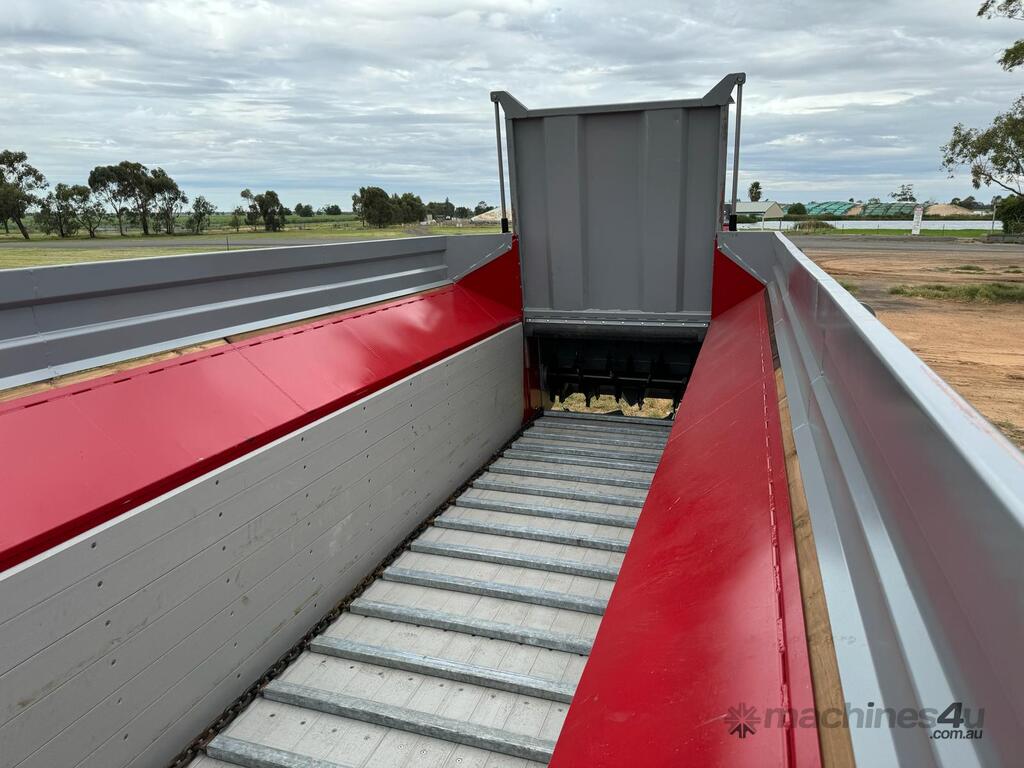

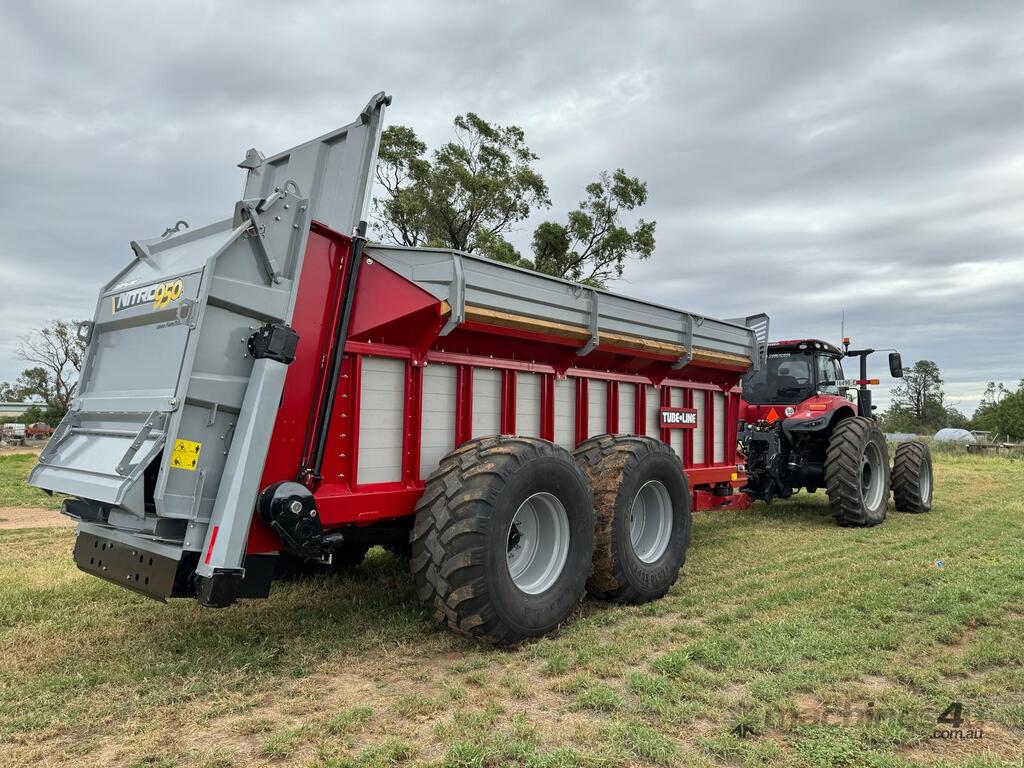

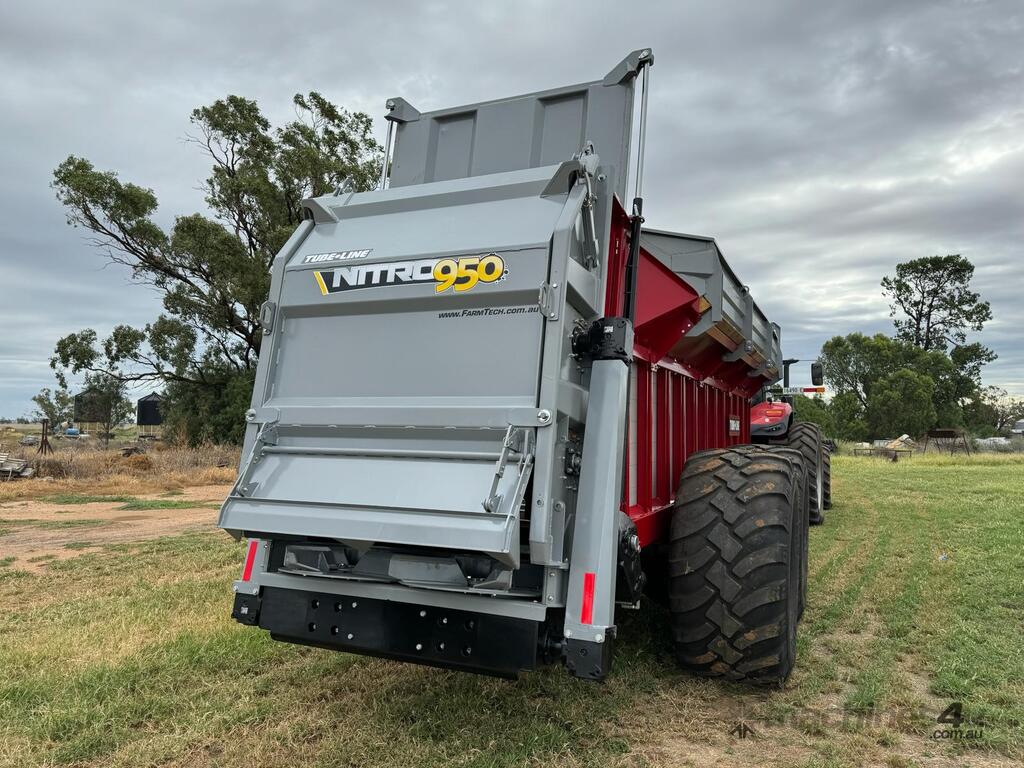

Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.

Other Standard Features
* Hydraulic-Driven Apron Chain
* Standard Rubber Seal Kit (Endgate & Front Panel)
* Apron Chain
* Galvanized Slats

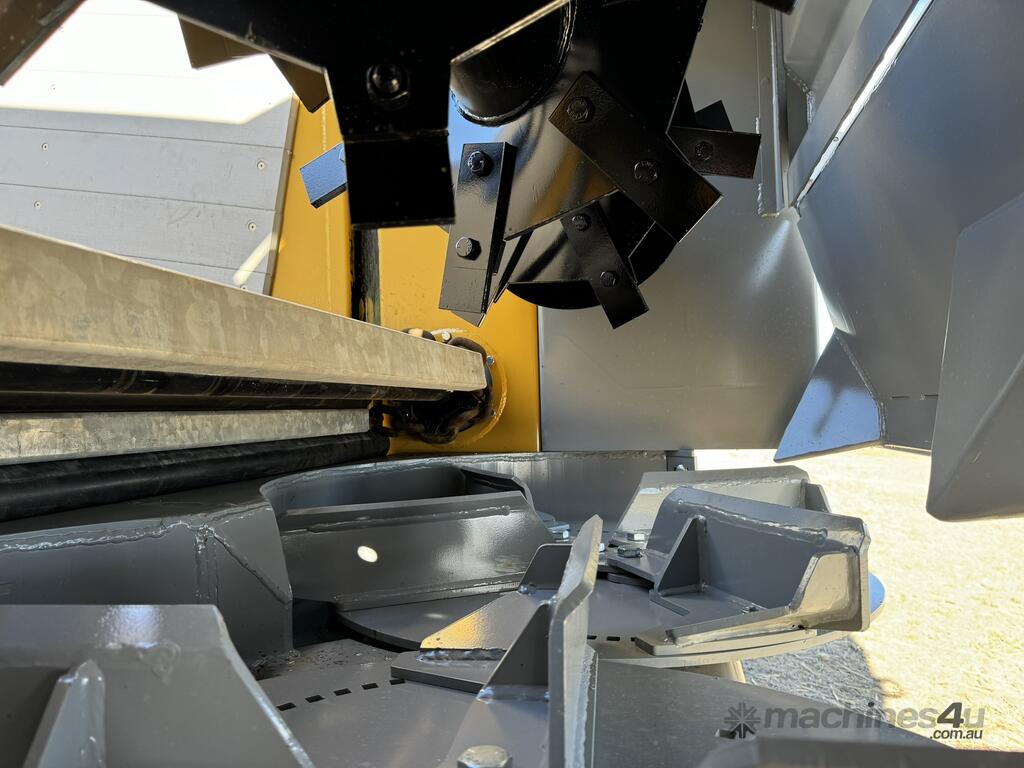

* Quick Drop Beaters
* Replaceable Reversible Knives
* Robust and Dynamically Balanced
* Driveline Protection
* Slip Slide Poly Boards
* Industrial Jack
* Central Grease Banks
* CV Shaft

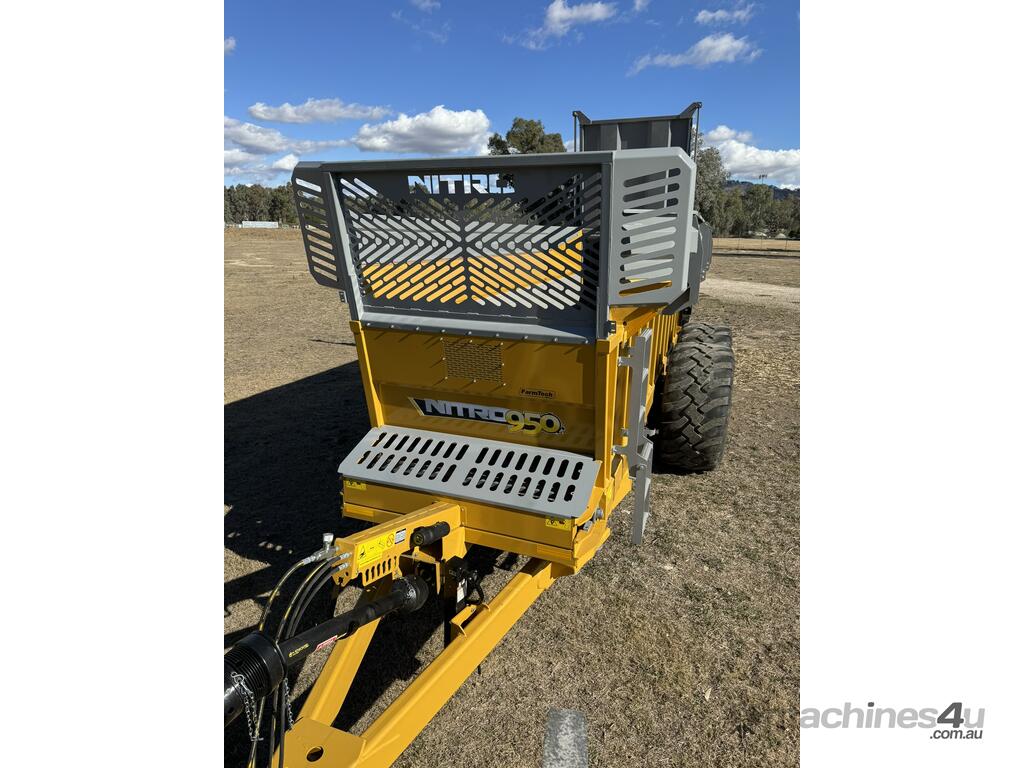

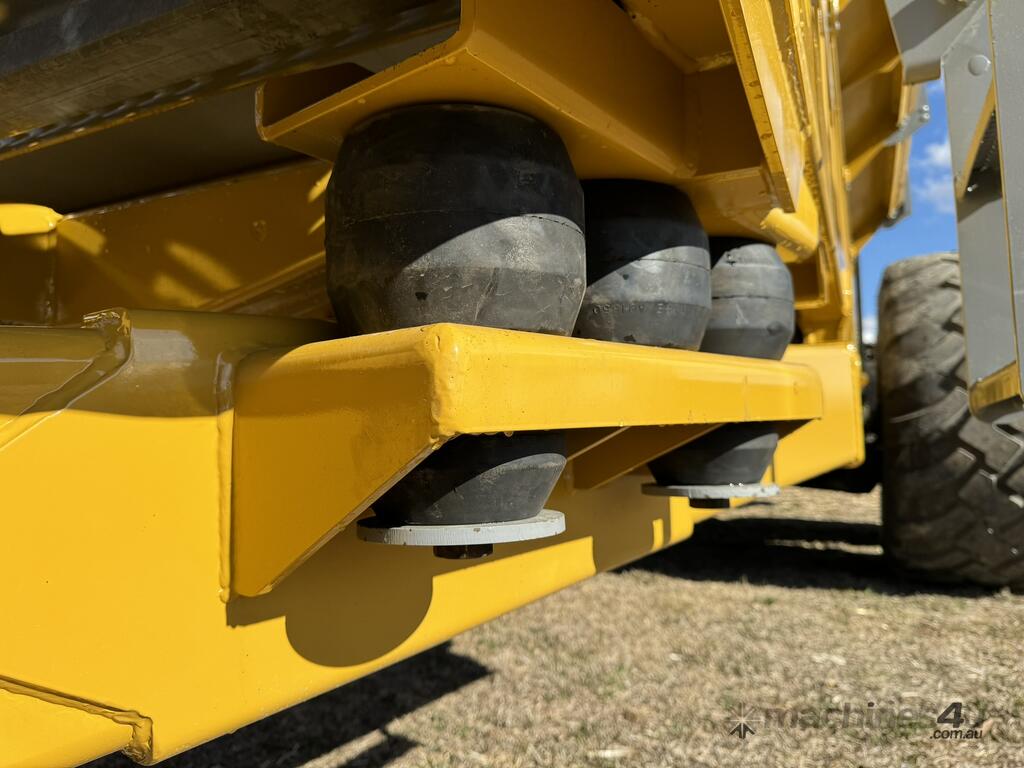

* Rubber Cushion Tongue
* High Load Bearings

Optional Extras
Paddle Kit
Poultry Litter
LED Lights
Silage Extensions: Silage extensions are not recommended for manure.
Enhanced Rubber Seal Kit
Oscillating Ball Hitch
Brakes
Digi-Star® Scale System

Specifications - Nitro 950
Carrying Capacity: 25 Ton
Heaped (m3): 29 m3
Heaped (m3) with Optional Silage Extension: 35 m3
Struck Level (m3): 20 m3
Struck Level (m3) with Optional Silage Extension: 26 m3
Inside Dimensions
(Inside width between flare 2,603 mm) 1,701 W x 1,473 D x 7,943 L mm
Overall Length: 10,744 mm
Overall Outside Width (Tandem Axle): 3,455 mm
Loading Height (Tandem Axle): 2,591 mm
Loading Height (Tandem Axle) with Optional Silage Extension: 2,997 mm
Nitro 950 is only available with tandem axles.
Wheel Hub Capacity (Tandem Axle): 9,071 kg (10 bolt) x4

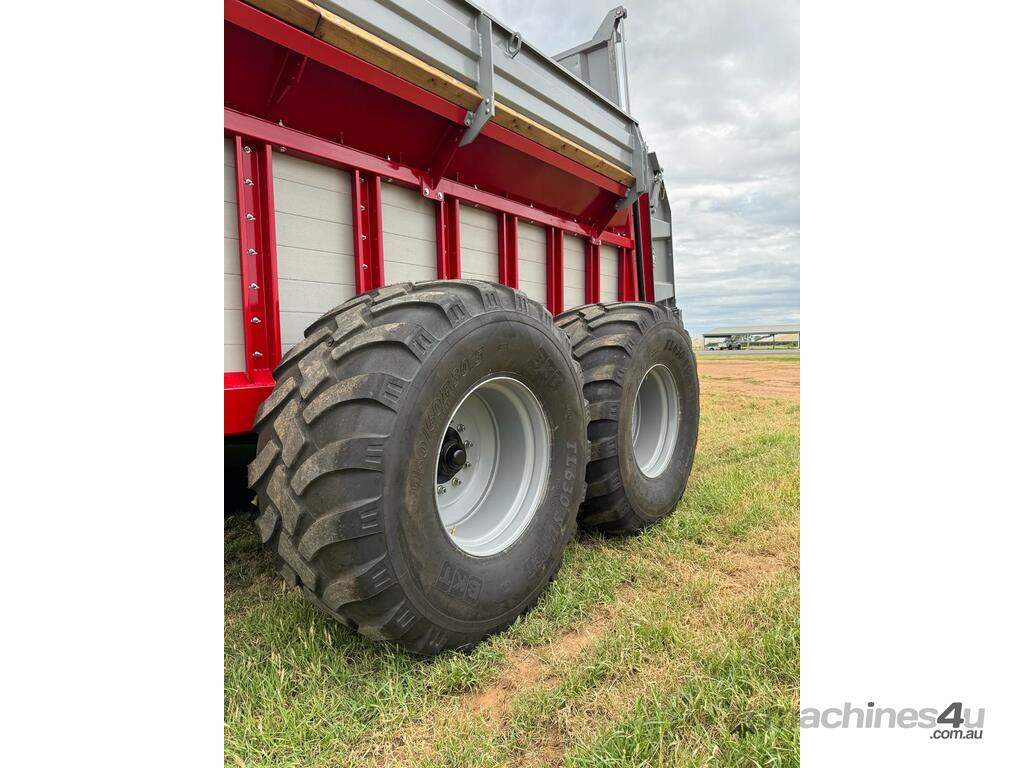

Tandem Tire Sizes: 750/60-30.5 Floatation Tires or 750/60-30.5 Floatation Tires (Radial)
Beater Diameter: 915 mm
Beater Speed: 420 RPM
PTO Speed: 1000 RPM
Apron Chain Link Dia: 3/4"
Shipping Weight: 9,021 kg
Required Tractor PTO HP: 200
Brakes Available: Yes
* Note: Specifications subject to change without notice.
