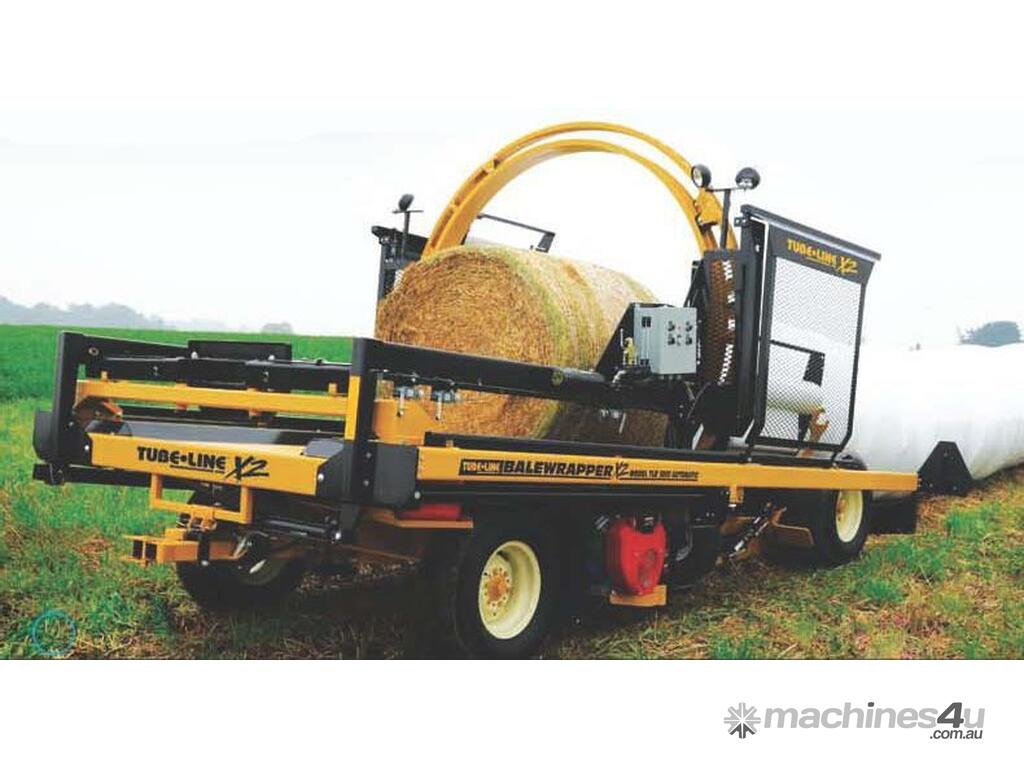

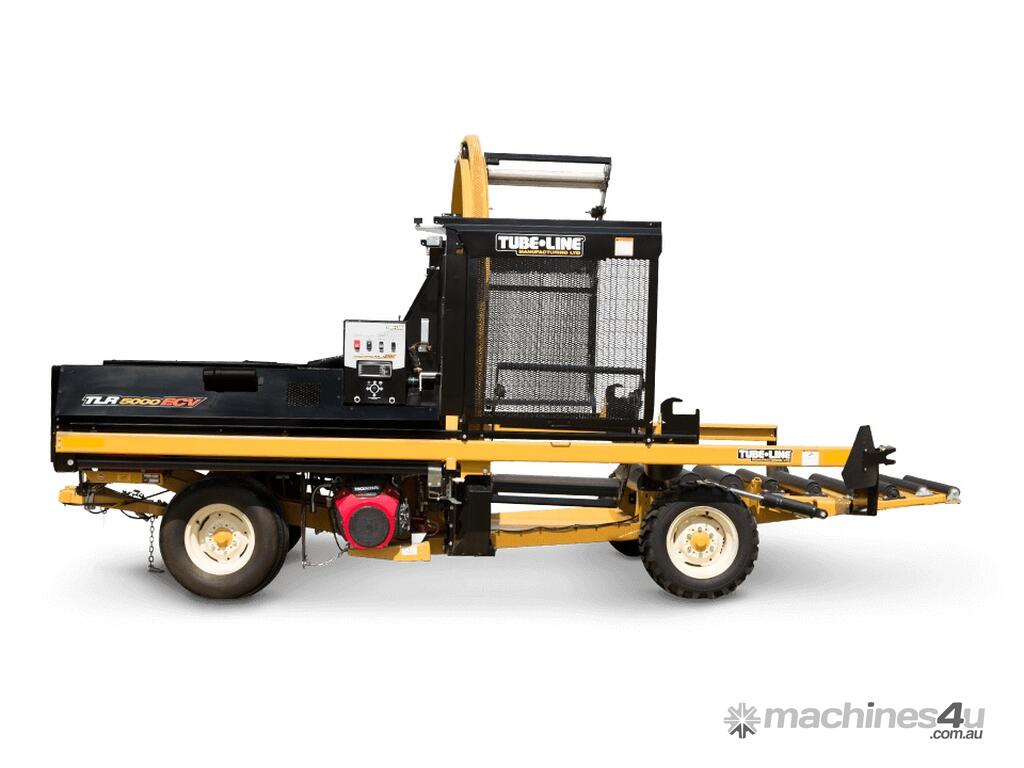

TUBELINE TLR5000 ROUND IN LINE BALE WRAPPER

Save $$$ on plastic with a TubeLine Wrapper. Pre-season orders on now. 3 years warranty with excellent parts accessibility and local dealer support!

The TLR5000 has been refined resulting in a lighter, more maneuverable machine. But don't let that fool you, this wrapper is built tough to handle heavy silage bales. The easy towing wagon chassis also allows for quick placement. A rear cam axle lowers the chassis bringing the tail to the ground. This ensures the proper angle as the bales are pushed off the wrapper. To ensure good compression, the cam axle allows you to address the amount of drag on the tail to provide the right amount of resistance

Pre-Tensioners
To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.

Film Snap - Patent Pending
Standard on all inline Balewrapper models, Tubeline's Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator's panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.

3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.

ECV Exclusive Features
Soft Start
Bale Counter (Lifetime)
Bale Counter (Resettable)
Bale Presets
Large Easy to Read Display
Remote Engine Start
Self-Diagnostics
Single Joystick Control to drive/steer

Other Standard Features
Main Control Panel Wired for Field Installed Options
Safety Shut Off Switch on Guards
Safety Shut Off Switch on Panel
Retractable Tongue
Folding Tongue
13HP Honda Engine
Low Oil Alert on Engine
Spark Arrestor on Engine
Hydraulic Manifold
Hydraulic Steering
Temperature Gauge on Hydraulic Tank
25L / 6.6 USG Fuel Tank with Fuel Pump
Limit Switches
Adjustable Stroke Length on Charge Table
Electric over Hydraulic Controls
Fully Automatic Cycling
Automatically Idles Down When Cycle Completed
Drive Wheel
Wrap Carrier
Lock Pin (Hoop)
Roller Wheels
Push Ram
Push Ram Cylinders
Cross Tube Unloading (to push off last bale) Patented
King Pins with Tapered Bearings
Road Lights
3-Year Warranty
Guide Rollers on Discharge Ramp
Quick Start Power Jack

The TLR5000 has been refined resulting in a lighter, more maneuverable machine. But don't let that fool you, this wrapper is built tough to handle heavy silage bales. The easy towing wagon chassis also allows for quick placement. A rear cam axle lowers the chassis bringing the tail to the ground. This ensures the proper angle as the bales are pushed off the wrapper. To ensure good compression, the cam axle allows you to address the amount of drag on the tail to provide the right amount of resistance

Specifications - TLR 5000 AX2
Overall Length: 18'
Width: 9'
Height: 9'
Weight: 2267 kg
Power: 13 HP Honda
Electric Start: Standard
Alternator: 18 Amp
Controls: Electric over hydraulic
Tires: (2) 11L x 15 8 Ply, (2) 27 x 10.5 Traction
Tires With Power Drive: N/A
Quick Start Leveling: Quick Deck Adjust
Brakes (Compactor): Deck Tight Pack
Steering: Electric Over Hydraulic
Emergency Stop: E Stop Button
Hydraulic Tail Gate: N/A Fixed
Transport Lights: Standard
Bale Specifications
Round: Up to 5'6"
Square (Single): N/A
Square (Double Stacked): N/A
Film Stretcher: (2) 30" x 55%
Bale Alignment: Fixed Bale Guides
Bale Guide Rollers: Standard
Hoop Speed: Adj. Flow Control Valve
Cycle Times Specifications
5' Round (66" Cycle Length): 29 sec
4' Round (54" Cycle Length): 23 sec

Machine/Equipment base price only, additional price for optional extras.

We can deliver this machine Australia wide, just ask us for a delivered price.

Prefer to buy this machine through your local dealer? You can do that too, just ask!

Contact FarmTech today for sales or more information.
