TUCKWELL - ELUMATEC DG104 Double Mitre Saw - Made in Germany

DOUBLE MITRE SAW DG 104

The optimal double mitre saw for series production as well as for special applications
The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound mitre. Consequently, many profiles can be cut without support blocks
External-dimension cuts possible for all cutting variants. Consequently, no complicated length calculations are necessary. This is a big advantage when cutting special angles
Pivoting range with digital angle display
Safety hoods

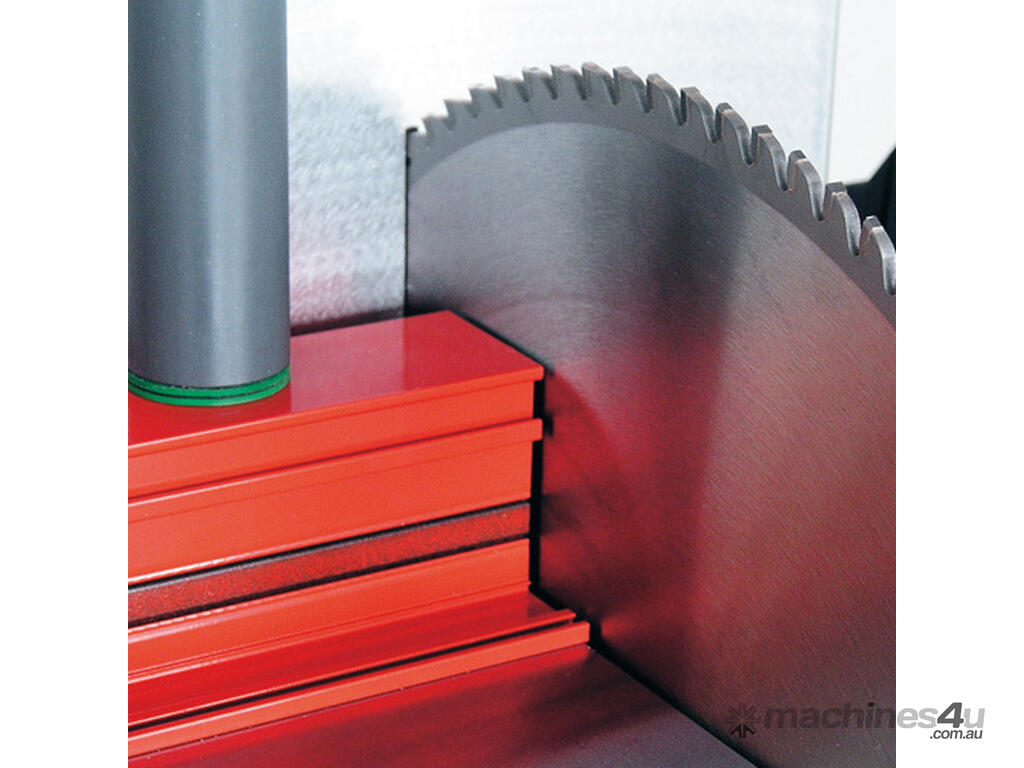

Equipped with saw blades as standard
Equipped with digital display E 111 as standard
Pulsed coolant system

Technical specifications

Minimum cutting length at 90° 350 mm
Minimum cutting length tilted at 45° 350 mm
Pivoting range inwards 90° - 45°
(up to 22.5° manual with digital display)
Tilting range inwards pneumatically 90° - 45°

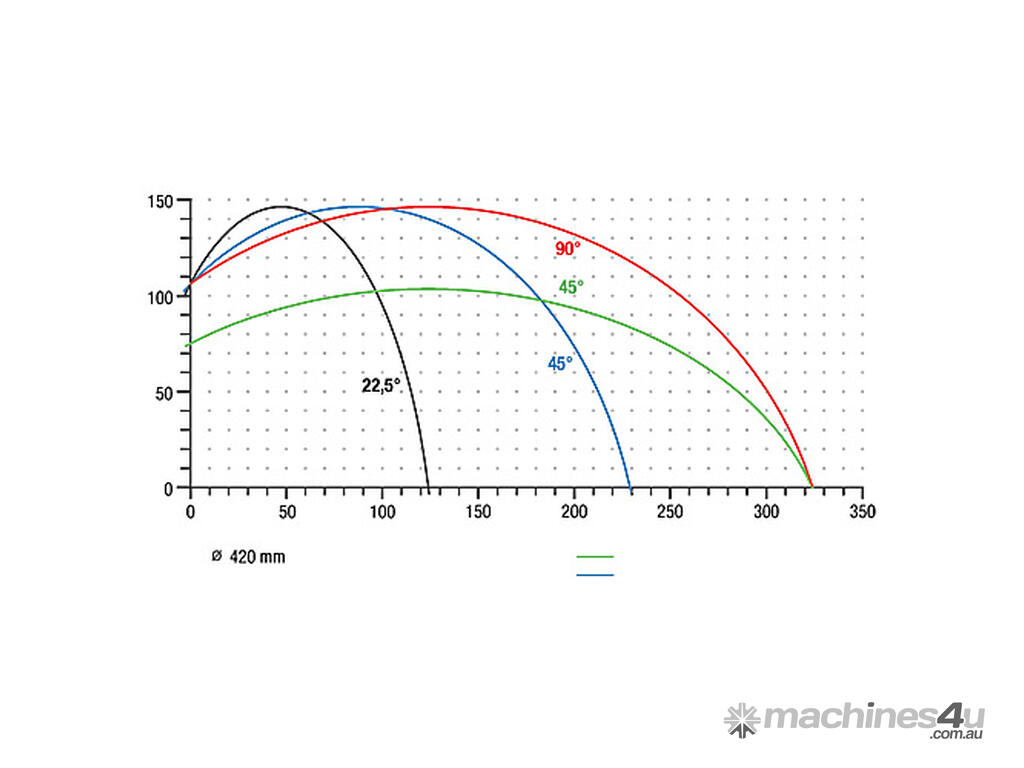

For cutting range, see cutting diagram
Saw blade diameter 420 mm
Saw blade speed 2,800 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 40 l without spraying, 64 l with spraying
Cutting length variants

3,000 mm
4,500 mm
6,000 mm


Options:
DG 104 M machine bed made of steel sheet
(cutting length 4,500 mm, 6,000 mm)
Profile lifting bars
Software for E 580: Software module for chop and oversize length cuts
Mobile or automatically retractable workpiece supports

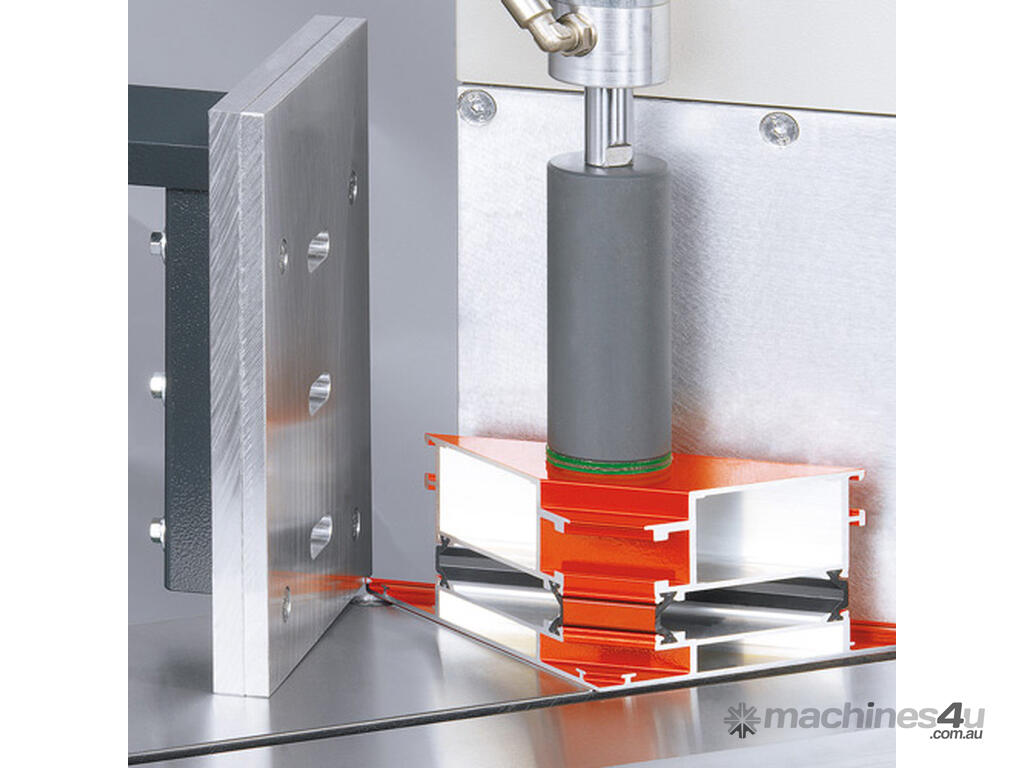

Material clamping units
Transom stop and lead-cut stop

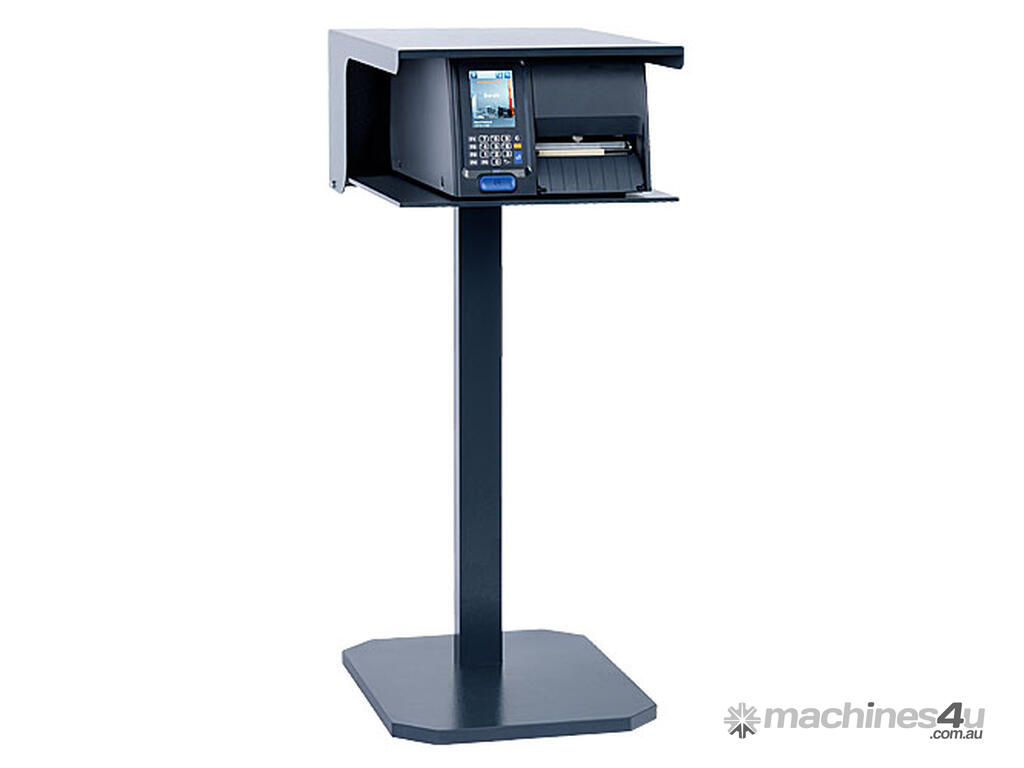

Label printer for variants with E 355 and E 580
Exhaust connectors, extraction system
Clock system
Roller conveyors
Saw blades
High performance cutting fluid


Controller variants:
Manual cutting length adjustment with digital display E 111
Positioning control E 355
PC Control E 580

At Tuckwell Machinery, our commitment to excellence is unwavering, supported by a stellar team dedicated to providing your business with premium industry knowledge and the best machinery that will elevate your operations. Each machine, meticulously chosen by Tuckwell, undergoes rigorous scrutiny.Our range of brands are selected for speed, quality build, superior output and value for money for the Flat Panel, Aluminium, and Timber Industries. Benefit from our comprehensive workshop facilities and expertly-equipped service vehicles. Our devoted staff prioritizes your needs, ensuring unparalleled pre-sale and post-sale support. With fully trained technicians and a robust inventory of spare parts, we deliver prompt, reliable service with a personalized touch that sets us apart. Based in Brisbane, Queensland, Tuckwell Machinery is your ultimate partner in productivity and performance.Go to the Tuckwell showroom on Machines4u to see the full range of machinery that is available, send us a message about the item you are interested in or give Tuckwell a call. We are happy to answer any of your questions and provide you with professional advice for your business solution.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
