TUCKWELL - ELUMATEC TS 161/30 Mitre Saw - Made in Germany

New Elumatec Mitre Saws:
Technical Specifications:

Saw blade dia 280 mm
Saw blade bore 32 mm

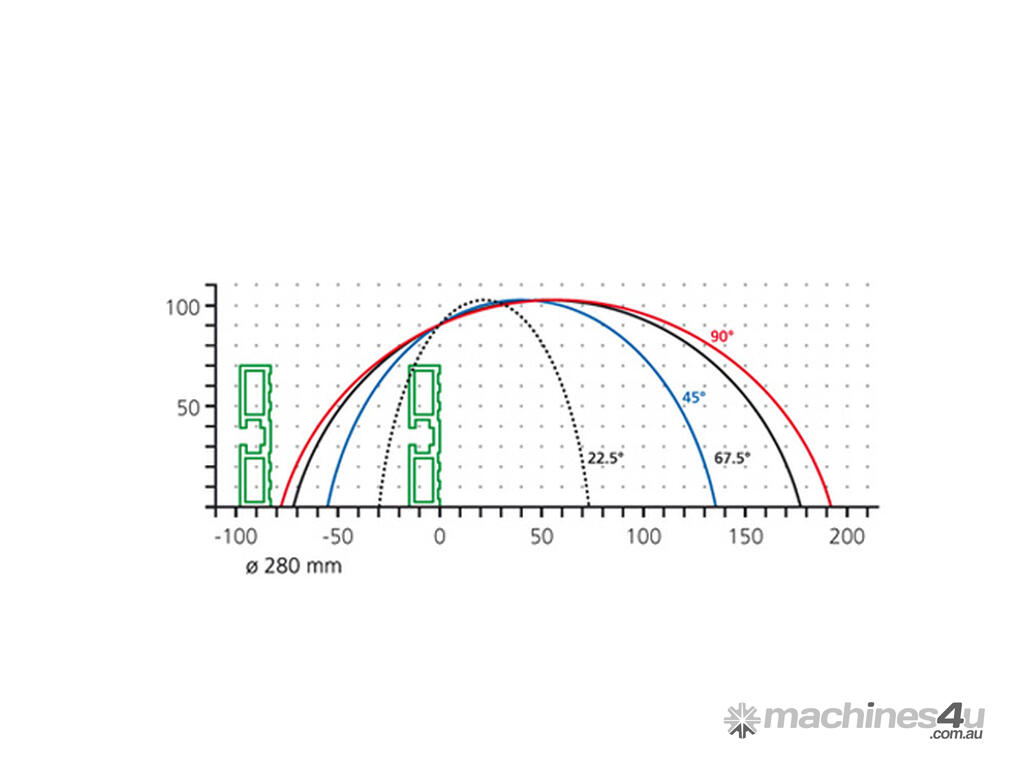

Cutting Capacity at 90° up to 100 mm High and up to 190 mm Wide material)
(depending upon section of material)
Saw blade speed 3200 rpm
Motor, each head 1100 W (1.5HP), 415V, 3 phase
Compressed air supply 7 bar
Weight 100 kg approx.



Standard Features:

• Two hand safety control consul, with emergency stop
• Pneumatic saw head feed with infinitely variable feed speed
• Swarf extraction outlet
• Safety hood, manually opened, with safety interlock
• Multi vee belt drive
• Mitre facility 0° - 45° to the Left and 0° - 180° to the Right
• Indexed at 0°, 15°, 30° & 45°
• Saw blade completely retracts below table
• Up-stroke cutting action
• Vertical pneumatic material clamping
• Pneumatic blade lubrication system
• Adjustable back support fence
• Machine supplied on floor stand
• Safe operation and guarded to meet Safety Regulations
• Saw blade included
• Quiet operation.

Manufactured in Germany.

At Tuckwell Machinery, our commitment to excellence is unwavering, supported by a stellar team dedicated to providing your business with premium industry knowledge and the best machinery that will elevate your operations. Each machine, meticulously chosen by Tuckwell, undergoes rigorous scrutiny.Our range of brands are selected for speed, quality build, superior output and value for money for the Flat Panel, Aluminium, and Timber Industries. Benefit from our comprehensive workshop facilities and expertly-equipped service vehicles. Our devoted staff prioritizes your needs, ensuring unparalleled pre-sale and post-sale support. With fully trained technicians and a robust inventory of spare parts, we deliver prompt, reliable service with a personalized touch that sets us apart. Based in Brisbane, Queensland, Tuckwell Machinery is your ultimate partner in productivity and performance.Go to the Tuckwell showroom on Machines4u to see the full range of machinery that is available, send us a message about the item you are interested in or give Tuckwell a call. We are happy to answer any of your questions and provide you with professional advice for your business solution.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
