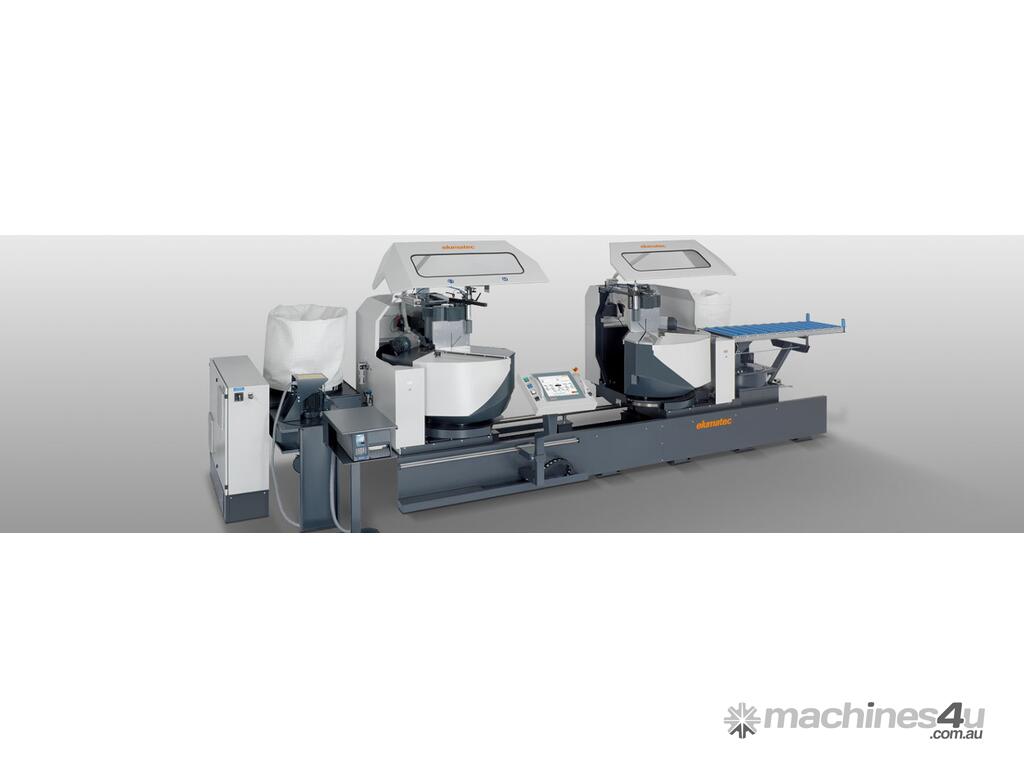

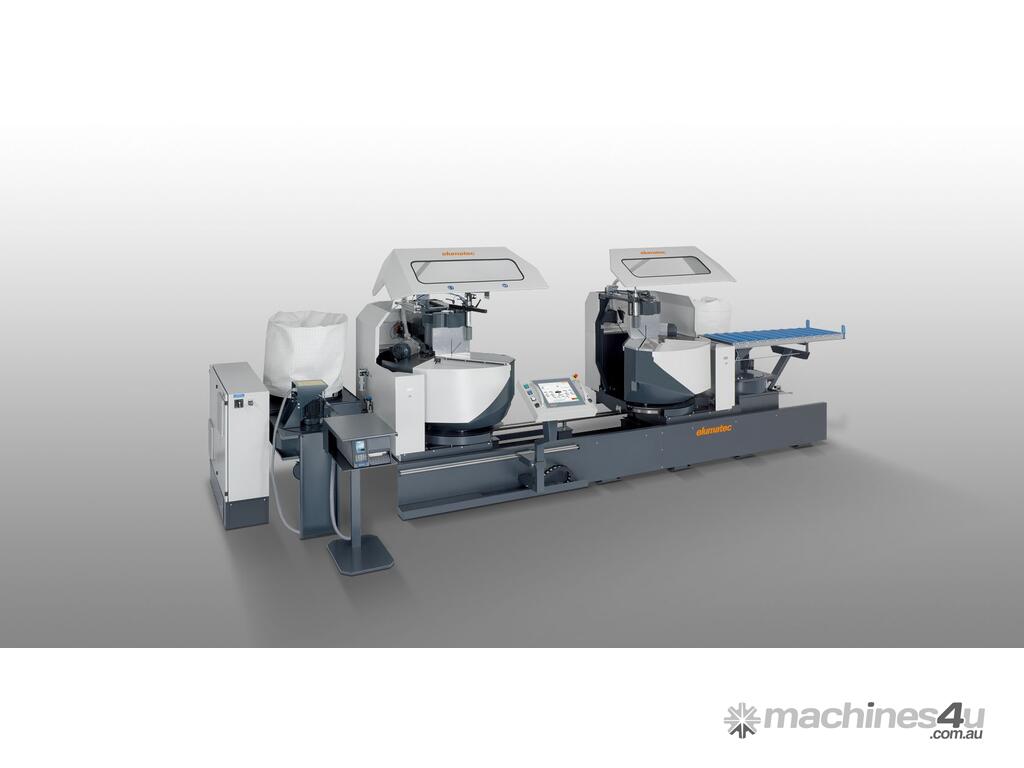

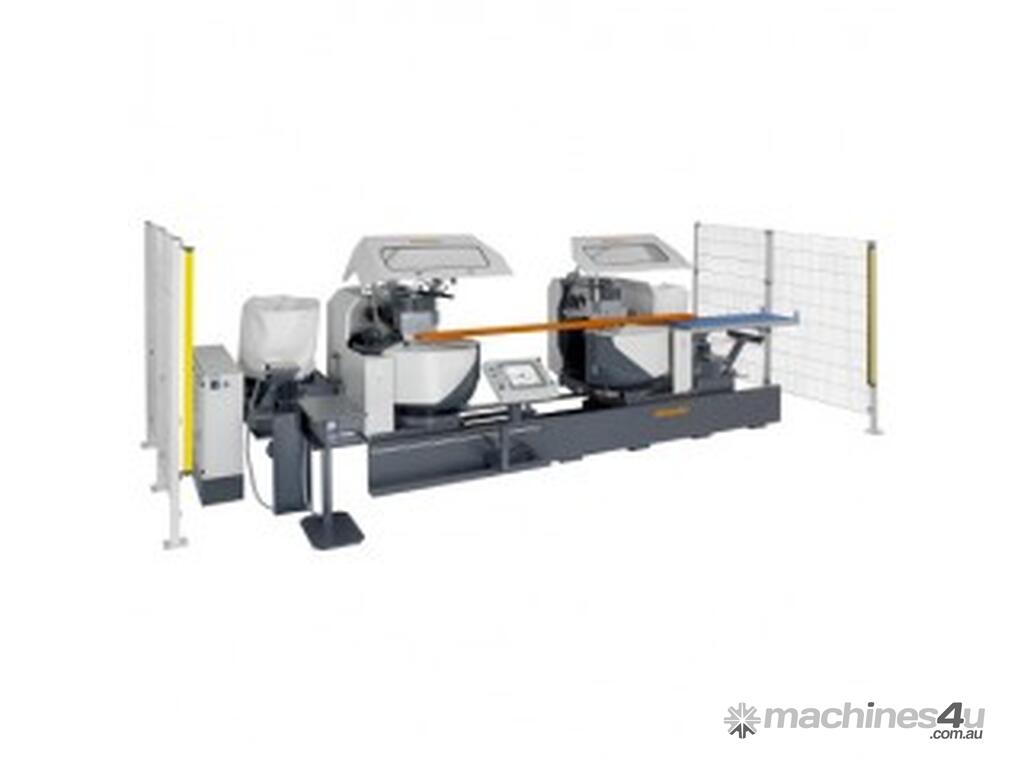

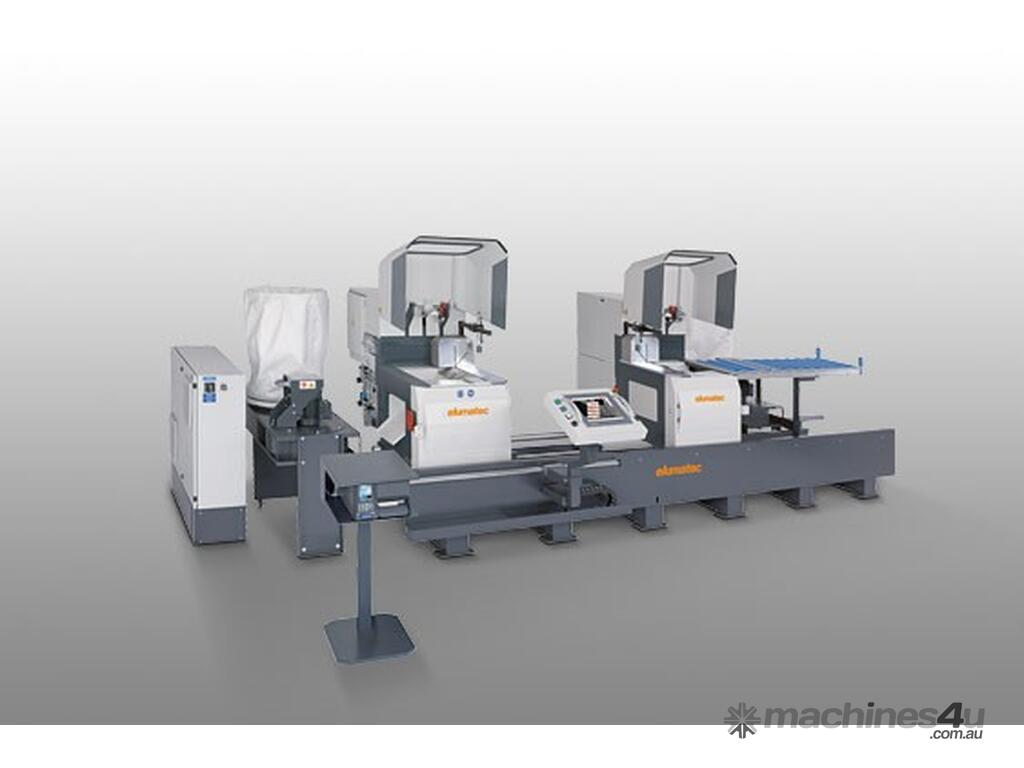

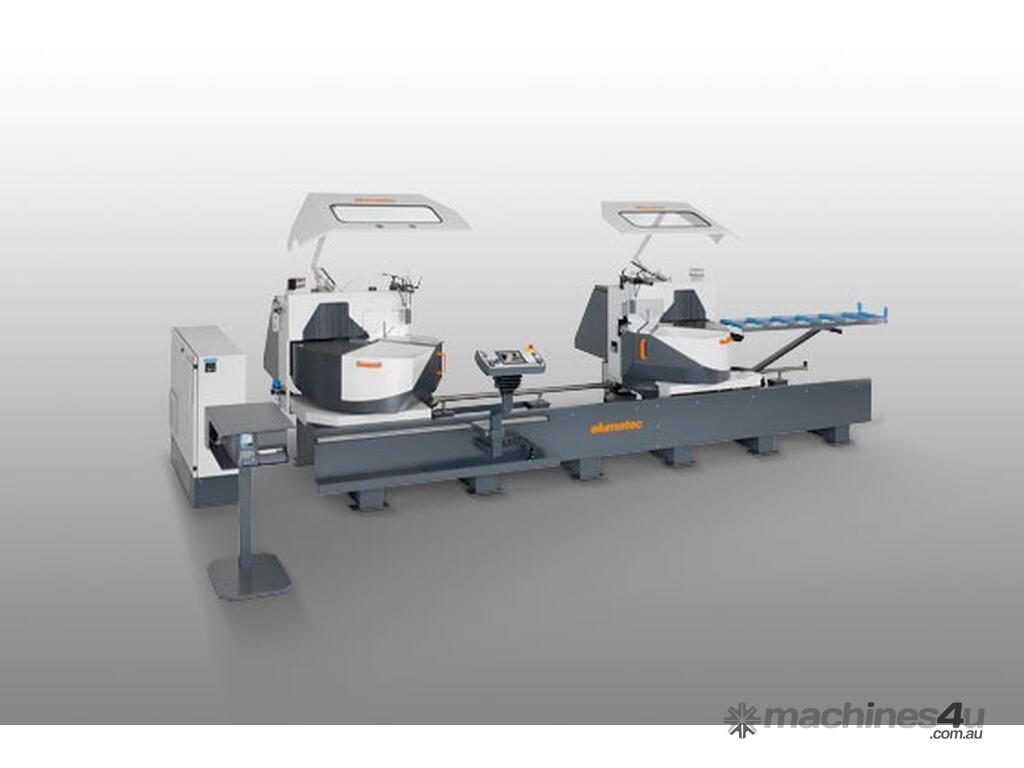

TUCKWELL - Elumatec DG244 Double Mitre Saw - German Made Twin Mitre Saw

The Elumatec DG244 is a reliable and productive Double Mitre Saw trusted in workshop's all across the world.

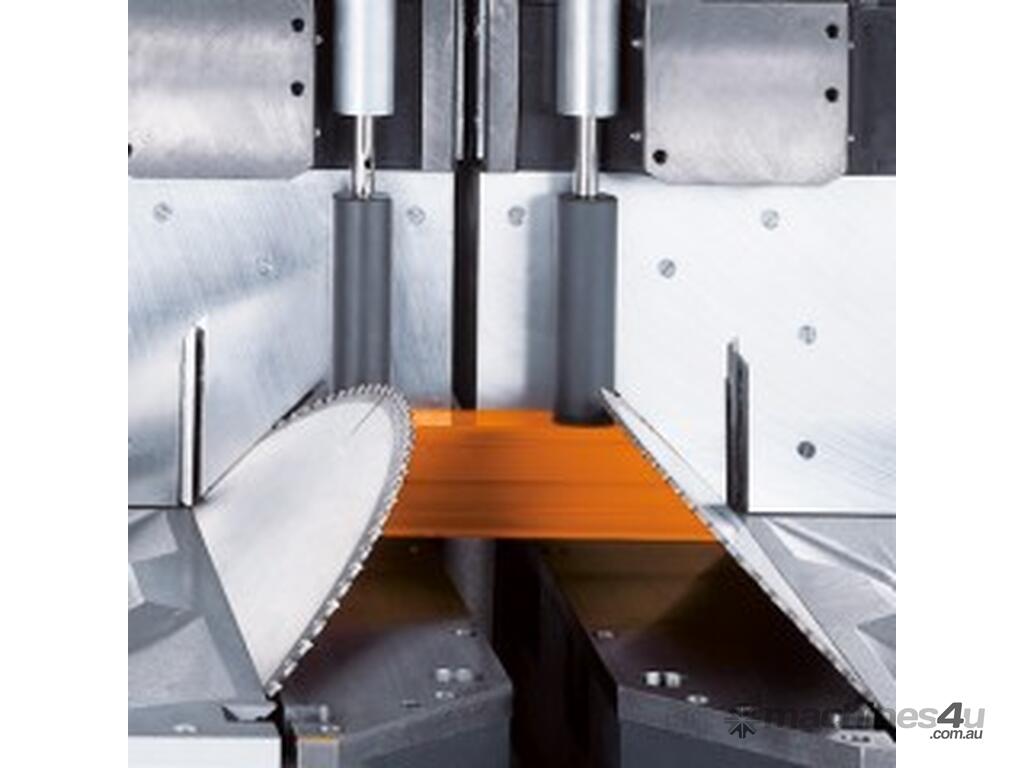

The reliable elumatec principle ``Cutting from below``:

Provides unhindered access to support table
A large saw blade diameter and optimal use of the saw blade offer an ideal cutting capacity for all cutting variations
Standard for elumatec: External dimension cuts at all angle positions. This means no length calculations are necessary when cutting profiles of different heights. This is a big advantage when cutting special angles
The universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound mitre. Consequently, many profiles can be cut without support blocks

Safety hoods
Equipped with saw blades as standard
Pulsed coolant system


Cutting length variants

4,500 mm
6,000 mm
7,500 mm

DG 244 M machine bed made of steel sheet

Hydro-pneumatic saw feed
Saw feed - minimum cutting length 400 mm
Profile lifting bars
Additional software for E 580: Optimisation program, software module for chop and oversize length cuts
Mobile or automatically retractable workpiece supports

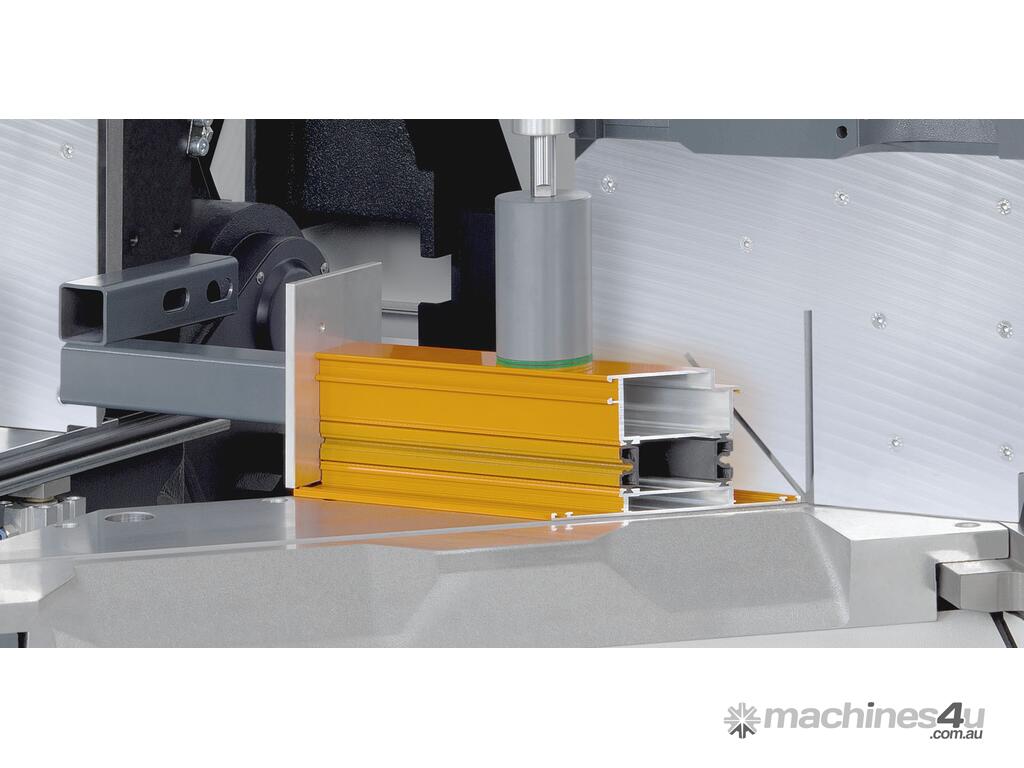

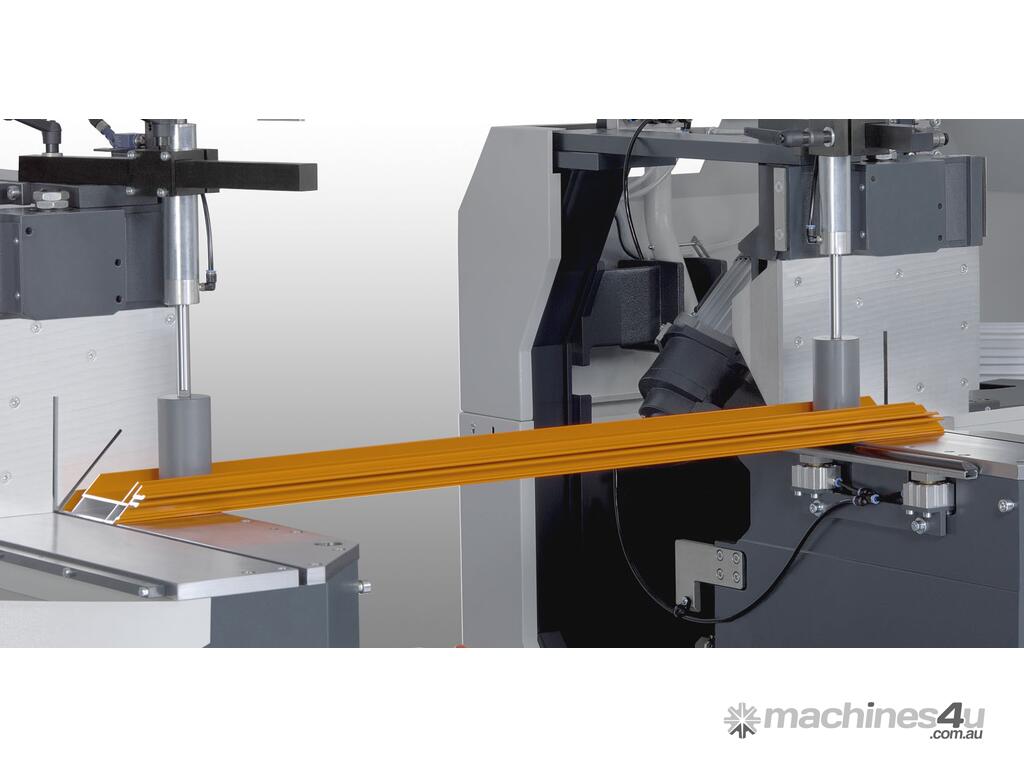

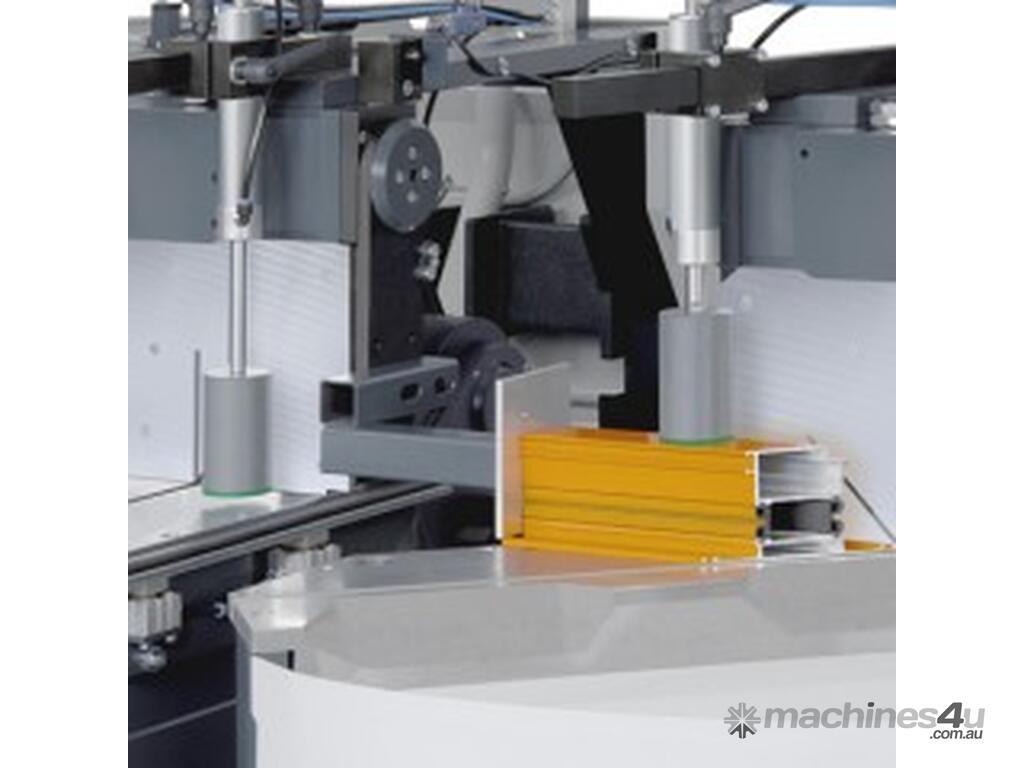

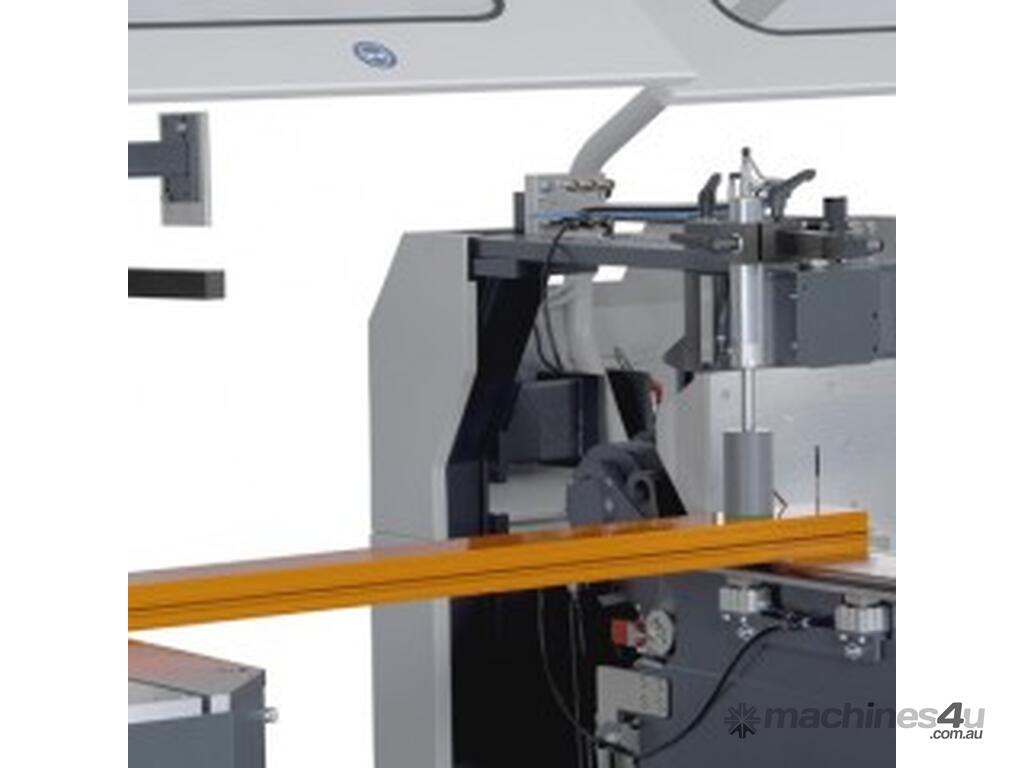

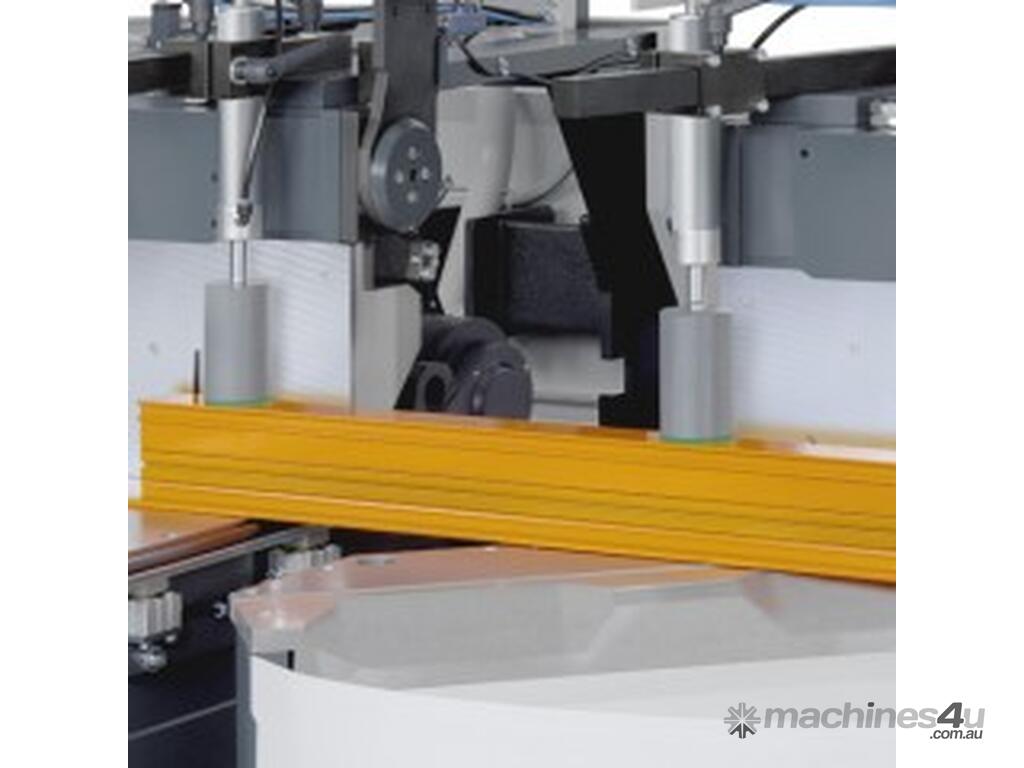

Material clamping units
Transom stop and lead-cut stop
Label printer
Exhaust connectors, extraction system
Clock system
Roller conveyor
Saw blades
High performance cutting fluid
Minimum cutting length at 90° 375 mm
Minimum cutting length tilted at 45° 375 mm
Pivoting range inwards, pneumatically, 90°-45°
(manually up to 22.5° inwards and up to 140° outwards with digital display)
Tilting range inwards, pneumatically, 90° - 45°
(intermediate angles manually adjustable with digital read-out display and turret stop)

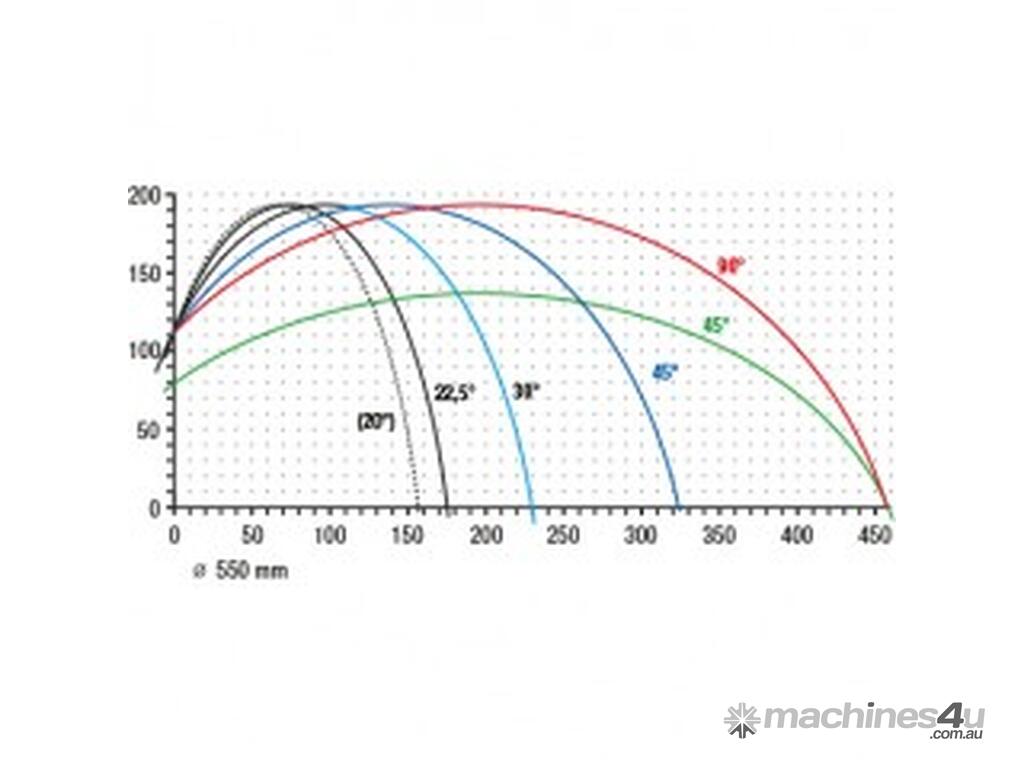

For cutting range, see cutting diagram
Saw blade diameter 550 mm
Saw blade speed 2,250 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output per motor 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 40 l without spraying, 64 l with spraying


Controller variants

PC Control E 580

At Tuckwell Machinery, our commitment to excellence is unwavering, supported by a stellar team dedicated to providing your business with premium industry knowledge and the best machinery that will elevate your operations. Each machine, meticulously chosen by Tuckwell, undergoes rigorous scrutiny.Our range of brands are selected for speed, quality build, superior output and value for money for the Flat Panel, Aluminium, and Timber Industries. Benefit from our comprehensive workshop facilities and expertly-equipped service vehicles. Our devoted staff prioritizes your needs, ensuring unparalleled pre-sale and post-sale support. With fully trained technicians and a robust inventory of spare parts, we deliver prompt, reliable service with a personalized touch that sets us apart. Based in Brisbane, Queensland, Tuckwell Machinery is your ultimate partner in productivity and performance.Go to the Tuckwell showroom on Machines4u to see the full range of machinery that is available, send us a message about the item you are interested in or give Tuckwell a call. We are happy to answer any of your questions and provide you with professional advice for your business solution.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
