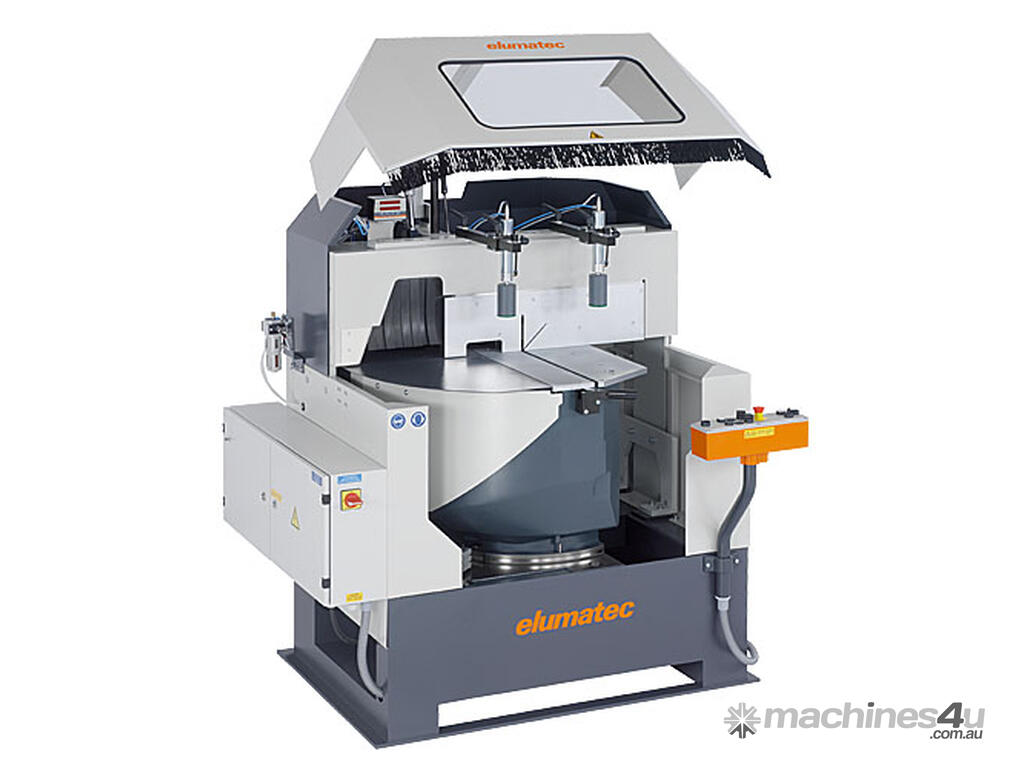

MITRE SAW MGS 245/00

The universal saw for special applications

The reliable elumatec principle ``Sawing from below``:
Free access to the table surface for optimal loading and unloading of profiles

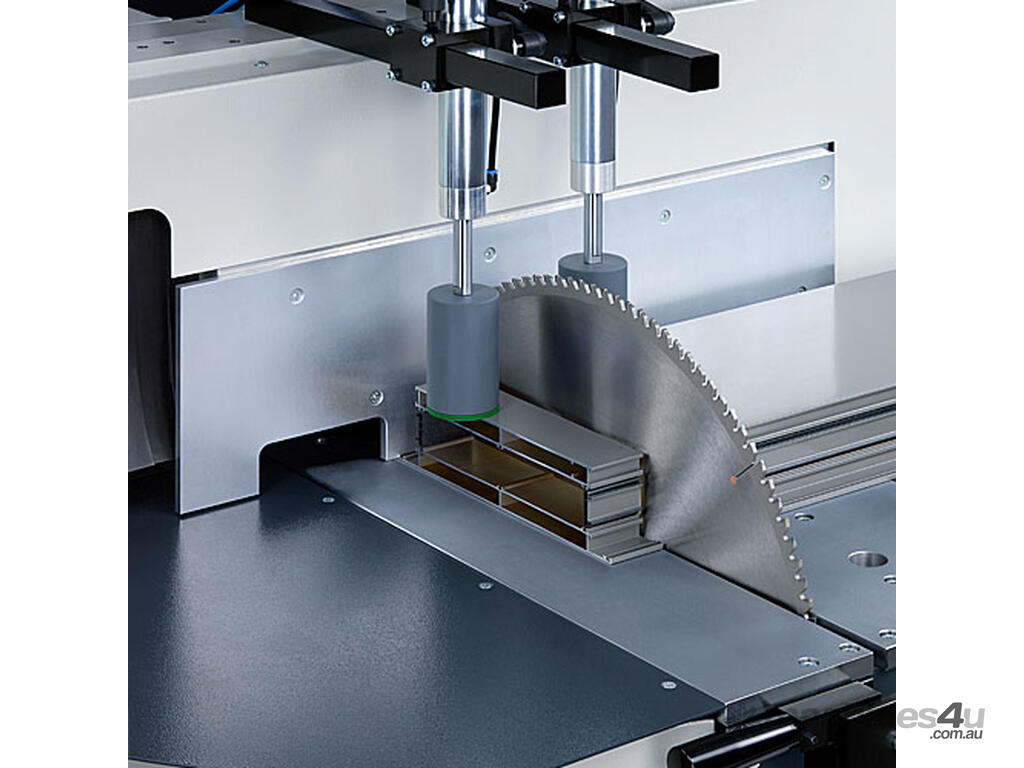

The patented saw arm suspension creates a cutting pressure towards the back fence which ensures safe clamping of the workpiece
Safety hood opens automatically
Pulsed coolant system
Standard equipped with saw blade

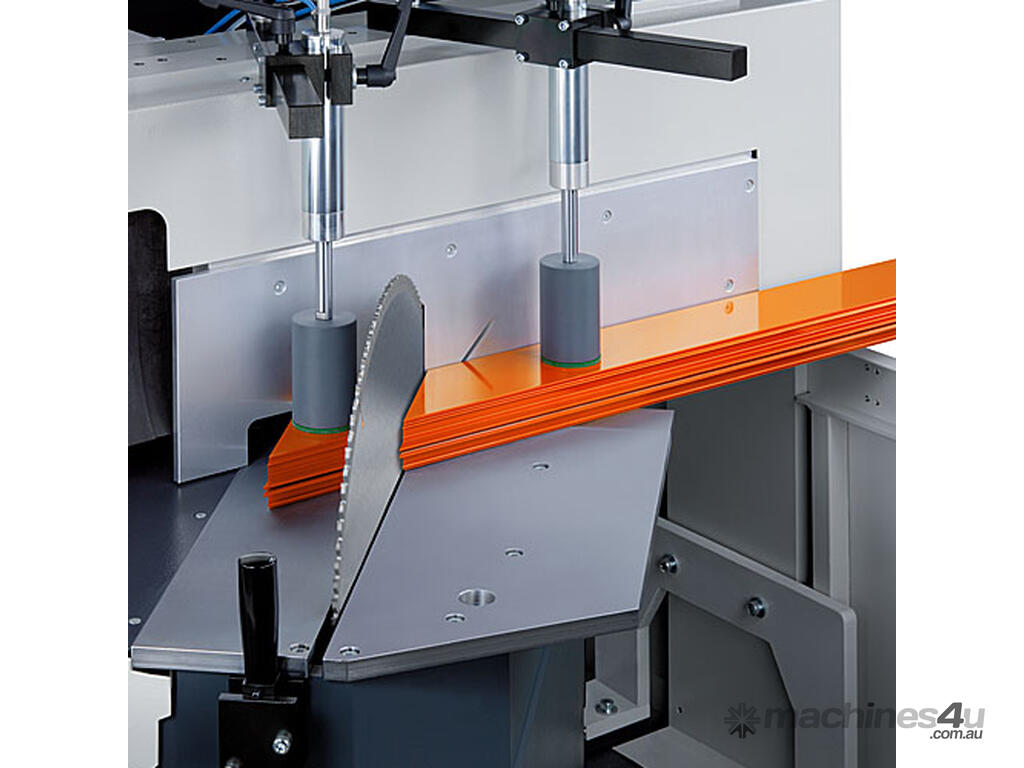

Pivoting range of 22.5° to the left and right manually with digital angle display
Tilting range pneumatic 90° - 45°
(intermediate angles by means of turret stop and digital display)
Technical specifications

Pivoting range, manually, 22.5° to the left and right with digital display E111
Tilting range pneumatically from 90° to 45° with digital display

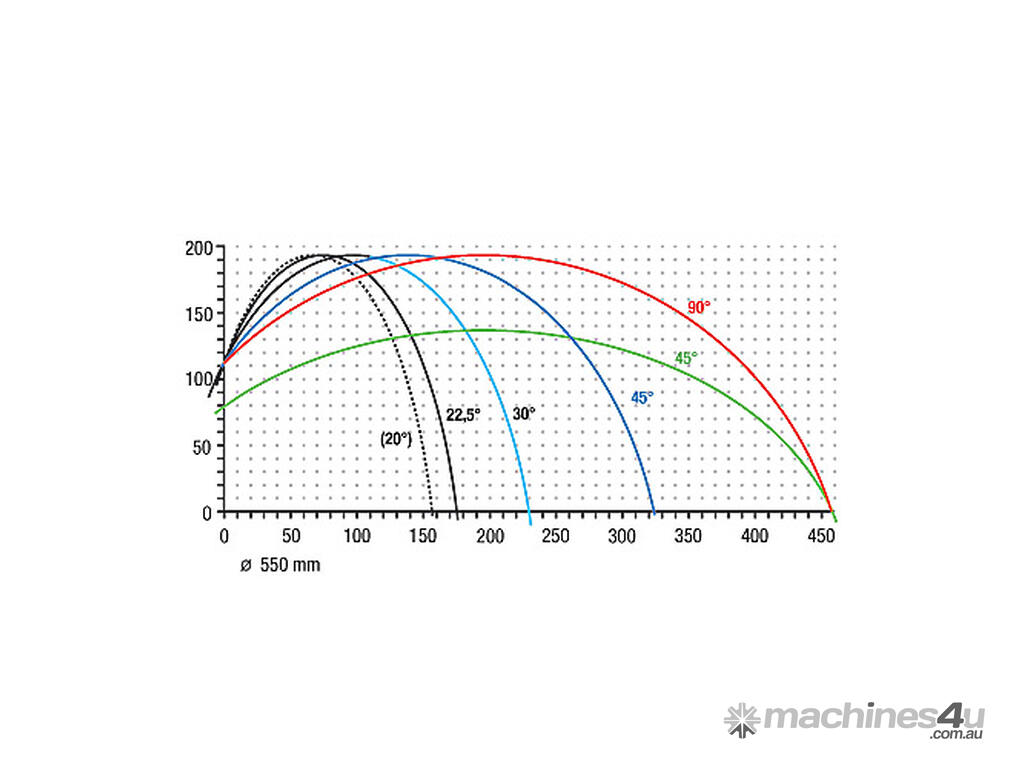

For cutting range, see cutting diagram

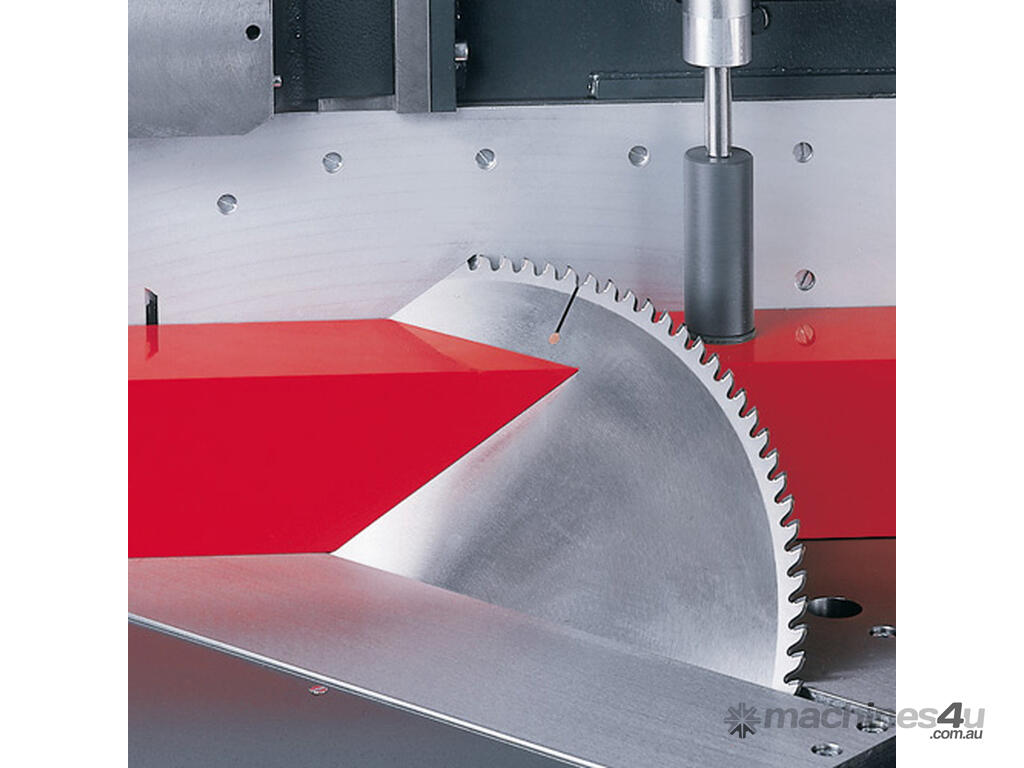

Saw blade diameter 550 mm
Saw blade speed 2,250 rpm
Power supply 230/400 V, 3~, 50 Hz
Power output 4 kW
Compressed air supply 7 bar
Air consumption per working cycle 20 l without spraying, 32 l with spraying
Length 1,900 mm, depth 1,550 mm, height 2,100 mm, weight 1,150 kg

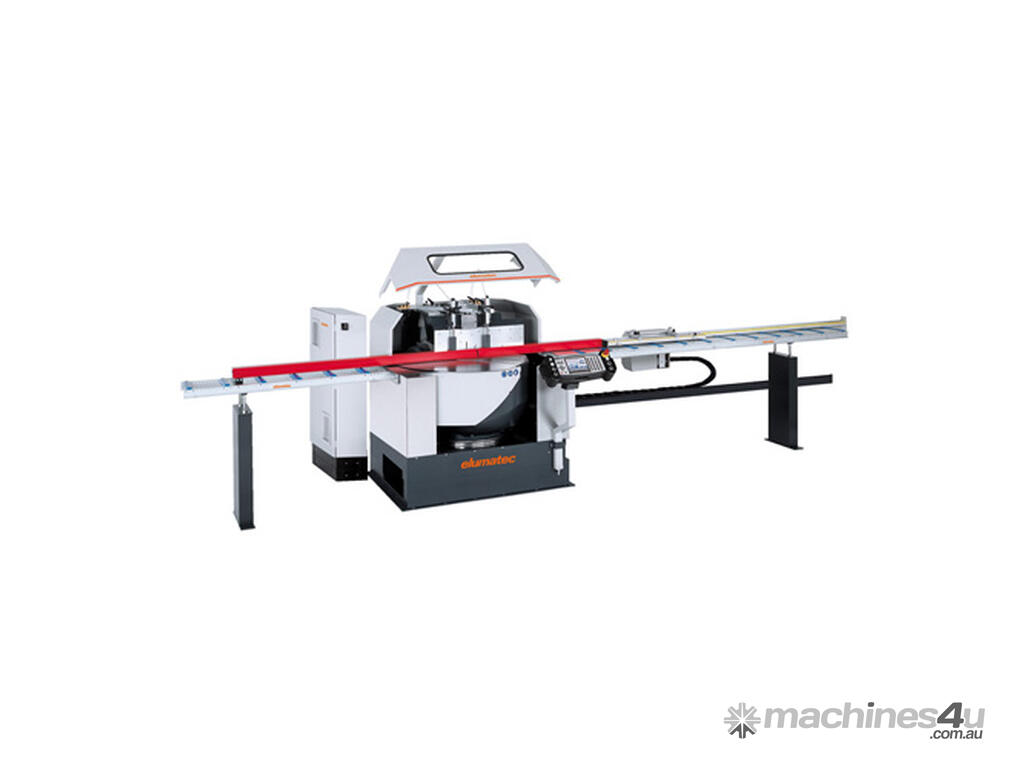

MITRE SAW MGS 245/31

See MGS 245/00, however:

3-axis PC control, E 580, for electronic pivoting and tilting
Electronically controlled length adjustment of the length stop and measuring system
10.4`` colour touch display
Network connection RJ45, 10/100 Mbit
Length adjustment 6,000 mm
MITRE SAW MGS 245/30

See MGS 245/31, however:

Length adjustment 4,500 mm
MITRE SAW MGS 245/32

See MGS 245/31, however:

Length adjustment 7,500 mm
Options

Hydro-pneumatic saw feed
Extraction system
Saw blades
High performance cutting fluid
