TUCKWELL - Elumatec SBZ 118 CNC Profile Machine

Designed for economical and efficient machining of aluminium, PVC and thin-walled steel profiles

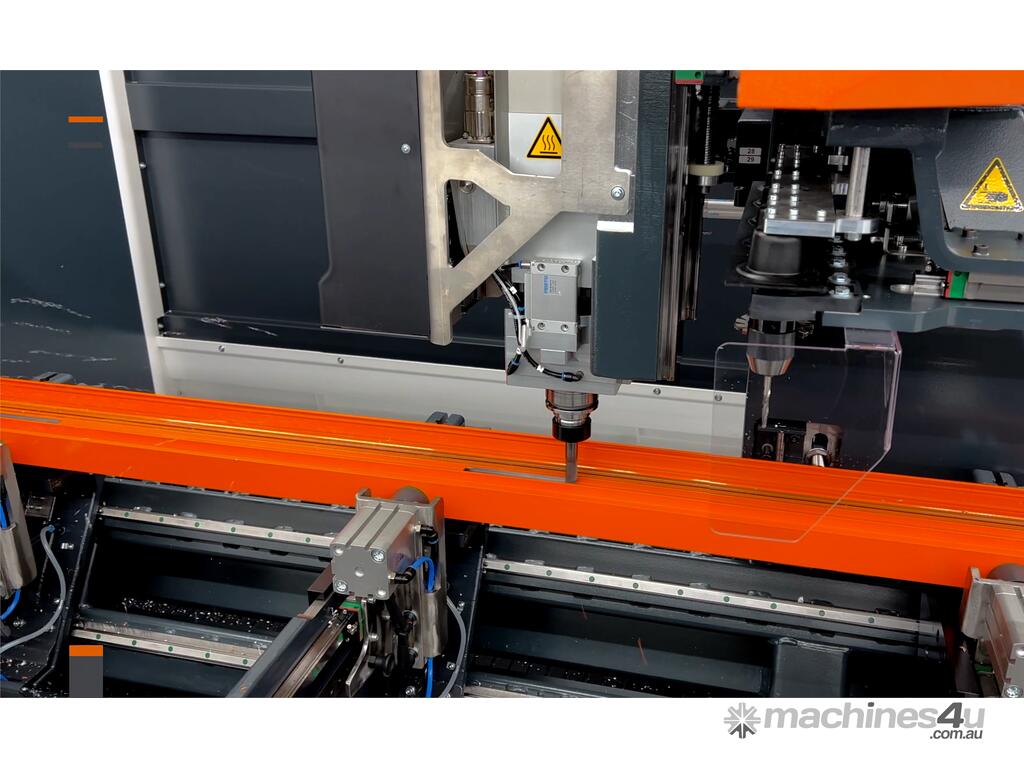

All operations, such as routing, drilling, notching and tapping, are performed while the profile bar is stationary to protect the profile surfaces
Better machining results thanks to intelligent control technology
Fast positioning of the machining unit with up to 60 m/min thanks to dynamic servo drives
Tapping without compensation chuck
Automatic clamp recognition and clamp positioning
Automatic on-board tool changer with five tool tray positions (without tools)
State-of-the-art 3-axis controller

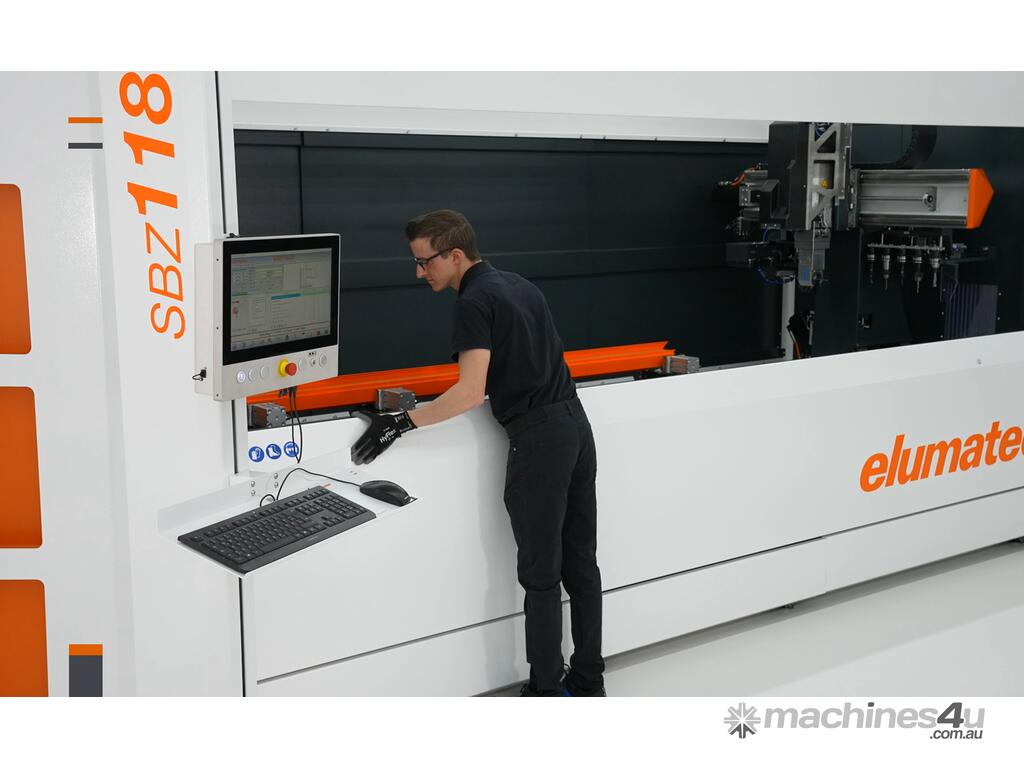

Ergonomic and stable operation thanks to the advanced inclined bed
Automatic clamp recognition and positioning prevents collisions
Power torque routing motor with enclosed speed control for short spindle start-up and braking times.
Low power consumption thanks to intelligent control technology
DC link coupling in the axis drives for greater energy efficiency
Uninterruptible power supply (UPS)
Windows operating system

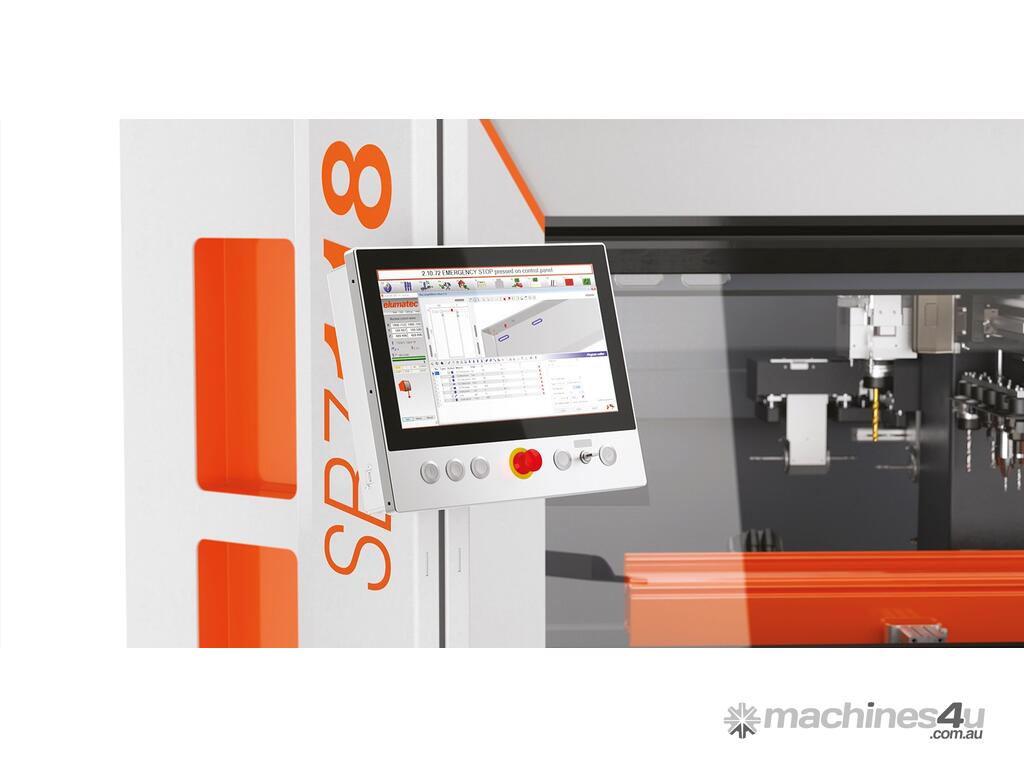

15.6`` panel PC, i3 processor, USB ports and network connection
Simple, stress-free program entry with eluCam on the operating panel, even during operation
eluCloud ready
Remote online maintenance


Machine configuration

Air-cooled 5 kW, S1 routing spindle

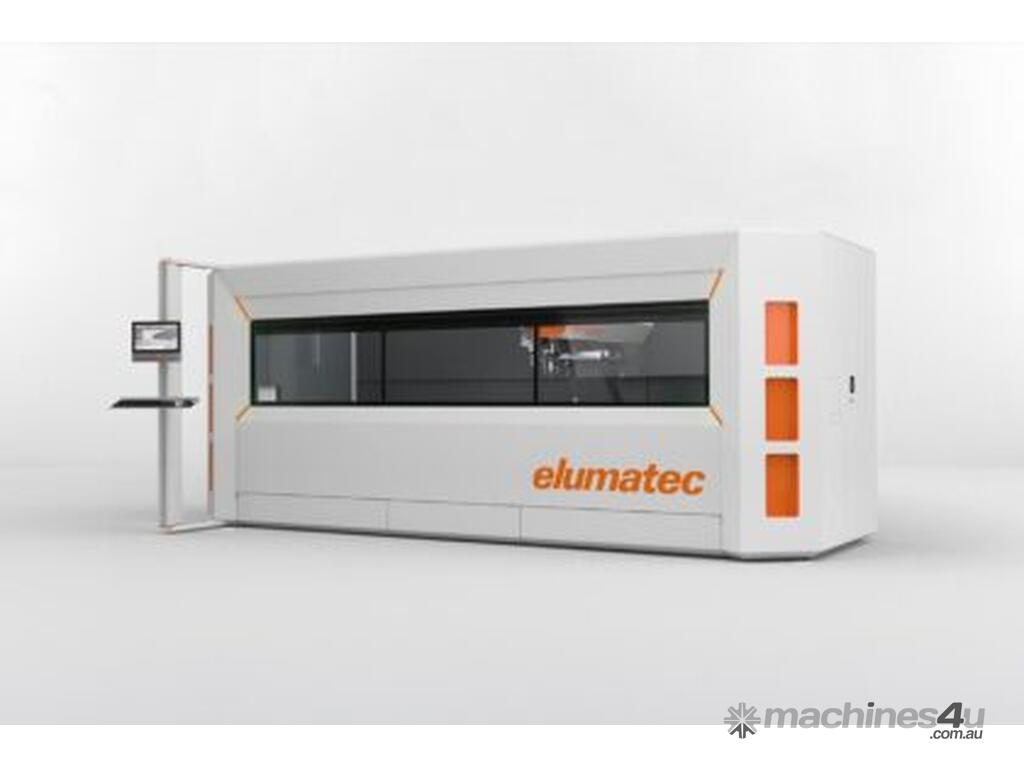

Protective cabin with side service door
Four horizontal, pneumatic material clamping units
A material stop on the left
HSK-F63 tool holder
Minimum-volume lubrication system
High-performance cutting fluid

Options

1 or 2 optional on-board tool changers for rotating angle heads for 5-sided machining
HSK-F63 rotating angle head for two tools
Tools and tool holders with process data
Barcode scanner

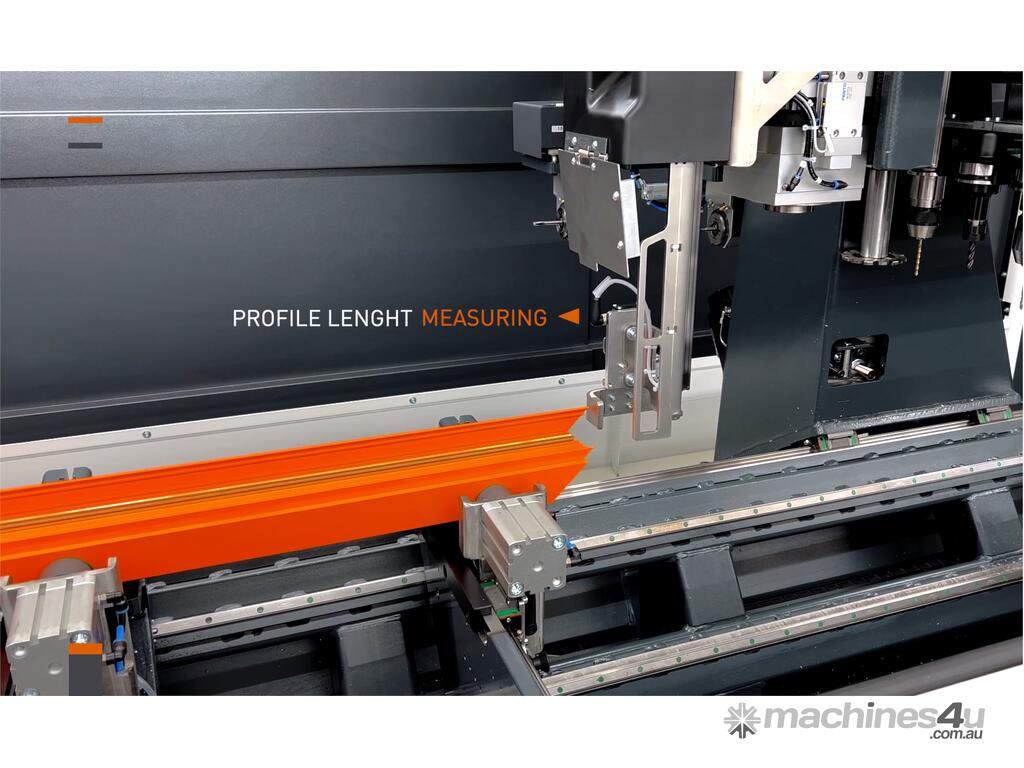

Length measurement on both sides
Double clamping and other accessories on request
18.5`` panel PC, i5 processor
21.6`` panel PC, i7 processor
Green Line cooling unit for the control cabinet with reduced energy consumption
Four clamps as standard. Can be equipped with up to six clamps
Material reference stop (right) for positioning workpieces with overlength machining
CE version as standard, UL version optional
