TUCKWELL MVM FX Series Knife Grinders - Heavy Duty Grinding and Lapping Machines

The MVM FX series is a heavy-duty series of knife grinders suited to fulfil the needs of knife and blade manufacturers or for special purposes.

The MVM FX series comes in two variations:

MVM FX20:

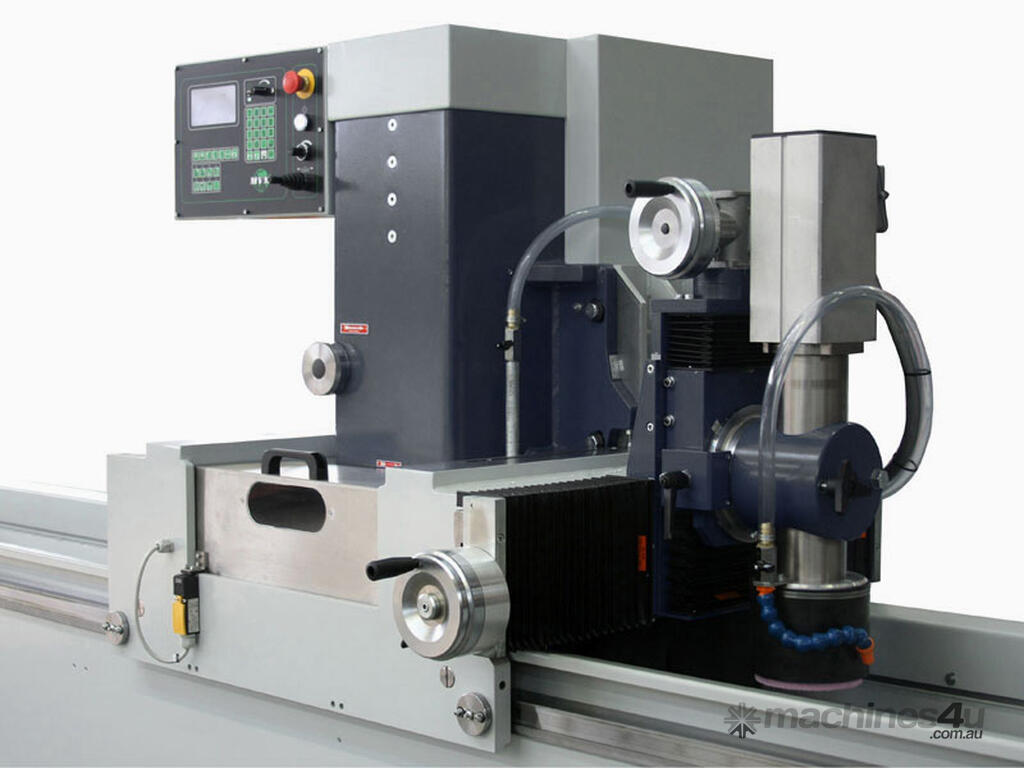

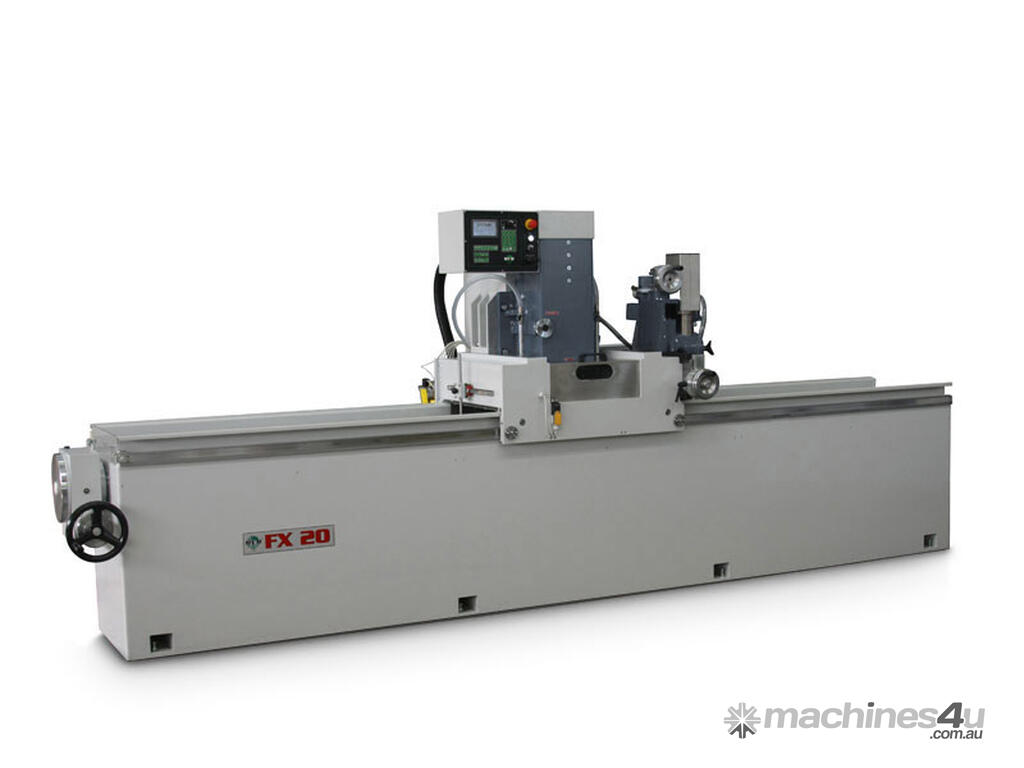

The FX20 model grinding machine is available with grinding lengths ranging from 1500 mm to 7100 mm, and longer for special grinding applications.

The FX 20 grinder features a high-power grinding wheel motor making it suitable for surface grinding as well as knife sharpening.

It features a heavy-duty reinforced machine base which gives the machine maximum stability.

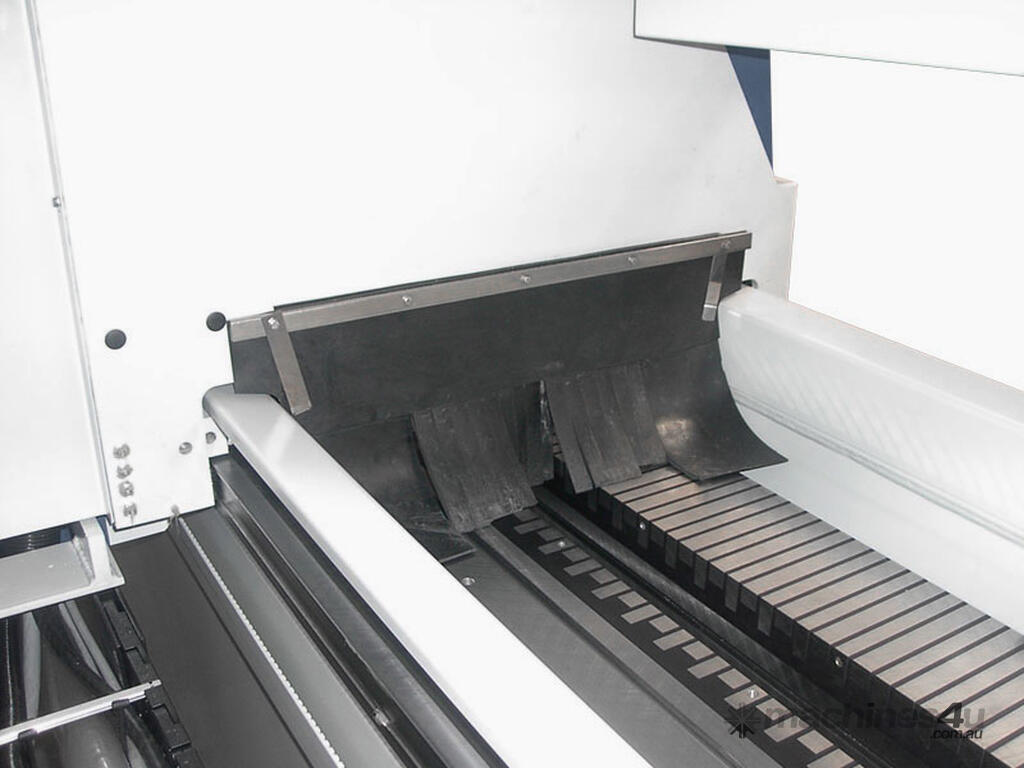

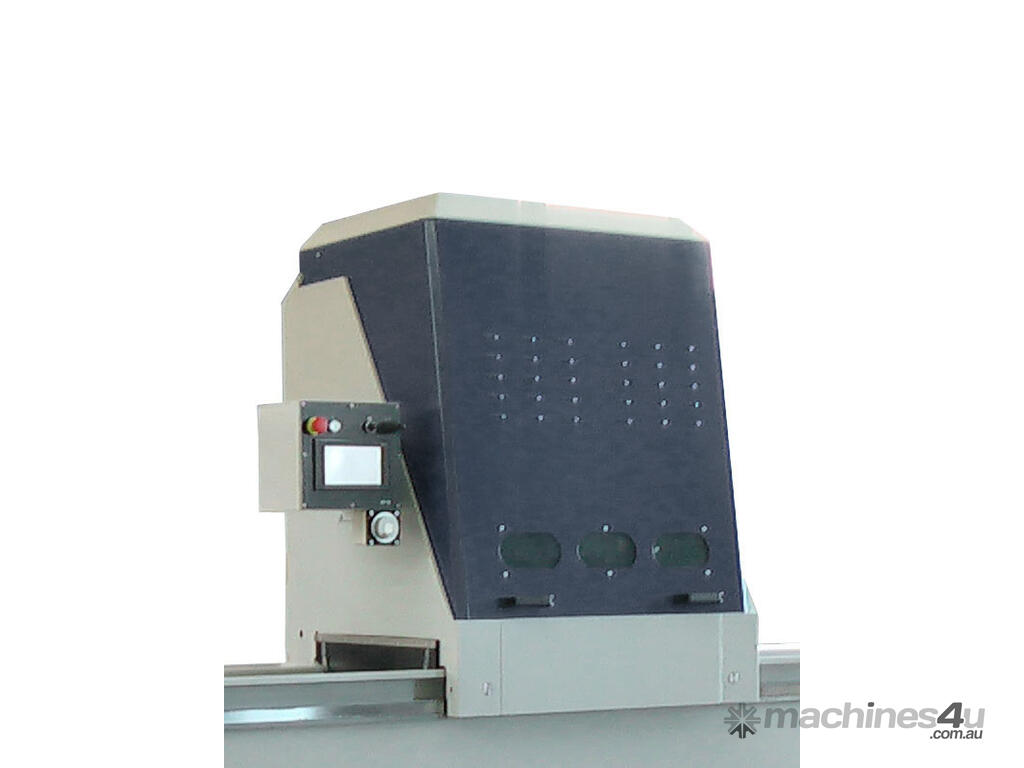

Fully covered upper and side guides are standard.

The FX 20 grinding machine features a Siemens PLC that controls the complete grinding program and carriage movement during the various stages of the working cycle. The FX 20 is suitable for all industrial straight knives, such as chipper knives, granulator blades, veneer knives, guillotine blades, paper knives, and over-sized knives, and can be used for surface grinding and complete straight knife manufacturing.

Technical features

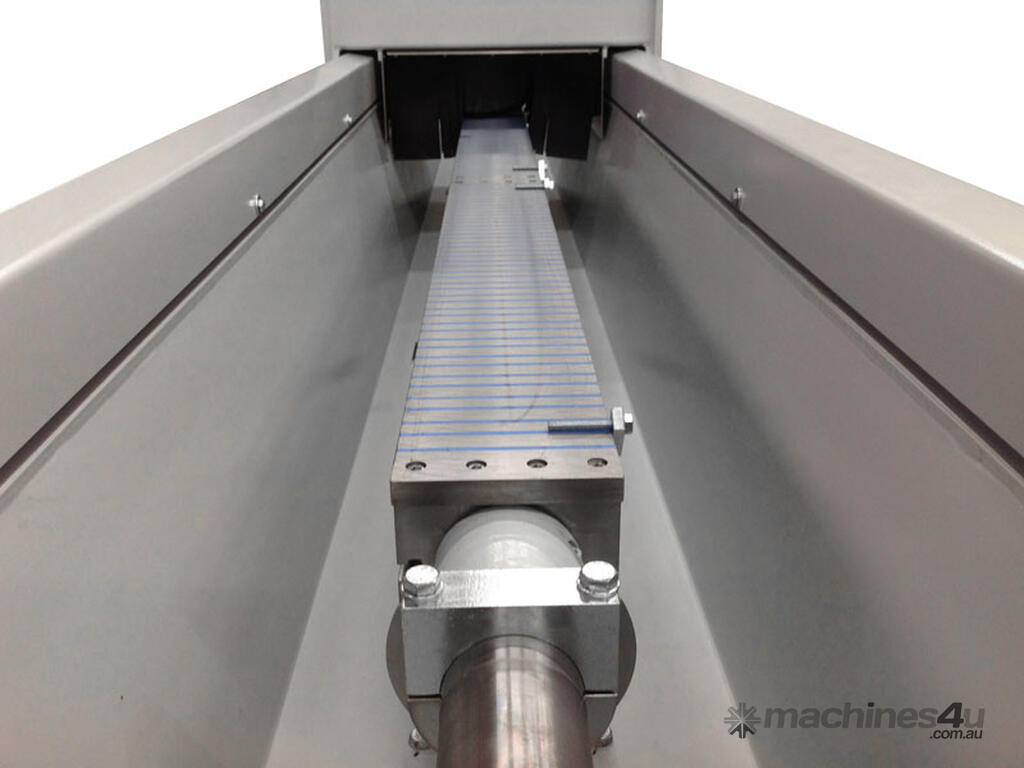

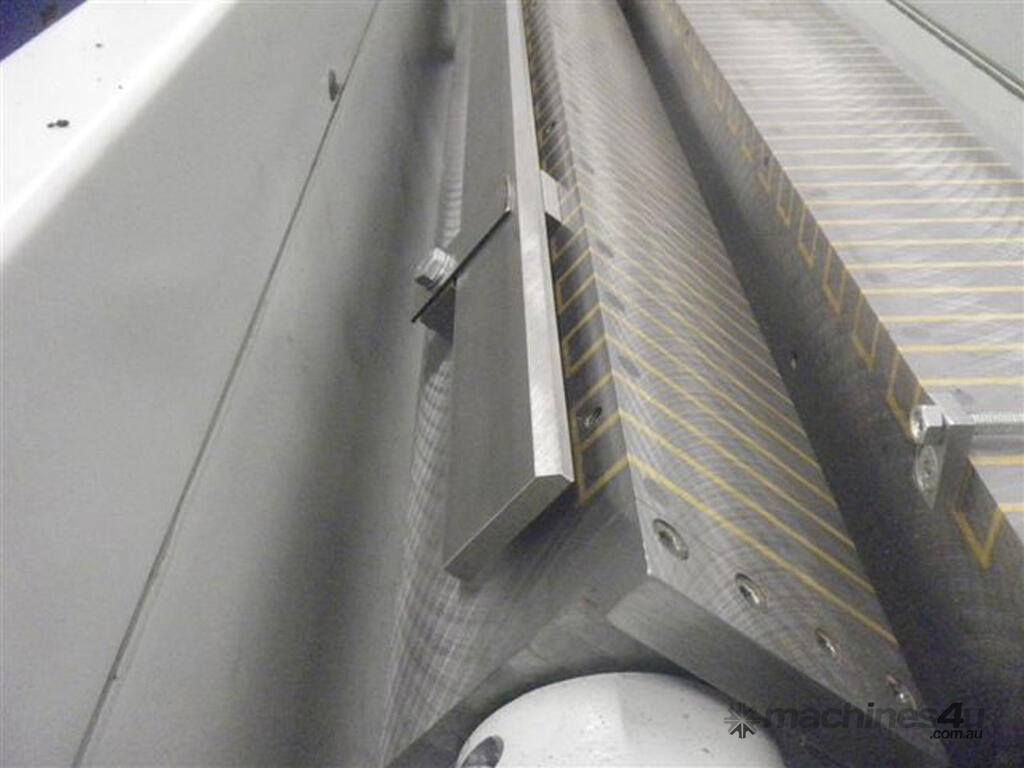

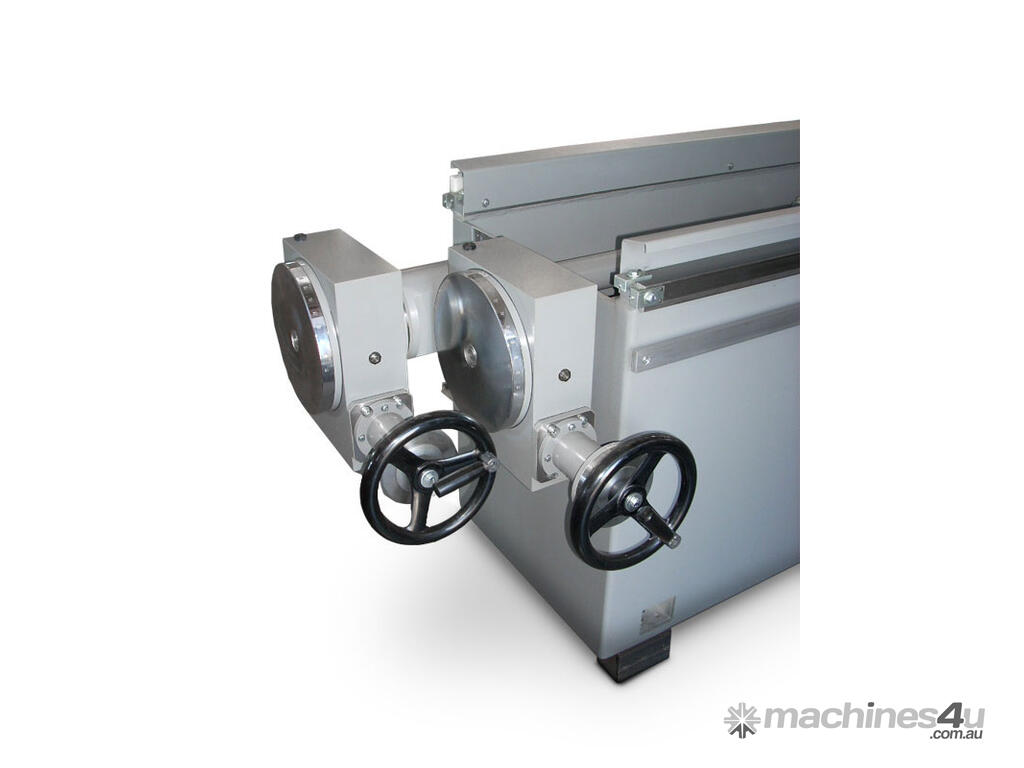

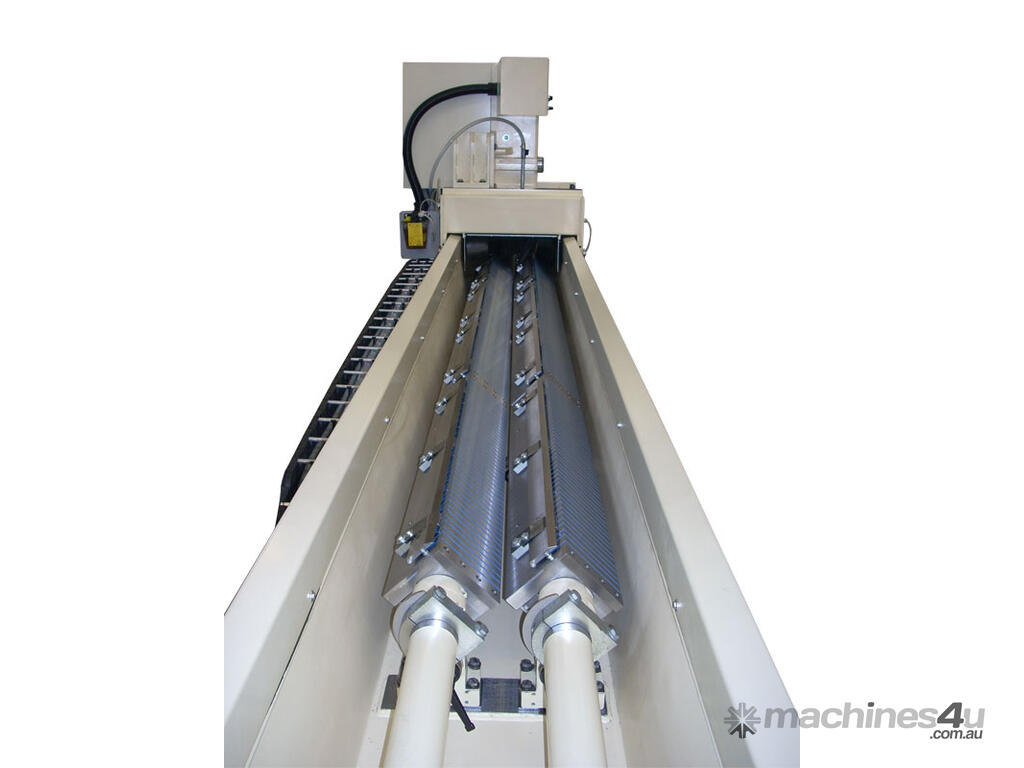

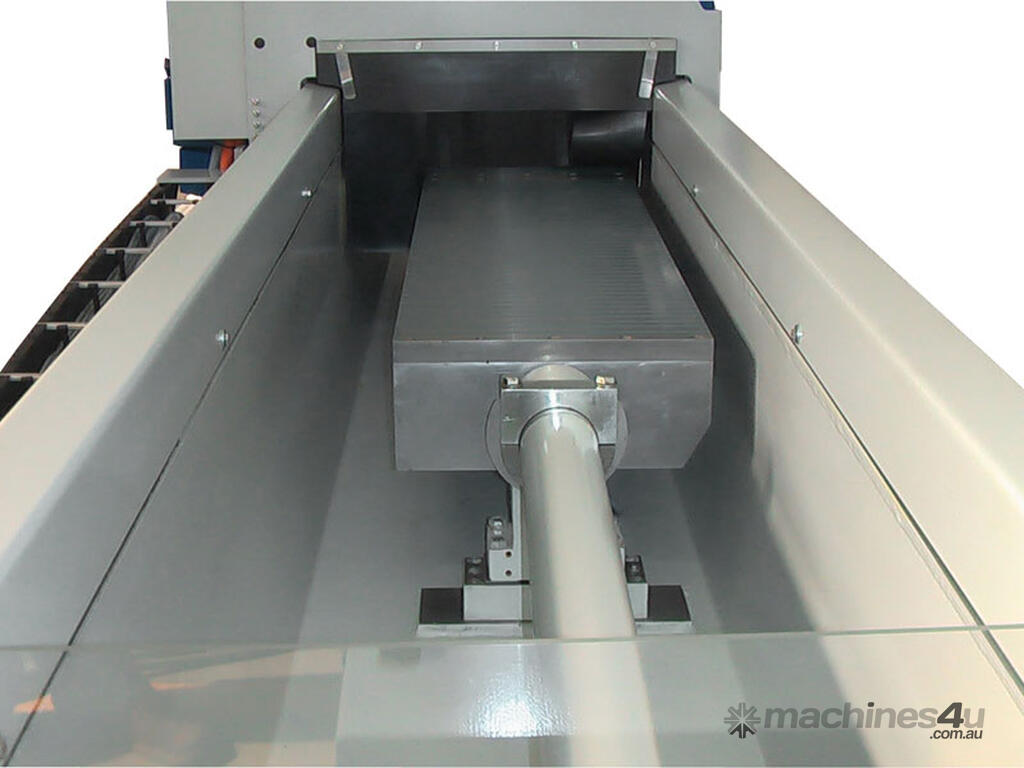

Rotating magnetic chuck from -90° to+90° (width 150 mm);

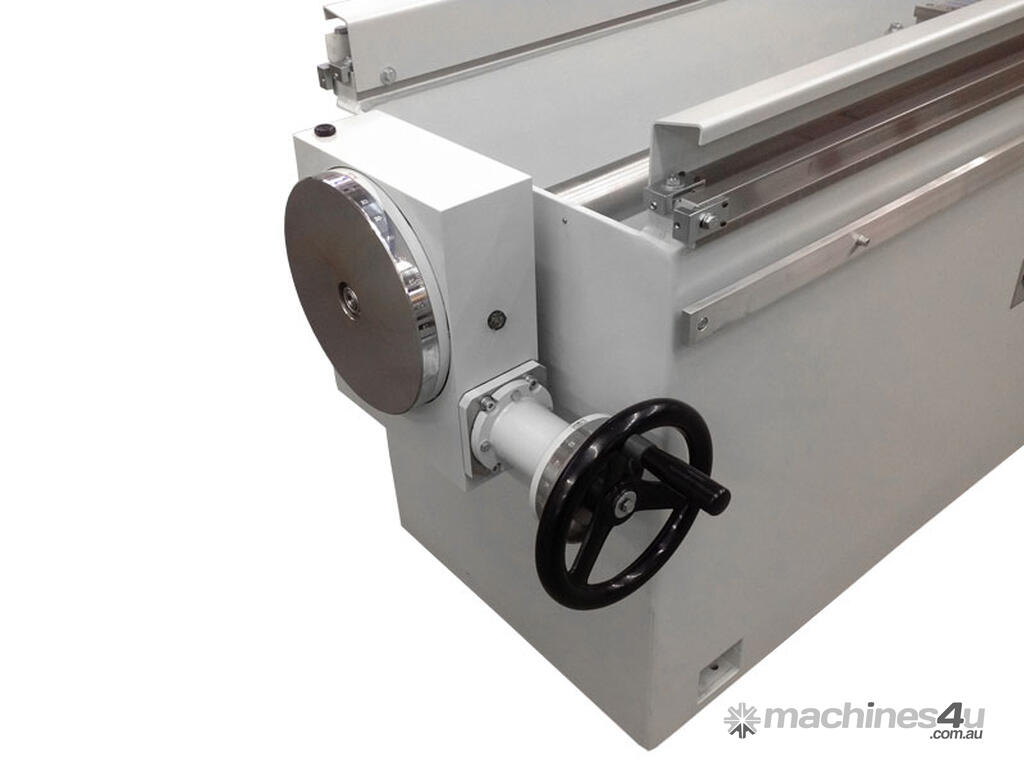

Angular divisor for magnetic chuck;

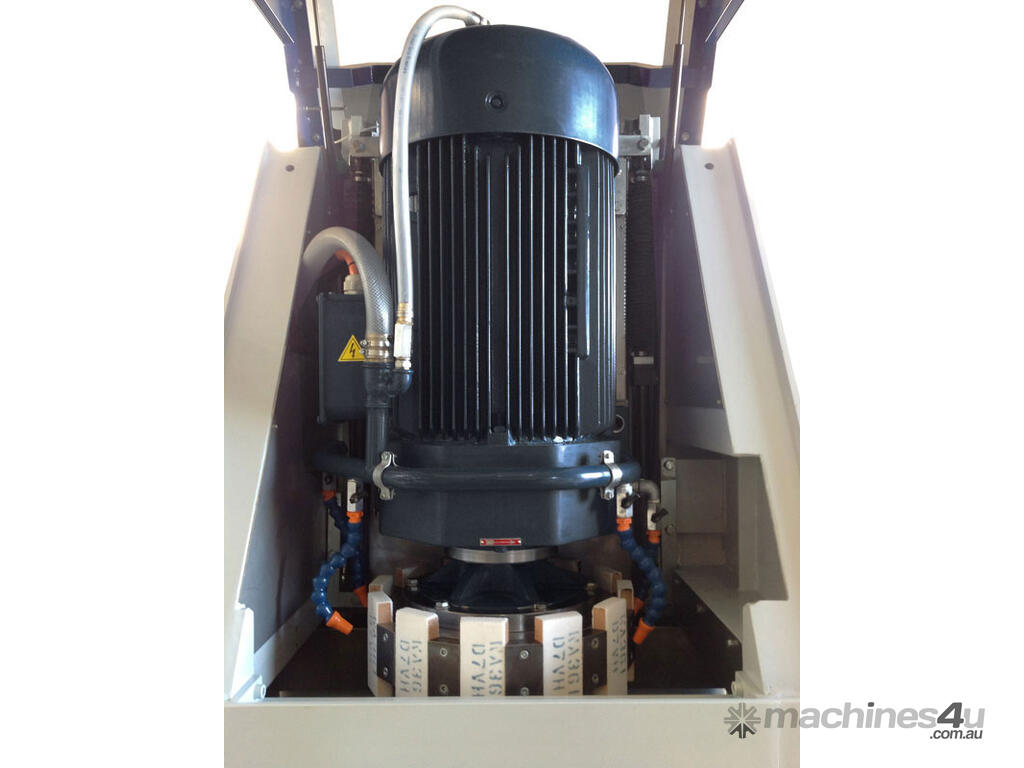

Grinding motor 15 kW (20 HP);

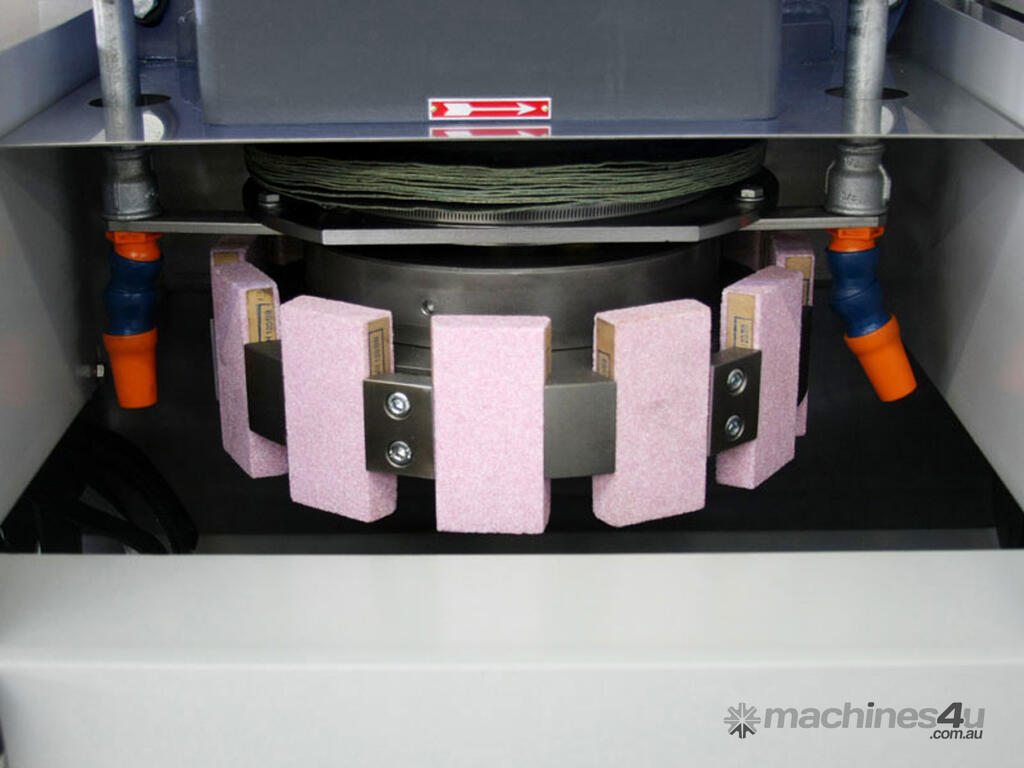

Segment holding ring Ø200 mm;
Quick change of the grinding wheel;

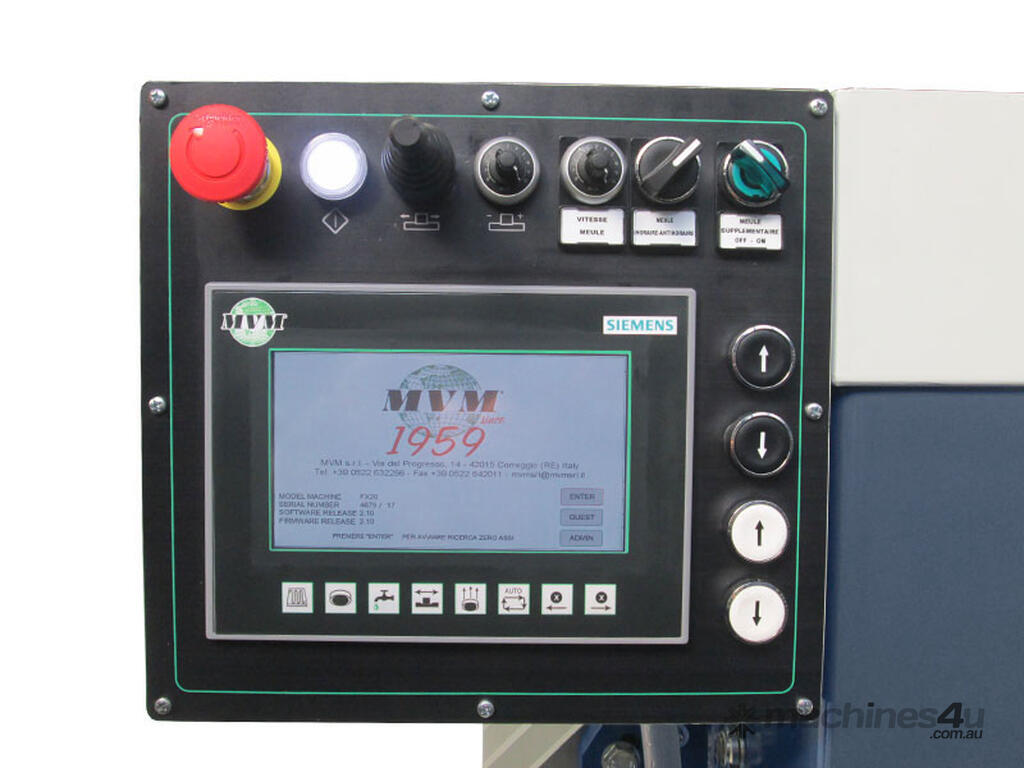

PLC Siemens SIMATIC S7-1200;
Variable carriage speed from 1 to 30 m/min with carriage run adjustment controlled electronically by PLC;

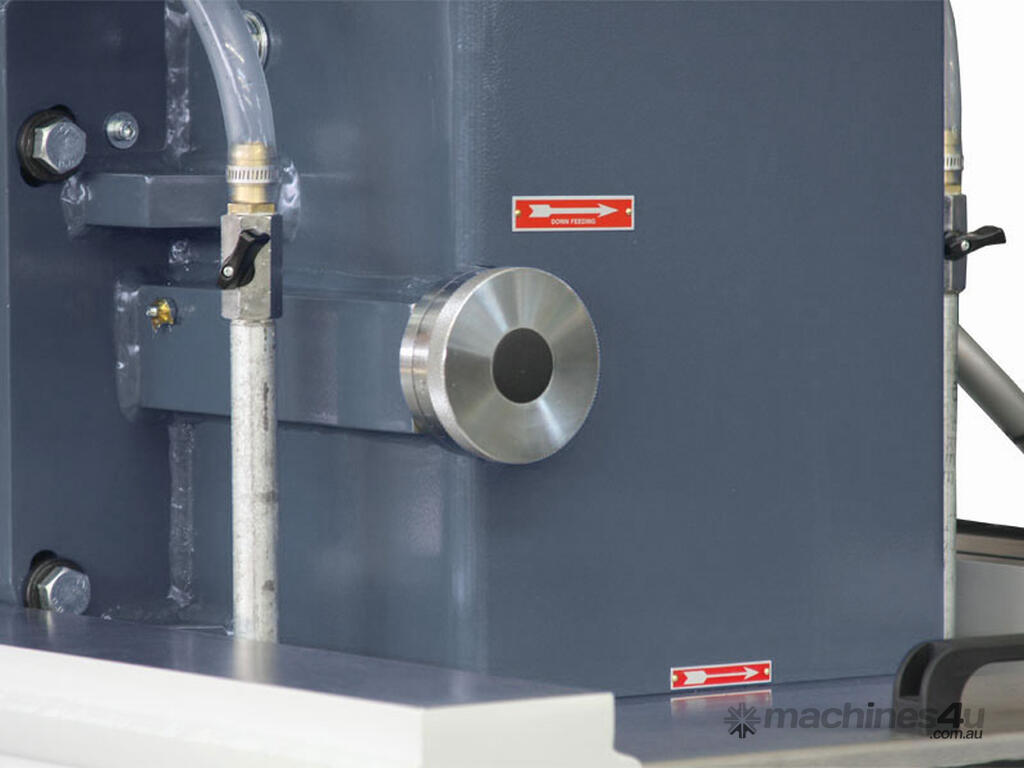

Automatic grinding wheel downfeed and fully programmable working cycle by means of a digital programmer (PLC);
Grinding wheel quick up and down approach, and slow down approach;

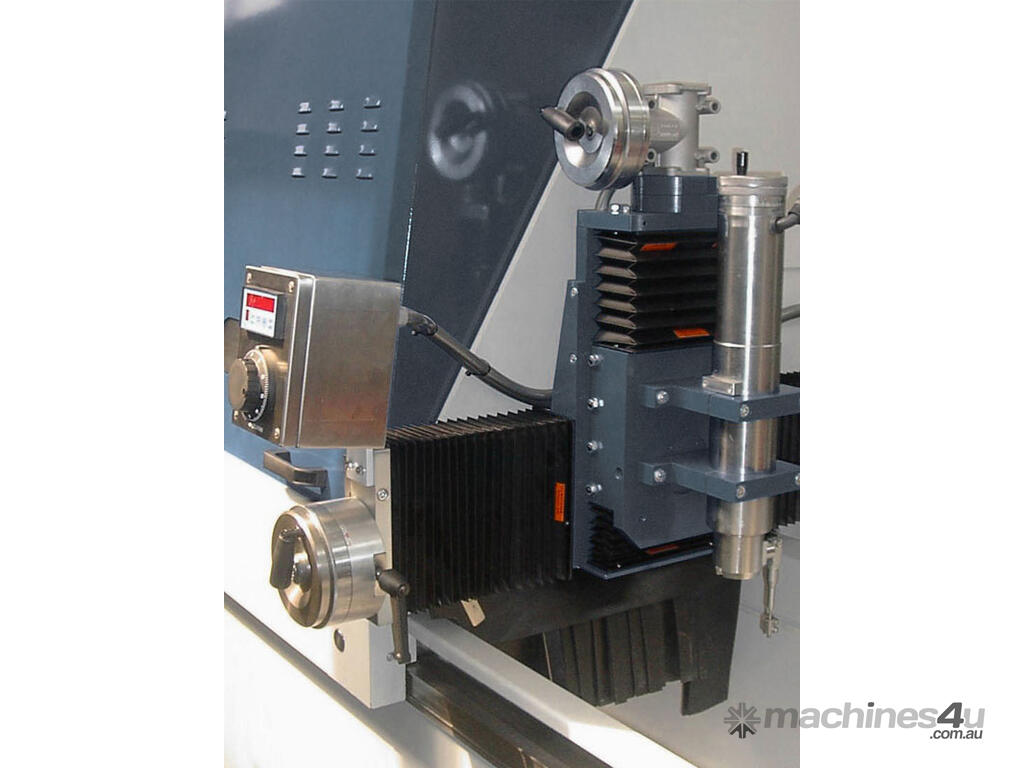

Transversal head translation for a perfect aligning of the grinding wheels in relation to the work piece;
Separate coolant collection tank fitted with 140 l/min. motor pump.


Optional

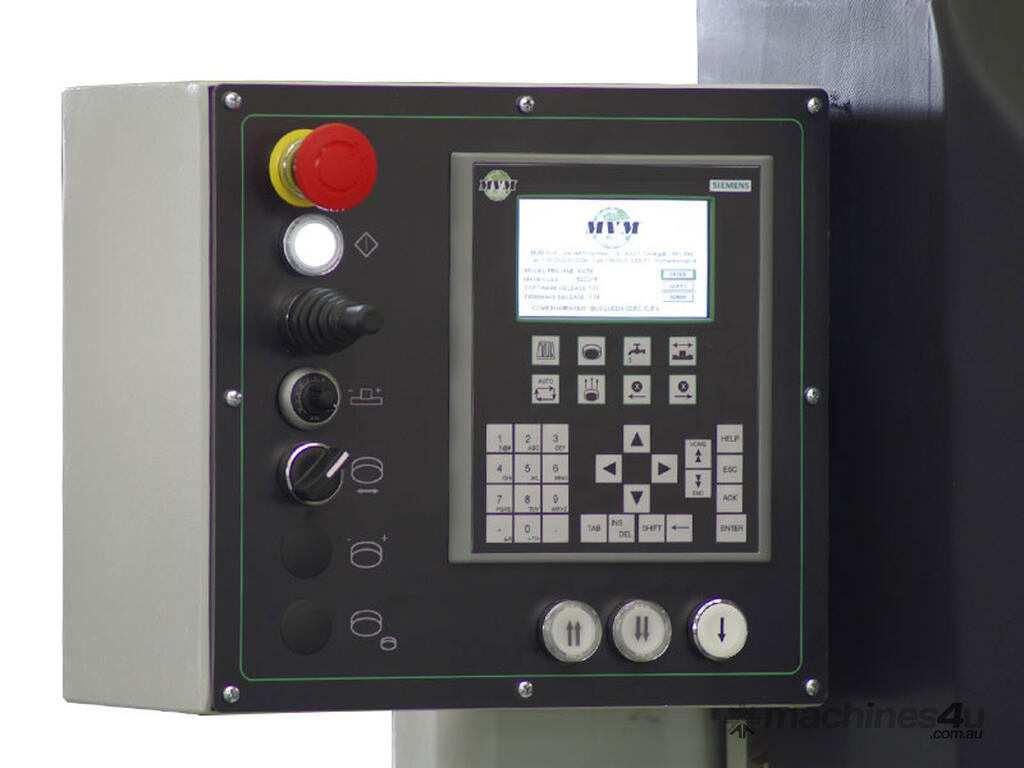

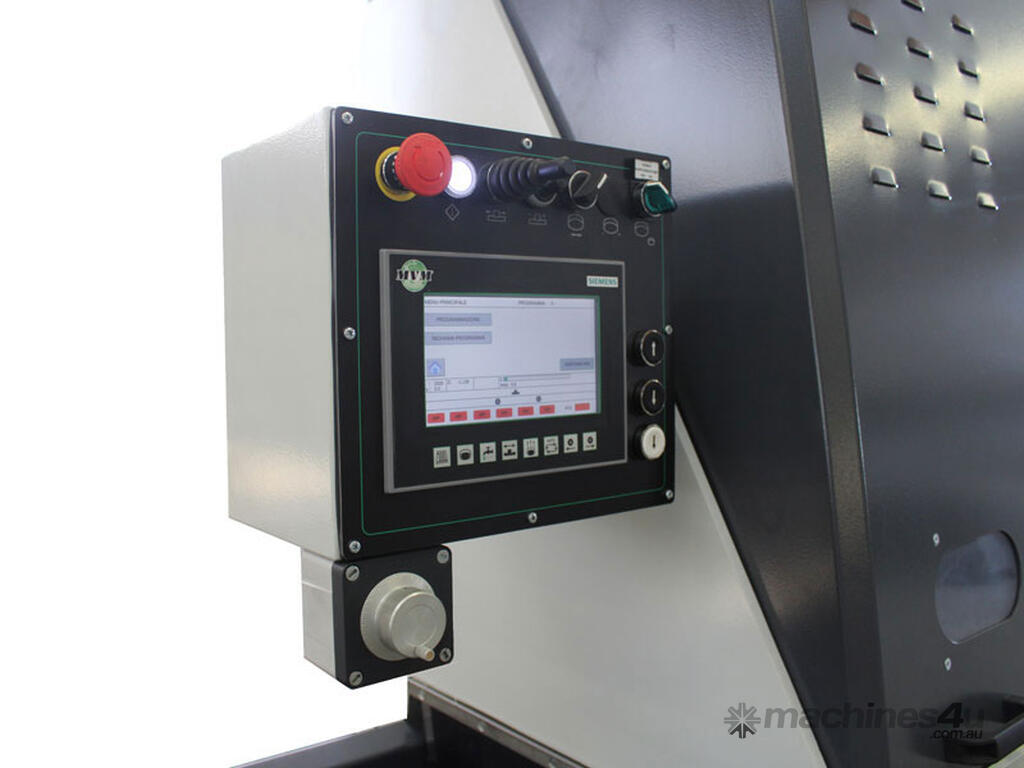

PLC Siemens Touch Screen
Thin polarity chuck 12/14 mm;
Magnetic chuck 200 - 250 - 300 mm width;
Segment holding ring diam. 250 – 300 - 350 mm;
Grinding motor 22 kW (30 HP);
Variable grinding wheel speed;
Slow carriage speed 0,3 mt/min;

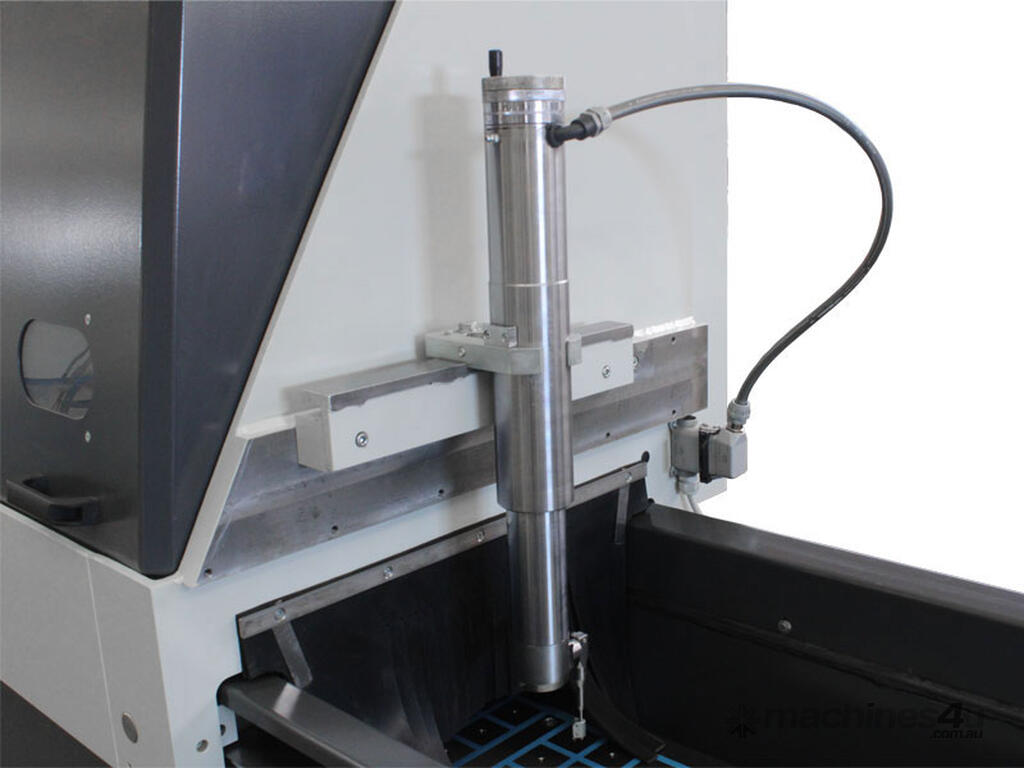

RTS Level detector – wheel wear compensation system;

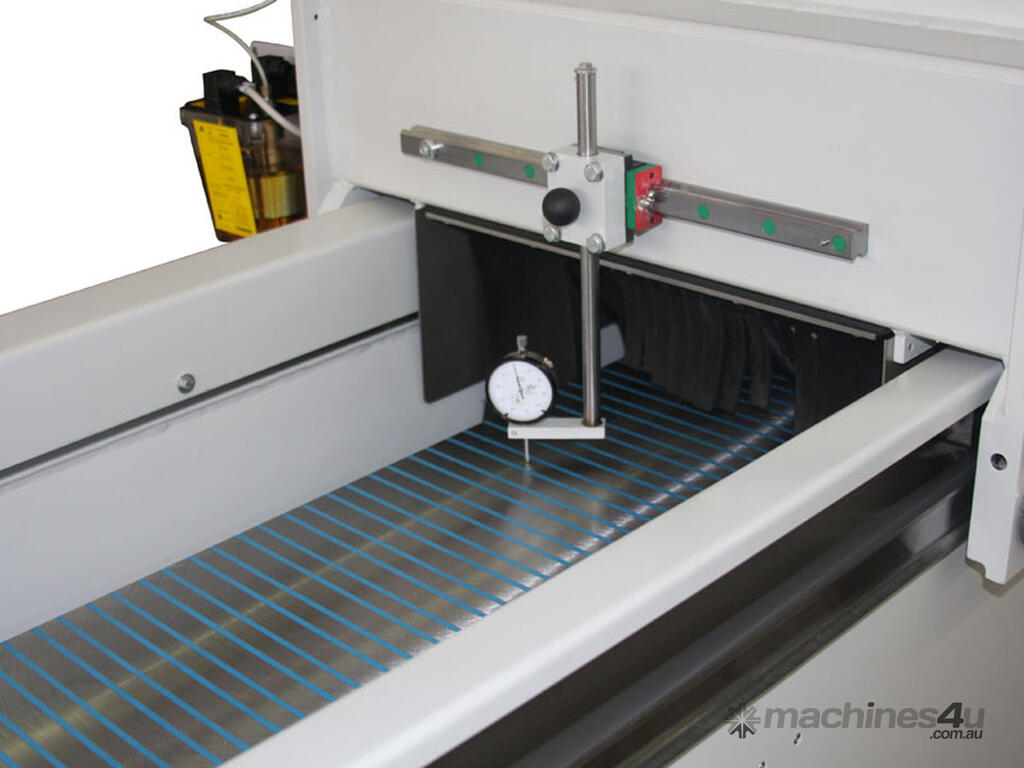

Automatic lubrication;

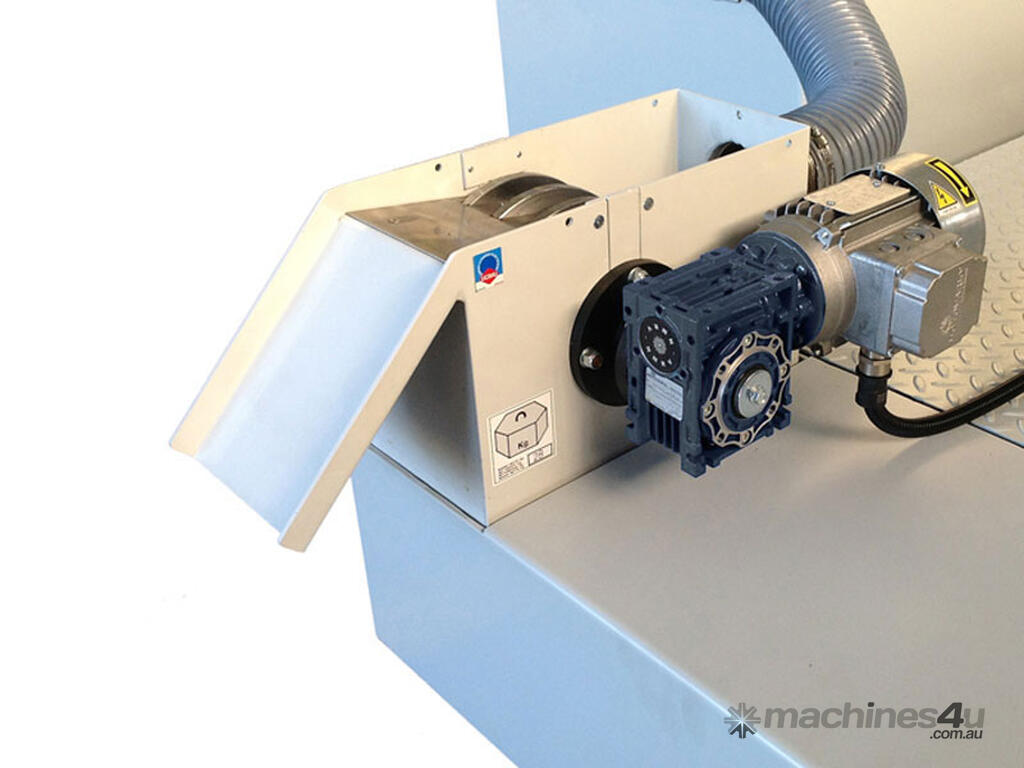

Magnetic coolant cleaner with rotating discs;
Coolant cleaner with paper filter automatic or manual;
Additional super-finishing grinding head;
Additional grinding head 3,7 kW (5 HP) automatic or manual;

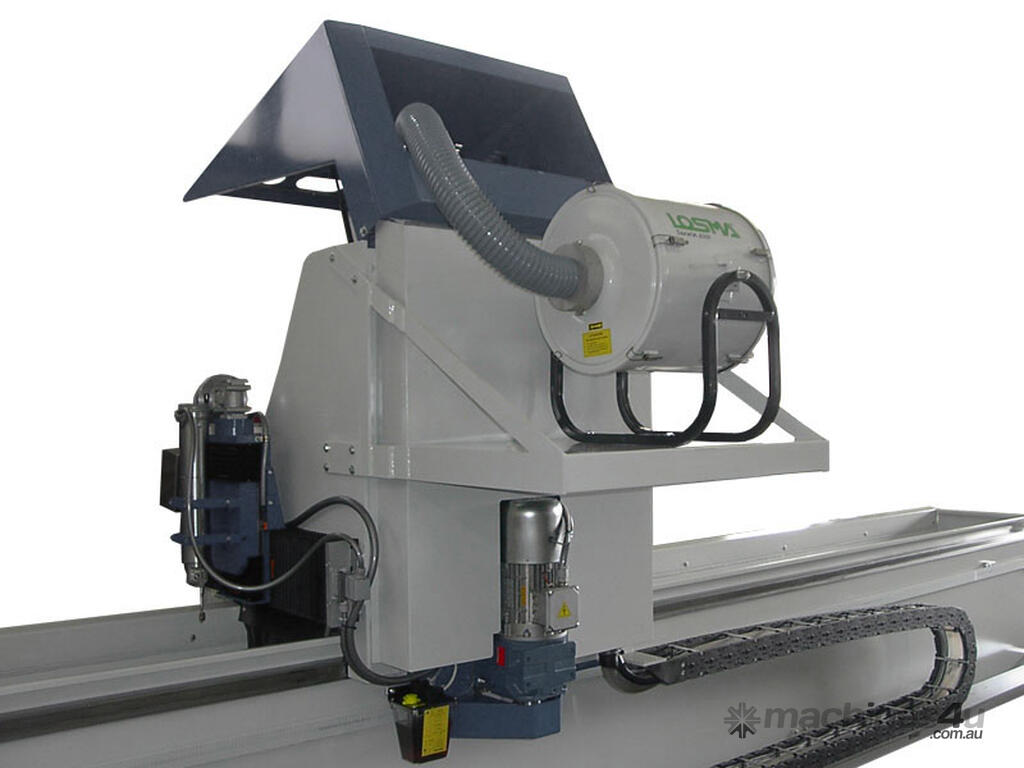

Extraction system.

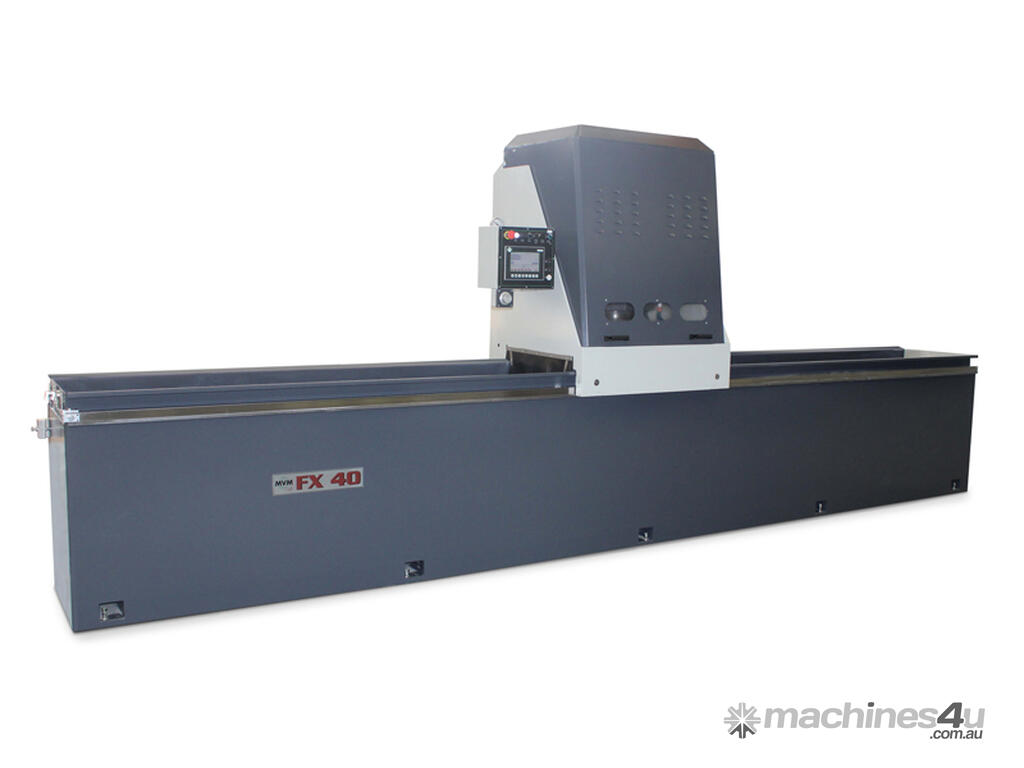

MVM FX40:

The FX40 model grinding machine builds on the structure of the FX20 and is available with grinding lengths ranging from 1500 mm to 7100 mm, and longer for special grinding applications.

The FX40 has a high powered grinding wheel motor, this grinding machine is recommended for major knife and blade manufacturers or companies needing to surface grind large work-pieces.

Technical features
Rotating magnetic chuck from -90° to +90° (width 200 mm);
Angular divisor for magnetic chuck;
Grinding motor 30 kW (40 HP);
Segment holding ring Ø350 mm;
Digital programmer PLC SIMATIC S7-1200;
Automatic lubrication;
Variable carriage speed from 1 to 30 m/min with carriage run adjustment controlled electronically by PLC;
Automatic grinding wheel downfeed and fully programmable working cycle by means of a digital programmer (PLC);
Grinding wheel quick up and down approach, and slow down approach;
Transversal head translation for a perfect aligning of the grinding wheels in relation to the work piece;
Separate coolant collection tank fitted with 180 l/min. motor pump.

Optional
PLC Siemens Touch Screen
Magnetic chuck with high power polarity;
Rotating magnetic chuck 250 - 300 – 350 mm width;
Segments holding ring Ø 400 – Ø450 mm;
Grinding motor 45 kW (60 HP);
Variable grinding wheel speed;
Slow carriage speed 0,3 mt/min;
RTS Level detector – wheel wear compensation system;
Magnetic coolant cleaner with rotating discs;
Coolant cleaner with paper filter automatic or manual;
Additional grinding head 3,7 kW (5 HP) automatic or manual;
Extraction system.
