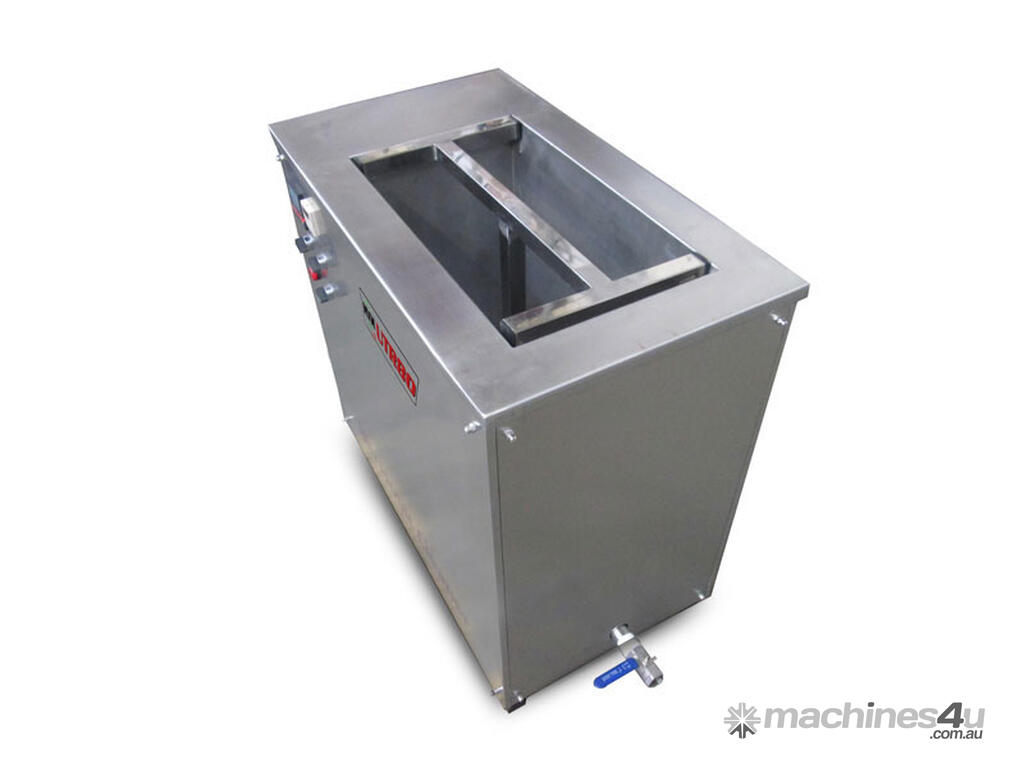

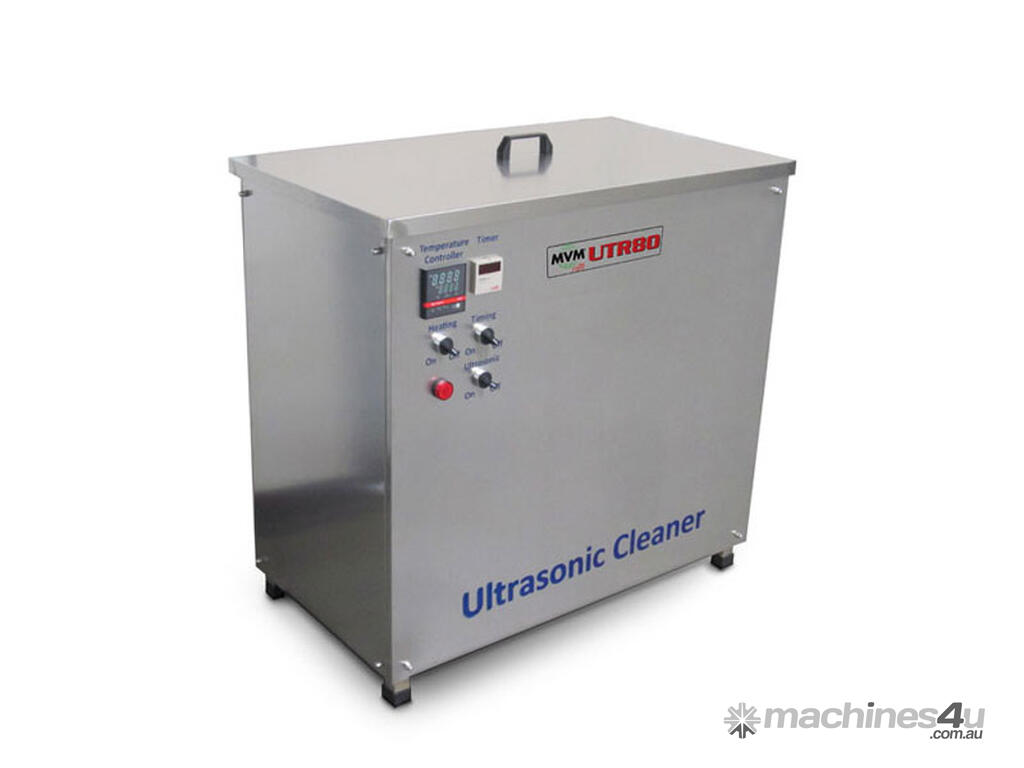

TUCKWELL - MVM UTR80 - Ultrasonic Washing Machine

UTR80
Ultrasonic washing machine
The ultrasonic washer, combined with the chemical action of the detergent and the thermal action of the liquid temperature, is the most effective technological system to obtain a perfect cleaning of the surfaces of cutting tools, removing in a few minutes both organic contaminants (greases , oils, resins) and inorganic contaminants (machining residues, metal salts).

The degreasing and cleaning action of the detergent supported by the water temperature weakens any residue attached to the surface, while the molecular agitation of the water produced by the ultrasonic cavitation attacks and removes completely the residue of any nature.

Technical features
Useful capacity 80 liters

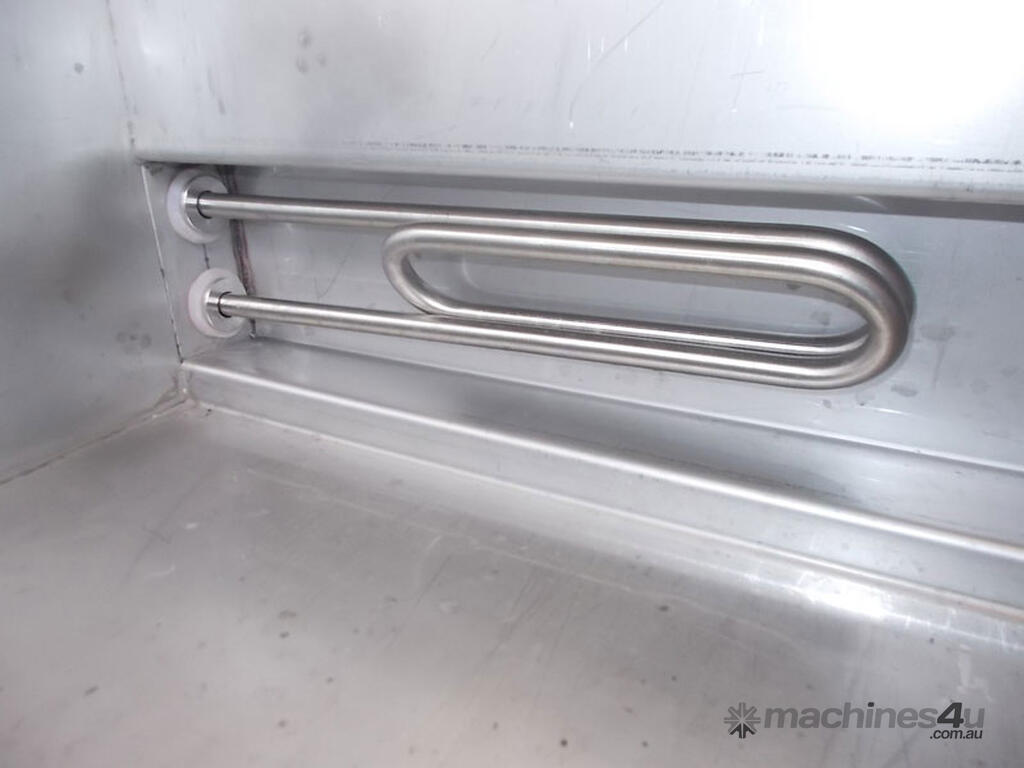

Thermal power 3 kW
Ultrasound power 2,8 kW
Ultrasound frequency 28 kHz

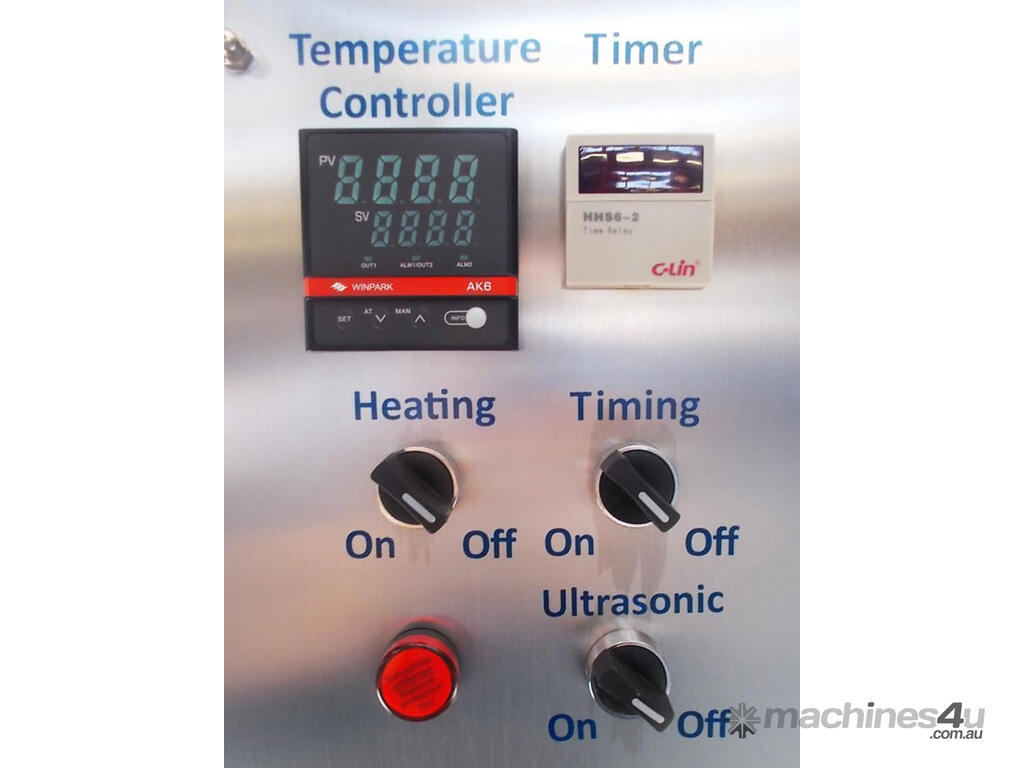

Timer 0-999 min
Temperature 0°-80°C
Max diameter 500 mm
External dimensions 850x500x850 mm
Washing machine interior dimensions 550x300x550 mm
