The Masterwood TF 600 KT is a real working centre. Compact in size and super performing in terms of speed and precision, TF 600 KT is proposed as the best choice for those who need to combine maximum flexibility without sacrificing productivity.
The upper milling spindle, due to its increased power, has the ability to work with various tools and perform different operations: milling under the LAMELLO, side milling and grooving.

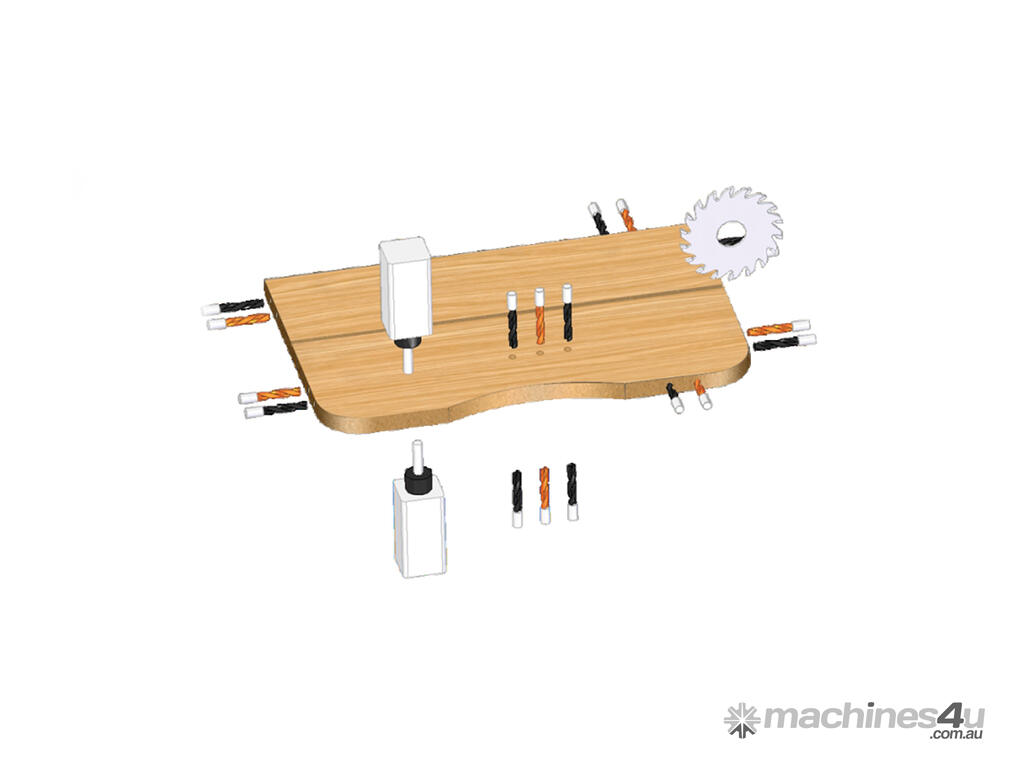

Complete Processing: Complete processing on the 6 sides of panel thanks to the upper boring head equipped with a rotating unit & integrated saw unit plus the lower head with an integrated routing unit.

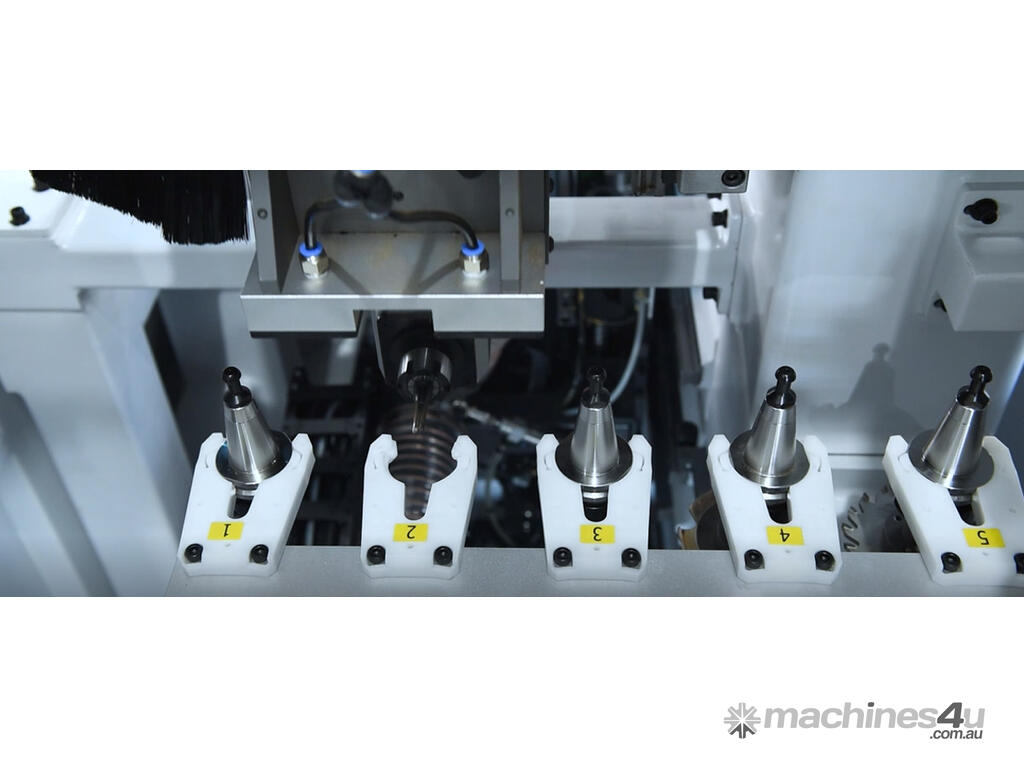

5 Positions Automatic Tool Changer: The upper milling spindle is equipped with a 5 position linear tool changer, which saves time when switching tooling for different processes

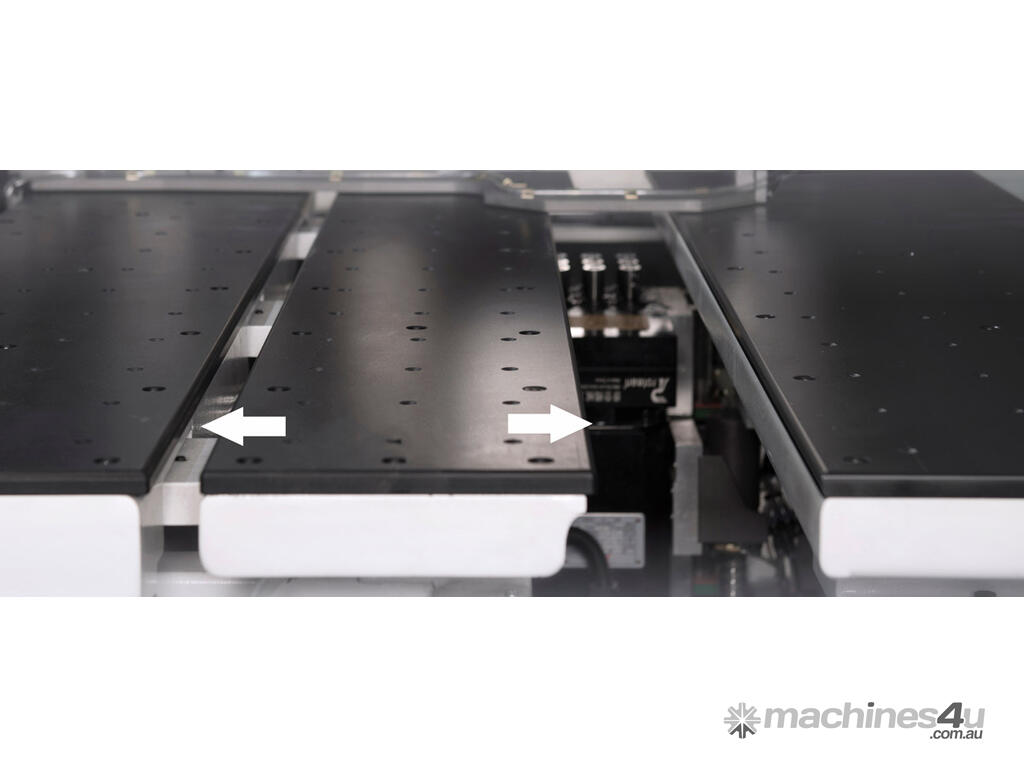

Mobile Working Tables: The front air tables can easily be positioned left or right to support your panels in the best way.

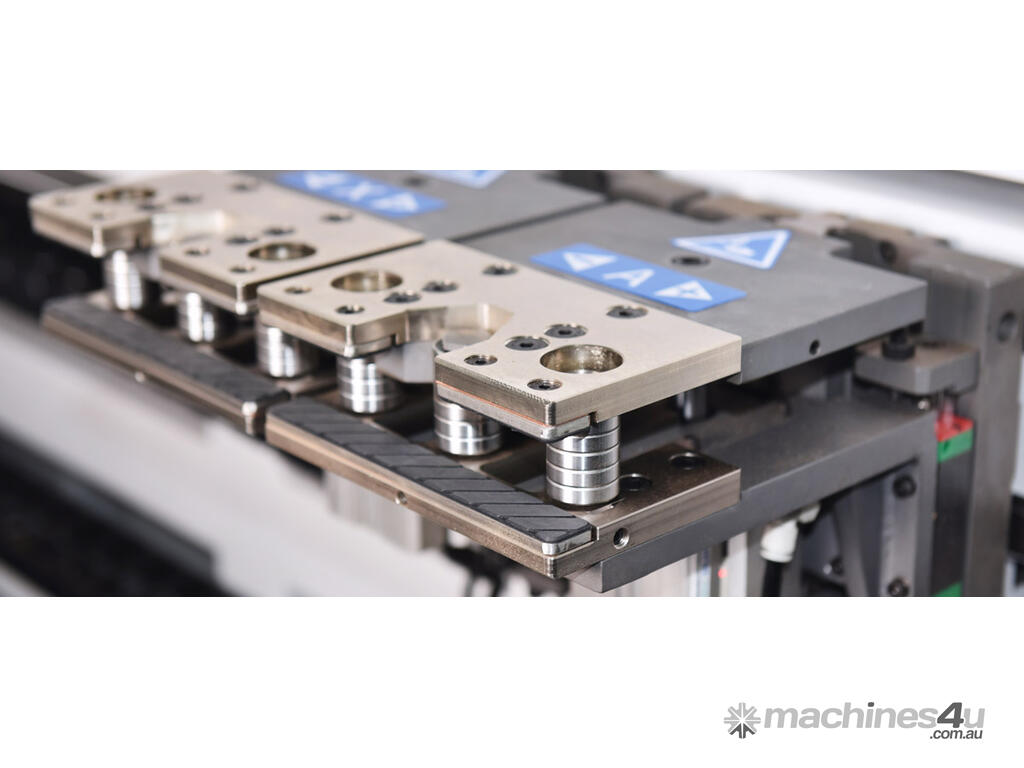

High Speed: Two independent grippers are equipped for handling your panels fast and efficiently.
Technical Specs:
Min. Panel dimensions (X-Y-Z): 70mm - 35mm - 9mm
Max. Panel dimensions (Y-Z): 1,000mm - 60mm
Upper Boring head spindles: 12 Verticals, 8 Horizontals
Lower Boring head spindles: 9 Verticals
Upper Electrospinde: 5.5KW (ISO30)
Lower Electrospinde: 3.5KW
Automatic tool changer positions: 5
