TUCKWELL - Stromab CT800 Cross Cutting Saw For Large Beams, 5 AXIS

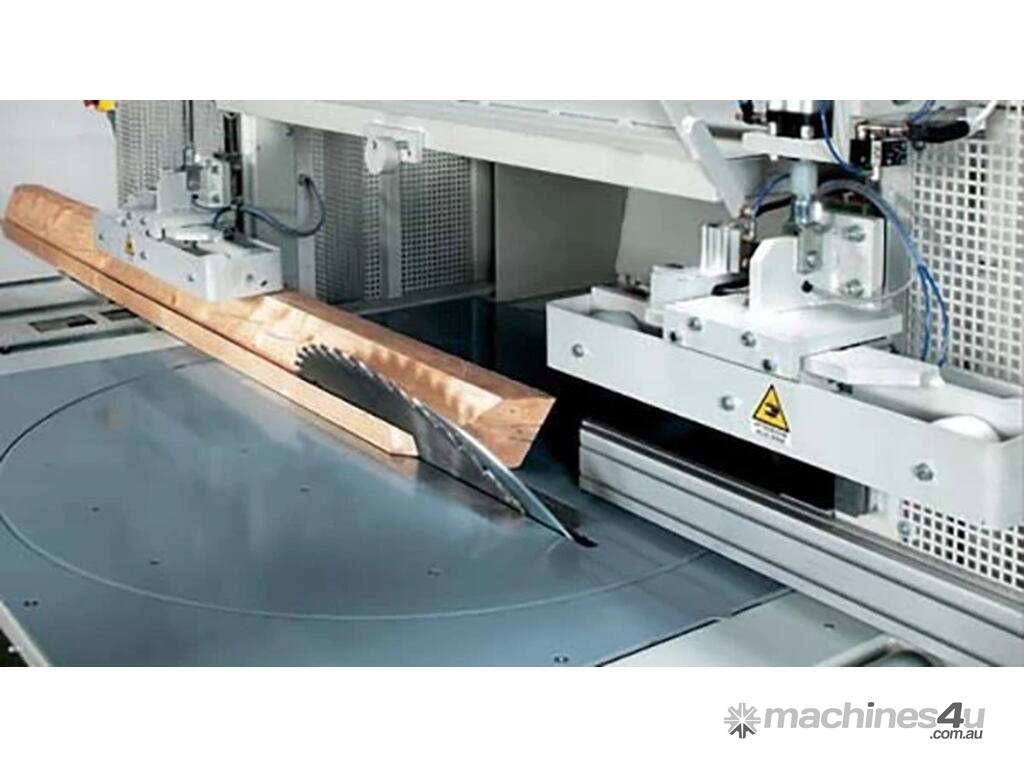

A completely automatic upstroke crosscut saw for the cutting of straight and angled components. Suitable for ripping and angled ripping Glulam and other large section beams as well SIP panels

1m outfeed table

Touch screen controller

Remote programming of cutting list - connection via USB key

20hp motor

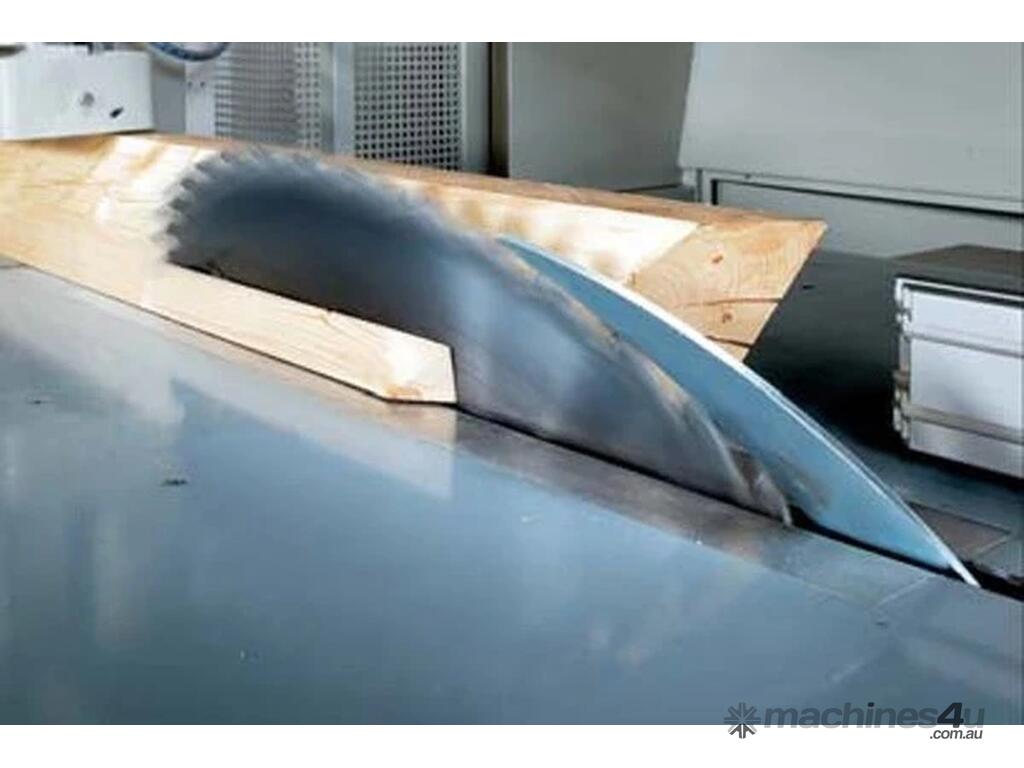

800mm diameter blade

Cutting capacity - straight - single stroke - 280 x 450mm / 250 x 390 / 200 x 450 (max panel height 300mm)

Cutting capacity - straight - combined stroke - 280 x 770mm / 250 x 840

Cutting capacity - 45 degrees - single stroke - 200 x 210mm

Cutting capacity - 45 degrees - combined stroke - 200 x 760mm

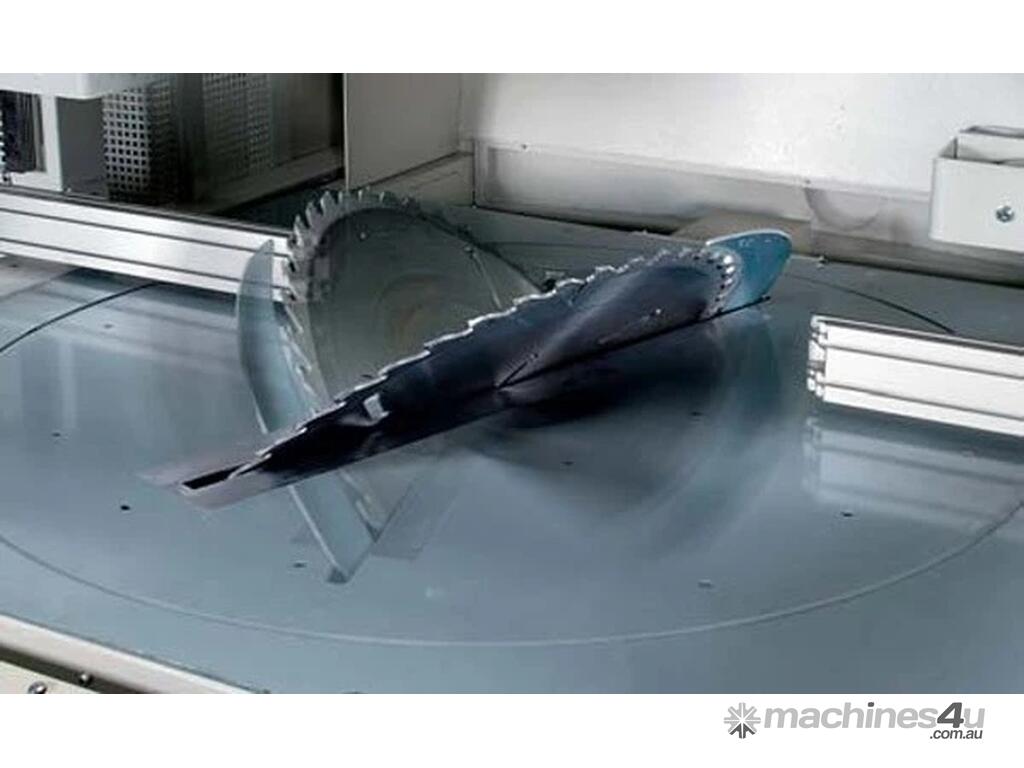

Blade rotation 0 - 340 degrees (max panel height 290mm)

Blade inclination 90-45 degrees (max panel height 200mm)

Forward movement of saw carriage 600mm

Blade height CNC controlled

Vertical clamping

Horizontal clamping

Dust extraction 2 off 100mm, 1 off 160mm.

5 Axes controlled by the programmer:

Axis of rotation of working bed, from 0° to 340°
Axis of tilt of blade, from 90° to 45°
Axis of ascent of blade during trimming, up to 300 mm
Workpiece axis of travel crosswise
Blade unit axis of travel with respect to the guide

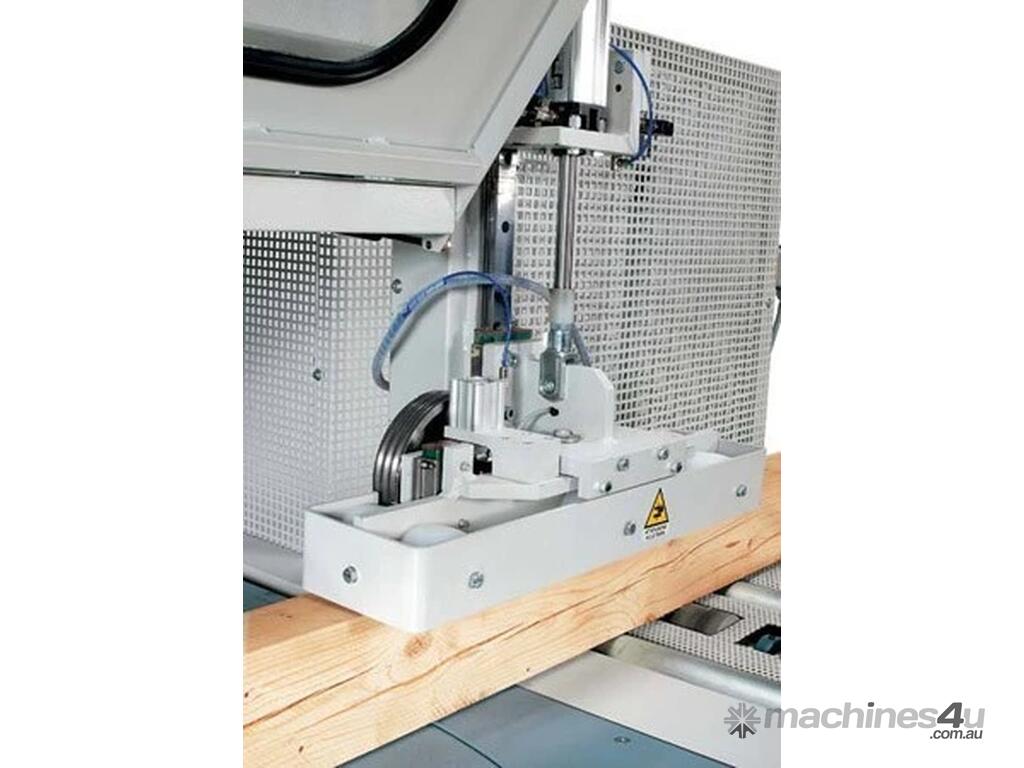

Workpiece travel system using rubberised and motorised wheels and upper pressure bars with pneumatic tilting.

STANDARD EQUIPMENT: 15” touch-screen” controller “, USB port, Ethernet port, WINDOWS operating software, Capable of storing up to 10000 cutting lists, Widia blade, Photocell to automatically measure workpieces, Dual pneumatic cylinders for optimized management of cutting.

OPTIONAL EQUIPMENT: 2-metre and 5.5-metre roller tables, Widia blade, System for moving and measuring beams without squared edges (with bevelled corners along the entire length).
