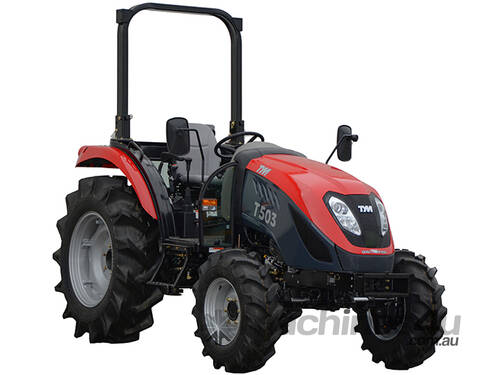

TYM T503 Manual Utility Tractor

Powered by 50hp Perkins naturally aspirated 4 cylinder water-cooled Diesel engine

Perkins Diesel is a global engine manufacturer of quality, giving you the confidence in relaibility and after-sales support

Engine certified to meet the stringent Tier III engine and noise emission standards

2216cc engine with 142.7Nm of torque at 1800rpm

A generous engine capacity of 2216cc, resulting in high torque for serious work

Dual dry element air cleaner for Australia's dusty conditions
A large capacity 60 litre fuel tank for many working hours between refueling

DRIVELINE
The tractor weight of 1710kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

Sychro Shuttle with lever on left side under the steering wheel ideal for front end loader operation

16 transmission speeds available between 0.6-30 KM/H

4 speed main gear lever

4 ranges with creeper reduction speeds

The heavy duty front axle performs in tough working conditions and handles loads with ease

A long wheel base and wide stance increases stability in all conditions

Rear axle with diff-lock for difficult traction situations
4WD and the diff -lock provides better traction, control and performance

4WD mode is controlled by a lever on the left hand side of the operator

Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE
Control for the linkage and hydraulic remotes are on the right-hand side

The 3-point linkage has postition and draft control

Draft control automatically lifts the ground engaging implement from the soil, when excessive load is experienced

Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements

2 sets of double-acting hydraulic remotes

Category 1 3-point linkage with 1503kg lifting capacity gives the tractor great versatility and range of applications

Telescopic extendable lower link arms for easy implement connections

The PTO driveline is a simple and direct design for high efficiency and power

The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically reengages when lowered; a great functin that simplifies repeated row work and prevents implement damage

COCKPIT
Ergonomic design with easy to reach controls
Easy to read instrument panel
Titlable steering wheel
Combination switch controls lights and indicators
Digital hour metre display
PTO On/Off Switch

Tiltable steering wheel
T503 Joystick
Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)

Wide distance between rear mudguard and dash panel provides easy access on and off the tractor

Uncluttered flat floor without trip hazards is the largest surface area in its class

Rubber floor mat reduces noise and provides an easy to maintain surface

Adjustable suspension seat for comfort

FRONT END LOADER
Level lift front-end loader ideal for materials handling and utility work around the farm
Full details & specifications on the optional front end loader

TYRES
TYM T503 Rear Tyre
Choice of agricultural, industrial or turf tyres

SPECIFICATIONS
T503 Manual
Engine Type Perkins
Number of Cylinders 4
Engine Power (hp/kW) 50 / 37
Engine Torque (Nm) 142.7
Transmission Type Manual
Number of Transmission Speeds 16
Forward / Reverse Shuttle Transmission Tick
Number Speed Ranges 4
Maximum Speed (km/h) 31.7
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1503
Number of Hydraulic Remotes 2 sets
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1710
