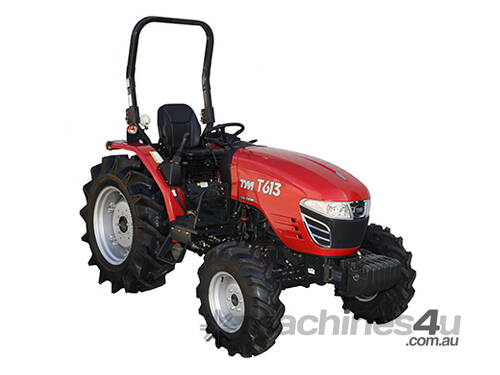

TYM T613 HST Utility Tractor

Powered by 60hp TYM 4 cylinder Diesel engine
Quiet running engine certified to meet the stringent Tier III engine and noise emission standards

2286cc engine, resulting in high torque for serious work
Dual dry element air cleaner for Australia's dusty conditions

50 litre fuel tank capacity will provide for many working hours
Easy access from ground level

DRIVELINE
The tractor weight of 1,742kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

Three (3) range Hydrostatic transmission gives infinitely variable driving speed from stationary to 33 km/h in forward or reverse direction

Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation

The new Auto Throttle feature links the HST pedals to the engine throttle to synchronise the tractor’s speed and engine RPM. This simplifies operation and increase productivity

Ergonomic side by side foot control reduces fatigue and errors

The heavy duty front axle performs in tough working conditions and handles loads with ease

Rear axle with diff-lock for difficult traction situations
4WD and the diff-lock provides better traction, control and performance

4WD mode is controlled by a lever on the left hand side of the operator

Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

PTO, HYDRAULICS & LINKAGE
Control for the linkage and hydraulic remotes are on the right-hand side

Adjustable linkage lift speed

3-point linkage with quick attach lower link arms
Linkage arms with simple pin adjustable sway position
3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications

2 sets of double-acting hydraulic remotes
The PTO driveline is a simple and direct design for high efficiency and power

The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

Adjustable rear wheels to widen track width for steep conditions to improve stability

OPERATOR AREA

Easy access with grab handles
Uncluttered flat floor without trip hazards
Rubber floor mat reduces noise and provides an easy to maintain surface

Ergonomic design with easy to reach controls
Easy to read instrument panel

Combination switch controls lights and indicators
Digital hour metre display

Tiltable steering wheel

Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)

Adjustable suspension seat for comfort

Rear working light

2 post folding ROPS protection

MAINTENANCE
Easy access to all maintenance areas including battery
Pop-up 1 piece bonnet

Radiator with screen to prevent clogging

OPTIONS
FRONT END LOADER

Level lift front-end loader ideal for materials handling and utility work around the farm

Quick detach Euro hitch & loader parking stands

TYRES
Choice of agricultural or industrial tyres

SPECIFICATIONS
T613 4WD HST
Engine Type TYM
Number of Cylinders 4
Engine Power (hp/kW) 60/44.1
Engine Torque (Nm)
Transmission Type HST
Number of Transmission Ranges 3
Maximum Speed (km/h) 33
PTO Speed (rpm) 540/540E
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1500
Number of Hydraulic Remotes 2 sets
2 Post folding ROPS Tick
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1,742
