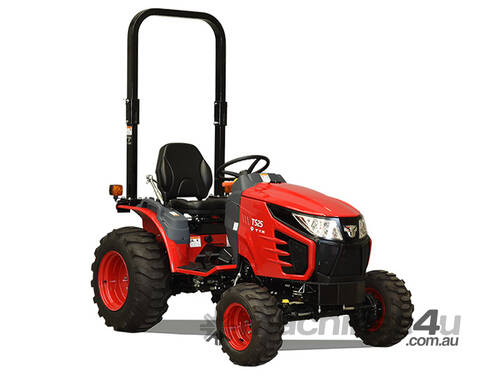

TYM TS25 Compact Tractor

Powered by 24.3hp Tier 4 Yanmar 3 cylinder water-cooled diesel engine for optimum performance

Yanmar is a global engine manufacturer of quality, made in Japan, giving you the confidence in reliability and after-sales support
Engine certified to meet the stringent Tier 4 engine and noise emission standards

A generous engine capacity of 1116cc, resulting in over 60Nm torque for serious work

Cruise control maintains power and speed when mowing large open areas

DRIVELINE
TYM TS25 Tractor Cruise Control Lever
The tractor weight of 755kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

The high efficiency hydrostatic transmission gives infinitely variable drive speed in the forward and reverse direction

The hydrostatic drive controlled by independent forward and reverse pedals for easy simple operation

Hydrostatic power steering lightens steering, which is especially important with front end loaders

Easy lever setting of cruise control for tireless driving when mowing large areas

TYM T265 Auto Throttle
Auto throttle feature links the HST pedals to the engine throttle to synchronise the tractor's speed and engine RPM. This simplifies operation, helps increase productivity and reduces fuel consumption.

TYM TS25 Tractor
Industrial front and rear tyres are forgiving on lawn areas yet still maintain traction where required and are ideal for front-end loader applications

20x8-10 front tyres with 5 axle studs for greater strength

27x12.50 rear tyres with 6 axle studs for greater strength

TYM TS25 Front Axel
The heavy duty front axle performs in tough working conditions and handles loads with ease

A long wheel base and wide stance increases stability in all conditions

TYM TS25 4wdDiffLock

4WD and the diff-lock provides better traction, control and performance

4WD mode is controlled by a lever on the left hand side of the operator

Quick response and durable wet disc brake
Ergonomically designed foot brake located on LHS of the floor
PTO,

HYDRAULICS AND LINKAGE
TYM TS25 PTO Function
Easy selection of mid/rear PTO which can be operated either independently or simultaneously
Fully independent rear PTO(540rpm) & mid PTO(2000rpm) activated by electro-hydraulic clutch
PTO engagement is easily operated by push button control on the dash

The rear linkage is category 1 with a large lift capacity of 600kg (at ball ends)

Flat tow bar for towing of trailers

TYM TS25 Tractor PTO

The PTO drive is a simple and direct design for high efficiency and power

The PTO clutch is an independent oil immersed clutch pack for long life and simple push button operation
TYM TS25 Tractor Auxiliary hydraulic valve
Hydraulic 3 point linkage lowering speed control

CONTROLS
TYM TS25 Tractor Controls
The ergonomic design has the controls within easy reach of the operator
The modern instrument panel is easy to read and displays all the essential information
TYM TS25 Linkage Lever
Right hand side controls:
3 point linkage lever
TYM TS25 RHS Controls

Left hand side controls
4WD
PTO
High-Low transmission range lever
LAYOUT
TYM TS25 Tractor Access
Clean uncluttered access provides generous room for access on and off the tractor
TYM TS25 Tractor folding rops

2 post folding ROPS for working under trees or low clearance areas
TYM TS25 Tractor Hood Open
Easy opening hood allows access for service checks and maintenance
TYM TS25 Tractor Air Cleaner

Large cannister type air cleaner for dusty Australian conditions
OPTIONS
FRONT END LOADER
Quick detach from tractor and quick detach bucket
Fast cycle times (Raise/Lower)
Inbuilt loader parking stands for safety when servicing
Counter ballast box aids stability when lifting heavy loads
Full width adjustable bump guard for tractor bonnet protection
Heavy duty 4 in 1 bucket (1240mm wide)
Single joystick delivers ergonomic operation of front end loader
Full details & specifications on the optional front end loader
BT25 Backhoe

BACKHOE (BY60)
Easy to remove
Swivelling operators seat
TS25 Mid Mount Mower
MID MOUNT MOWER (MM60R)
Side Discharge with rubber guide
Adjustable caster wheels
Powerful, clean cutting
Cutting height from 25-100mm
OTHER OPTIONS
TYM TS25 Auxiliary Hydraulic Valve

Hydraulic remote outlets for the operation of log splitters or TYM BY60 Backhoe

SPECIFICATIONS
TS25 HST
Engine Type (Model 3TNV76) Yanmar
Number of Cylinders/cc 1/1116
Engine Power (hp/kW) 24.3/17.9
Cruise control
Tick
Transmission Type Hydrostatic
Forward / Reverse side by side pedals HST
Auto Throttle Control
Tick
Number Speed Ranges 2
Maximum Speed (km/h) (Ind. Tyres) 14.1
PTO Speeds (rpm) 540
Mid PTO
Tick
Independent Push Button PTO engagement (Electro-Hydraulic)
Tick
3-point Linkage Lift Capacity (kg) 600
Number of Hydraulic Remotes Optional
Joystick Control for Front-end Loader Optional
Weight - Tractor Only (kg) 755
