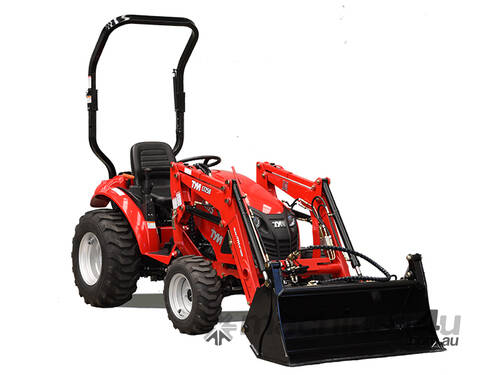

TYM Tractors T265 Front End Loader

Loader is a mechanical level lift design
The arms are made from tappered segments providing maximum strength with optimal pin weight
Pins are plated and greasable

The loader is quick-detach to the tractor via simple quick release pins

Integrated stand is provided for loader storage on hard surfaces

FEATURES
Bucket level indicator
Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

Grille guard protection frame

ATTACHMENT
Easy connection and disconnection of attachments from the loader via a single lever

T265 Front End Loader 4 in 1 Bucket
The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

CONTROLS
Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions
The integrated joystick allows unobstructed access from either side of the tractor

The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls

Joystick has a safety lock to prevent inadvertant operation

Specifications and design are subject to change without notice. These specifications are a general guide.

SPECIFICATIONS
T265 4-in-1 Loader
Loader model LT250SL
Tractor models T265 ROPS
A. Maximum lift height (mm) 2,245
B. Clearance with attachment level (mm) 2,073
C. Clearance with attachment dumped - 45 degrees (mm) 1,695
D. Reach at maximum height - 45 degrees (mm) 513
E. Maximum dump angle (degrees) 50
F. Reach with attachment on ground (mm) 1,407
G. Attachment rollback angle (degrees) 37
H. Digging depth below grade (mm) 100
J. Overall height in carry position (mm) 1,234
L. Depth of attachment - to back of inner shell (mm) 453
M. Height of attachment (mm) 640
N. Depth of attachment - to pivot pin (mm) 571
Lift capacity to full height of pivot pins (kg) 503
Breakout force at ground level, pivot pins (kg) 642
Rated operating load - (counter weight on 3PL) (kg) 300/200
