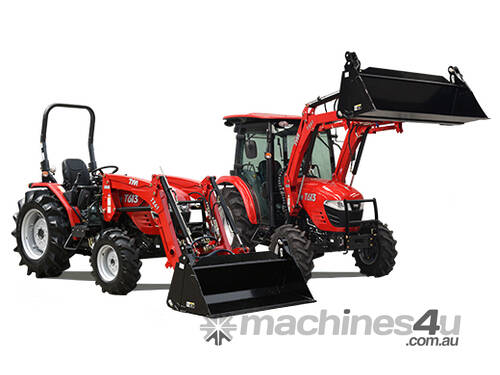

TYM Tractors T613 Front End Loader

Curved loader design for visability
Loader is a mechanical level lift
The arms are made from tappered segments providing maximum strength with optimal pin weight
Pins are plated and greasable

The loader is quick-detach to the tractor via simple pins
Integrated stand is provided for loader storage on hard surfaces

The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

FEATURES
Bucket level indicator
Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground
Grille guard protection frame

ATTACHMENT
Implement attached to the loader is via a Euro-Hitch style connection allowing easy attachment of other tools and implements to the loader
Easy connection and disconnection of attachment from the loader via a single lever

The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

CONTROLS
Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions

The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
Joystick has a safety lock to prevent inadvertant operation

SPECIFICATIONS
T613 4-in-1 Loader
Loader model TX61SL
Tractor models T613 ROPS, T613 CAB
A. Maximum lift height (mm) 2,743
B. Clearance with attachment level (mm) 2,525
C. Clearance with attachment dumped - 45 degrees (mm) 2,028
D. Reach at maximum height - 45 degrees (mm) 377
E. Maximum dump angle (degrees) 56
F. Reach with attachment on ground (mm) 1,748
G. Attachment rollback angle (degrees) 48
H. Digging depth below grade (mm) 76
J. Overall height in carry position (mm) 1,523
L. Depth of attachment - to back of inner shell (mm) 536
M. Height of attachment (mm) 520
N. Depth of attachment - to pivot pin (mm) 726
Lift capacity to full height of pivot pins (kg) 1,148
Breakout force at ground level, pivot pins (kg) 1,652
Rated operating load - counter weight on 3PL (kg) 600

Cab Model $60,990
