Taiwanese Big Bore Centre Lathes , Ø 1190/1385/1230mm Turning Capacity

Everturn Taiwan offer one of the most comprehensive range of Heavy Duty Turning Machines for virtually any and all applications, from Oil Field, to Heavy Industry, Energy, Steel Mills, and Jobbing Shops. With a range of spindle bores from 4" through to an increadible 21" and swing over the bed up to 2500mm. Now with a large number of reference sites here in Australia Whitelaw Engineering Machinery can arrange a demonstration at your conveinience. Call Dimitri for more details.

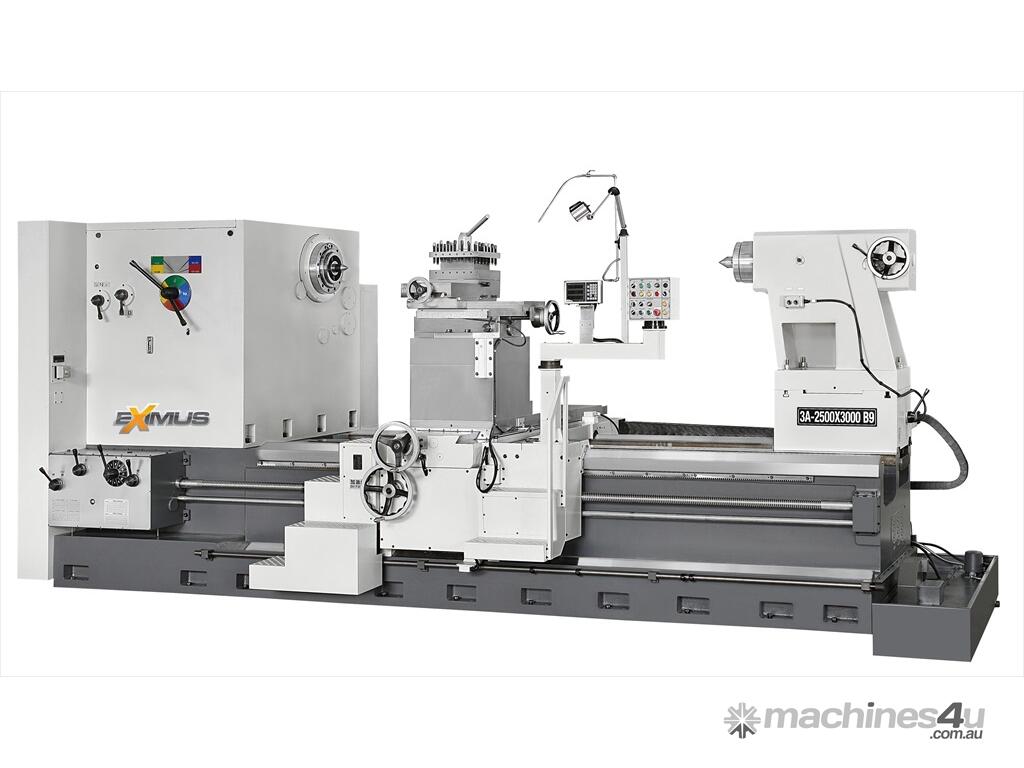

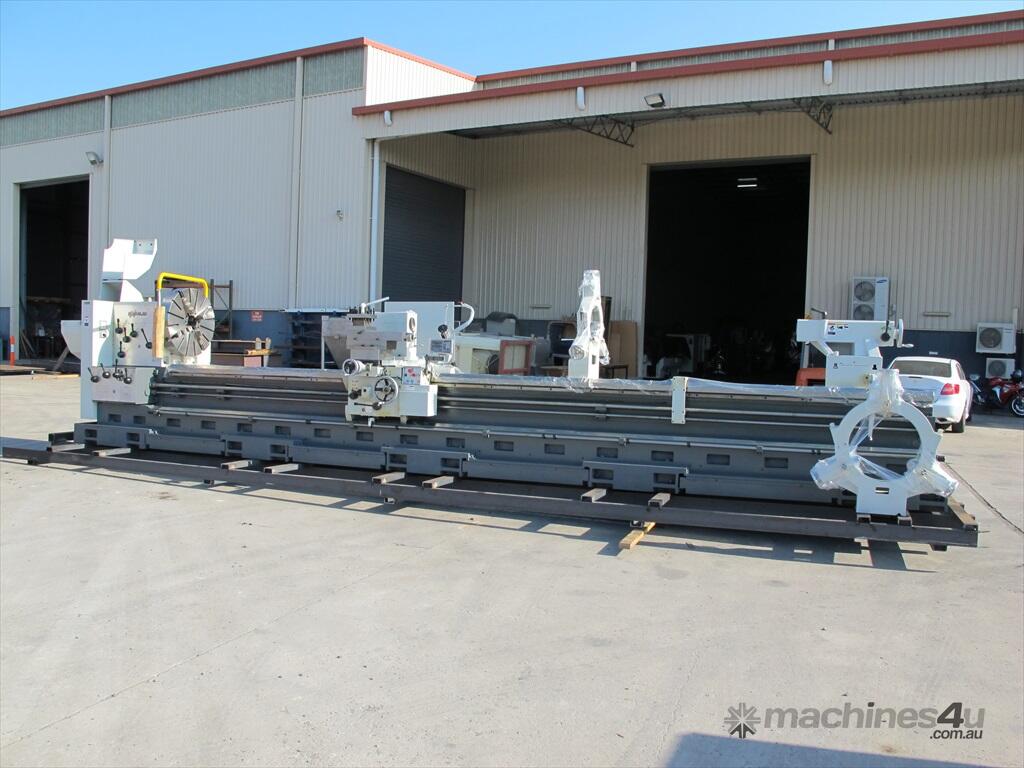

MODEL EV47 SERIES BIG BORE CENTRE LATHE

KEY FEATURES:

Swing over bed: …1190/1385/1580mm
Swing over cross slide: …830/1030/1230mm
Swing over gap: …1750/1950/2150mm
(No gap for machines over 5m between centres)

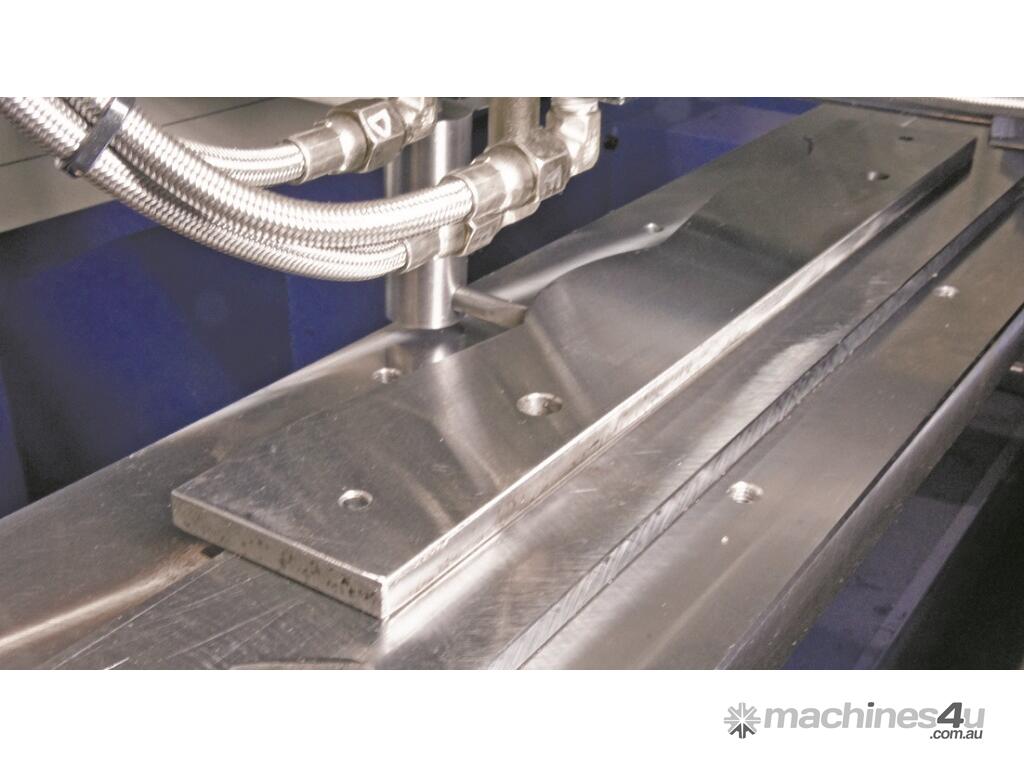

Width of bed: …800mm
Distance between centres: …from 2000-15000mm (in one piece)

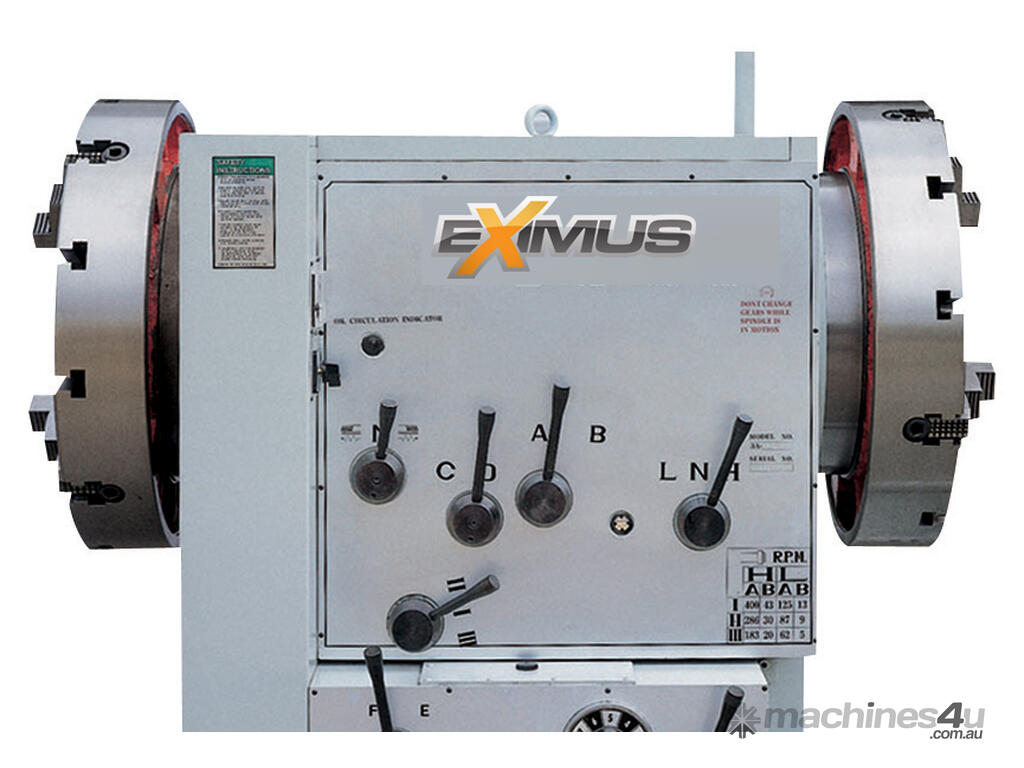

Spindle bore: …Ø 230/260/310/360/535mm
Spindle speeds (Range): …varies with spindle bore
Spindle taper: …MT#7
Main spindle motor: …40HP
Approx machine weight 3m Between Centres: ...up to 30 tonnes

STANDARD EQUIPMENT:

Magnetic spindle brake
Star delta soft start
Full length splash guard

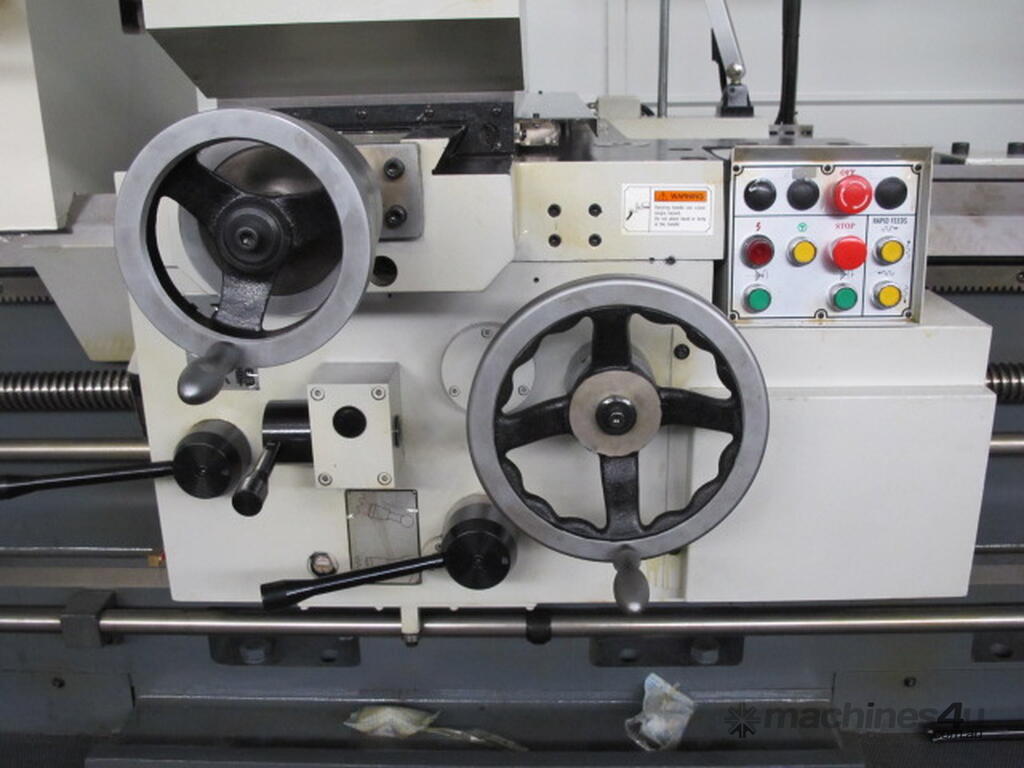

Rapid traverse to long and cross feed
Coolant System
Rear chuck mount
Work light

OPTIONAL EQUIPMENT:

3 & 4 Jaw Chuck (Cast Iron)
3 & 4 Jaw Chuck (Steel Body)
4 Jaw face plate
Face Plate
Taper turning attachment
Hydraulic copying attachment

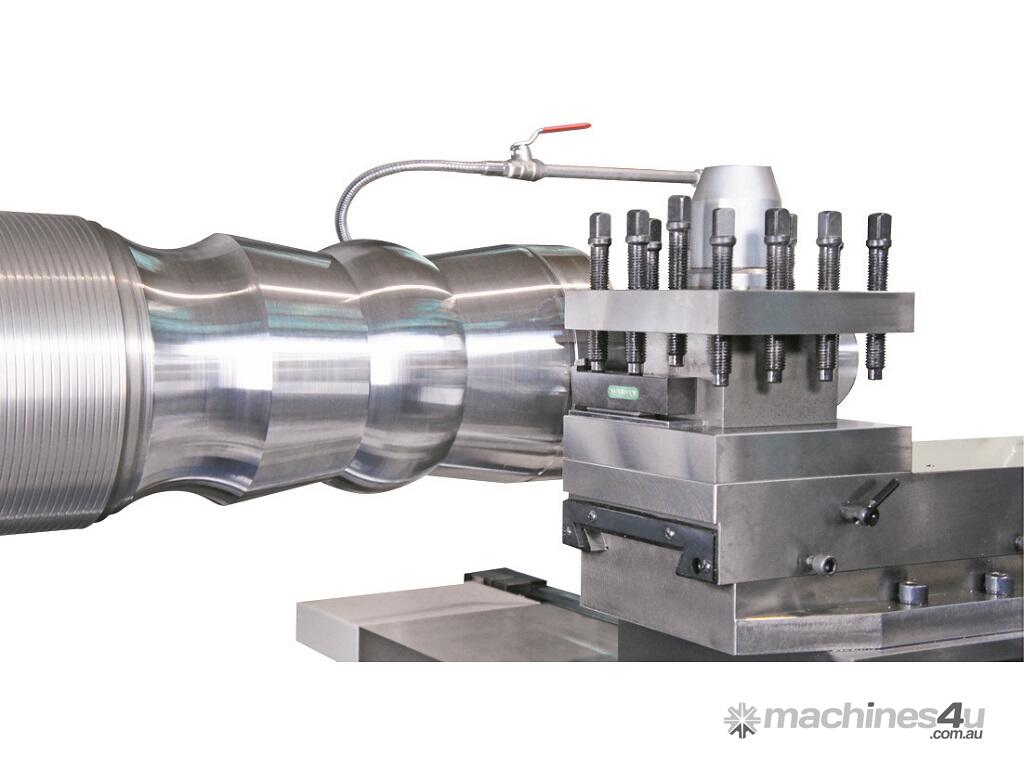

Quick change toolpost
Boring attachment
2 Axis digital readout

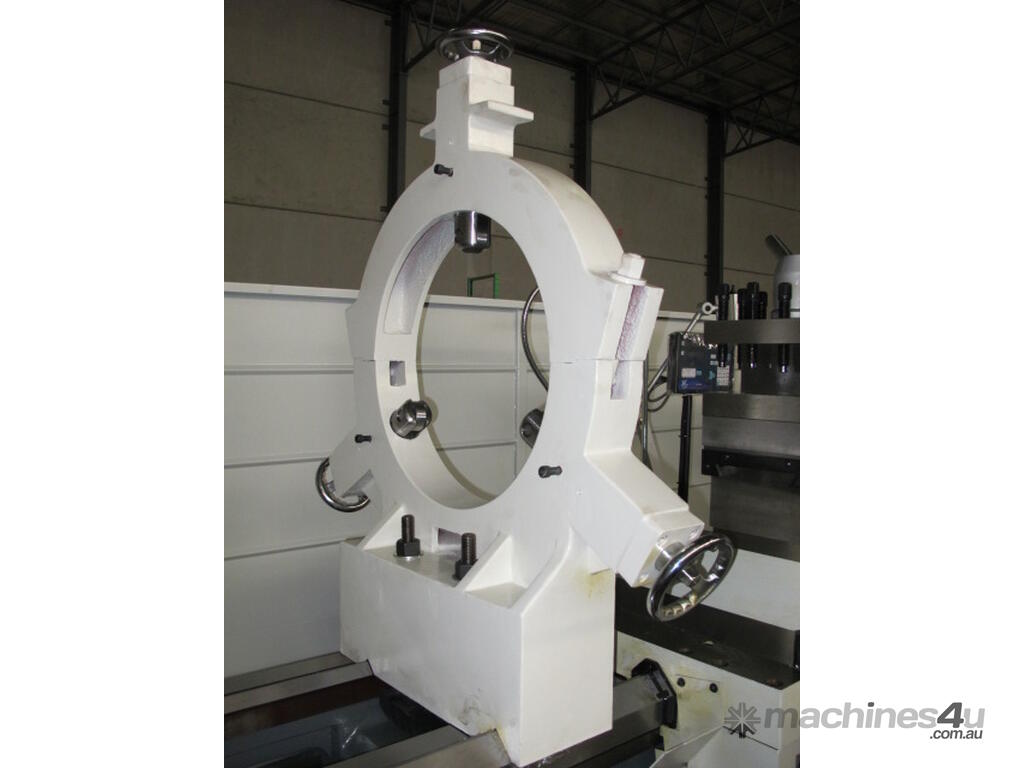

Travelling and fixed steady rests
6 way rapid traverse
OH & S Guarding

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice.
