Taiwanese Big Bore Centre Lathes , Ø 670/770/870mm Turning Capacity

Everturn Taiwan offer one of the most comprehensive range of Heavy Duty Turning Machines for virtually any and all applications, from Oil Field, to Heavy Industry, Energy, Steel Mills, and Jobbing Shops. With a range of spindle bores from 4" through to an increadible 21" and swing over the bed up to 2500mm. Now with a large number of reference sites here in Australia Whitelaw Engineering Machinery can arrange a demonstration at your conveinience. Call Dimitri for more details.

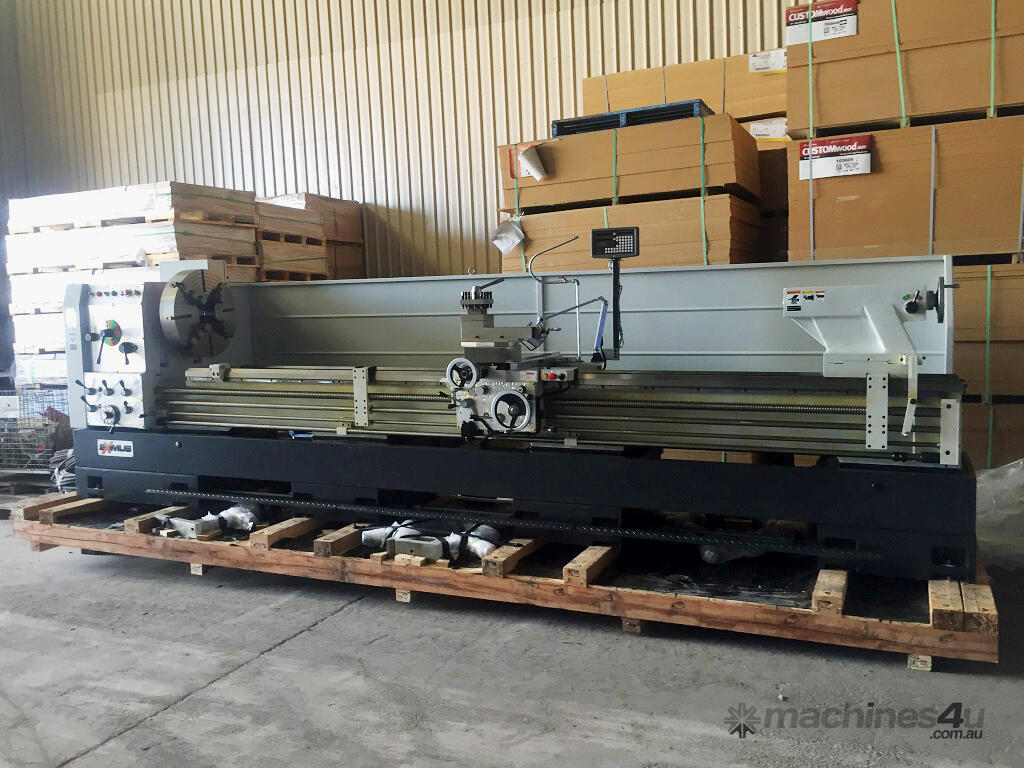

MODEL EV-W30 SERIES BIG BORE CENTRE LATHE

KEY FEATURES:

Swing over bed: …670/770/840mm
Swing over cross slide: …460/560/630mm
Swing over gap: …890/990/1060mm
Width of bed: …460mm
Distance between centres: …2000/3000/4000/5000mm

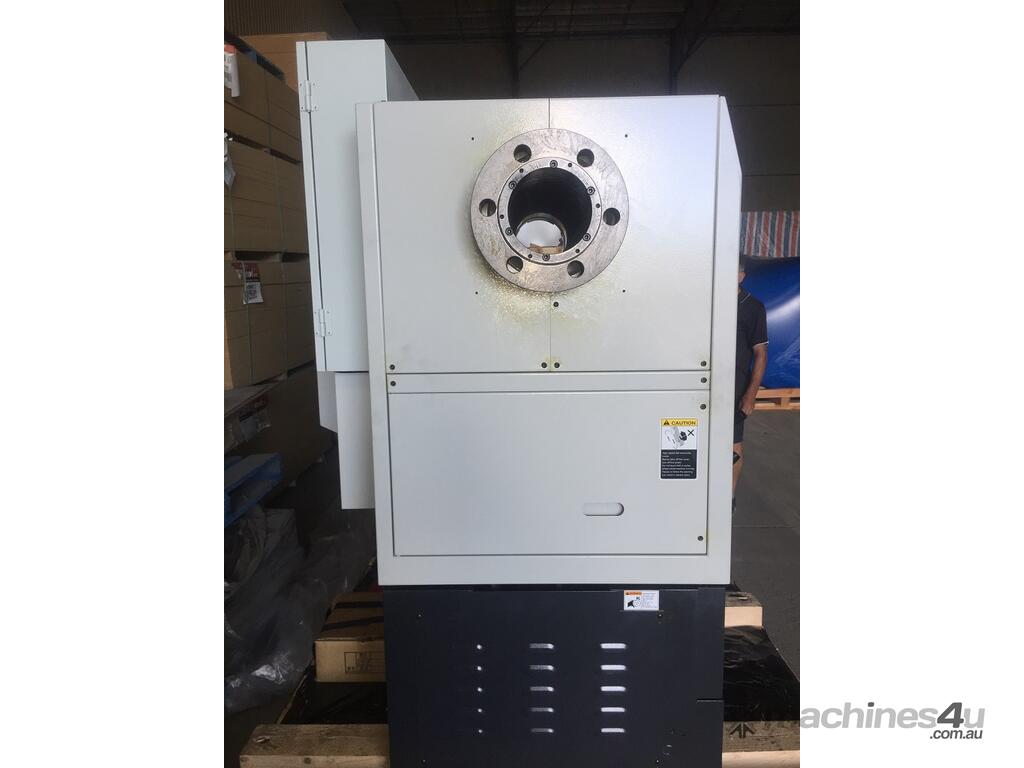

Spindle bore: …Ø 104/156/230mm
Spindle speeds (Range): …Varies with bore size
Spindle taper: …MT#5
Main spindle motor: …20HP
Approx weight: ... 3800/4350/4900/5500g

STANDARD EQUIPMENT:

Auto lubrication system
Star delta soft start
Full length splash guard
Rapid traverse to long and cross feed
Coolant System

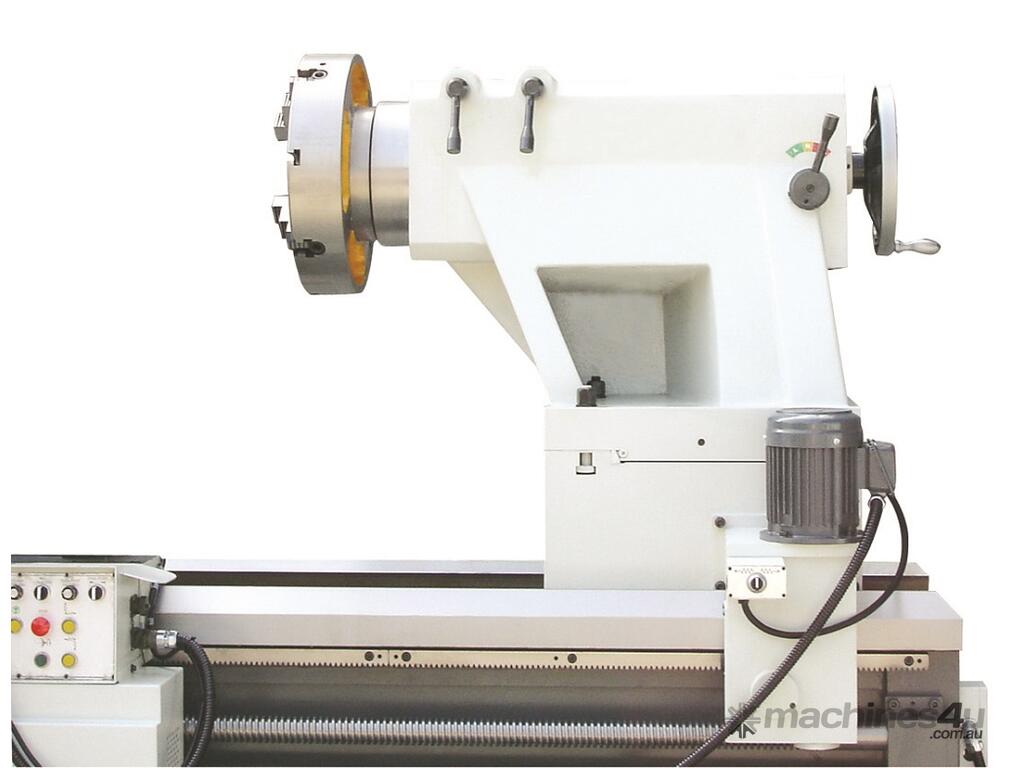

Rear chuck mount
Work light

OPTIONAL EQUIPMENT:

Taper turning attachment

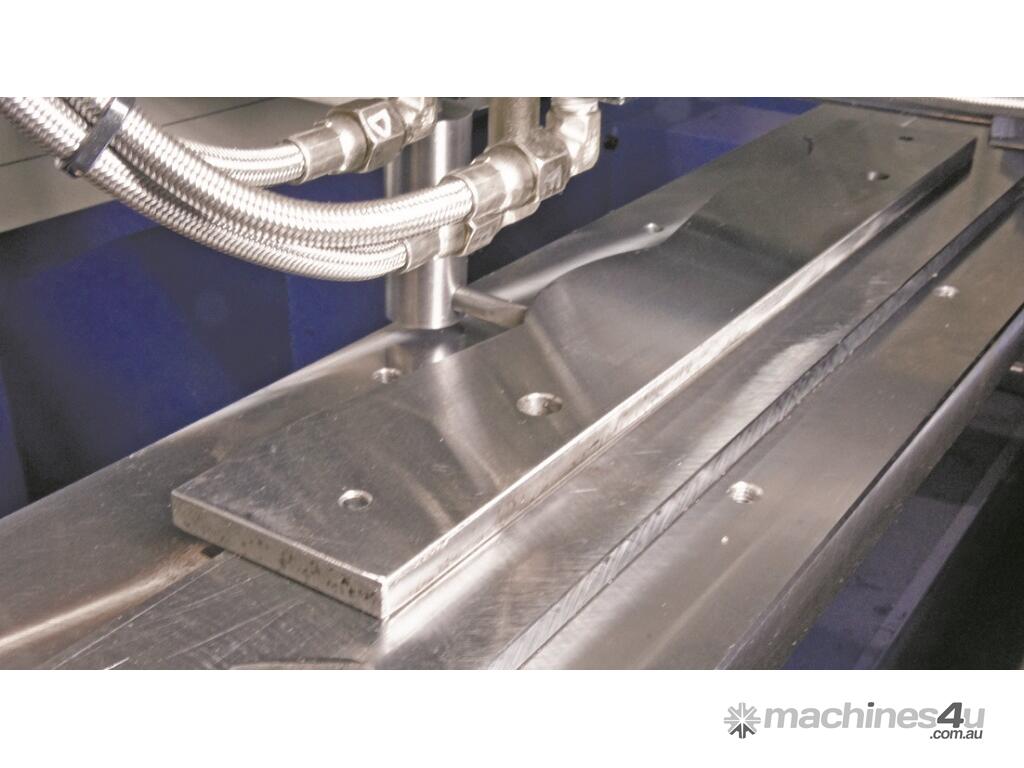

Hydraulic copying attachment
Quick change toolpost
Boring attachment

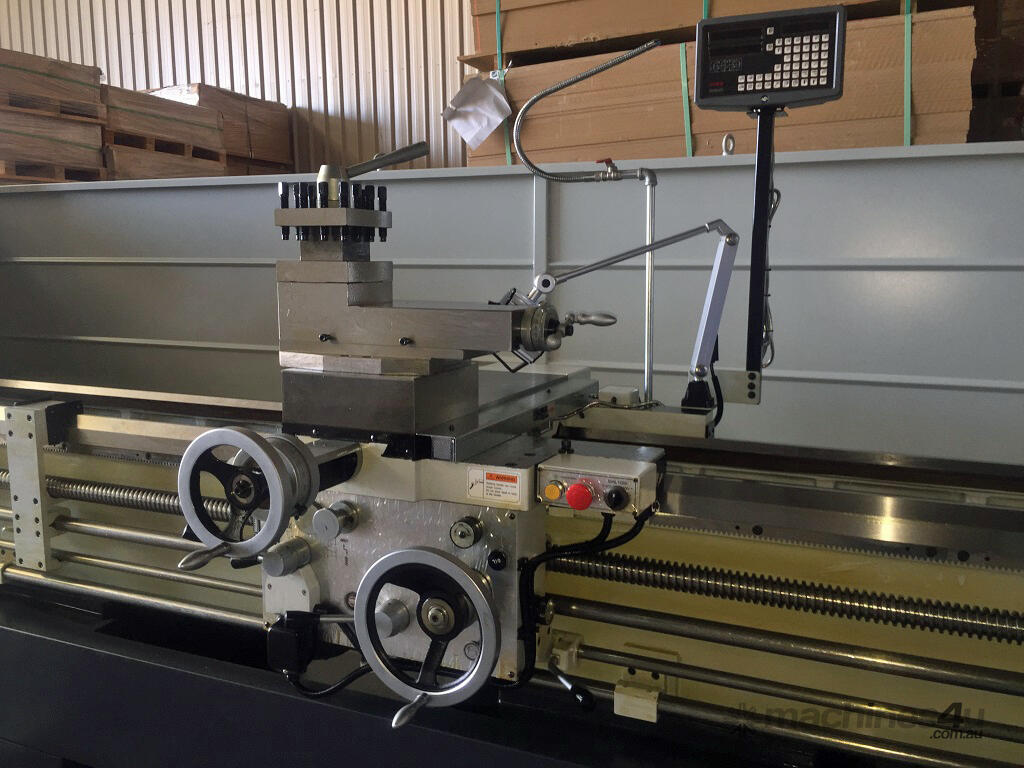

2 Axis digital readout
Travelling and fixed steady rests
OH & S Guarding
