Taiwanese Big Bore Centre Lathes , Ø 960/1060/1170mm Turning Capacity

Everturn Taiwan offer one of the most comprehensive range of Heavy Duty Turning Machines for virtually any and all applications, from Oil Field, to Heavy Industry, Energy, Steel Mills, and Jobbing Shops. With a range of spindle bores from 4" through to an incredible 21" and swing over the bed up to 2500mm. Now with a large number of reference sites here in Australia Whitelaw Engineering Machinery can arrange a demonstration at your convenience. Call Dimitri for more details.

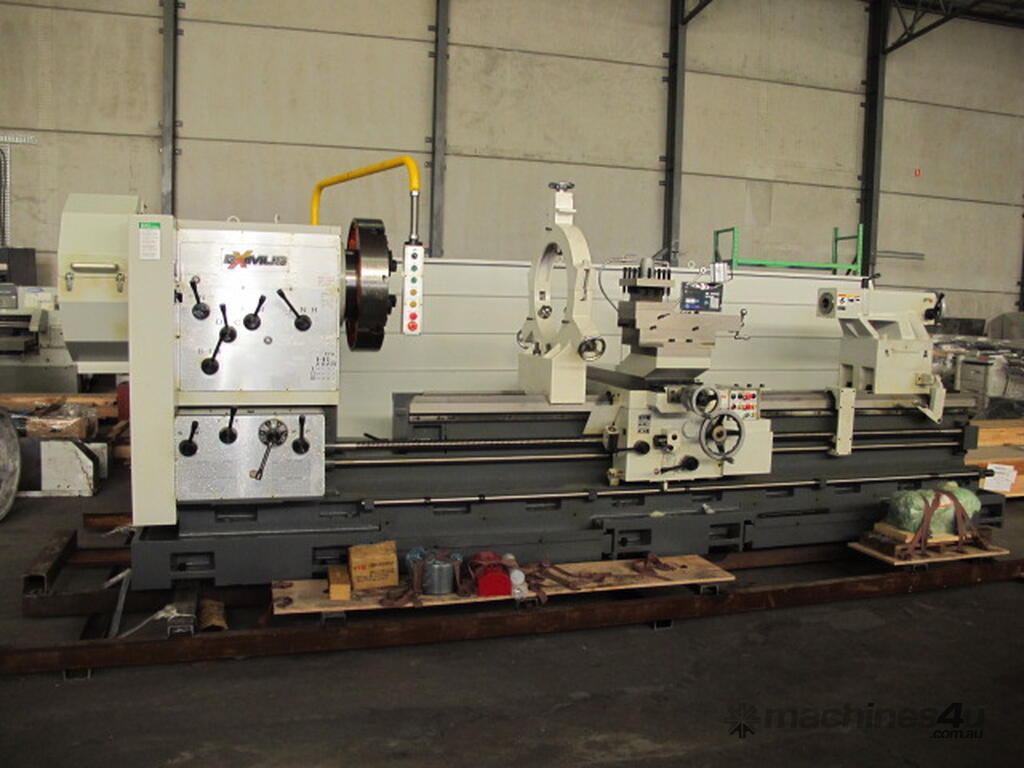

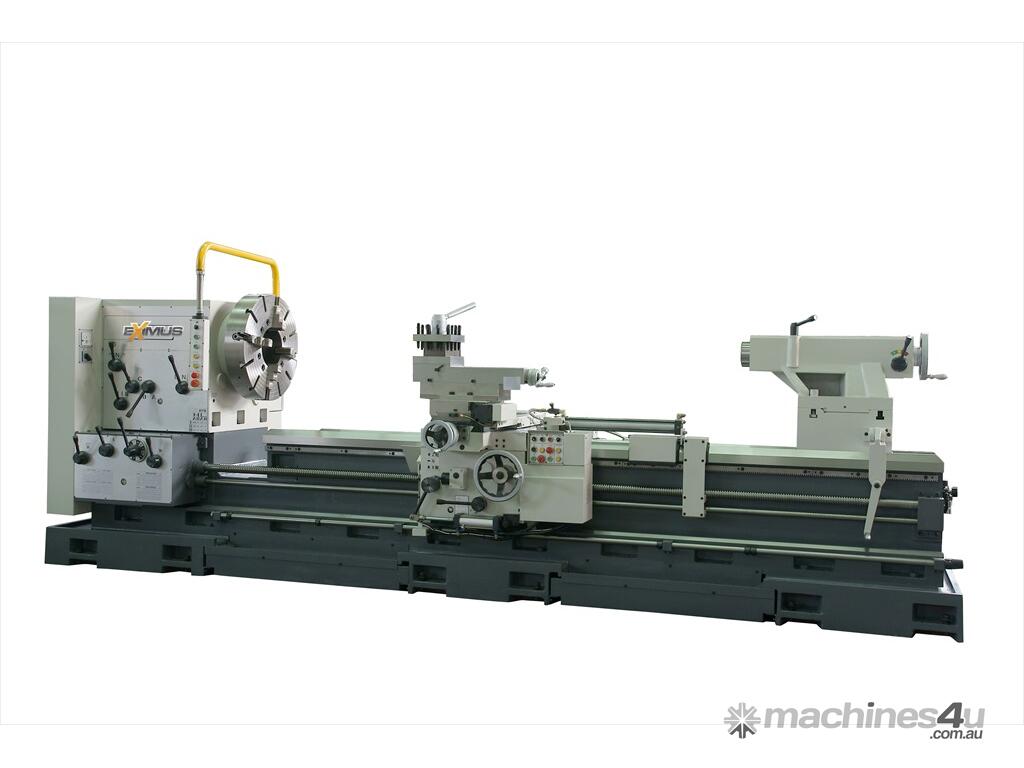

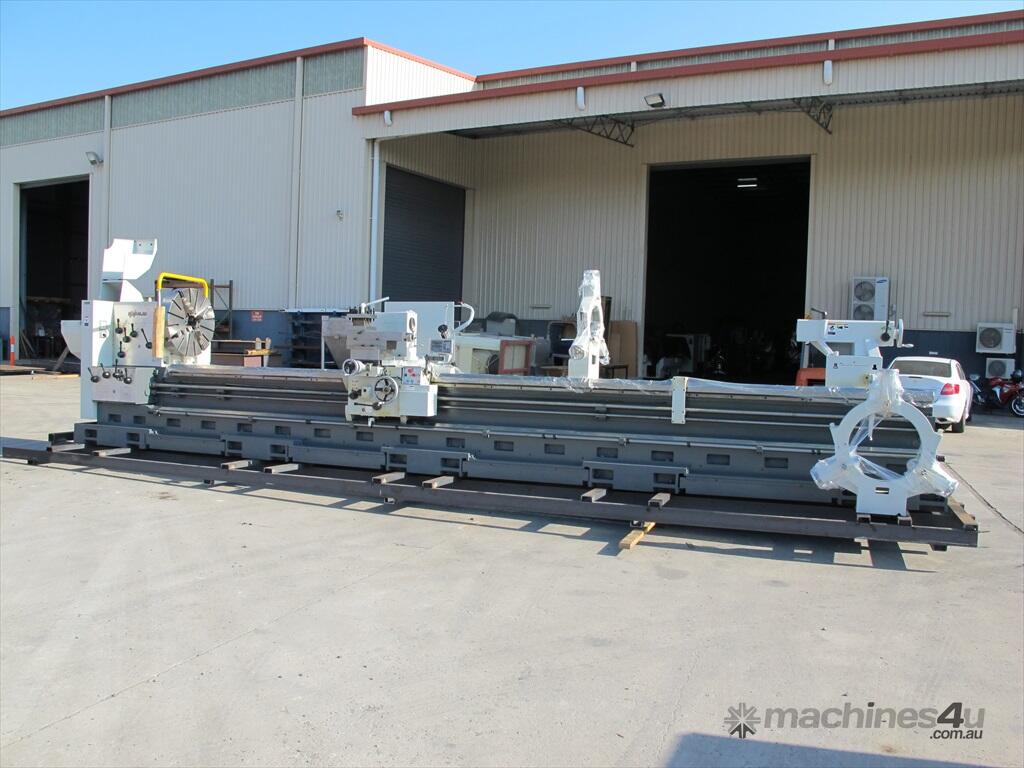

MODEL EV38/42/46 SERIES BIG BORE CENTRE LATHE

KEY FEATURES:

Swing over bed: …960/1060/1170mm
Swing over cross slide: …650/750/860mm
Swing over gap: …1510/1610/1720mm
(No gap for machines over 5000mm

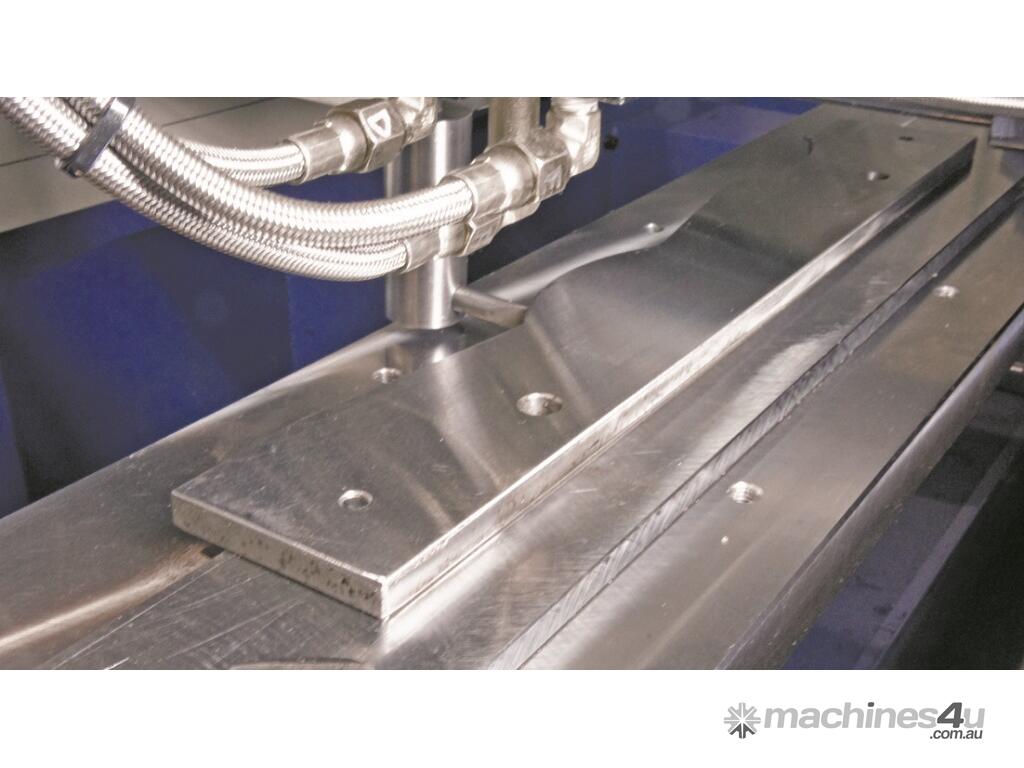

Width of bed: …570mm
Distance between centres: …2000-9000mm
Spindle bore: …Ø 156/230/260/310/360mm
Spindle speeds (Range): …varies with spindle bore
Spindle taper: …MT#5
Main spindle motor: …30HP
Approx machine weight 3m between centres: ...11,230kg

STANDARD EQUIPMENT:

Magnetic spindle brake
Star delta soft start
Full length splash guard

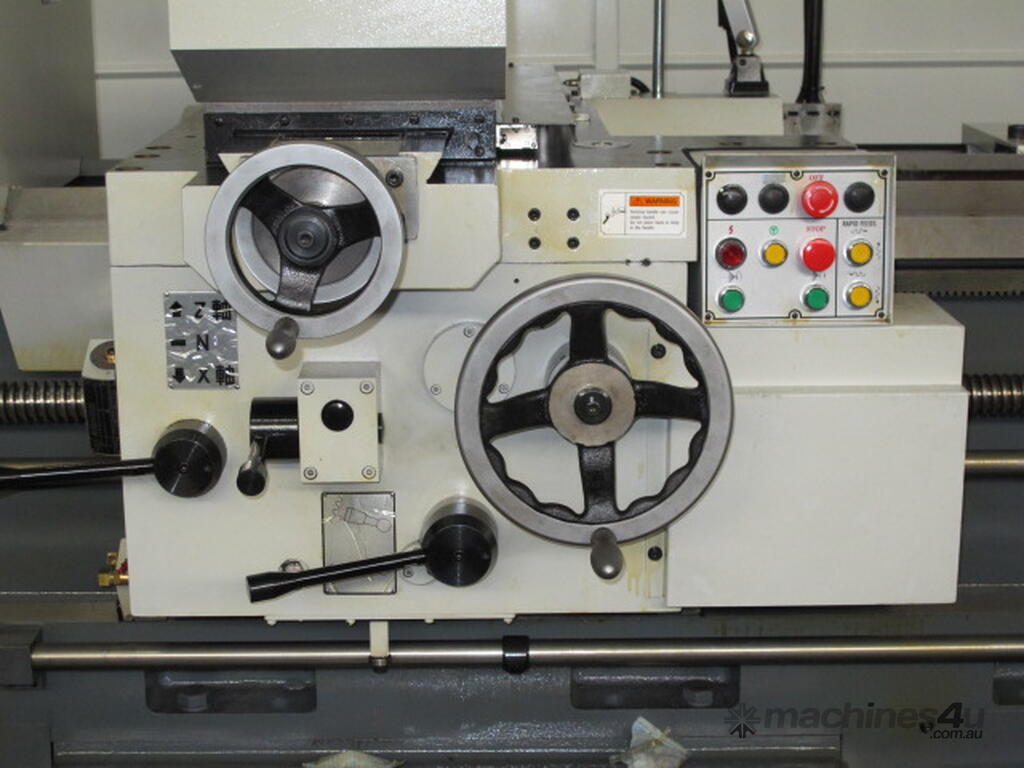

Rapid traverse to long and cross feed
Coolant System

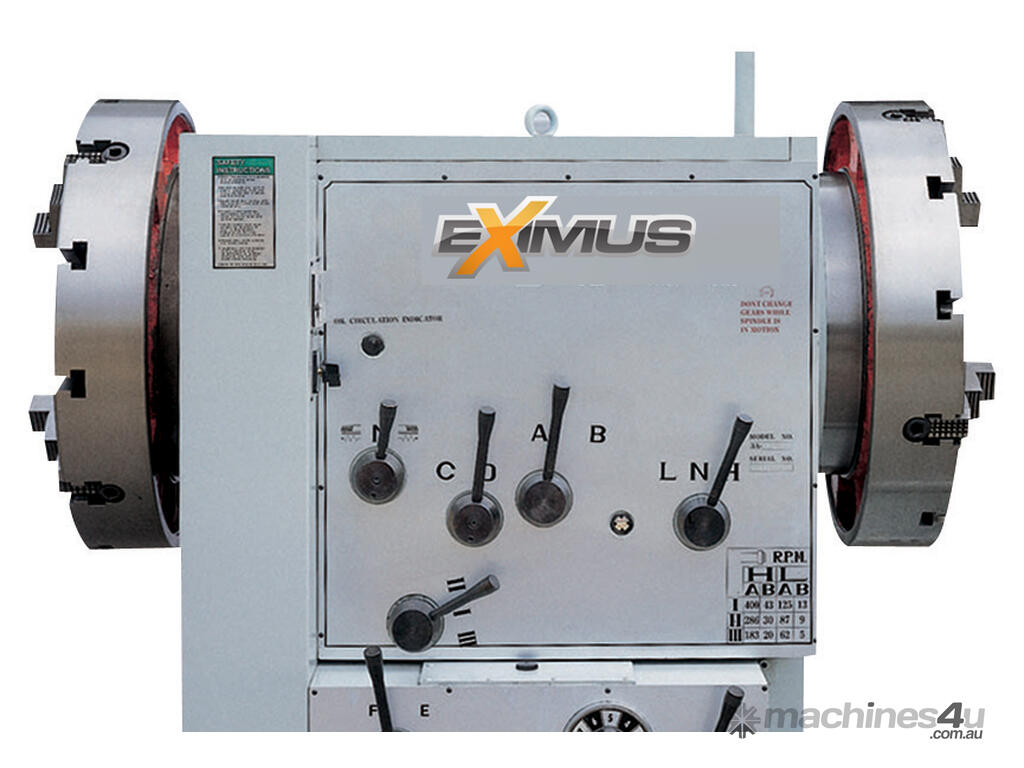

Rear chuck mount
Work light

OPTIONAL EQUIPMENT:

Taper turning attachment
Hydraulic copying attachment

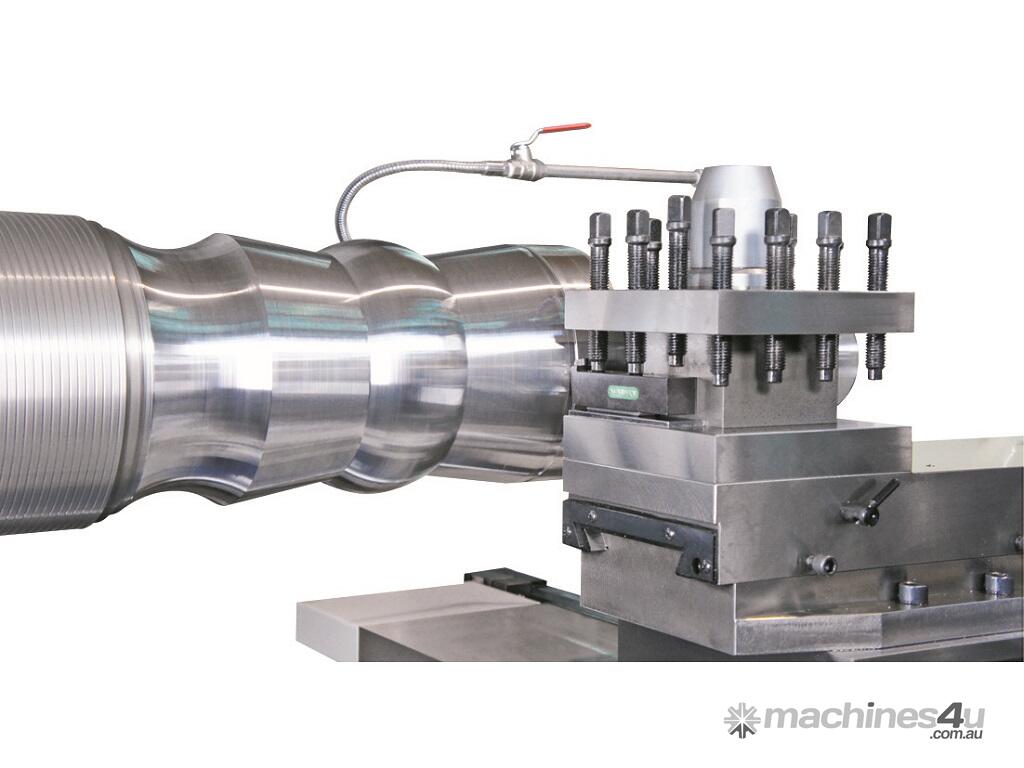

Quick change toolpost
Boring attachment
2 Axis digital readout

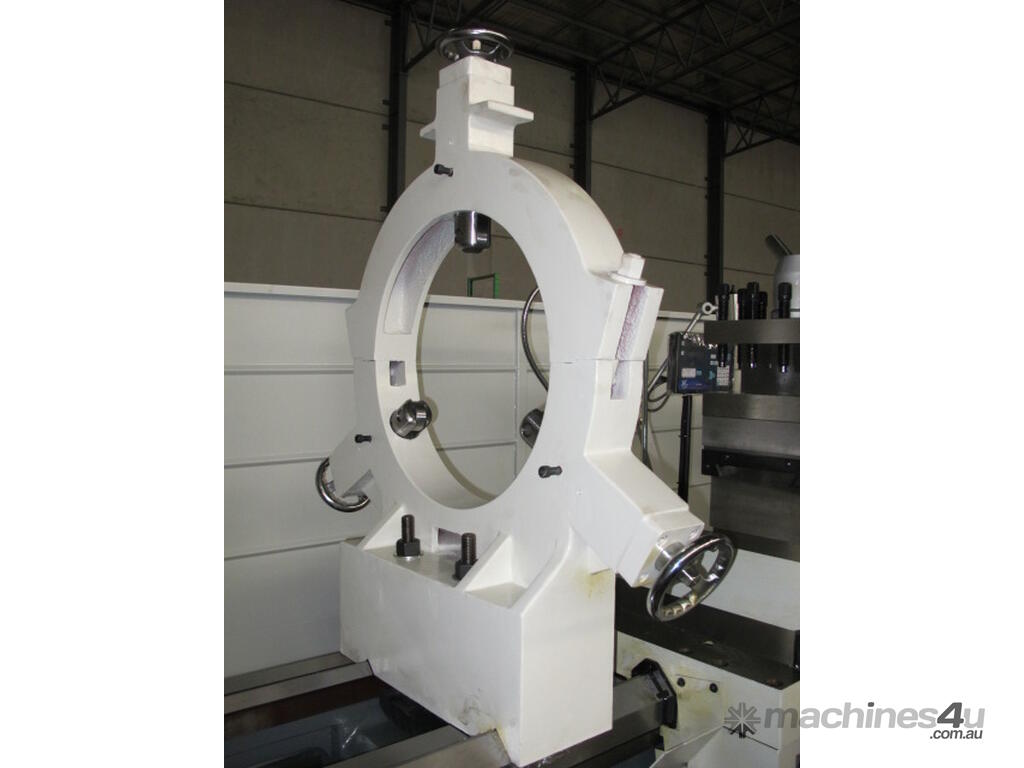

Traveling and fixed steady rests
6 way rapid traverse
OH & S Guarding
