Taiwanese Centre Lathe, Ø 430x1100mm Turning Capacity, Ø 58mm Bore

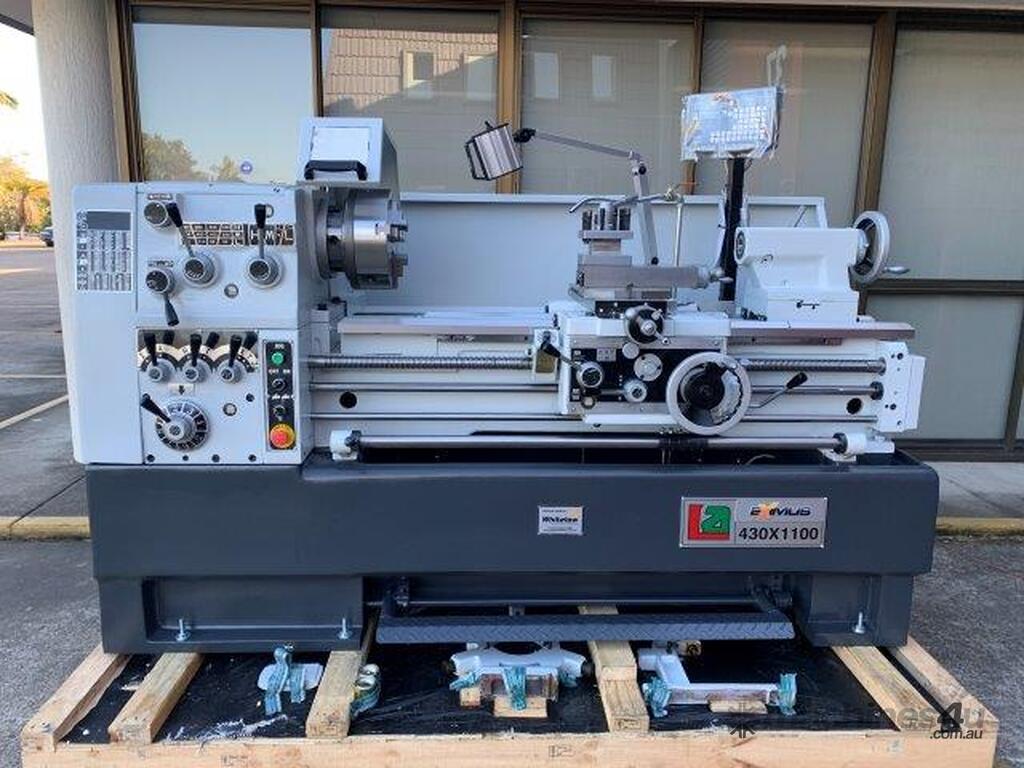

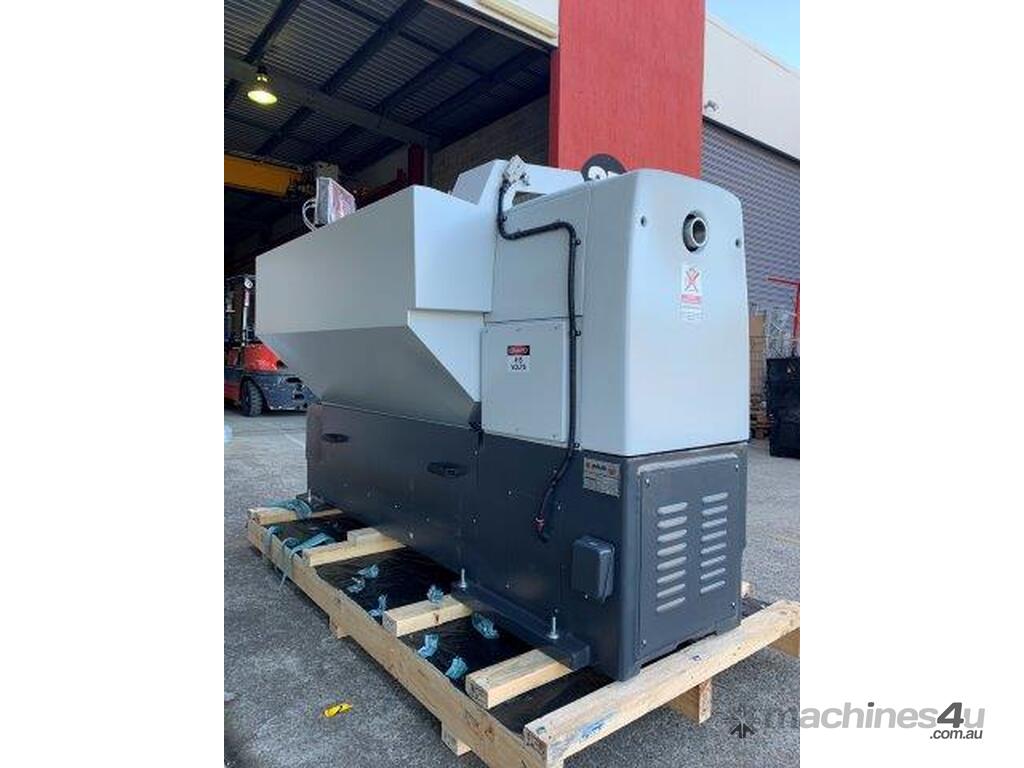

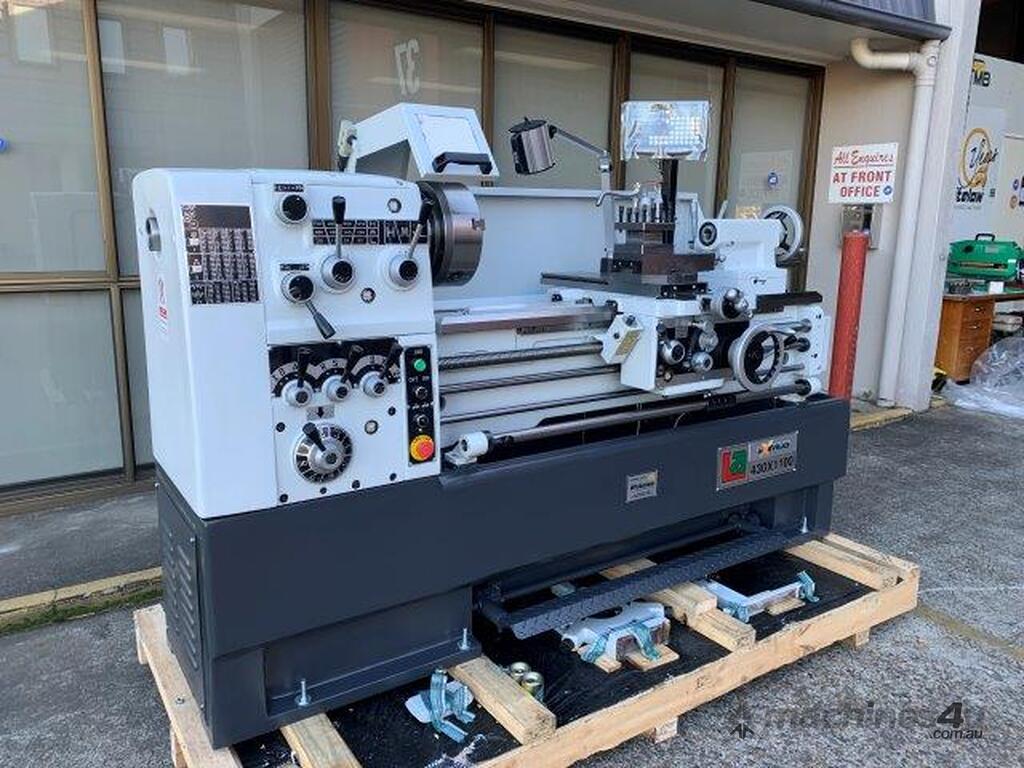

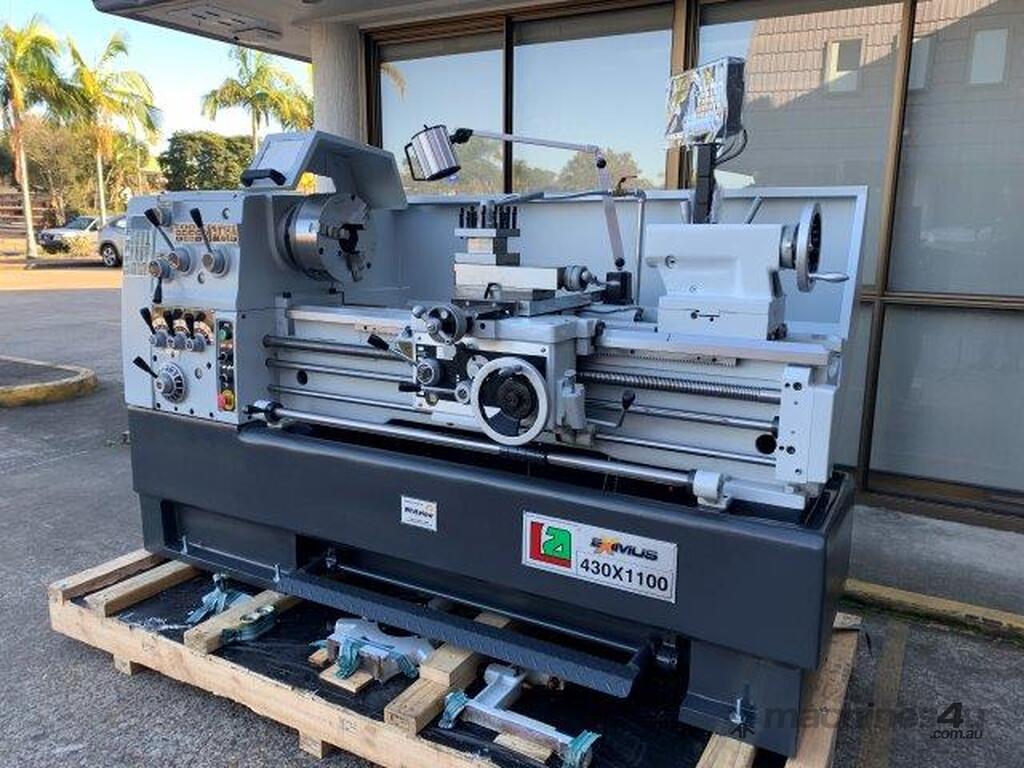

EVERTURN MODEL LA-430 SWING CENTRE LATHE 1100mm BETWEEN CENTRES - MANUFACTURED IN TAIWAN (Qld Government: DETE 65255 Approved Model)

The New LA range of precision lathes are available with 58mm Spindle bore, 430/530mm swing over the bed & 550/800/1100/1700mm betwee centres.

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to tool rooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, visit our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
One piece solid cast base enhances the machine life and overall accuracy
Wide (300mm) 12” bed way to absorb vibration
Spindle supported by 3 point precision bearings NTN/NSK of Japan
Headstock gears heat treated then hardened and ground

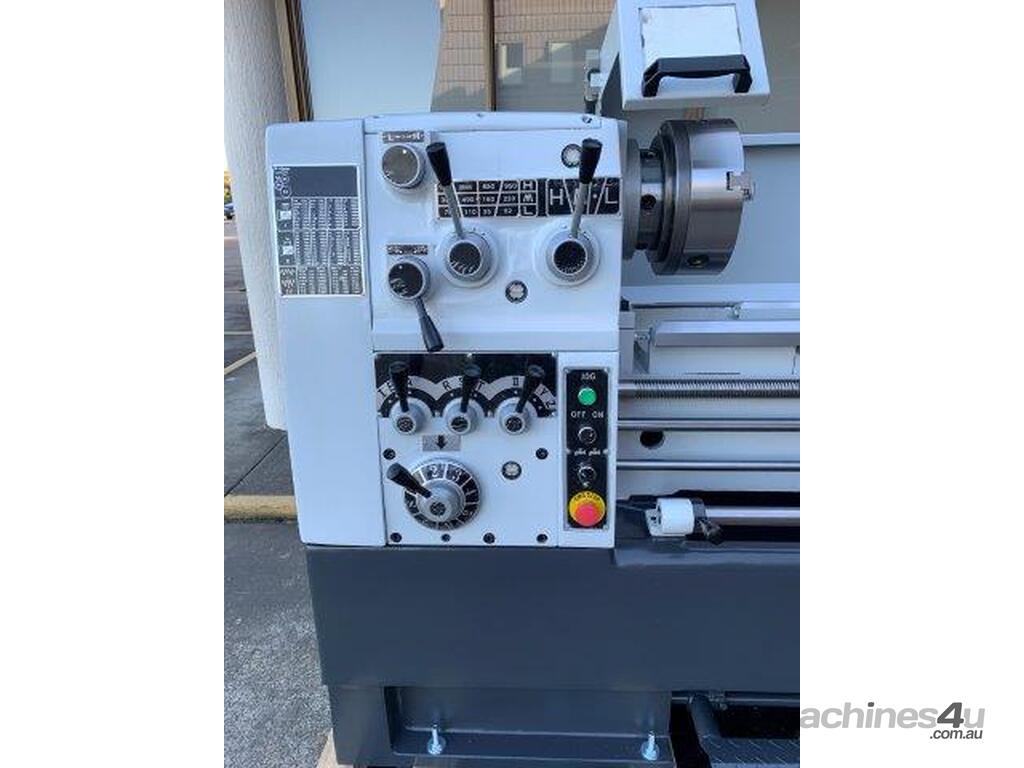

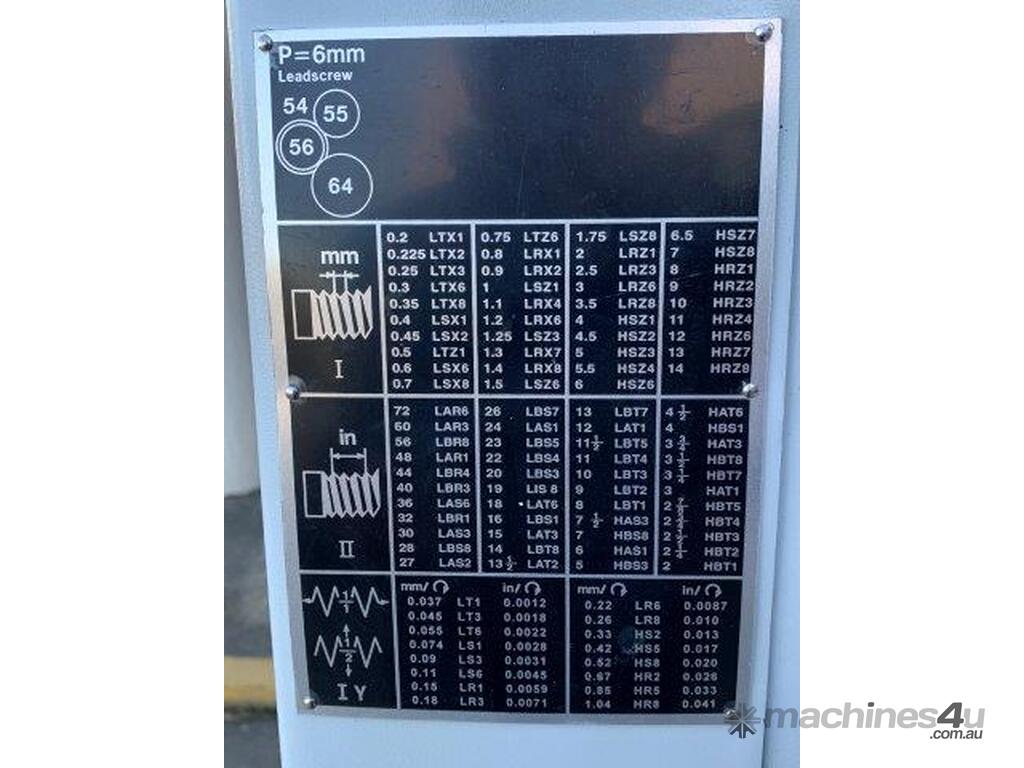

Universal enclosed gearbox incorporating metric & imperial thread capabilities
Foot operated spindle brake
Removal gap piece to bed

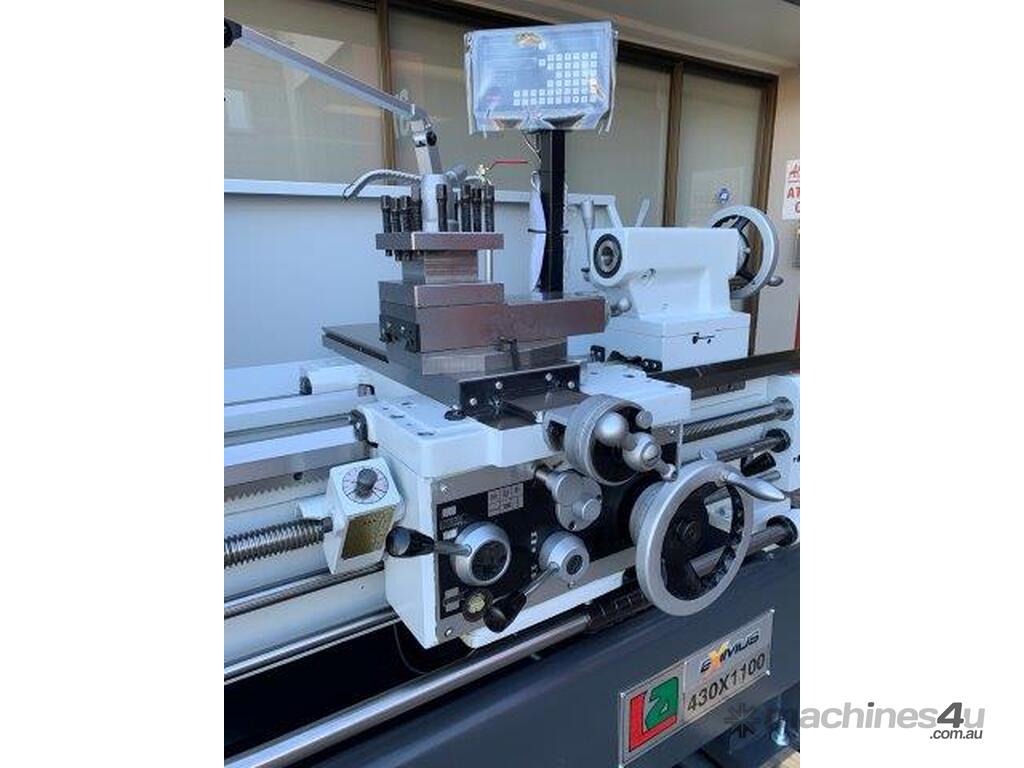

Powered longitudinal and cross feeds
Metric lead screw

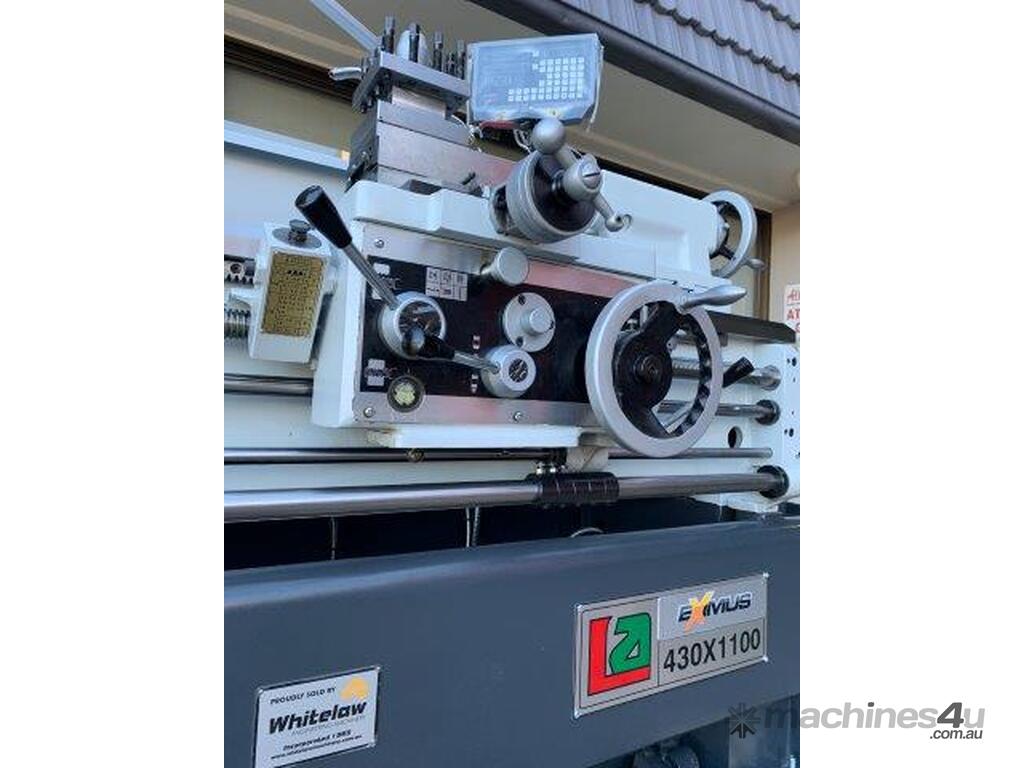

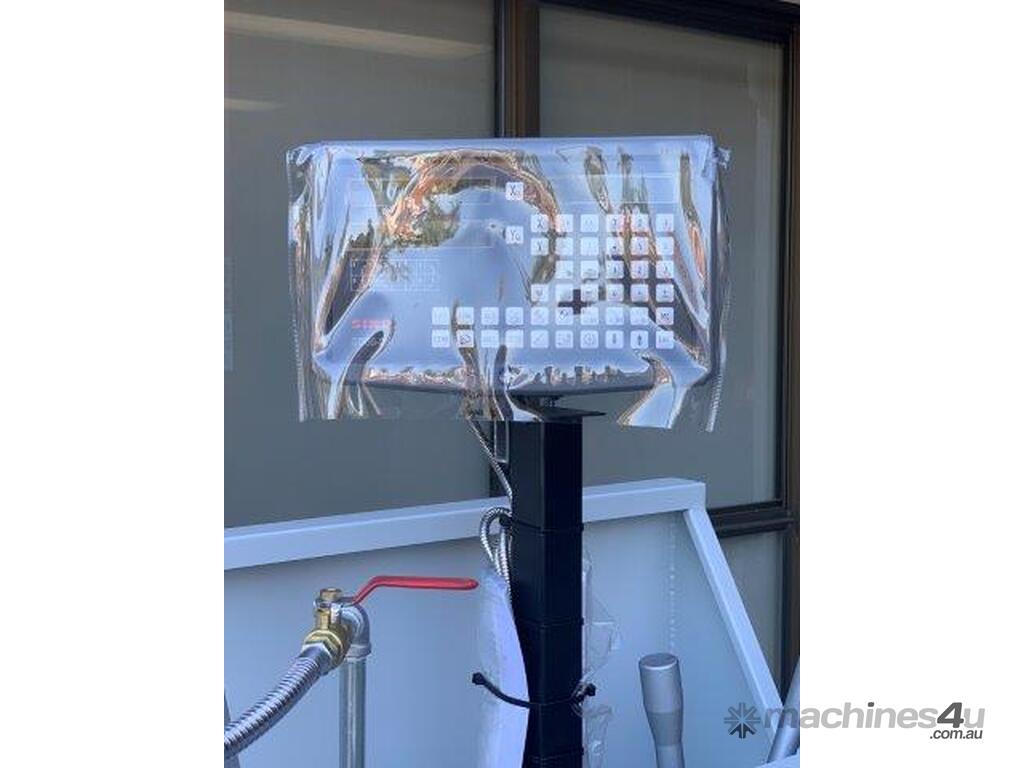

2 Axis digital readout factory fitted

SPECIFICATION:
Swing over bed: ...Ø 432 mm
Swing over cross slide: … Ø 272 mm
Width of bed ways: …300 mm
Distance between centres: …1100 mm
Spindle nose: …D1-6 cam lock
Spindle bore: …58 mm
Number of spindle speeds: …12
Spindle speed range: …35-2000 rpm
Spindle motor: …Teco 5HP (opt-7.5HP) 415V 3 phase

STANDARD EQUIPMENT:

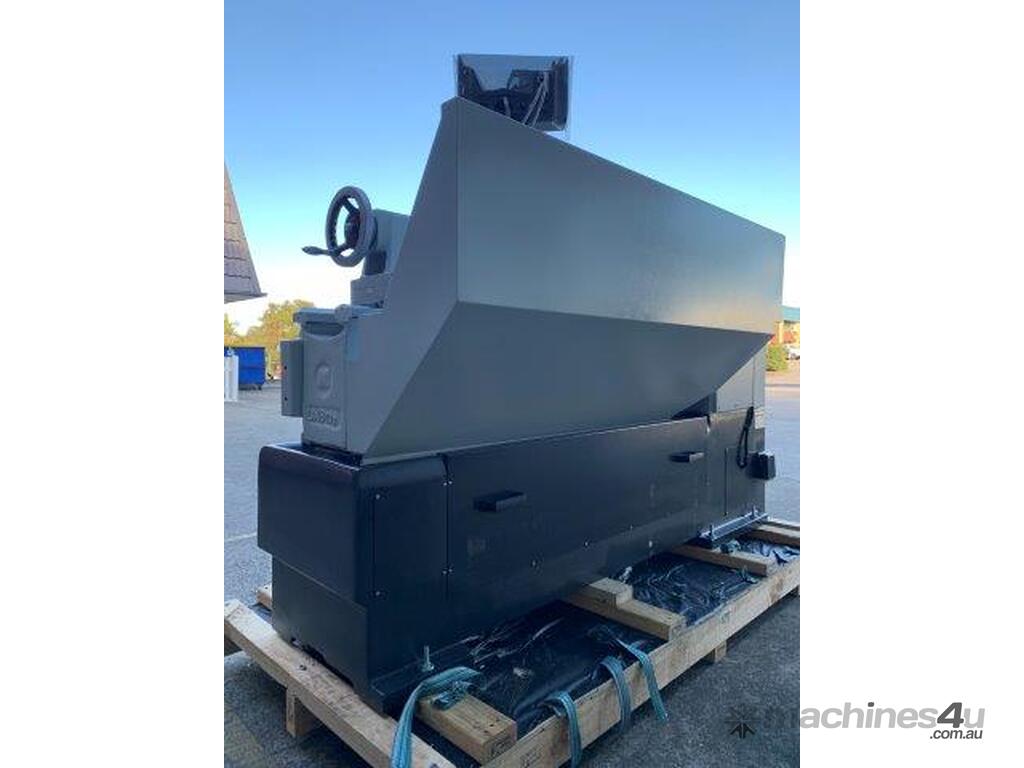

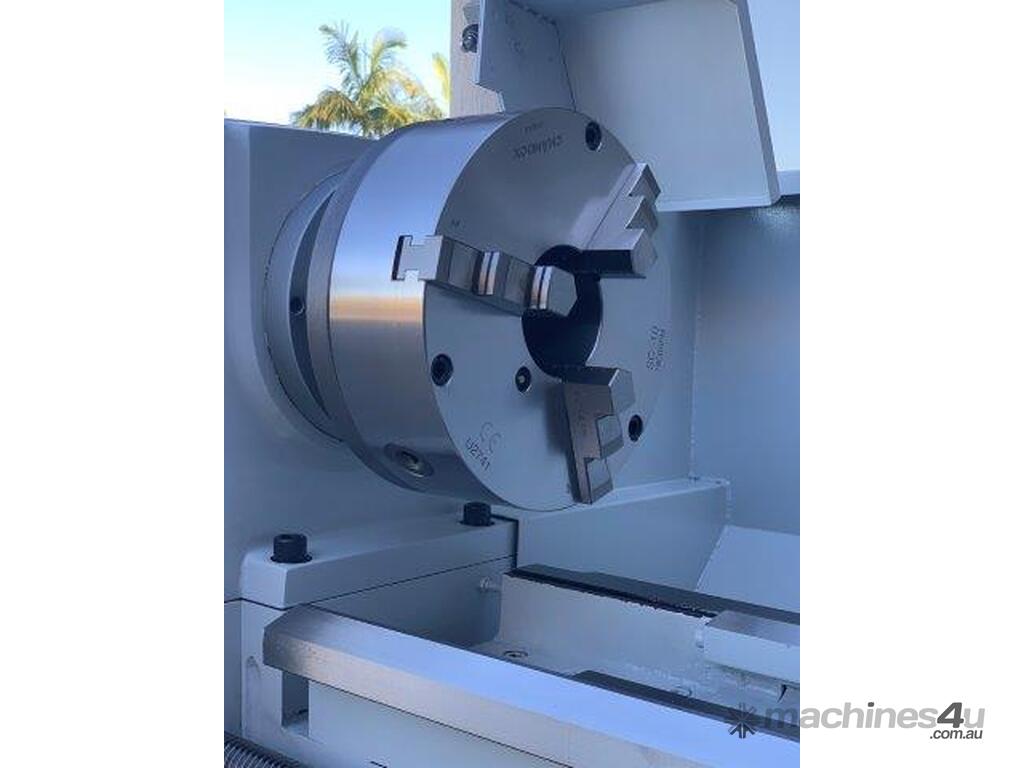

Centre Sleeve, Dead Centre, Levelling screws & bolts, Service kit, Steady rest, Follow rest, Coolant System, Full length splash guard, 250mm 3 Jaw chuck (Taiwan), 300mm 4 Jaw chuck (Taiwan), 2 Axis Digital Readout

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice.

Delivery Australia Wide, competitive freight rates available. Call us on for a quote.
