Taiwanese Centre Lathe Ø 560mm Turning Capacity, Ø 104mm Bore

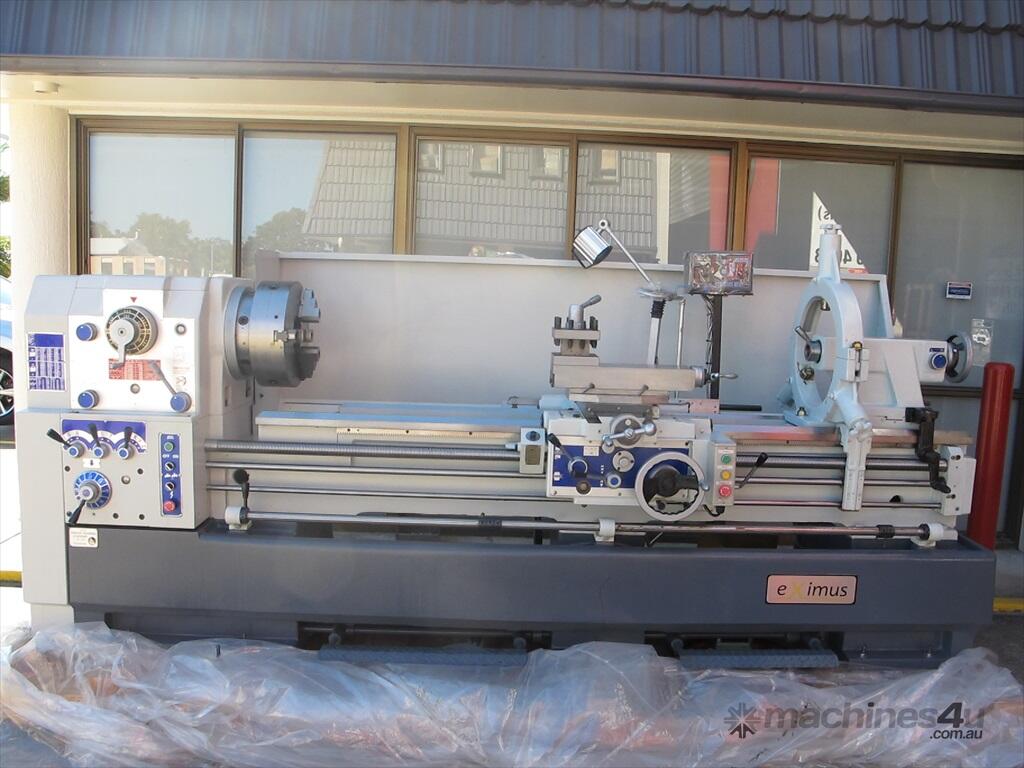

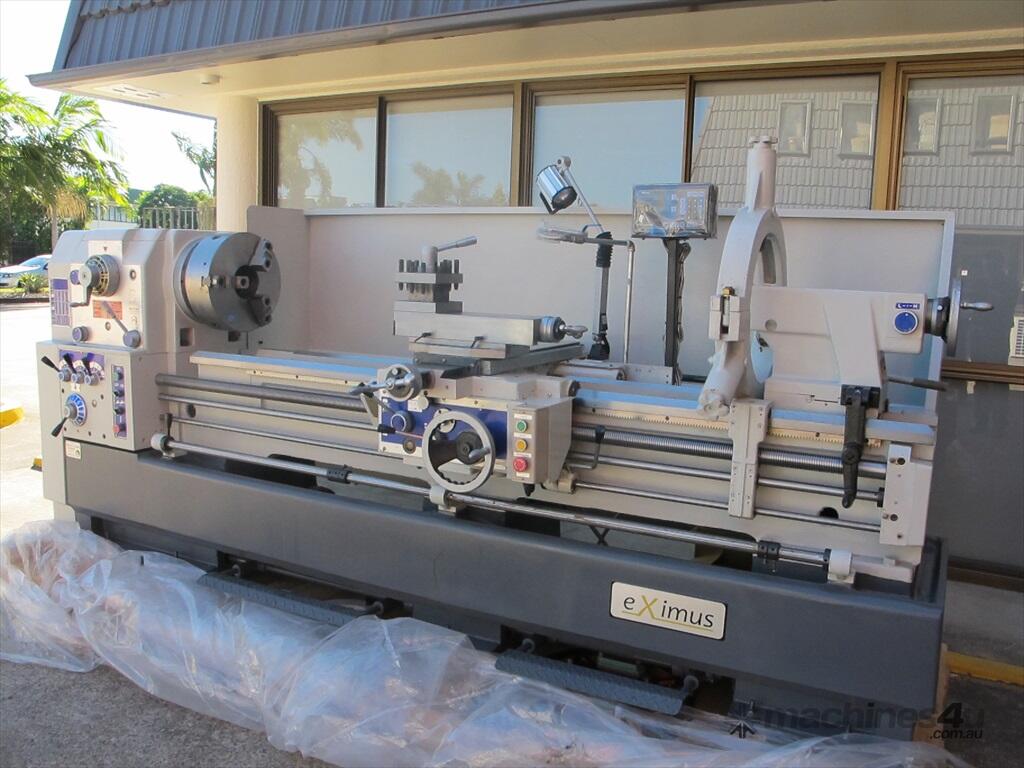

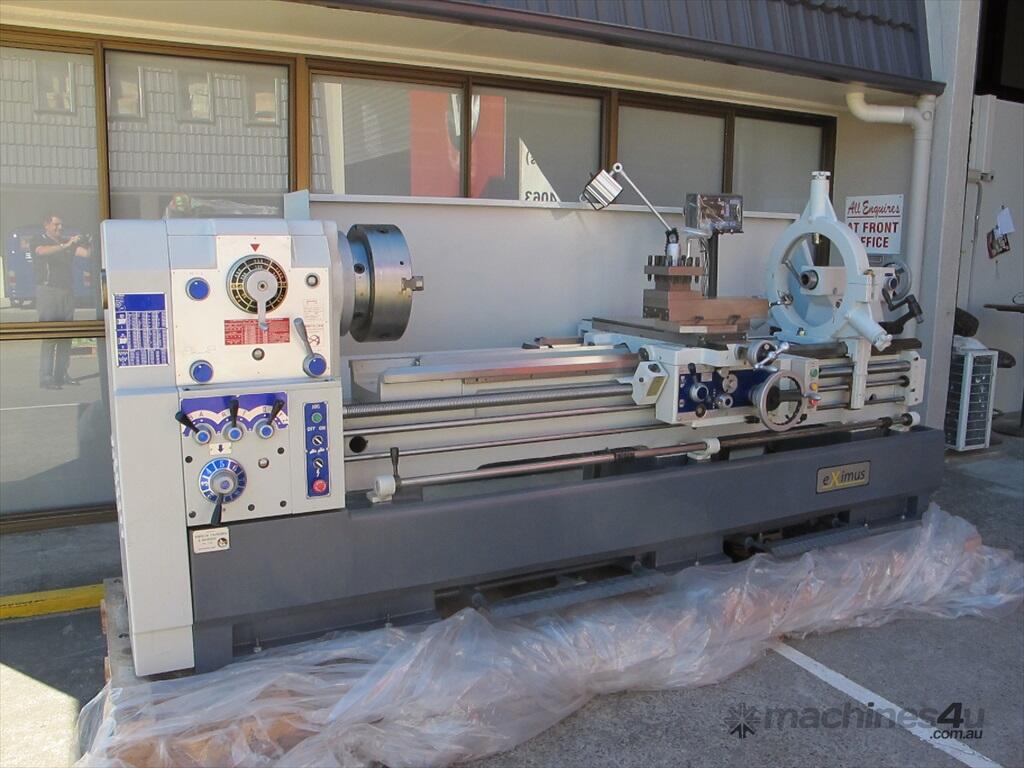

EXIMUS MODEL LA-560 SWING CENTRE LATHES - MANUFACTURED IN TAIWAN (Qld Government: DETE 65255 Approved Supplier)

The New LA range of precision lathes are available with 104mm Spindle bore, 560/660mm swing over the bed & 1500/2000/2500/3000/4000mm between centres.

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to toolrooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, vist our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
Bed ways hardened & ground (HRC-55)
Wide (400mm) 16" bed to absorb vibration
Heavy duty spindle, hardened , ground and dynamically balanced
Spindle supported by 3 point precision bearings (NTN/NSK Japan)
Spindle roundness / tolerance 0.01mm
Spindle bore 104 mm

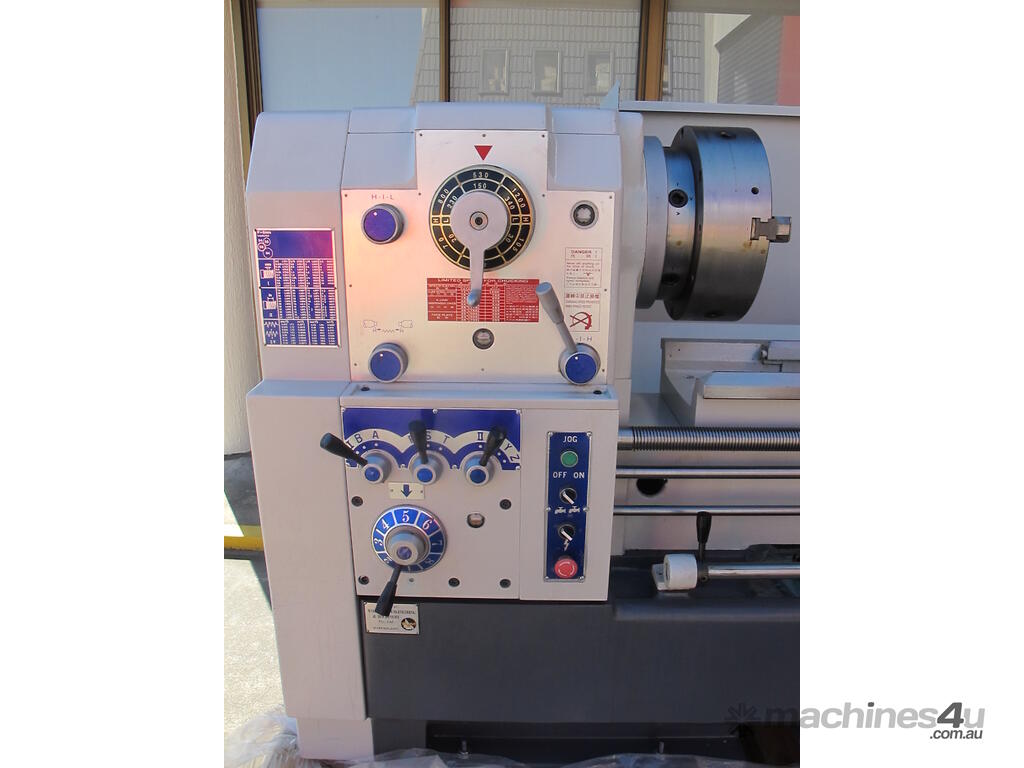

Headstock gears, heat treated then hardened and ground
2 stage star delta start
Rapid feed to Z axis (Long)

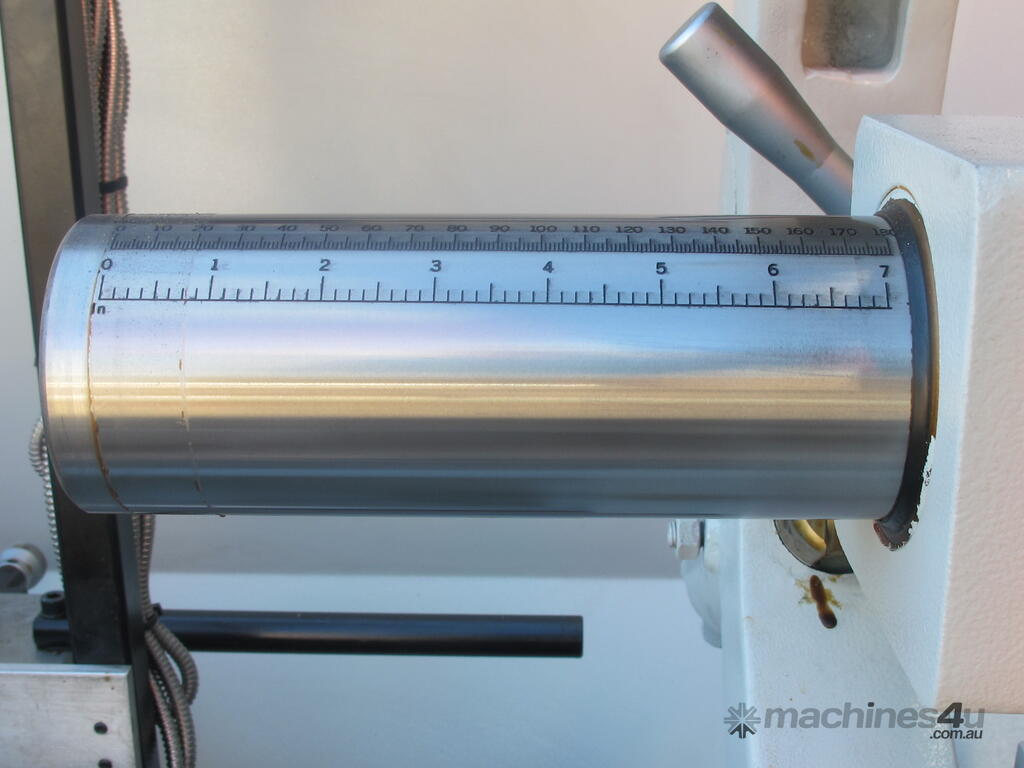

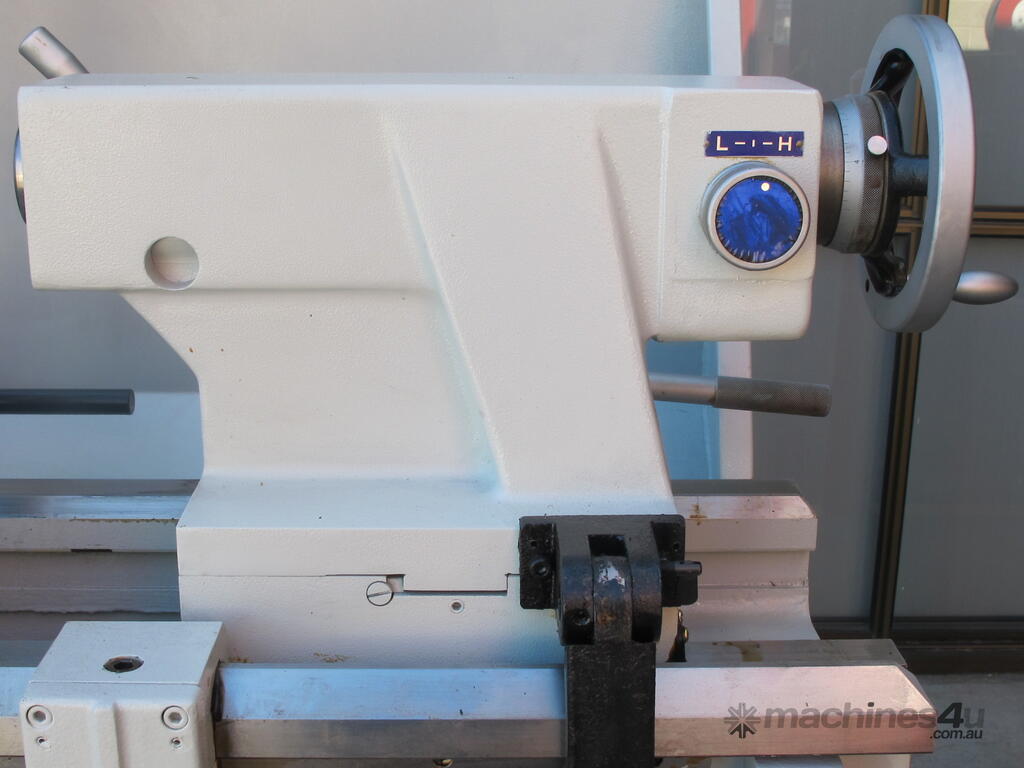

2 speed tailstock
Metric or Imperial lead screw

SPECIFICATION:
Centre height: ...275mm
Swing over bed: ...560 mm
Swing over cross slide: ...330 mm

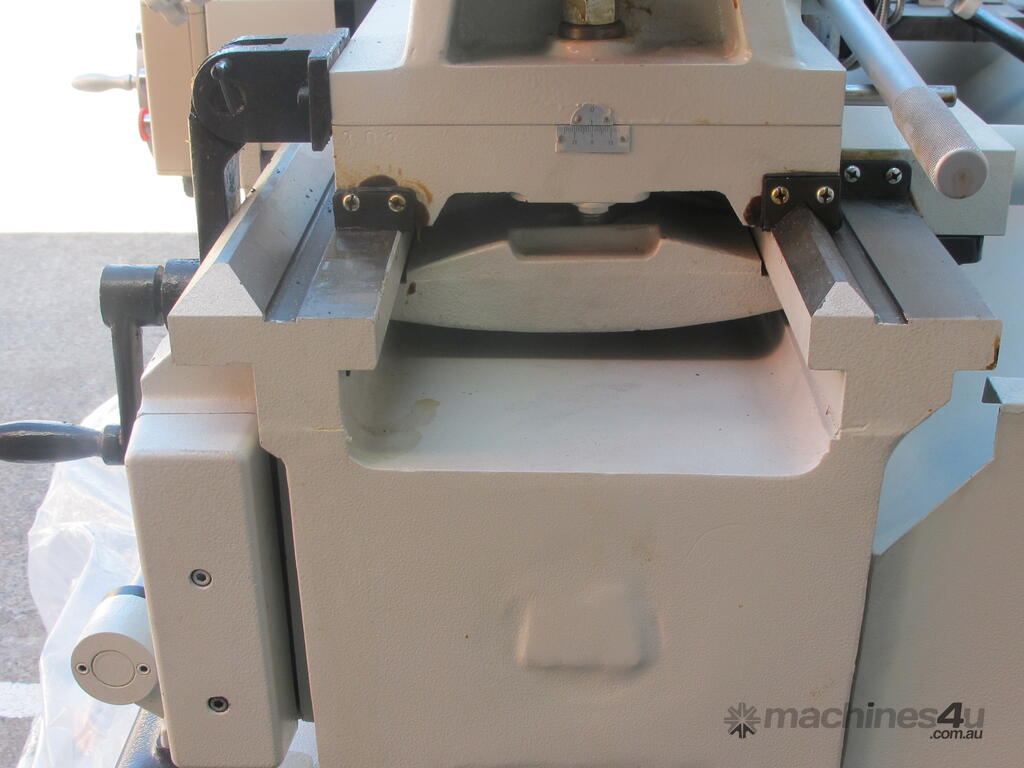

Swing in gap: ...785 mm
Distance between centres: ...1500/2000/2500/3000/4000 mm

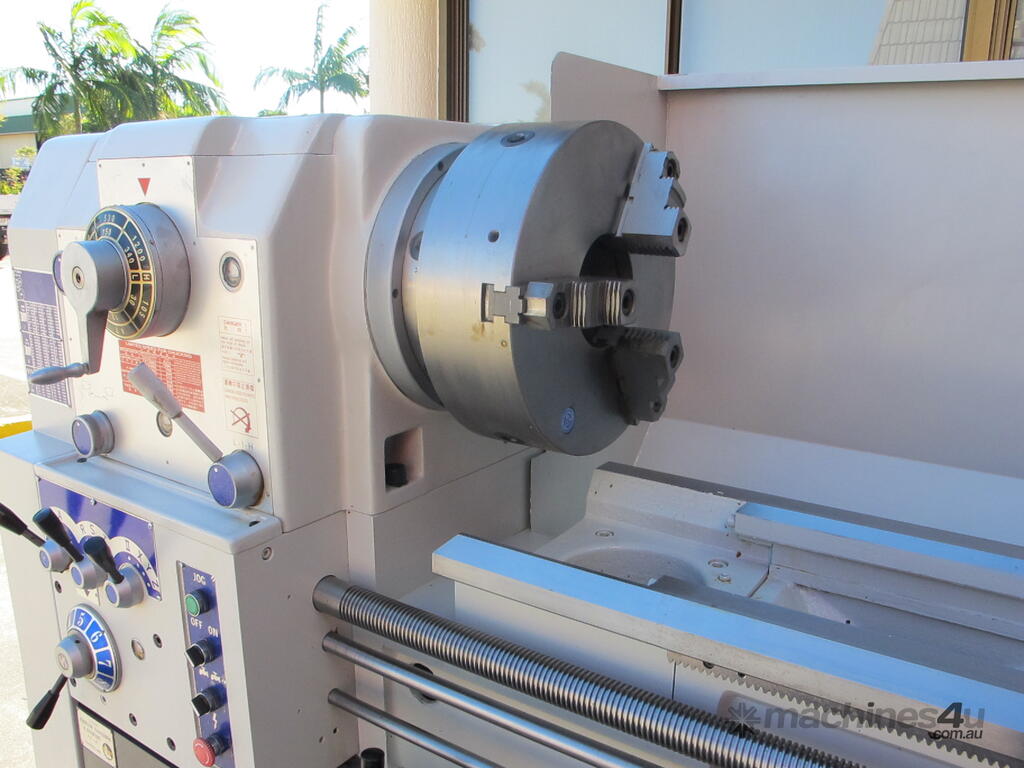

Spindle nose: ...D1-11 cam-lock
Number of spindle speeds: ...12
Spindle speed range: ...13-1200 rpm
Motor: ...10HP (opt-15 HP) 415V 3 phase

There are a wide range of options and tooling available for the range of LA lathes, please feel free to download our detailed brochure or ask if you would like a quote prepared to your specific requirements..

Competitive delivery to all states of Australia. Prices vary between models and are subject to change without notice.
