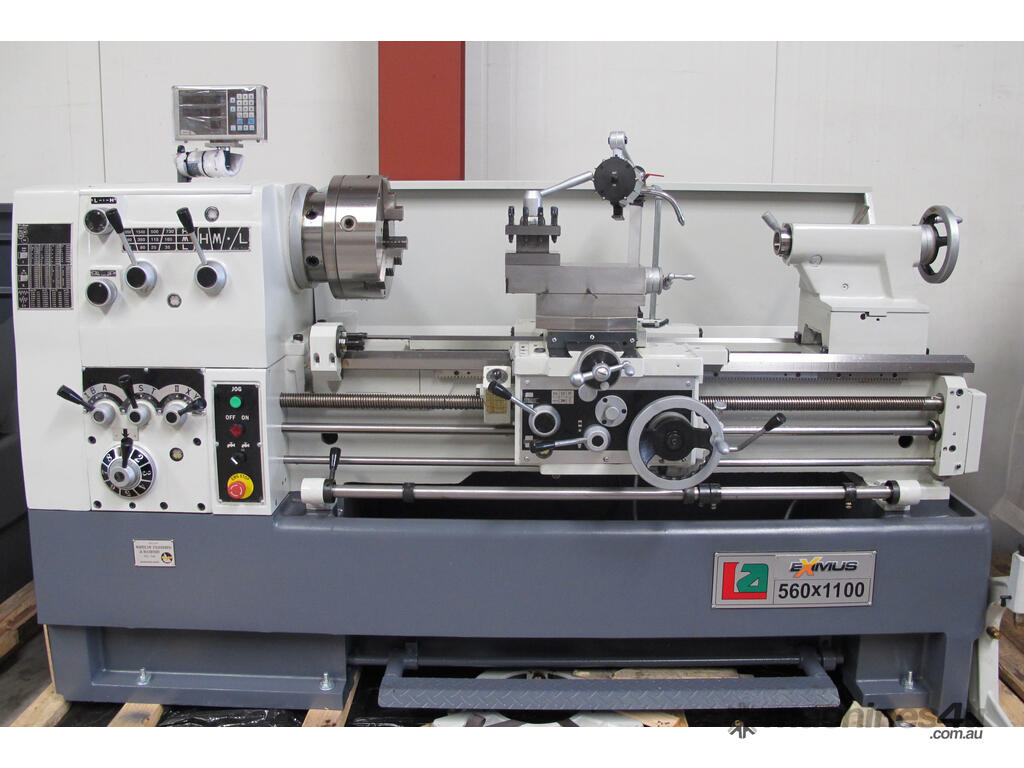

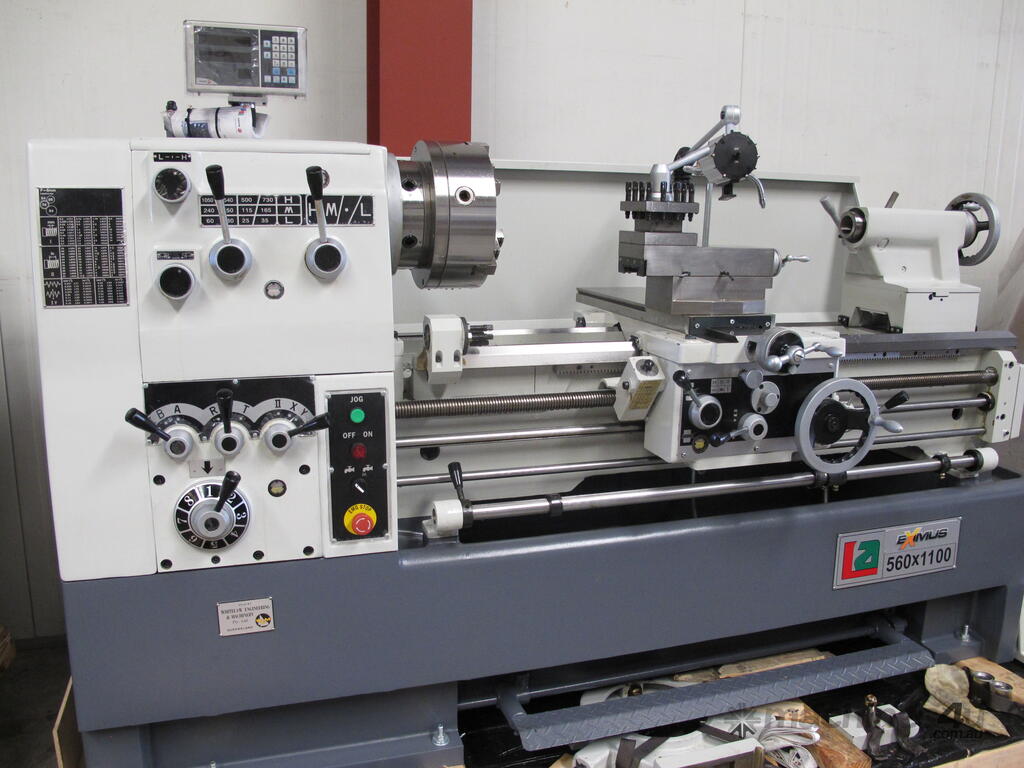

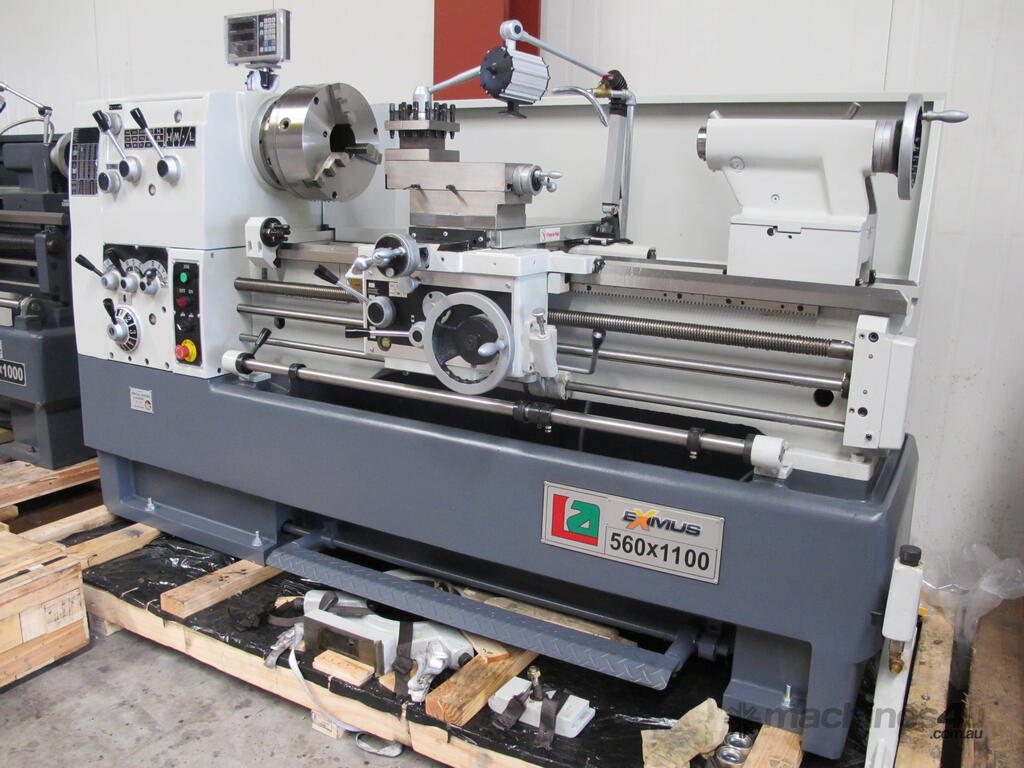

Taiwanese Centre Lathe, Ø 560mmm Turning Capacity, Ø 80mm Bore

MODEL LA-560-80B SWING CENTRE LATHES - MANUFACTURED IN TAIWAN (Qld Government: DETE 65255 Approved Supplier)

The New LA range of precision lathes are available with 80mm Spindle bore, 460/560mm swing over the bed & 1100/1500/2000mm betwee centres.

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to tool rooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, visit our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
Bed ways hardened & ground (HRC-55)
Wide 350mm bed to absorb vibration
Heavy duty spindle, hardened , ground and dynamically balanced
Headstock gears, heat treated then hardened and ground
Spindle supported by 3 point precision bearings (NTN/NSK Japan)
Spindle roundness / tolerance 0.01mm
Spindle bore 80 mm
One piece solid cast base enhances machine life and accuracy
Metric or Imperial lead screw

SPECIFICATION: ' BUILD TO ORDER'
Swing over bed: ....560 mm
Swing over cross slide: ...390 mm
Swing in gap: ...730 mm
Distance between centres: ...1100/1500/2000 mm

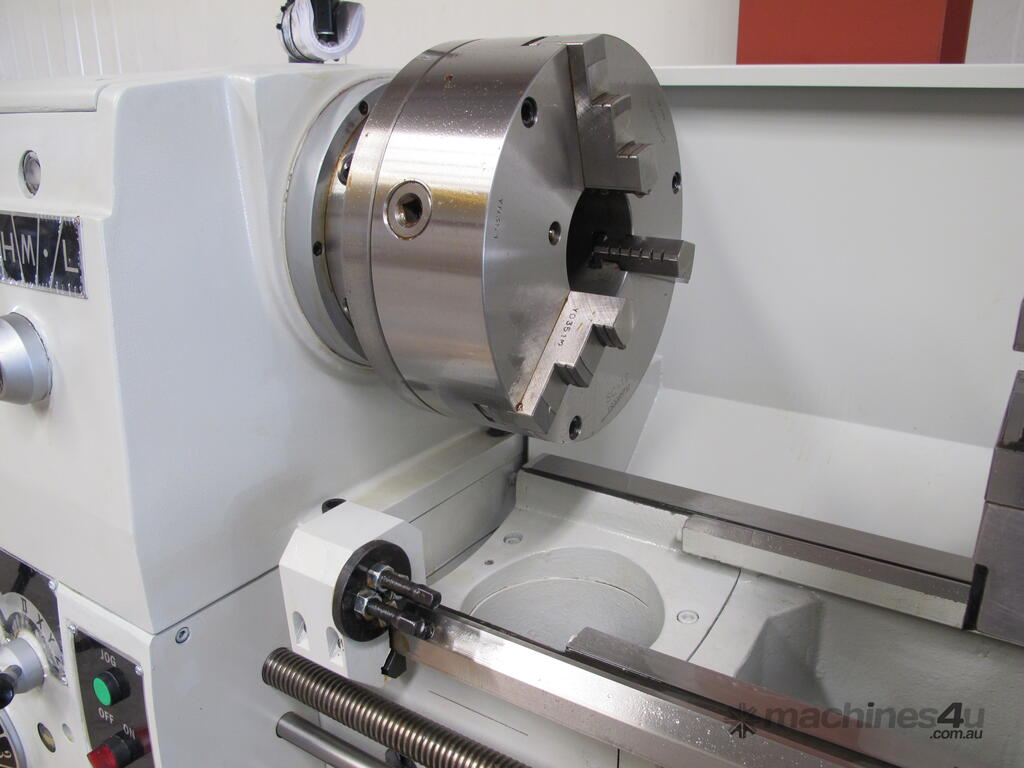

Spindle nose: ...D1-8 cam-lock
Number of spindle speeds: ...12
Spindle speed range: ...25-1540 rpm

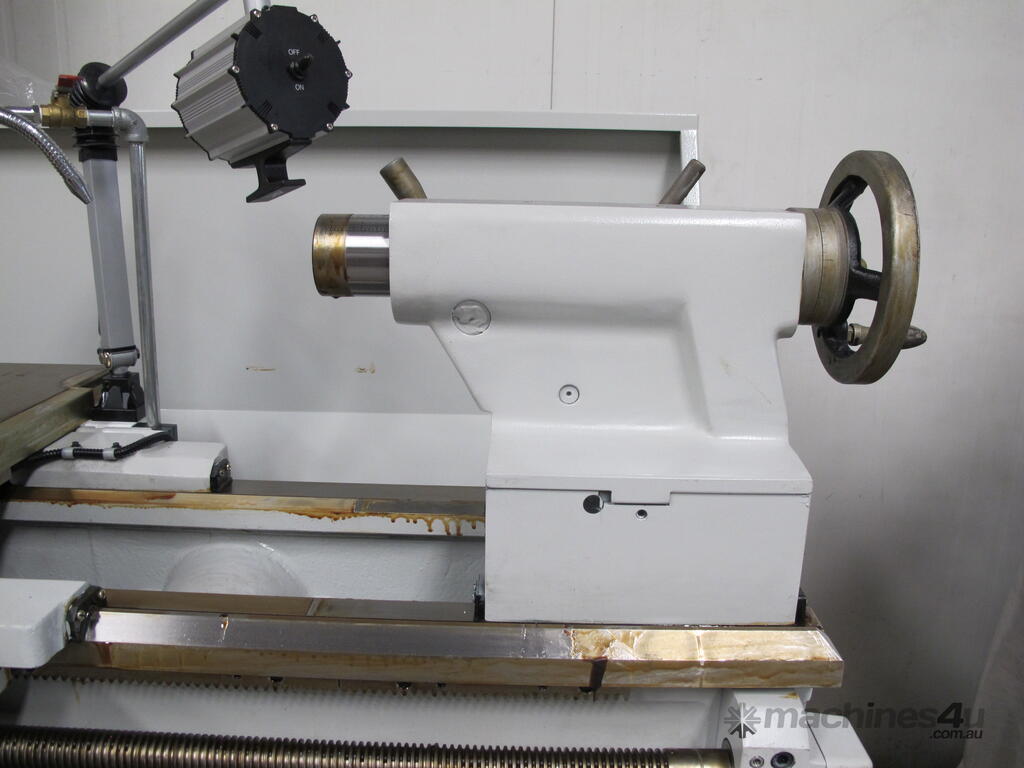

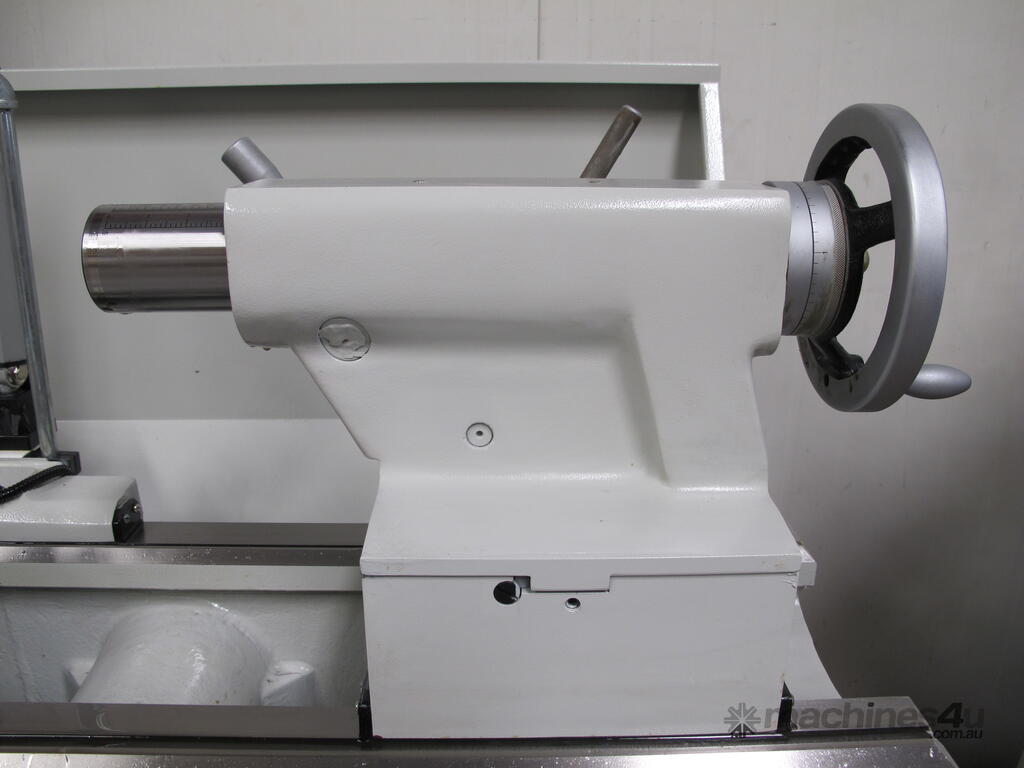

Tailstock taper: ...4 MT
Motor: ...7.5 HP 415V 3 phase

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice.

Delivery Australia Wide, competitive freight rates available. Call us on for a quote.
