Taiwanese Centre Lathe, Ø 660mm Turning Capacituy, Ø 104mm Bore

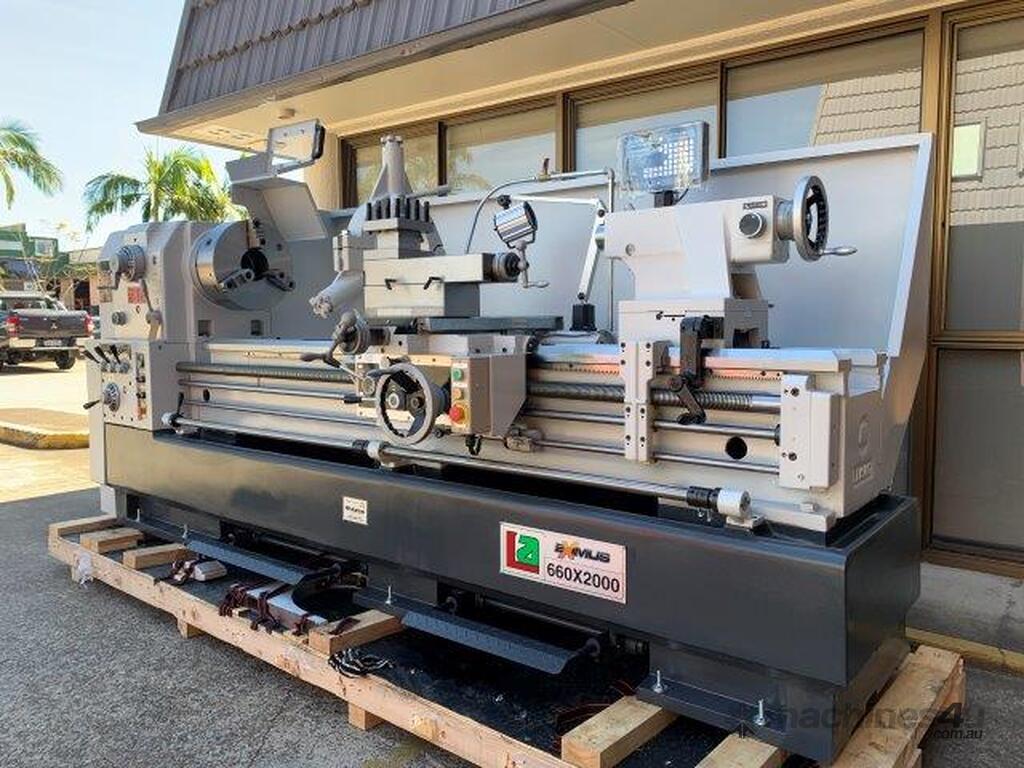

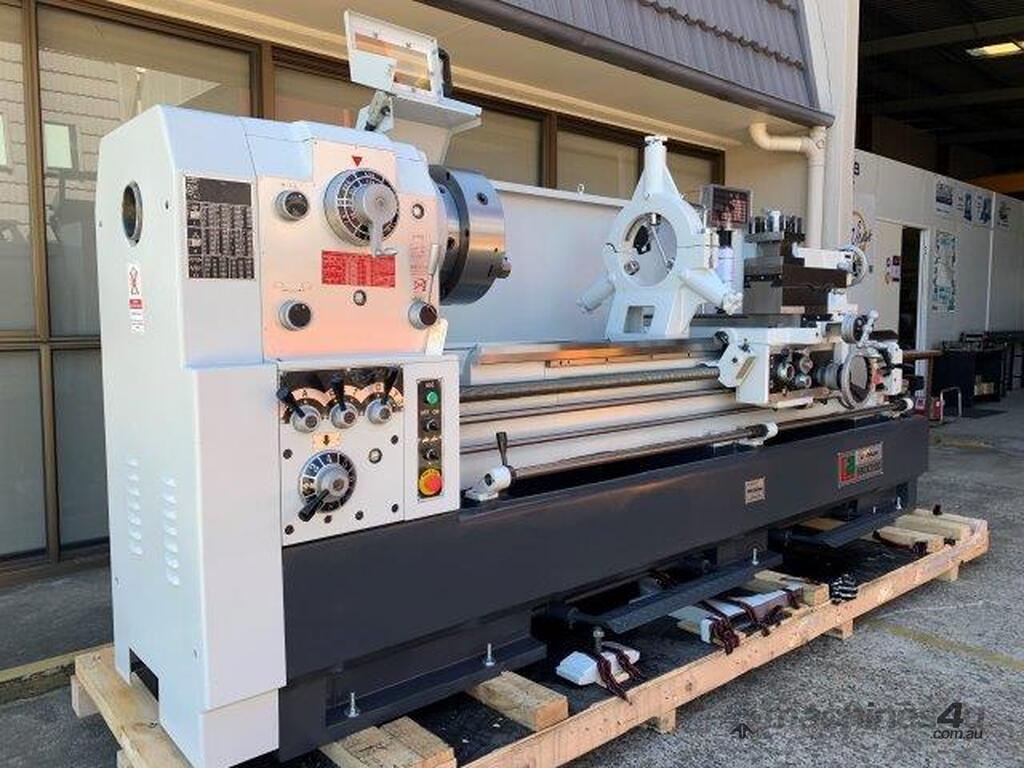

EXIMUS MODEL LA-660 SWING CENTRE LATHES - MANUFACTURED IN TAIWAN (Qld Government: DETE 65255 Approved Supplier)

The New LA range of precision lathes are available with 104mm Spindle bore, 560/660mm swing over the bed & 1500/2000/2500/3000/4000mm between centres.

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to toolrooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, vist our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
Bed ways hardened & ground (HRC-55)
Wide (400mm) 16" bed to absorb vibration

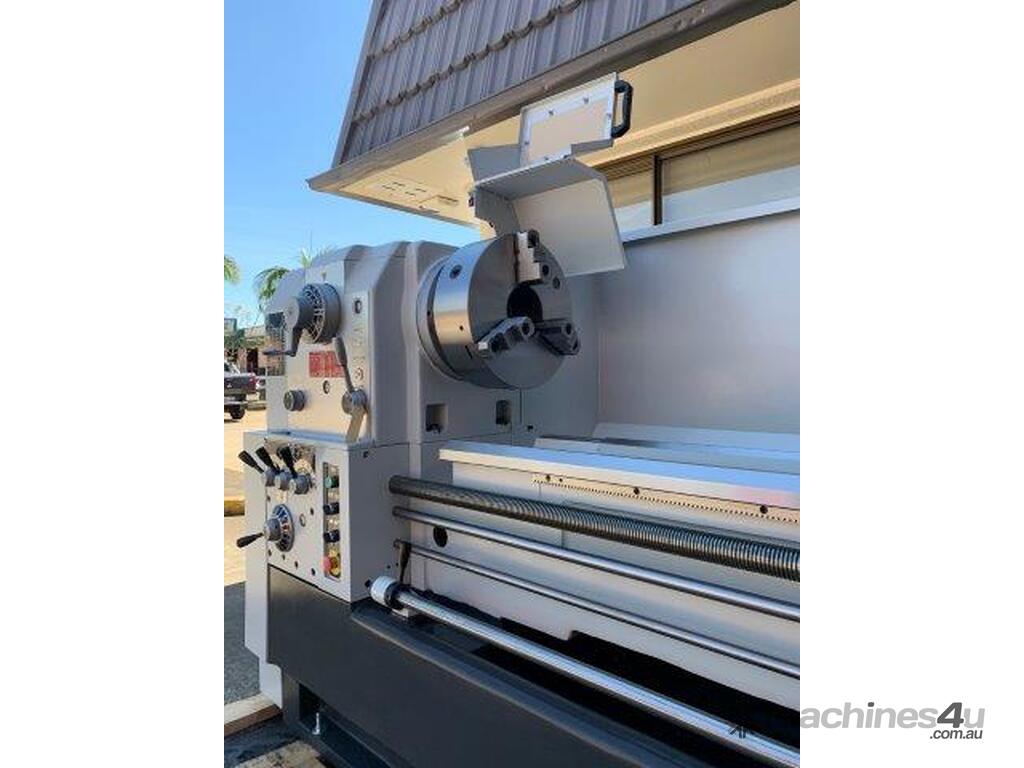

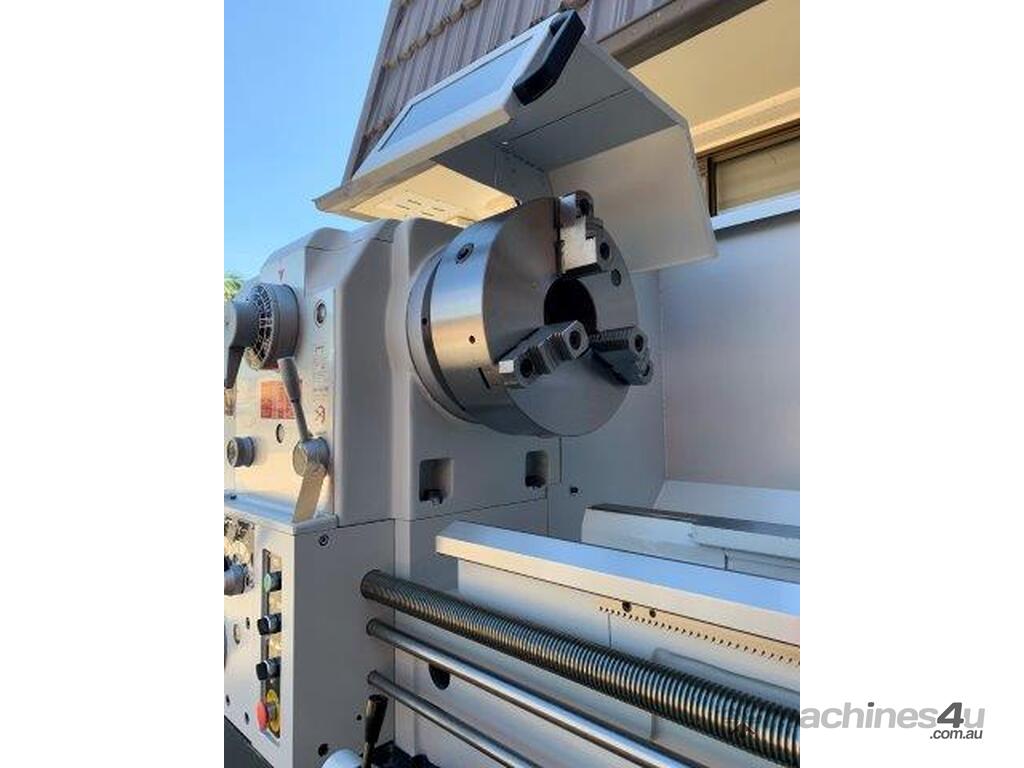

Heavy duty spindle, hardened , ground and dynamically balanced
Spindle supported by 3 point precision bearings (NTN/NSK Japan)
Spindle roundness / tolerance 0.01mm
Spindle bore 104 mm
Headstock gears, heat treated then hardened and ground
2 stage star delta start
Rapid feed to Z axis (Long)
Wide 16" bed to absorb vibration
One piece solid cast base enhances machine life and accuracy

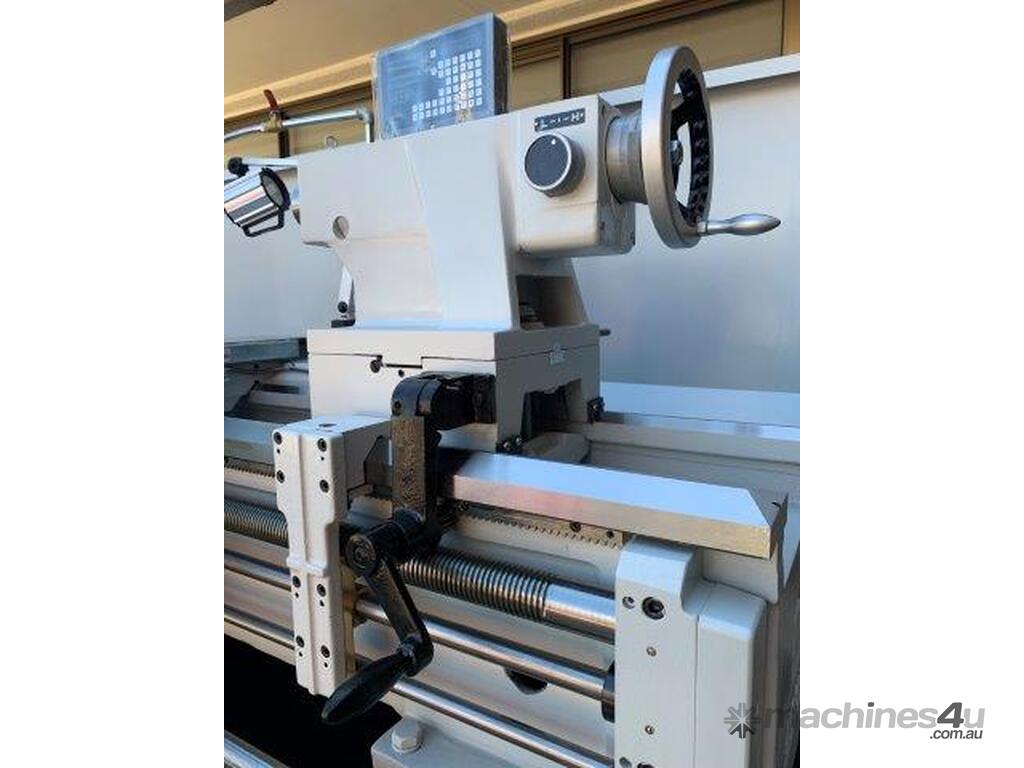

2 speed tailstock
Metric or Imperial Lead Screw

SPECIFICATION:
Swing over bed: ...660 mm
Swing over cross slide: ...445 mm
Swing in gap: ...900 mm
Distance between centres: ...1500/2000/3000/4000mm
Spindle nose: ...D1-11 cam-lock
Number of spindle speeds: ...12
Spindle speed range: ...13-1200 rpm
Motor: ...10 HP (opt-15HP) 415V 3 phase

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
--------------------------------------------------------------------------------
* Specifications subject to change without notice.

Delivery Australia Wide, competitive freight rates available. Call us on for a quote.
