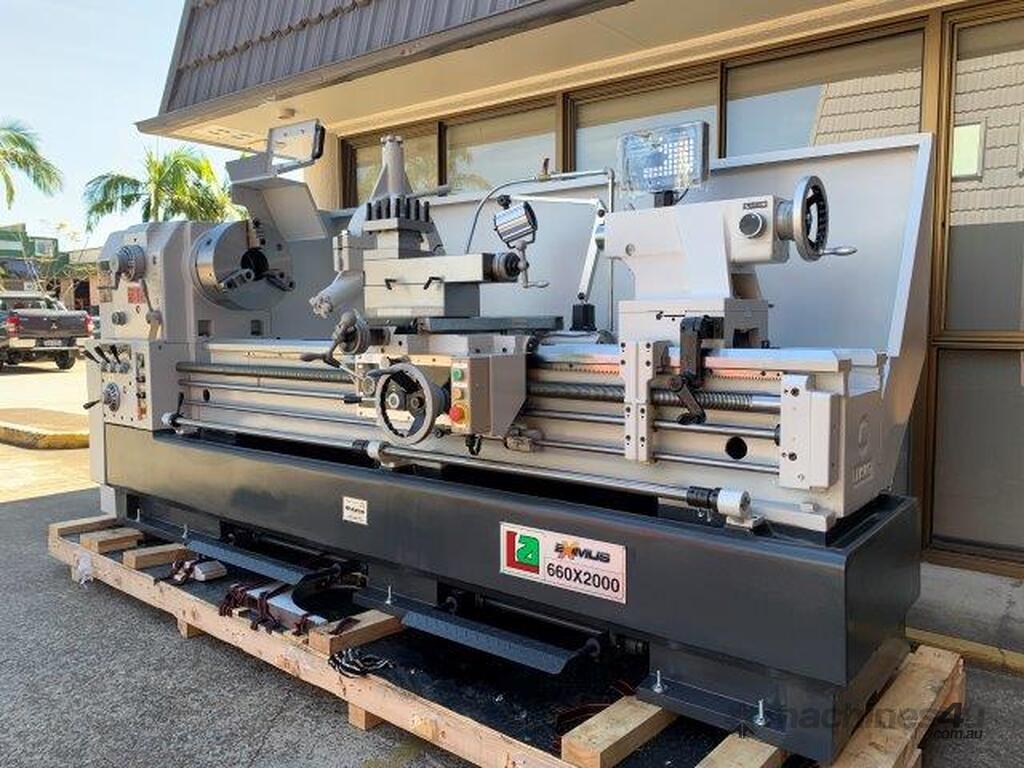

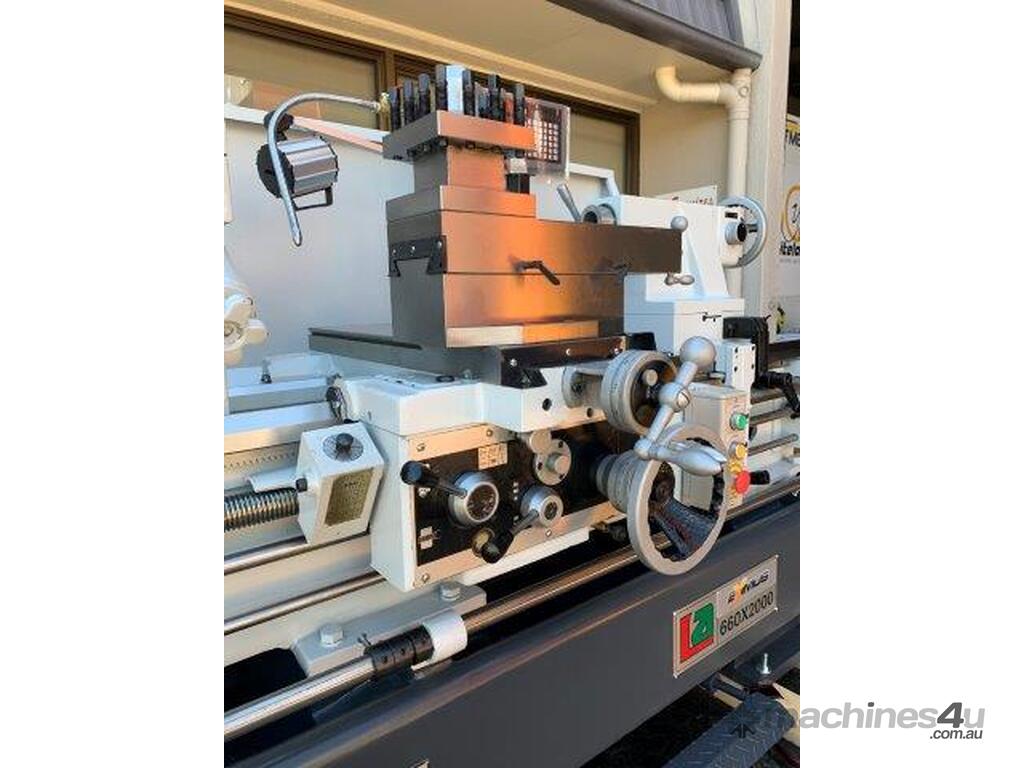

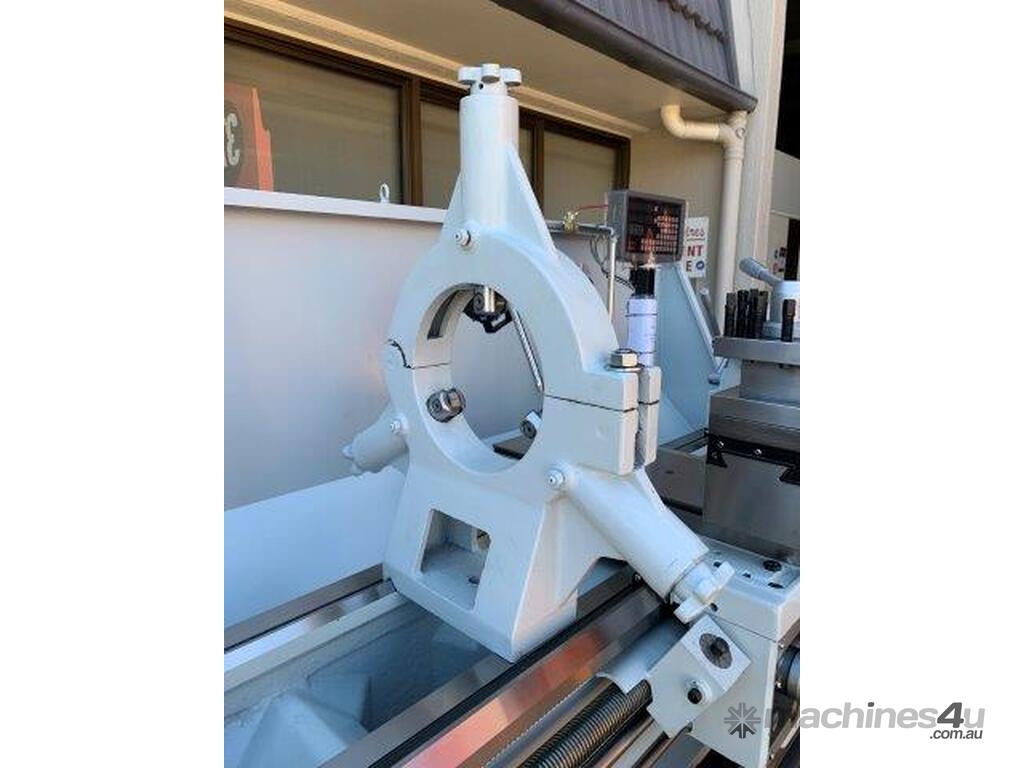

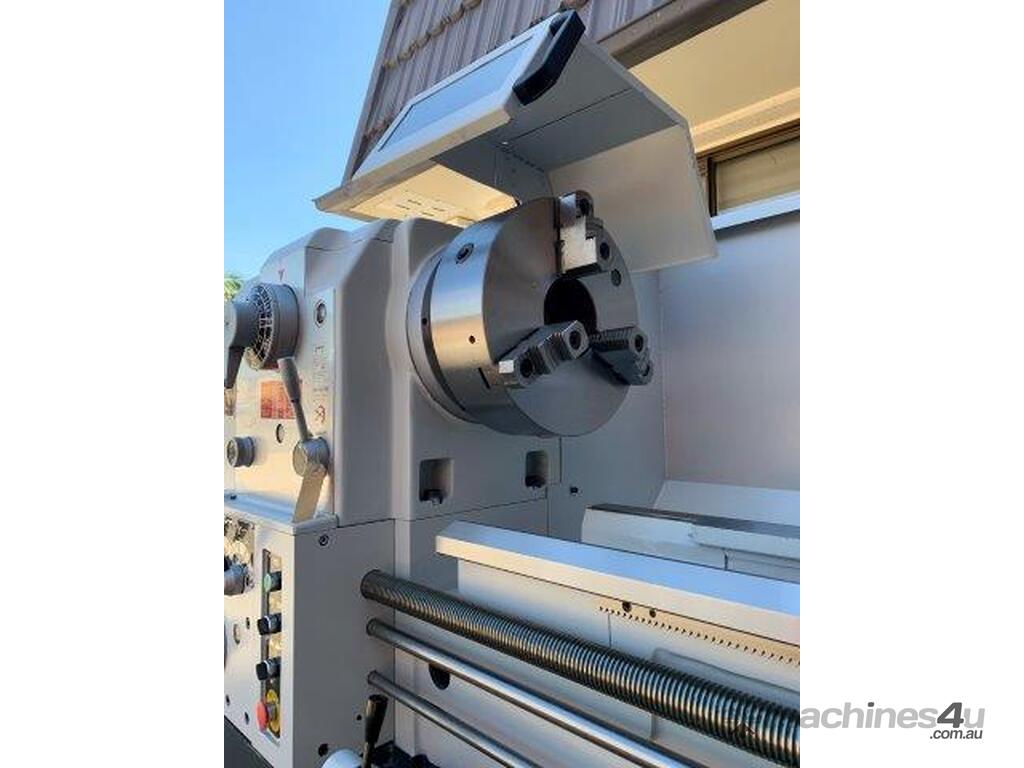

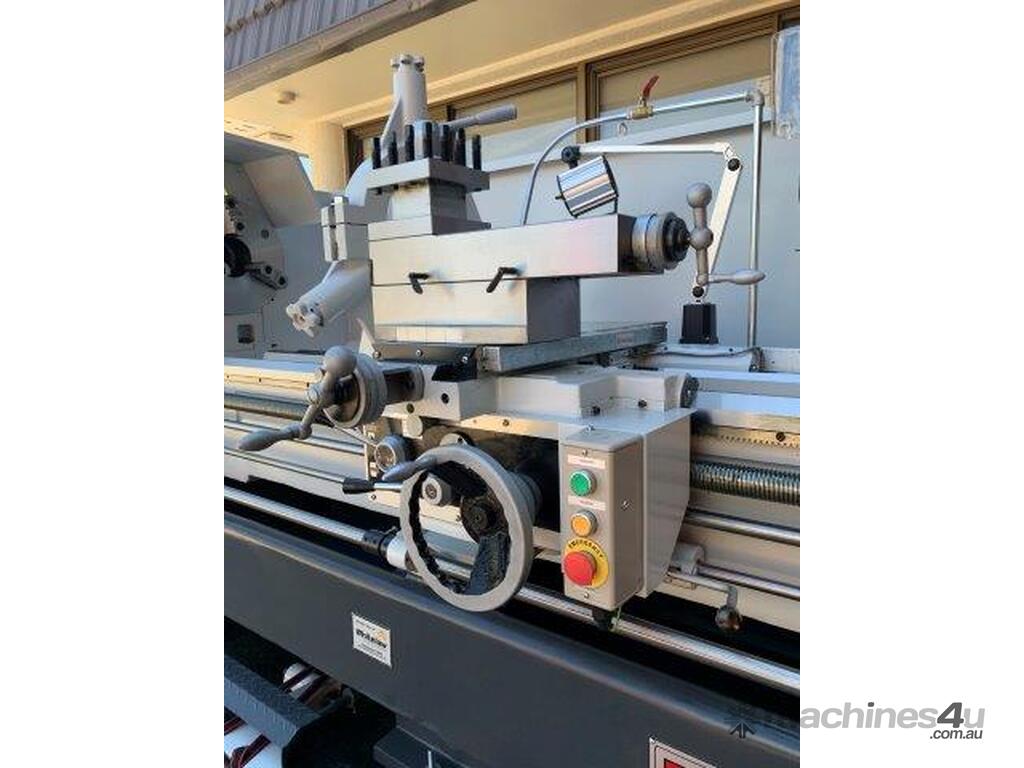

Taiwanese Centre Lathe, 660x2000 Turning Capacity, Ø 104mm Bore

High End Quality Taiwanese Lathe 'Mazak' design

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to tool rooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, vist our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
Bed ways hardened & ground (HRC-55)
Wide (400mm) 16" bed to absorb vibration
Heavy duty spindle, hardened , ground and dynamically balanced
Spindle supported by 3 point precision bearings (NTN/NSK Japan)
Spindle roundness / tolerance 0.01mm
Spindle bore 104 mm

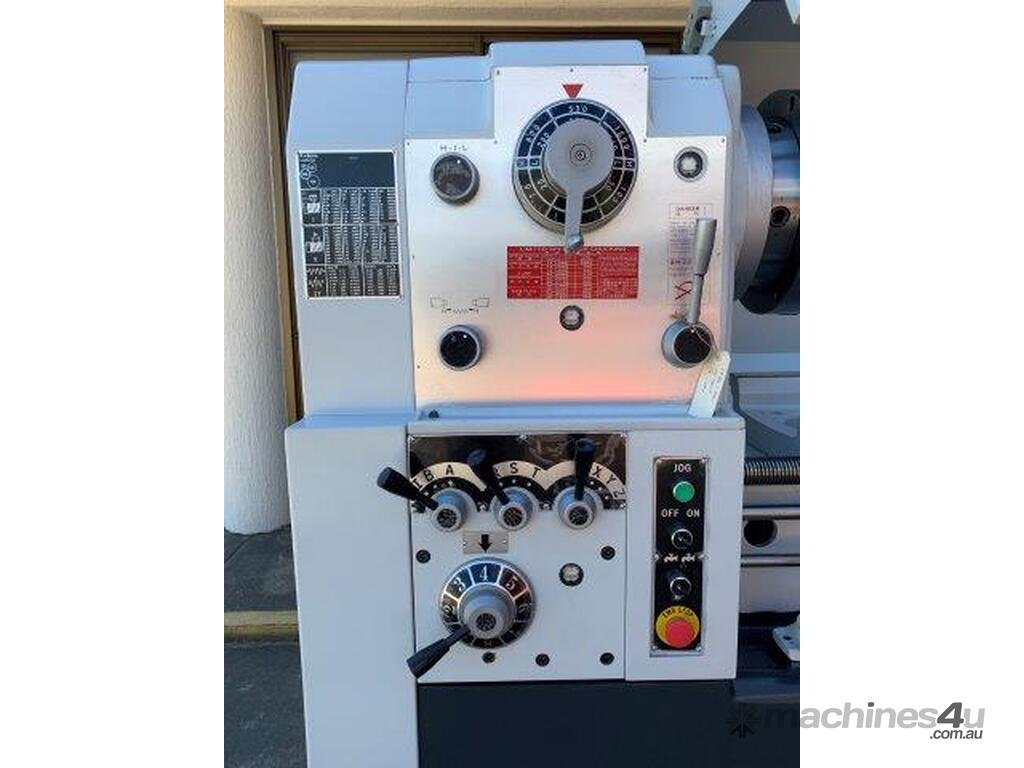

Headstock gears, heat treated then hardened and ground
2 stage star delta start
Rapid feed to Z axis (Long)

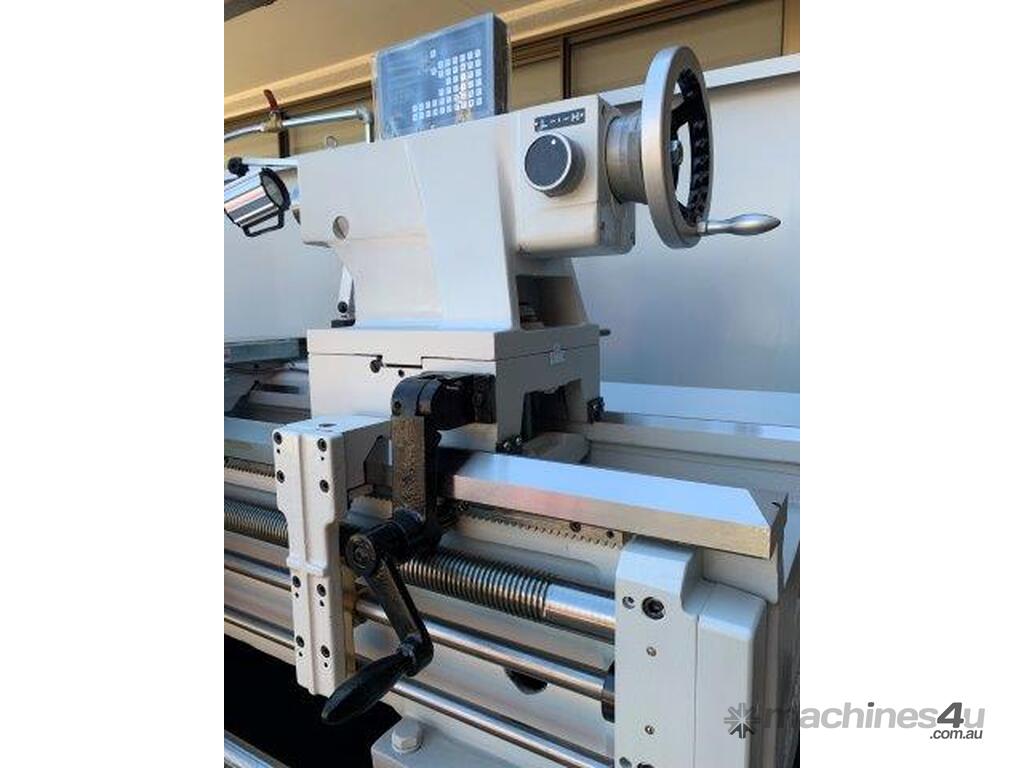

2 speed tailstock

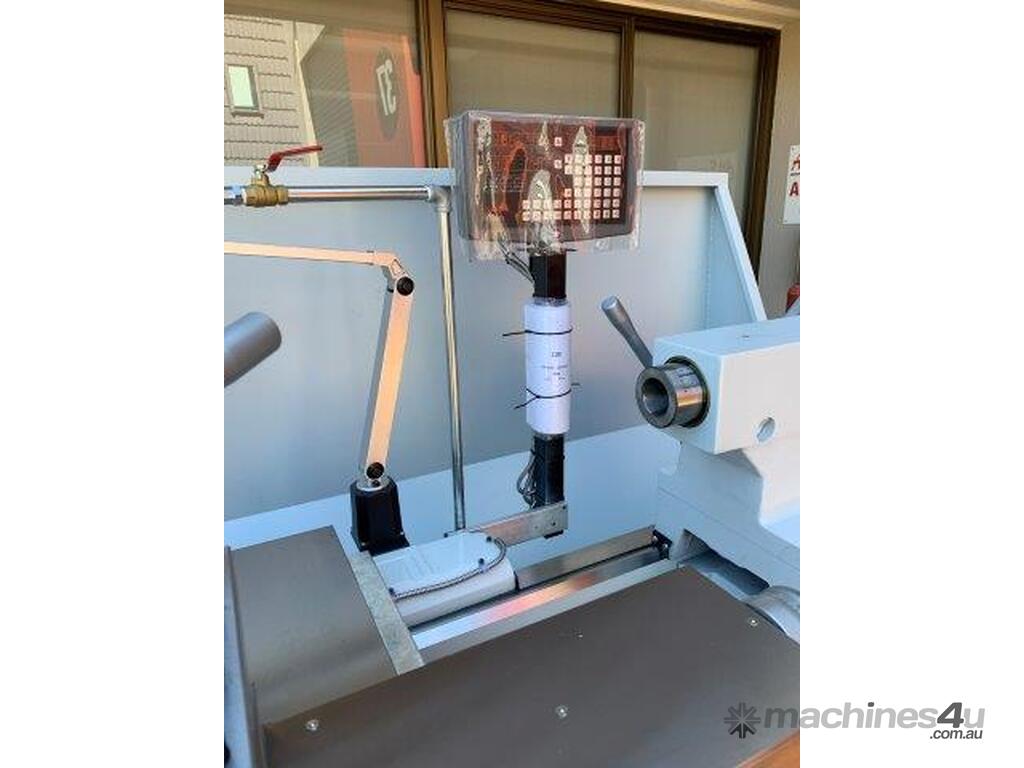

2 Axis digital readout

SPECIFICATION:
Swing over bed: ...660 mm
Swing over cross slide: ...445 mm
Swing in gap: ...900 mm
Distance between centres: ...2000 mm
Spindle nose: ...D1-11 cam-lock
Number of spindle speeds: ...12
Spindle speed range: ...13-1200 rpm
Motor: ...10HP (opt-15 HP) 415V 3 phase

For more information please download the attached machine brochure, or feel free to call one of our sales team today on .

'Huge Range of Optional Equipment and Tooling'
'Australia Wide Shipping and Service' Call today for a no obligation quote.
--------------------------------------------------------------------------------
* Specifications subject to change without notice.

Competitive delivery to all states of Australia. Prices vary between models and are subject to change without notice.
