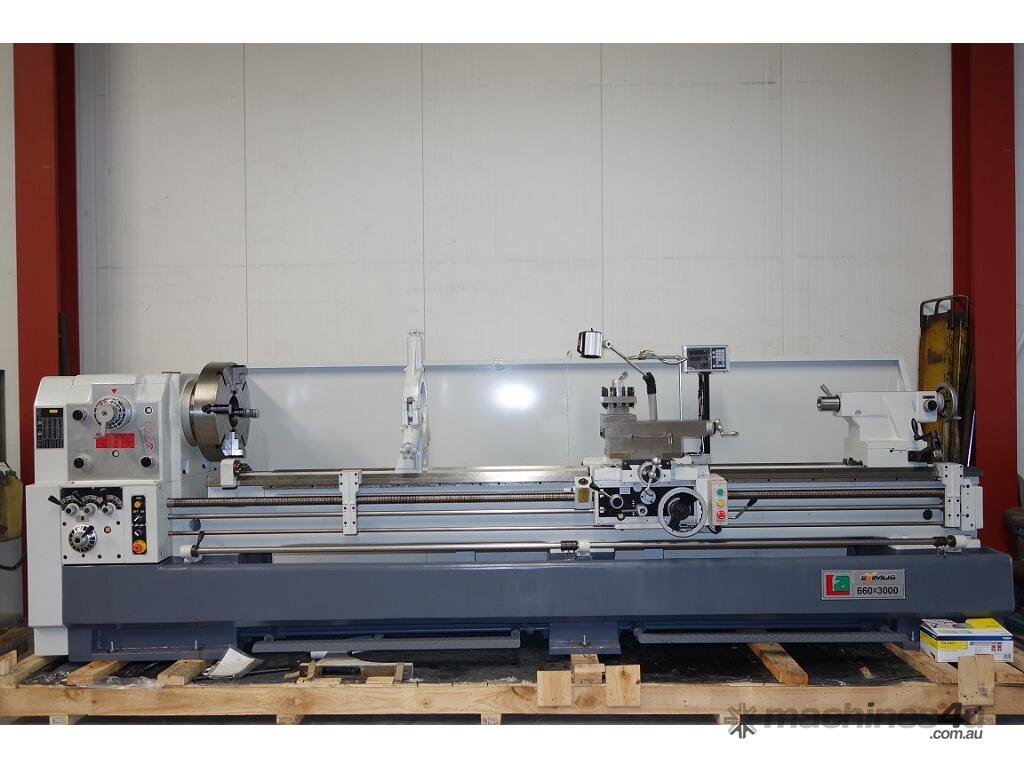

Taiwanese Centre Lathe, Ø 760mm Turning Capacity, Ø 104mm Bore

EXIMUS MODEL LA-760 SWING CENTRE LATHES - MANUFACTURED IN TAIWAN (Qld Government: DETE 65255 Approved Supplier)

The New LA range of precision lathes are available with 104mm Spindle bore, 560/660/760mm swing over the bed & 1500/2000/2500/3000/4000mm between centres.

Lei Shin Machinery is one of Taiwan's leading manufactures of conventional and CNC lathes. Whitelaw Engineering machinery have supplied hundreds of these high quality centre lathes to tool rooms, schools, training colleges, automotive workshops and engineering companies throughout the Oceania region.

Don't take the risk by buying inferior quality products for your business, visit our or call for details on the complete range of Eximus machine tools manufactured in Taiwan.

MACHINE FEATURES:
One piece solid cast base enhances machine life and accuracy
Spindle supported by 3 point precision bearings (NTN/NSK Japan)
Spindle bore 104 mm
Headstock gears, heat treated then hardened and ground
Rapid feed to Z axis (Long)
Wide 16" bed to absorb vibration
2 speed tailstock
2 stage star delta star start
Metric or Imperial lead screw

SPECIFICATION:
Swing over bed: … Ø 760 mm
Swing over cross slide: … Ø 445 mm
Distance between centres: …1500/2000/2500/3000/4000 mm
Spindle nose: …D1-11 cam lock
Number of spindle speeds: …12
Spindle speed range: …13-1200 rpm
Spindle motor: …Teco 10HP (Opt-15HP) 415V 3 phase

There are a wide range of options and tooling available for the range of LA lathes, please feel free to download our detailed brochure or ask if you would like a quote prepared to your specific requirements.

Competitive delivery to all states of Australia. Prices vary between models and are subject to change without notice.
