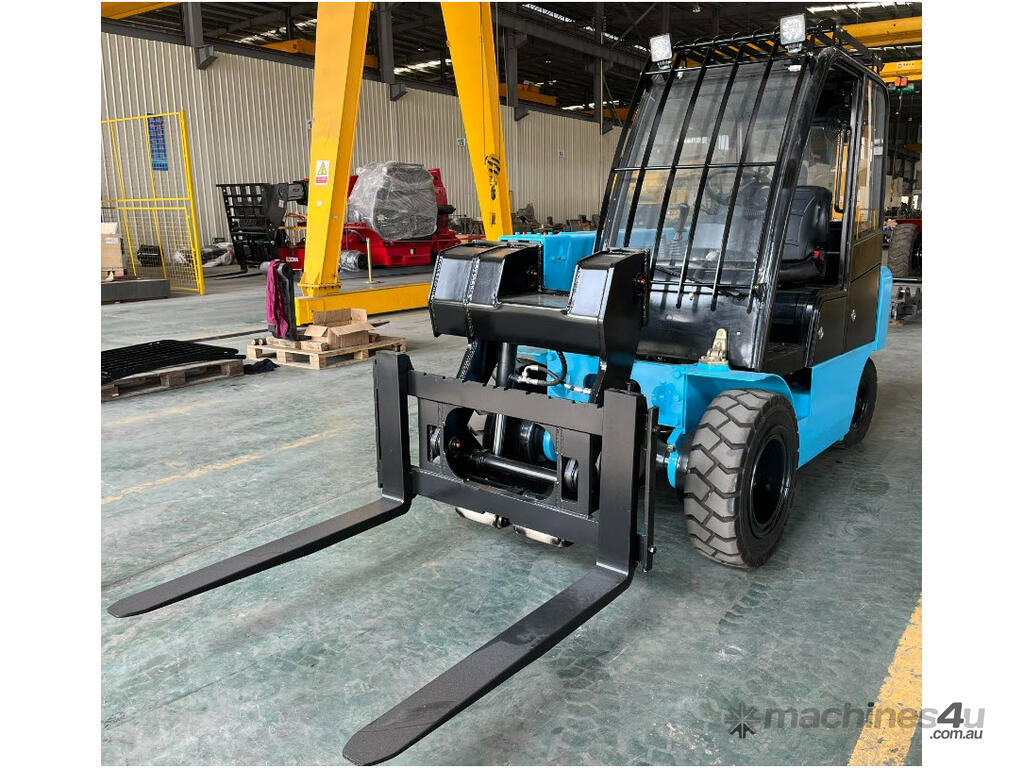

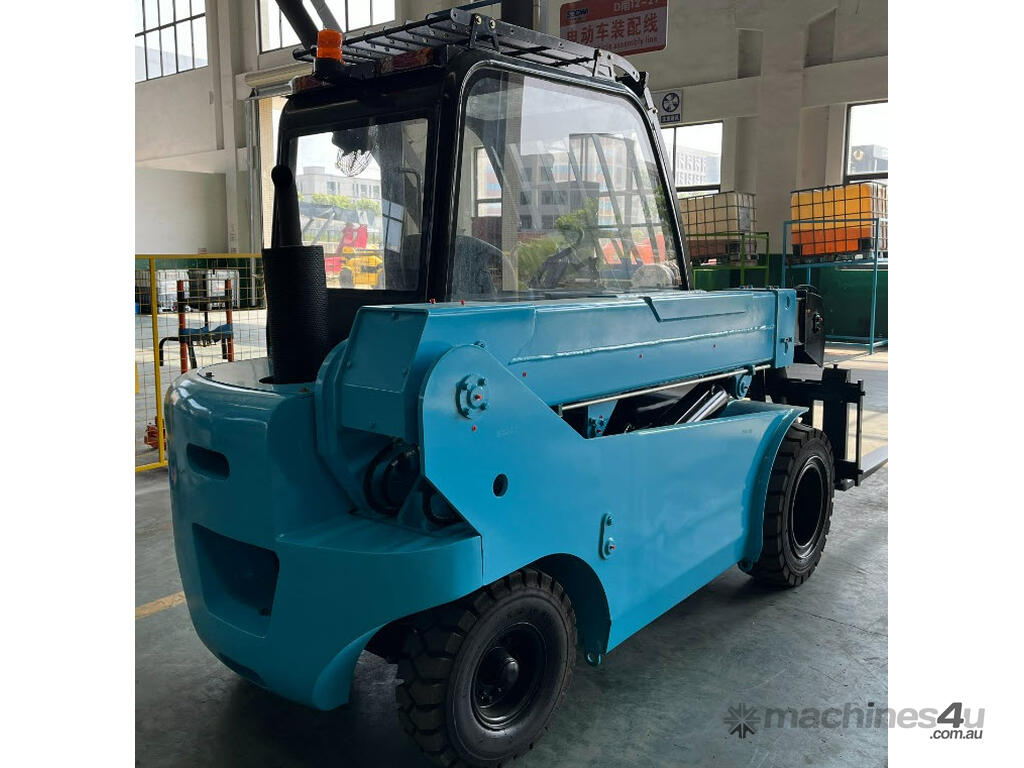

Telehandler, 3 ton, 4m Lift

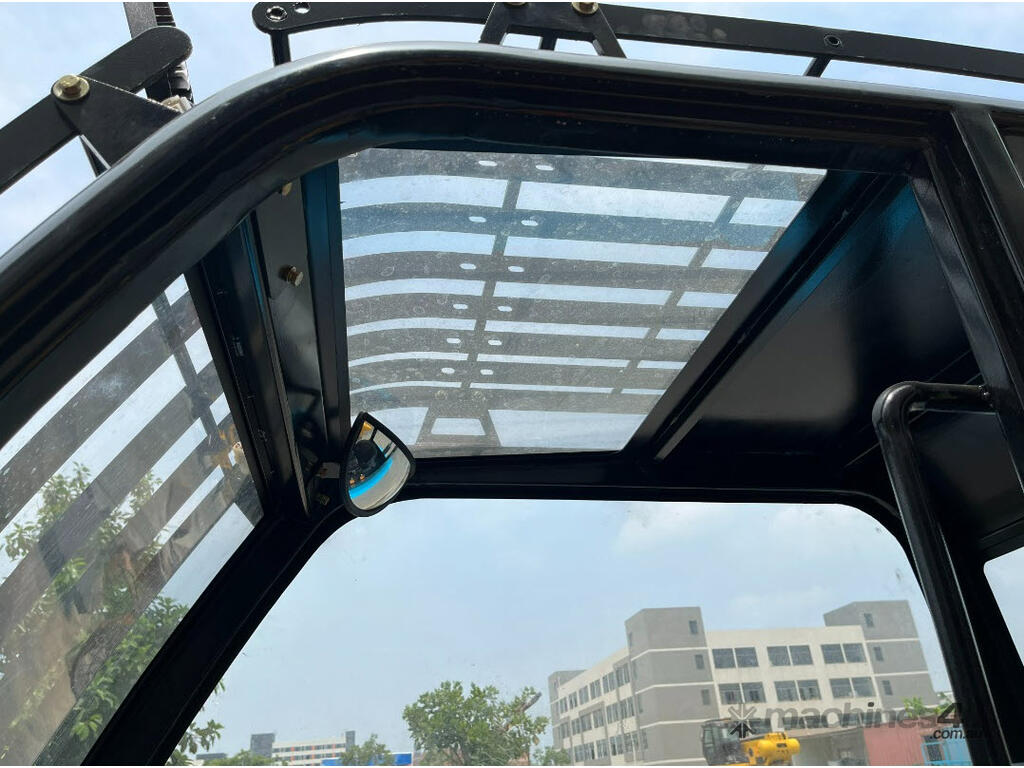

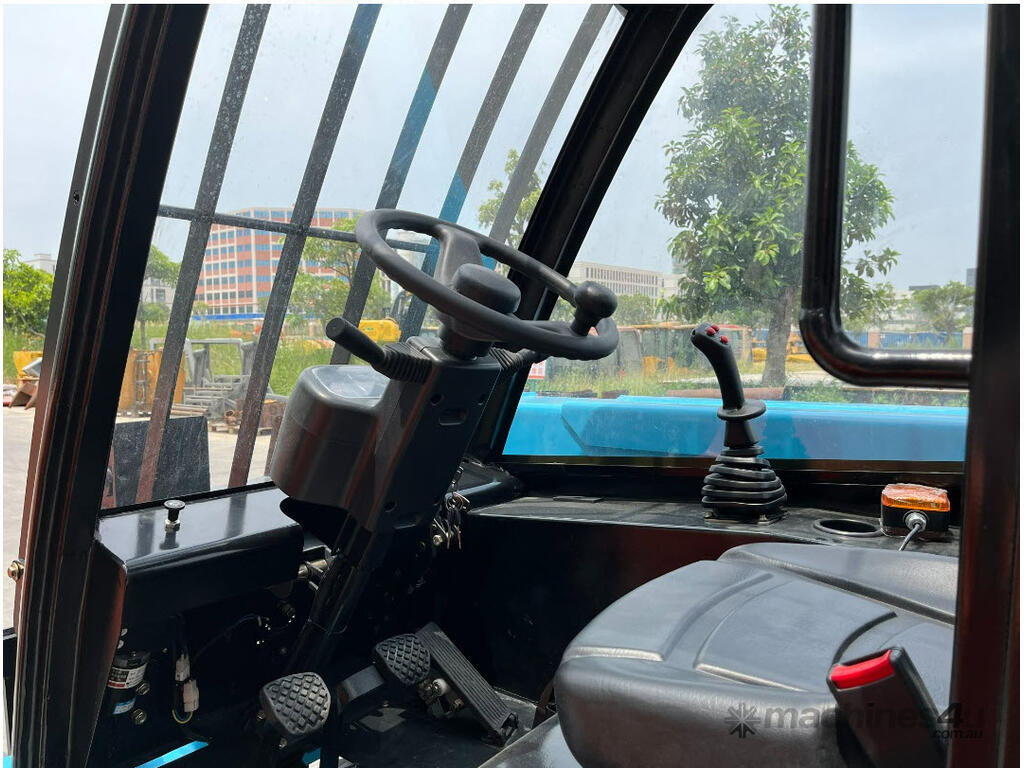

Cabin: Standard equipped with three-sided glass enclosed, safe and comfortable; a fully enclosed cab is optional; a visible sunroof provides a wider operating field of view; the cab can be turned over to quickly overhaul all main components.

Transmission: Equipped electronic-hydraulic control gear control, the system can achieve quick soft-engagement during
control shift function, gear shifting becomes simple, convenient, with smooth start, and greatly reduces the driver's workload.
increasing the work efficiency of the vehicle.

Description Unit 3Ton/2.5Ton
Rated Load kg 3000/2500
Length WO/Forks mm 2920
Length W/Forks mm 4000
Width Frame Width mm 1300
Height Height to head guard mm 2170
Height Max height mm 4600
Axle Distance mm 1850
Front Overhang Distance mm 570
Front Wheel Distance mm 990
Rear Wheel Distance mm 990
Ground Clearance Under Mast mm 130
Ground Clearance Under Wheelbase mm 160
Max. Lifting Height mm 4000
Free Lifting Height mm 3800
Max. horizontal reach mm 2090
Operation Weight kg 4500/4350
Min. Turning Radius mm 2800
Max. Travelling Speed WO/load km/h 20
Max. Travelling SpeedFull Loaded km/h 20
Load Center mm 500
Engine YANMAR 4TNE98 75Hp
