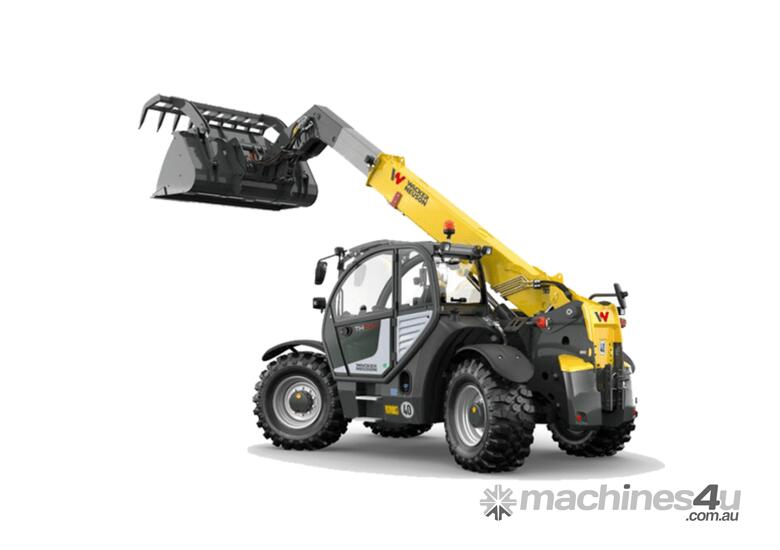

Telehandler – TH744

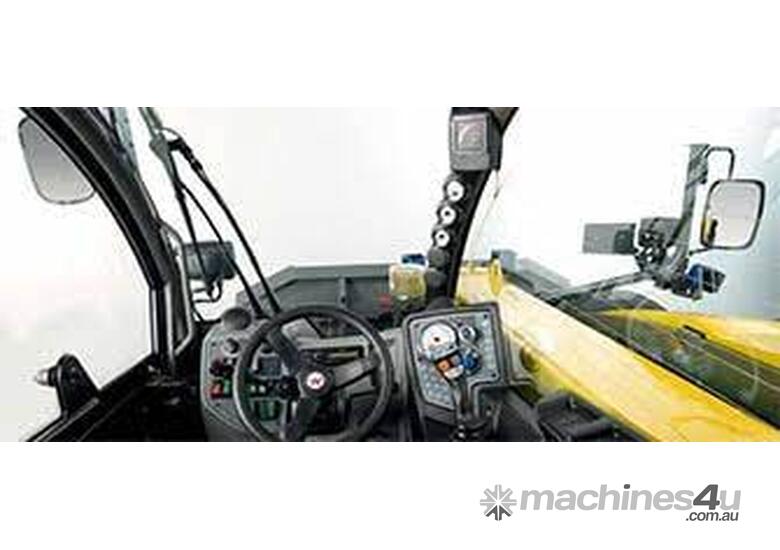

The multifunctional joystick of the TH744 is a true all-rounder – it controls 16 functions. Practical for night job sites: the joystick and all of the switches are illuminated. The cabin of the Wacker Neuson telehandler is very comfortable and highly ergonomic. A comfortable, adjustable seat and practically arranged operator’s controls ensure even more precise work. Excellent visibility and a low noise level make the TH744 a comfortable place to work. And the telehandler also convinces with an enormous stacking height of 7.017 meters combined with a payload of 4.4 tons.

Engine speed reduction for lower fuel consumption
High performance hydraulics for rapid work cycles
136 PS Deutz engine
Ergonomically shaped joystick console


TH744 Standard components

Cabin

ROPS/FOPS-tested, soundproofed, vibration-insulated comfort cabin with 360° all around view and full colour glazing
Front and rear wipers, intermittent wipe at front
Turn indicator reset
Door switch for cabin light
Split door, upper half can be opened through 180° in two positions
Hinged rear window
Steering column adjustable in height and inclination
Suspended pedals and removable floor mat
Grammer MSG85/721 comfort seat with mechanical suspension
Electronically pilot-controlled multifunctional joystick with integrated, night-time design and travel direction selection switch
7? – LCD colour display to show all vehicle functions
Jog dial
Colour-coded switches for hydraulic, electric, driving and safety functions
Heating with 3-speed fan, 6 air vents, 2 defroster vents
12 V power outlet
Storage space
Sun blind
1 front halogen working light, 1 rear halogen working light
StVZO (German road traffic regulations) light, automatic battery isolator switch

Engine
Combined radiator with wide-spaced fins for coolant, hydraulic oil and charge air
Engine cover with wide opening angle, sight glass for hydraulic oil and coolant


Steering and working hydraulics:
3rd control circuit and telescopic function with proportional control
Switch-operated continous function of 3rd control circuit via rocker switch
Oil quantity for 3rd control circuit and all optional control circuits adjustable
Second-generation “Smart Handling” overload and driver assistance system (bucket, forklift and manual mode)

Travelling drive and axles:
Progressive hydrostatic latest-generation ecospeed gearbox with load-dependent, electronic engine and gearbox control


Vehicle body and kinematics:
Torsion-resistant steel frame with box-section design and lateral support for telescopic boom
Teo lockable storage bins integrated in counterweights with 22-litre capacity each
Telescopic boom guided by 13 slide elements with external adjustment
Damped final position in telescopic, lift and tilt rams
Front power supply (10-wire)

Documentation
Operator’s Manual, spare parts list on CD
Data confirmation (Germany only)
