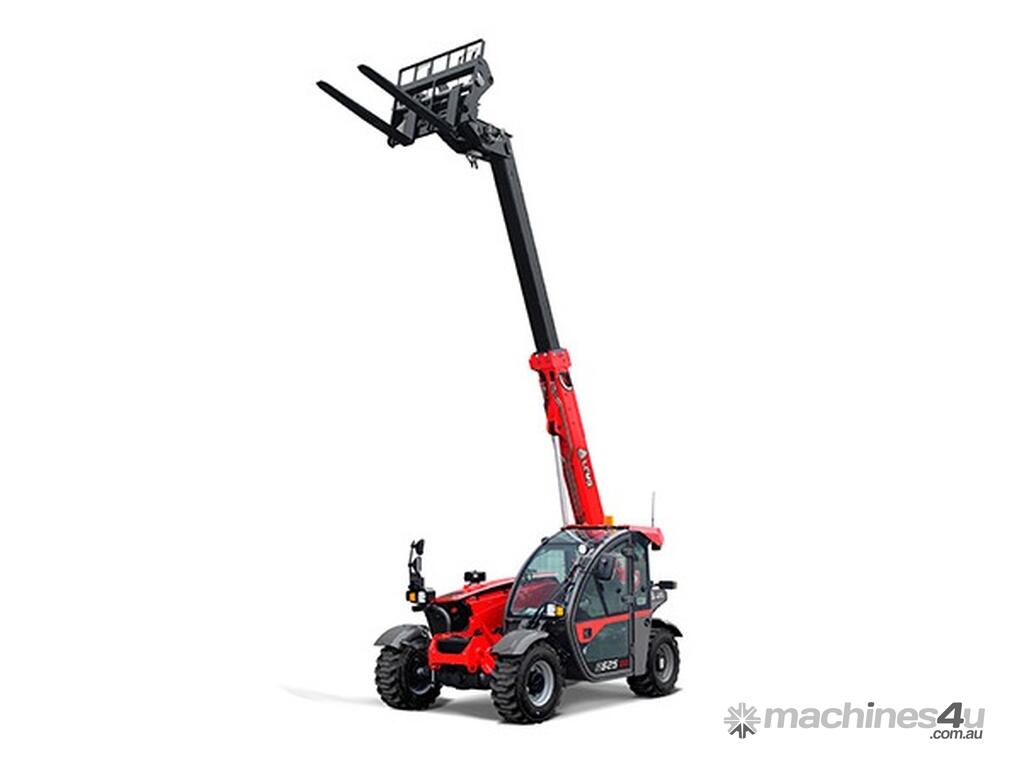

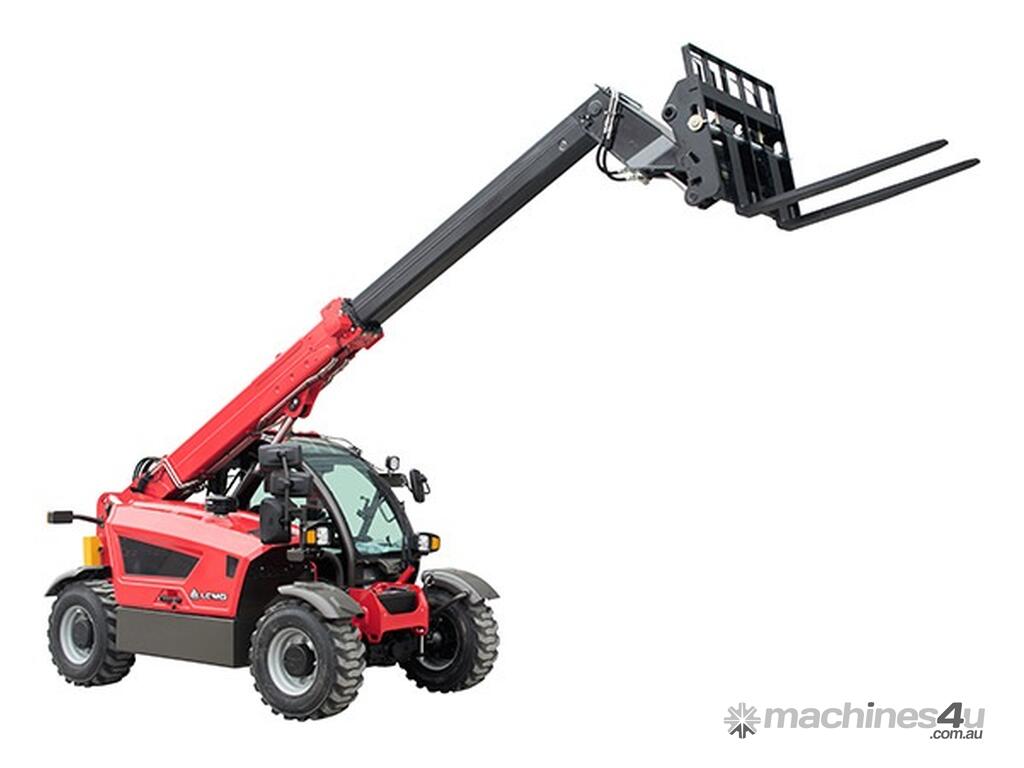

Telehandler - Telescopic Material Handler - 2.5T 6m Lift Height 4WD LGMG

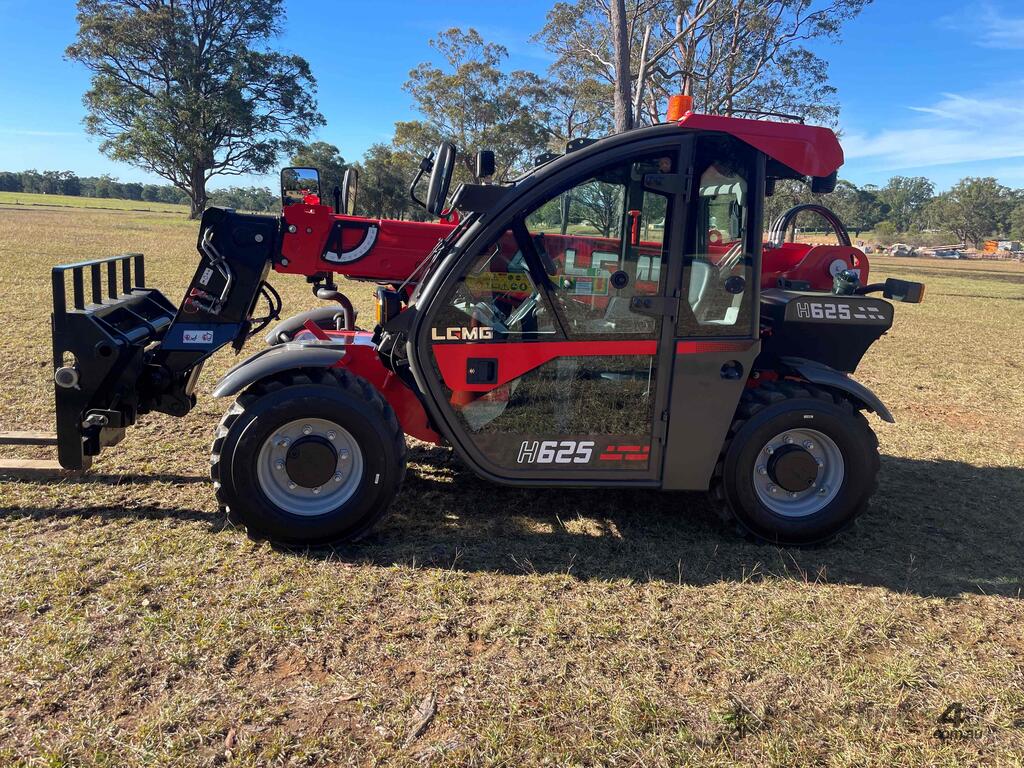

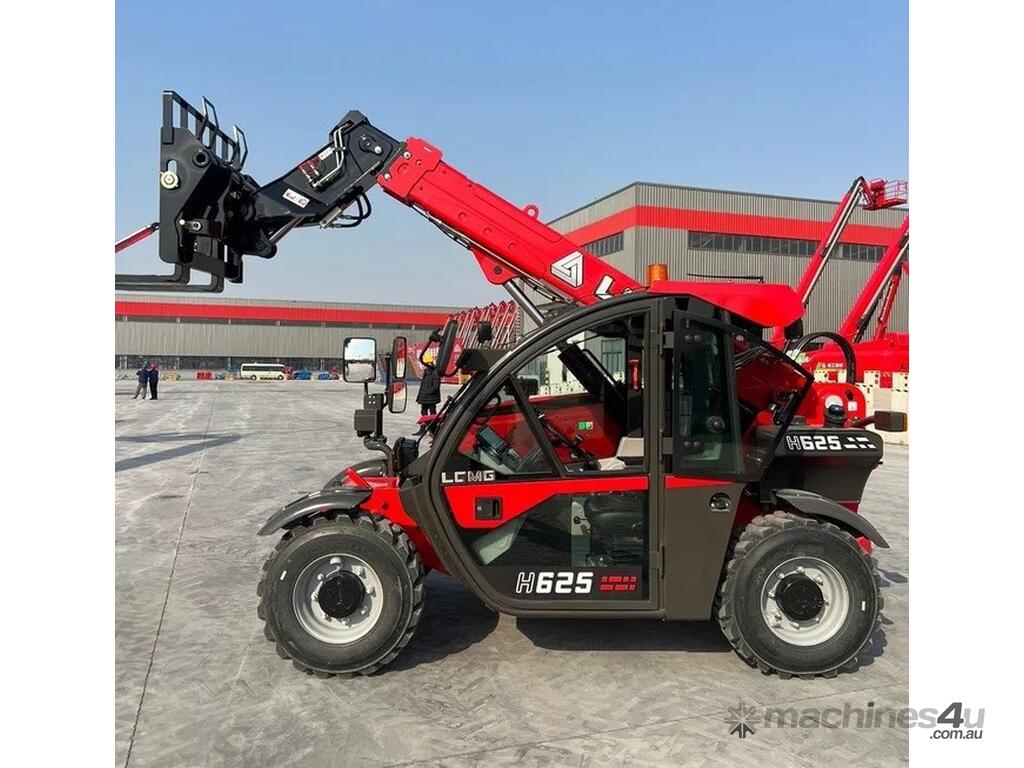

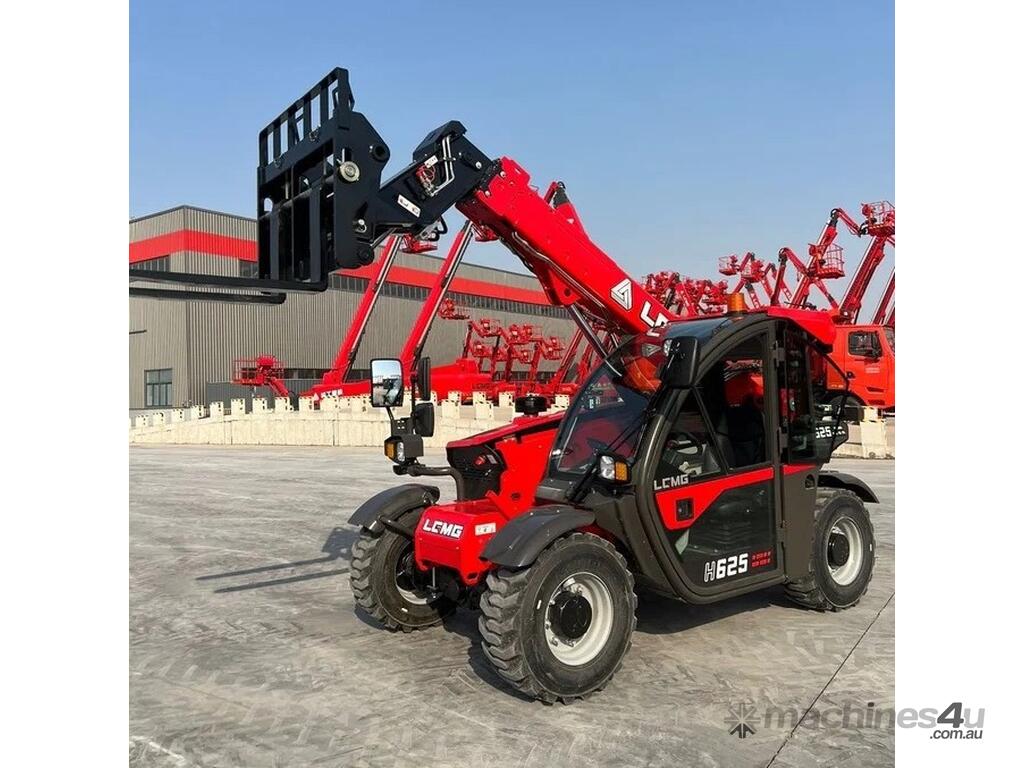

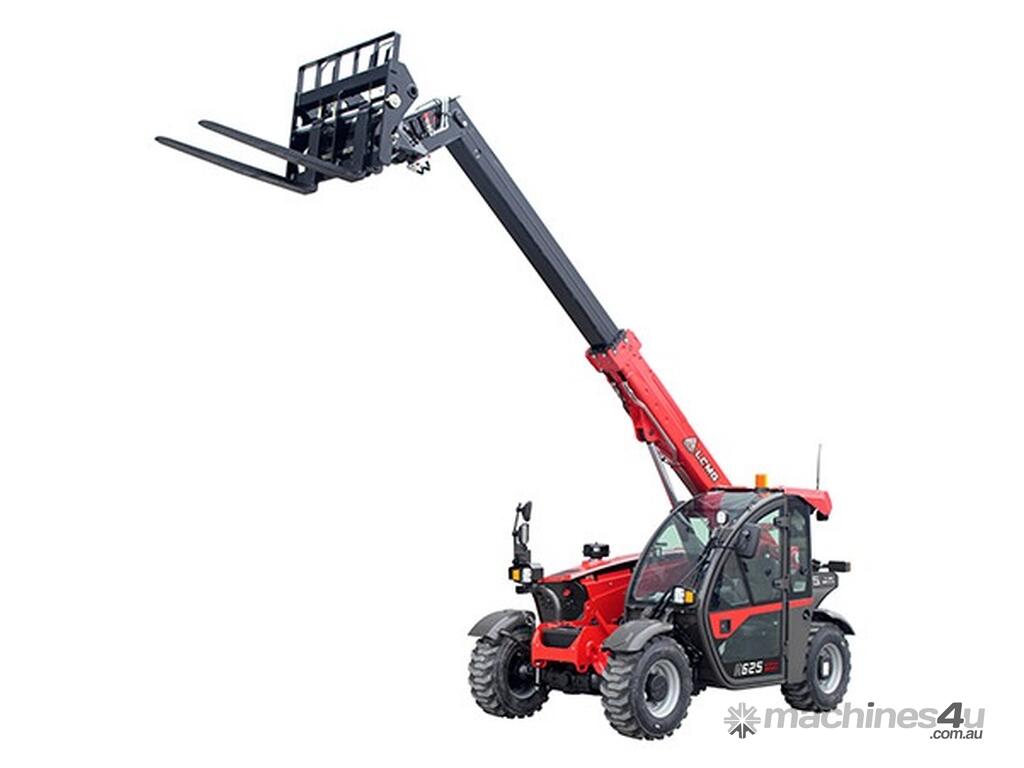

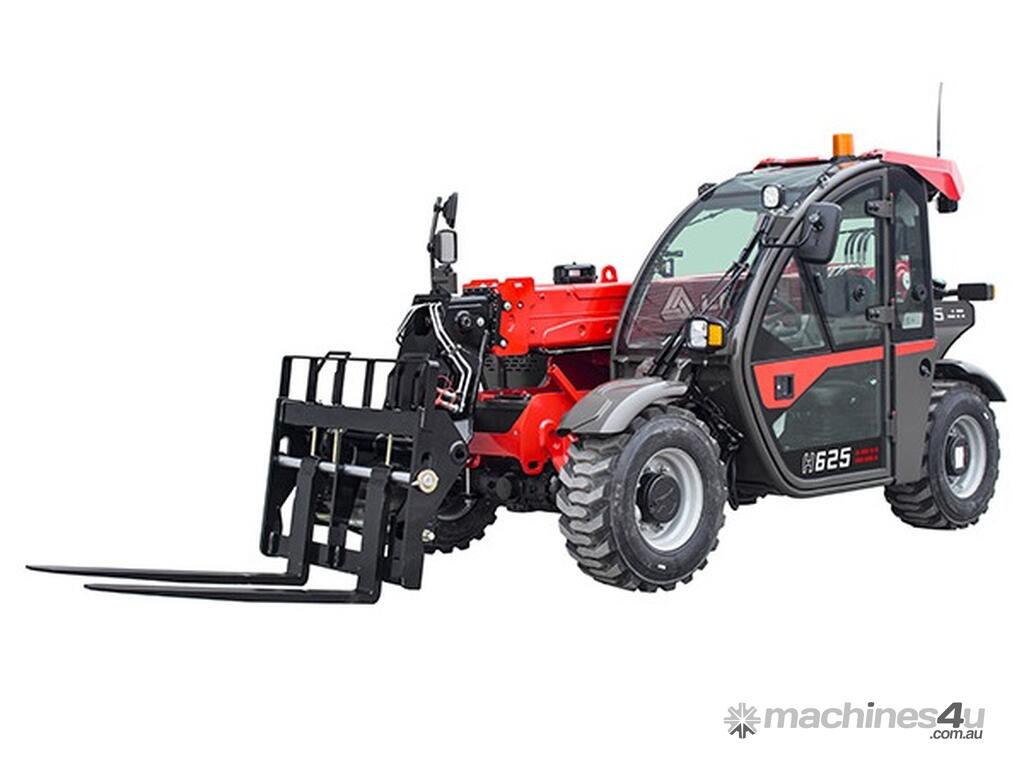

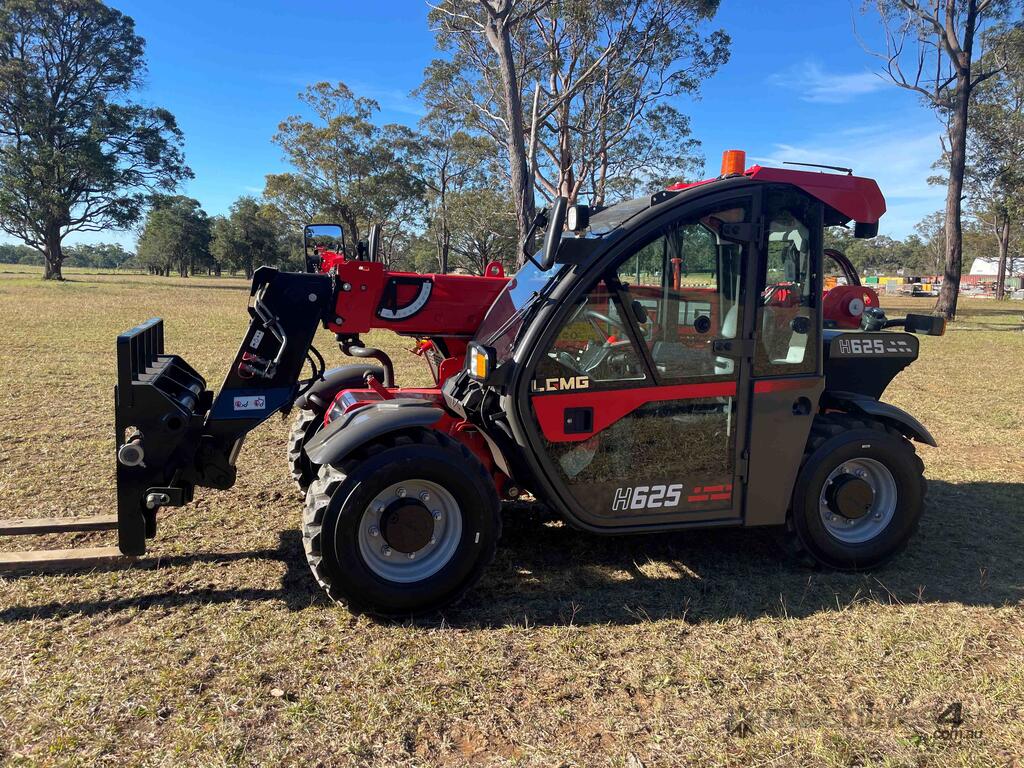

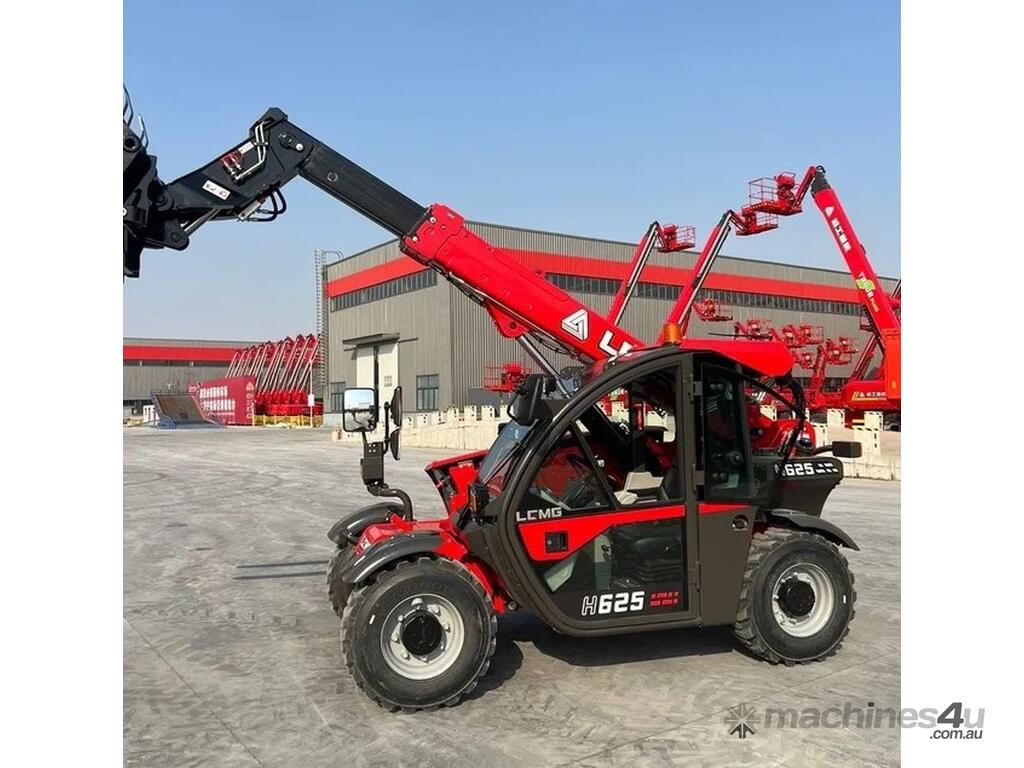

The LGMG H625 is a telehandler with a capacity of 2500kg and a maximum lifting height of 5.85 meters.
It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.

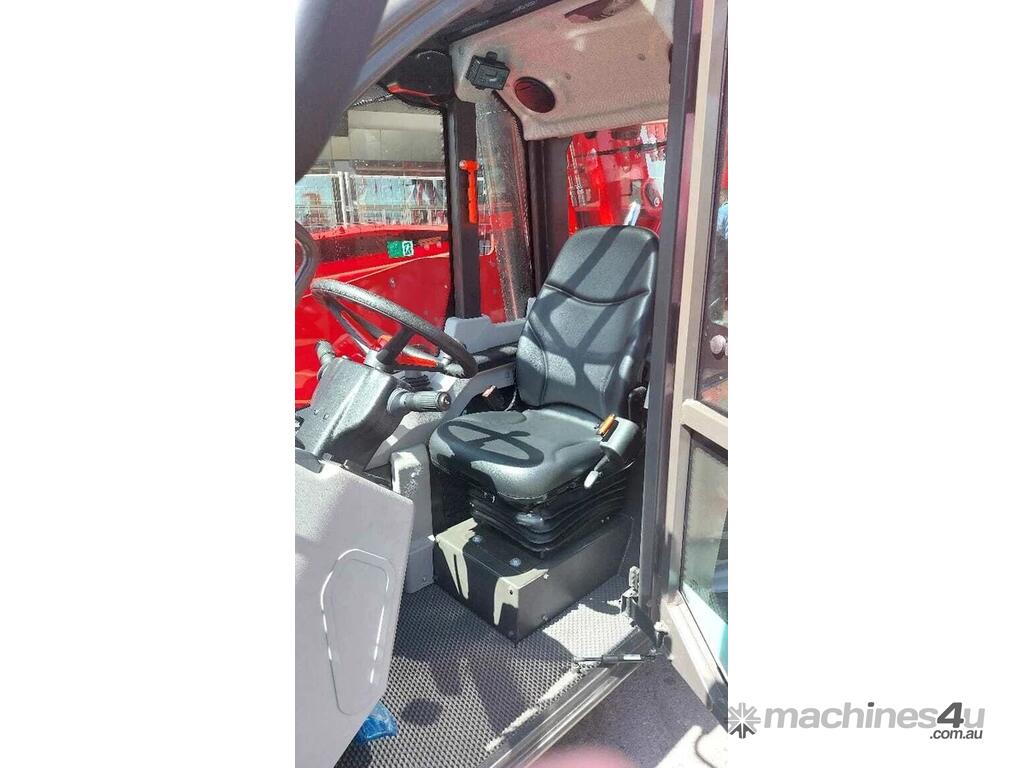

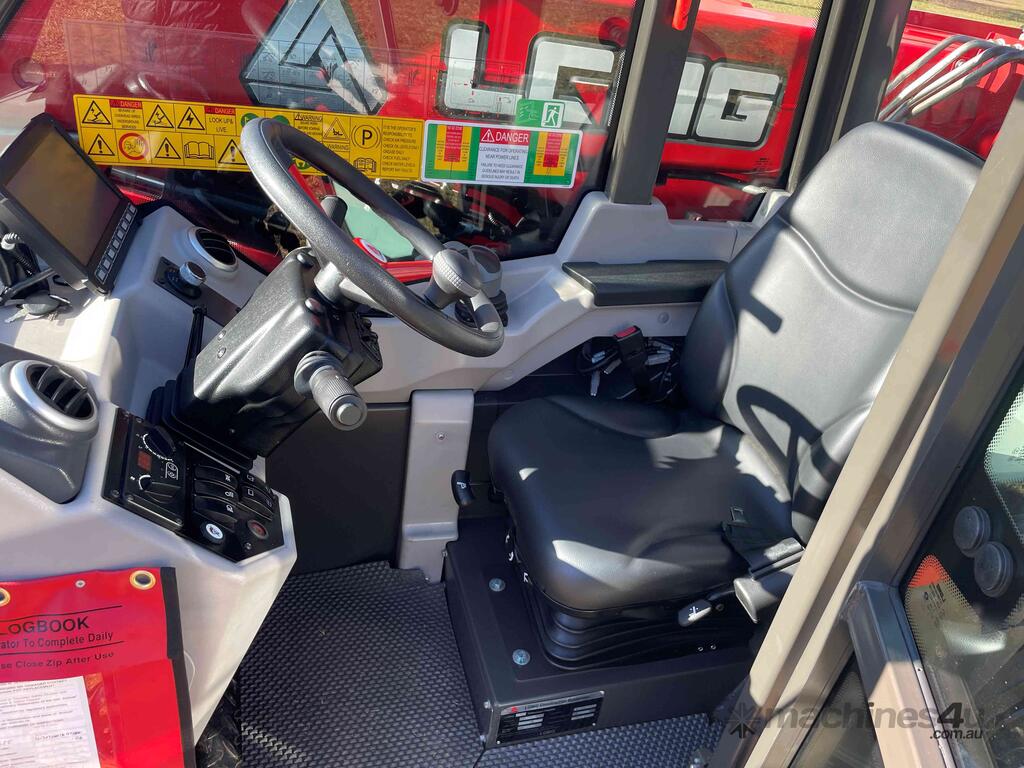

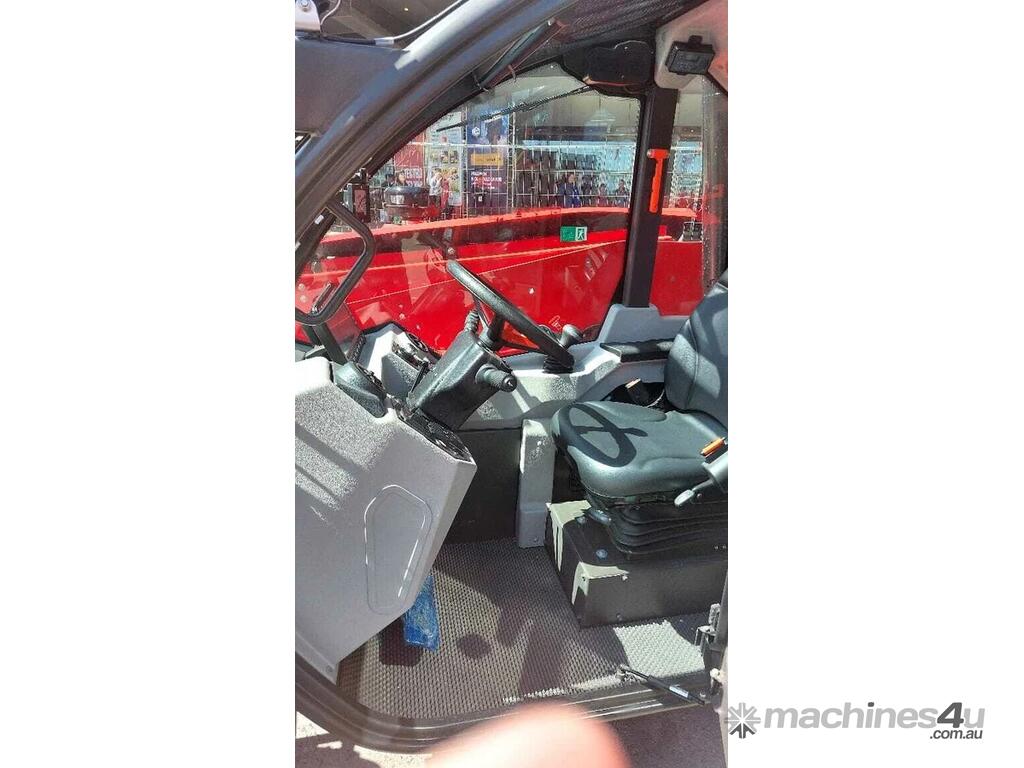

The H625 prioritizes driver safety through the utilization of a FOPScab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.
H625

Measurements
A-Max. Lifting Height 5.85m
Max. Outreach 3.41m
B-Overall Lenth 3.94m
C-Overall Width 1.83m
D-Overall Height 1.96m
E-Wheelbase 2.3m
F-Wheel Track 1.49m
Ground Clearance 0.24m

Productivity

Max. Capacity 2500 kg
Gradebility-Unladen 45%
Min.Turning Radius 3.36 m
Tilt Angle ±5°
Drive/Steering Mode 4 Wheel Drive / 4 Wheel Steer
Primary Boom Ascending Time 4-10 s
Primary Boom Descending Time 4-10 s
Boom Extending Time 4-10 s
Boom retracting Time 4-10 s
Forward-First Gear Travel Speed 9 km/h
Forward-Second Gear Travel Speed 24.9 km/h
Backward-First Gear Travel Speed 9 km/h
Backward-Second Gear Travel Speed 24.9 km/h
Braking Multiple-disk brake with oil bath on front and rear axles
Max. Braking Distance-Unladen ?5m(20km/h)
Standard Tyres 12-16.5-12-TL

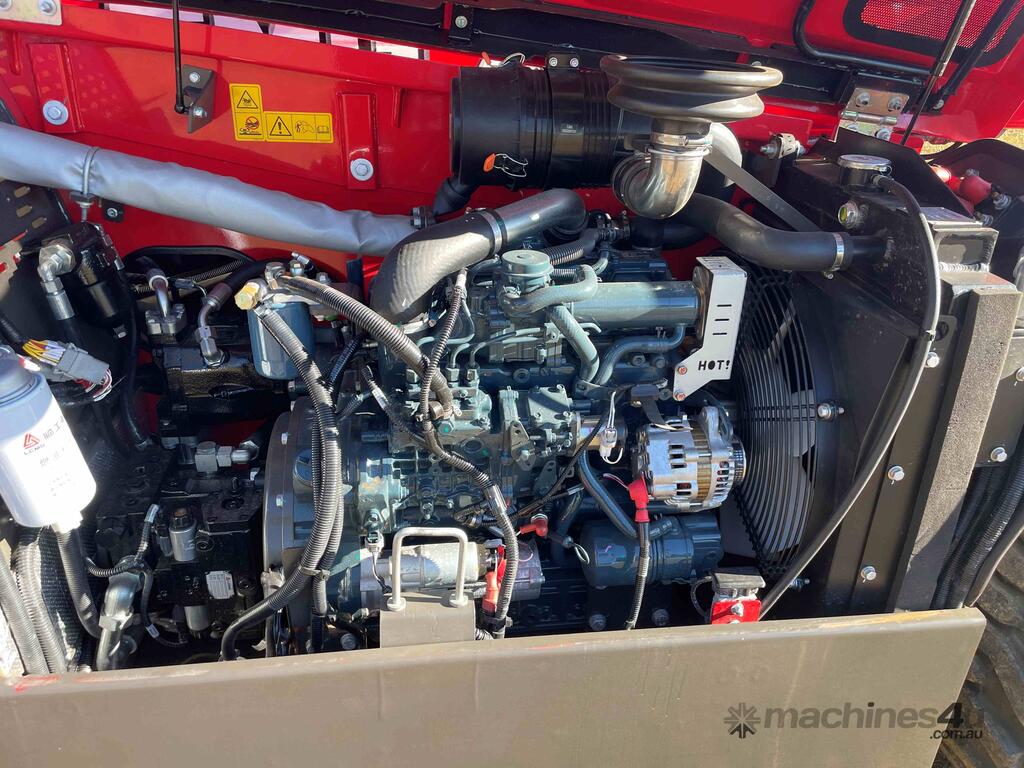

Power Kubota Diesel Engine
Rated Power 54.6 kW
Max. Torque 261.1 N.m
Displacement 3331 ml

Tank Capacities

Hydraulic Oil Capacity 75L
Fuel Tank Capacity 63L

Machine Weight 5100 kg
