Telehandler - Telescopic Material Handler - 3.0T 7m Lift Height 4WD LGMG

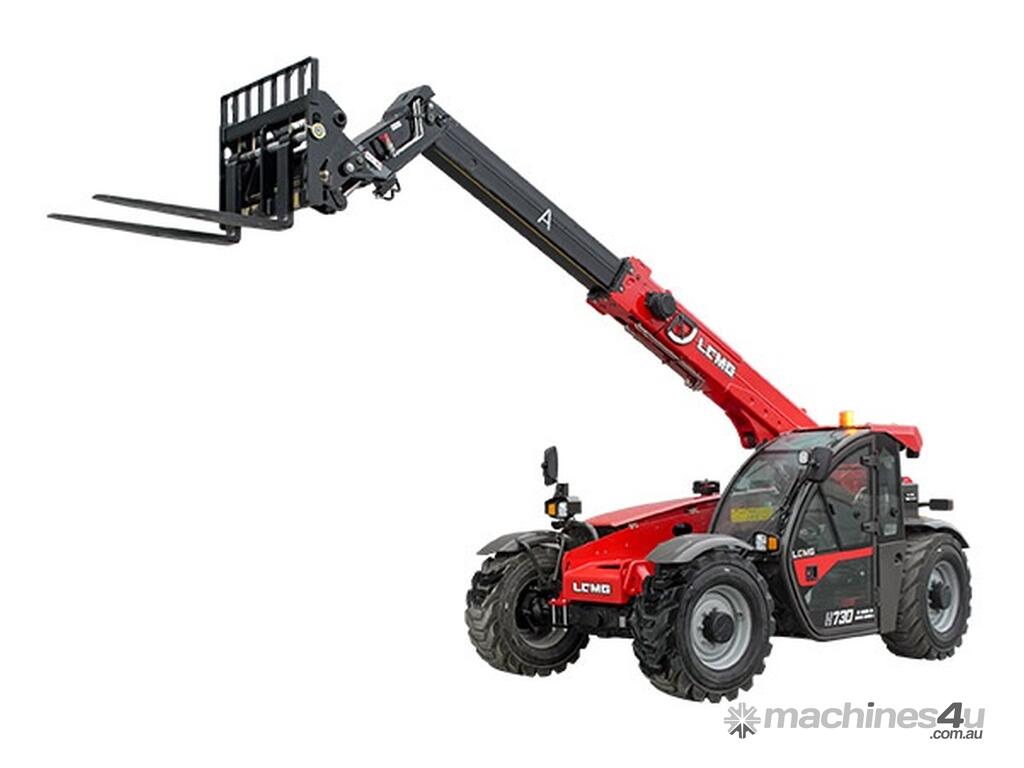

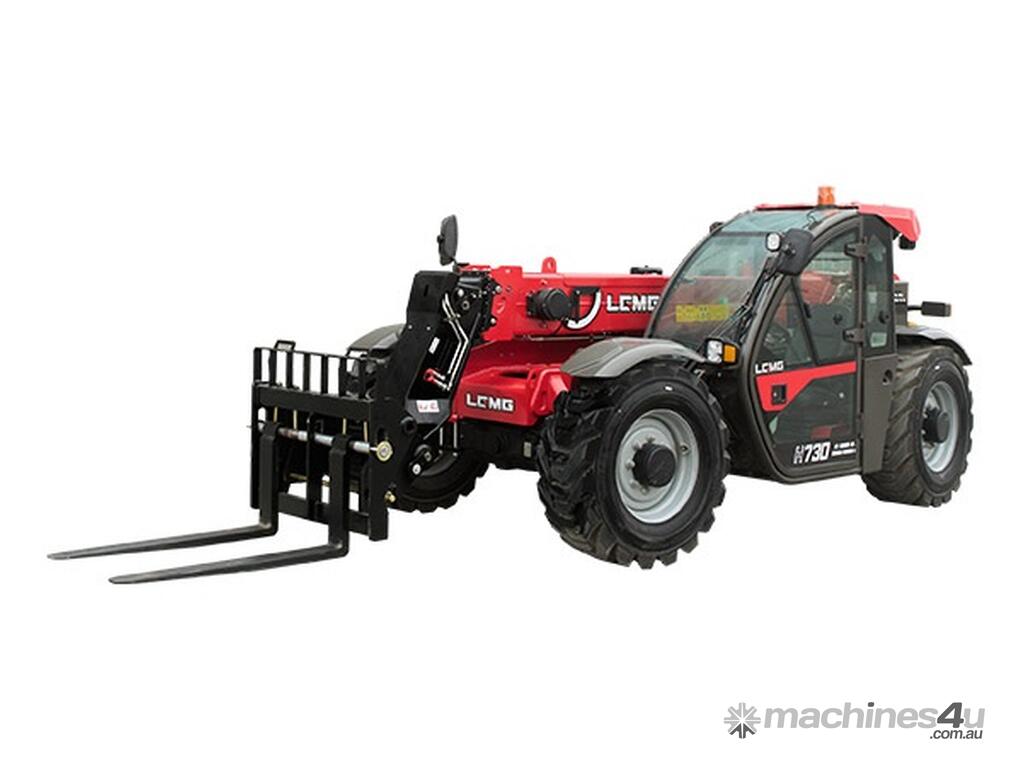

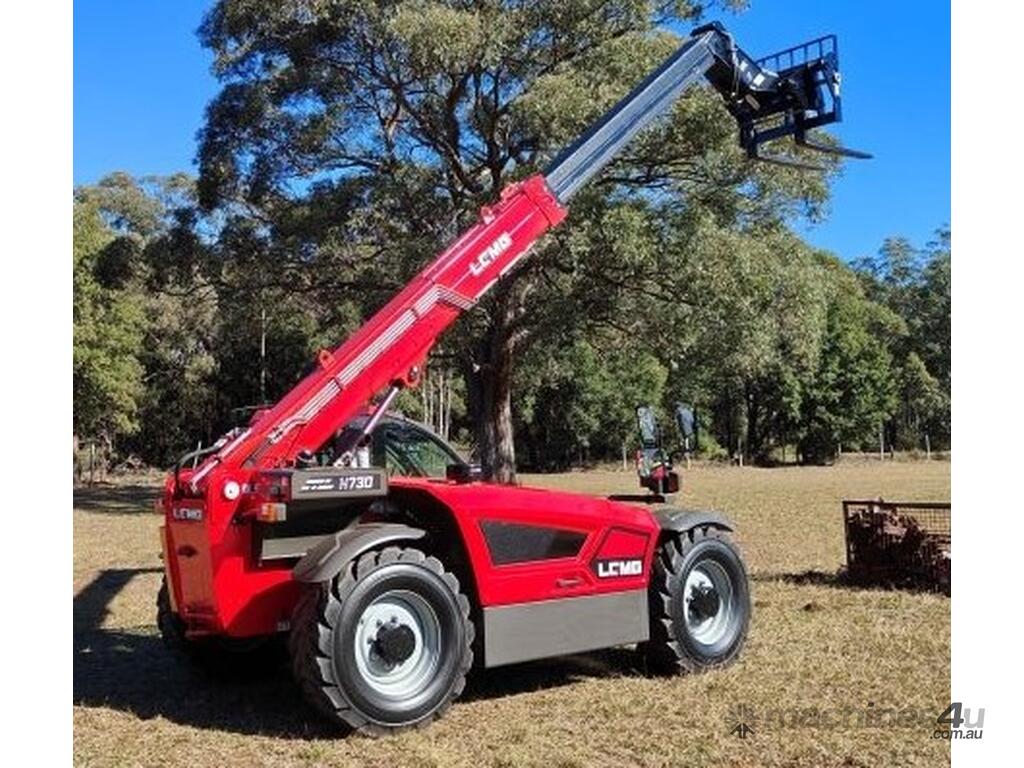

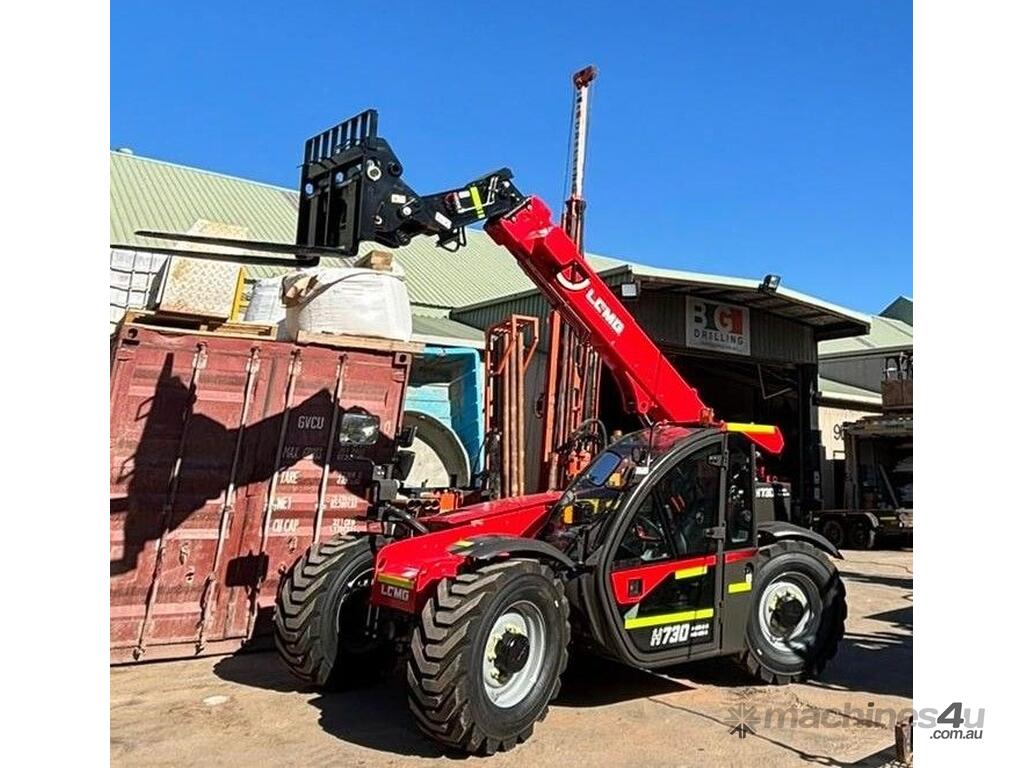

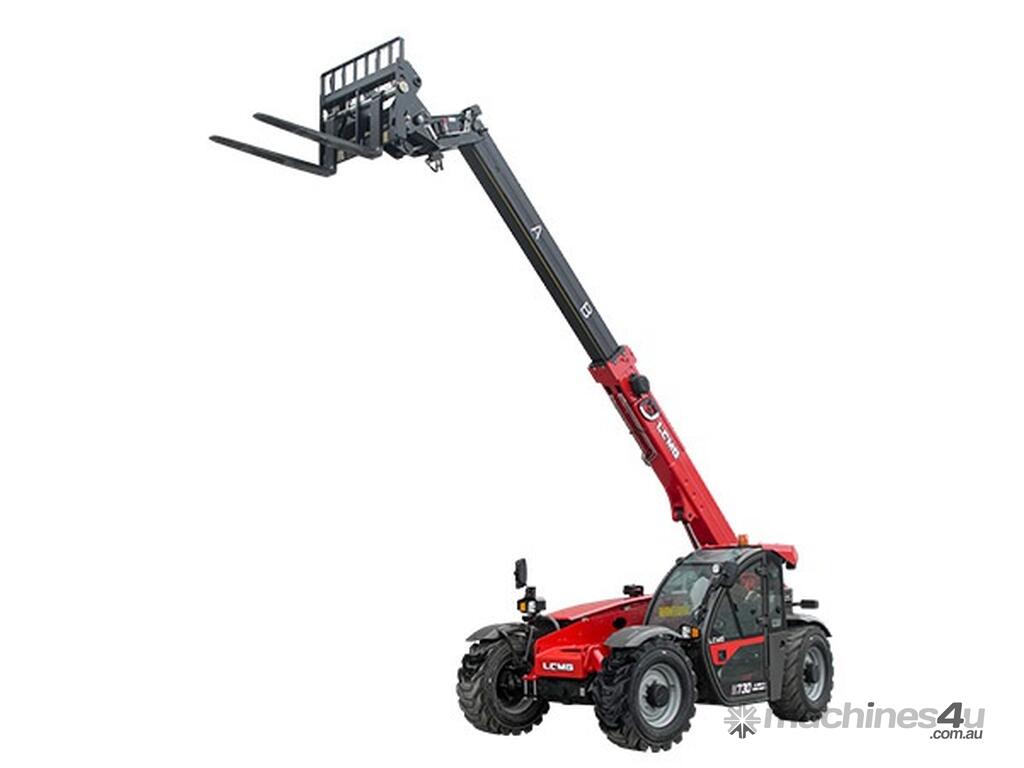

The LGMG H730 is a telehandler with a capacity of 3000kg and a maximum lifting height of 6.9 meters.

It incorporates hydrostatic transmission, a two-speed transfer case, robust power, and exceptional transmission efficiency. With three distinct steering modes, it can be tailored to suit the requirements of operations in confined spaces.

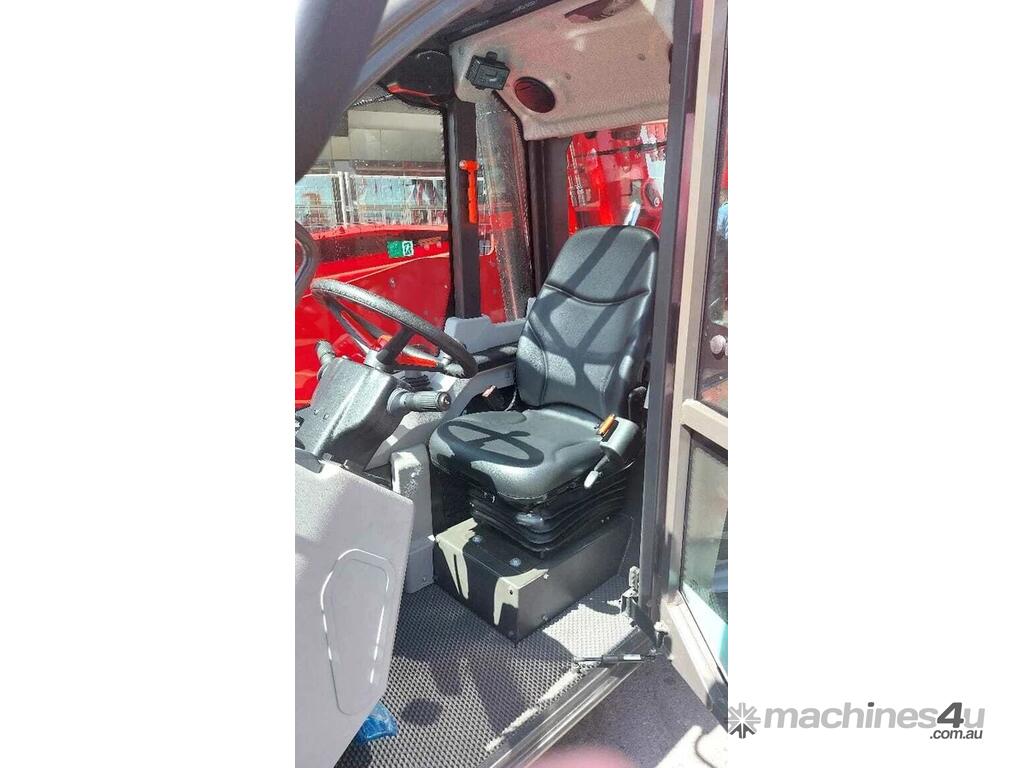

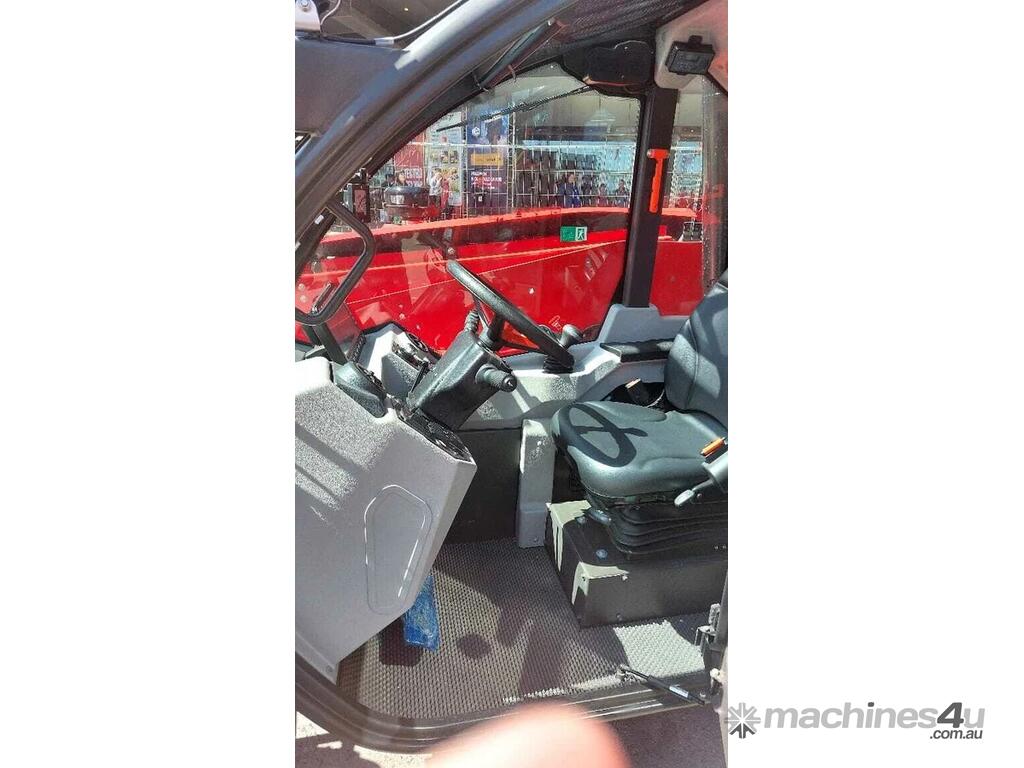

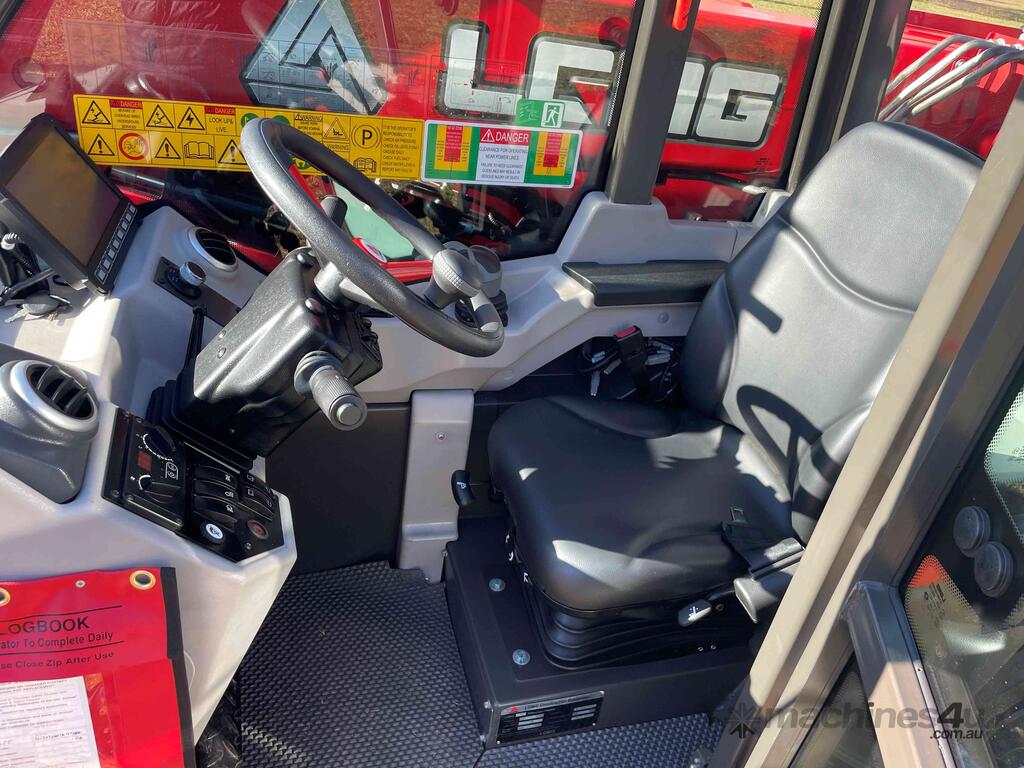

The H730 prioritizes driver safety through the utilization of a FOPScab. Furthermore, it offers extensive adaptability, accommodating a wide range of attachments for tasks such as forklifting, lifting, loading, grabbing, clamping, manned operations, and more. This versatility transforms it into a true multi-purpose machine.

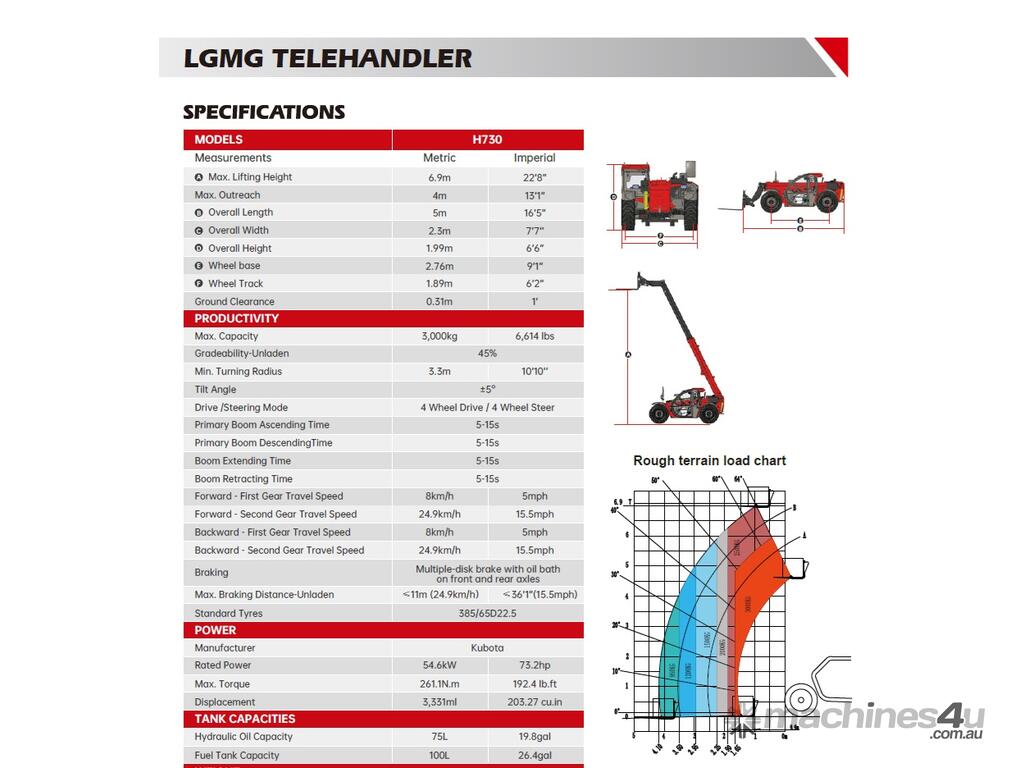

Measurements H730
A-Max. Lifting Height 6.9m
Max. Outreach 4m
B-Overall Length 5m
C-Overall Width 2.3m
D-Overall Height 1.99m
E-Wheelbase 2.76m
F-Wheel Track 1.89m
Ground Clearance 0.31m

Productivity

Max. Capacity 3000 kg
Gradebility-Unladen 45%
Min.Turning Radius 3.3 m
Tilt Angle ±5°
Drive/Steering Mode 4 Wheel Drive / 4 Wheel Steer
Primary Boom Ascending Time 5-15 s
Primary Boom Descending Time 5-15 s
Boom Extending Time 5-15 s
Boom retracting Time 5-15 s
Forward-First Gear Travel Speed 8 km/h
Forward-Second Gear Travel Speed 24.9 km/h
Backward-First Gear Travel Speed 8 km/h
Backward-Second Gear Travel Speed 24.9 km/h
Braking Multiple-disk brake with oil bath on front and rear axles
Max. Braking Distance-Unladen ?11m(24.9km/h)
Standard Tyres 385/65D22.5

Power

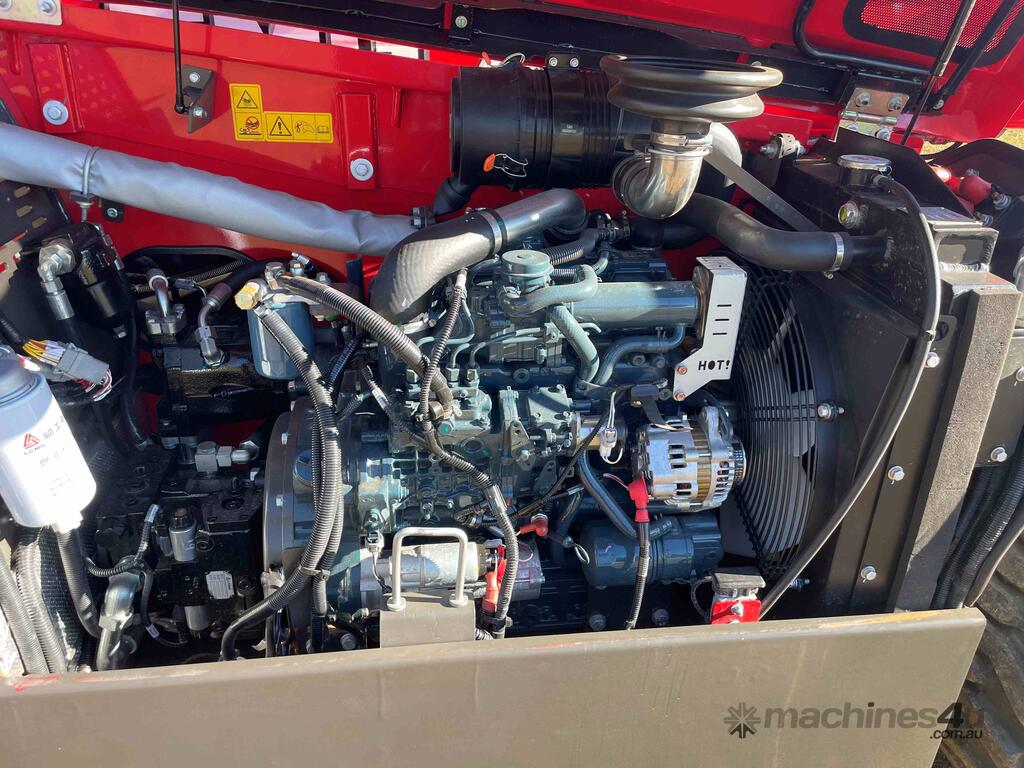

Manufacturer Kubota Diesel Engine
Rated Power 54.6 kW
Max. Torque 261.1 N.m
Displacement 3331 ml

Tank Capacities

Hydraulic Oil Capacity 75L
Fuel Tank Capacity 100L

Weight

Machine Weight 6900 kg
