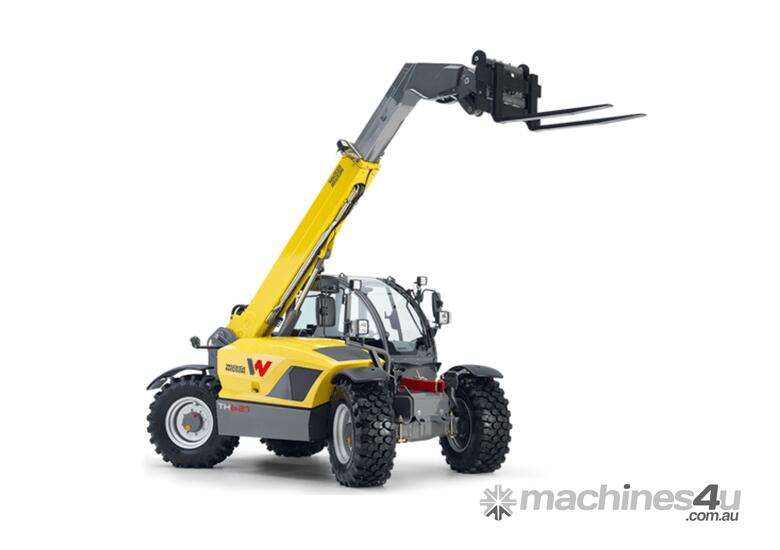

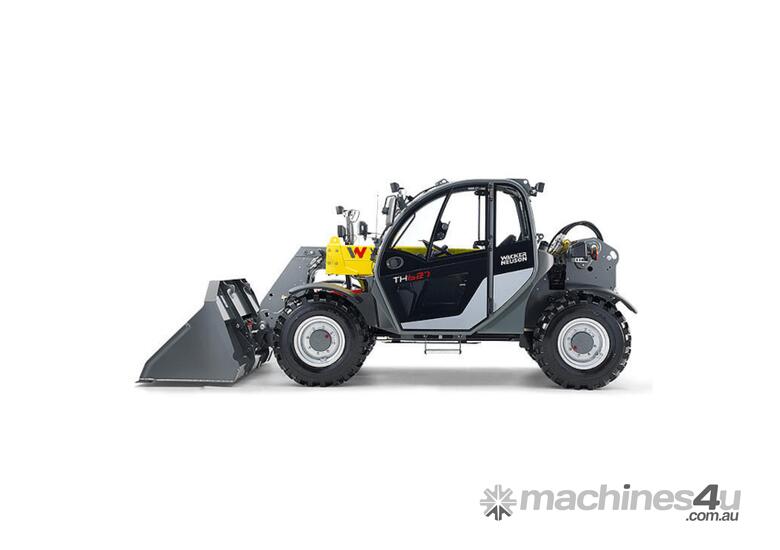

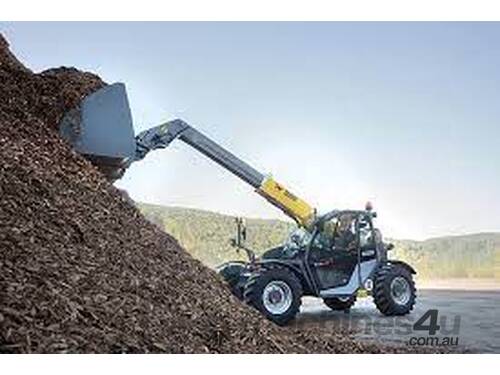

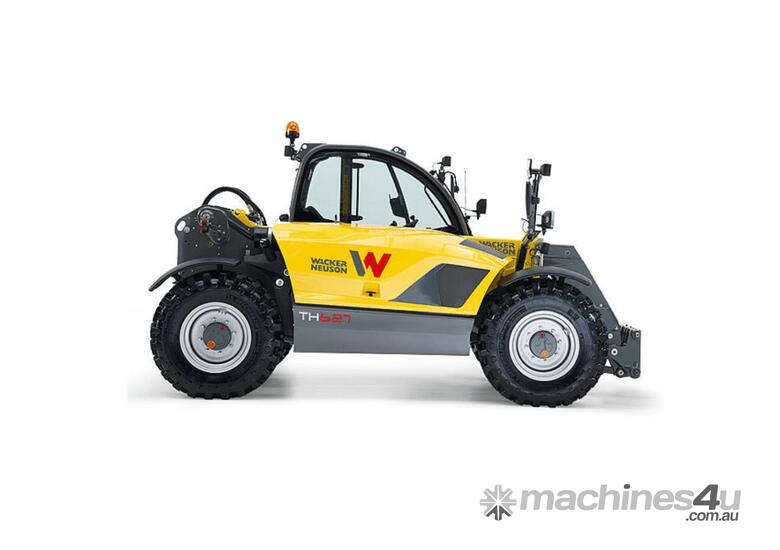

The TH627 is the optimum solution for lifting heights around 6 meters. It combines agile maneuverability with powerful performance and remains in a stable position even with extreme loadings.
Exhaust emissions stage IIIB by state-of-the-art engine technology
Diesel particulate filter optionally available
Equipped as standard with three types of steering: all-wheel steering, front axle steering and crab steering
Comfortable operation thanks to a load-independent flow distribution of hydraulics and an electronically controlled joystick
Convenient bucket auto-return function for even faster operation (available as an option)
Two cabin heigths available
The lower cabin is ideal for low clearance heights.
The elevated cabin provides even better all-around visibility and ground clearance.
OPERATING DATA
Lift height max. : 5,730 mm
Weight : 5,000 kg
Turning radius : 3,670 mm
ENGINE / MOTOR
Engine / Motor manufacturer : Kohler
Engine performance : 55.4 kW
Displacement : 2,482 cm³
Emission standards stage : IIIB
Sound emission (at operator’s ear) : 80 dB(A)
POWER TRANSMISSION
Traction drive : hydrostatic
Speed (standard) : 0 – 20 km/h
Speed (optional) : 0 – 30 km/h
Axles : planetary drive steering axle
Total pivoting angle : 20 °
STEERING AND OPERATING HYDRAULICS
Steering angle : 2×38 °
Duty pump : gear pump with flow sharing
Flow rate : 90 l/min
Pressure : 240 bar
KINEMATICS
Bucket capacity : 0.85 m³
Total rotation angle : 132 °
Payload at max. lift height : 2,700 kg
Payload at max. reach : 1,000 kg
Payload max. : 2,700 kg
Range max. : 3,156 mm
FILLING CAPACITIES
Fuel tank capacity : 100 l
Hydraulic oil tank : 75 l
TH627 Standard components
Cab
ROPS/FOPS tested, sound proofed, low-vibration, comfort cabin with 360° all-round visibility and colored full-glazing
One-piece front windscreen without cross bar for optimum visibility
Rear window can be opened
Side window can be opened and fixed in two positions
Multifunctional joystick with integrated direction switch and night design (up to 13 functions)
Windshield wiper in front and rear
Rearview mirrors left + right
Door switch for interior cab lighting
Roller sunblind
Coat hook
Overload warning system
Color-coded switch for hydraulic, electric, driving and safety features
Heater with 3-speed fan, 4 air vents and defroster nozzles, dust filter
12V plug receptacle
Stowage facilities
Bottle holder
1 halogen work light in front, 1 halogen work light in rear
STVZO-lighting
Hanging pedals and removable floor mat for quick and easy cleaning
Work hydraulics:
Gear pump with load-pressure independent flow distribution
3rd control circuit and telescoping function with proportional control
Continuous function for 3rd control circuit connectable via Keypad
Overload and operator assistance system “Smart Handling” (manual, bucket and stacking mode)
