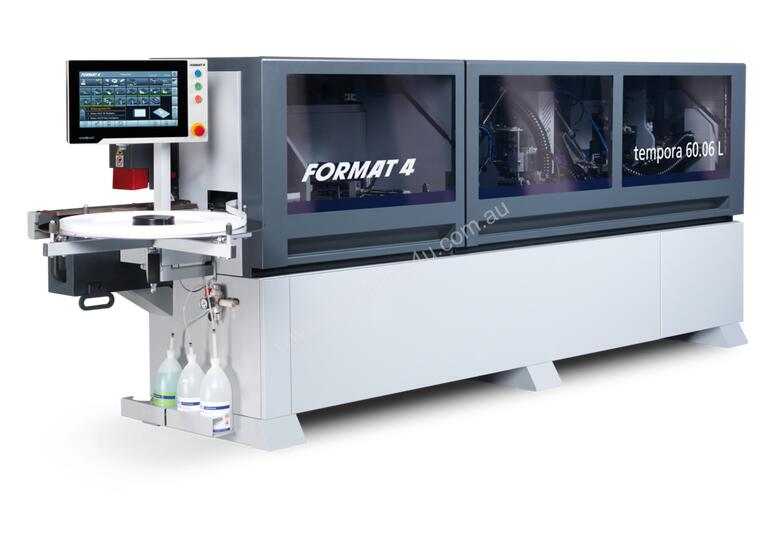

Tempora High-End Edgebander With Corner Rounding and Premilling with CNC Aggregate control

Machine as new and only has setup odometer reading. Machine software not yet activated.

Built May 2019.

FEATURES:
- X-Motion: CNC control of trimmers, radius scrapers to ensure 1/100mm accuracy in settings
- Premilling Unit with twin diamond cutters
- TWIN-MOTOR CORNER ROUNDING to ensure the best finish (these mill the corners and the entire edge top and bottom.
- EXCHANGEABLE GLUEPOT - buy another to have different colours and have a dedicated pot for PUR.
- Radius Scraper with CNC control
- Glue / Flat Scraper
- Buffer Unit with Cleaning Agent Spray
- Release Agent Spray (stops glue esp PUR from sticking to top and bottom for workpiece)
- Lubricant Spray for those softer edge tapes
- Nesting Rollers on Trimmer units and Radius Scrapers
- Infrared Heat Lamp for better glue adhesion in colder conditions
- LED Lighting Package
- Flush trimmers - 2 motor with automatic bevel trimming

X_MOTION:
This includes a 15 inch touchscreen control
- Maintenance program to ensure machine is looked after by operator
- Visual representation of workpiece finish and aggregate parameters with easy adjustment
- Remote control of machine from another PC or your mobile phone
- Adjustment of aggregates to 1/100th of a mm


OTHER SPECS:
- Work Height: 45mm with premilling or 60mm without
- Edge tape: ABS or strips from 0.3mm to 6.0 mm
- Min workpiece length: 140mm
- 10 m/min feed

LINKS:
.felder-group/en-au/products/edgebanders-c1954/edgebander-tempora-f600-60.06l-p8894

CATALOGUE:
fms.felder-group/FG/Gesamtkatalog%202020/Gesamtkatalog2020-HC-EUK/304/
